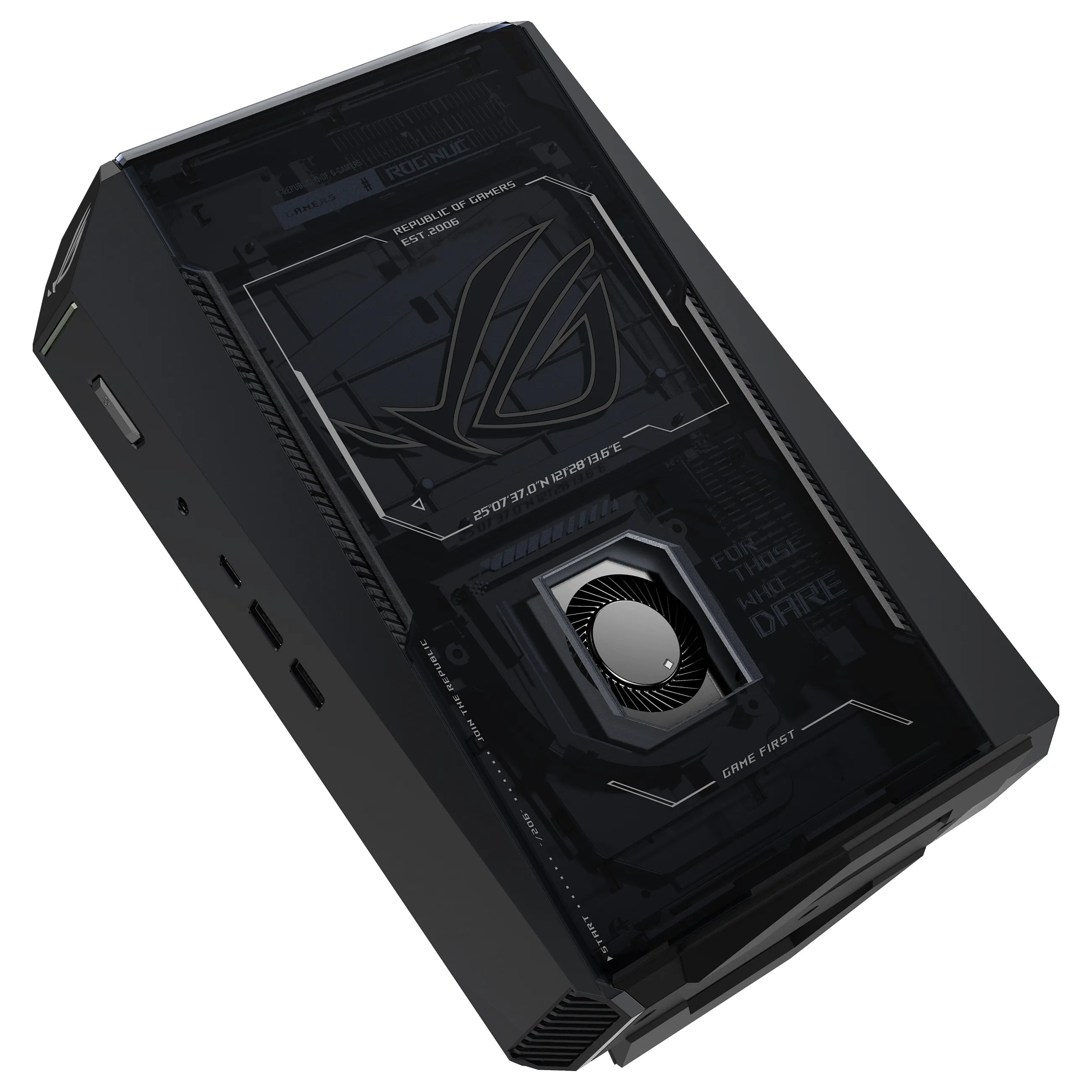

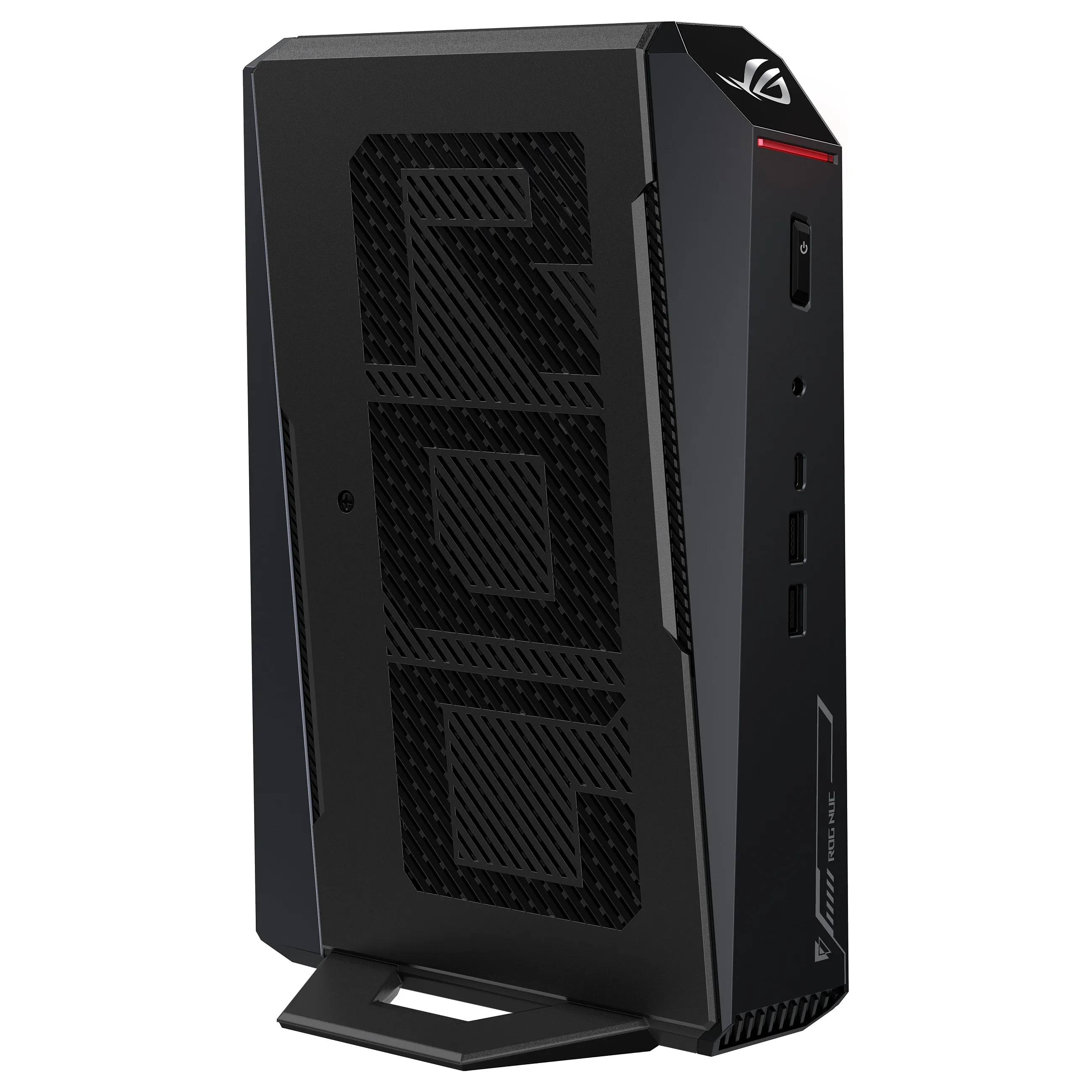

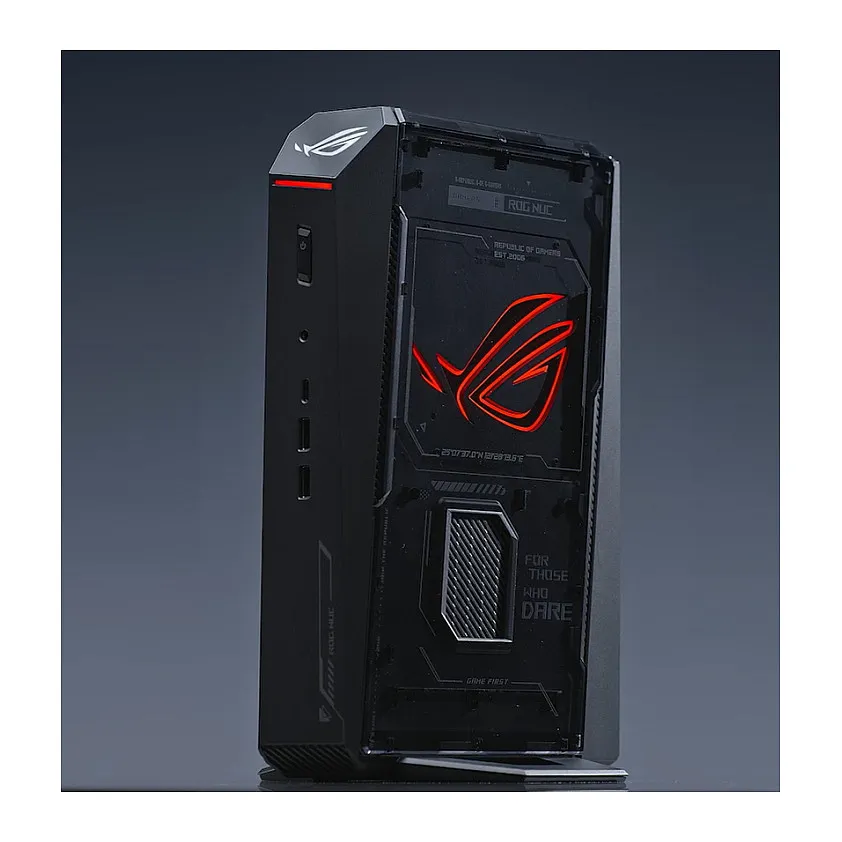

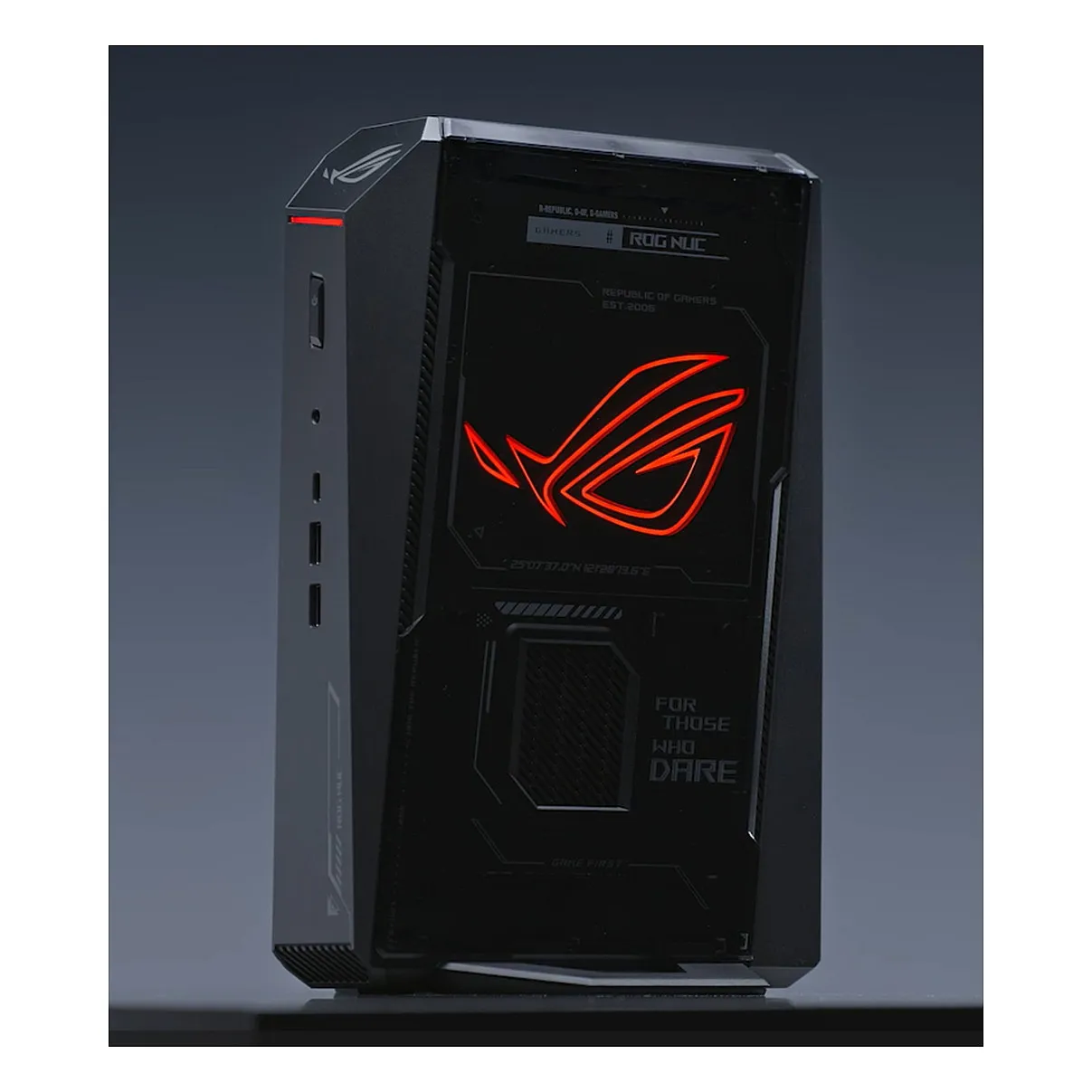

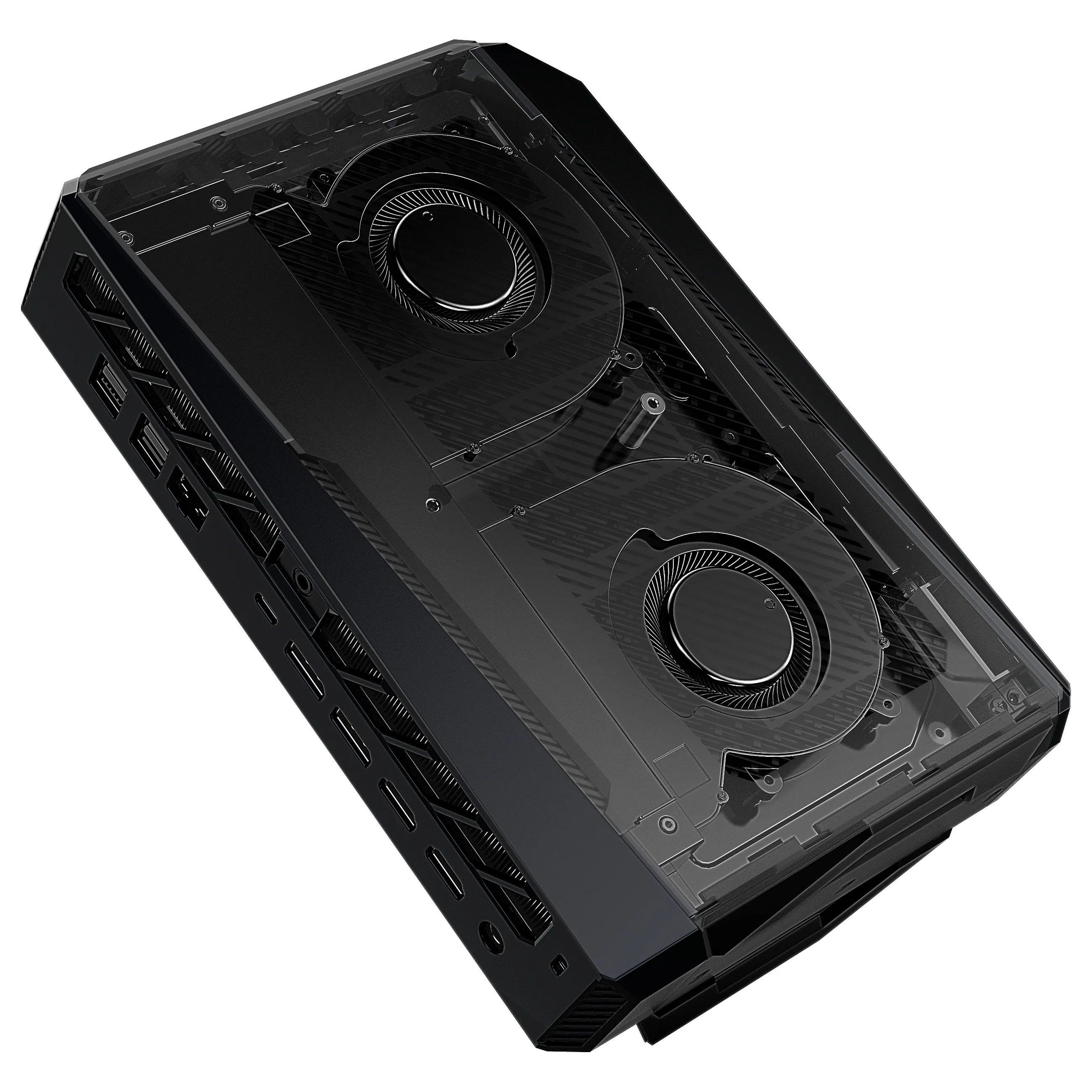

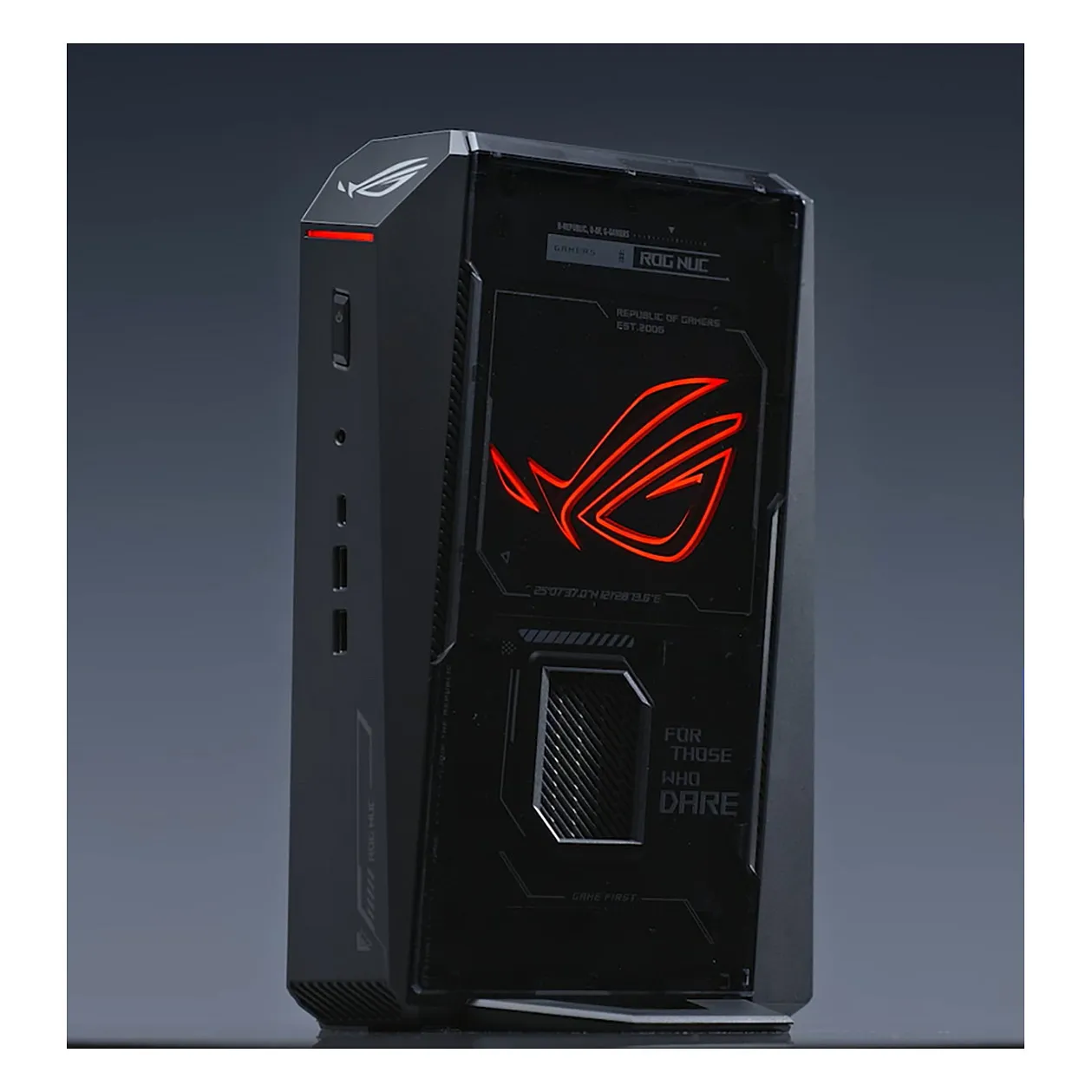

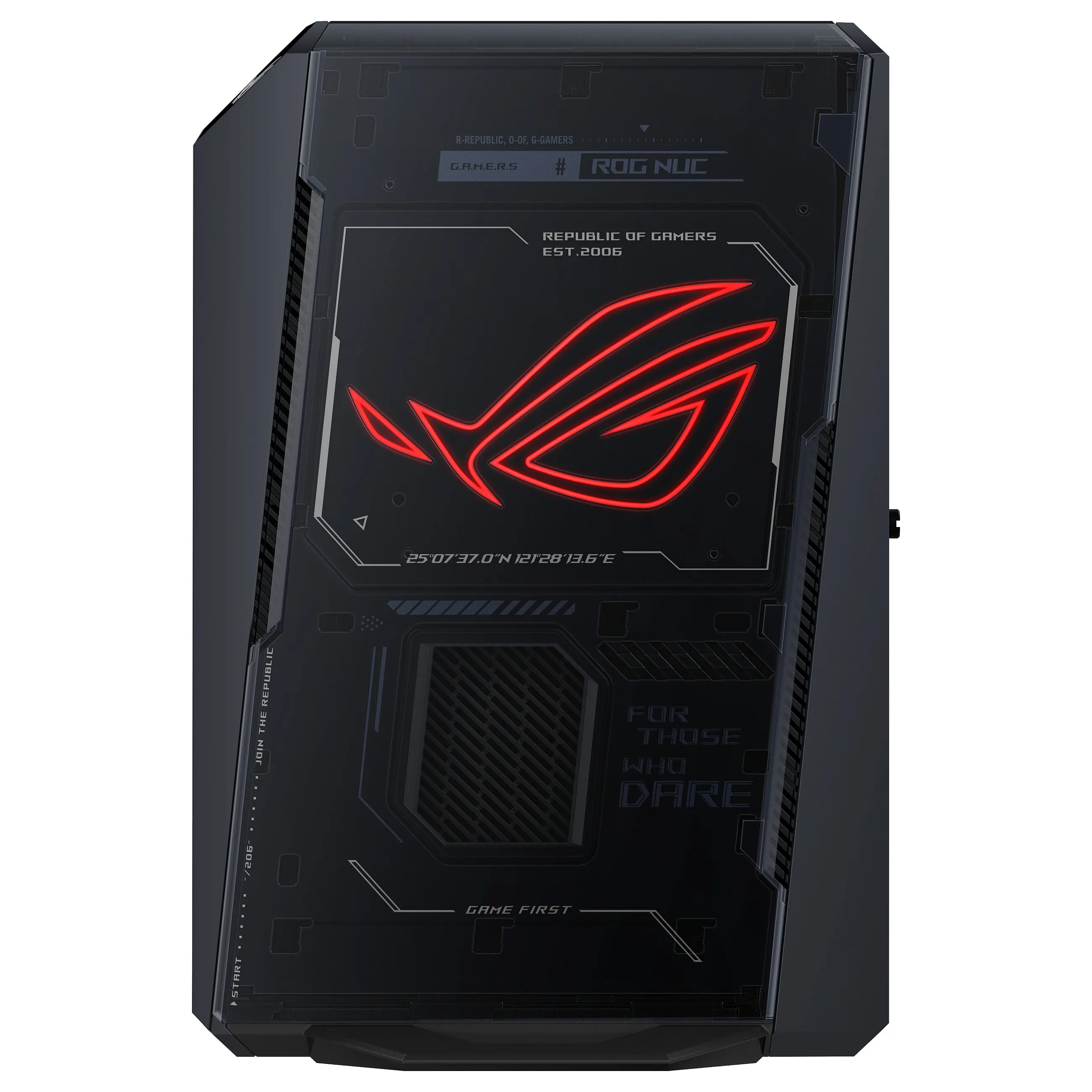

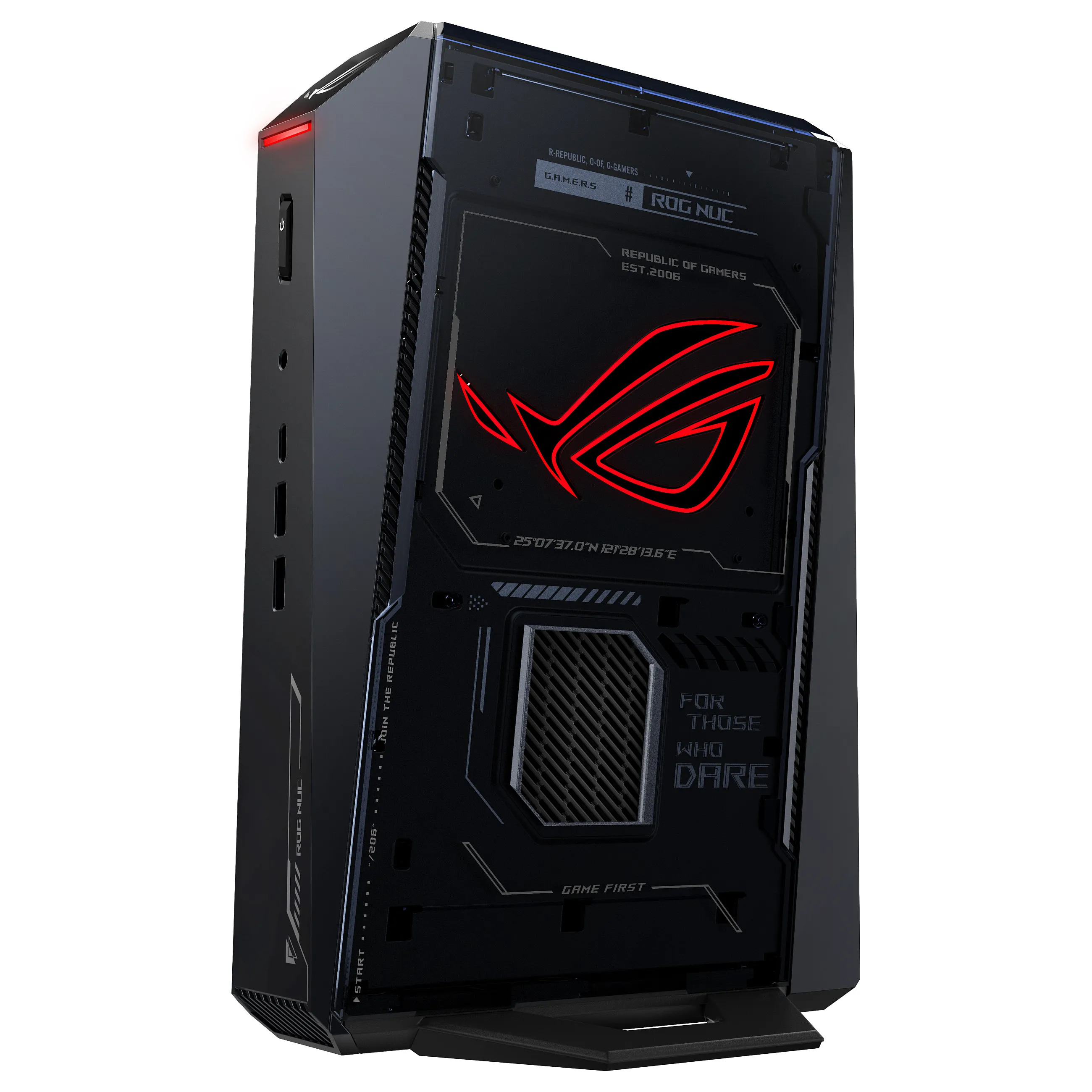

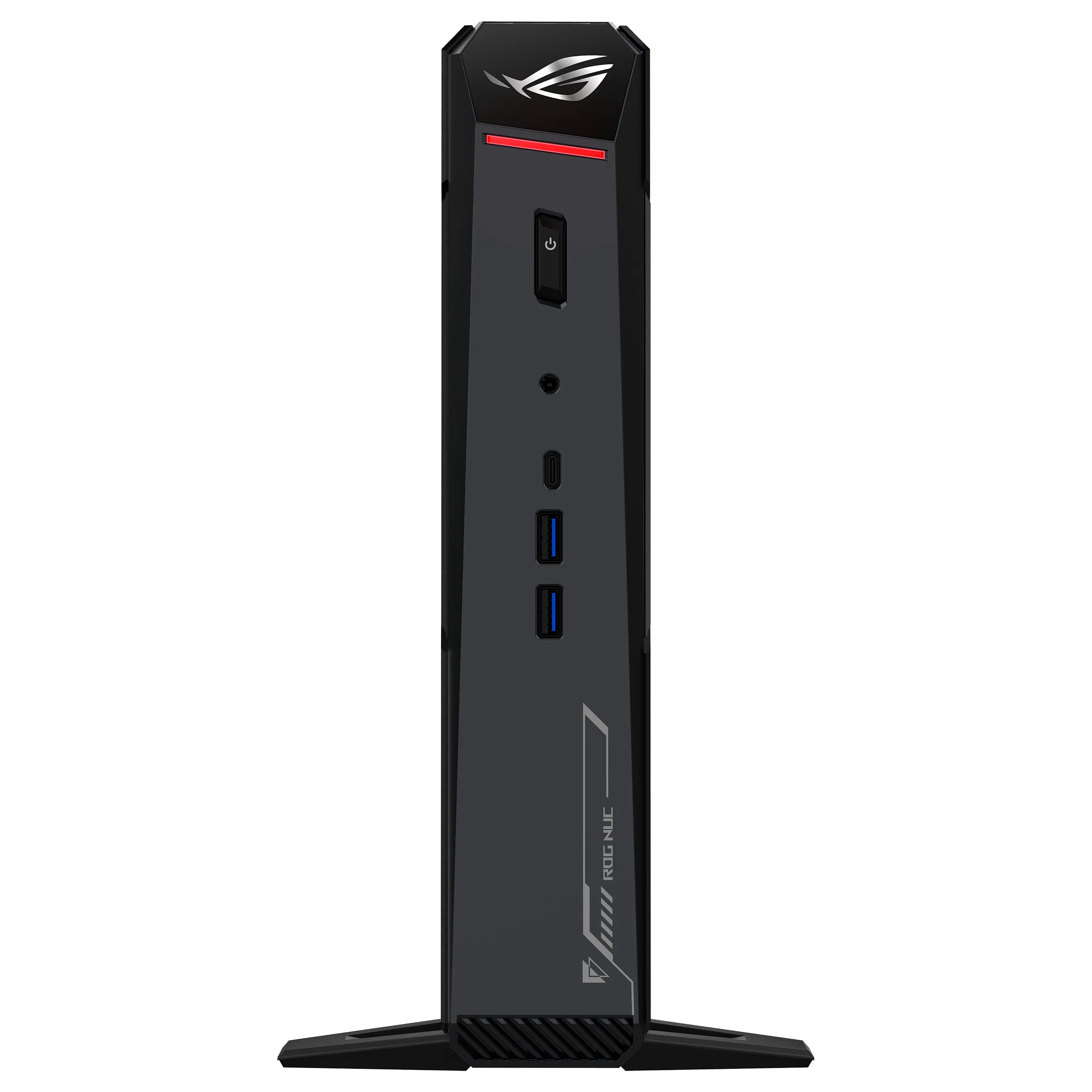

ASUS ROG NUC RNUC15JNK9X489A2

Processor
Processor manufacturer: Intel
Processor family: Intel Core Ultra 9
Processor generation: Intel Core Ultra (Series 2)
Processor model: 275HX
Processor cores: 24
Processor threads: 24
Processor boost frequency: 5.4 GHz
Performance cores: 8
Efficient cores: 16
Performance-core Max Turbo Frequency: 5.4 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core base frequency: 2.7 GHz
Efficient-core base frequency: 2.1 GHz
Processor cache: 36 MB
Processor base power: 55 W
Maximum turbo power: 160 W
Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 36 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 8 TOPs
Memory
Internal memory: 32 GB
Maximum internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x SO-DIMM
Memory clock speed: 6400 MHz
Supported memory types: DDR5-SDRAM
Storage
Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Compatible memory cards: SD
Graphics
Feature: Discrete graphics card
Discrete GPU manufacturer: NVIDIA
Feature: On-board graphics card
Discrete graphics card model: NVIDIA GeForce RTX 5070
Discrete graphics memory type: GDDR7
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
Performance
Market positioning: Gaming
Product type: Mini PC
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 2500 Mbit/s
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 7 BE200
Feature: Bluetooth
Bluetooth version: 5.4

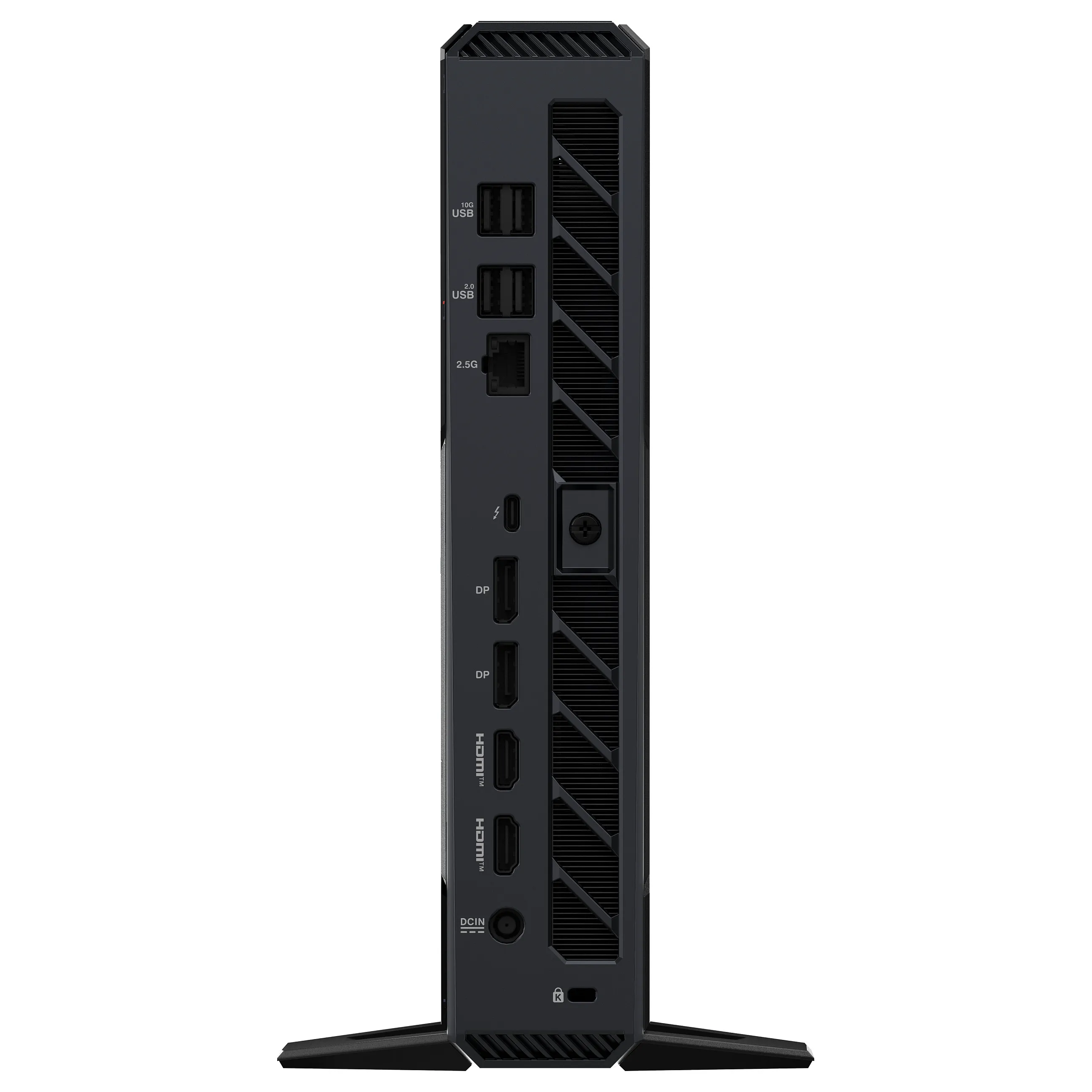

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: Intel® Thunderbolt 4
Thunderbolt 4 ports quantity: 1
DisplayPorts quantity: 2
HDMI ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Power
Power supply type: External AC adapter
Design
Chassis type: Mini PC
Product colour: Black
Software
Operating system architecture: 64-bit
Operating system installed: Windows 11 Home
Weight & dimensions
Width: 282.4 mm
Depth: 187.7 mm
Height: 56.5 mm
Weight: 3.12 kg
Packaging data
Package width: 370 mm
Package depth: 258 mm
Package height: 190 mm
Package weight: 5.6 kg
Packaging content
Cables included: Power
