ASUS ROG MAXIMUS Z890 EXTREME. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: Intel

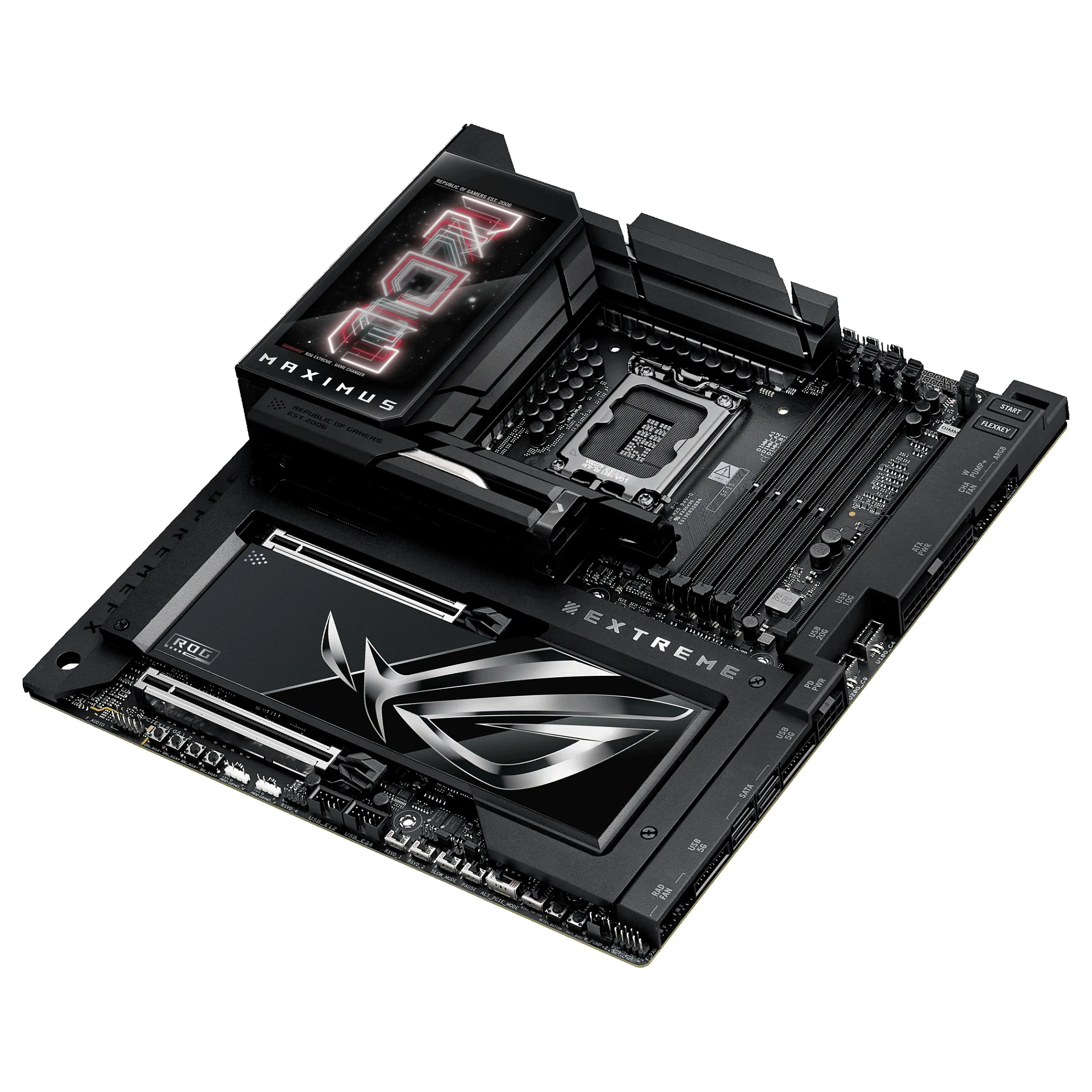

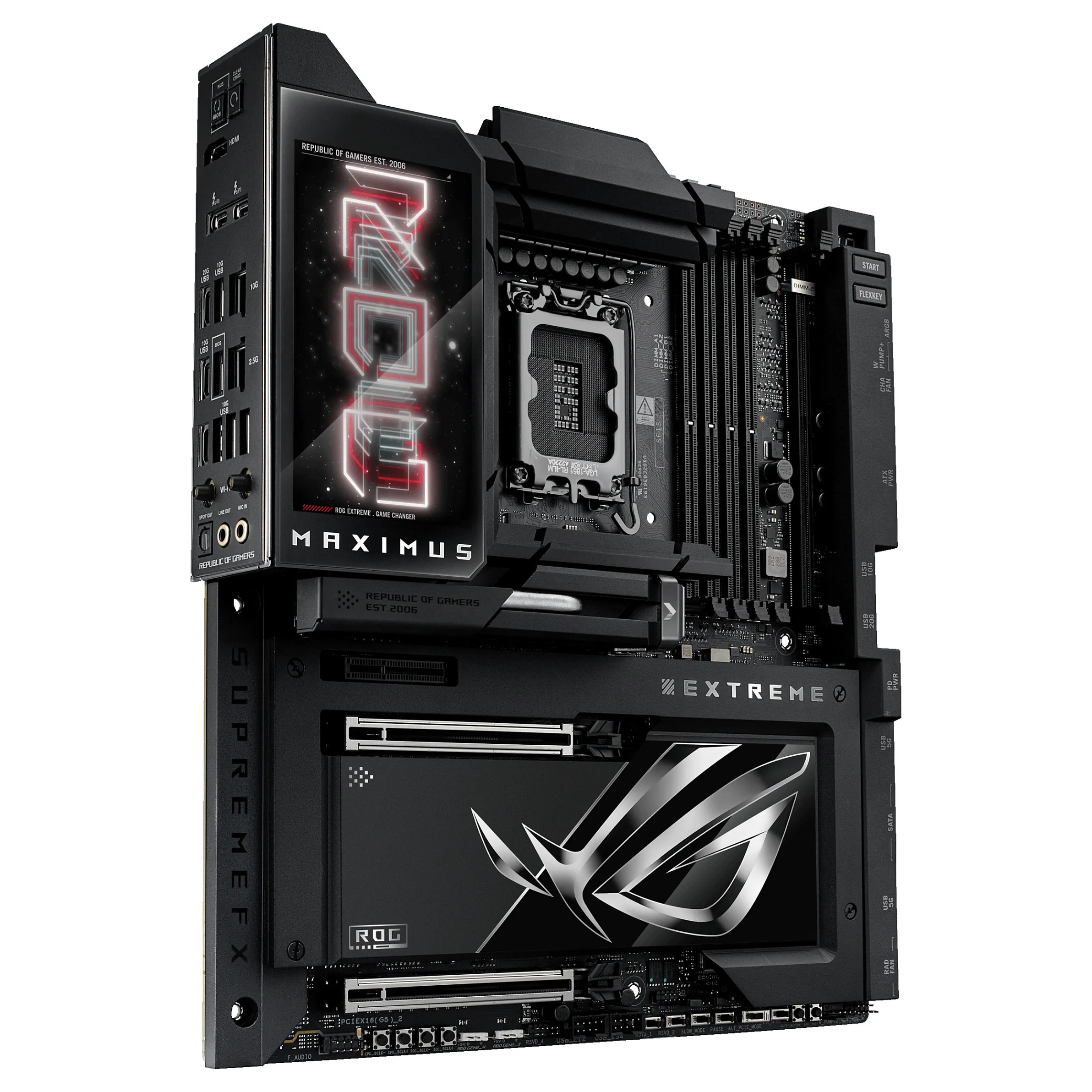

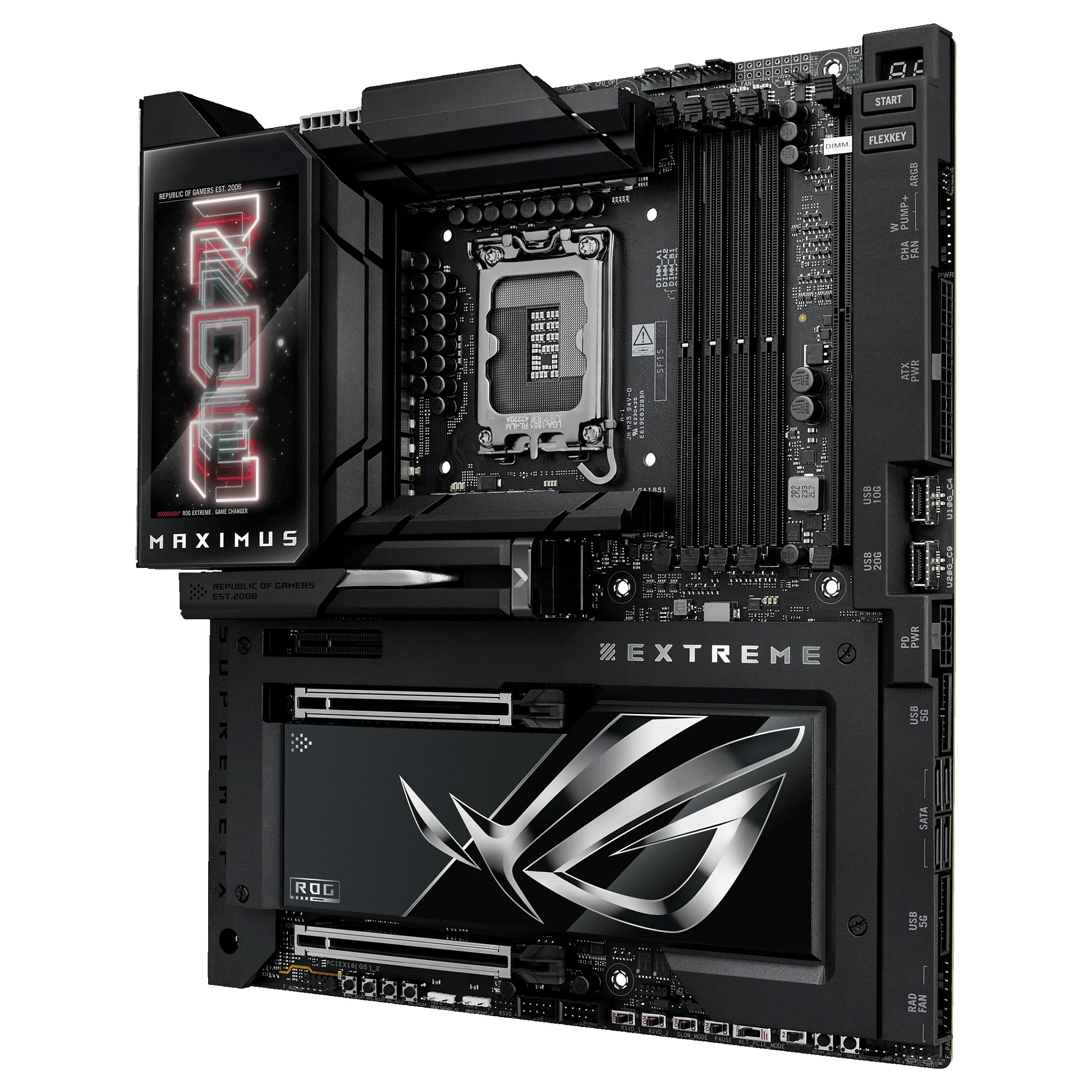

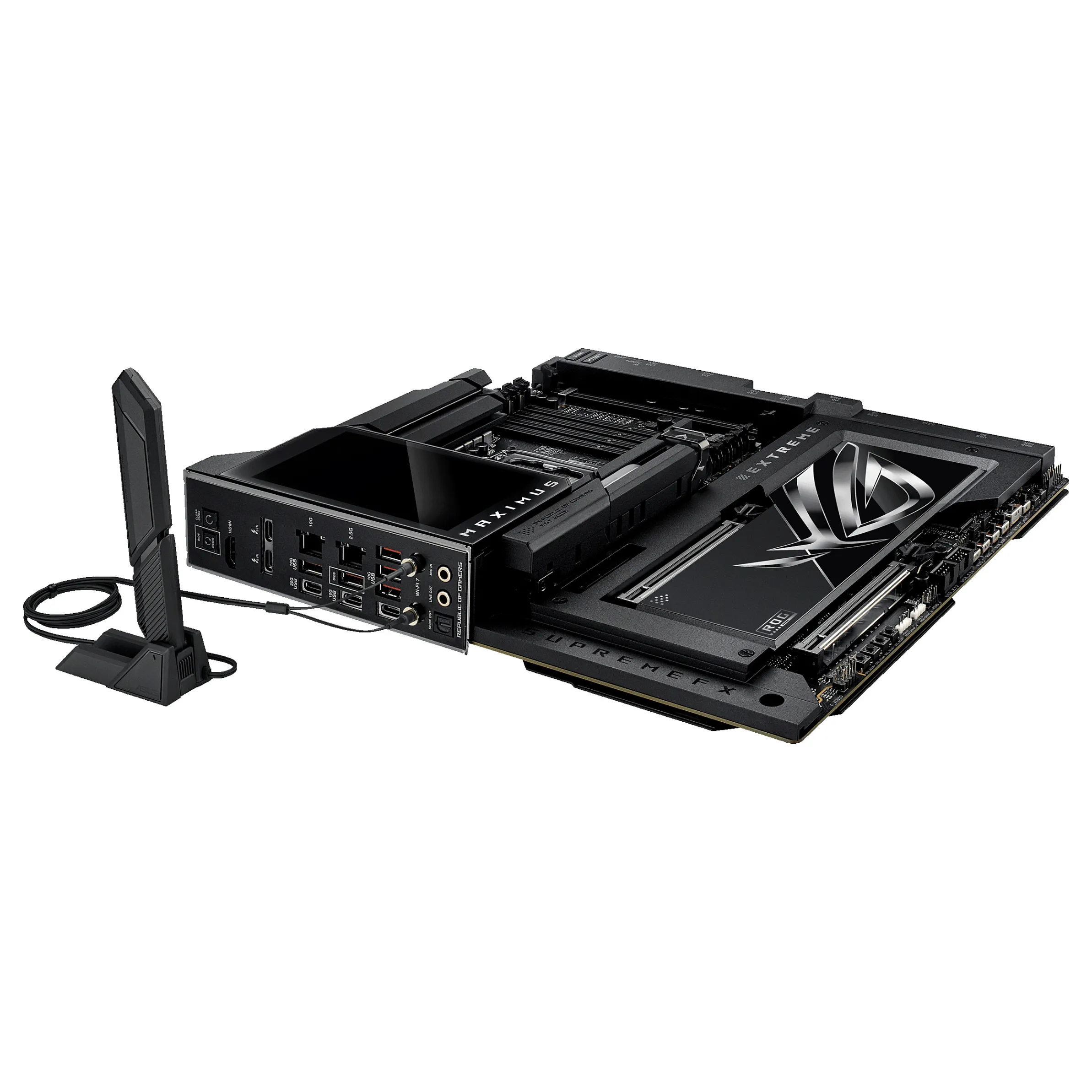

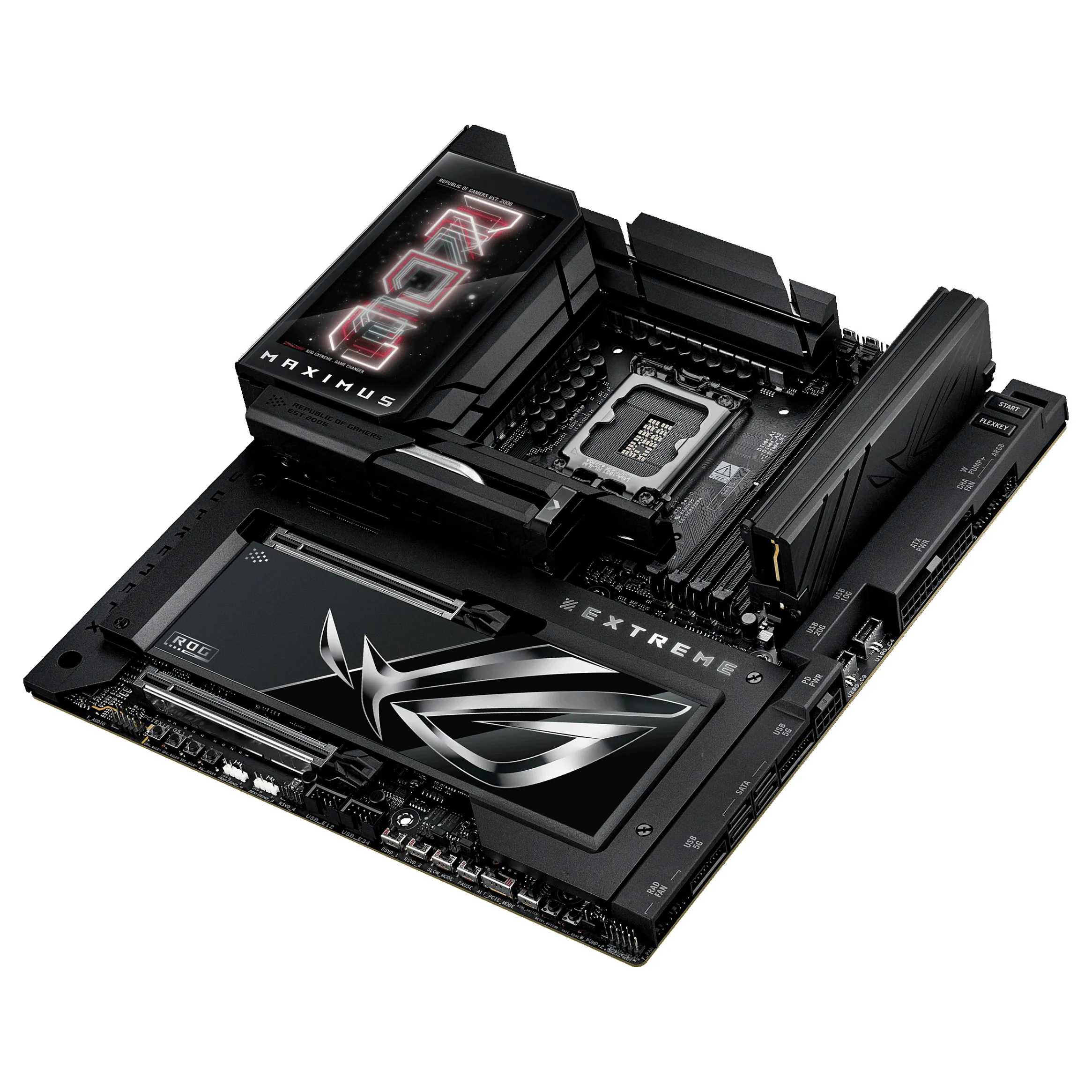

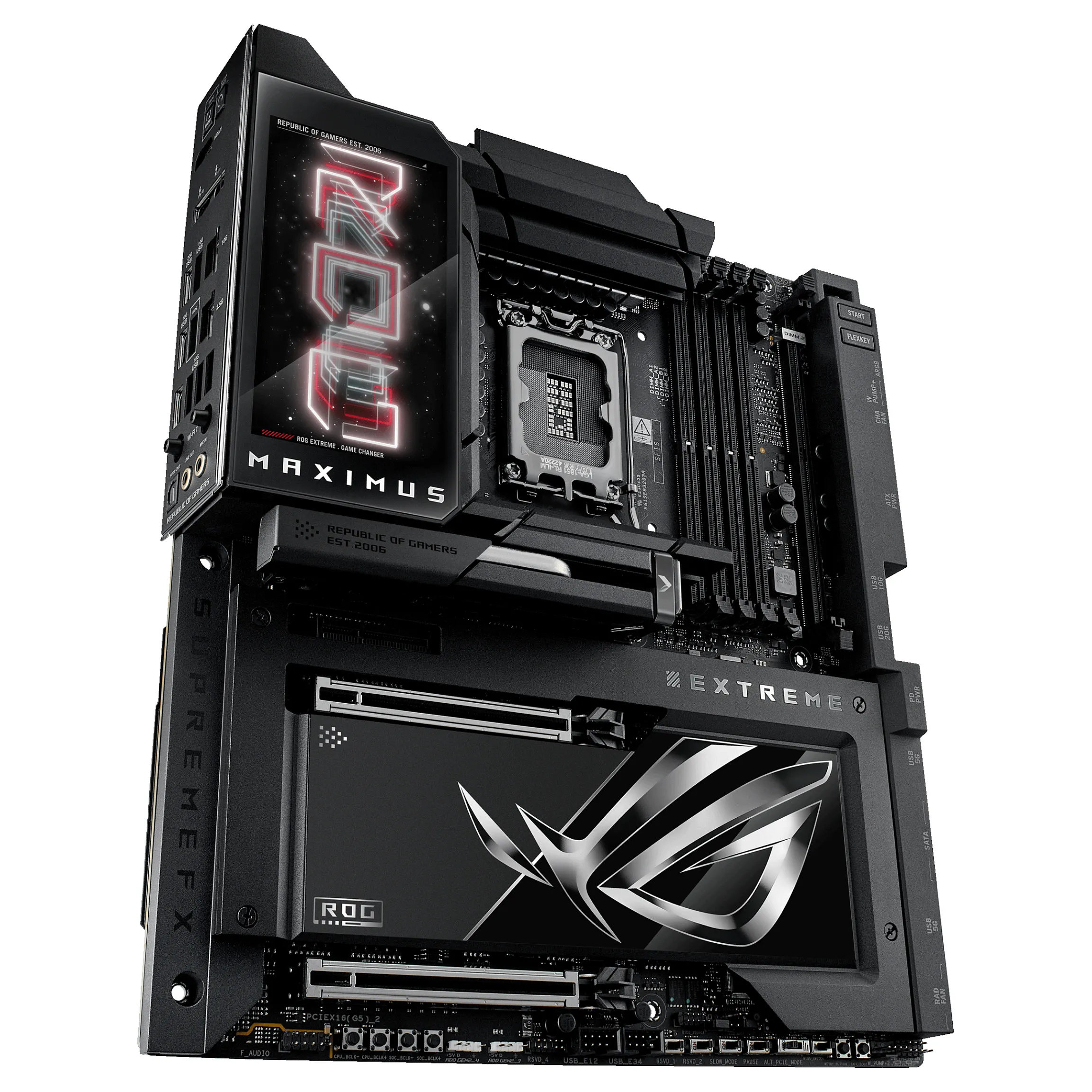

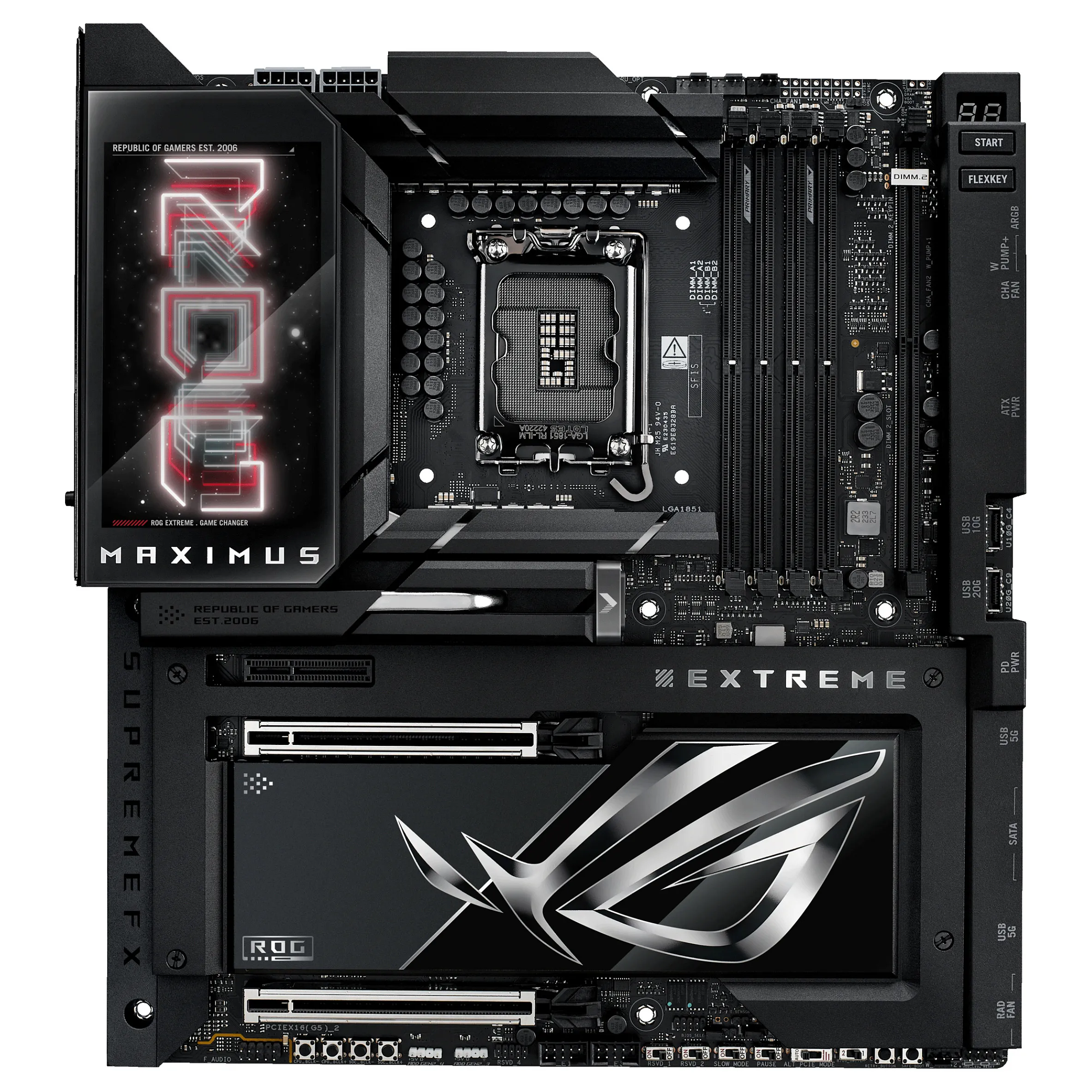

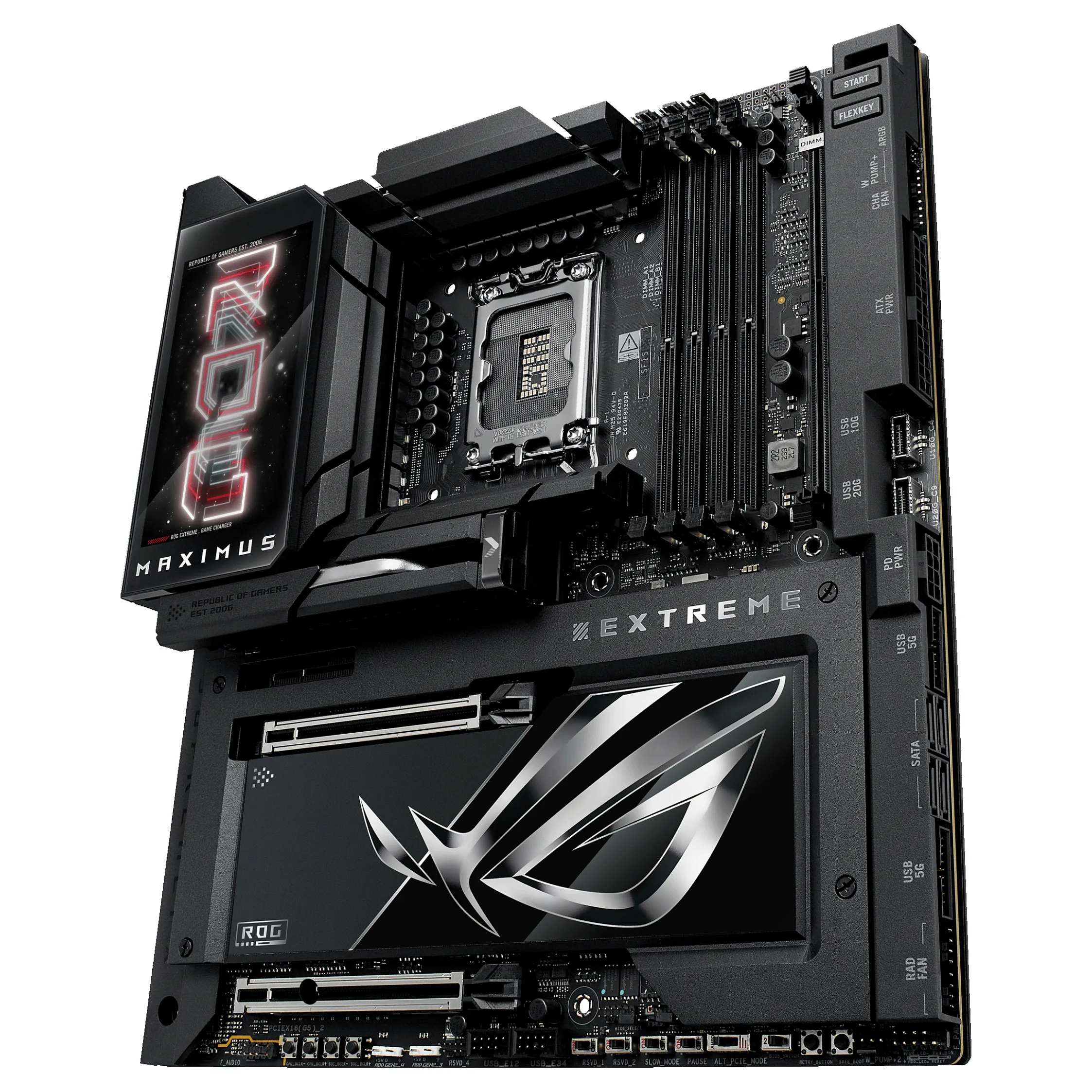

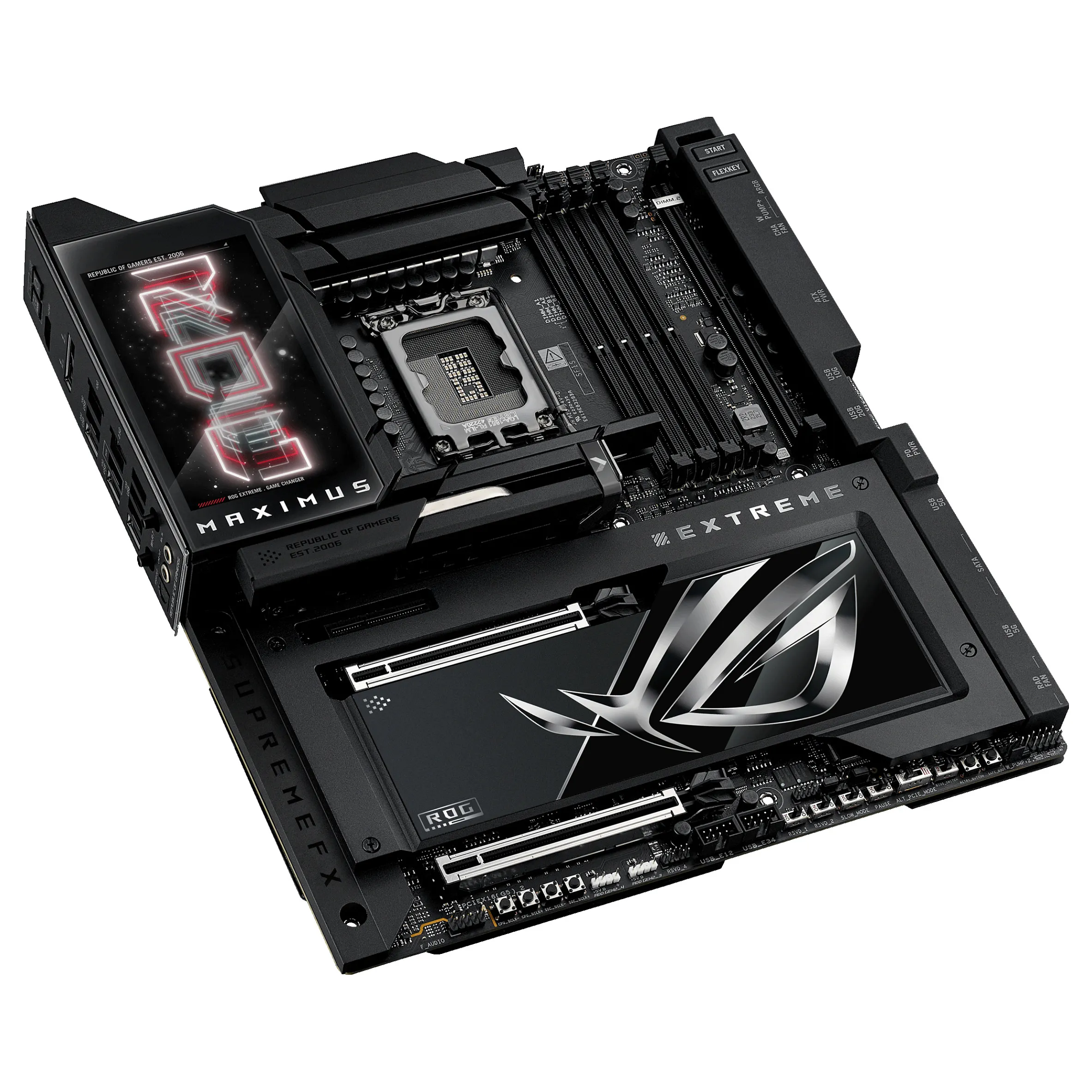

ROG Maximus Z890 Extreme
The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 modules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.
The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 modules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.
Processor
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8800 MHz
Maximum internal memory: 192 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 10
Feature: RAID support
RAID levels: 0, 1, 5
Graphics
Parallel processing technology support: Not supported
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 3.2 Gen 2×2 connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 2
Feature: EPS power connector (8-pin)
Feature: 12V power connector
Feature: RGB LED pin header
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB 3.2 Gen 2×2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
HDMI ports quantity: 1
Feature: Microphone in
Feature: S/PDIF out port
Thunderbolt ports quantity: 2
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: Intel Z890
Audio chip: Realtek ALC4082
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: Extended ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11
Expansion slots
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 6
BIOS
BIOS type: UEFI AMI
BIOS memory size: 512 Mbit
Feature: Clear CMOS button
Packaging data
Package width: 380 mm
Package depth: 320 mm
Package height: 125 mm
Package weight: 5.73 kg
Weight & dimensions
Width: 305 mm
Depth: 277 mm
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8800 MHz
Maximum internal memory: 192 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 10
Feature: RAID support
RAID levels: 0, 1, 5
Graphics
Parallel processing technology support: Not supported
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 3.2 Gen 2×2 connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 2
Feature: EPS power connector (8-pin)
Feature: 12V power connector
Feature: RGB LED pin header
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB 3.2 Gen 2×2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
HDMI ports quantity: 1
Feature: Microphone in
Feature: S/PDIF out port
Thunderbolt ports quantity: 2
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: Intel Z890
Audio chip: Realtek ALC4082
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: Extended ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11
Expansion slots
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 6
BIOS
BIOS type: UEFI AMI
BIOS memory size: 512 Mbit
Feature: Clear CMOS button
Packaging data
Package width: 380 mm
Package depth: 320 mm
Package height: 125 mm
Package weight: 5.73 kg
Weight & dimensions
Width: 305 mm
Depth: 277 mm
