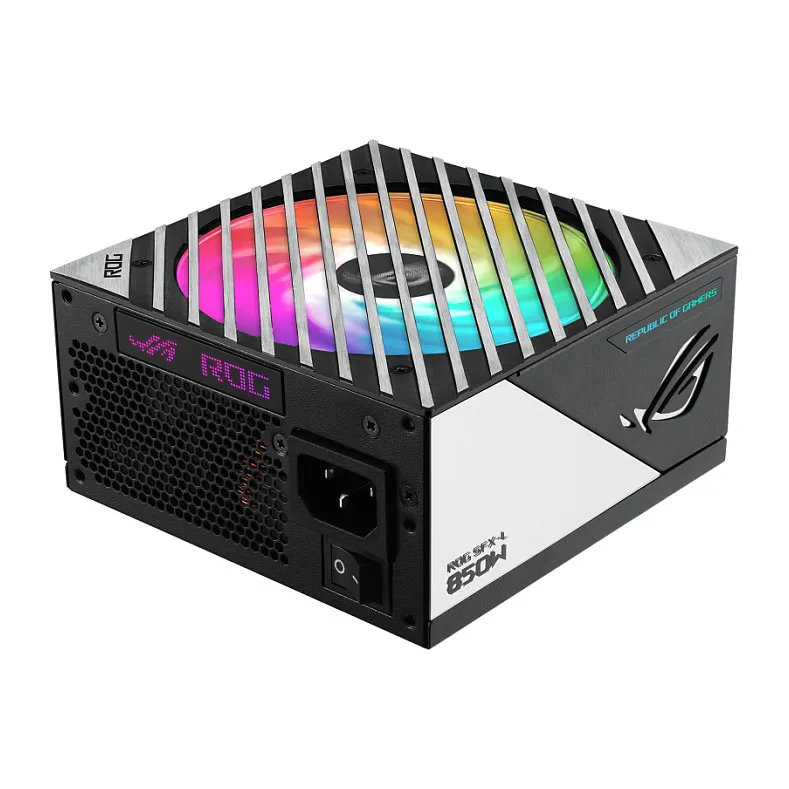

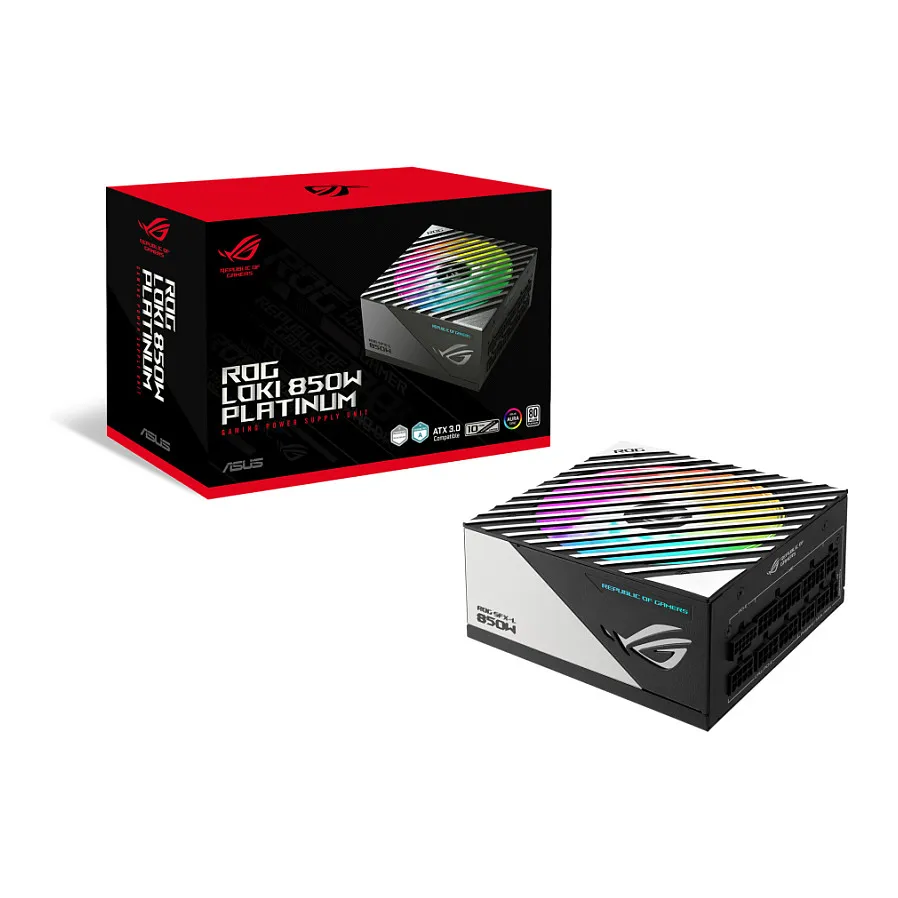

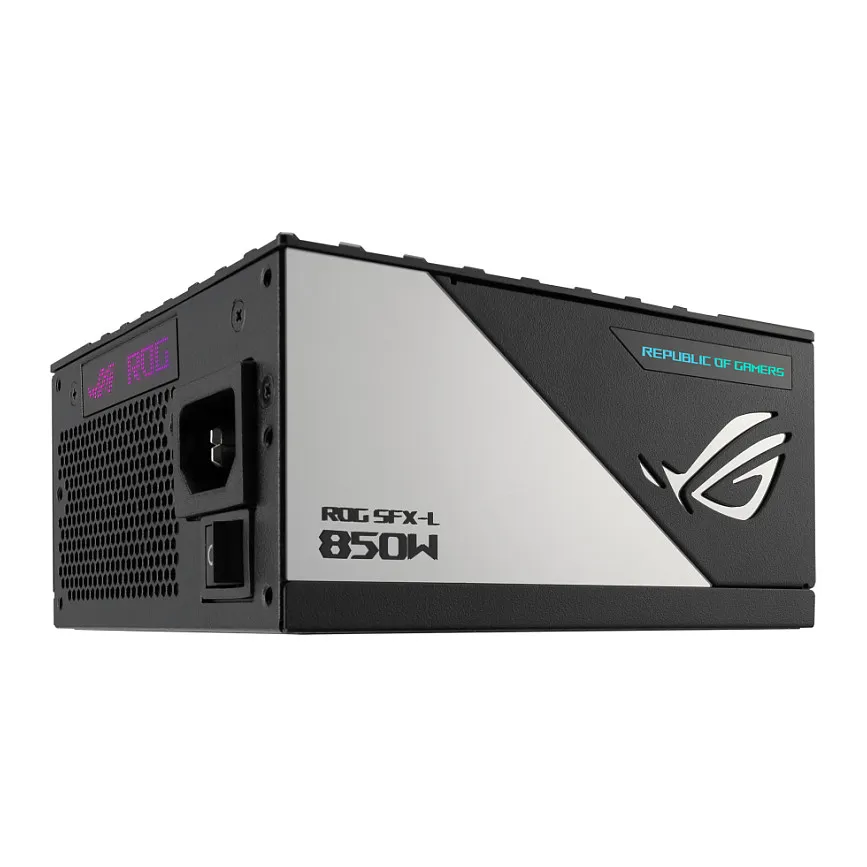

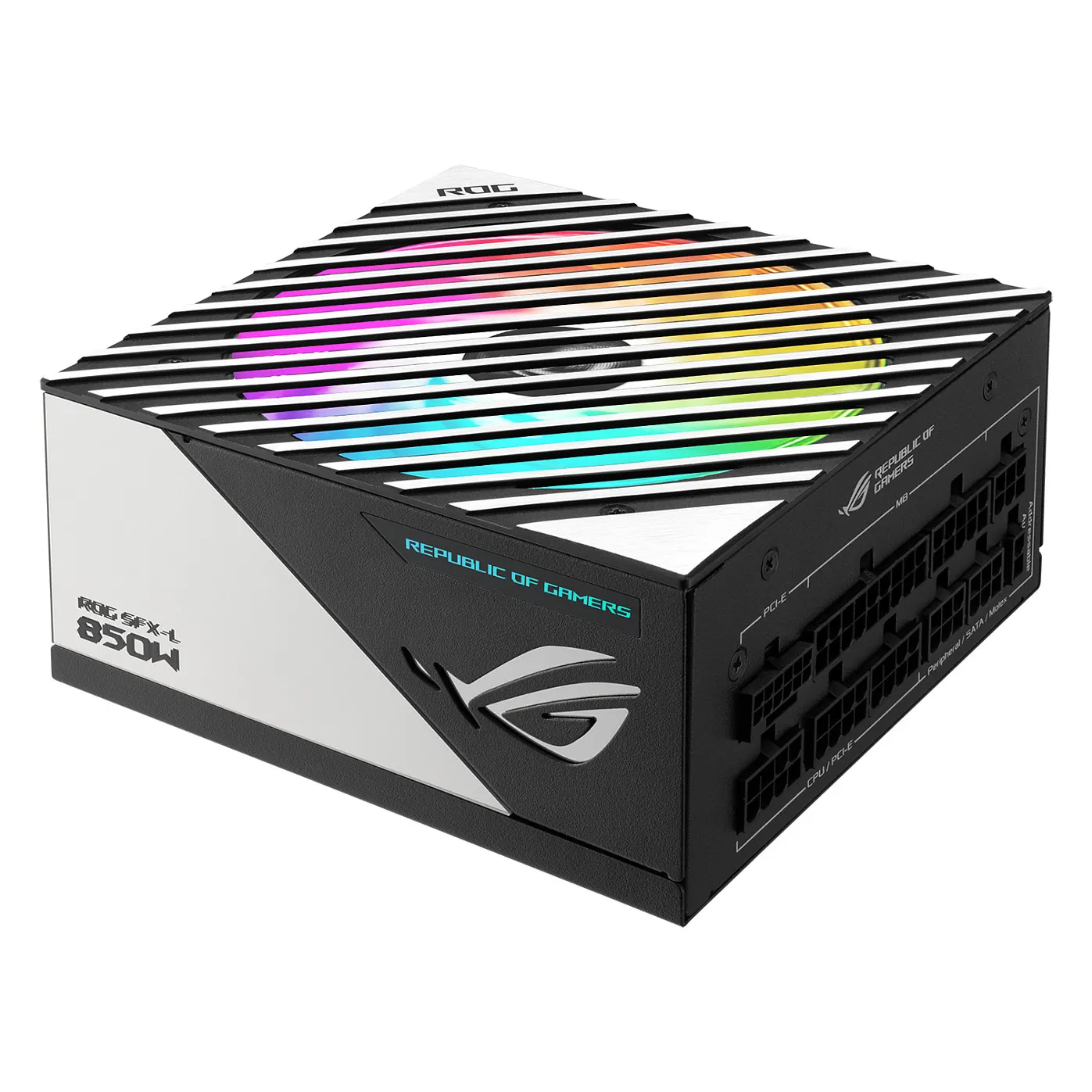

ASUS ROG Loki SFX-L 850W Platinum. Total power: 850 W, AC input voltage: 100 – 240 V, Combined power (+3.3V): 110 W. Motherboard power connector: 24-pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: SFX-L, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: OPP/OVP/UVP/SCP/OCP/OTP
The Quietest SFX-L PSU
Taking after the ROG Thor, the ROG Loki SFX-L 850W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
80 PLUS Platinum Certified
Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.
ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware – and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.

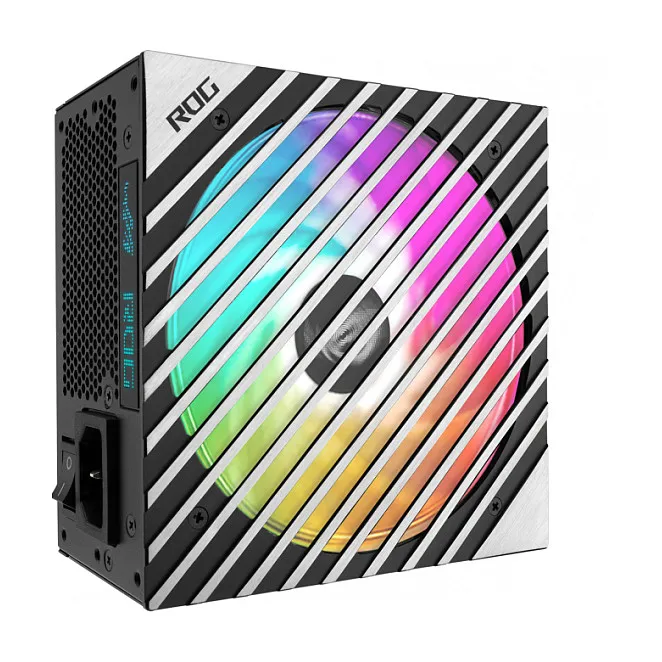

ARGB-illuminated Fan & Aura Sync
Magical glow

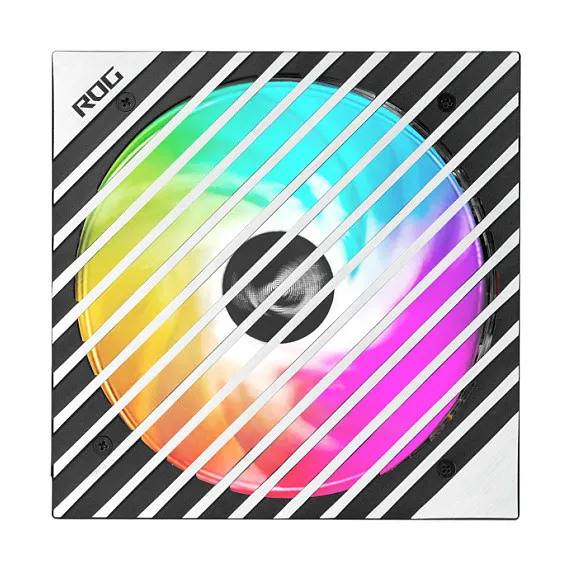

The Loki’s 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.
* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.
Total power: 850 W

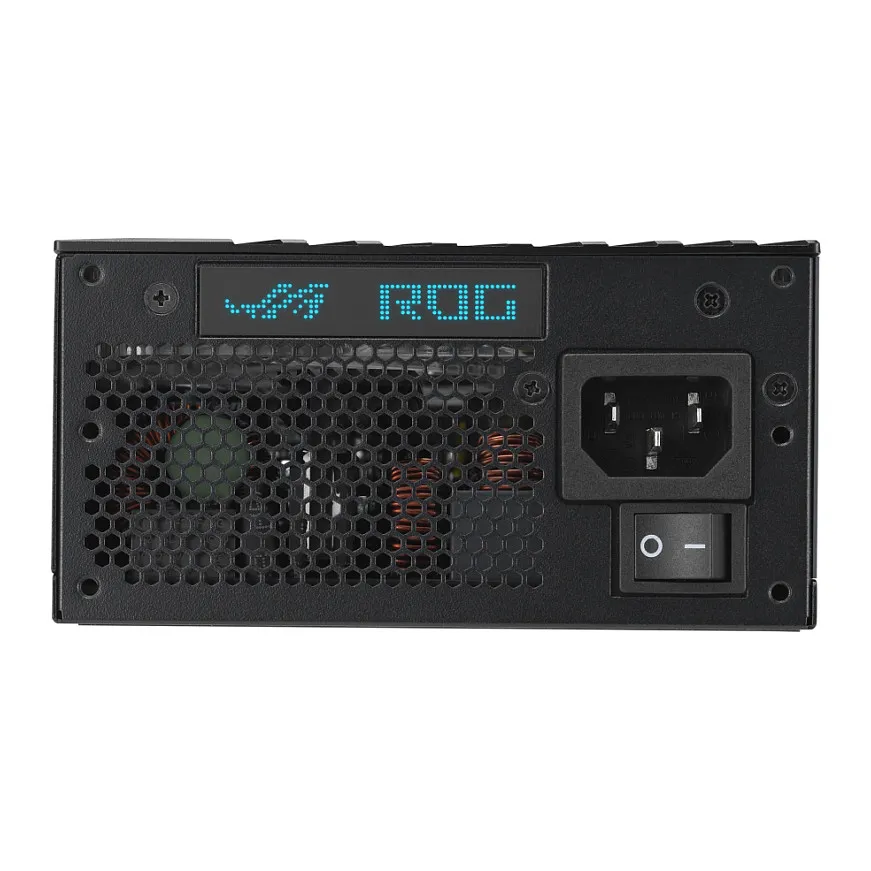

AC input voltage: 100 – 240 V
Combined power (+3.3V): 110 W
Combined power (+12V): 850 W
Combined power (+5V): 110 W
Combined power (-12V): 9.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.8 A
Max output current (+5V): 20 A
Max output current (-12V): 0.8 A
Max output current (+5Vsb): 2.5 A
Ports & interfaces

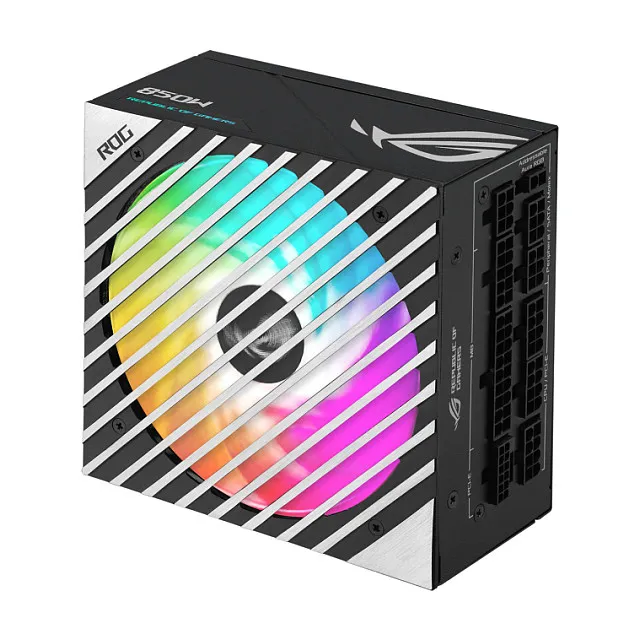

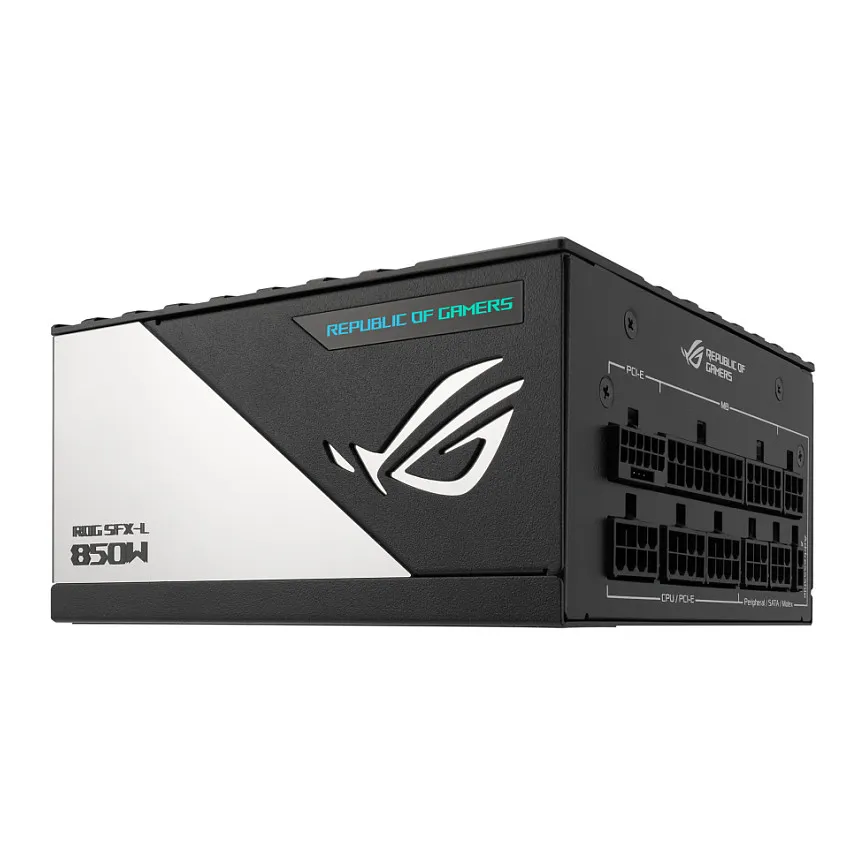

Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (8-pin): 3
PCI Express power connectors (16-pin): 1
Feature: CPU power connector (4+4 pin)
Feature: PCI Express connector
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: SFX-L
ATX version: 3.1
Feature: Silent mode
Design
Product colour: Black, Silver
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: Illumination
Certificates
Compliance certificates: RoHS
Certification: OPP/OVP/UVP/SCP/OCP/OTP
Weight & dimensions
Width: 125 mm
Depth: 125 mm
Height: 63.5 mm
Weight: 1.81 kg
Packaging data
Package width: 285 mm
Package depth: 190 mm
Package height: 100 mm
Package weight: 2.5 kg
Package type: Box
