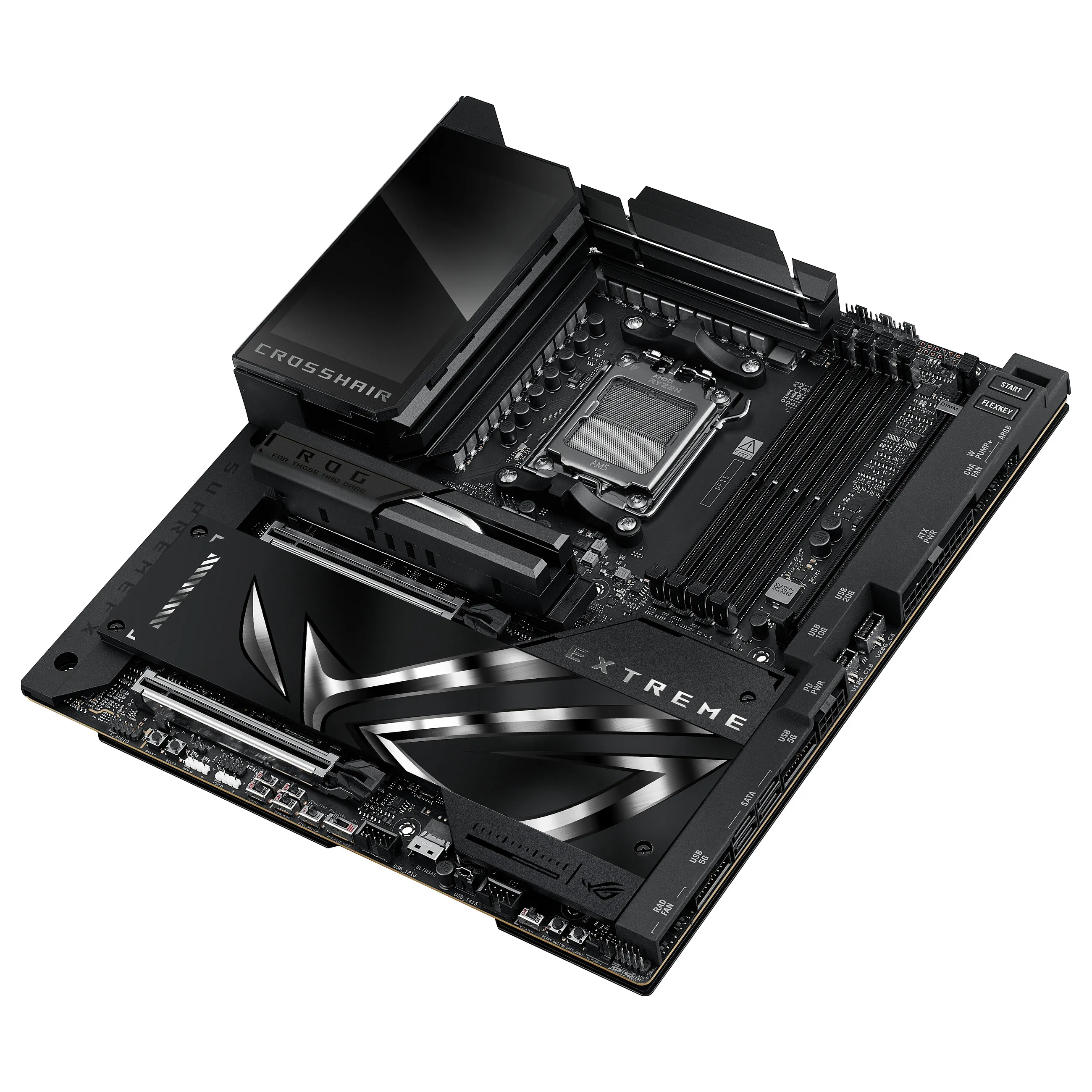

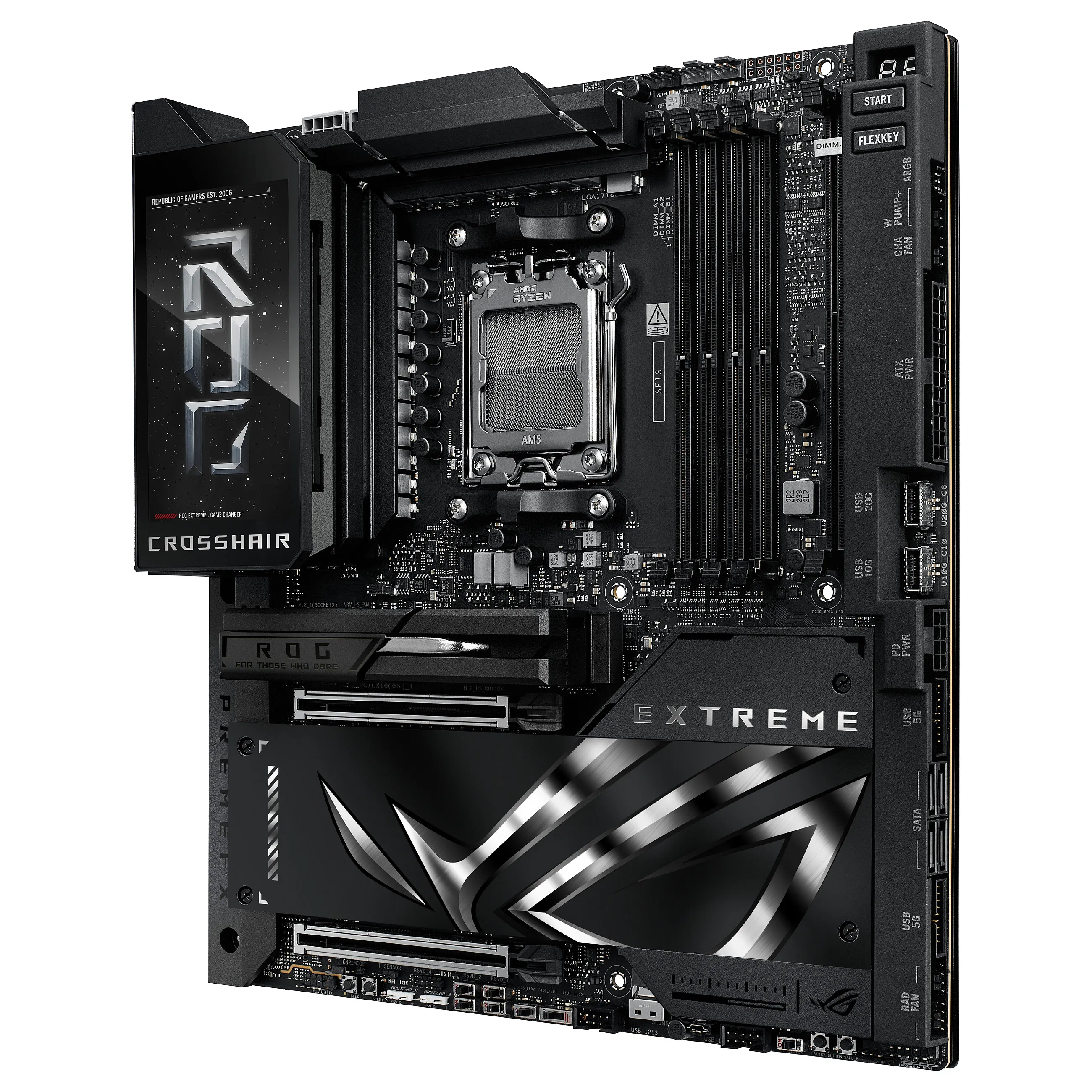

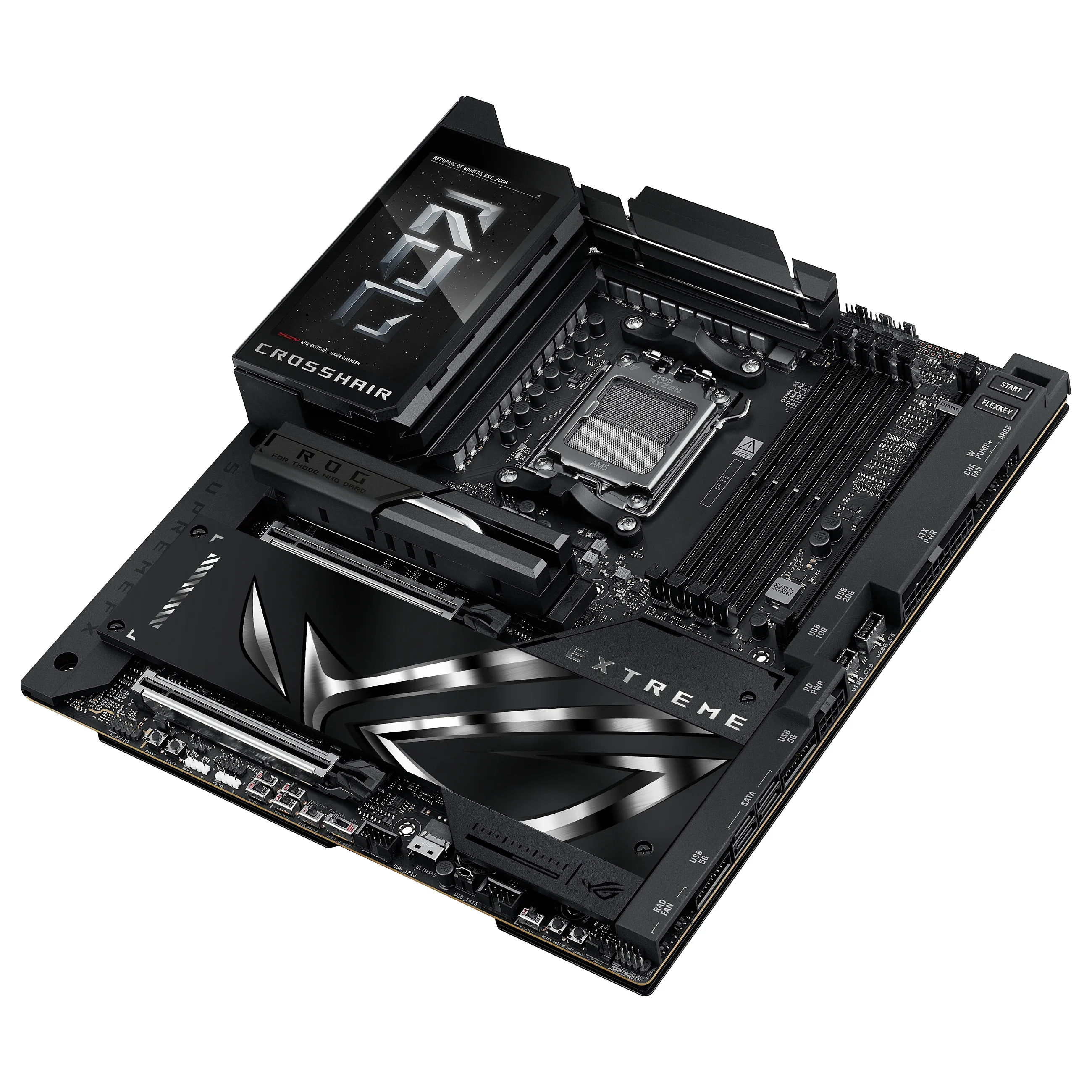

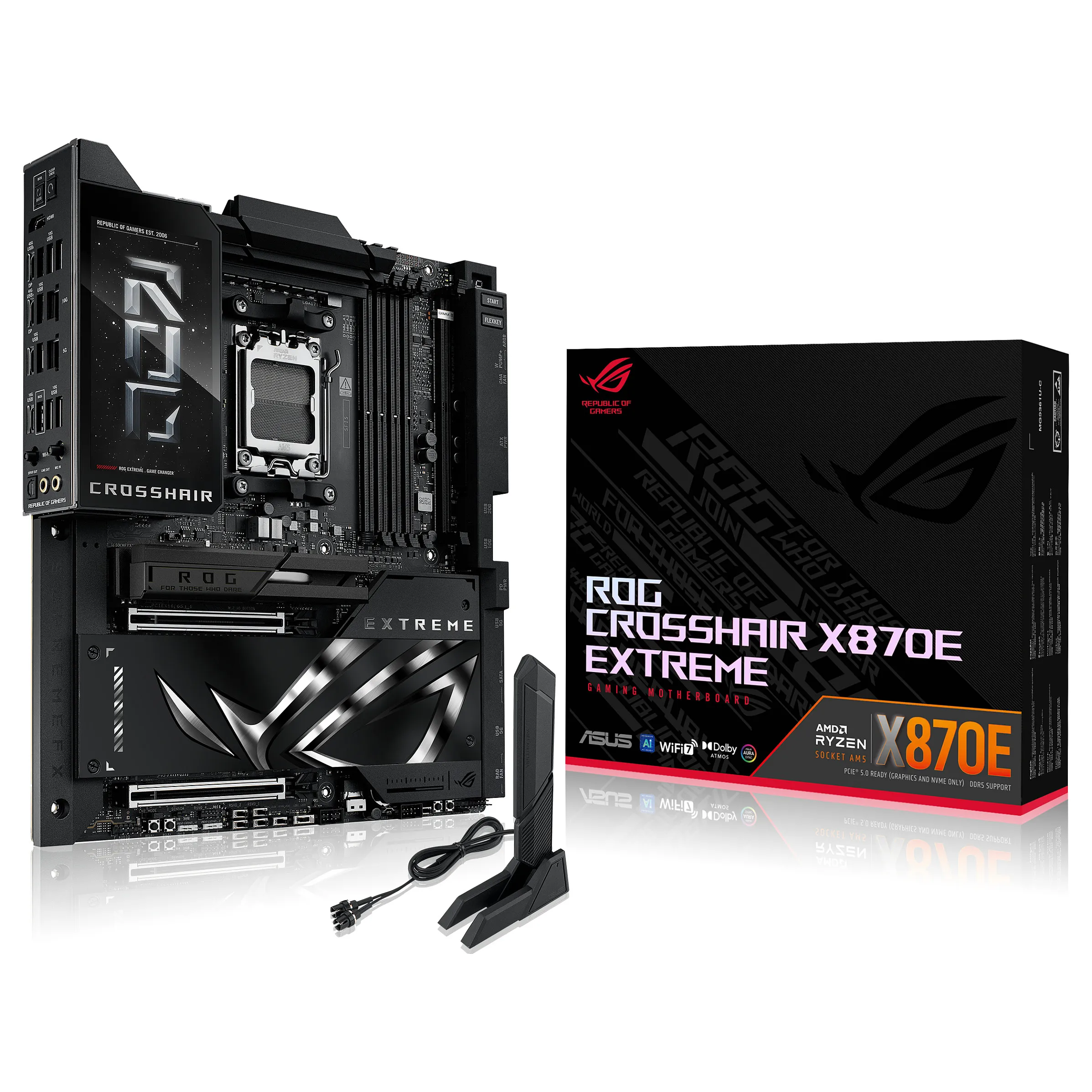

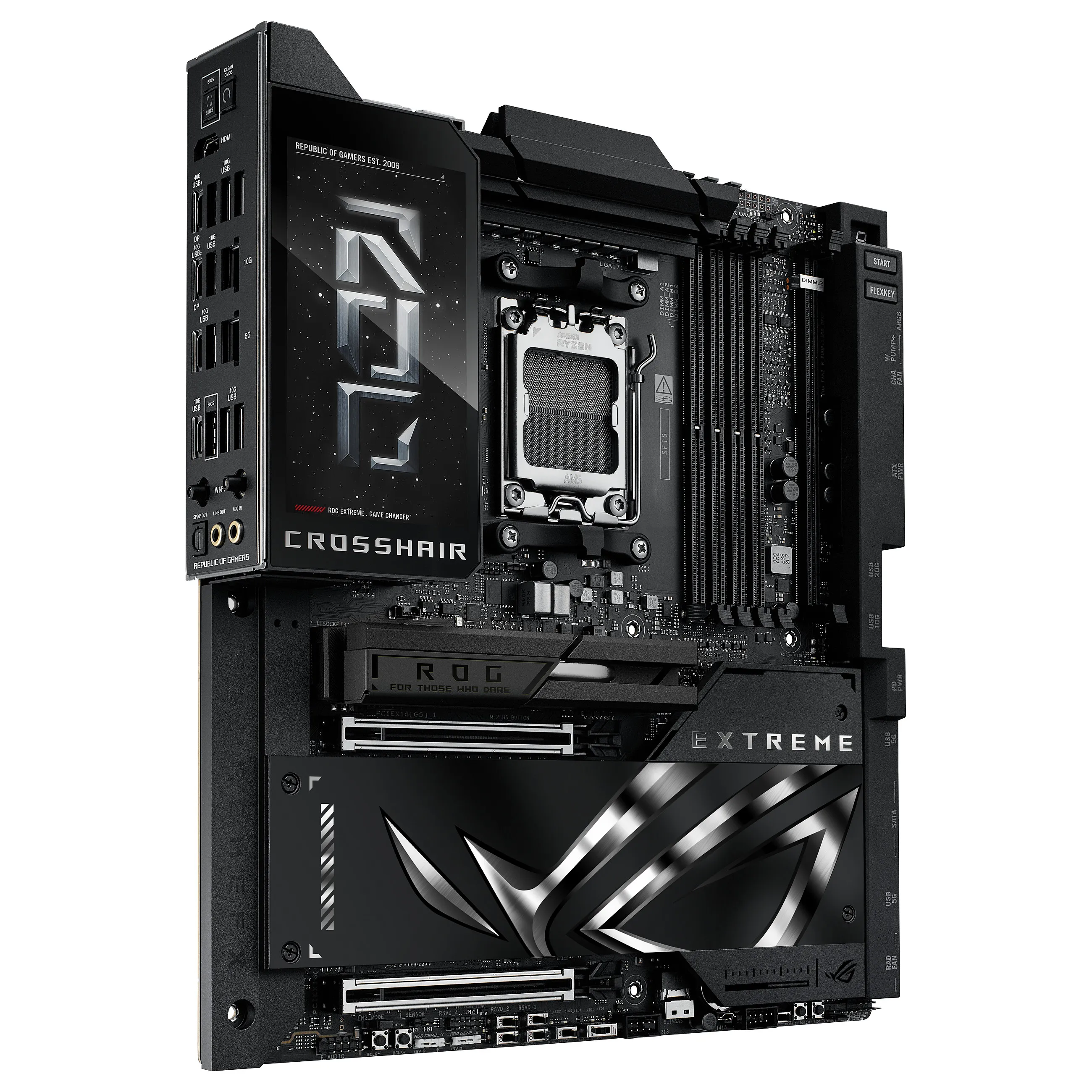

ASUS ROG CROSSHAIR X870E EXTREME. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: AMD

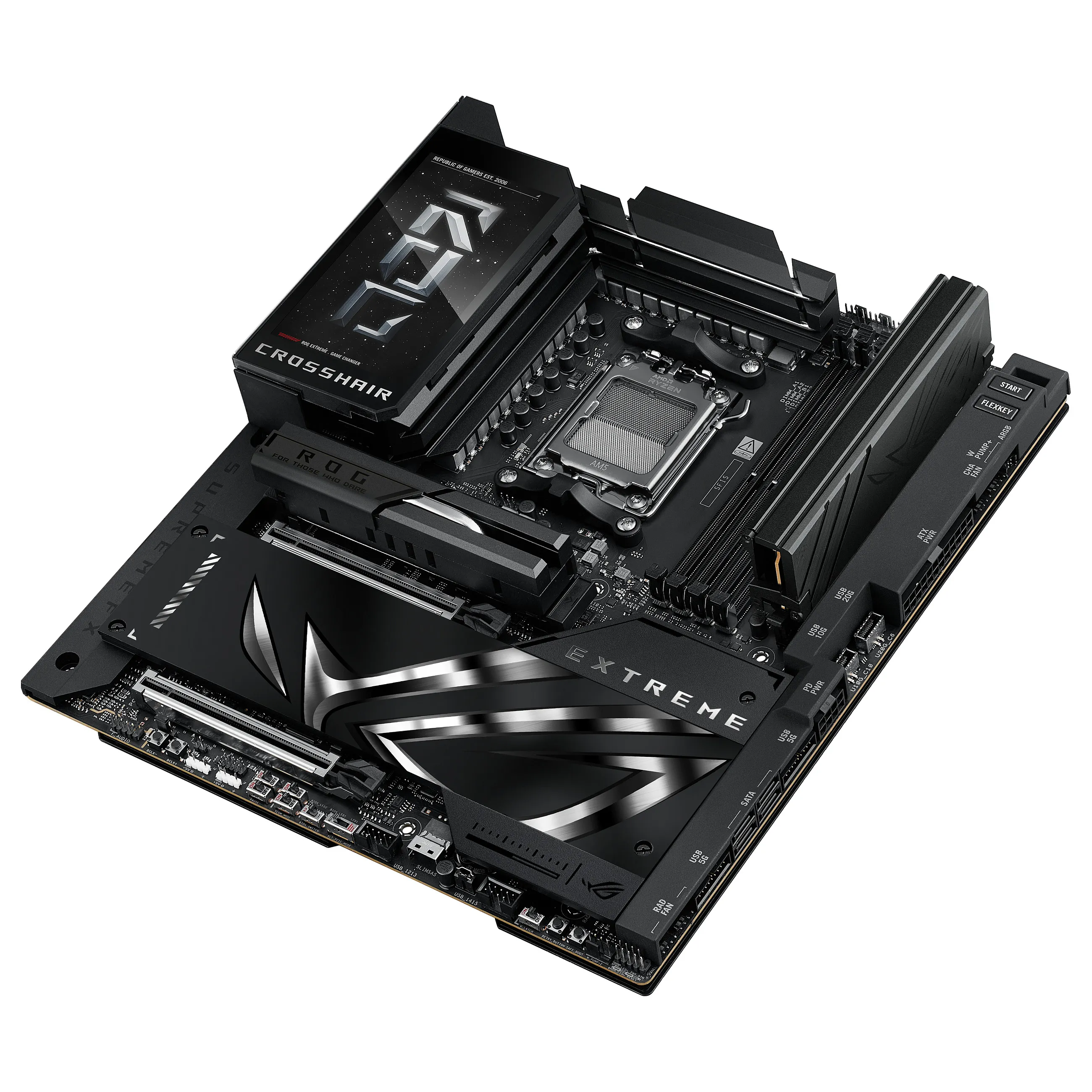

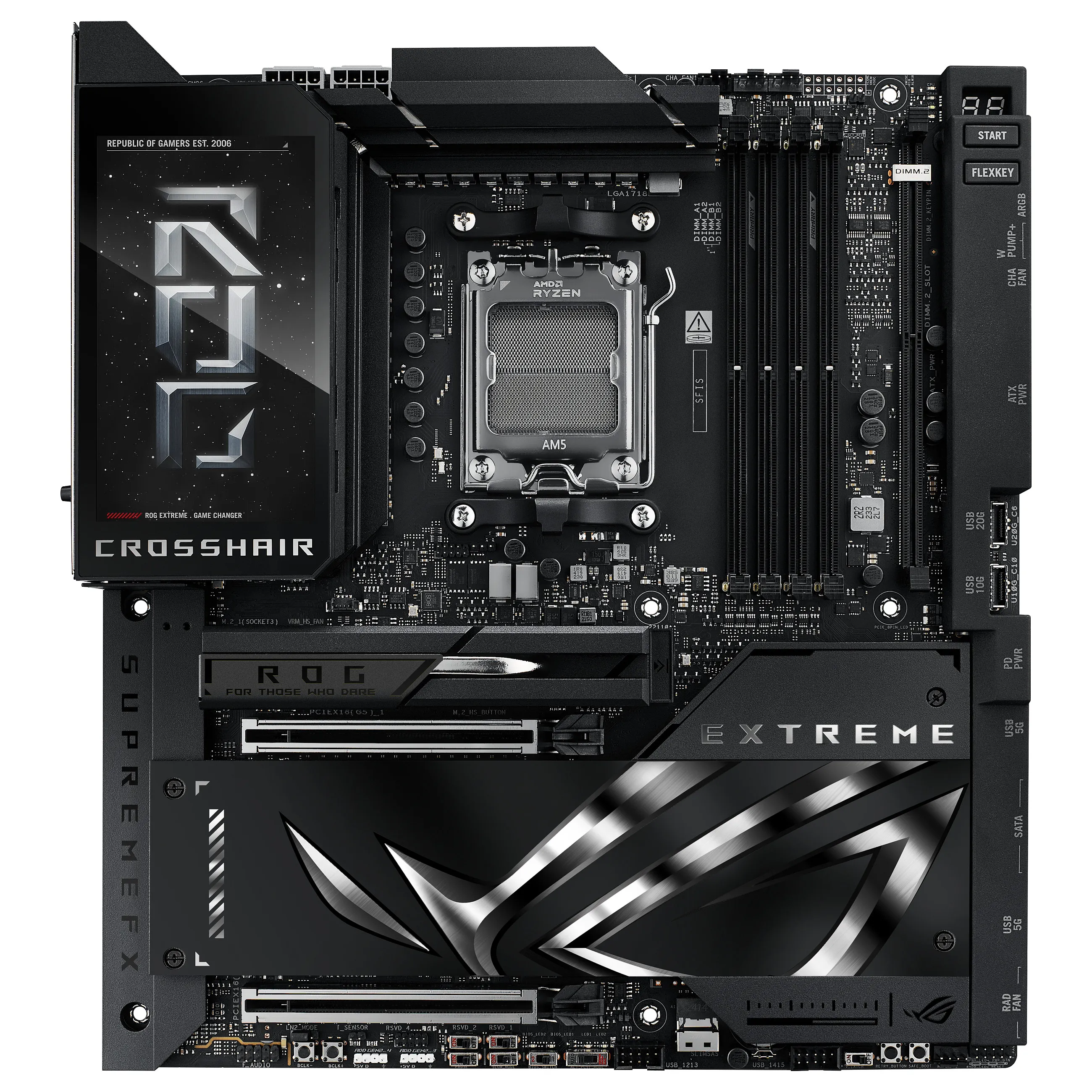

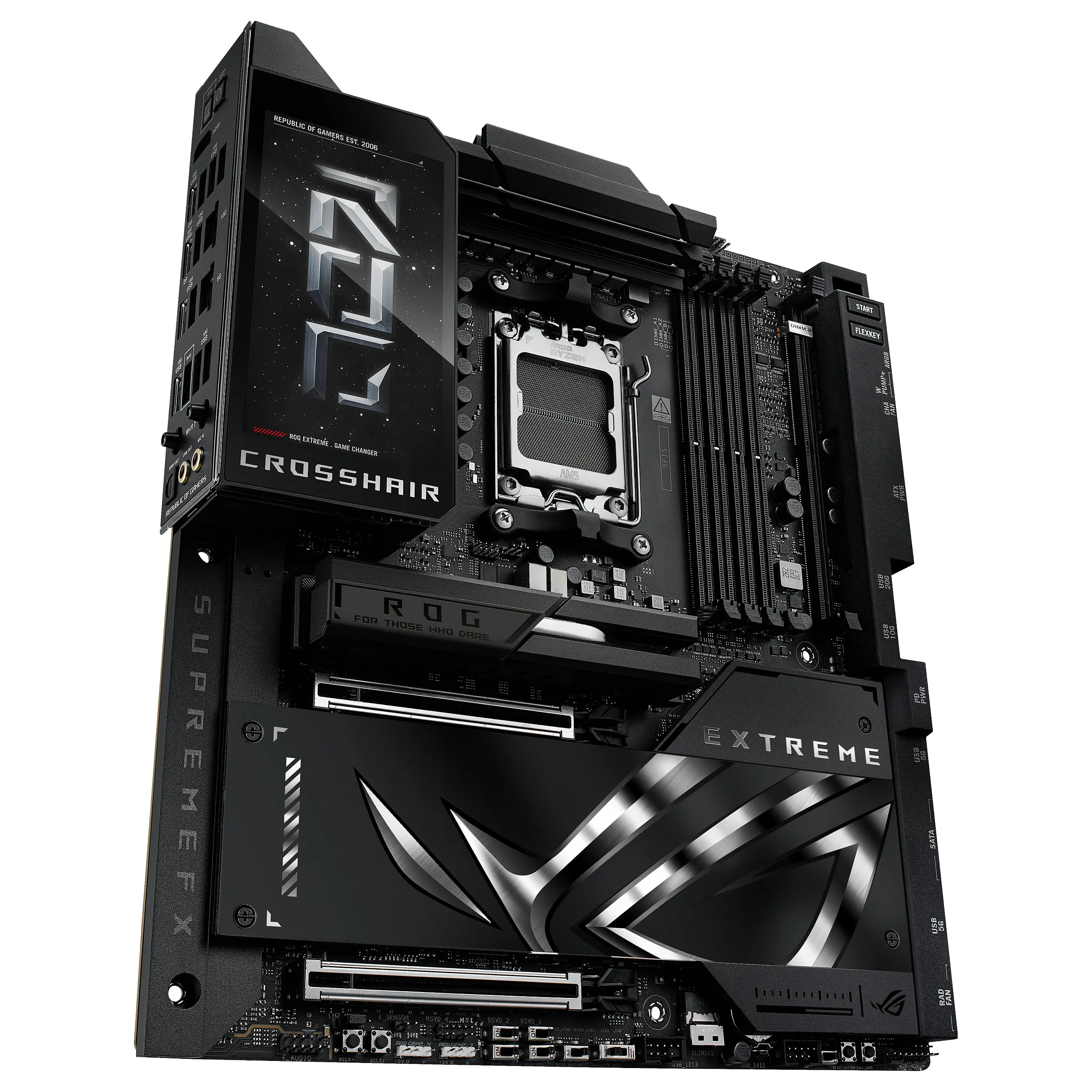

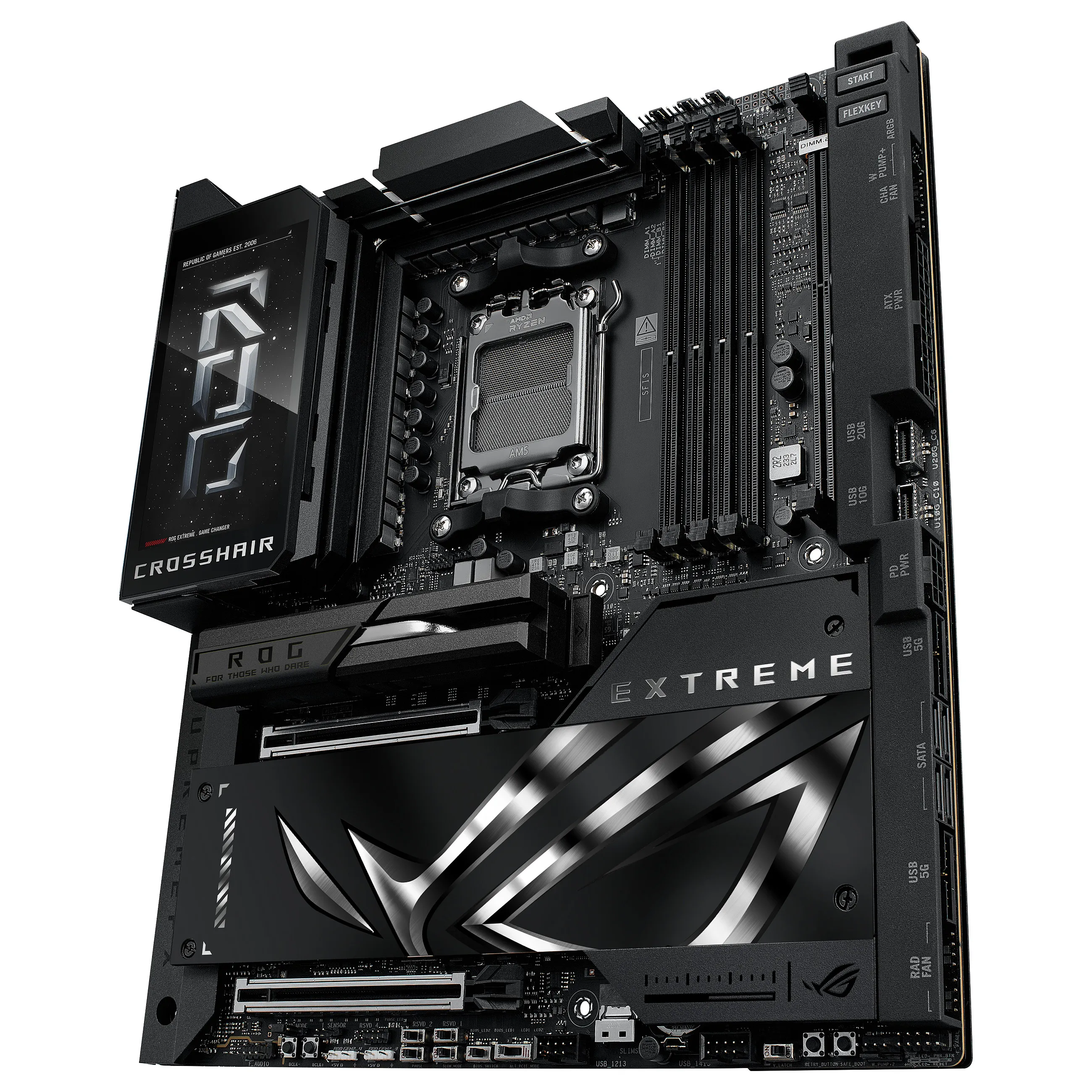

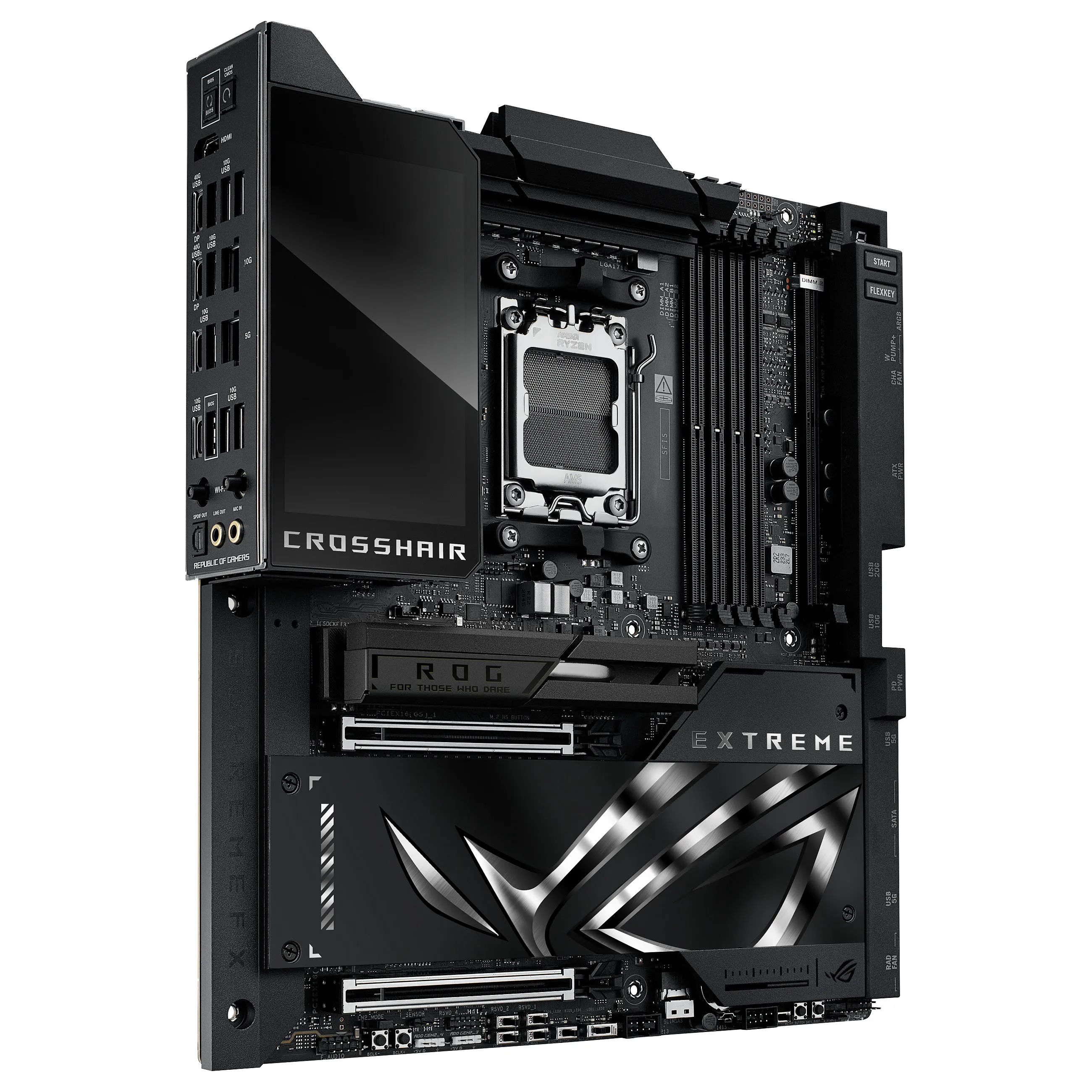

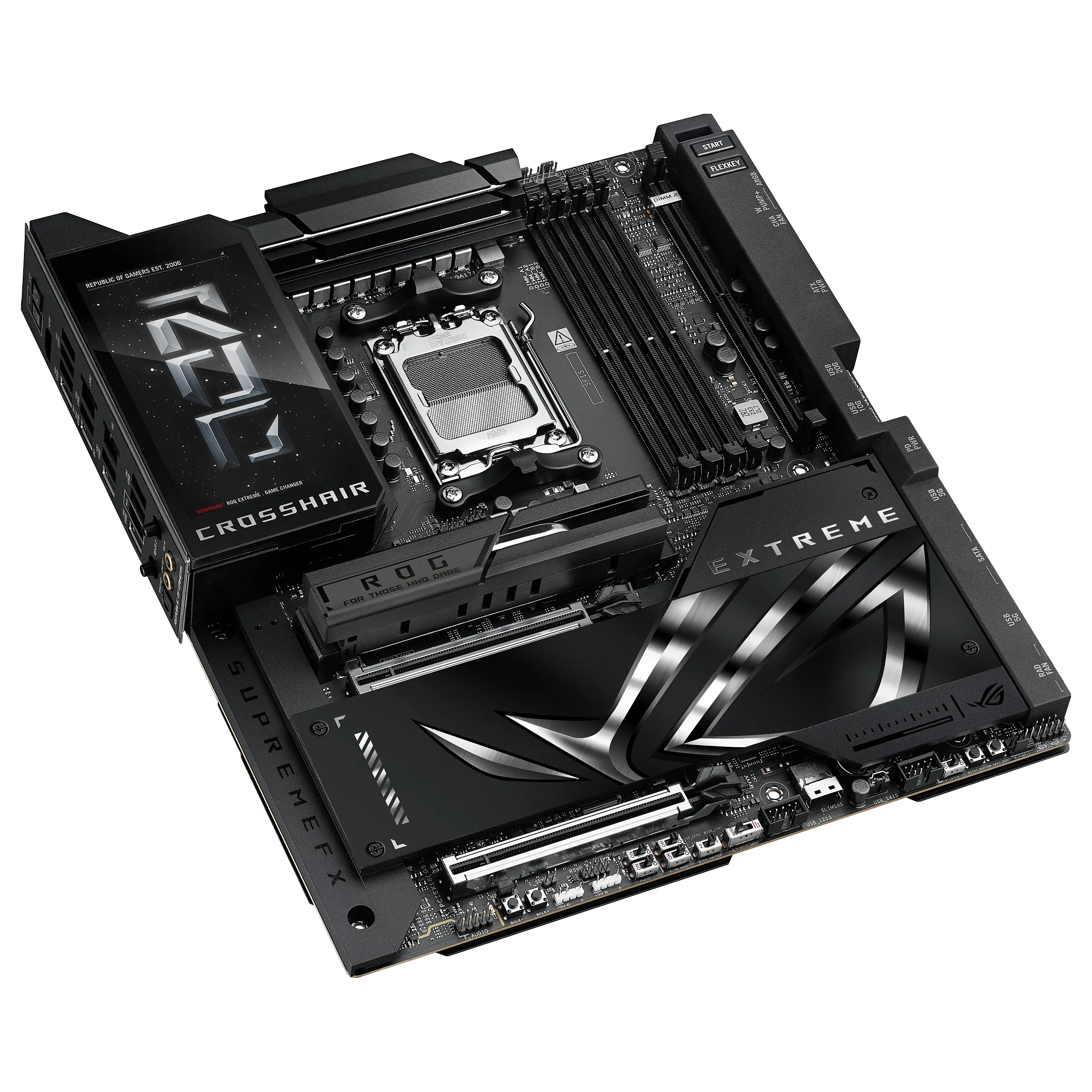

The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.
ASUS AI CACHE BOOST
Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen™ 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks.
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 256 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III, SlimSAS
Number of storage drives supported: 10
Feature: RAID support
RAID levels: 0, 1, 5, 10
Graphics
Parallel processing technology support: Not supported
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 3.2 Gen 2×2 connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 2
Feature: EPS power connector (8-pin)
Feature: 12V power connector
Feature: RGB LED pin header

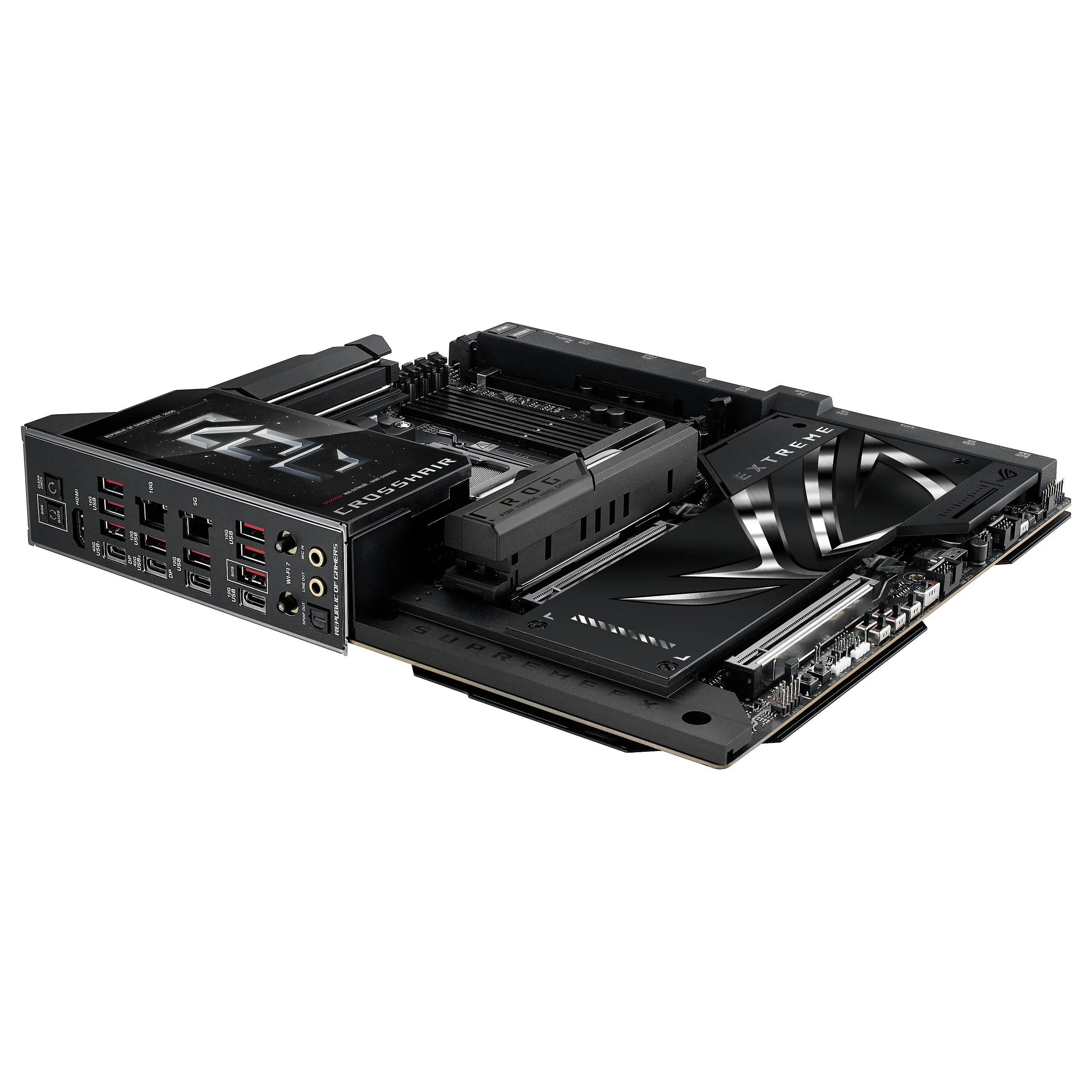

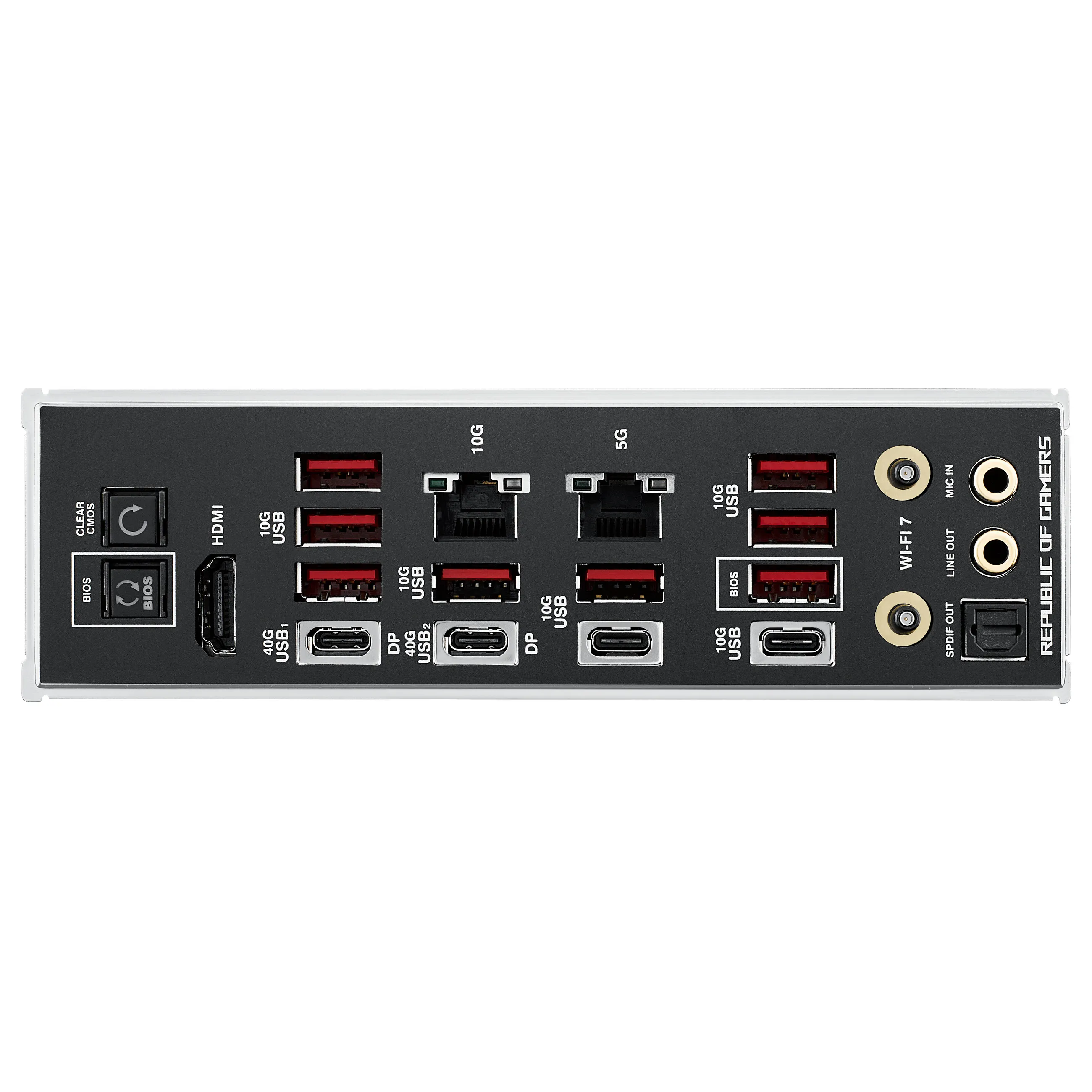

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 8
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB4 Gen 3×2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
PS/2 ports quantity: 1
HDMI ports quantity: 1
Feature: S/PDIF out port
WiFi-AP antenna jack: 1
Network
Feature: Ethernet LAN
Ethernet interface type: 5 Gigabit Ethernet, 10 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: AMD X870E
Audio chip: Realtek ALC4082
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: Extended ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 5
1st M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 22110
4th M.2 highest PCI Express generation: 4.0
5th M.2 largest key size: 22110
5th M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 512 Mbit
Packaging data
Package width: 380 mm
Package depth: 320 mm
Package height: 125 mm
Package weight: 5.66 kg
Weight & dimensions
Width: 305 mm
Depth: 277 mm

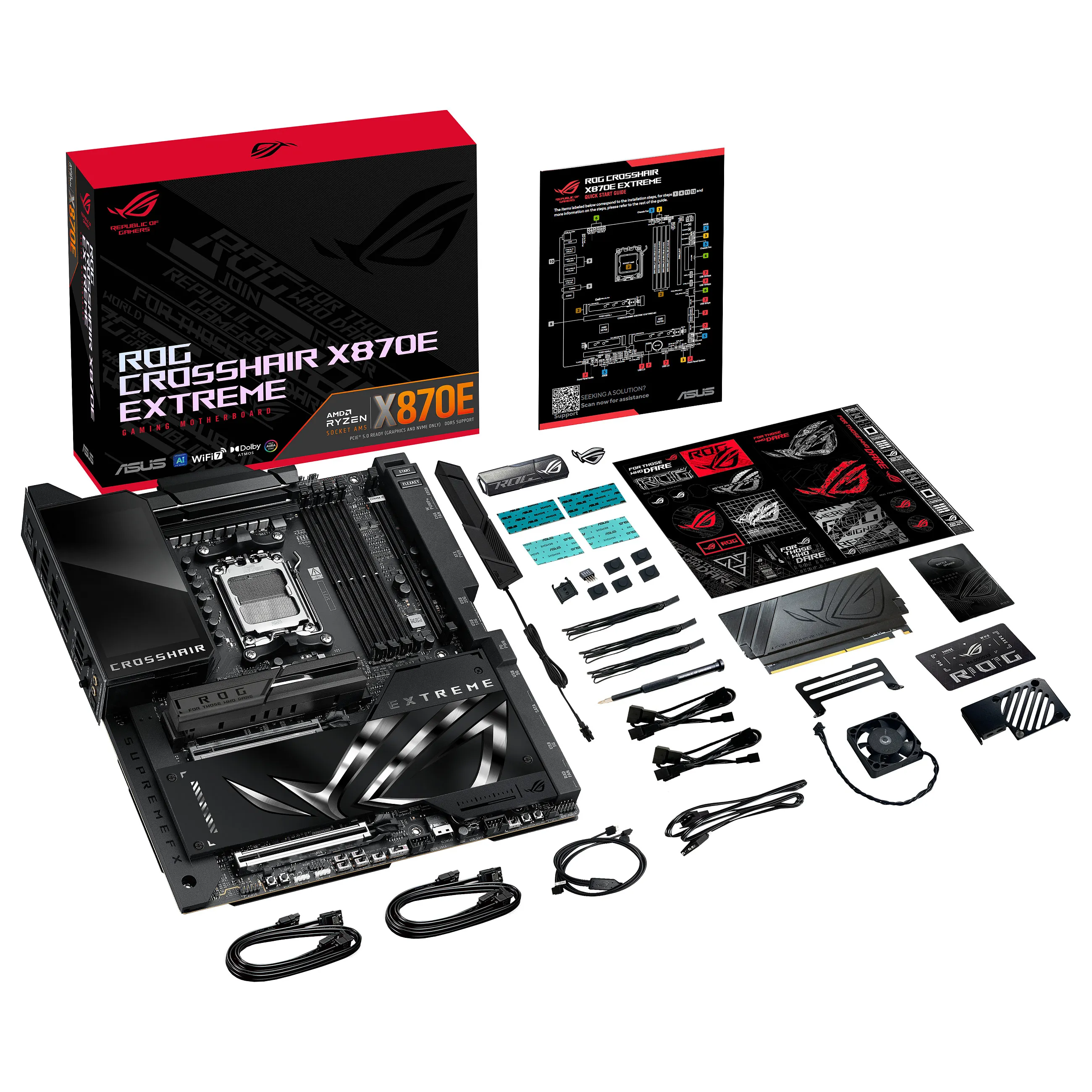

Packaging content
Cables included: SATA

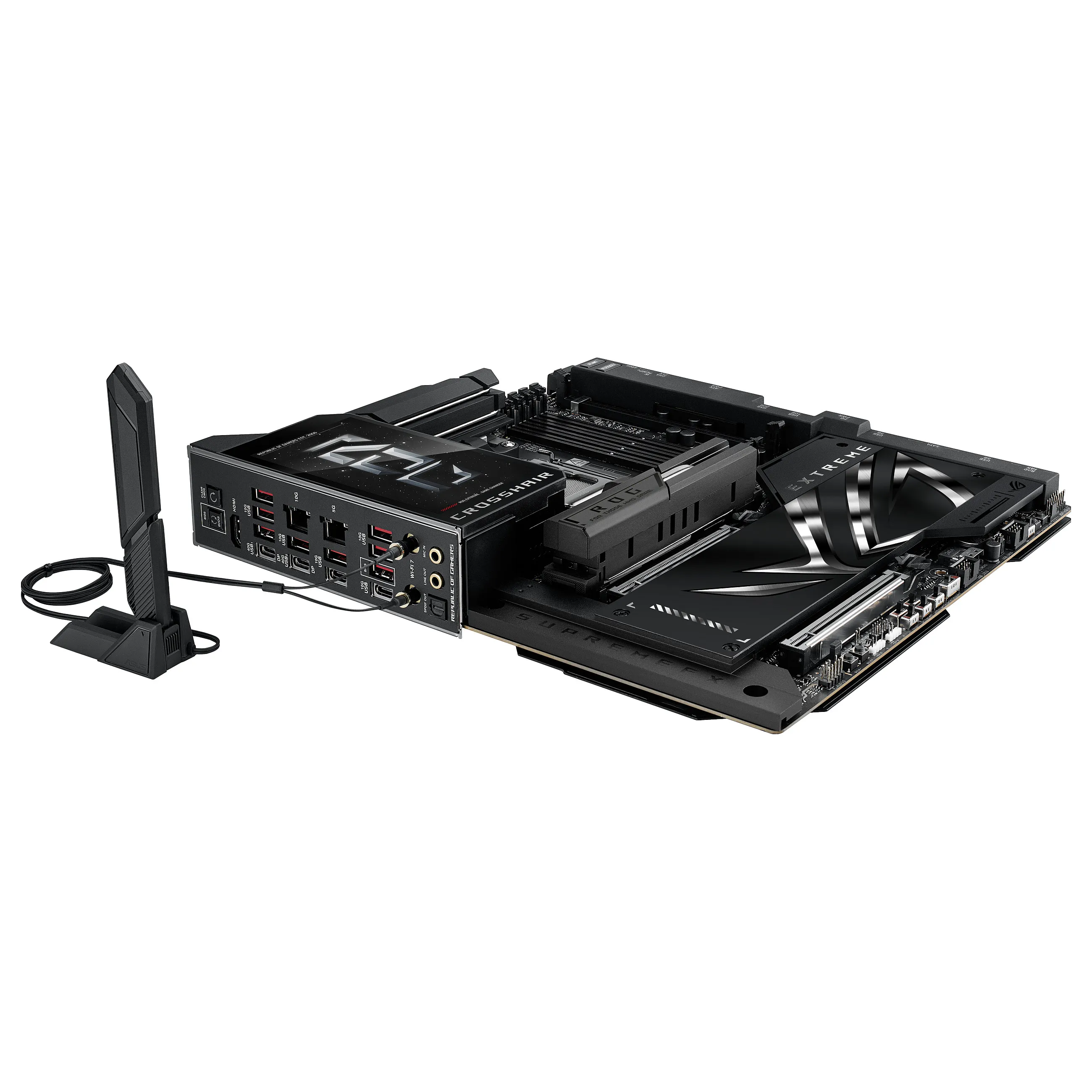

Feature: Antenna included
Feature: Drivers included
