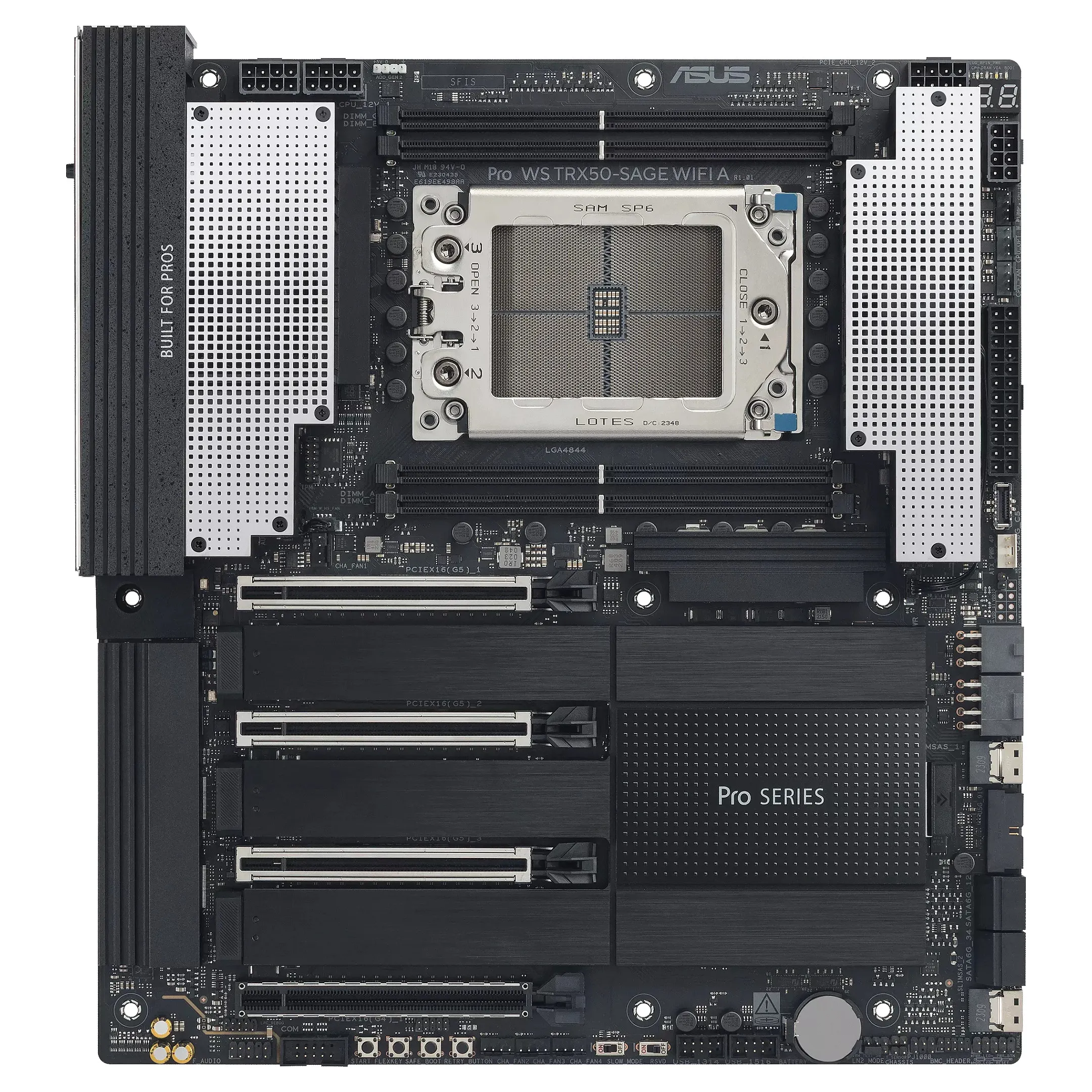

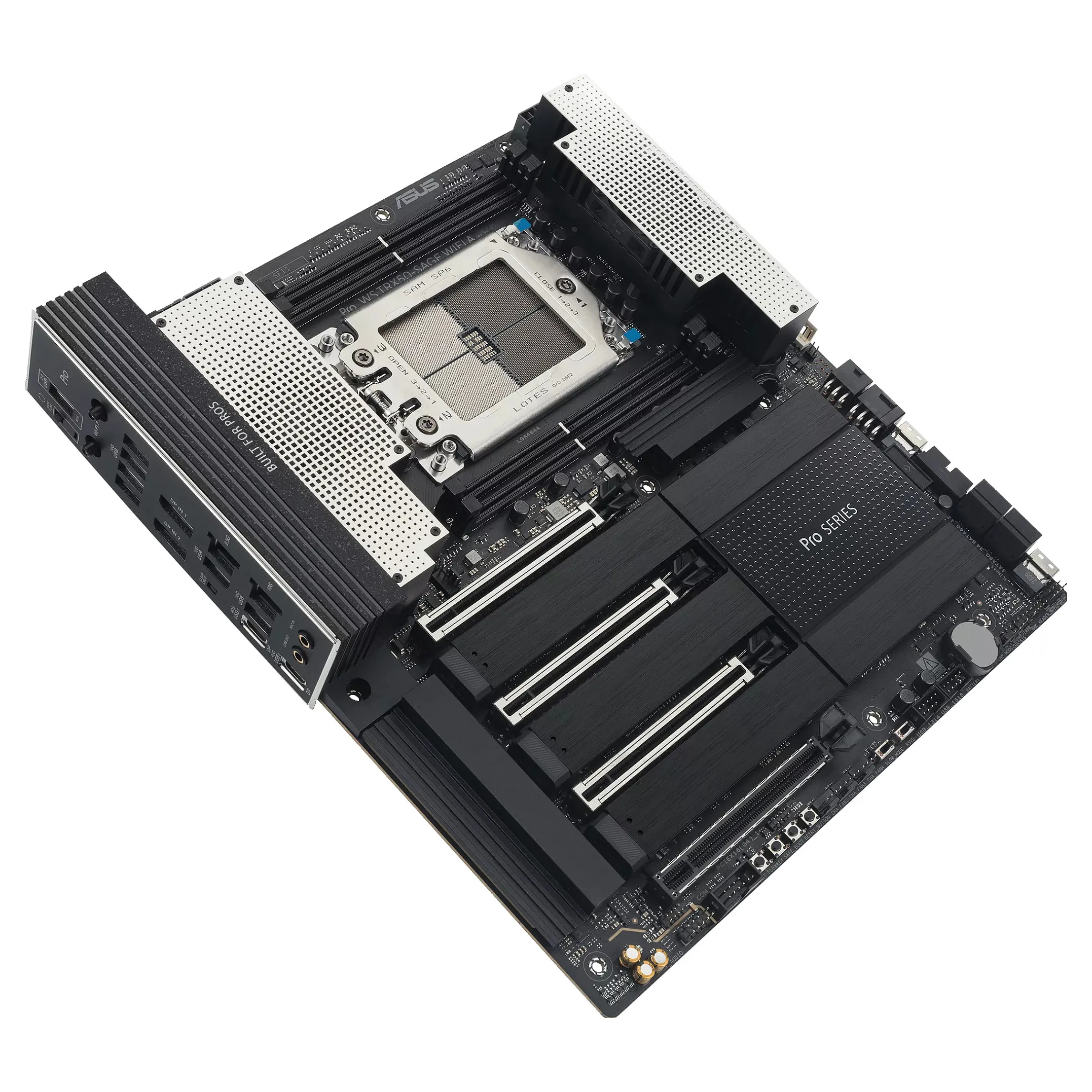

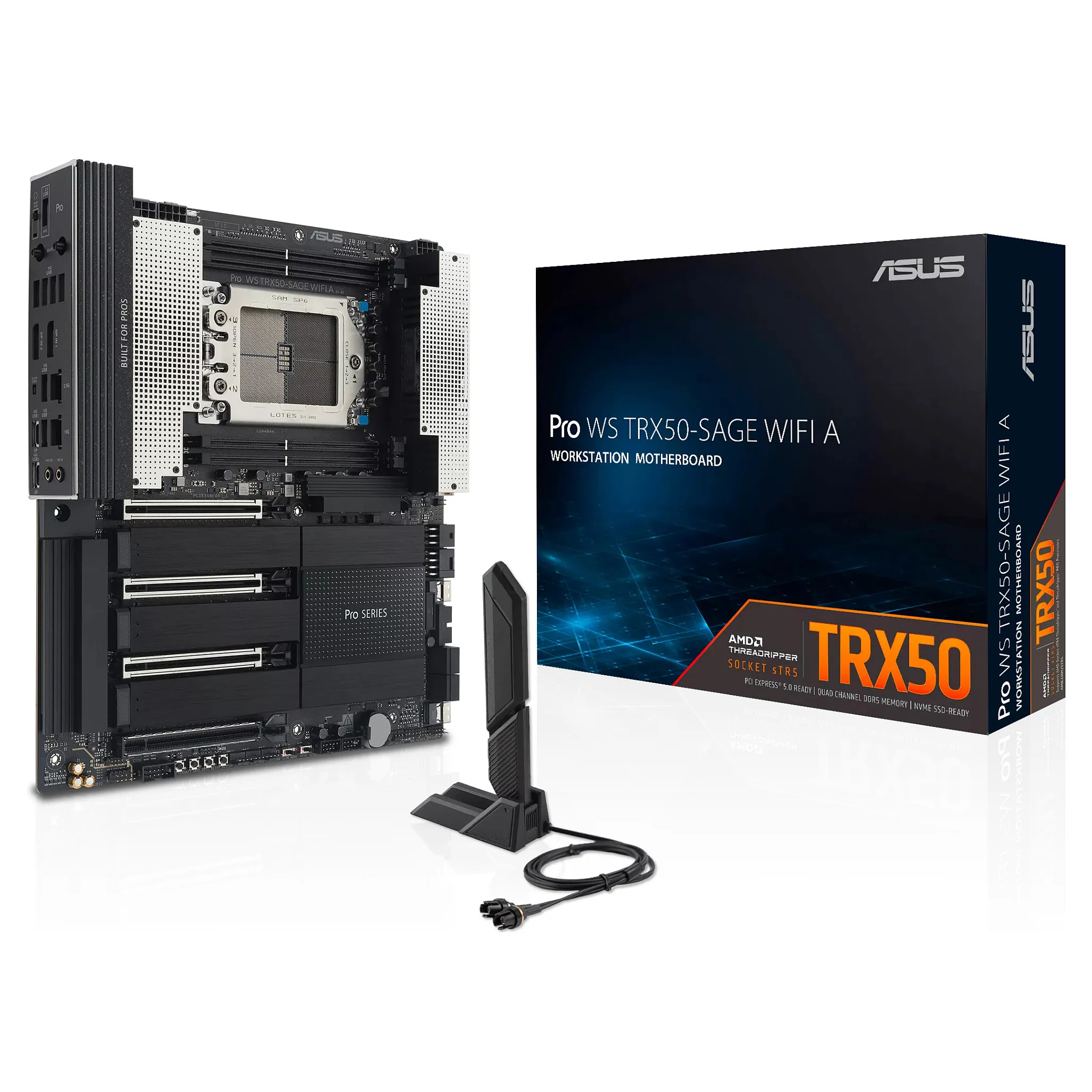

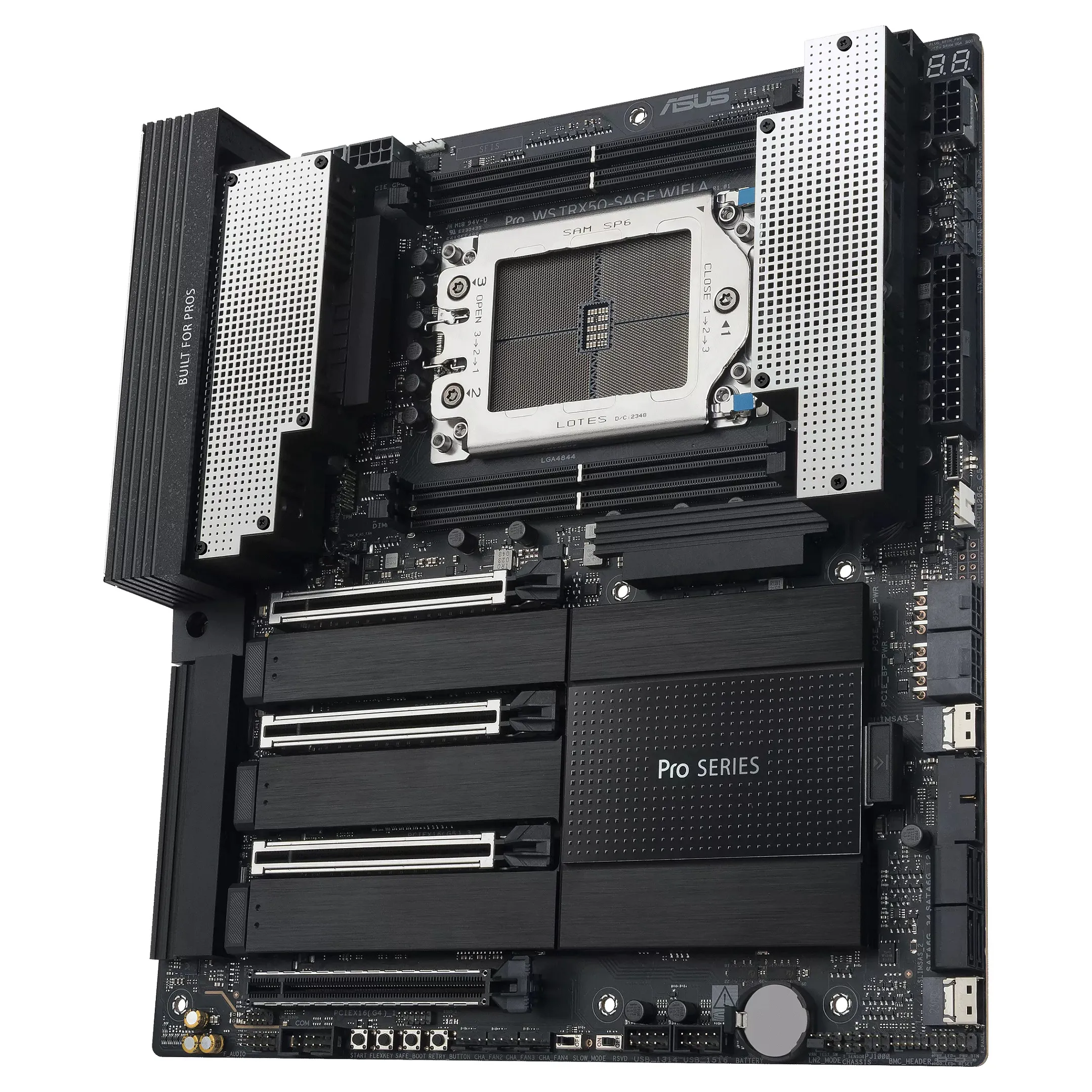

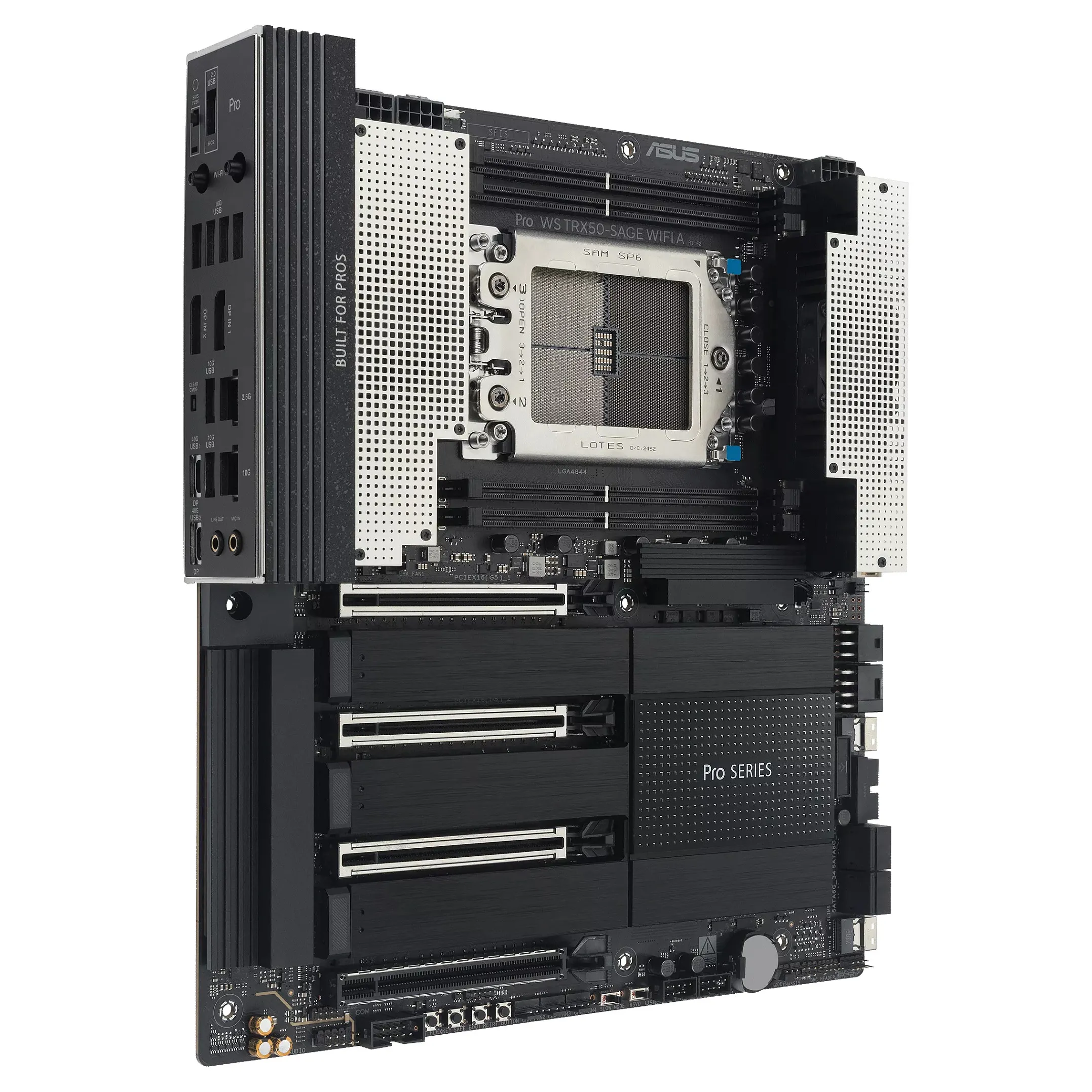

ASUS PRO WS TRX50-SAGE WIFI A. Processor manufacturer: AMD, Processor socket: Socket sTR5, Compatible processor series: AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 1 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, LAN controller: Intel I226-LM, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: Workstation, Motherboard form factor: CEB, Motherboard chipset family: AMD
A WORKSTATION WONDERLAND
The Pro WS TRX50-SAGE WIFI A motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and AI era applications. Twenty power stages fuel AMD Ryzen™ Threadripper™ processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.
With onboard PCIe® power connectors offering additional support for multiple graphics cards, active cooling on the VRM heatsinks, WiFi 7, USB4® (40 Gbps), SlimSAS and IMPI support, the Pro WS TRX50-SAGE WIFI A comes prepared for a wide array of scenarios and industries.
The Pro WS TRX50-SAGE WIFI A motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and AI era applications. Twenty power stages fuel AMD Ryzen™ Threadripper™ processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.
With onboard PCIe® power connectors offering additional support for multiple graphics cards, active cooling on the VRM heatsinks, WiFi 7, USB4® (40 Gbps), SlimSAS and IMPI support, the Pro WS TRX50-SAGE WIFI A comes prepared for a wide array of scenarios and industries.
Processor
Processor manufacturer: AMD
Processor socket: Socket sTR5
Compatible processor series: AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series
Supported processor sockets: Socket sTR5
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC
Maximum internal memory: 1 TB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III, SlimSAS
Number of HDDs supported: 4
Number of storage drives supported: 10
Feature: RAID support
RAID levels: 0, 1, 5, 10
Graphics
Parallel processing technology support: Not supported
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2×2 connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 4
Feature: Chassis intrusion connector
Feature: EPS power connector (8-pin)
Number of COM connectors: 1
Feature: TPM connector
Feature: 12V power connector
Number of temperature sensor headers: 1
Feature: RGB LED pin header

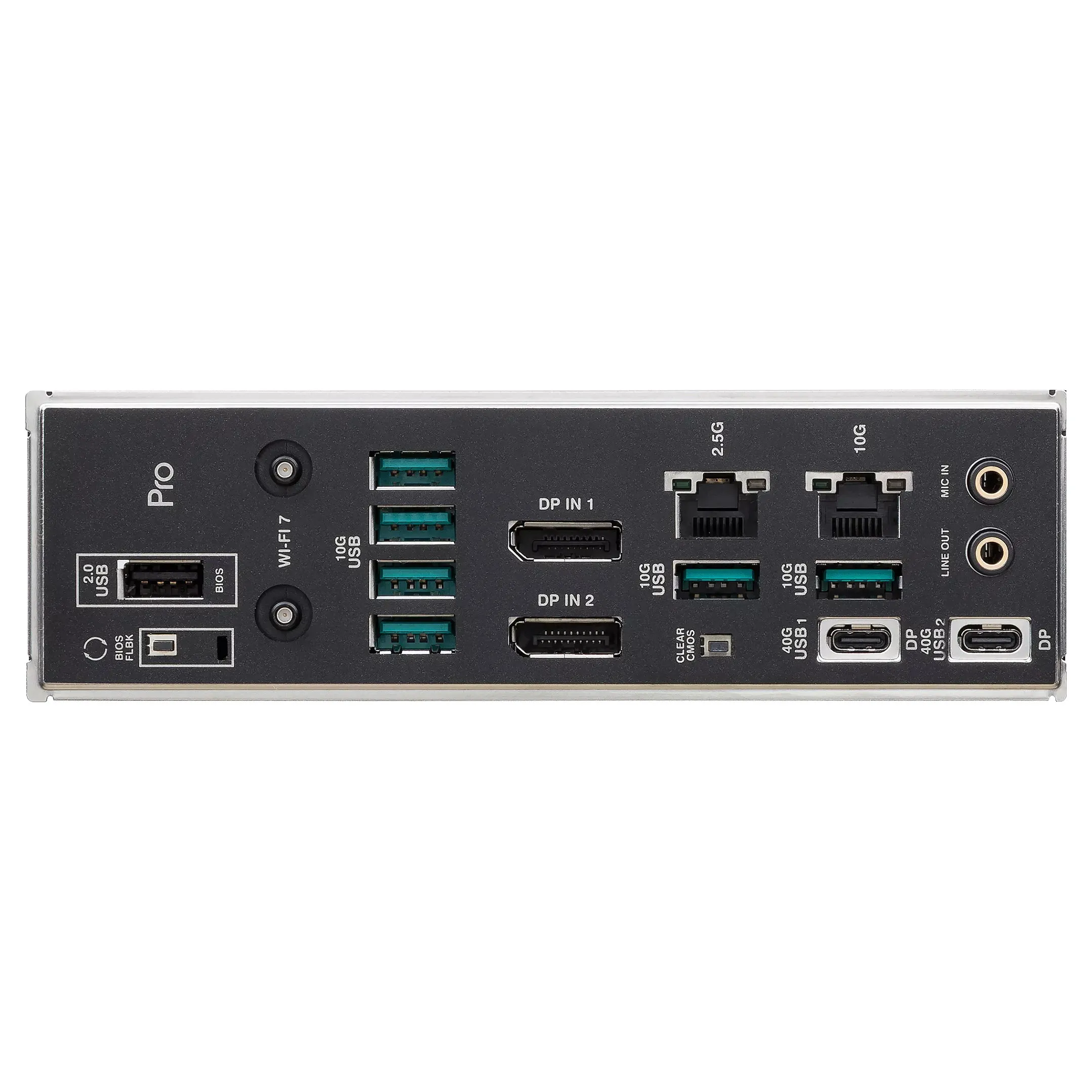

Rear panel I/O ports
USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB4 Gen 3×2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
DisplayPorts quantity: 2
WiFi-AP antenna jack: 1
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
LAN controller: Intel I226-LM
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: AMD TRX50
Audio chip: Realtek ALC1220P
Audio output channels: 5.1 channels
Product colour: Aluminium, Black
Component for: Workstation
Motherboard form factor: CEB
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 3
Number of M.2 (M) slots: 4
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2580
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
4th M.2 largest key size: 2280
4th M.2 highest PCI Express generation: 5.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Packaging data
Package width: 320 mm
Package depth: 380 mm
Package height: 100 mm
Package weight: 4.85 kg
Weight & dimensions
Width: 305 mm
Depth: 280 mm
Packaging content
Cables included: DisplayPort, SATA
Feature: Antenna included
Processor manufacturer: AMD
Processor socket: Socket sTR5
Compatible processor series: AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series
Supported processor sockets: Socket sTR5
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC
Maximum internal memory: 1 TB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III, SlimSAS
Number of HDDs supported: 4
Number of storage drives supported: 10
Feature: RAID support
RAID levels: 0, 1, 5, 10
Graphics
Parallel processing technology support: Not supported
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2×2 connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 4
Feature: Chassis intrusion connector
Feature: EPS power connector (8-pin)
Number of COM connectors: 1
Feature: TPM connector
Feature: 12V power connector
Number of temperature sensor headers: 1
Feature: RGB LED pin header
Rear panel I/O ports
USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB4 Gen 3×2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
DisplayPorts quantity: 2
WiFi-AP antenna jack: 1
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
LAN controller: Intel I226-LM
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: AMD TRX50
Audio chip: Realtek ALC1220P
Audio output channels: 5.1 channels
Product colour: Aluminium, Black
Component for: Workstation
Motherboard form factor: CEB
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 3
Number of M.2 (M) slots: 4
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2580
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
4th M.2 largest key size: 2280
4th M.2 highest PCI Express generation: 5.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Packaging data
Package width: 320 mm
Package depth: 380 mm
Package height: 100 mm
Package weight: 4.85 kg
Weight & dimensions
Width: 305 mm
Depth: 280 mm
Packaging content
Cables included: DisplayPort, SATA
Feature: Antenna included
