ASUS PRIME H810M-E-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

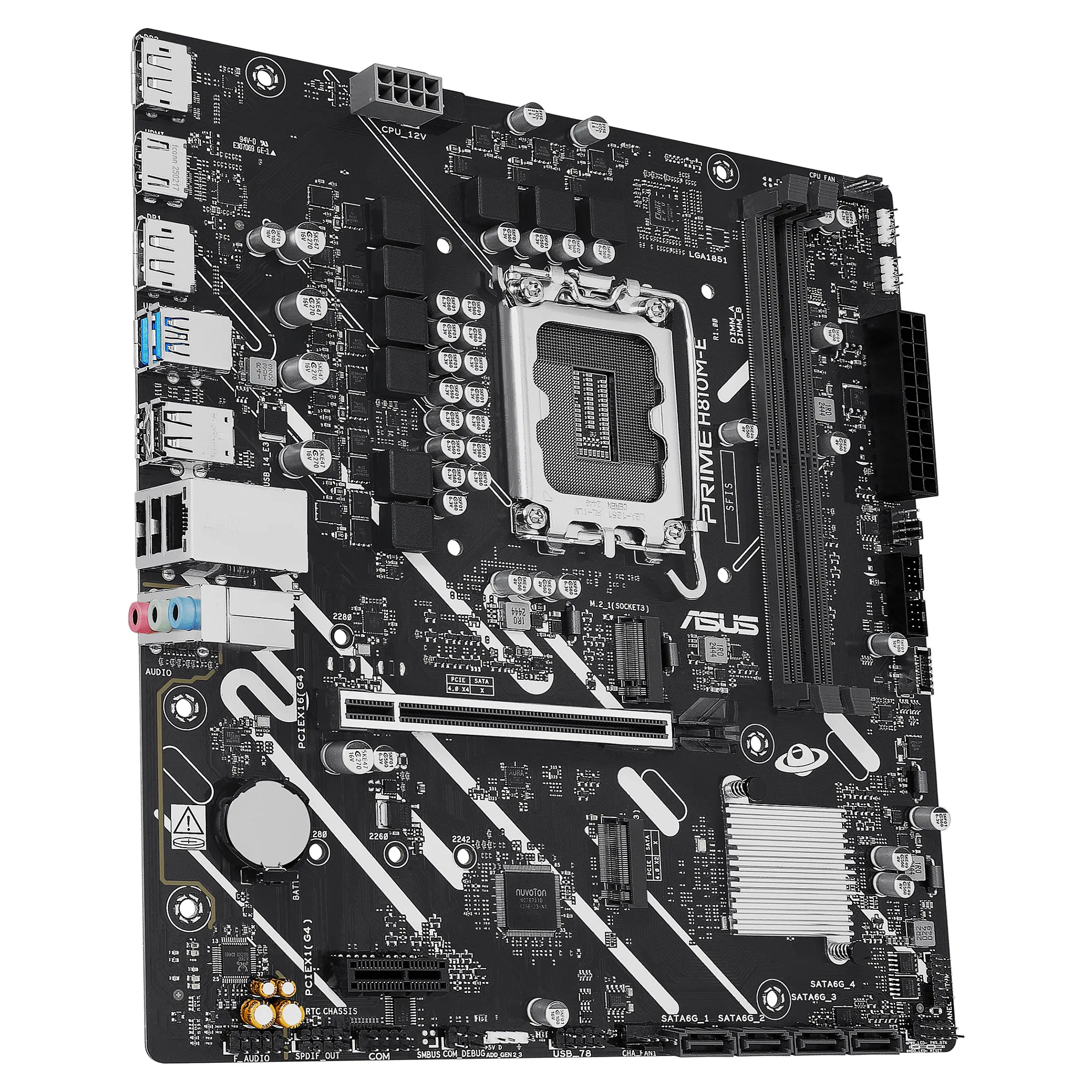

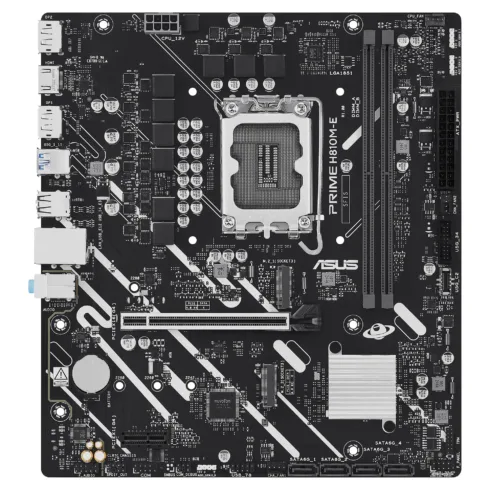

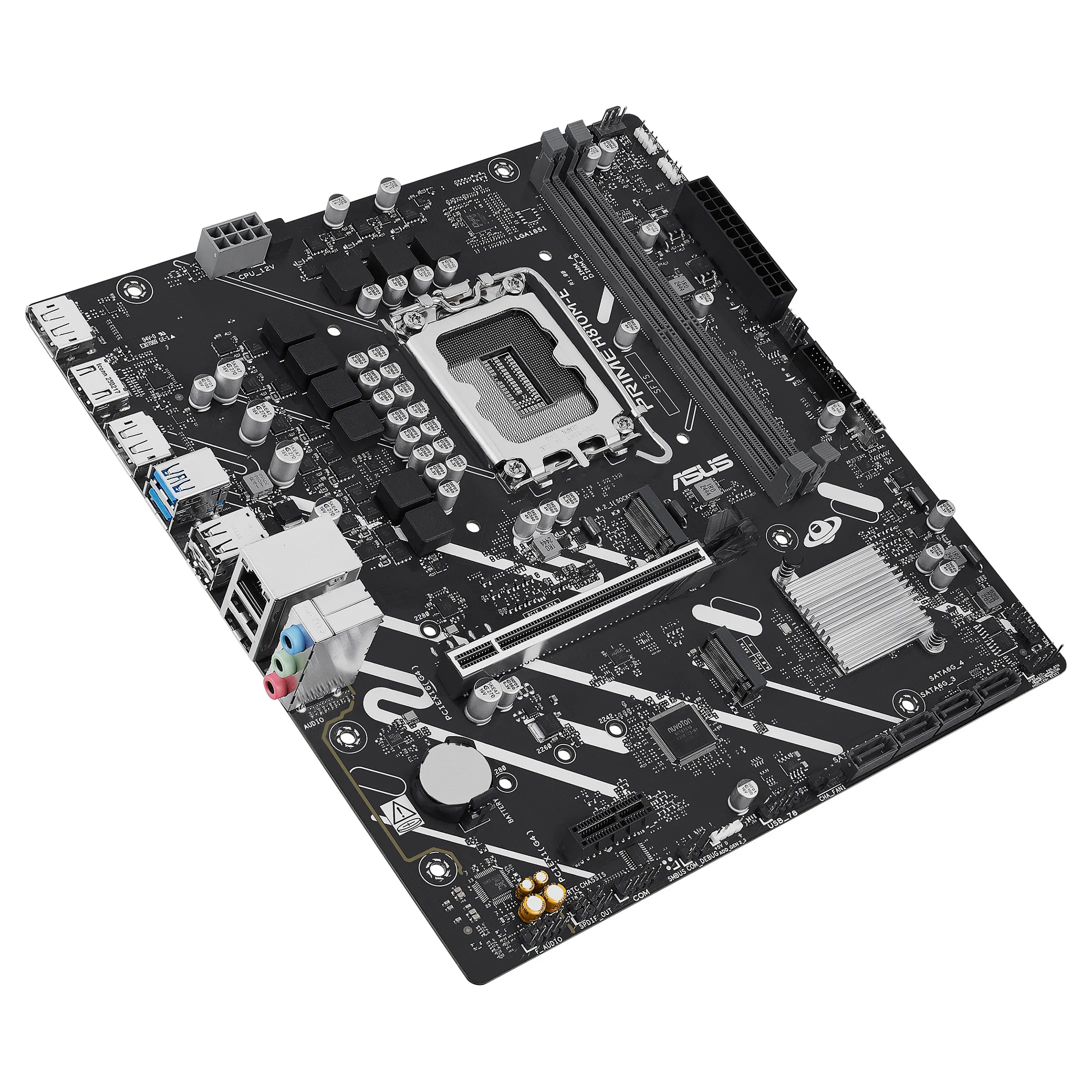

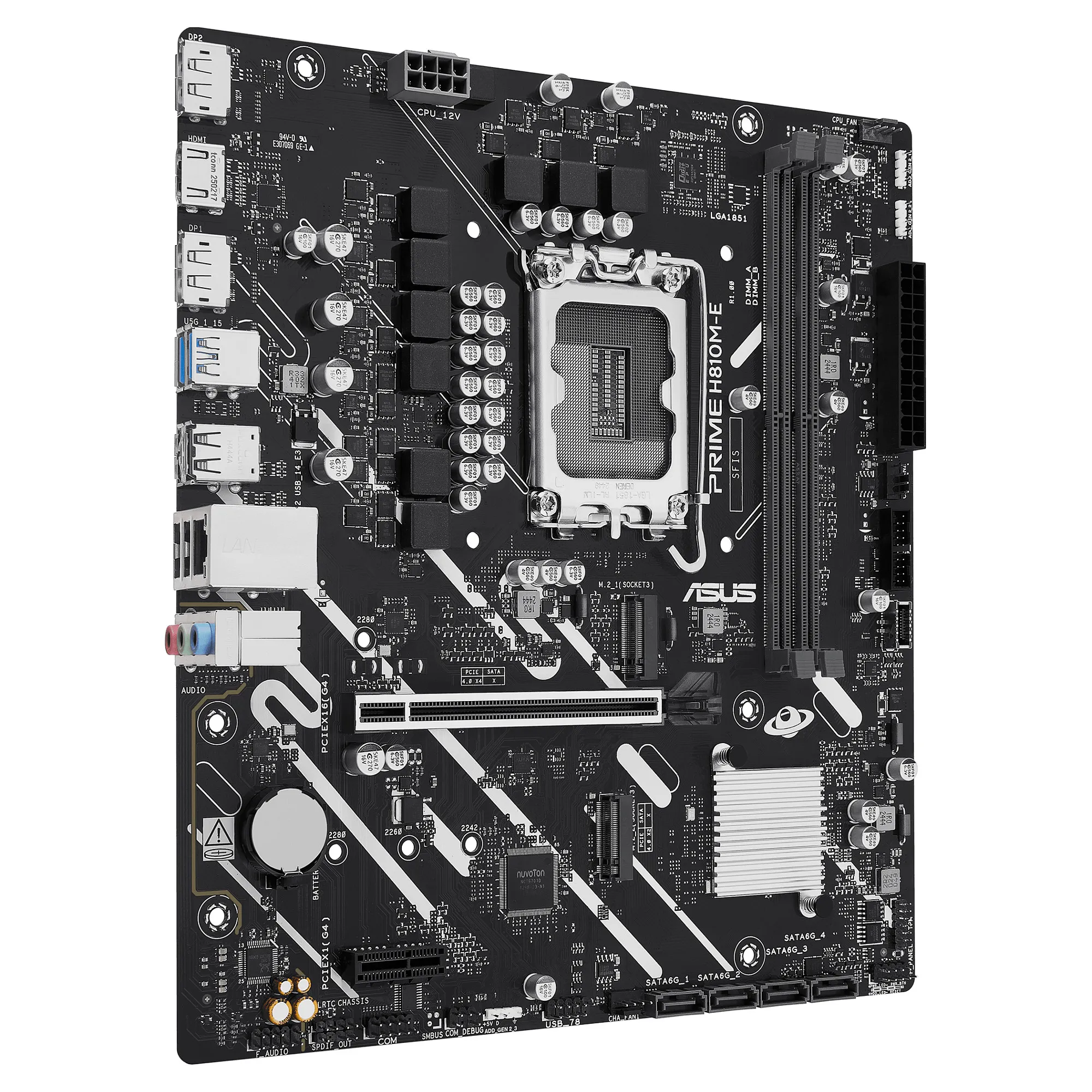

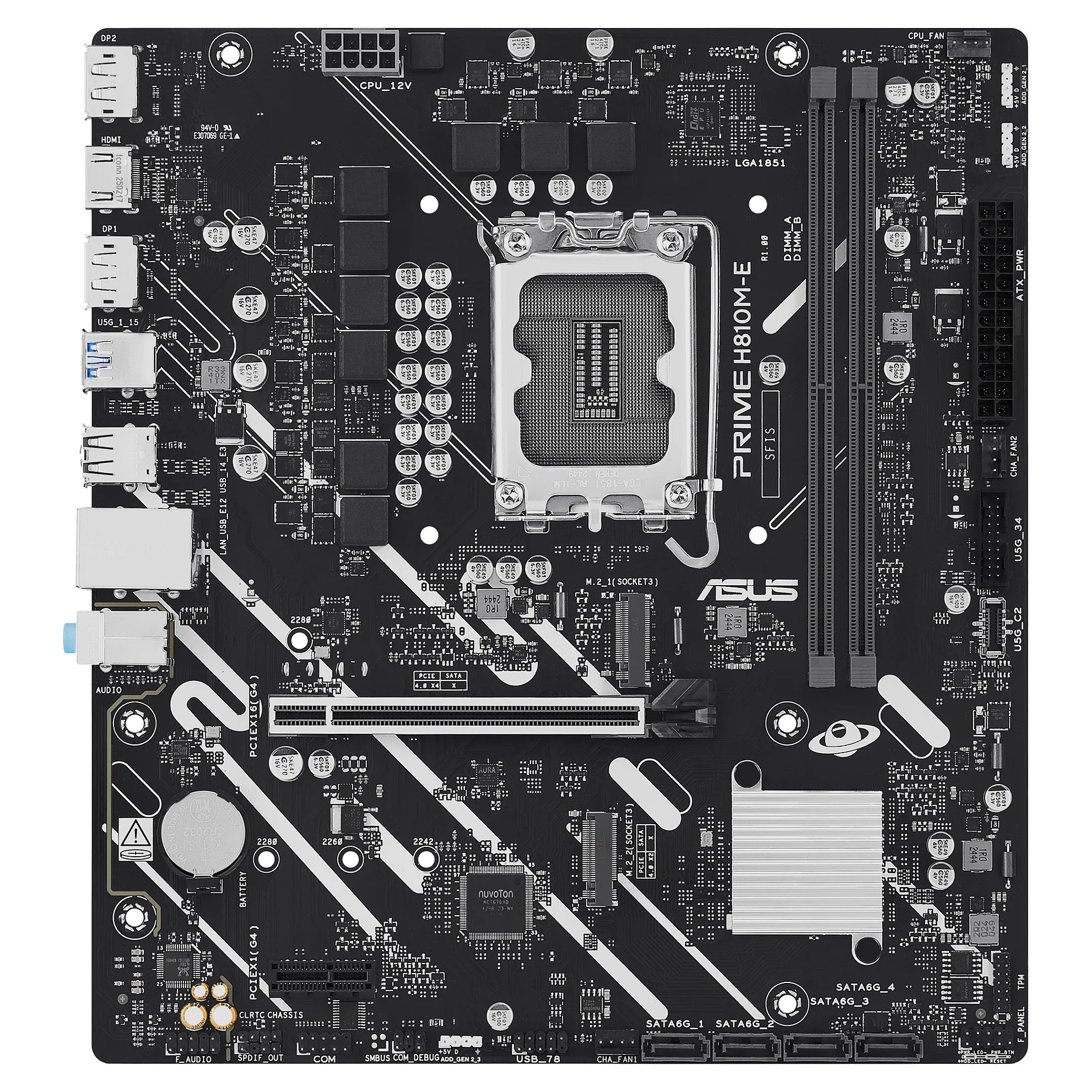

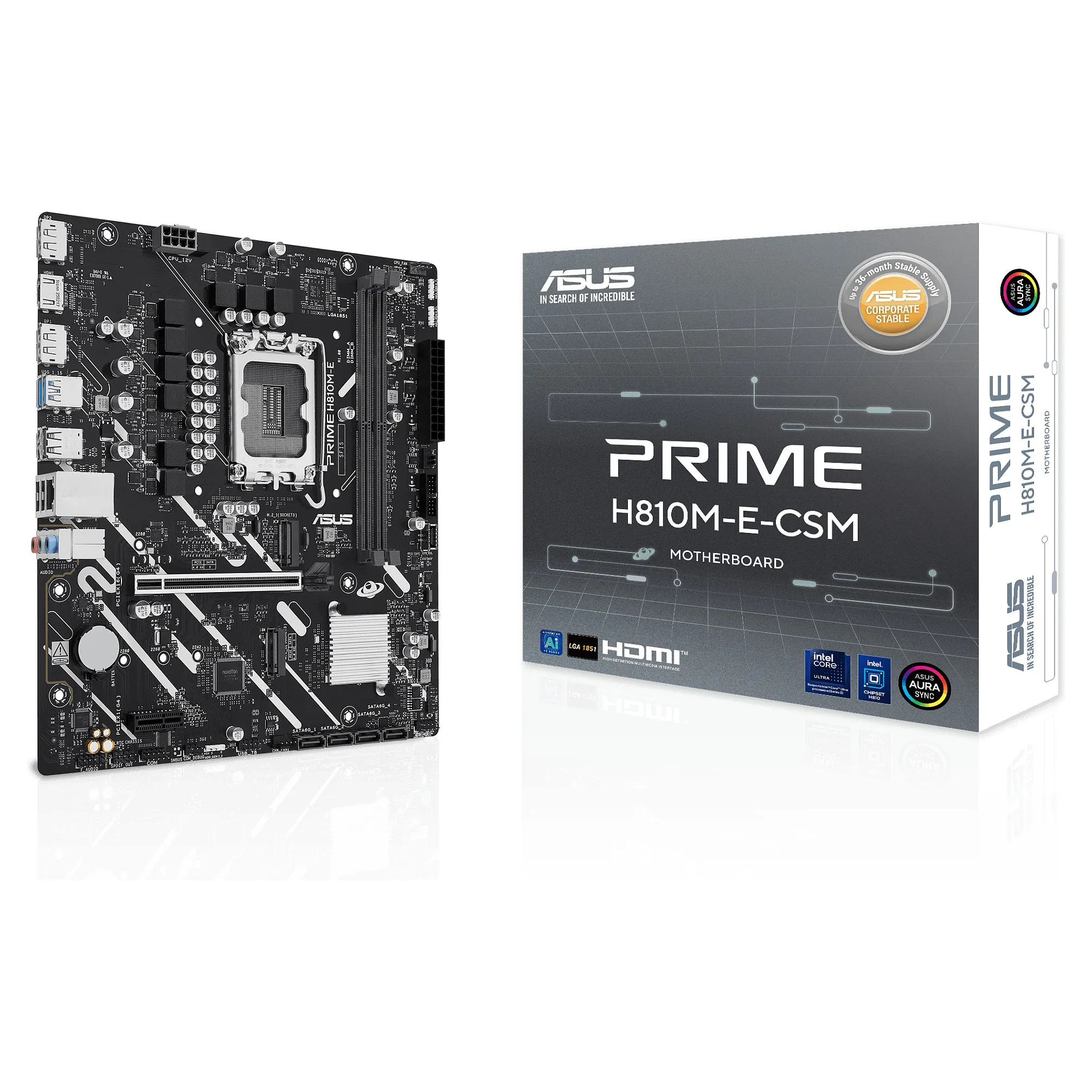

PRIME H810M-E-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-E-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-E-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Processor
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Supported processor sockets: LGA 1851
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Maximum internal memory: 128 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
Graphics
Parallel processing technology support: Not supported
Internal I/O
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Feature: S/PDIF out connector
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 1
Number of chassis fan connectors: 2
Feature: Chassis intrusion connector
Feature: EPS power connector (8-pin)
Number of COM connectors: 1
Feature: TPM connector
Feature: 12V power connector
Feature: RGB LED pin header
Number of RGB LED pin headers: 3

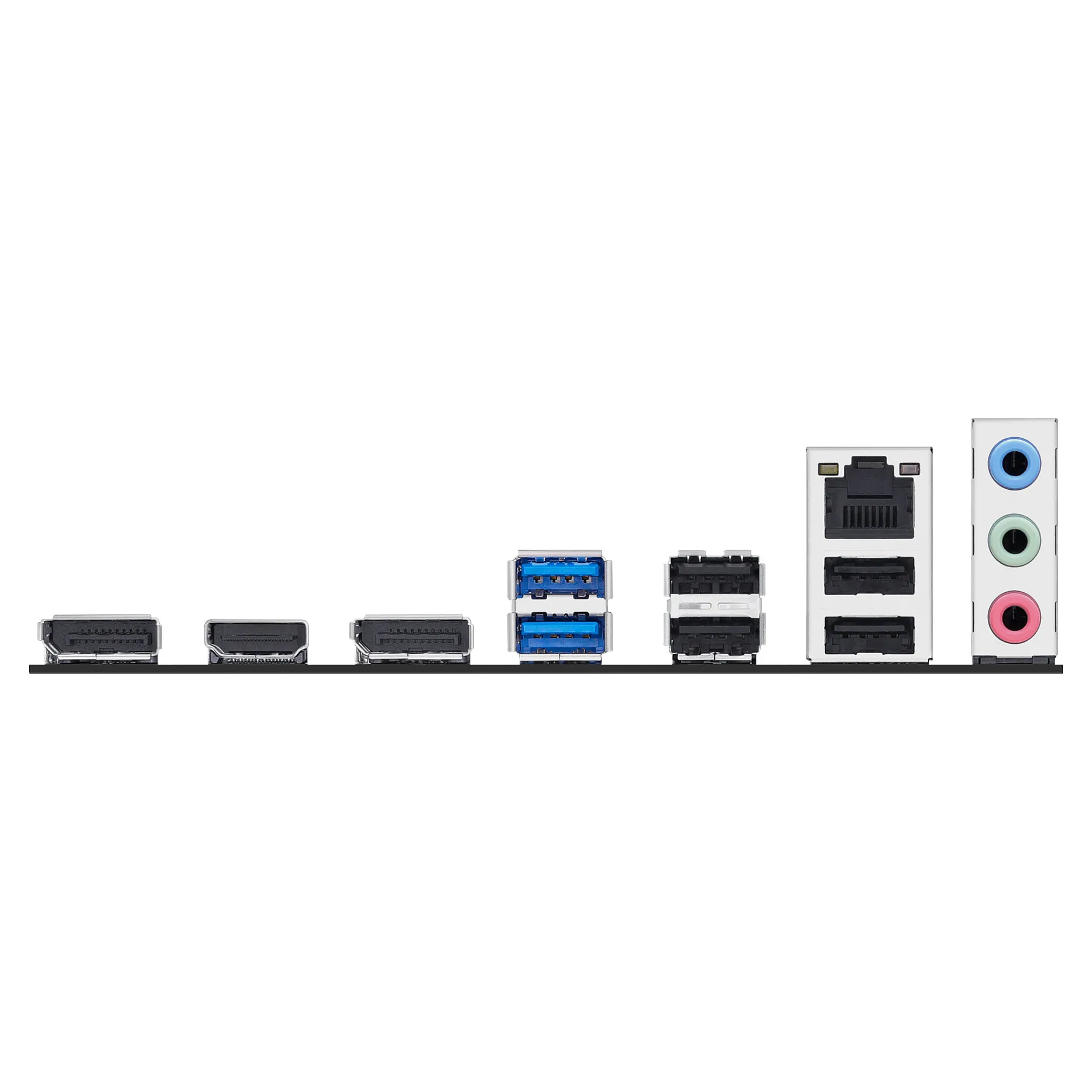

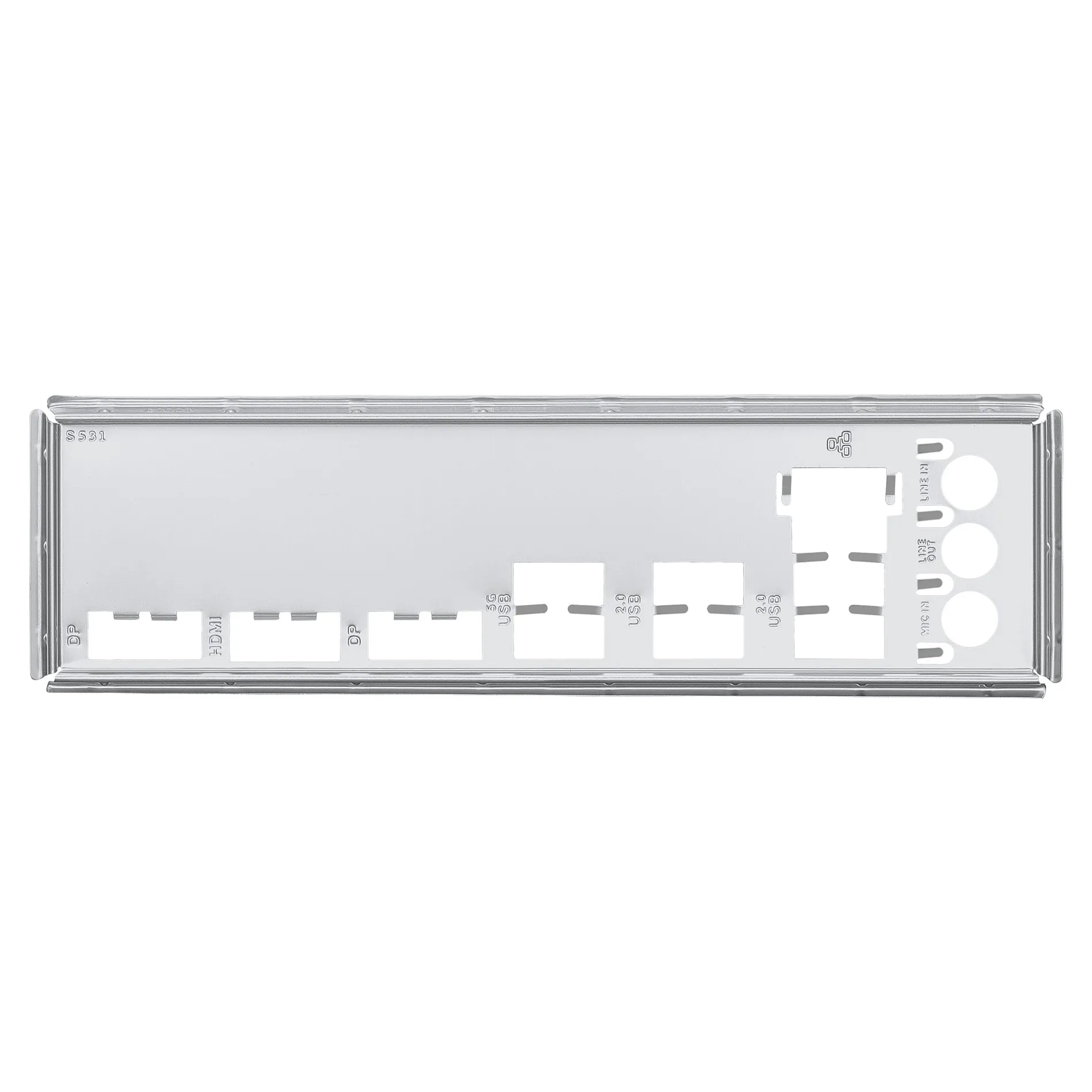

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
DisplayPorts quantity: 2
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Top Wi-Fi standard: Not available
Features
Motherboard chipset: Intel H810
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Packaging data
Package width: 270 mm
Package depth: 263 mm
Package height: 51.5 mm
Package weight: 747 g
Weight & dimensions
Width: 244 mm
Depth: 222 mm

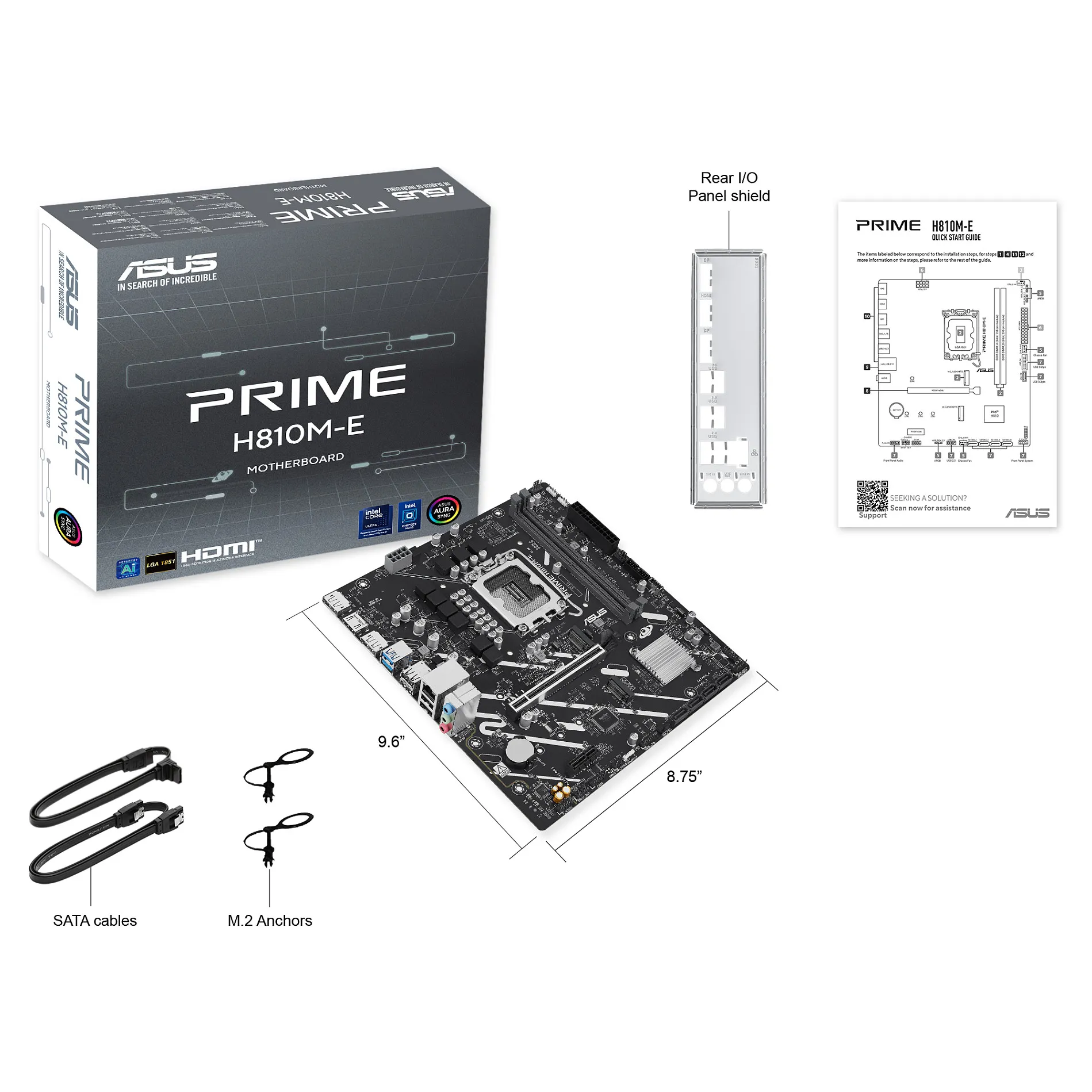

Packaging content
Cables included: SATA
