ASUS Prime -850G. Total power: 850 W, AC input voltage: 100 – 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, Peripheral (Molex), SATA
Prime 850W Gold Black Edition
STELLAR
PERFORMANCE
A Prime Gold Black Edition power supply unit in a blue, space vibe background.
With 80 PLUS and Cybenetics Gold certification, Dual-ball fan bearings, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
STELLAR
PERFORMANCE
A Prime Gold Black Edition power supply unit in a blue, space vibe background.
With 80 PLUS and Cybenetics Gold certification, Dual-ball fan bearings, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
Power
Total power: 850 W
AC input voltage: 100 – 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 846 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit

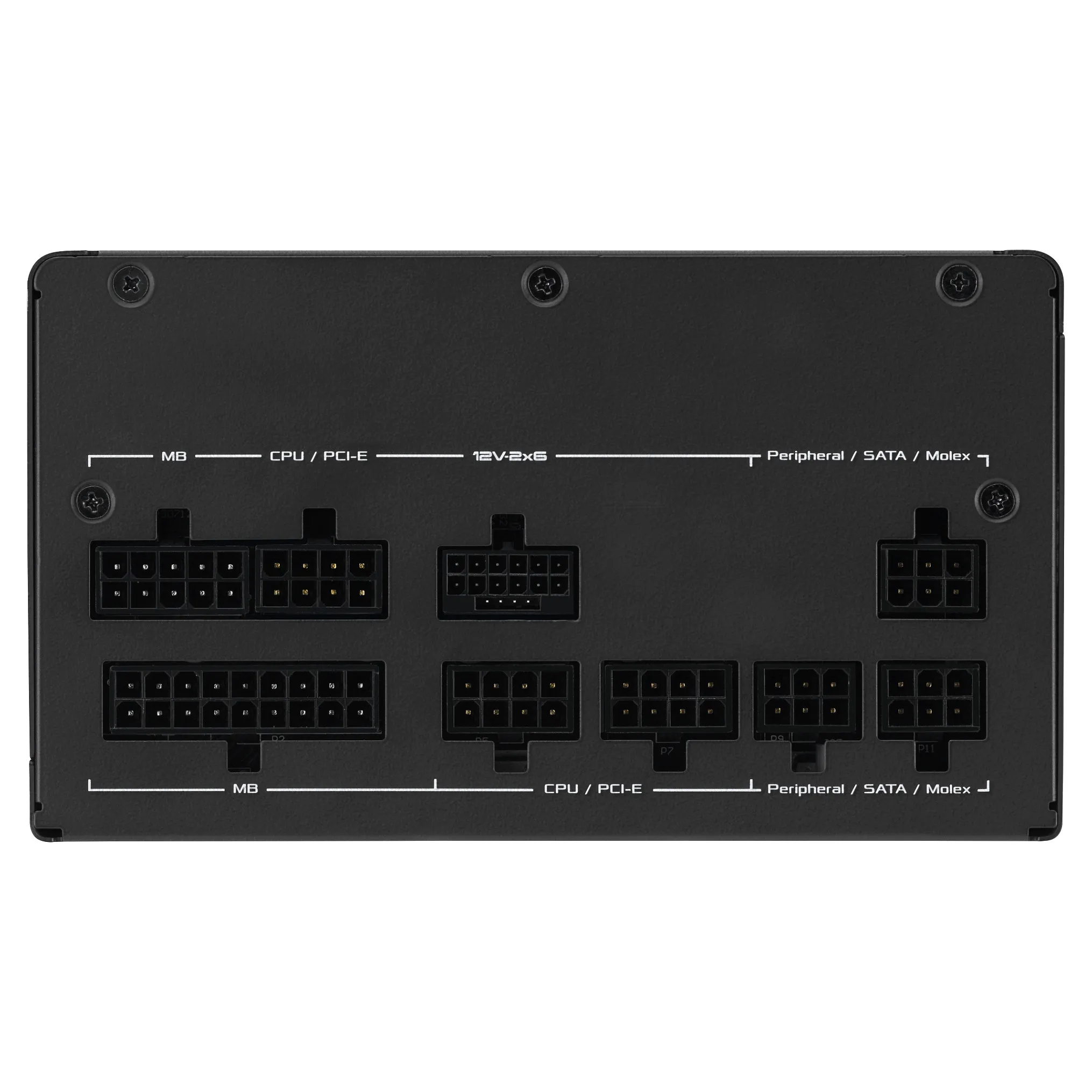

Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 5
SATA power cable length: 400,120 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 400,150 mm
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 60 cm
Feature: CPU power connector (4+4 pin)
Feature: PCI Express connector

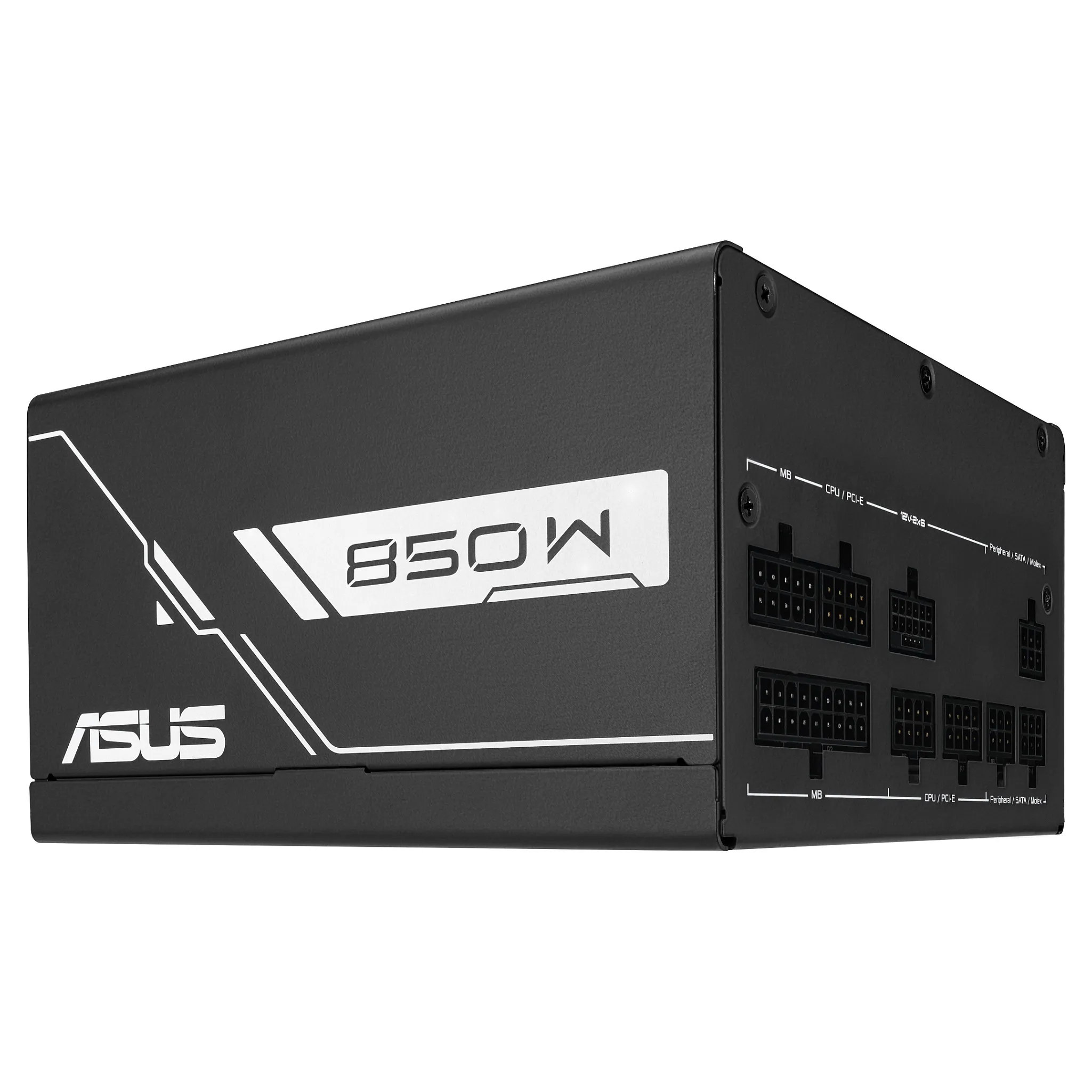

Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: DBB
Mean time between failures (MTBF): 120000 h
Design
Product colour: Black
Cooling type: Active
Number of fans: 1 fan(s)

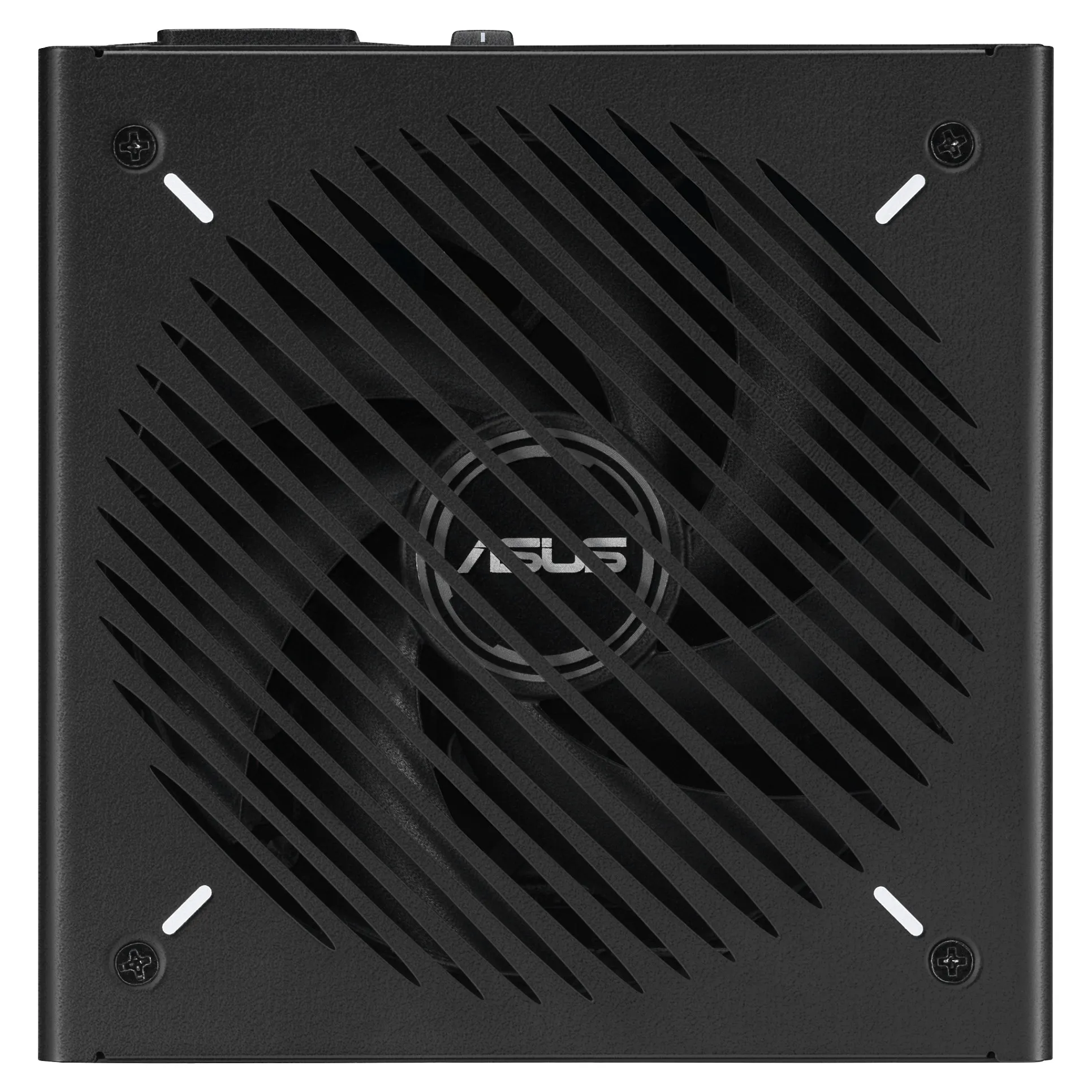

Fan location: Top
Feature: On/off switch
Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width: 150 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.48 kg
Packaging data
Package width: 320 mm
Package depth: 213 mm
Package height: 113 mm
Package weight: 2.88 kg
Package type: Box
Total power: 850 W
AC input voltage: 100 – 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 846 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 5
SATA power cable length: 400,120 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 400,150 mm
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 60 cm
Feature: CPU power connector (4+4 pin)
Feature: PCI Express connector
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: DBB
Mean time between failures (MTBF): 120000 h
Design
Product colour: Black
Cooling type: Active
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width: 150 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.48 kg
Packaging data
Package width: 320 mm
Package depth: 213 mm
Package height: 113 mm
Package weight: 2.88 kg
Package type: Box
