ASUS PB63-B5204AH. Processor family: Intel® Core™ i5, Processor model: i5-14400. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 730. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.18 kg. Product colour: Black
Solid reliability for your business
ASUS ExpertCenter PB63 is a durable, versatile and powerful PC suited to a range of business applications, including signage, point-of-sales (POS) systems, kiosks and intelligent vending machines. Powered by the latest Intel® 14th Generation Core™ with Intel® UHD Graphics processors, PB63 delivers desktop-grade performance in a compact size, with supports the next gen memory – DDR5. To cater to diverse demands, PB63 supports a 46 to 65 watt CPU – so it’s easy to spec for supreme efficiency or maximum performance. Comprehensive connectivity with eight USB ports and support for up to three 4K UHD displays means PB63 is perfect for almost any business scenario. It’s also tested to the latest MIL-STD-810H military standard to ensure it’s ready for harsh environments.
ASUS ExpertCenter PB63 is a durable, versatile and powerful PC suited to a range of business applications, including signage, point-of-sales (POS) systems, kiosks and intelligent vending machines. Powered by the latest Intel® 14th Generation Core™ with Intel® UHD Graphics processors, PB63 delivers desktop-grade performance in a compact size, with supports the next gen memory – DDR5. To cater to diverse demands, PB63 supports a 46 to 65 watt CPU – so it’s easy to spec for supreme efficiency or maximum performance. Comprehensive connectivity with eight USB ports and support for up to three 4K UHD displays means PB63 is perfect for almost any business scenario. It’s also tested to the latest MIL-STD-810H military standard to ensure it’s ready for harsh environments.
Processor
Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: Intel® Core™ i5 (14th gen)
Processor model: i5-14400
Processor cores: 10
Processor threads: 16
Processor boost frequency: 4.7 GHz
Performance cores: 6
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.7 GHz
Efficient-core Max Turbo Frequency: 3.5 GHz
Performance-core base frequency: 2.5 GHz
Efficient-core base frequency: 1.8 GHz
Processor cache: 20 MB
Processor cache type: Smart Cache
Processor base power: 65 W
Maximum turbo power: 148 W
Memory
Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x SO-DIMM
Storage
Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel UHD Graphics 730
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Antenna type: 2×2
Feature: Bluetooth
Bluetooth version: 5.2

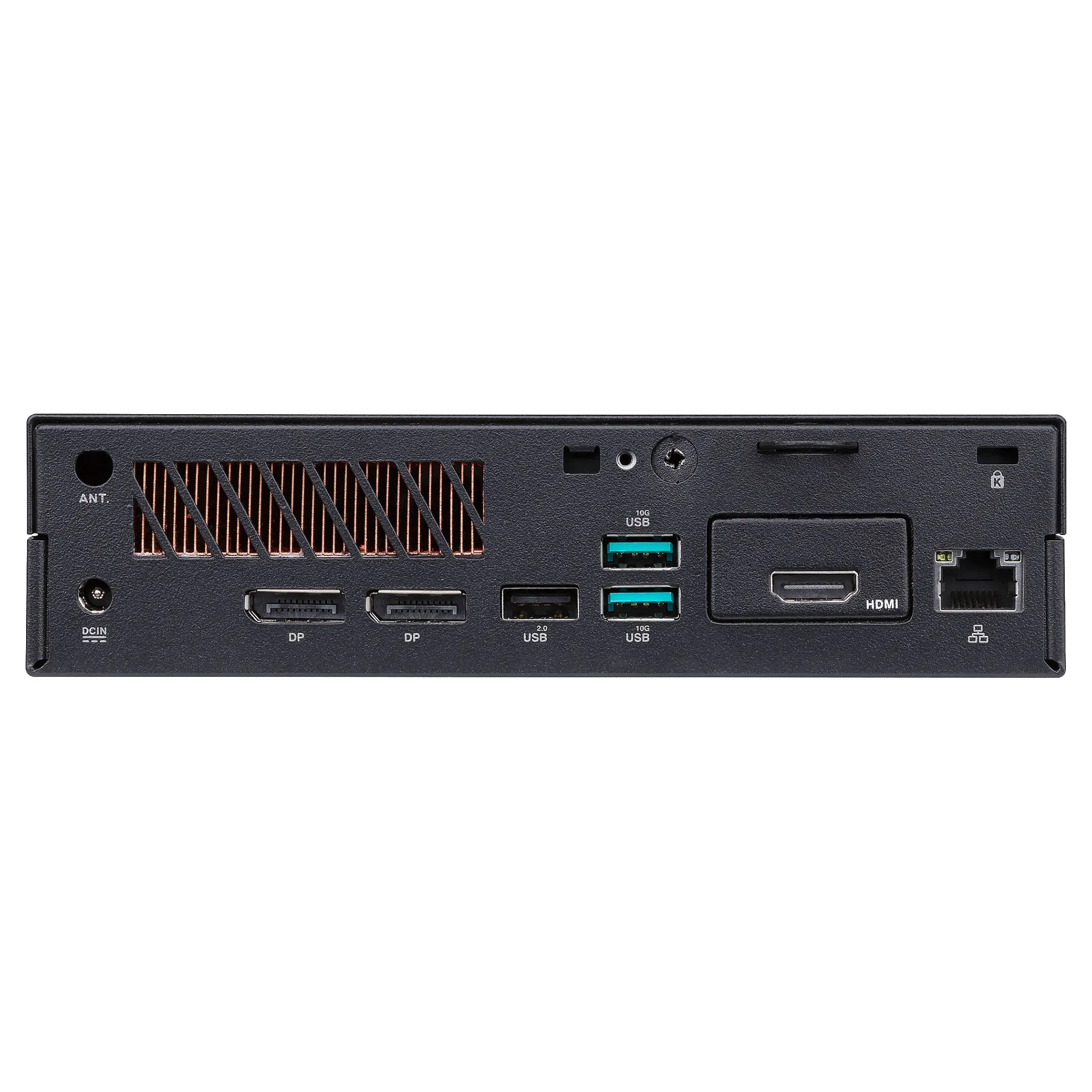

Ports & interfaces
USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2×2 Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Headphone outputs: 1
Feature: DC-in jack
Design
Chassis type: Mini PC
Colour name: Black
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black
Performance
Feature: Trusted Platform Module (TPM)
Product type: Mini PC
Software
Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro
Certificates
Certification: BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
Weight & dimensions
Width: 175 mm
Depth: 175 mm
Height: 44.2 mm
Weight: 1.18 kg
Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: Intel® Core™ i5 (14th gen)
Processor model: i5-14400
Processor cores: 10
Processor threads: 16
Processor boost frequency: 4.7 GHz
Performance cores: 6
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.7 GHz
Efficient-core Max Turbo Frequency: 3.5 GHz
Performance-core base frequency: 2.5 GHz
Efficient-core base frequency: 1.8 GHz
Processor cache: 20 MB
Processor cache type: Smart Cache
Processor base power: 65 W
Maximum turbo power: 148 W
Memory
Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x SO-DIMM
Storage
Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel UHD Graphics 730
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Antenna type: 2×2
Feature: Bluetooth
Bluetooth version: 5.2
Ports & interfaces
USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2×2 Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Headphone outputs: 1
Feature: DC-in jack
Design
Chassis type: Mini PC
Colour name: Black
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black
Performance
Feature: Trusted Platform Module (TPM)
Product type: Mini PC
Software
Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro
Certificates
Certification: BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
Weight & dimensions
Width: 175 mm
Depth: 175 mm
Height: 44.2 mm
Weight: 1.18 kg
