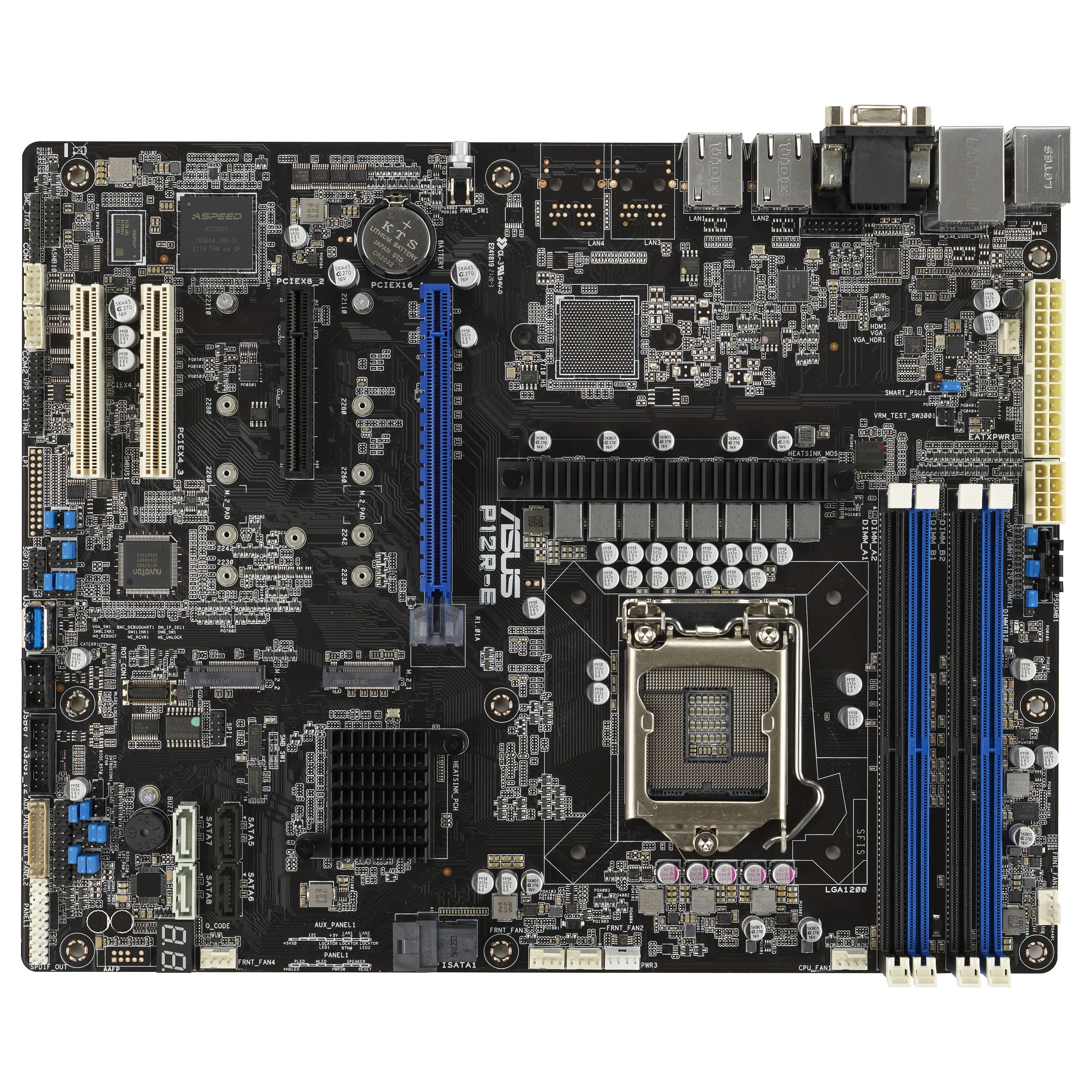

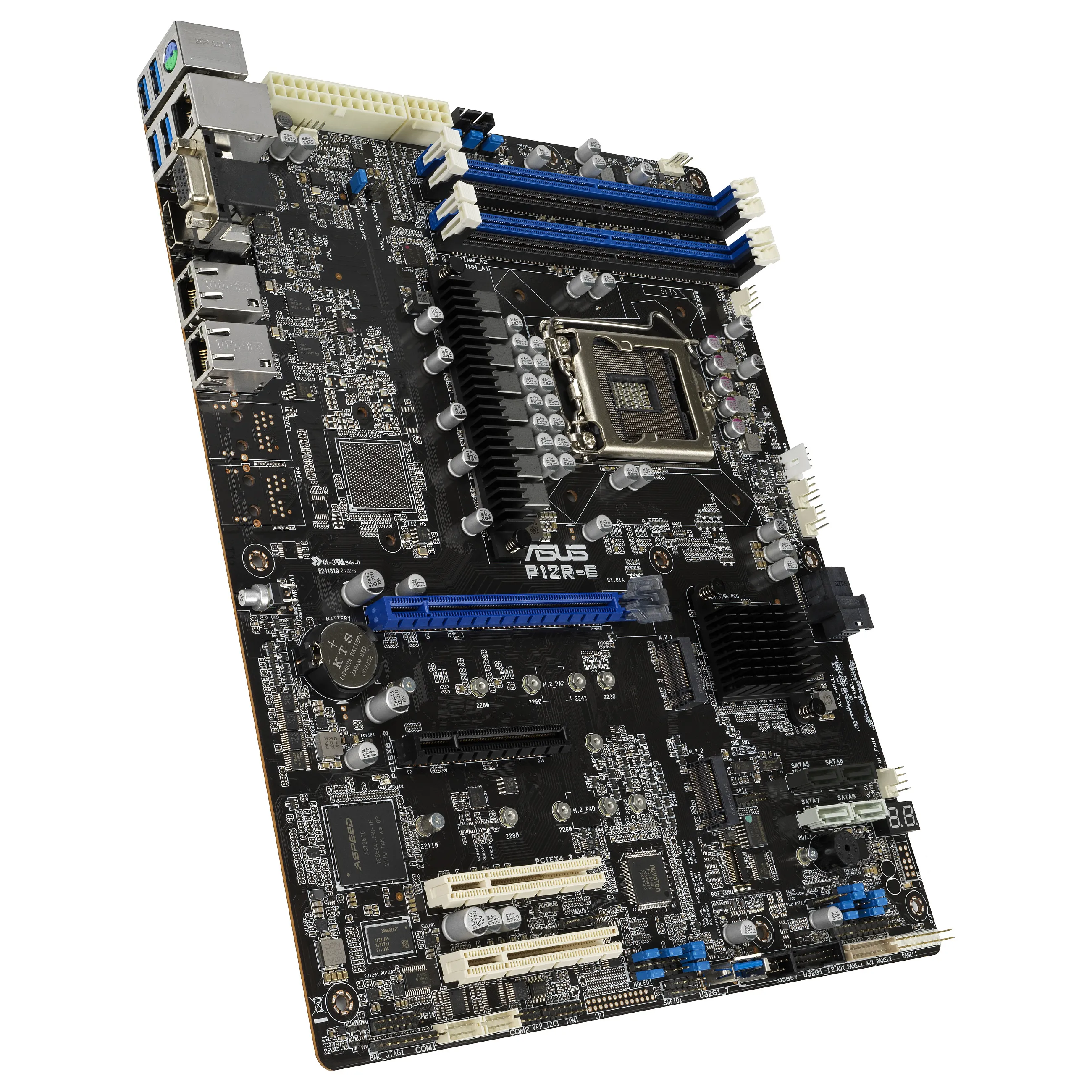

ASUS P12R-E. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Pentium®, Intel Xeon E. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: ASPEED, On-board graphics card model: Aspeed AST2600, On-board graphics card memory: 64 MB. Ethernet interface type: Gigabit Ethernet
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
Processor manufacturer: Intel
Processor socket: LGA 1200 (Socket H5)
Compatible processor series: Intel® Pentium®, Intel Xeon E
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Supported memory clock speeds: 2666,2933,3200 MHz
Supported memory clock speed (max): 3200 MHz
Maximum internal memory: 128 GB
Supported memory module capacities: 8GB, 16GB, 32GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 8
Number of storage drives supported: 10
Feature: RAID support
Graphics
Feature: On-board graphics card
Graphics card family: ASPEED
On-board graphics card model: Aspeed AST2600
On-board graphics card memory: 64 MB
Internal I/O
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 8
Feature: ATX Power connector (24-pin)
Feature: Power fan connector
Feature: Chassis intrusion connector
Number of COM connectors: 1
Feature: TPM connector

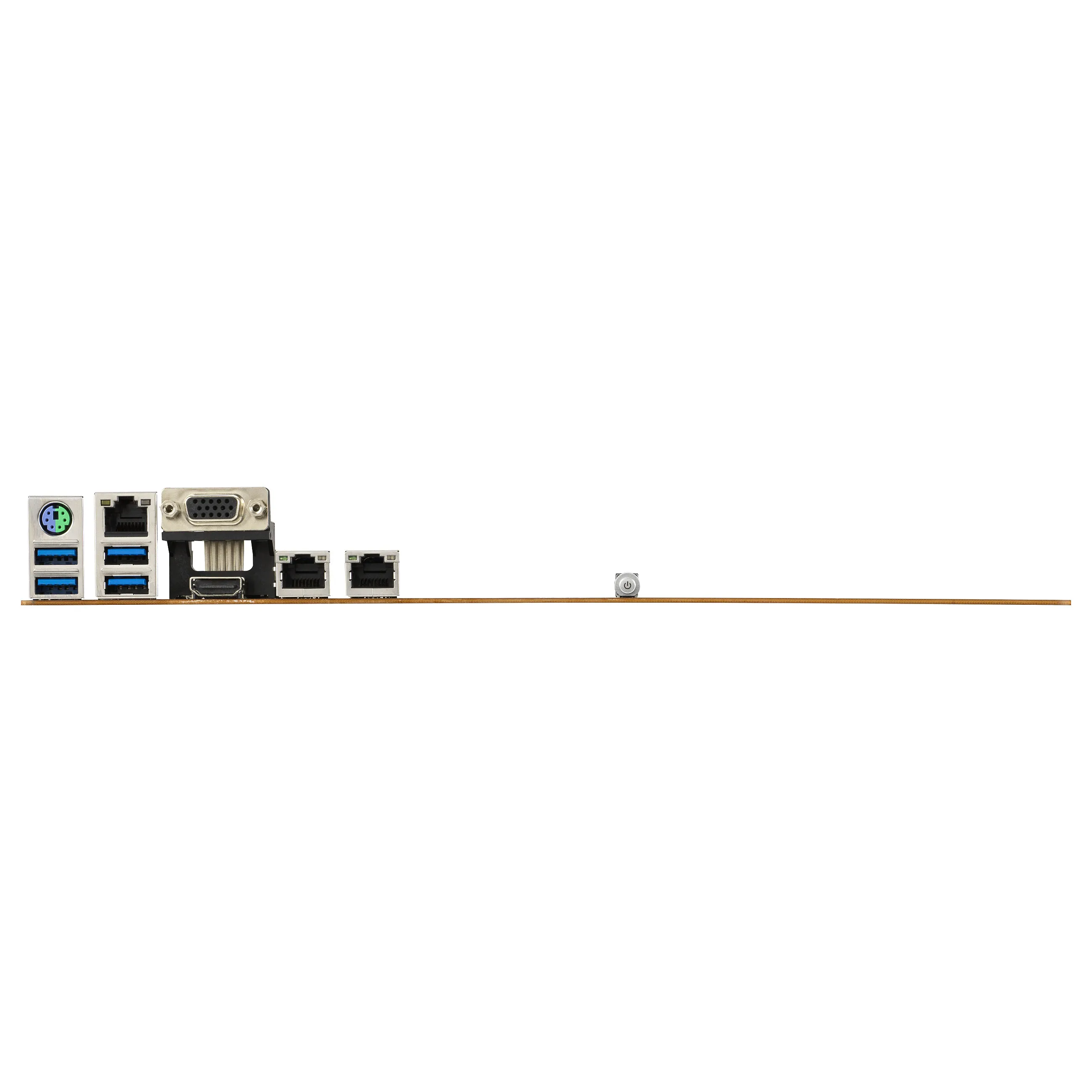

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Top Wi-Fi standard: Not available
Features
Motherboard chipset: Intel C256
PC health monitoring: CPU, Fan
Component for: Server
Motherboard form factor: ATX
Motherboard chipset family: Intel
Expansion slots
PCI Express x8 (Gen 3.x) slots: 2
PCI Express x8 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
Operational conditions
Storage temperature (T-T): -40 – 70 °C
Operating temperature (T-T): 10 – 50 °C
Storage relative humidity (H-H): 20 – 90%
Logistics data
Harmonized System (HS) code: 84733020
Packaging data
Package width: 341 mm
Package depth: 281 mm
Package height: 78 mm
Package weight: 1.5 kg
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 68 mm
Other features
Weight: 800 g
