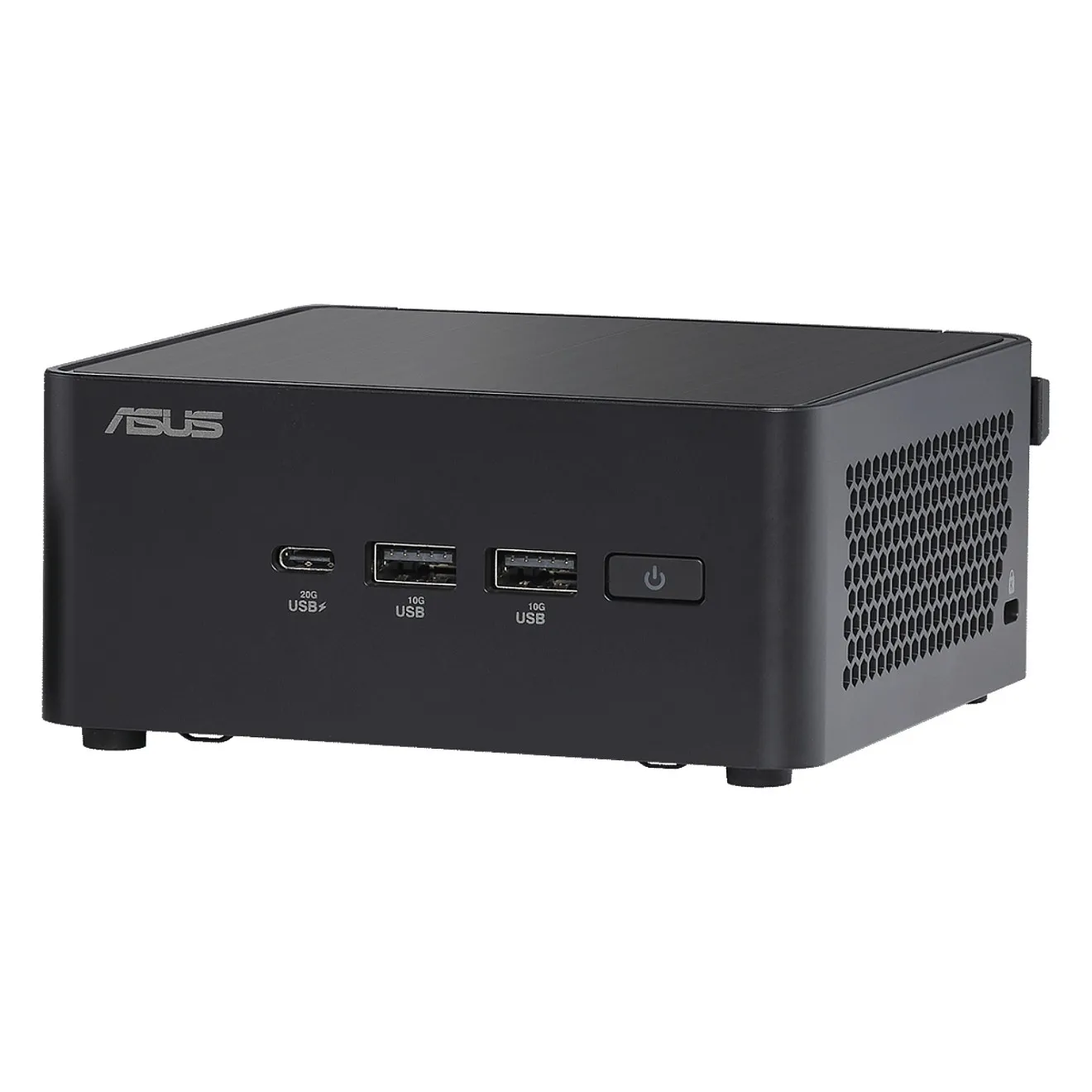

ASUS NUC 14 Pro RNUC14RVHU500002I. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 96 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active. Power supply: 120 W
Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.
Toolless Design
ASUS NUC 14 Pro offers toolless access to make it easy to open up the chassis to assess the M.2 PCIe SSD module for easy upgrades.
Certified Bluetooth
dongle-free experience
A certified Bluetooth dongle offers hassle-free operation, cost savings, and resolves ITDM issues. It eliminates concerns such as lost dongles, PC Bluetooth compatibility, and USB port limitations on NUC.
The dongle-free approach simplifies pairing, enhances audio quality, and improves control in video collaboration calls.
Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel® Core™ Ultra (Series 1)
Processor model: 125H
Processor cores: 14
Processor threads: 18
Performance cores: 4
Efficient cores: 8
Low Power Efficient-cores: 2
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Feature: Built-in processor
Performance-core boost frequency: 4.5 GHz
Efficient-core boost frequency: 3.6 GHz
Processor cache: 18 MB
Thermal Design Power (TDP): 28 W
Memory
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 96 GB
Supported memory clock speeds: 5600 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Storage
Supported storage drive types: SSD
Storage drive sizes supported: 2.5,M.2
Storage drive interface: PCI Express, Serial ATA III
Feature: NVMe
Graphics
Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel® Graphics
Network
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211
Feature: Ethernet LAN
Feature: Wi-Fi
Feature: Bluetooth
Bluetooth version: 5.3
Ports & interfaces
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB4 Gen 2×2 ports quantity: 1
HDMI ports quantity: 2
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Thunderbolt 4 ports quantity: 2
Feature: DC-in jack
Design
Chassis type: UCFF
Product colour: Black
Cooling type: Active
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Product type: Mini PC barebone
Performance
Number of processors supported: 1
Software
Windows operating systems supported: Windows 11
Power
Power supply type: External AC adapter
Power supply: 120 W
Weight & dimensions
Width: 144 mm
Depth: 112 mm
Height: 41 mm
Weight: 570 g
Packaging content
Feature: Power cord included
Feature: Quick start guide
