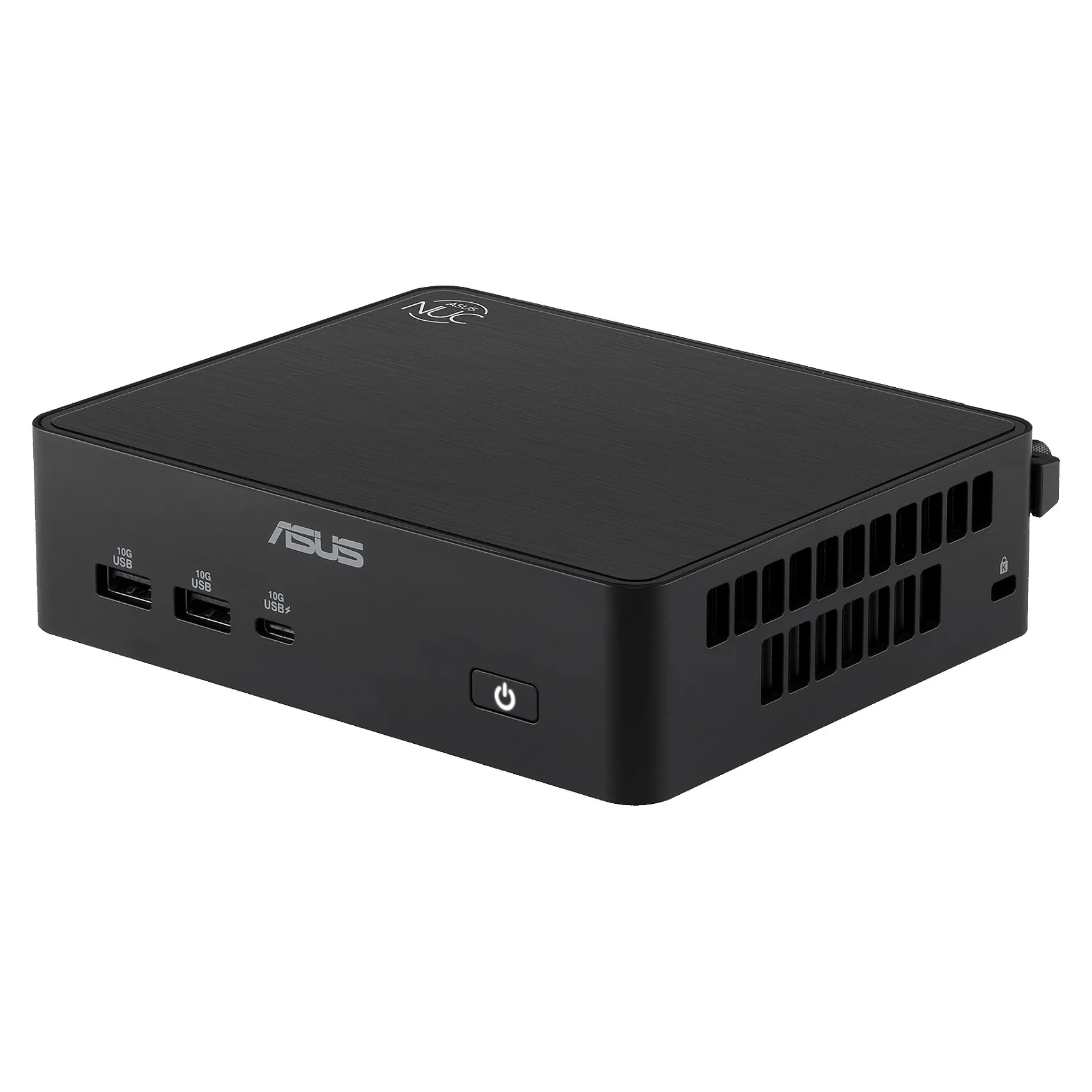

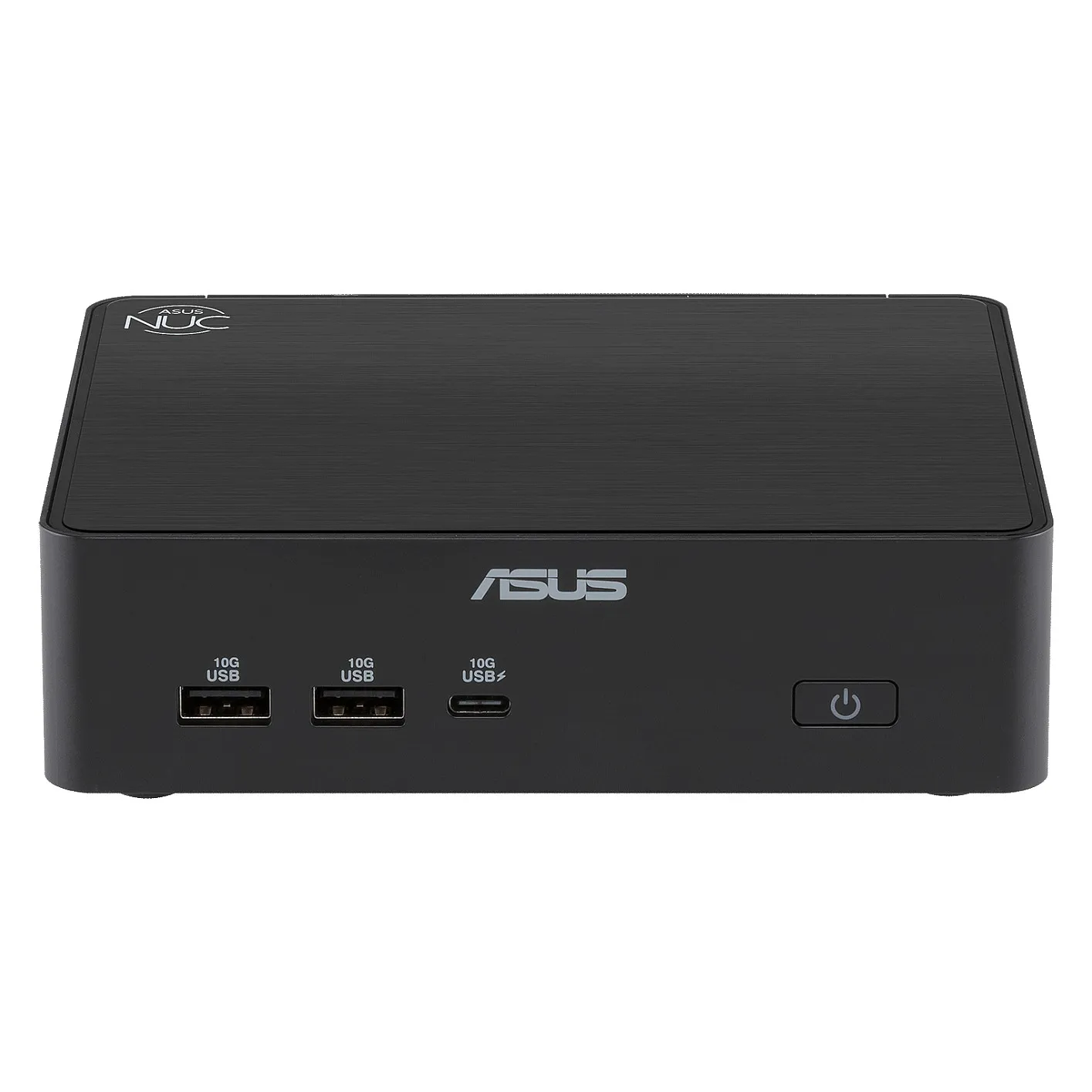

ASUS NUC 16 Pro RNUC16GDKV760002. Product type: Mini PC barebone. Number of memory slots: 2, Maximum internal memory: 128 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Maximum storage capacity: 8 TB. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 7 (802.11be), Bluetooth version: 6.0. Cooling type: Active
Faster, Smarter, More Secure For the AI-Driven Enterprise
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.
Processor
Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel® Core™ Ultra (Series 3)
Processor model: 366H
Processor cores: 16
Processor threads: 16
Processor boost frequency: 4.8 GHz
Performance cores: 4
Efficient cores: 8
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 4.8 GHz
Efficient-core Max Turbo Frequency: 3.6 GHz
Low Power Efficient-core Max Turbo Frequency: 3.4 GHz
Performance-core base frequency: 2 GHz
Efficient-core base frequency: 1.6 GHz
Low Power Efficient-core Base Frequency: 1600 MHz
Feature: Built-in processor
Processor cache: 18 MB
Memory
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Storage
Supported storage drive types: SSD
Storage drive sizes supported: M.2
SSD form factor: M.2
Storage drive interface: PCI Express
Number of storage drives supported: 2
Maximum storage capacity: 8 TB
Graphics
Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel® Graphics
Performance
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Network
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Ethernet LAN
Feature: Wi-Fi
Feature: Bluetooth
Bluetooth version: 6.0

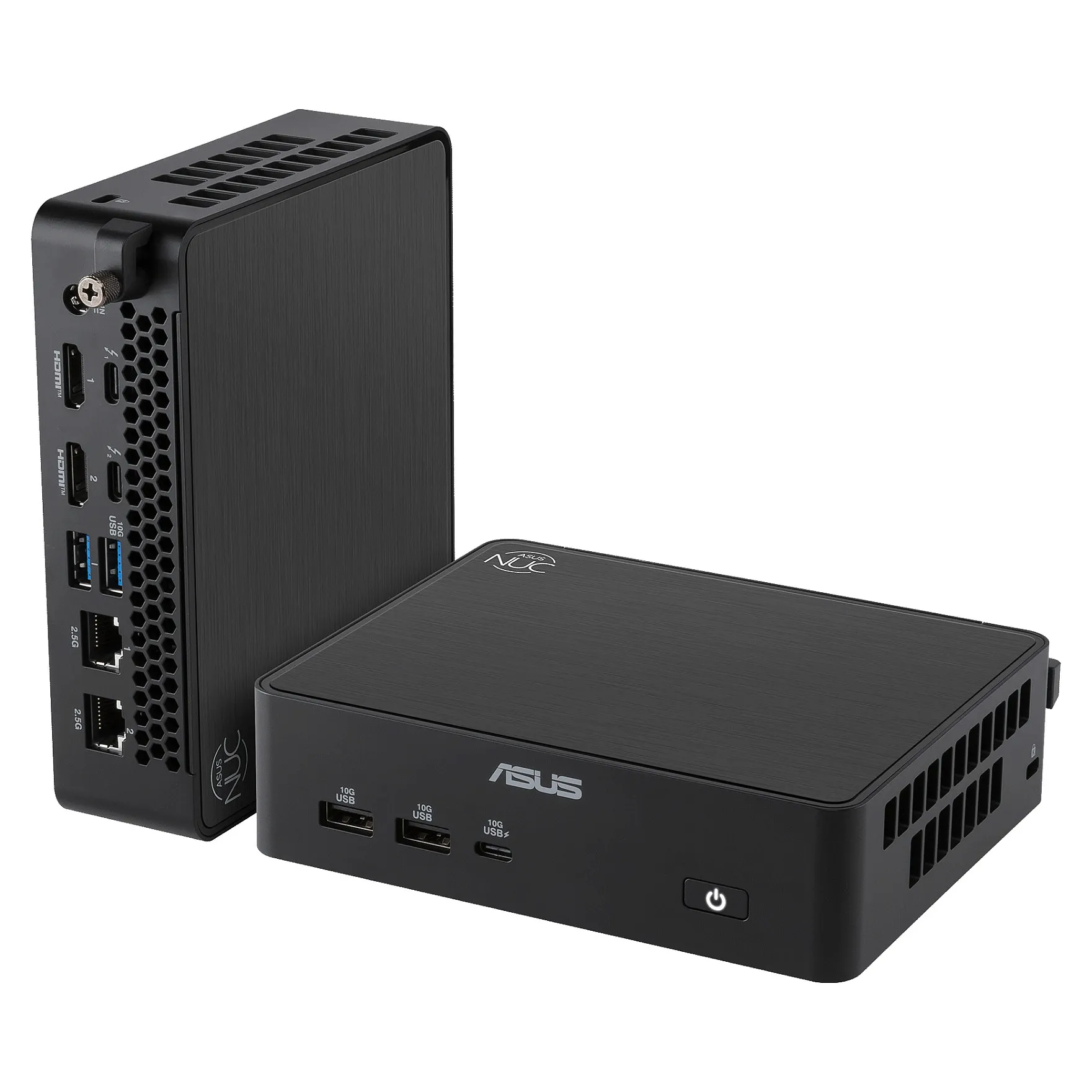

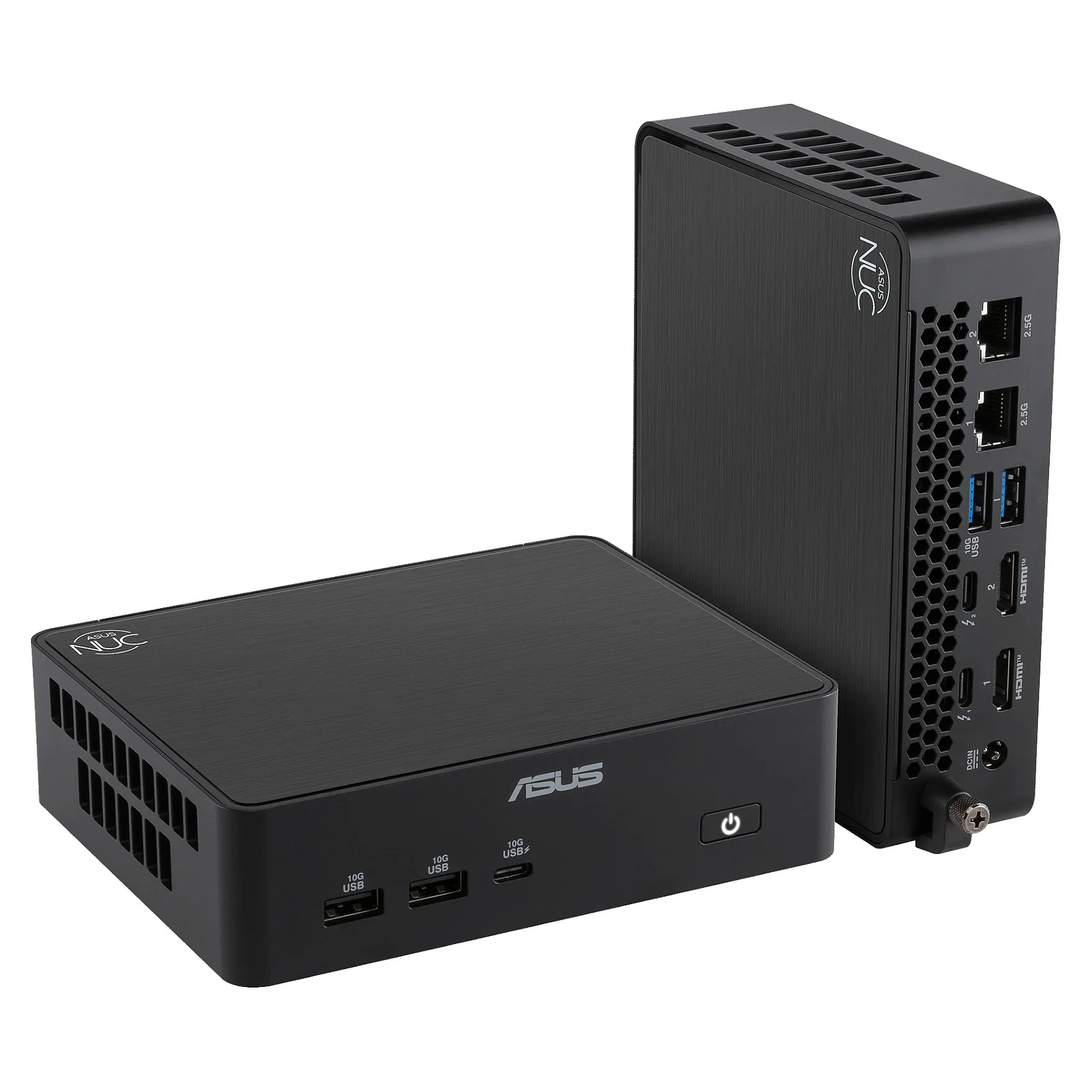

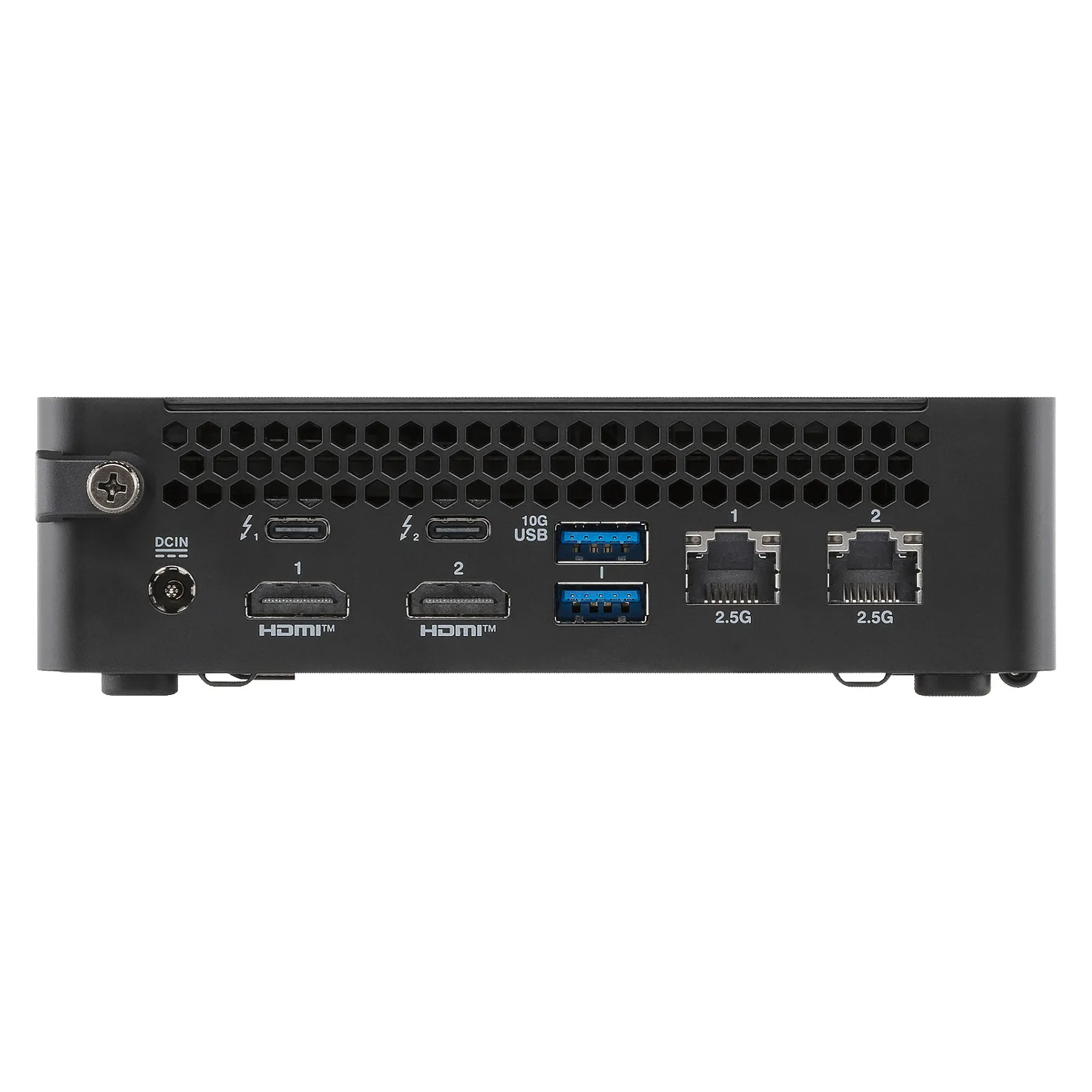

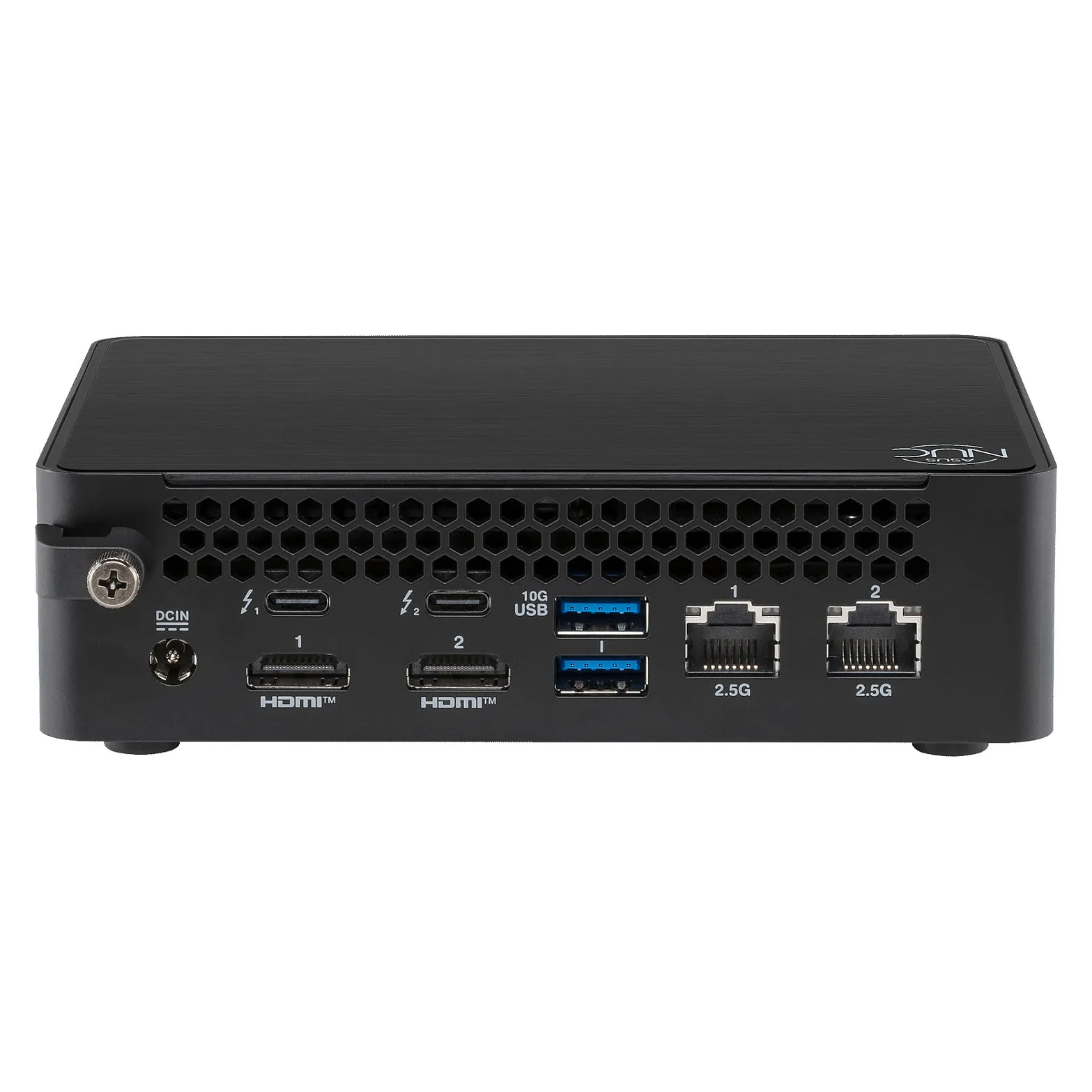

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 2
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 2
Thunderbolt 4 ports quantity: 2
Feature: DC-in jack
Design
Product colour: Black

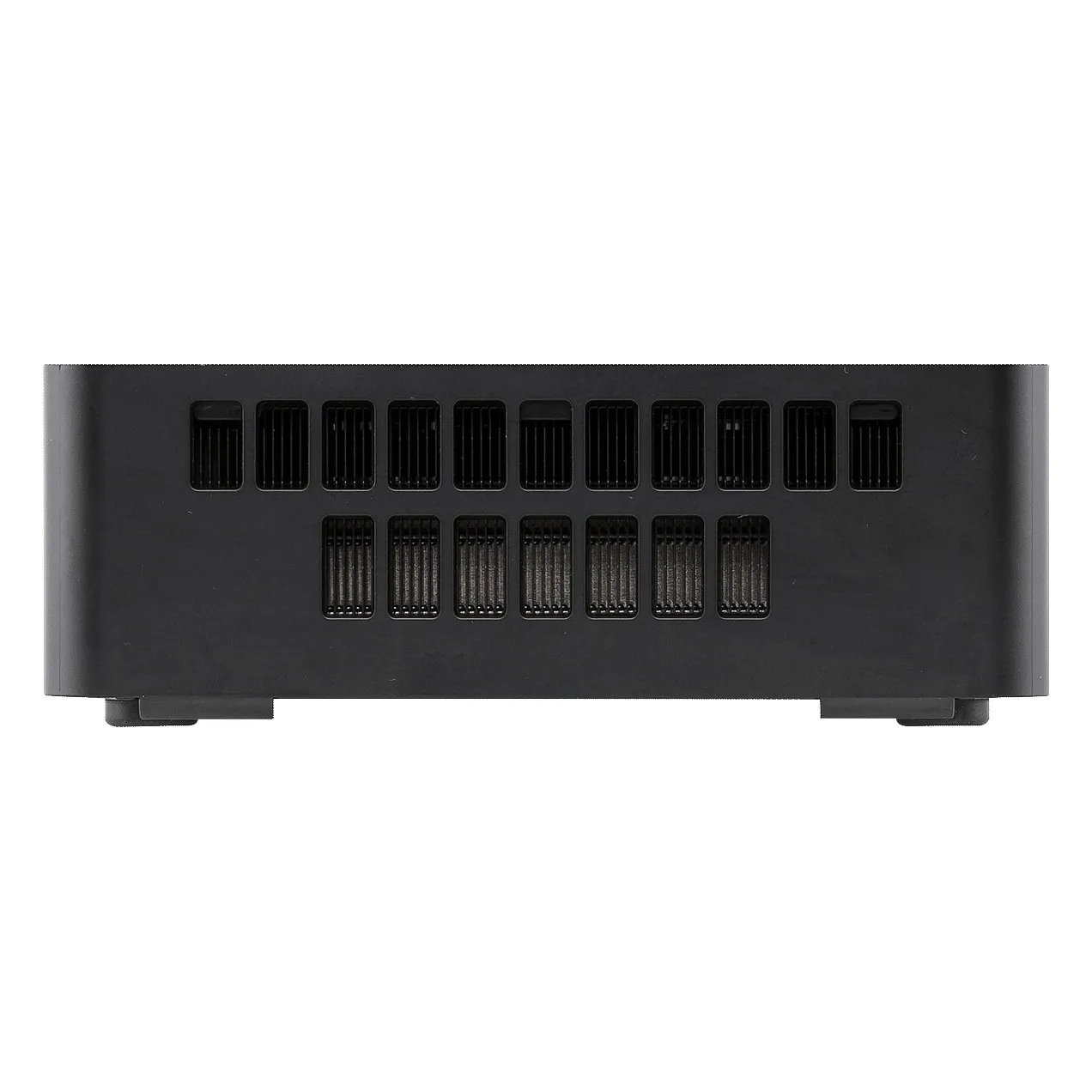

Cooling type: Active
Feature: On/off switch

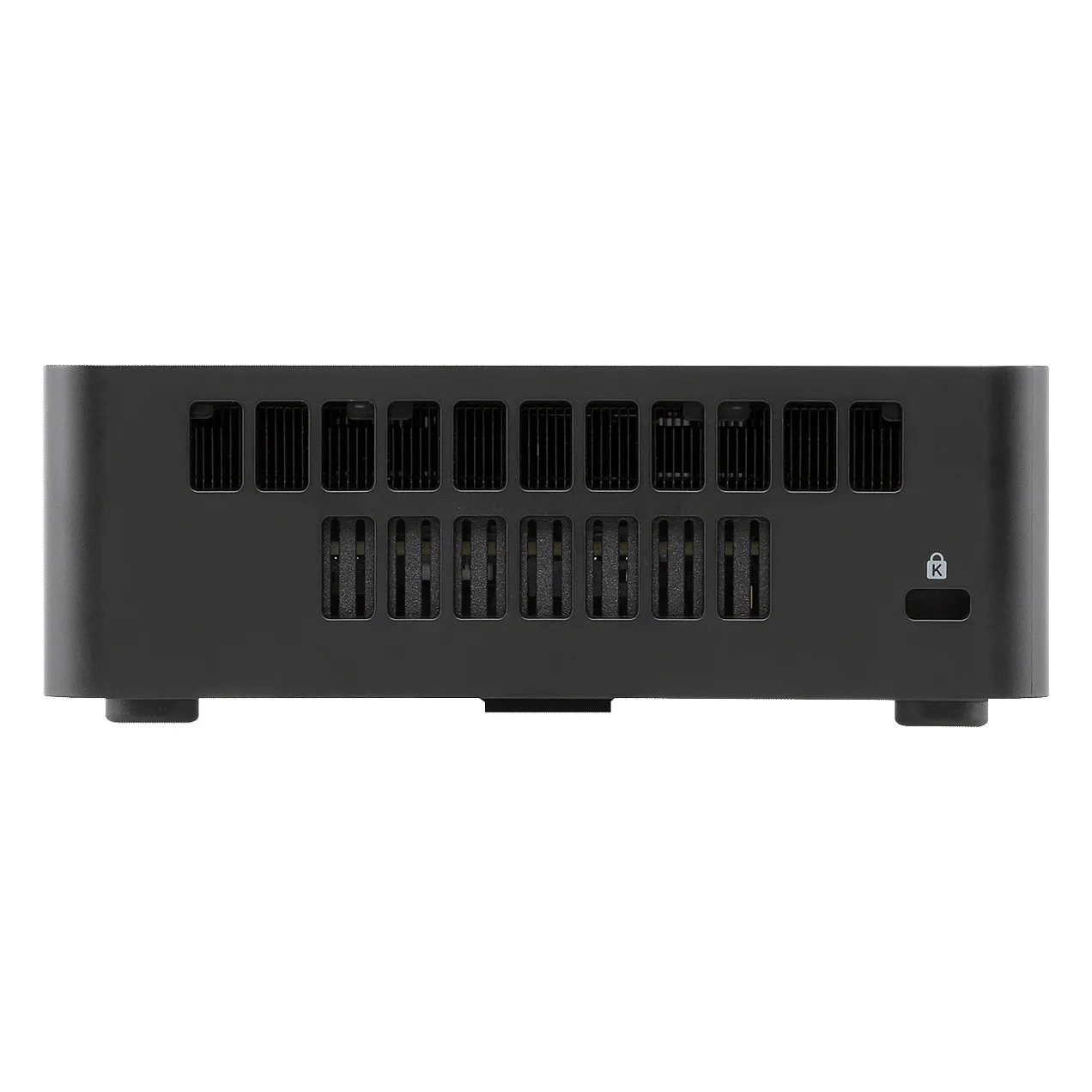

Feature: Cable lock slot
Cable lock slot type: Kensington

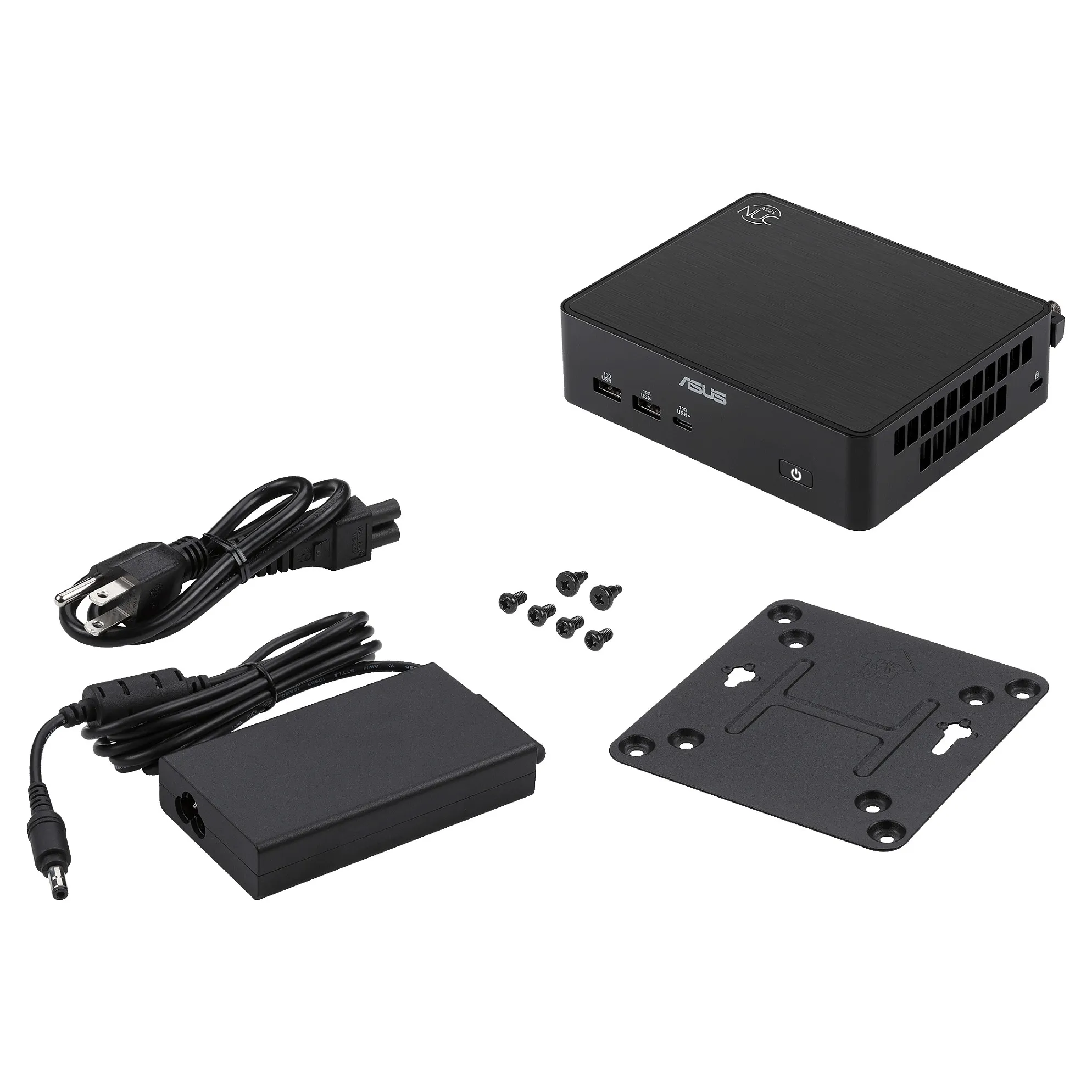

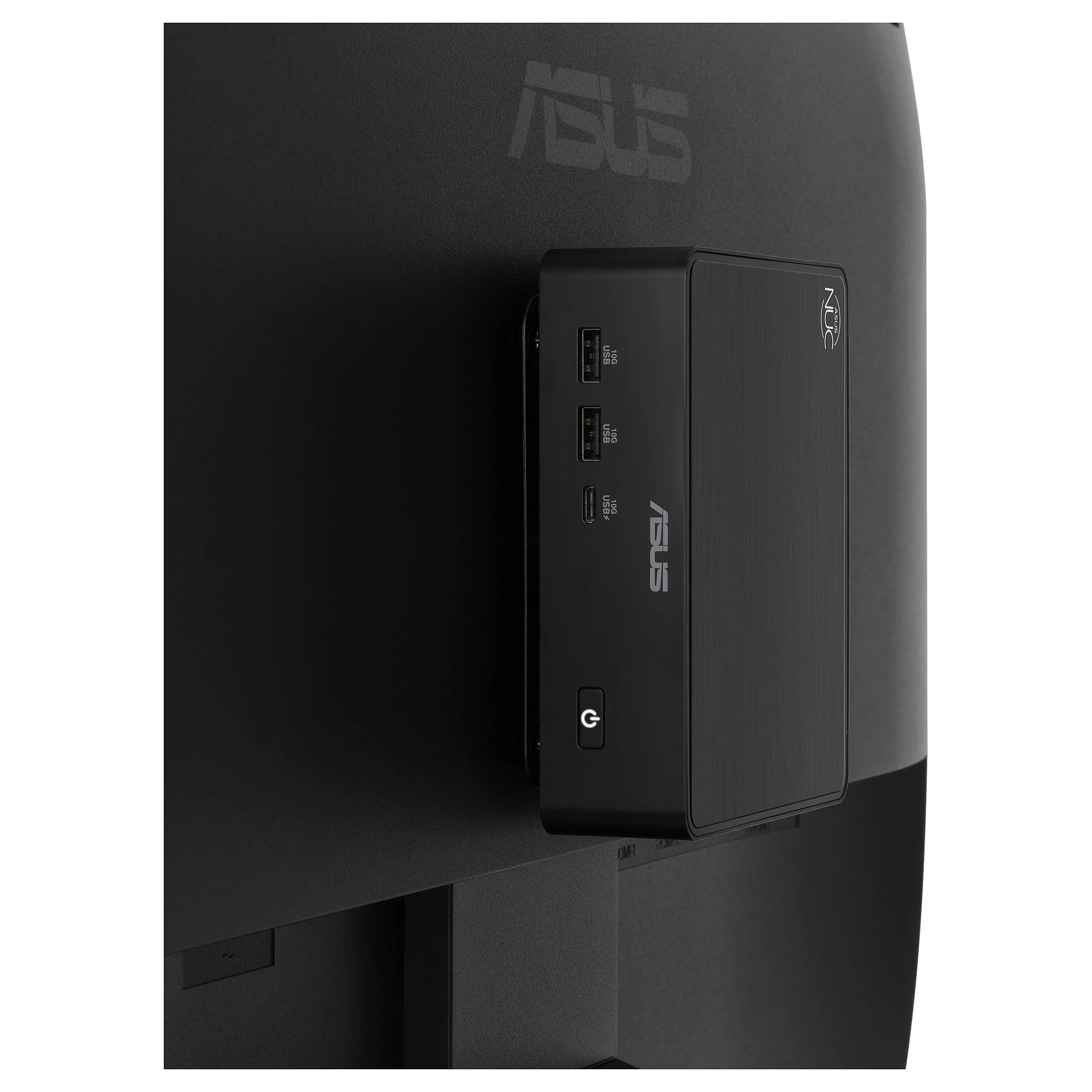

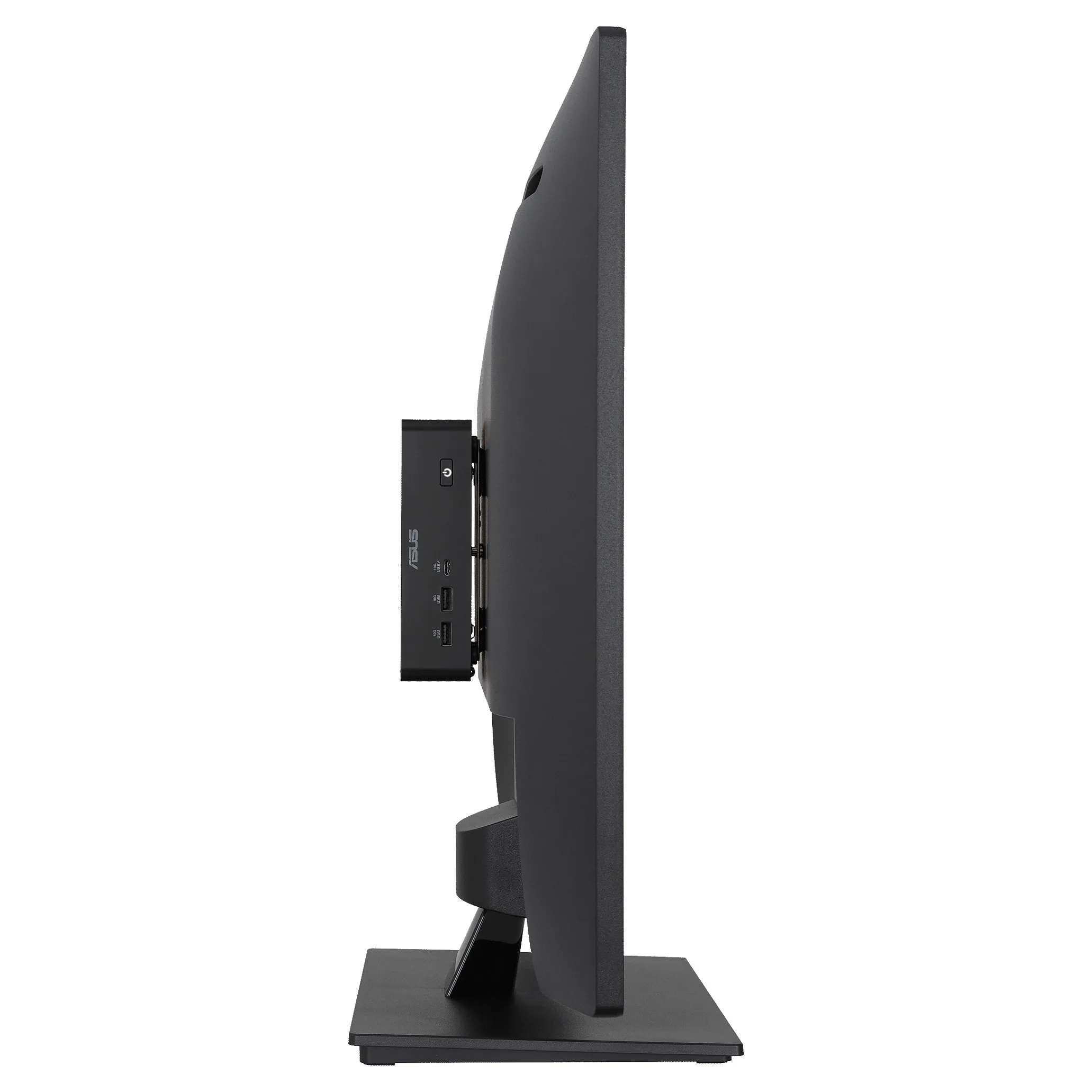

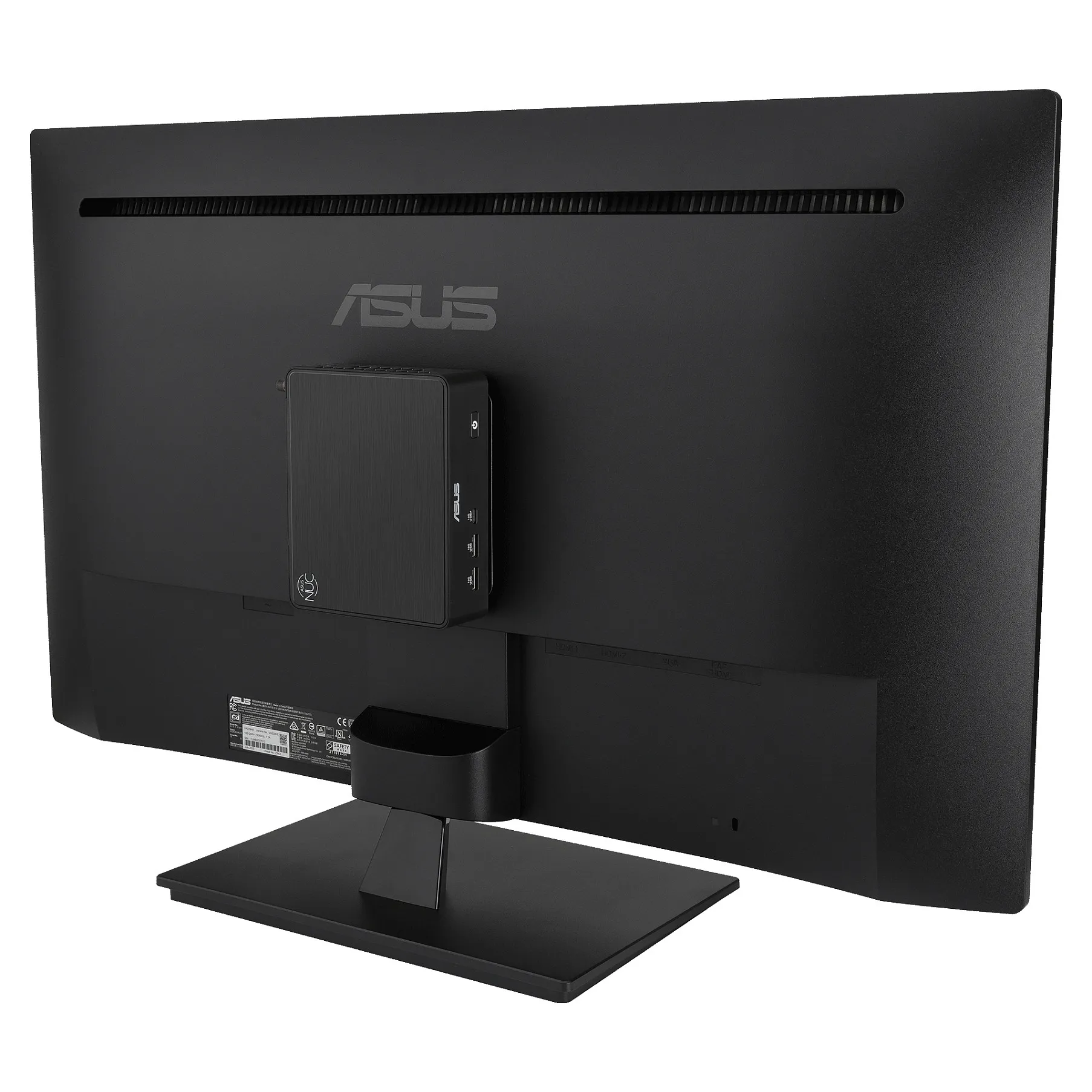

Feature: VESA mounting
Product type: Mini PC barebone
Power
Power supply type: External AC adapter
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 60 °C
Operating relative humidity (H-H): 0 – 92%
Weight & dimensions
Width: 144 mm
Depth: 117 mm
Height: 42 mm
Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel® Core™ Ultra (Series 3)
Processor model: 366H
Processor cores: 16
Processor threads: 16
Processor boost frequency: 4.8 GHz
Performance cores: 4
Efficient cores: 8
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 4.8 GHz
Efficient-core Max Turbo Frequency: 3.6 GHz
Low Power Efficient-core Max Turbo Frequency: 3.4 GHz
Performance-core base frequency: 2 GHz
Efficient-core base frequency: 1.6 GHz
Low Power Efficient-core Base Frequency: 1600 MHz
Feature: Built-in processor
Processor cache: 18 MB
Memory
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Storage
Supported storage drive types: SSD
Storage drive sizes supported: M.2
SSD form factor: M.2
Storage drive interface: PCI Express
Number of storage drives supported: 2
Maximum storage capacity: 8 TB
Graphics
Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel® Graphics
Performance
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Network
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Ethernet LAN
Feature: Wi-Fi
Feature: Bluetooth
Bluetooth version: 6.0
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 2
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 2
Thunderbolt 4 ports quantity: 2
Feature: DC-in jack
Design
Product colour: Black
Cooling type: Active
Feature: On/off switch
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Product type: Mini PC barebone
Power
Power supply type: External AC adapter
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 60 °C
Operating relative humidity (H-H): 0 – 92%
Weight & dimensions
Width: 144 mm
Depth: 117 mm
Height: 42 mm
