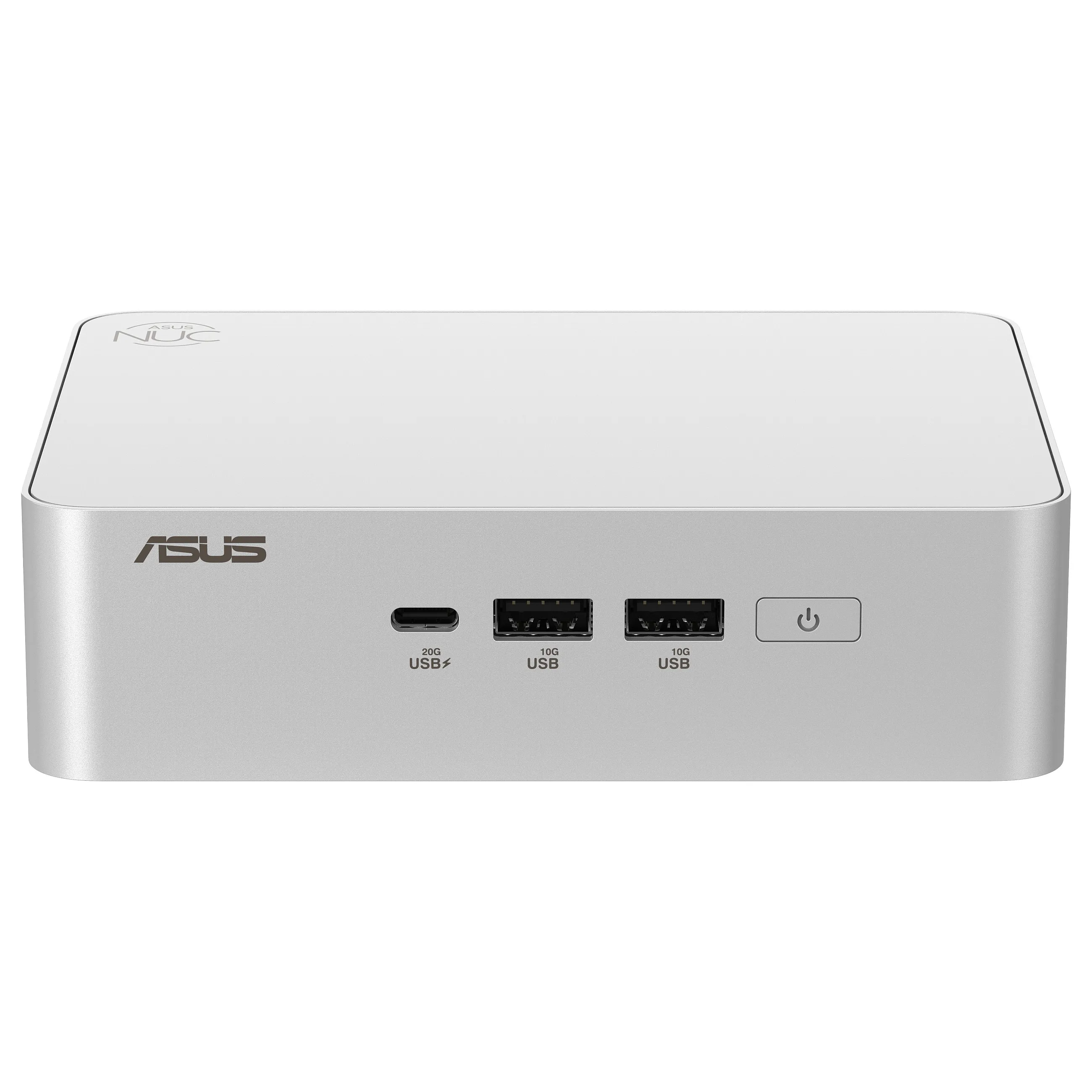

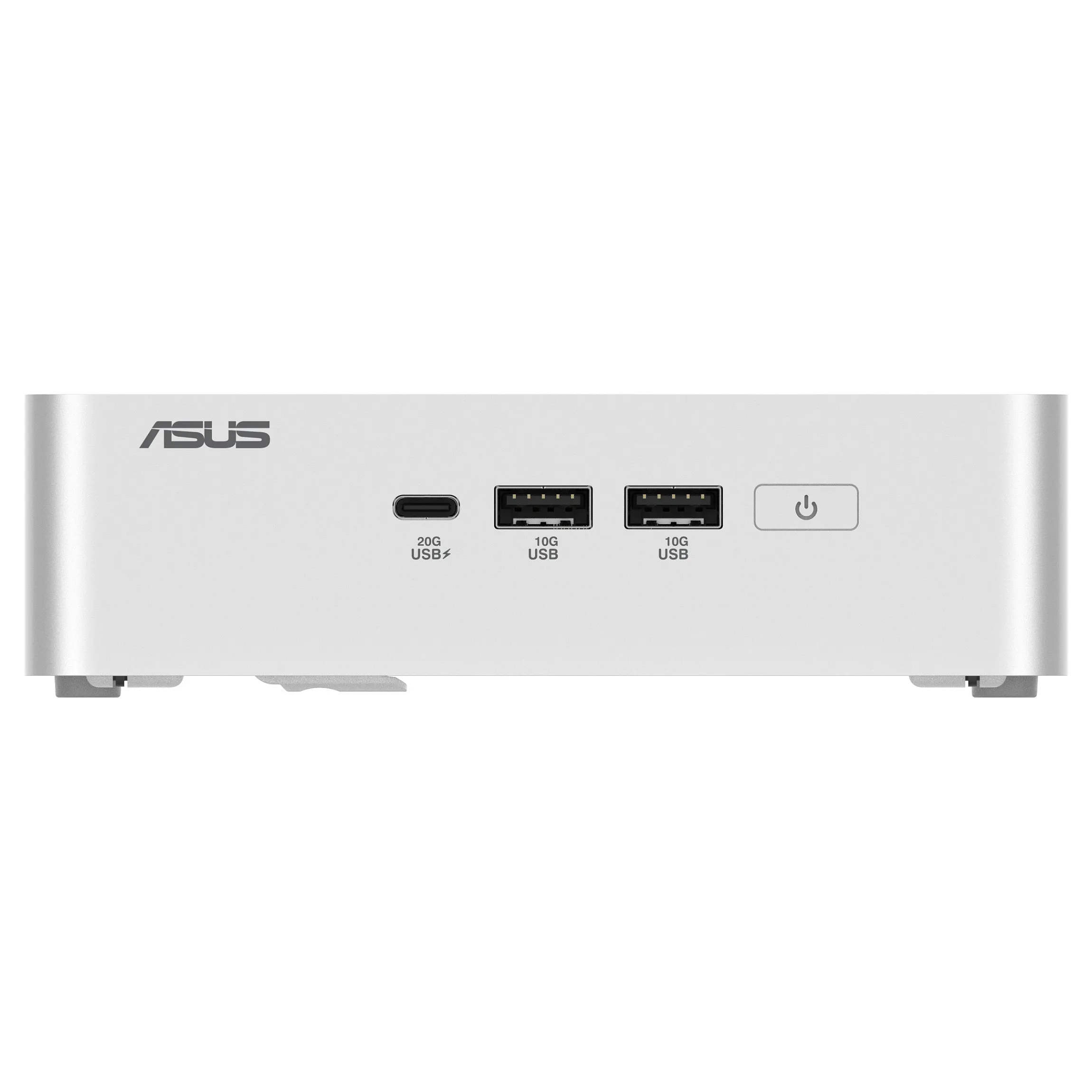

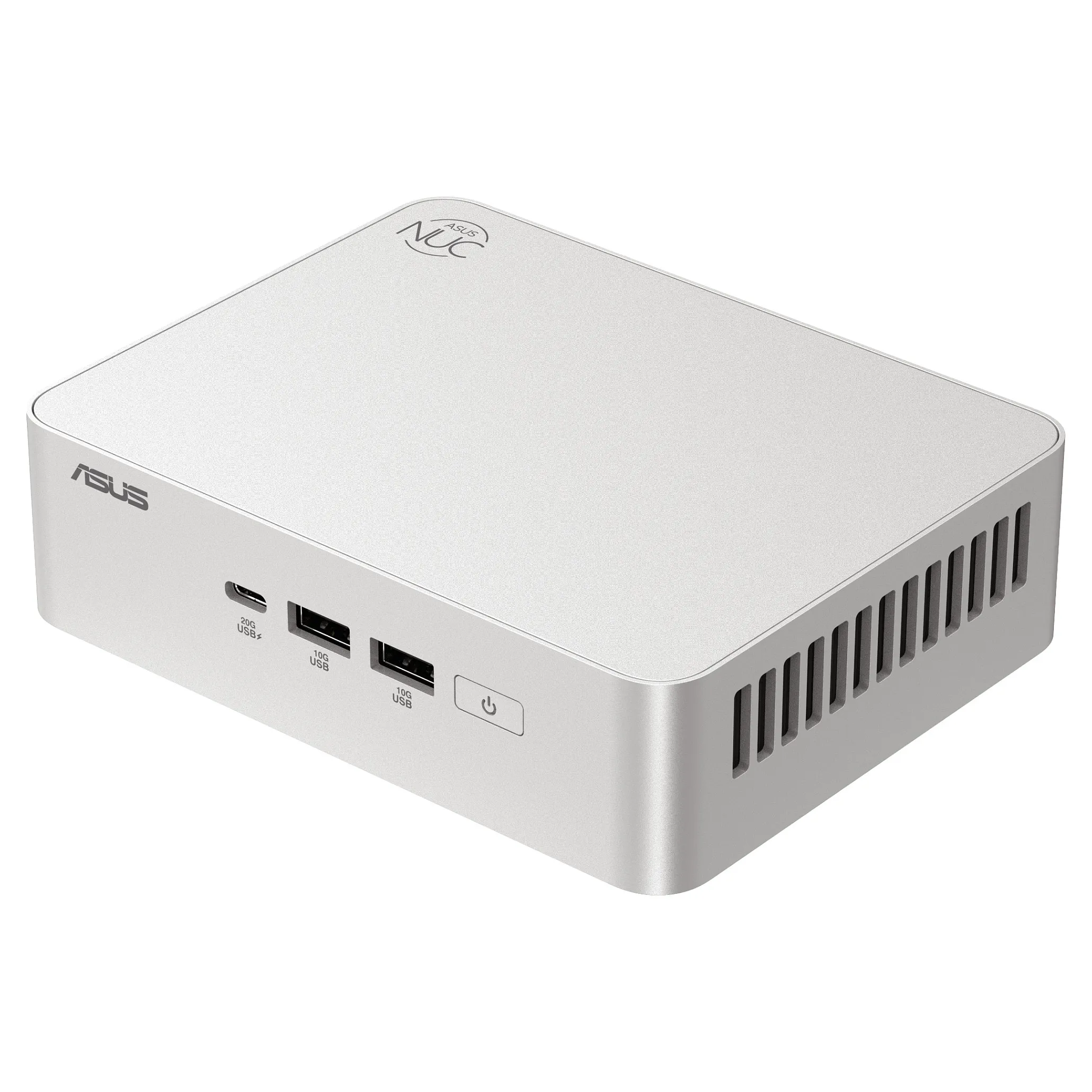

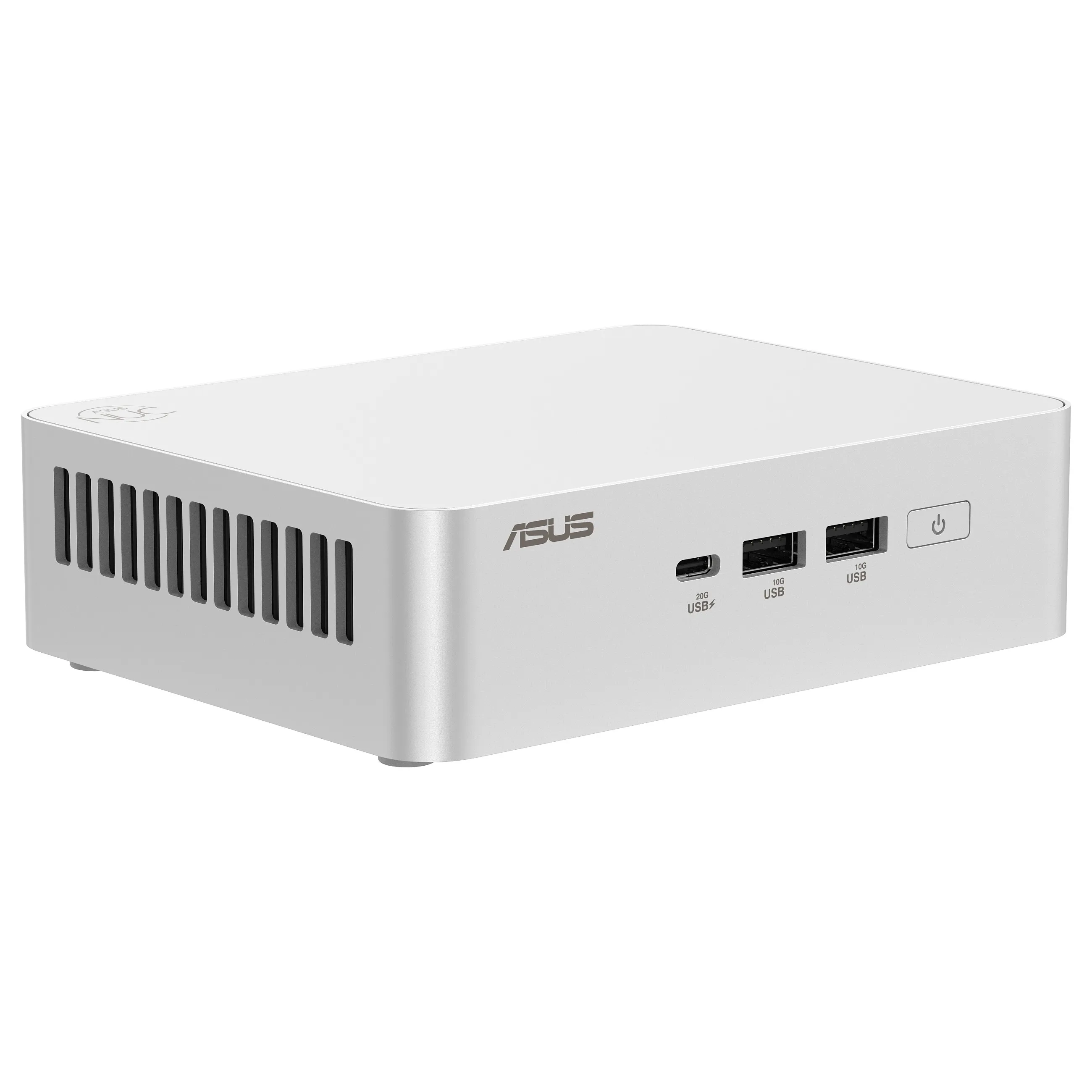

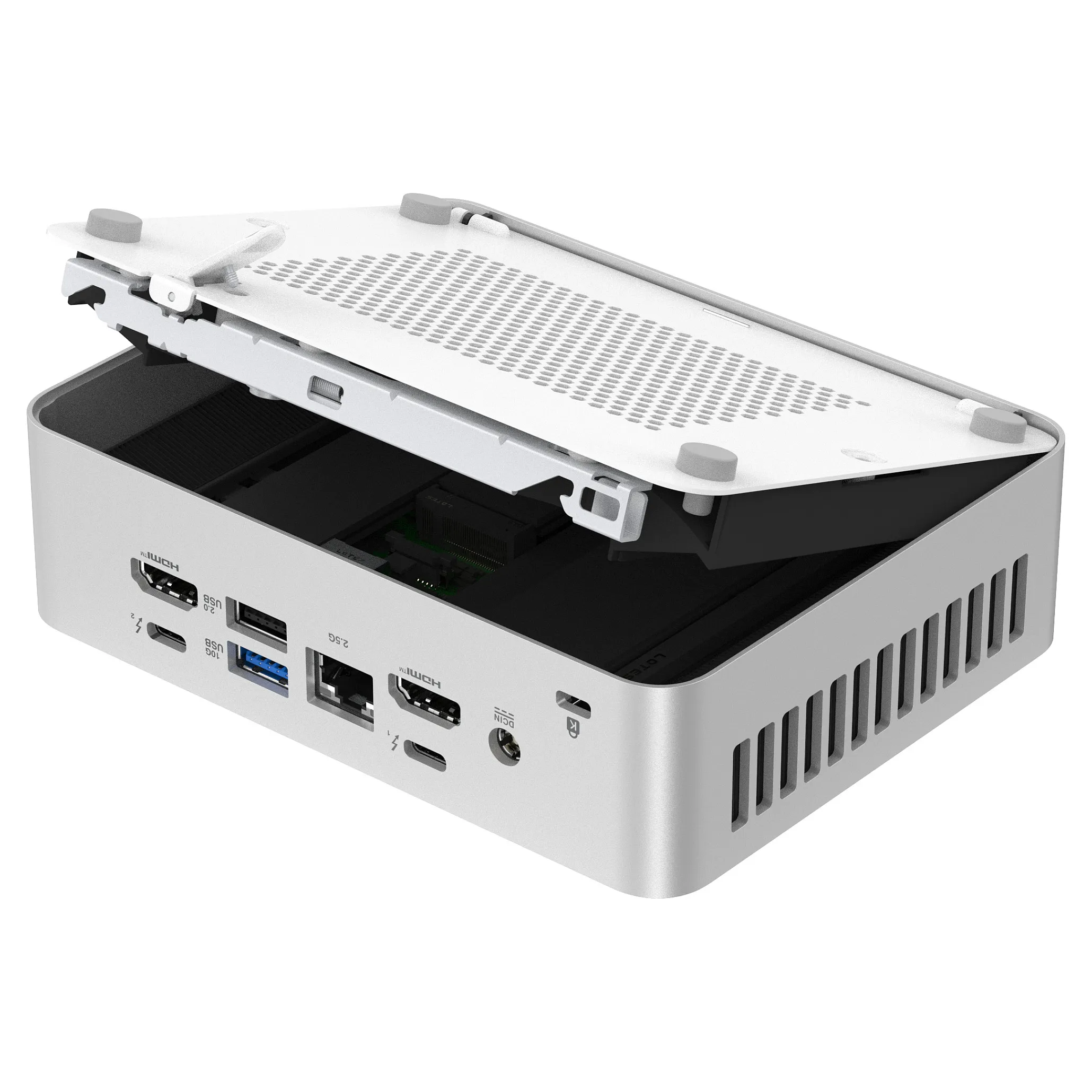

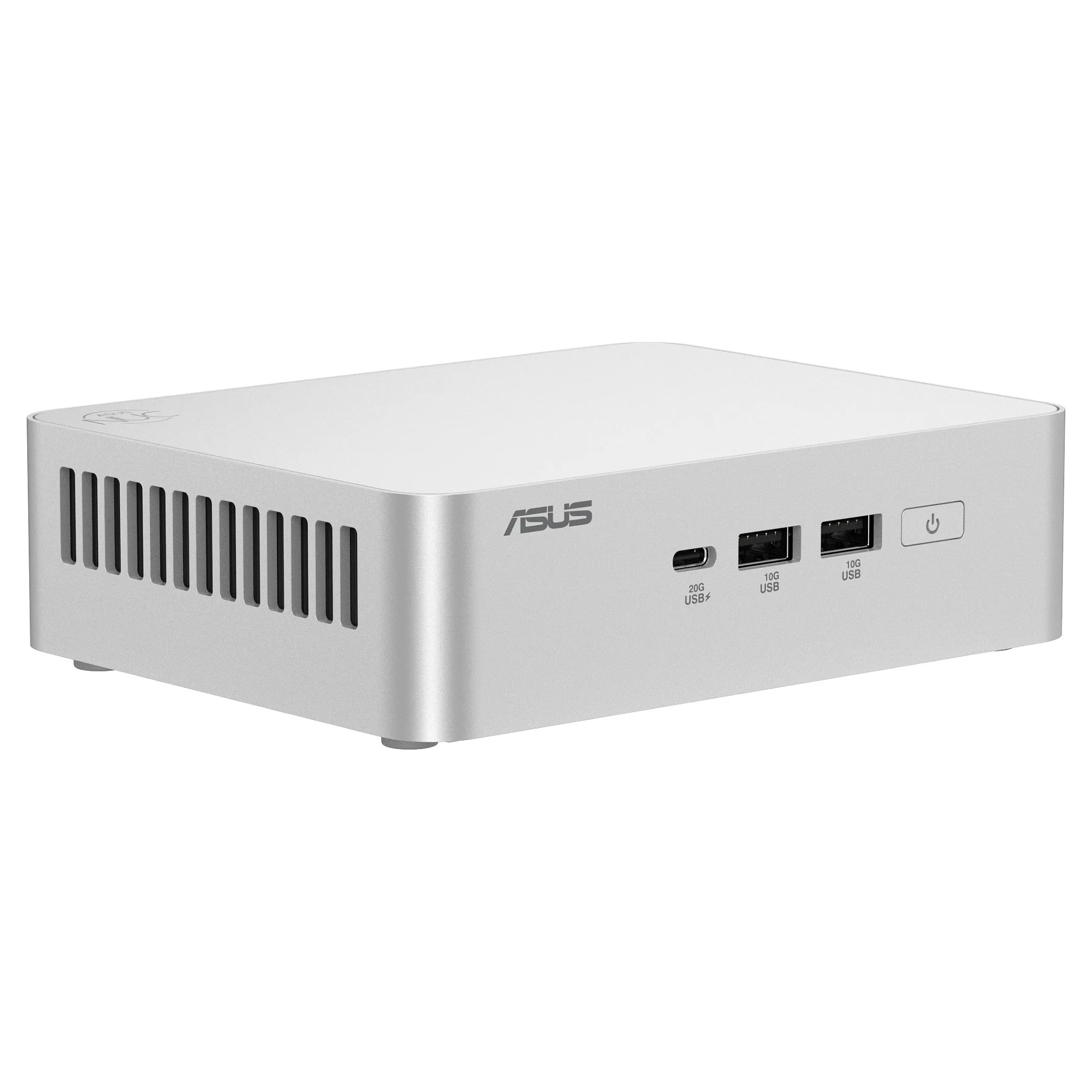

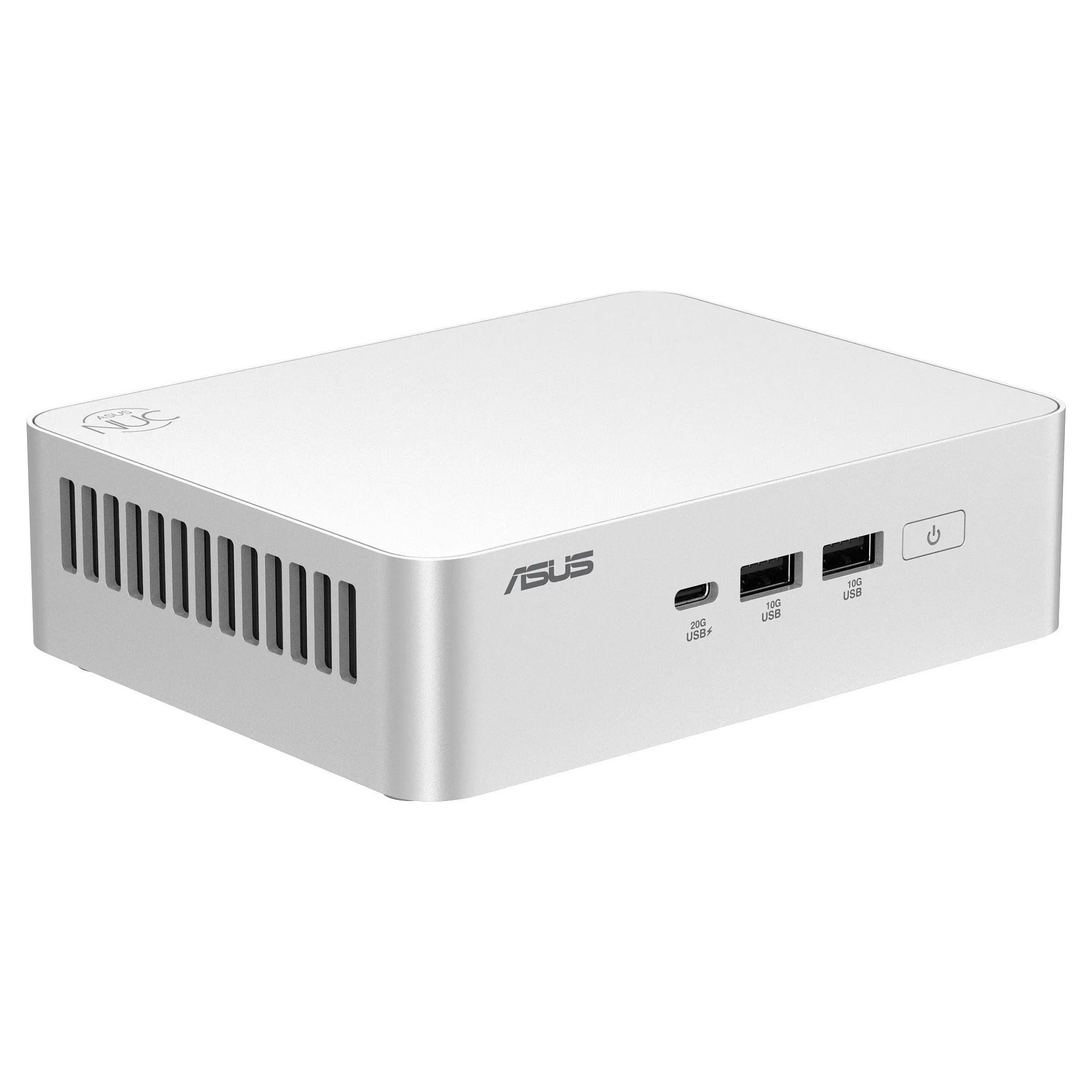

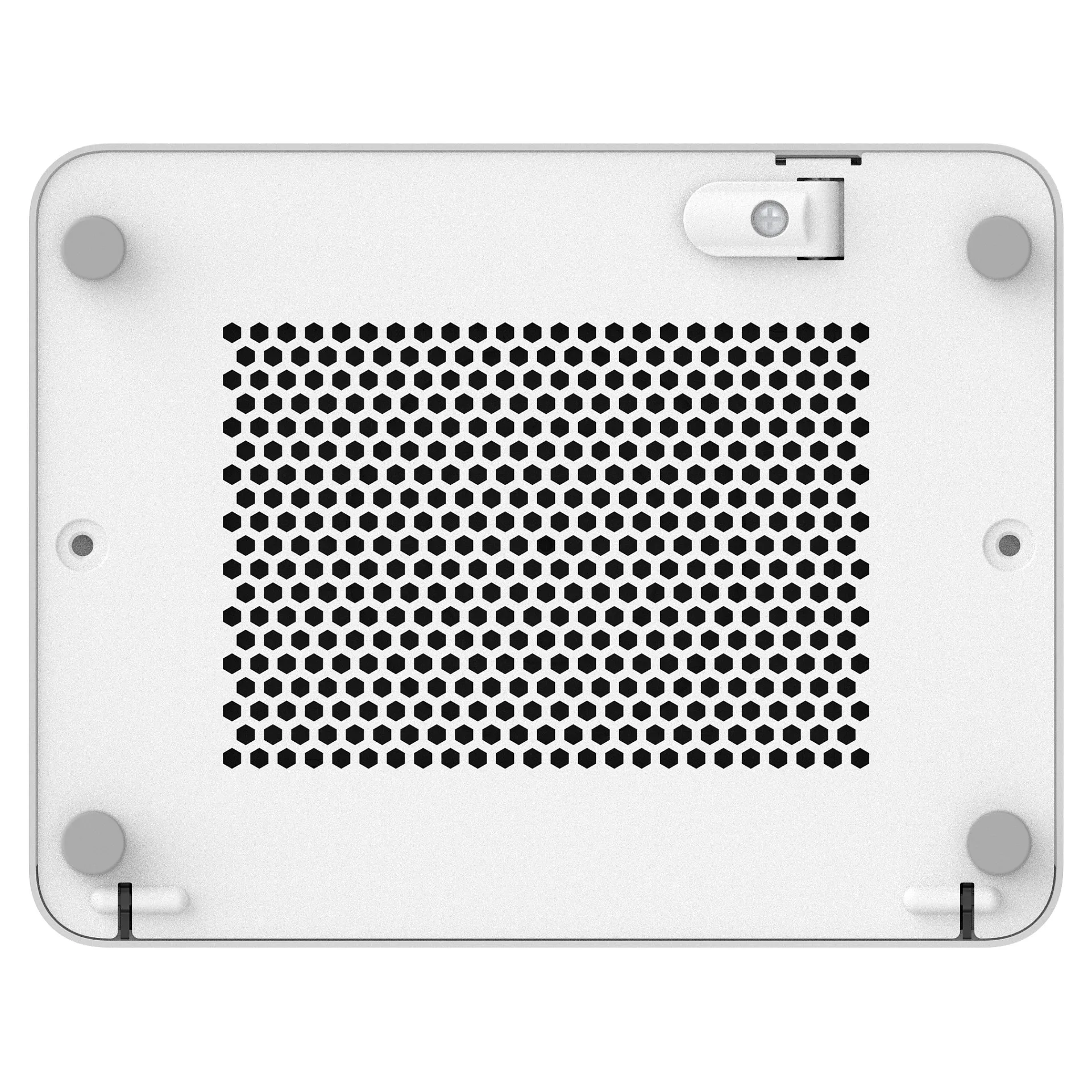

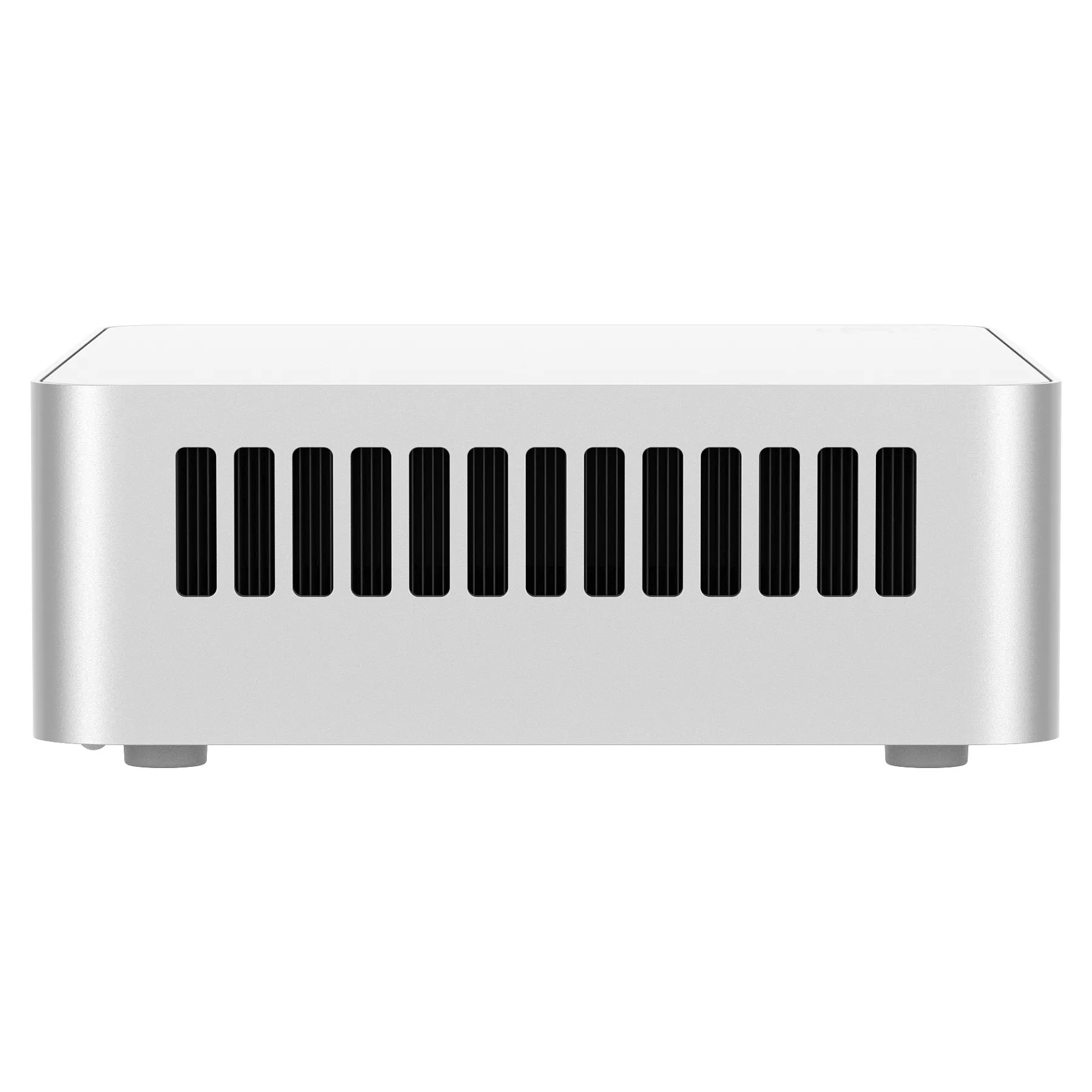

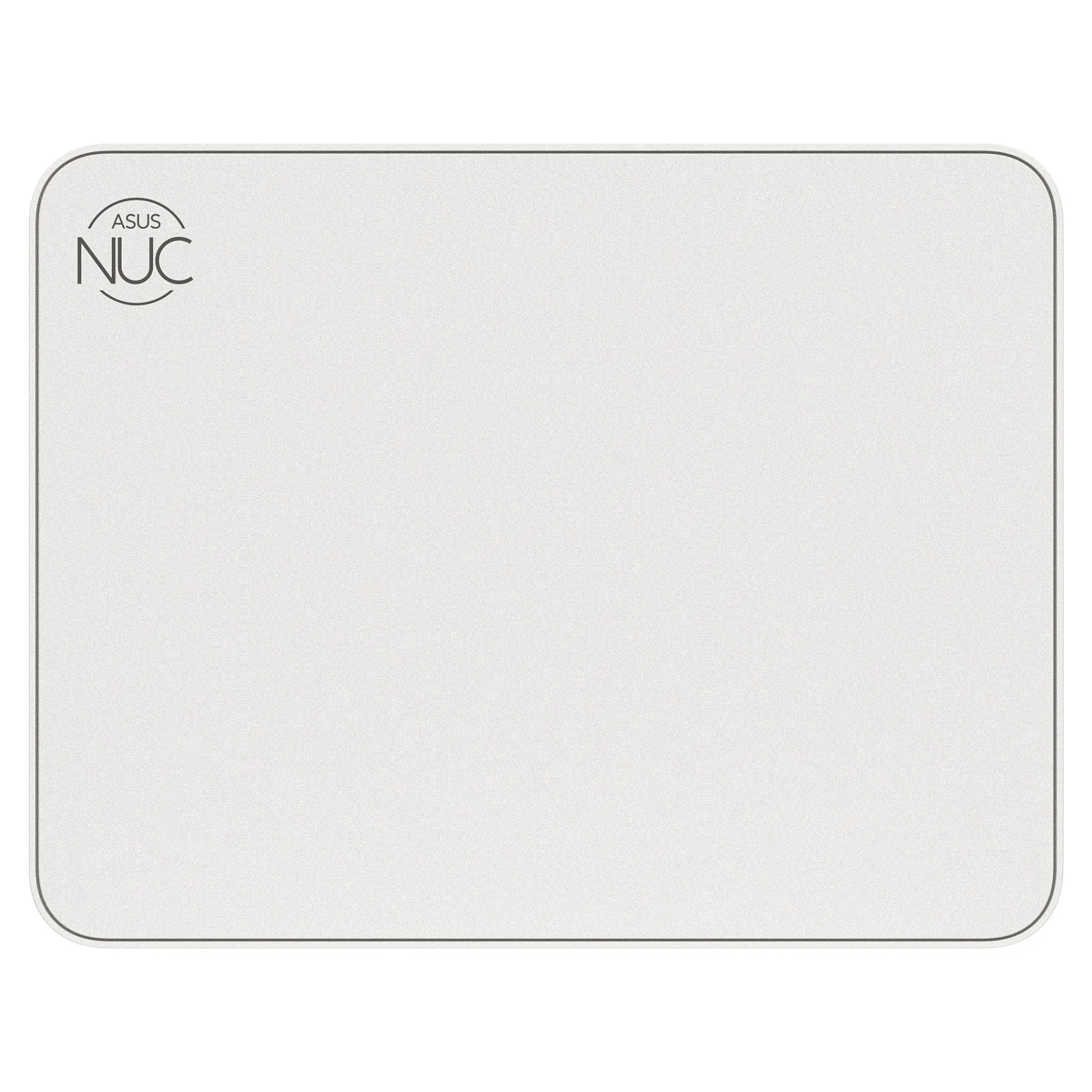

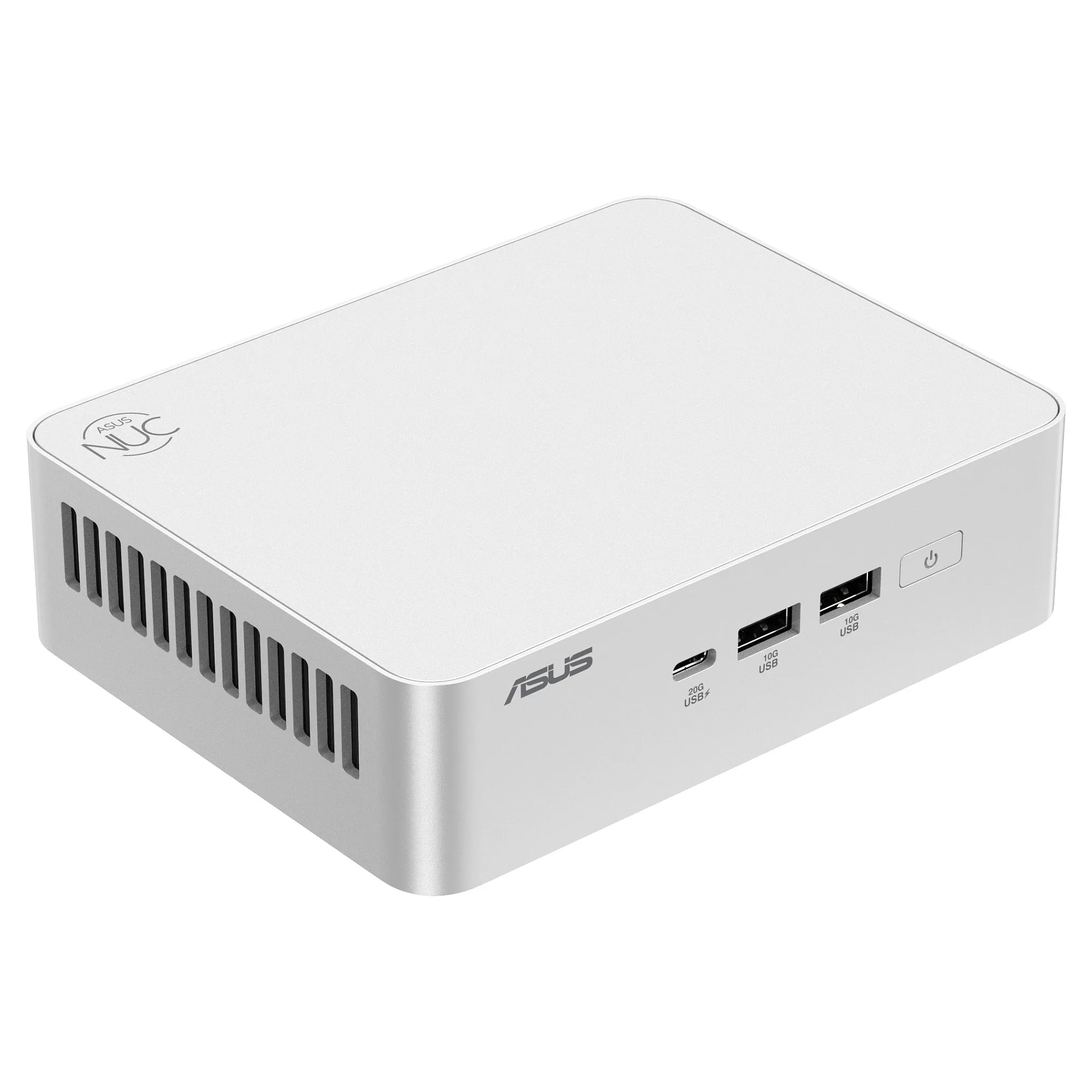

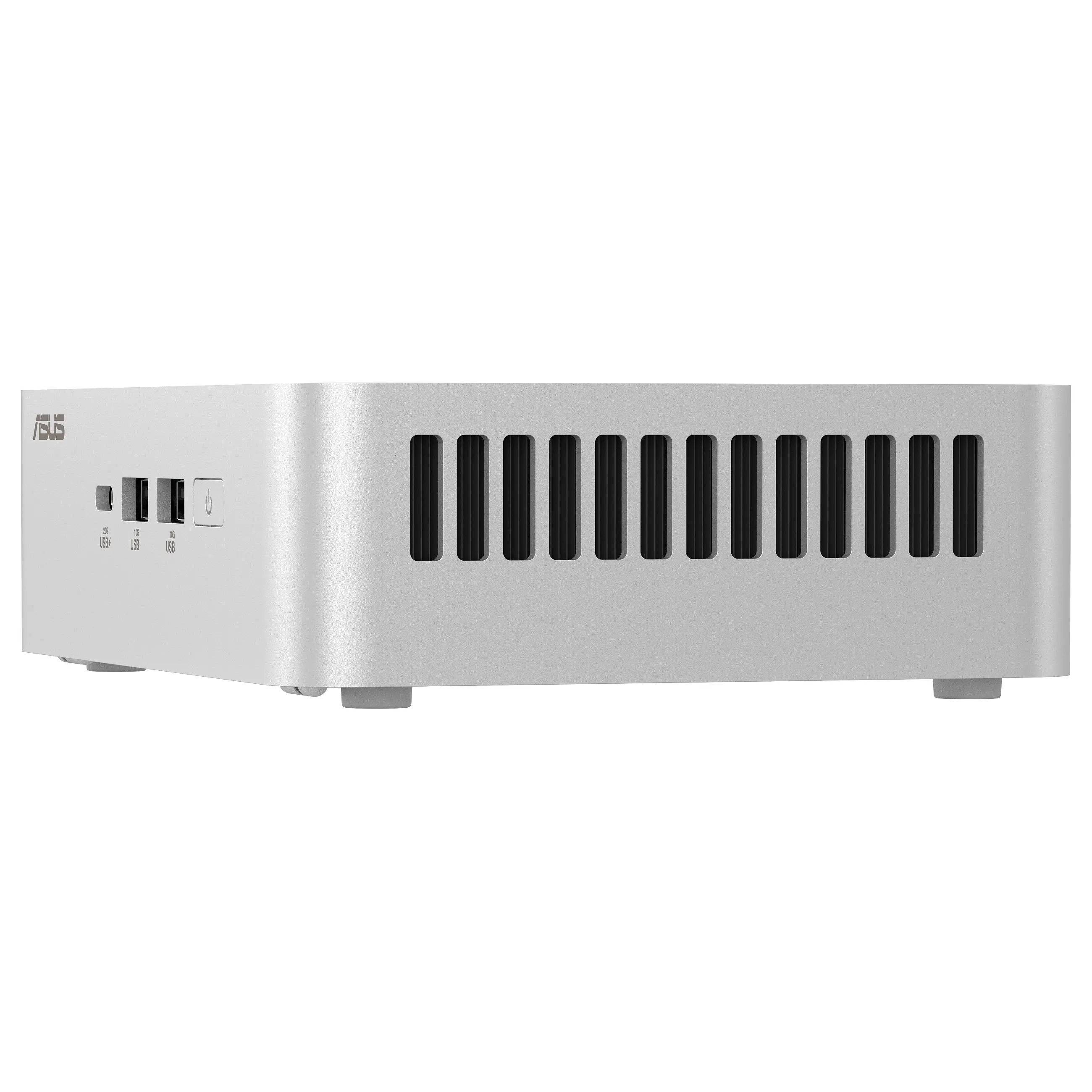

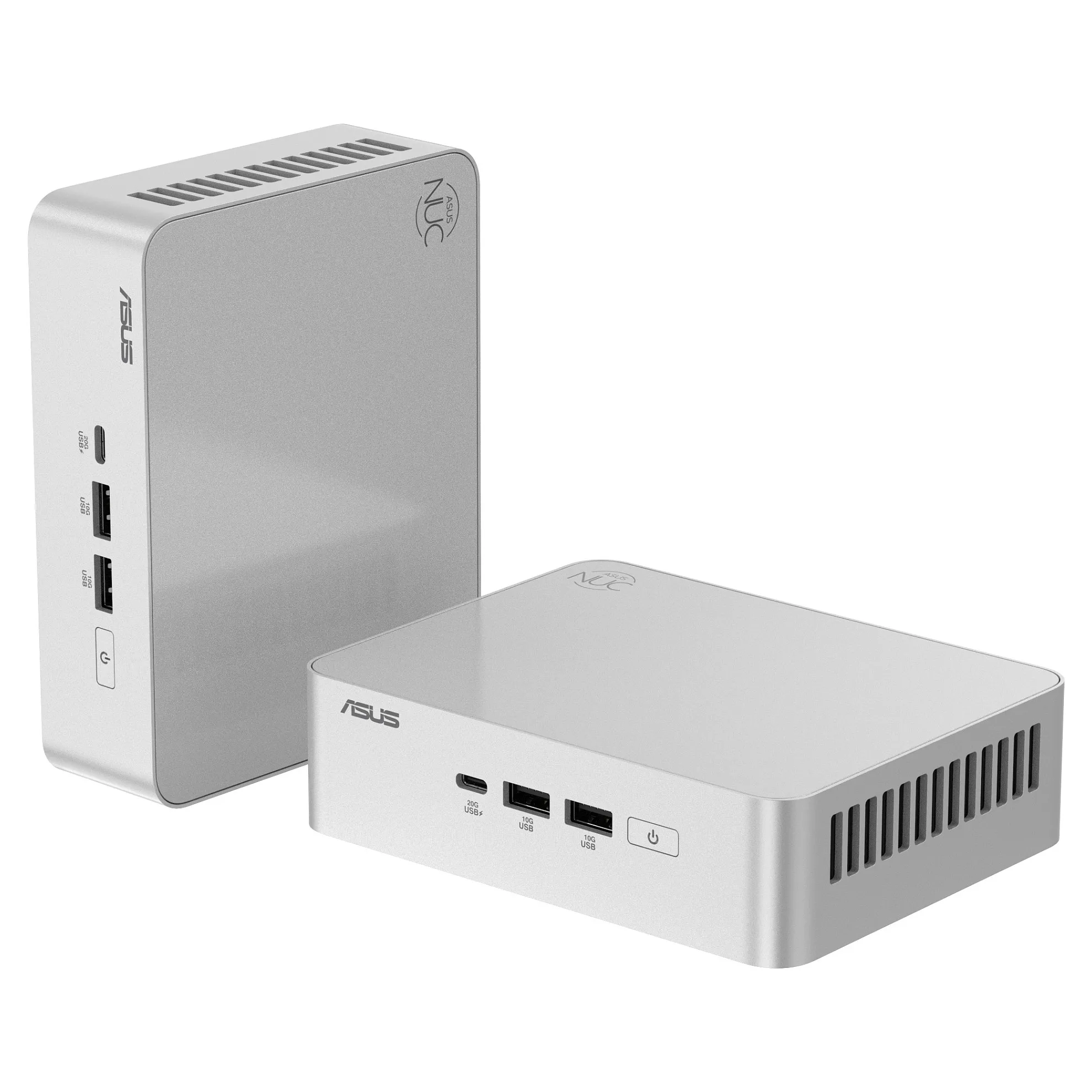

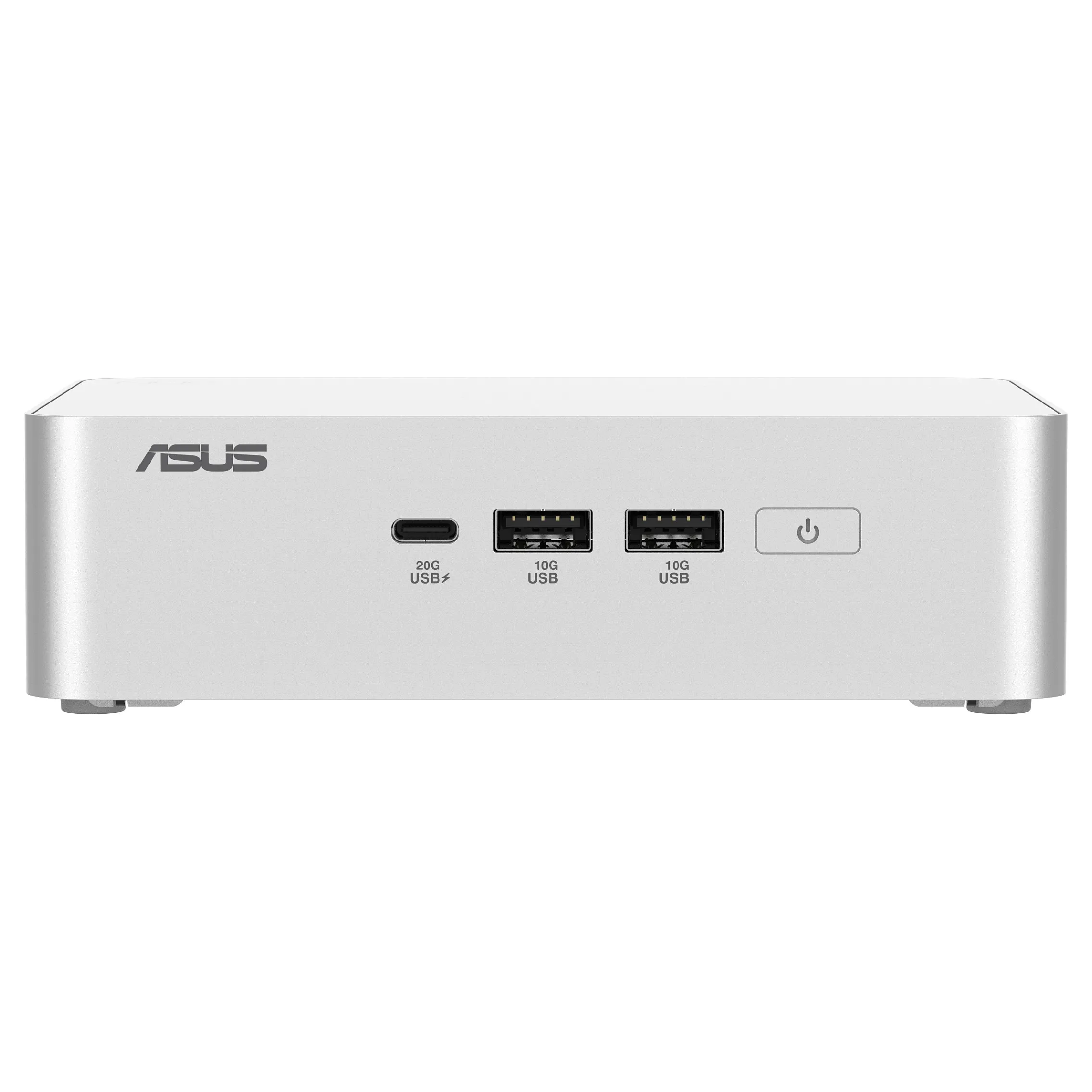

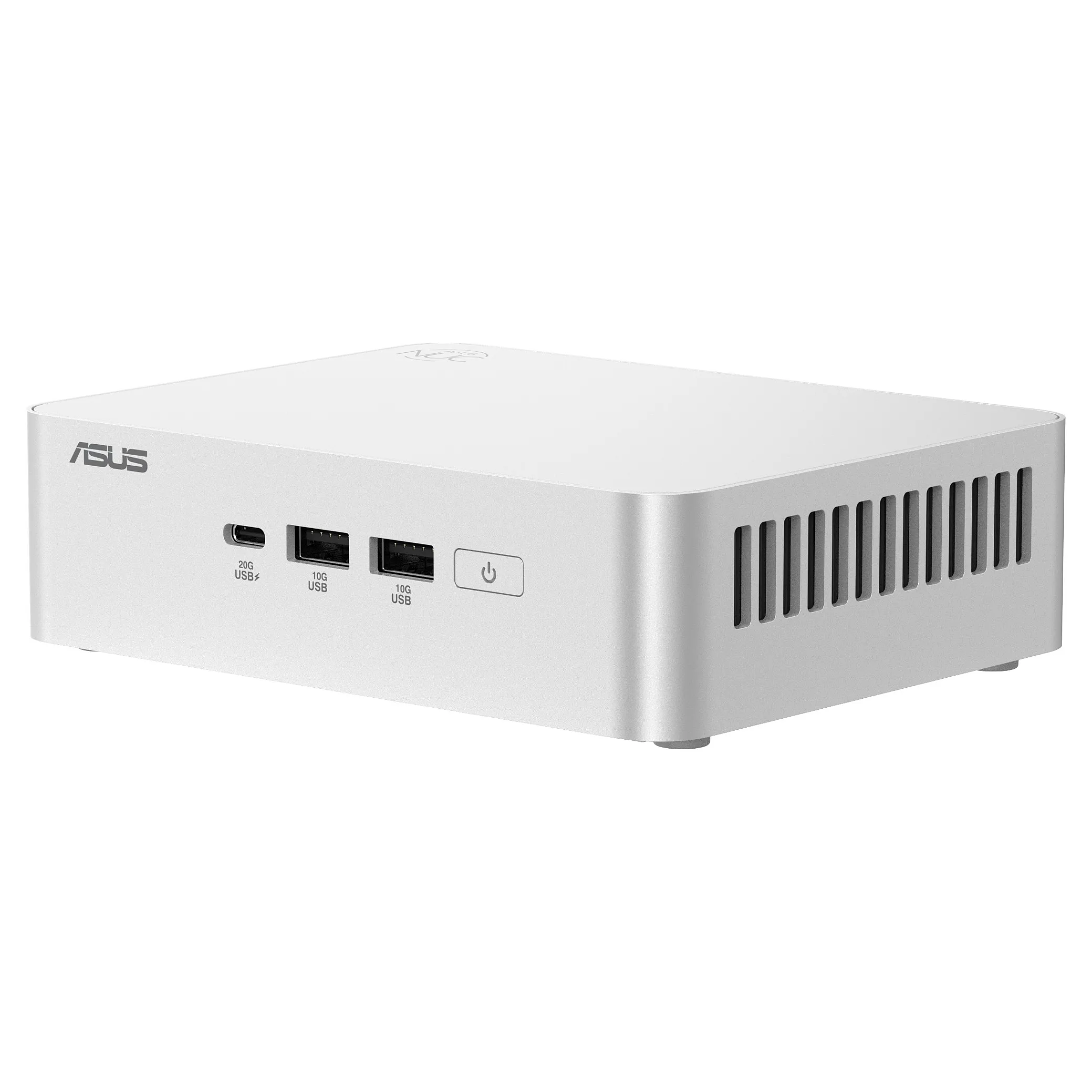

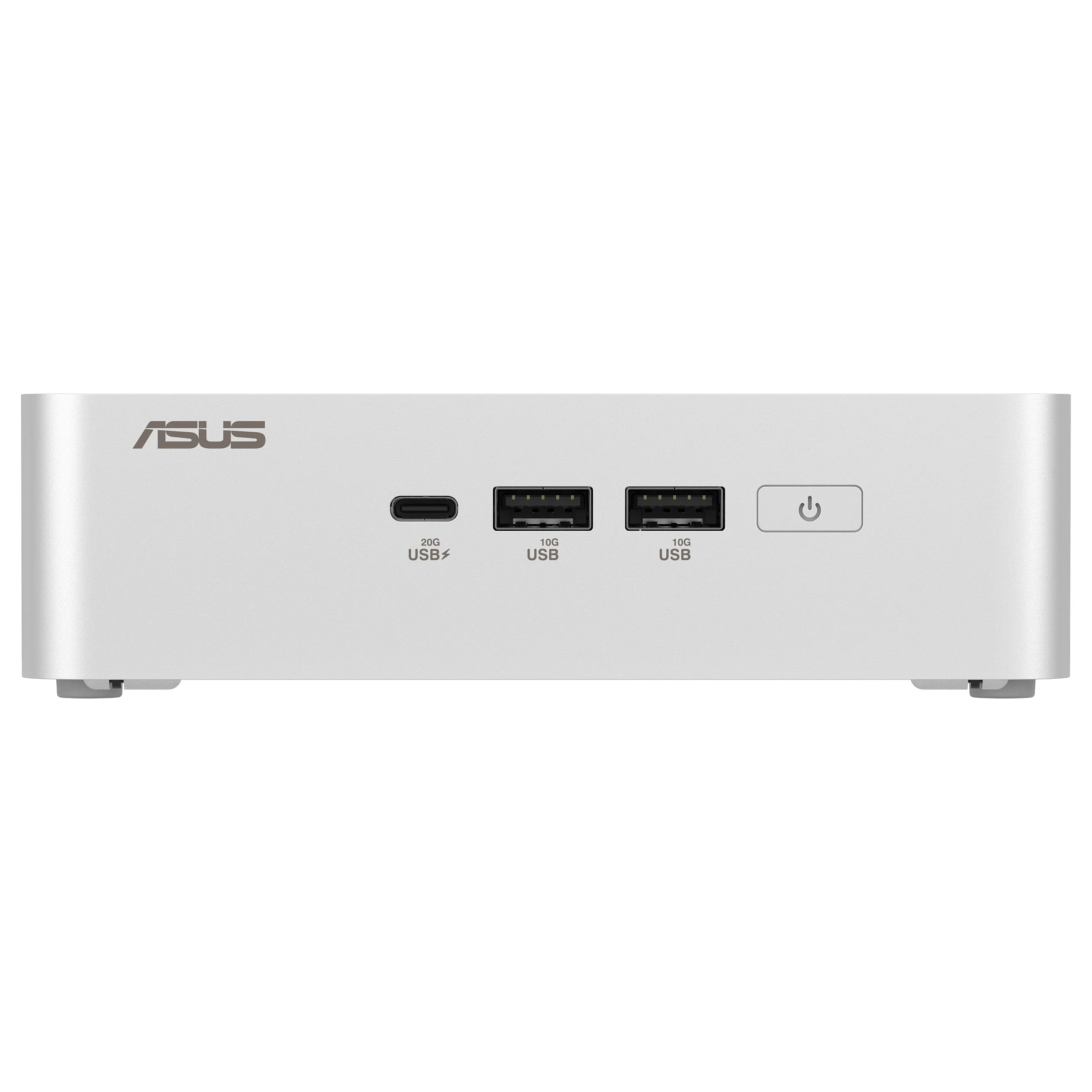

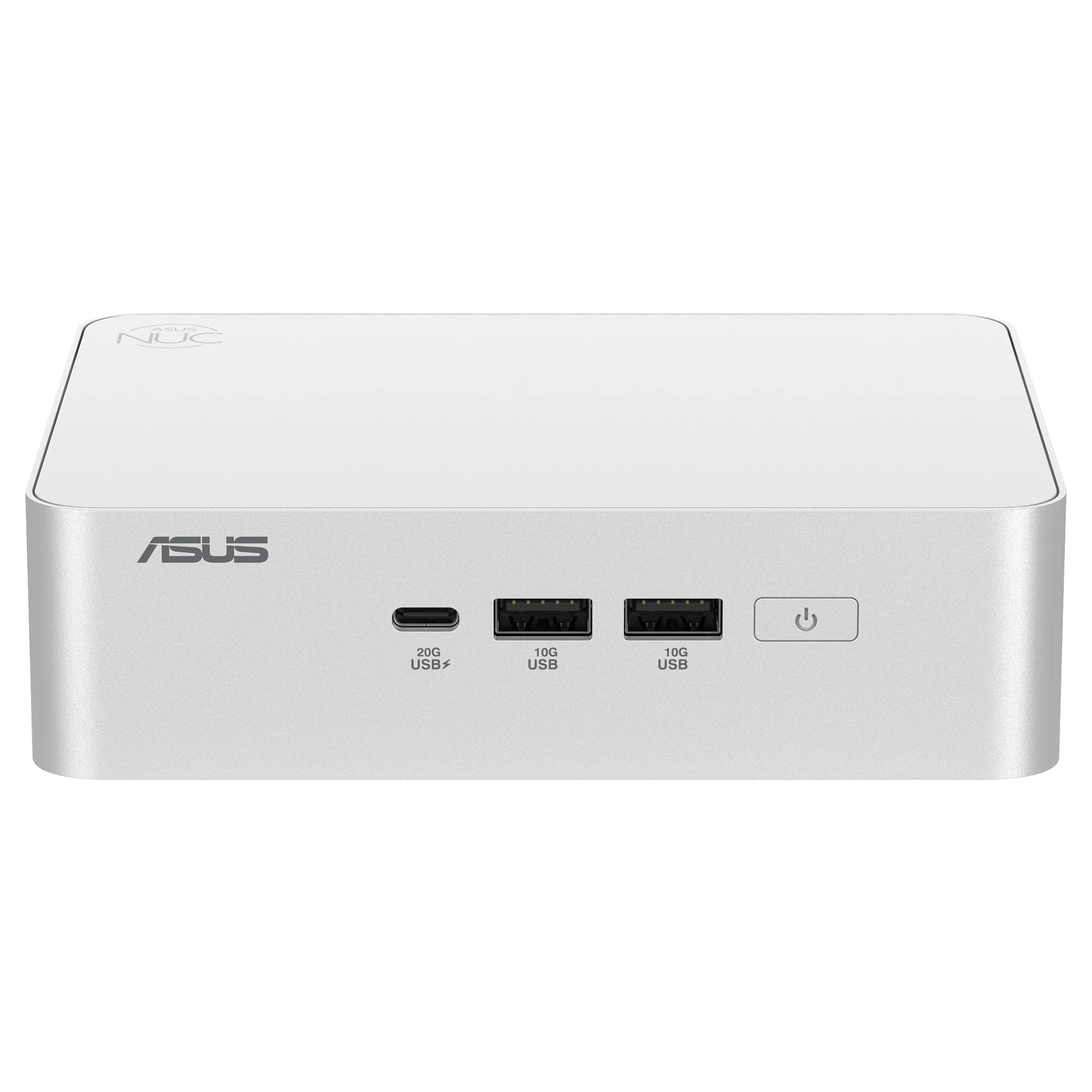

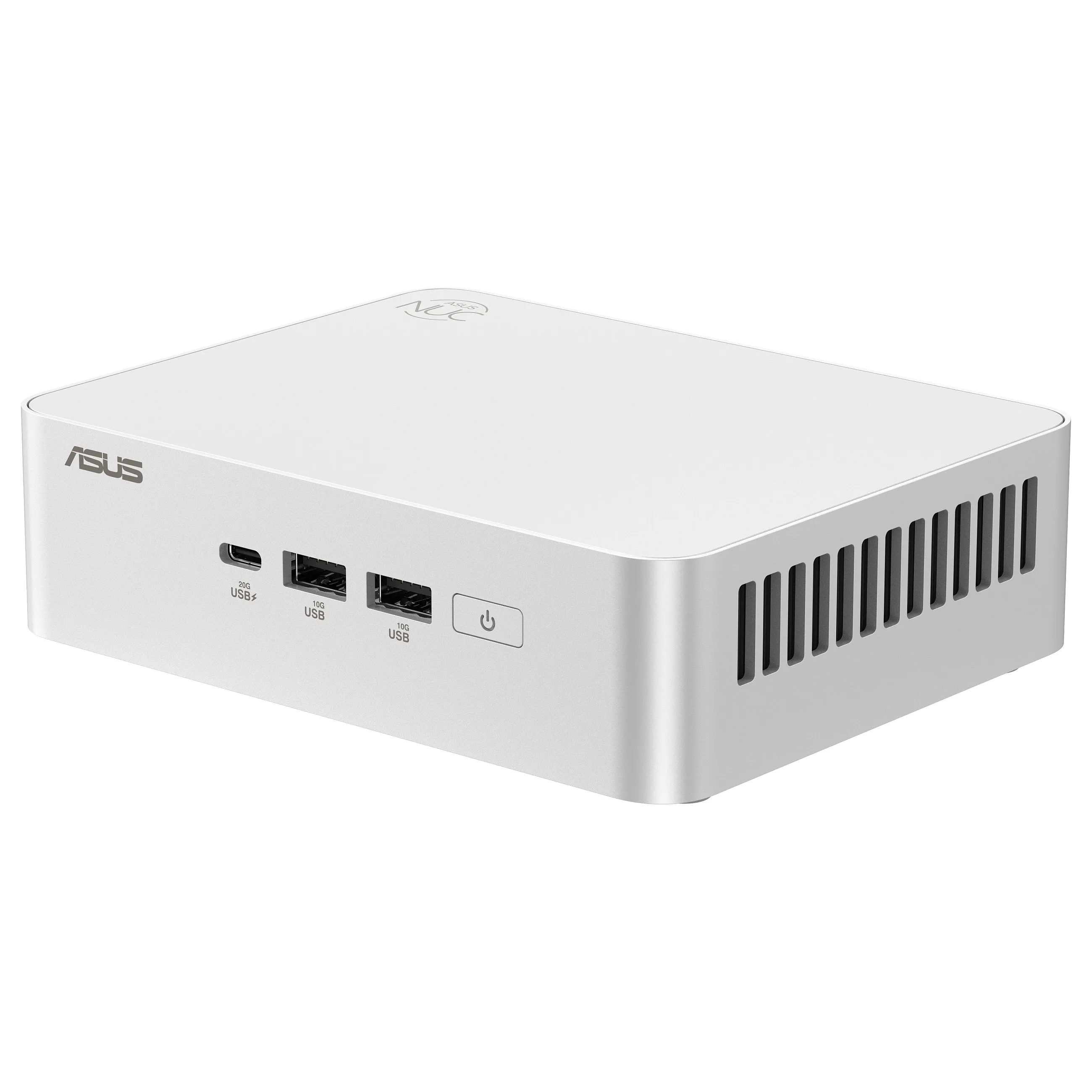

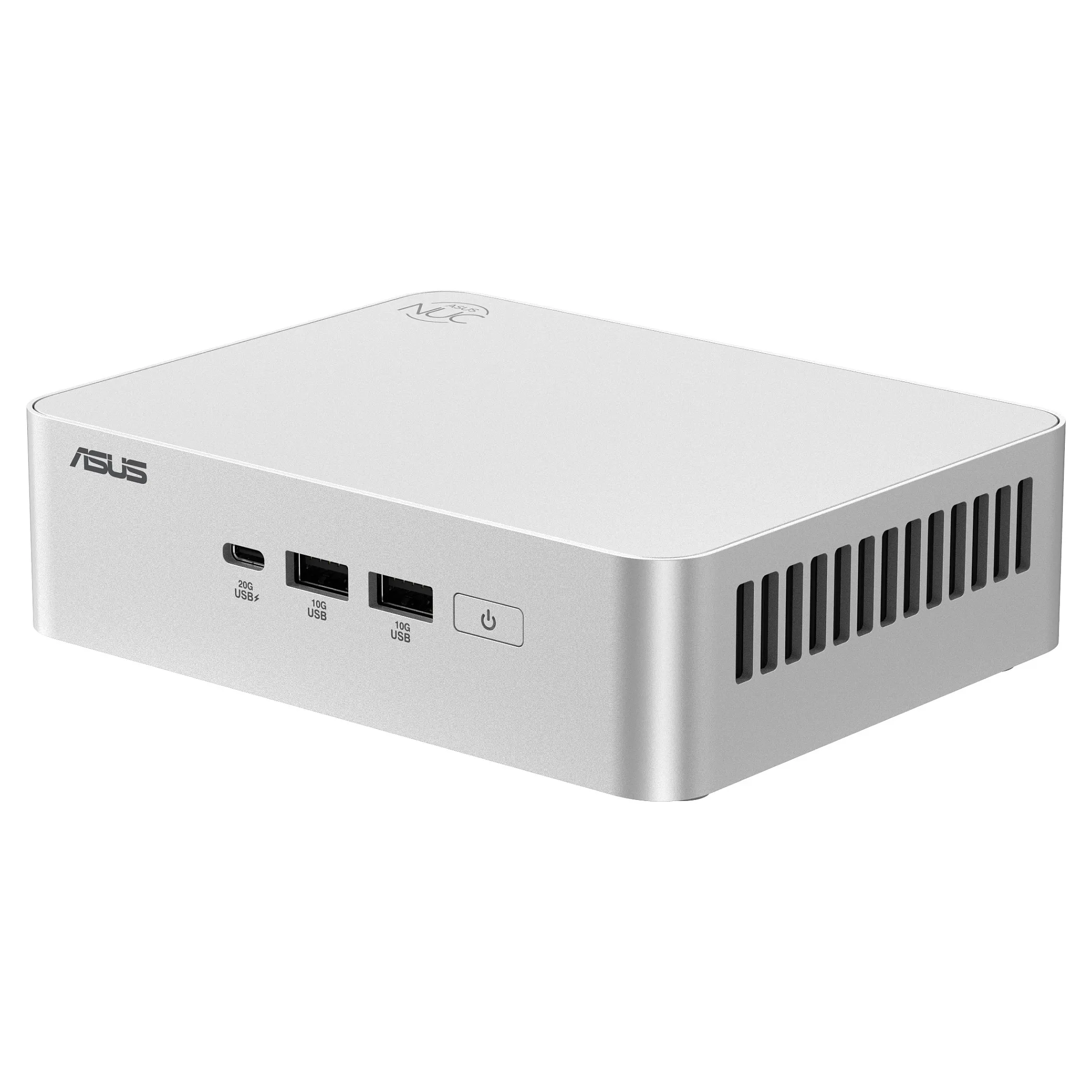

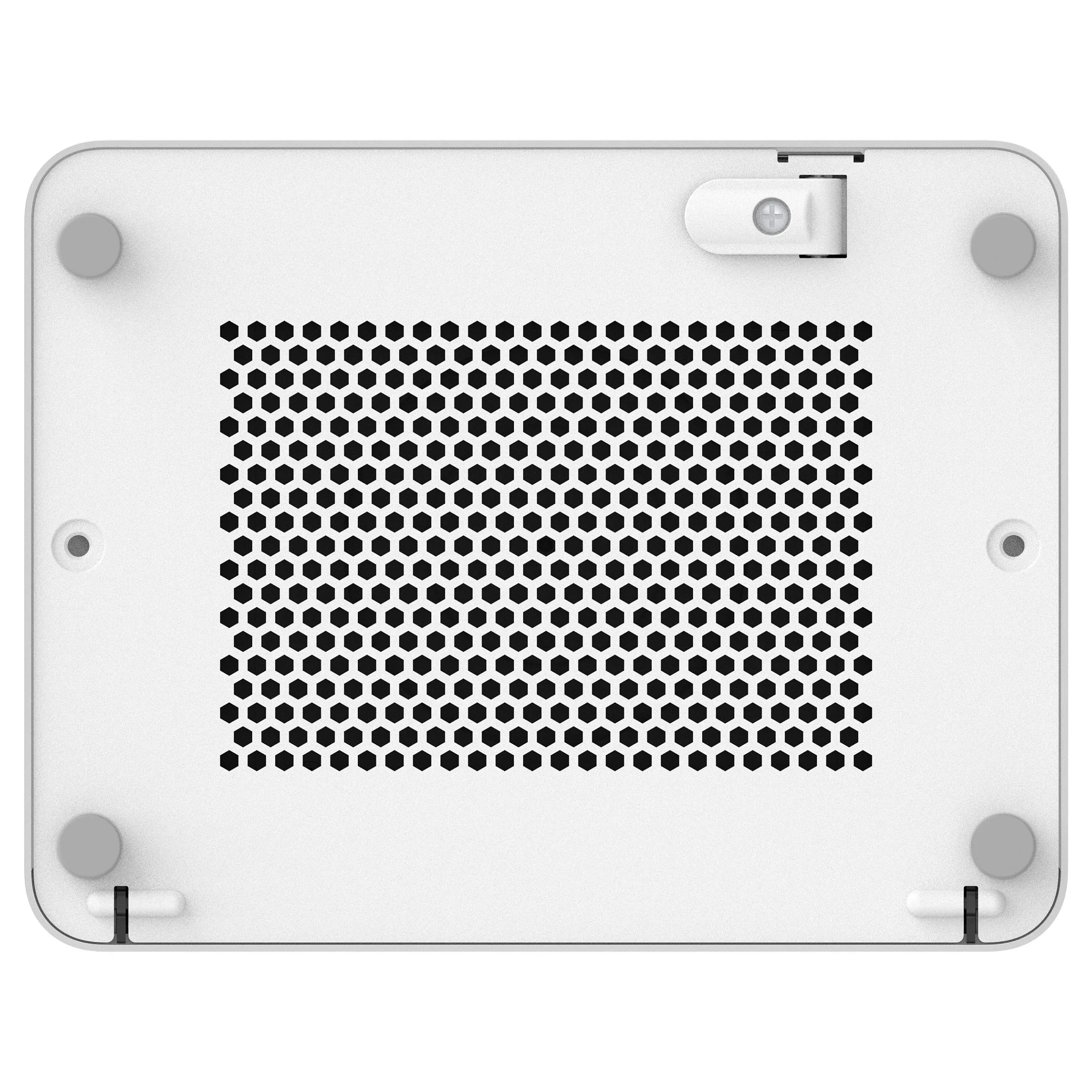

ASUS NUC 15 Pro+ RNUC15CRSU9084A2

Processor
Processor manufacturer: Intel
Processor family: Intel Core Ultra 9
Processor generation: Intel Core Ultra (Series 2)
Processor model: 285H
Processor cores: 16
Processor threads: 16
Processor boost frequency: 5.4 GHz
Performance cores: 6
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 5.4 GHz
Efficient-core Max Turbo Frequency: 4.5 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 2.9 GHz
Efficient-core base frequency: 2.7 GHz
Low Power Efficient-core Base Frequency: 1000 MHz
Processor cache: 24 MB
Processor cache type: Smart Cache
Processor base power: 45 W
Maximum turbo power: 115 W
Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI datatype support on NPU: Int8
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
Total processor performance up to: 99 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 77 TOPs
Memory
Internal memory: 32 GB
Maximum internal memory: 96 GB
Internal memory type: DDR5-SDRAM
Storage
Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc 140T
Performance
Product type: Mini PC
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 2500 Mbit/s
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Wi-Fi 7 BE201
Feature: Bluetooth
Bluetooth version: 5.4

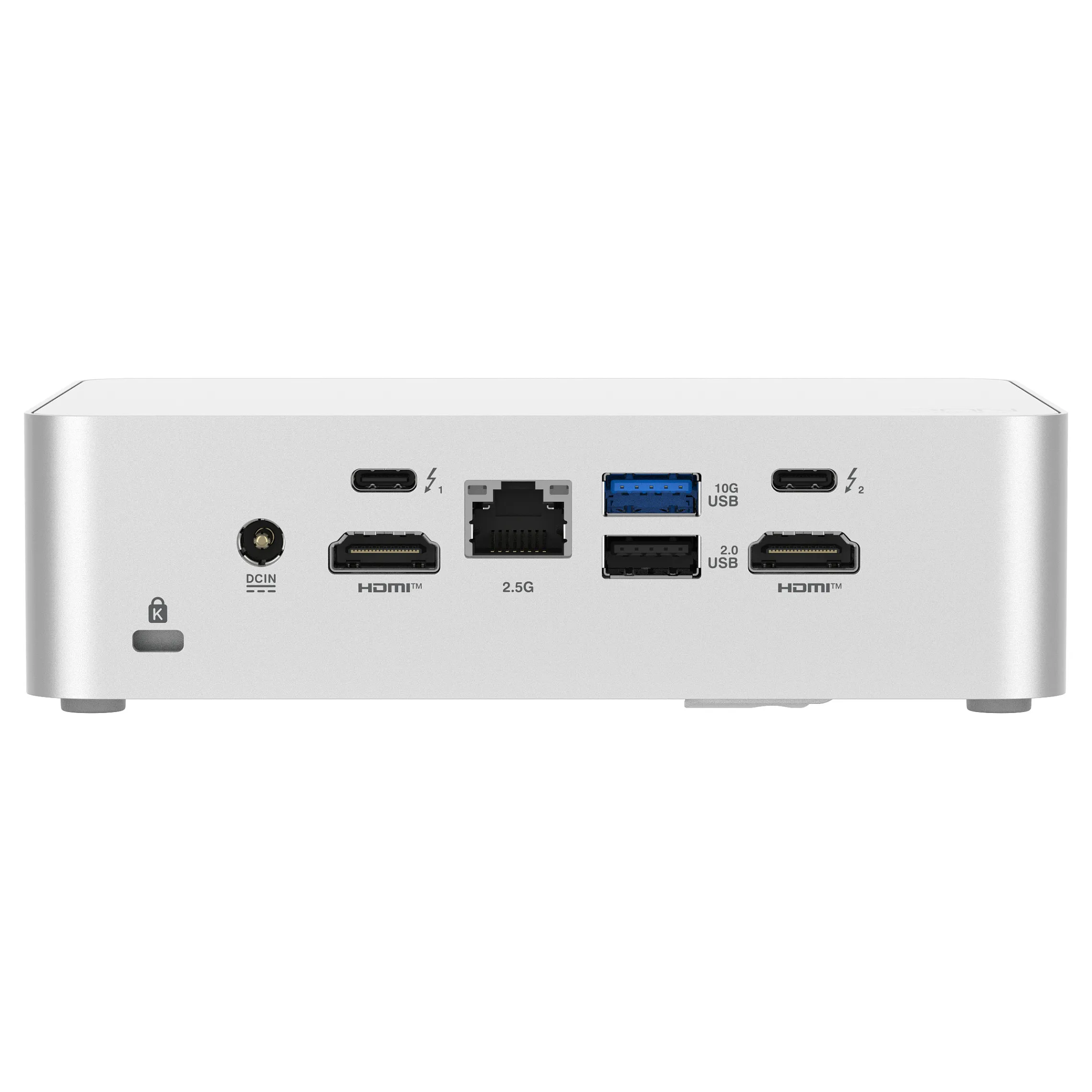

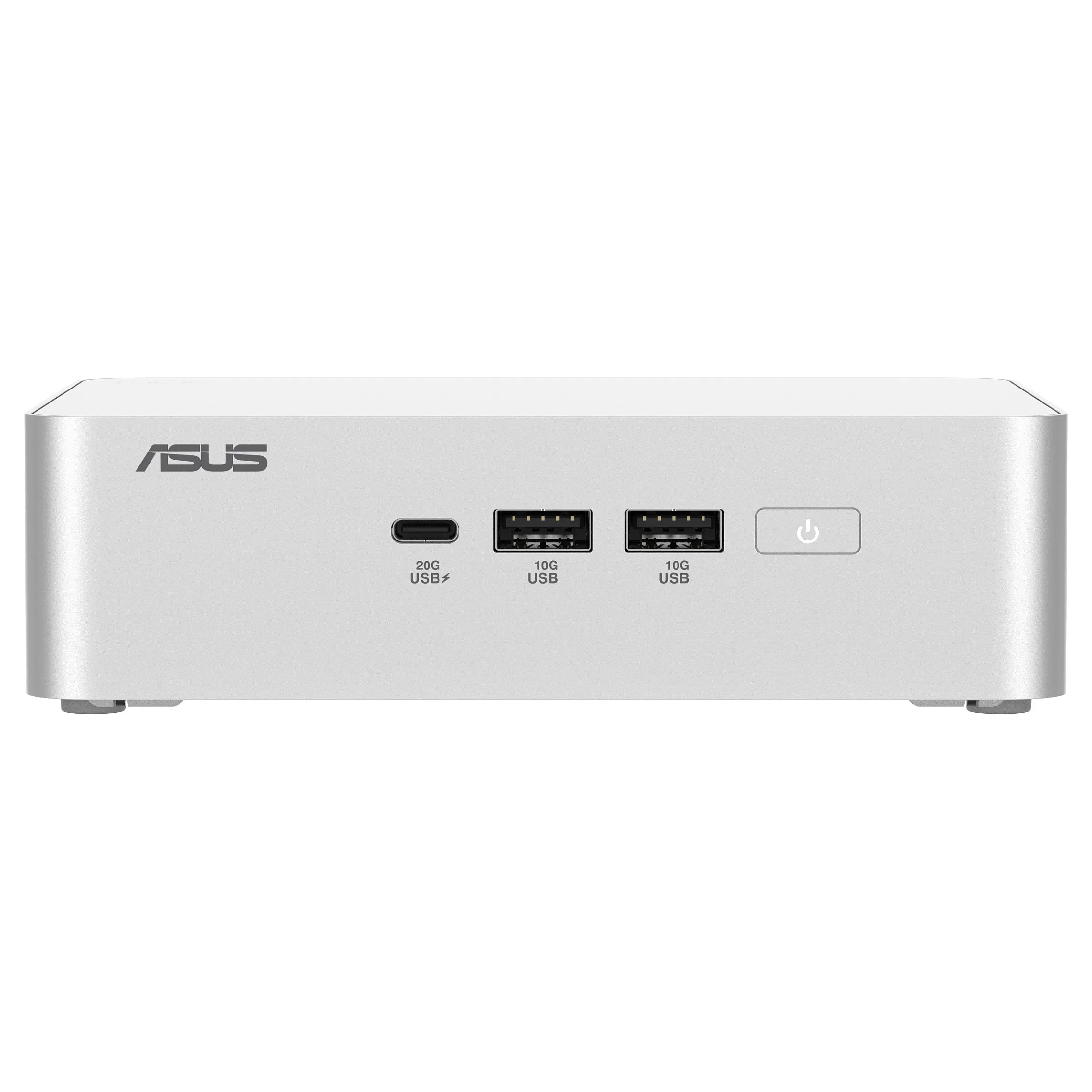

Ports & interfaces
USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2×2 Type-C ports quantity: 1
Feature: Intel® Thunderbolt 4
Thunderbolt 4 ports quantity: 2
HDMI ports quantity: 2
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack
Power
Power supply: 120 W
Design
Chassis type: Mini PC
Colour name: Silver

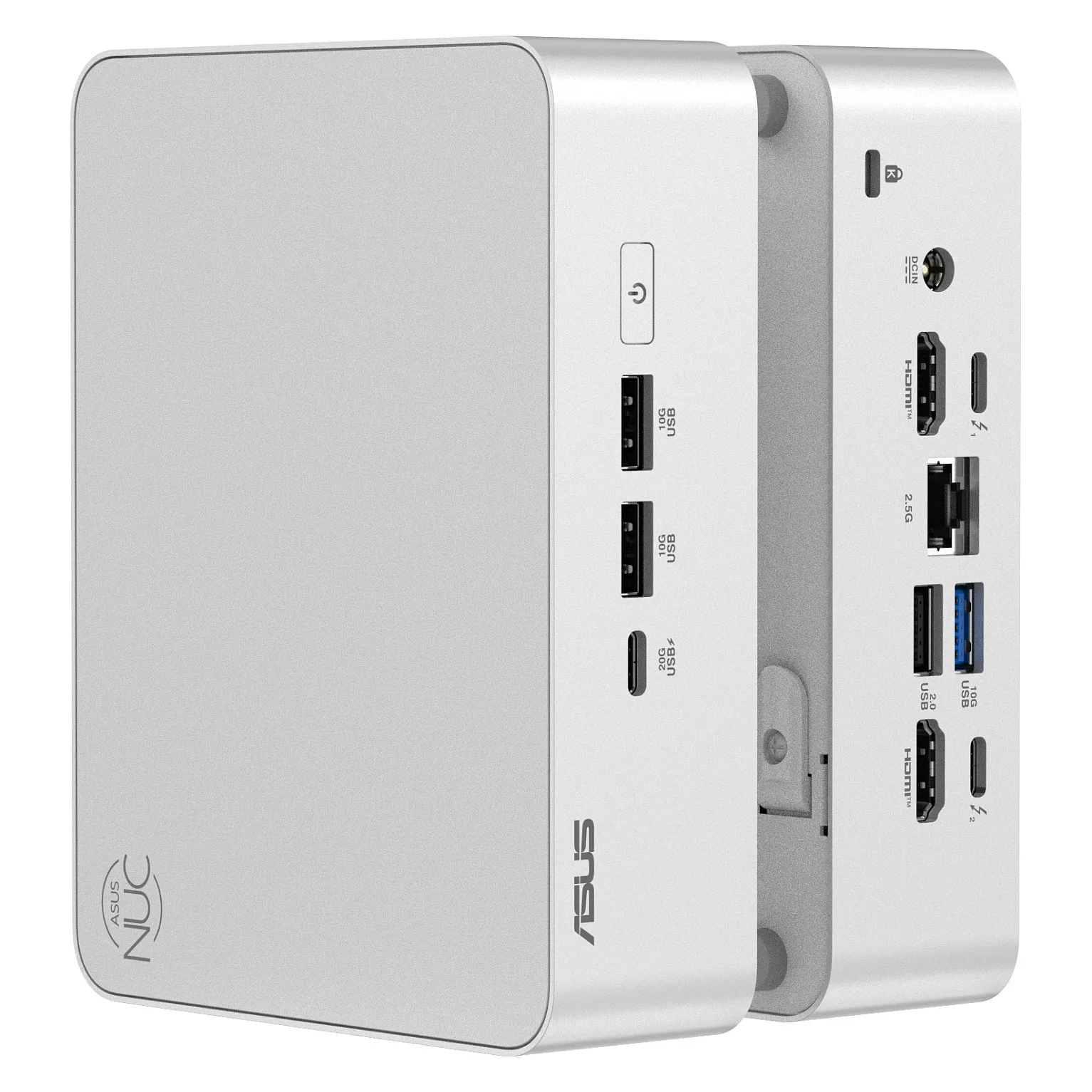

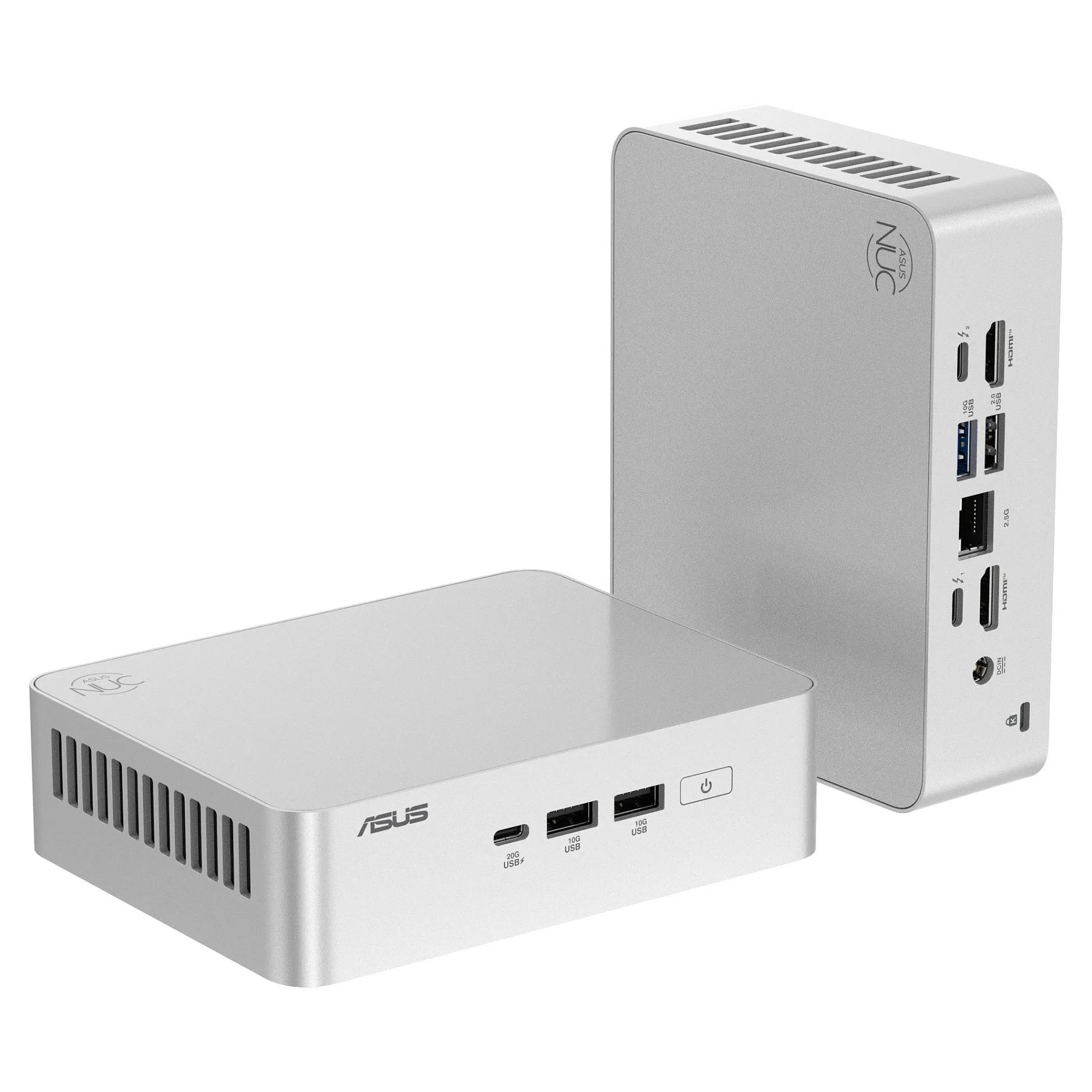

Placement supported: Horizontal/Vertical
Feature: Cable lock slot
Cable lock slot type: Kensington
Software
Operating system architecture: 64-bit
Operating system installed: Windows 11 Home
Weight & dimensions
Width: 144 mm
Depth: 112 mm
Height: 42 mm
Weight: 600 g
