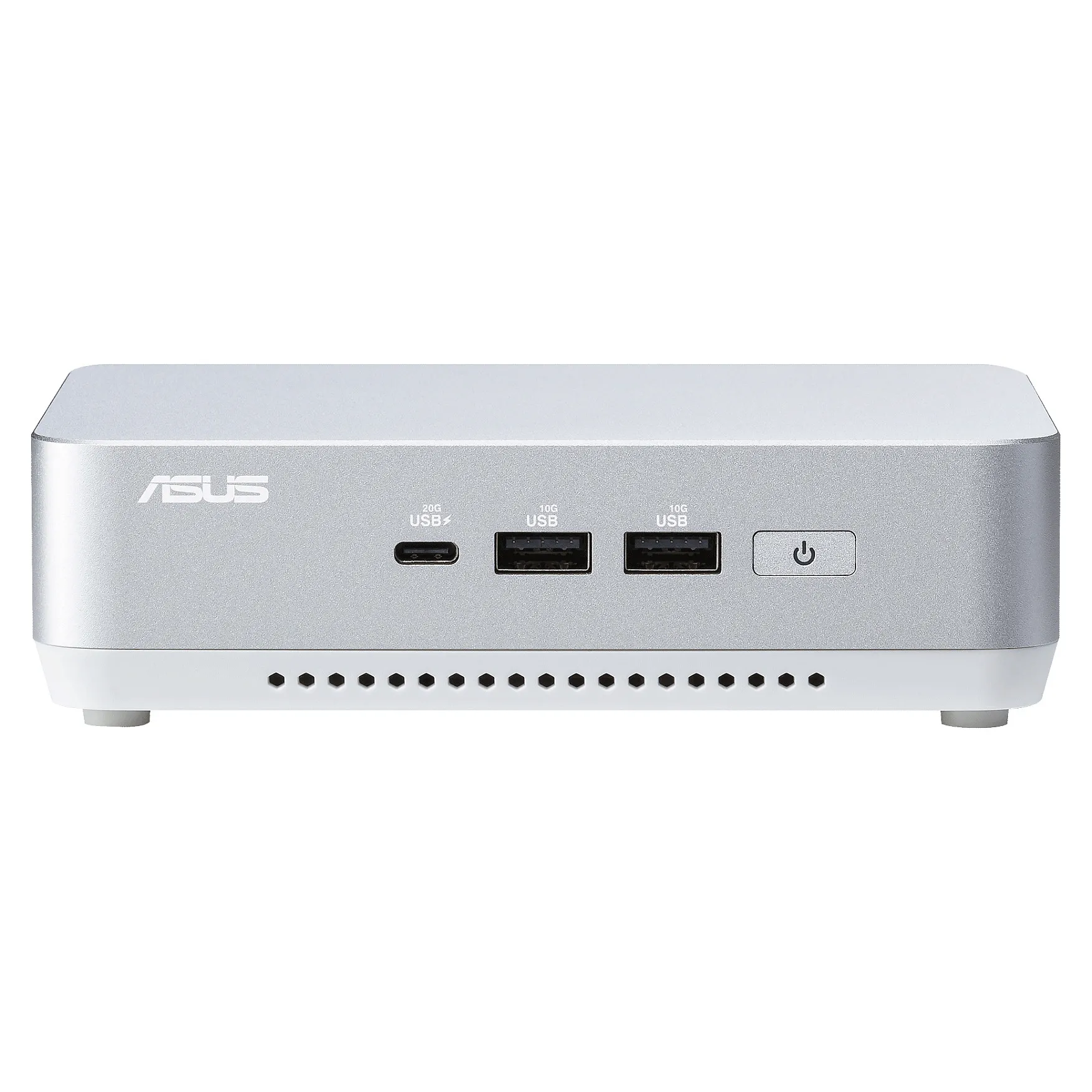

ASUS NUC 14 Pro+ RNUC14RVSU5068A2I. Processor family: Intel Core Ultra 5, Processor model: 125H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics. Operating system installed: Windows 11, Operating system architecture: 64-bit. Power supply: 120 W. Chassis type: UCFF. Product type: Mini PC. Weight: 600 g. Product colour: Silver
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.
Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel® Core™ Ultra (Series 1)
Processor model: 125H
Processor cores: 14
Processor threads: 18
Processor boost frequency: 4.5 GHz
Performance cores: 4
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 4.5 GHz
Efficient-core Max Turbo Frequency: 3.6 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 1.2 GHz
Efficient-core base frequency: 0.7 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Processor cache: 18 MB
Processor cache type: Smart Cache
Processor base power: 28 W
Maximum turbo power: 115 W
Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
Maximum frequency NPU: 1.4 GHz
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML
Memory
Internal memory: 16 GB
Maximum internal memory: 96 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 8 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 5600 MHz
Storage
Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc Graphics
Performance
Product type: Mini PC
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Wi-Fi 6E AX211
Feature: Bluetooth
Bluetooth version: 5.3

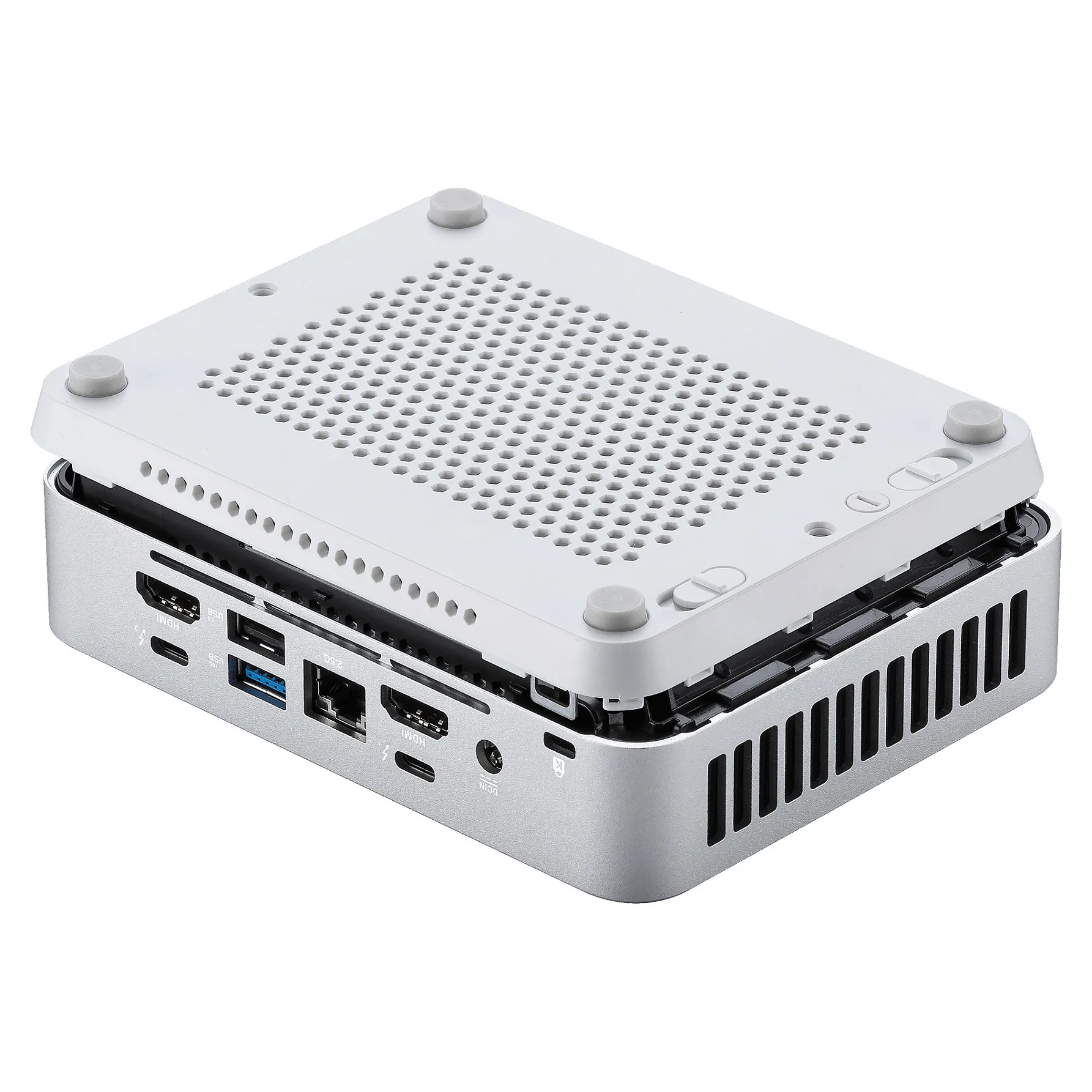

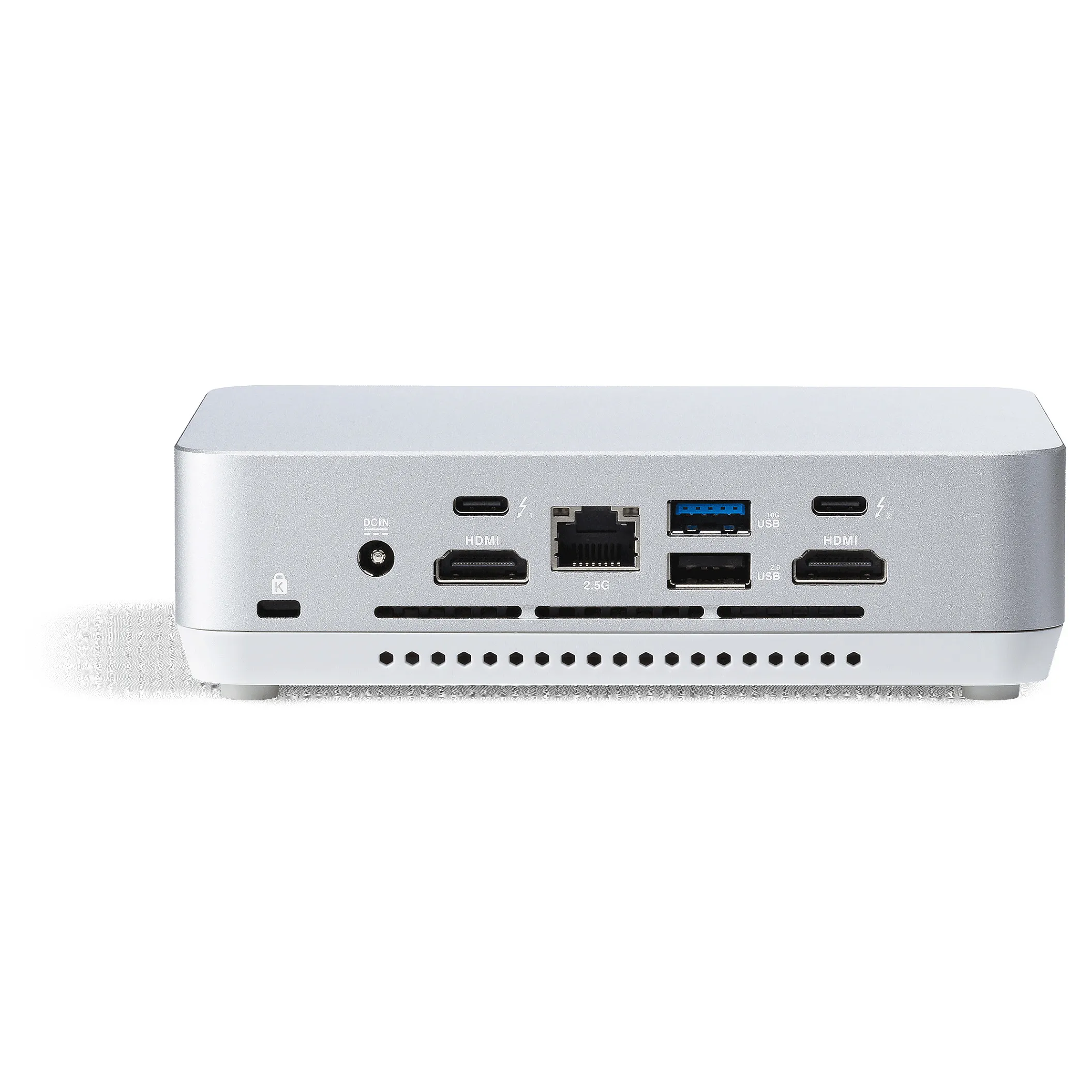

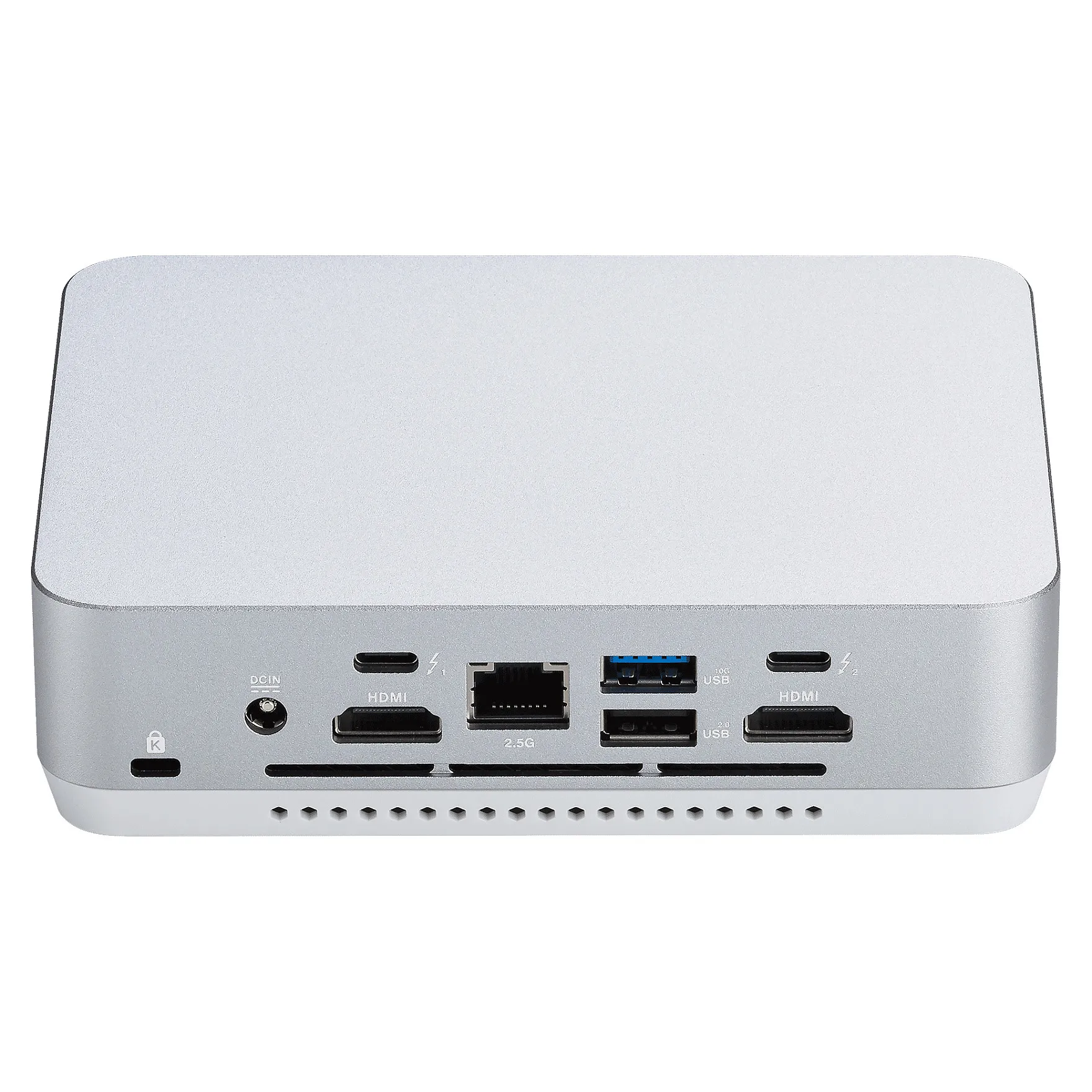

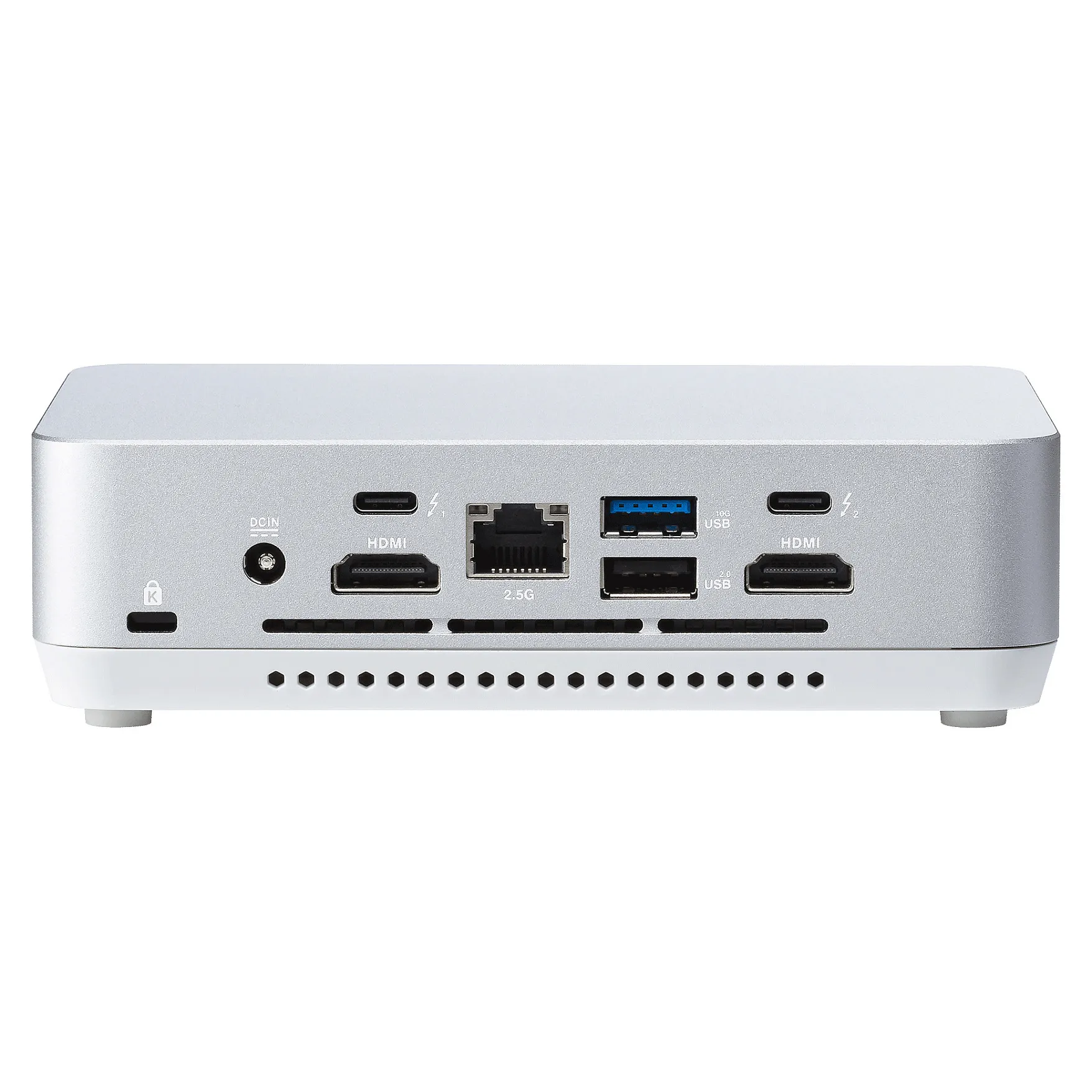

Ports & interfaces
USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2×2 Type-C ports quantity: 1
Feature: Intel® Thunderbolt 4
Thunderbolt 4 ports quantity: 2
HDMI ports quantity: 2
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack
Power
Power supply: 120 W
Design
Chassis type: UCFF
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Silver
Software
Operating system architecture: 64-bit
Operating system installed: Windows 11
Weight & dimensions
Width: 144 mm
Depth: 112 mm
Height: 41 mm
Weight: 600 g
Packaging content
Cables included: AC
