ASUS Master Thunderbolt 5 Dock DC510. Connectivity technology: Wired, Host interface: Thunderbolt 5, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 2500 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), SD, Supported storage drive types: SSD. Power source type: DC, Input current: 9 A, Power cable length: 1 m. Width: 220 mm, Depth: 96.7 mm, Height: 38.1 mm

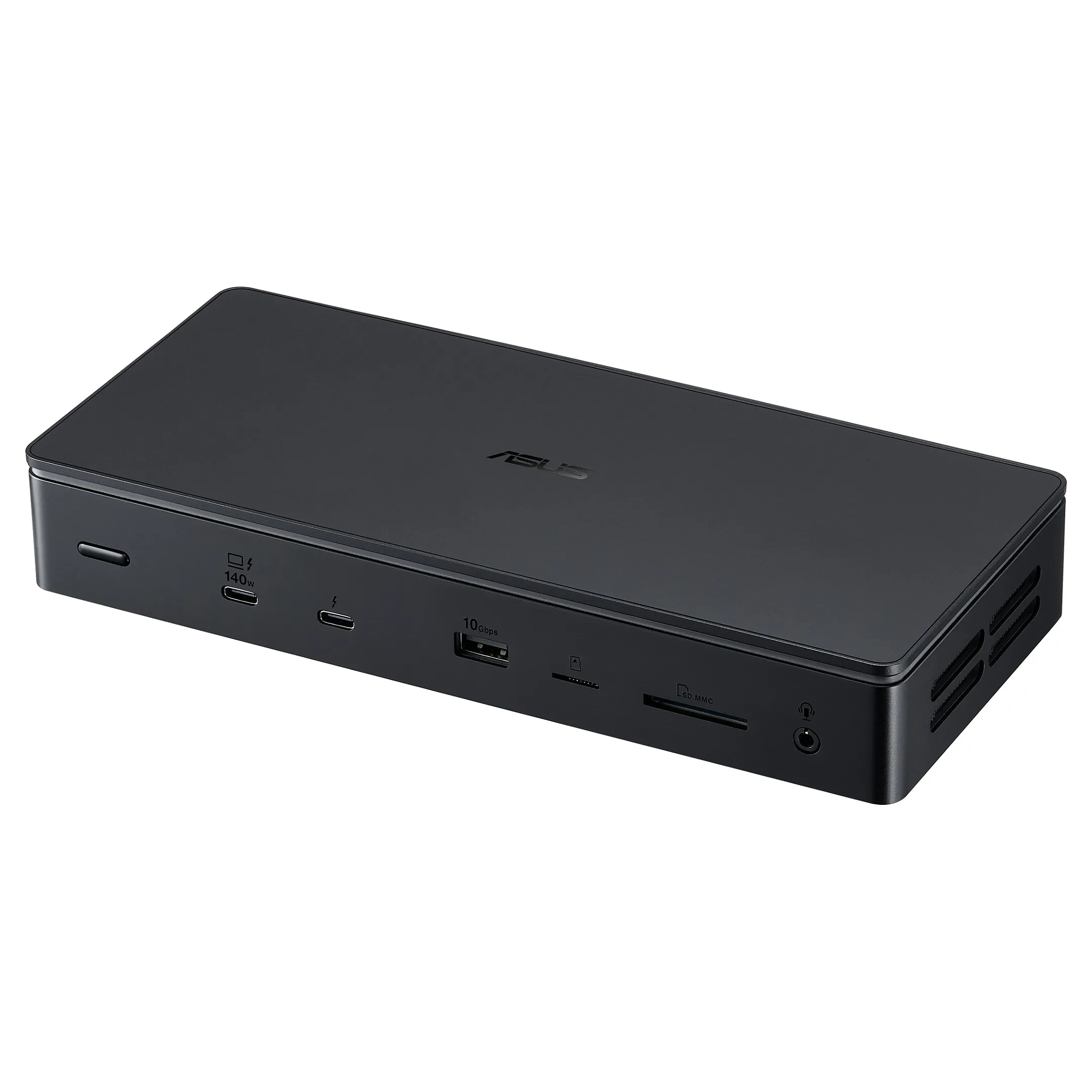

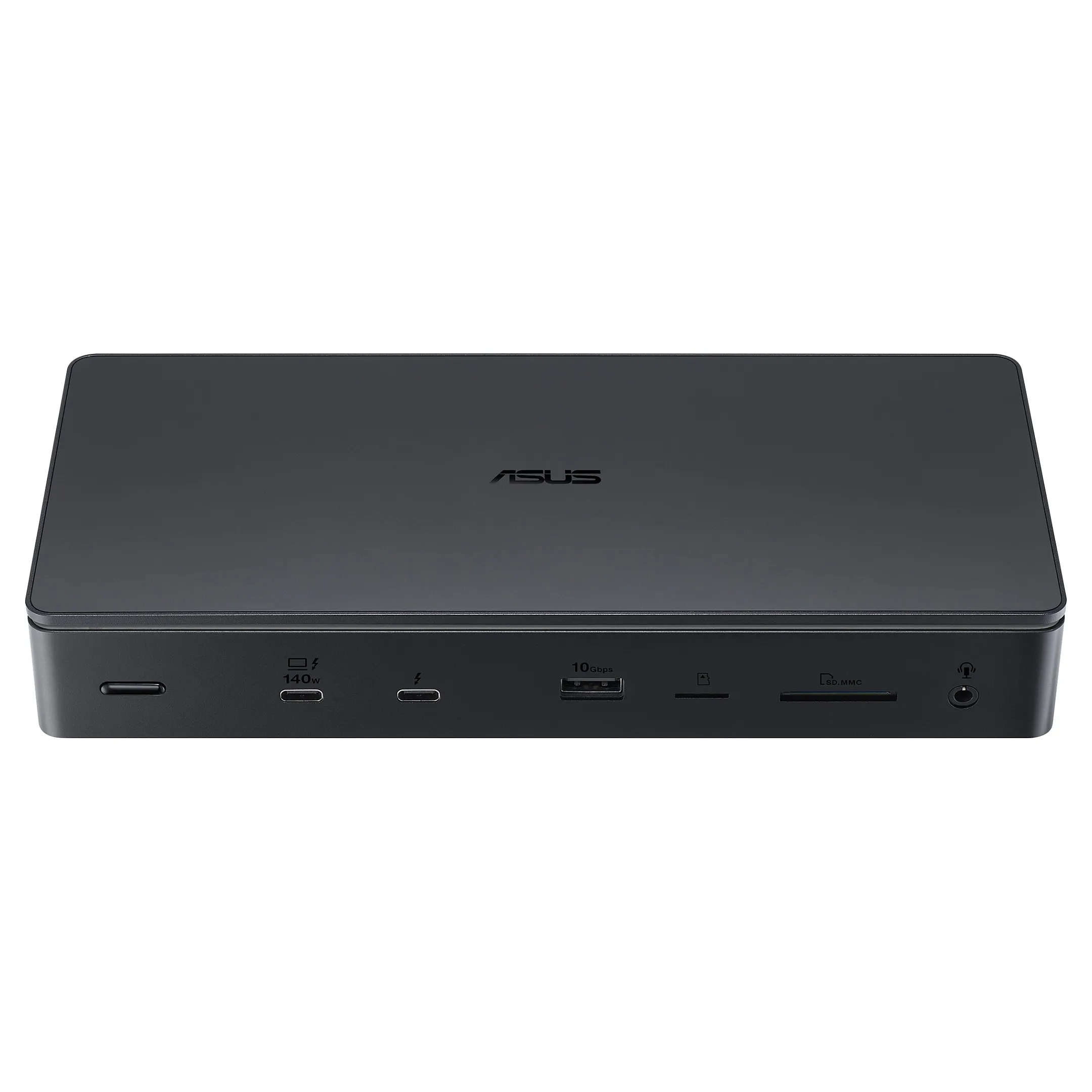

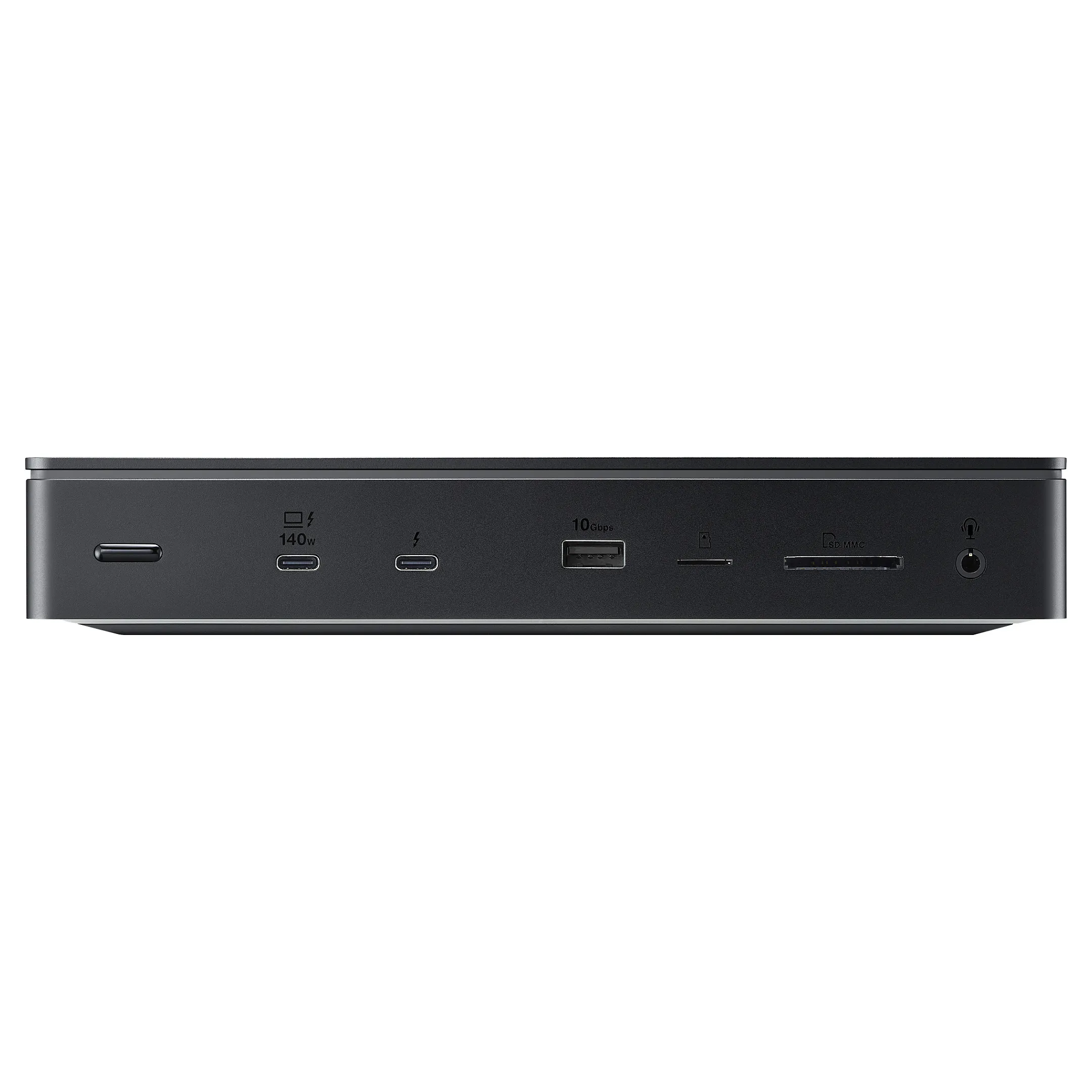

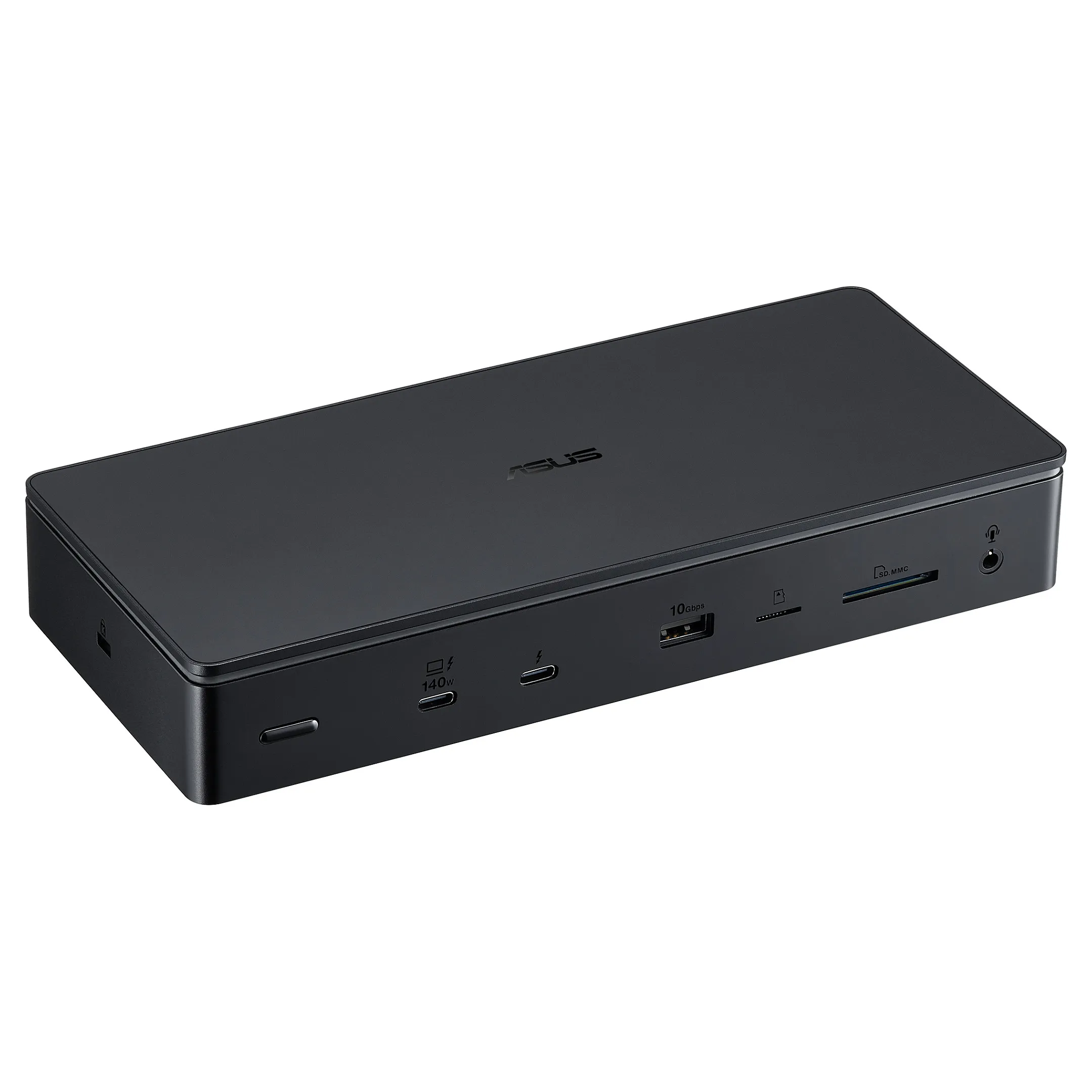

ASUS Master Thunderbolt™ 5 Dock is a 13-in-1 dock designed for creators, giving them the ability to turn their laptop into a powerful workstation with just a single cable connection. The dock is able to support up to three 4K displays, super 80Gbps data transfer speed via three Thunderbolt 5, read two memory cards, and even includes an SSD slot for additional storage. Built-in LEDs on the underside of the device offer adjustable ambient lighting to add a futuristic aesthetic to any creative space.
PRODUCTIVITY

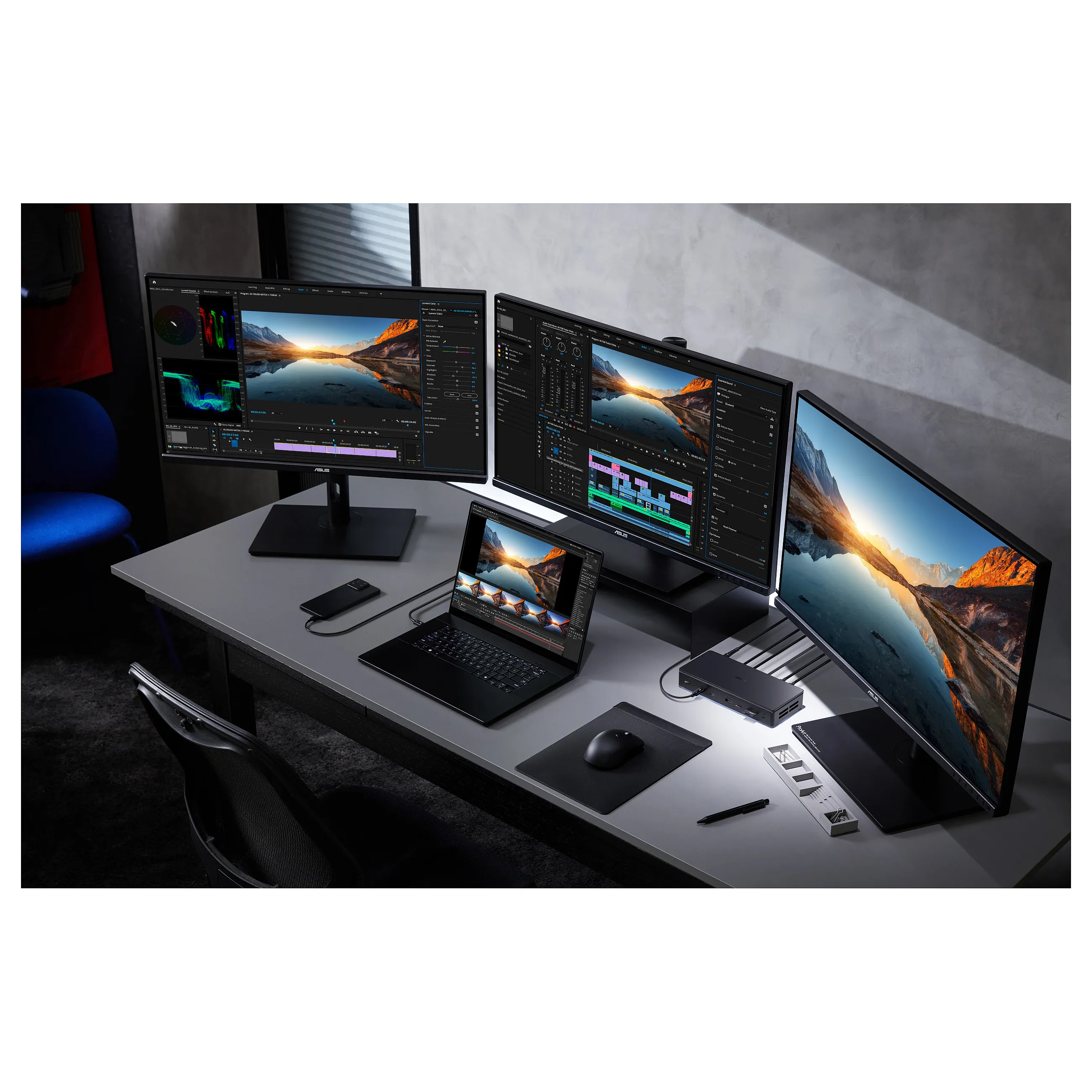

Triple 4K display support with Thunderbolt™ 5
ASUS Master Thunderbolt™ 5 Dock boasts three Thunderbolt™ 5 ports to support up to two 8K, or up to three 4K displays, enabling more productive multitasking and offering creative professionals greater levels of detail to work with.
VERSATILITY
Unparalleled 8K visuals
Enthralling 8K resolution viewing experiences are possible with Thunderbolt™ 5 connectivity. Check the table below for specific resolutions1 for all monitor2 combinations.
SPEED
Faster data transfers
2.5G Ethernet and Thunderbolt™ 5 connectivity facilitate high-speed file transfers, so users get more done in less time — it takes just 6 seconds to transfer a 20 GB image file. Additionally, the UFP Thunderbolt™ 5 port offers convenient PD3.1 140W passthrough charging for mobile devices and other peripherals.
SHARE
Thunderbolt™ Share unlock PC-to-PC experiences
Experience high-speed Thunderbolt™ Share with ASUS Master Thunderbolt™ 5 Dock. Download the software in the link below and enjoy these benefits: secure and fast PC-to-PC access for sharing screen/monitor, keyboard, mouse, and storage. Sync folders or drag-and-drop files between PCs at Thunderbolt™ speeds. Quickly transfer data from an old computer to a new one. Features hardware-based security, making it commercially ready.
SCALABILITY
Effortless SSD Storage Expansion

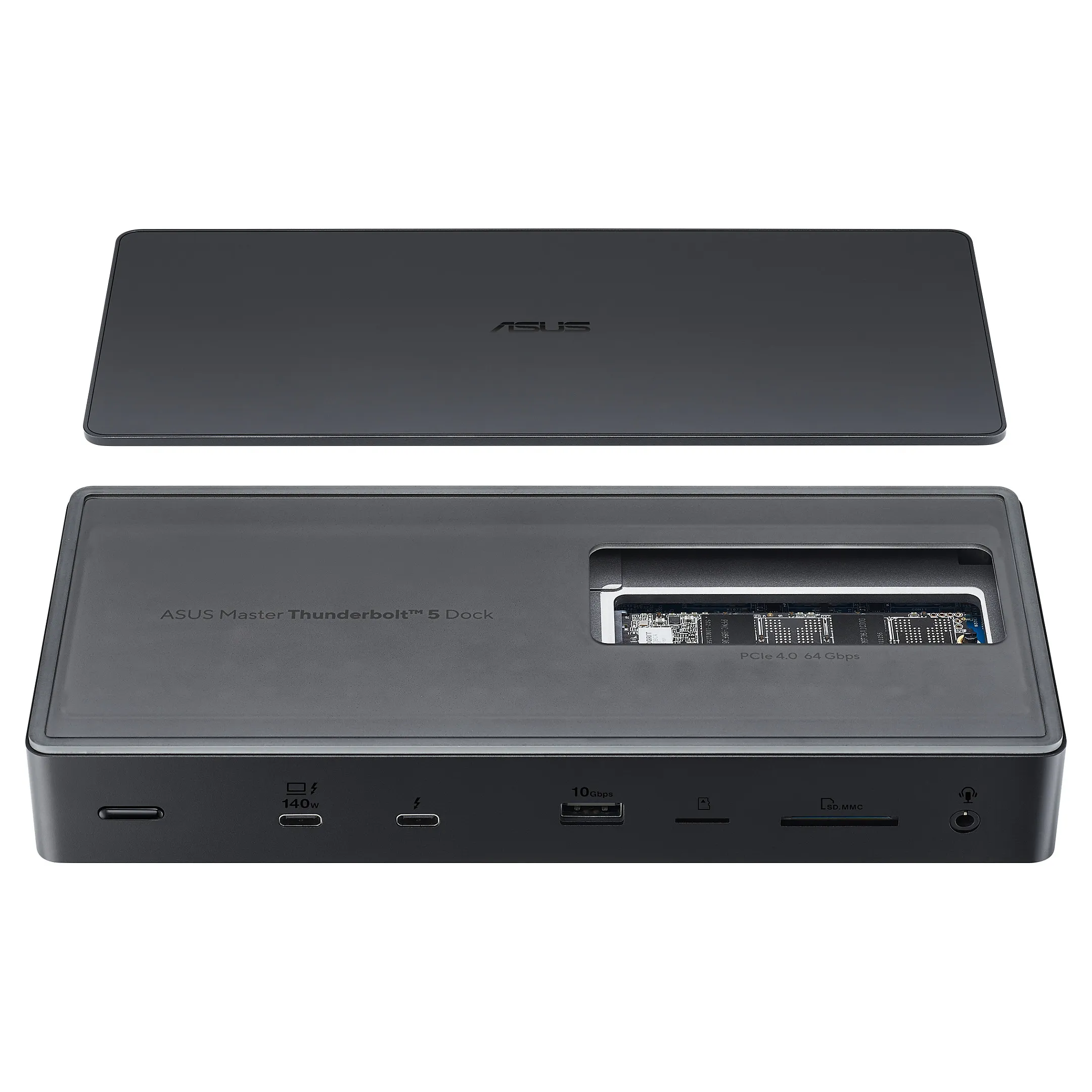

The toolless-access design of ASUS Master Thunderbolt 5 Dock includes a magnetic top cover that can be removed to reveal the concealed M.2 NVMe® PCIe® 4.0 SSD slot for quick and easy storage upgrades and installation without the need for any tools. The slot enables supports up to 64Gbps transfer speeds — twice that of Thunderbolt™ 4 — for efficient handling of large files.
DESIGN

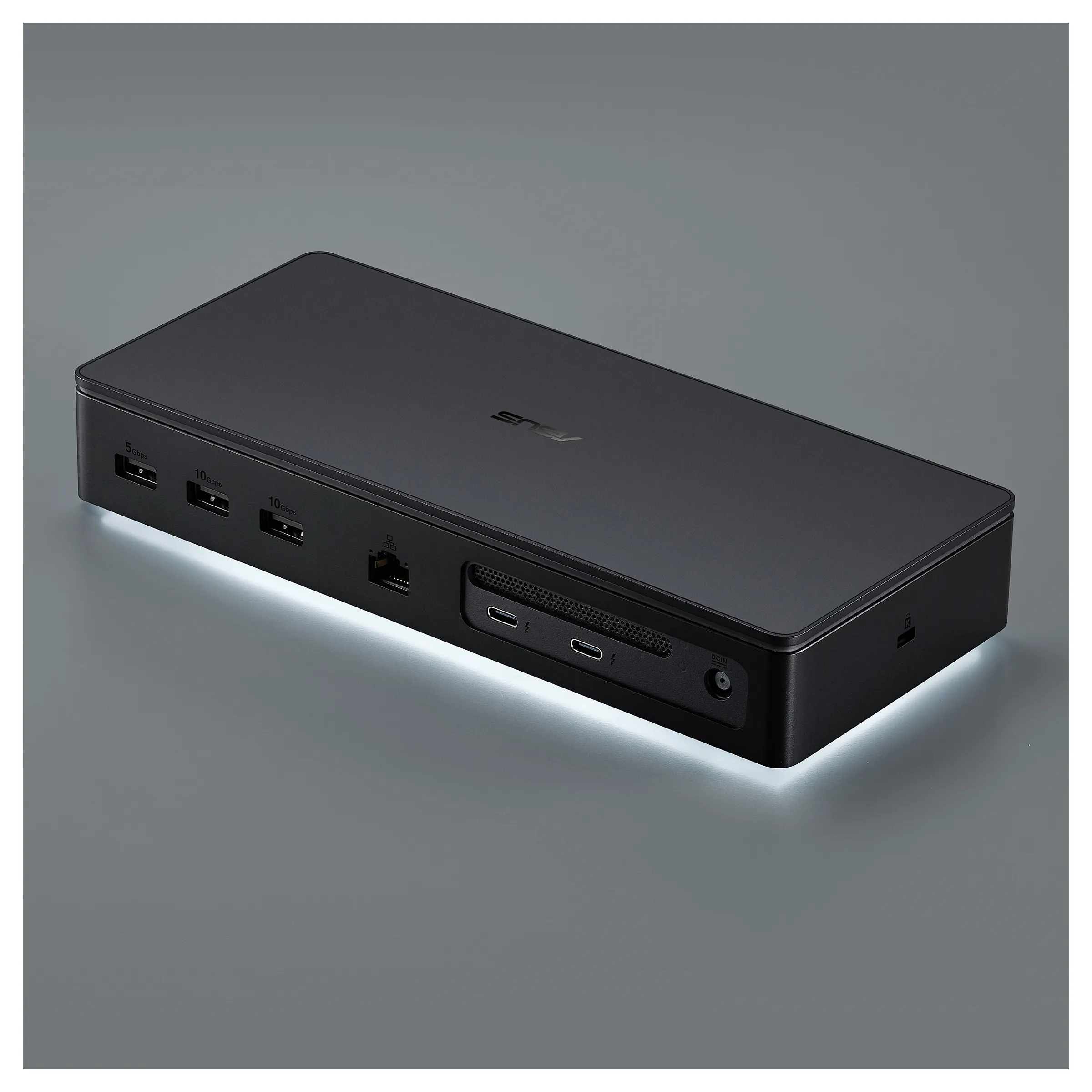

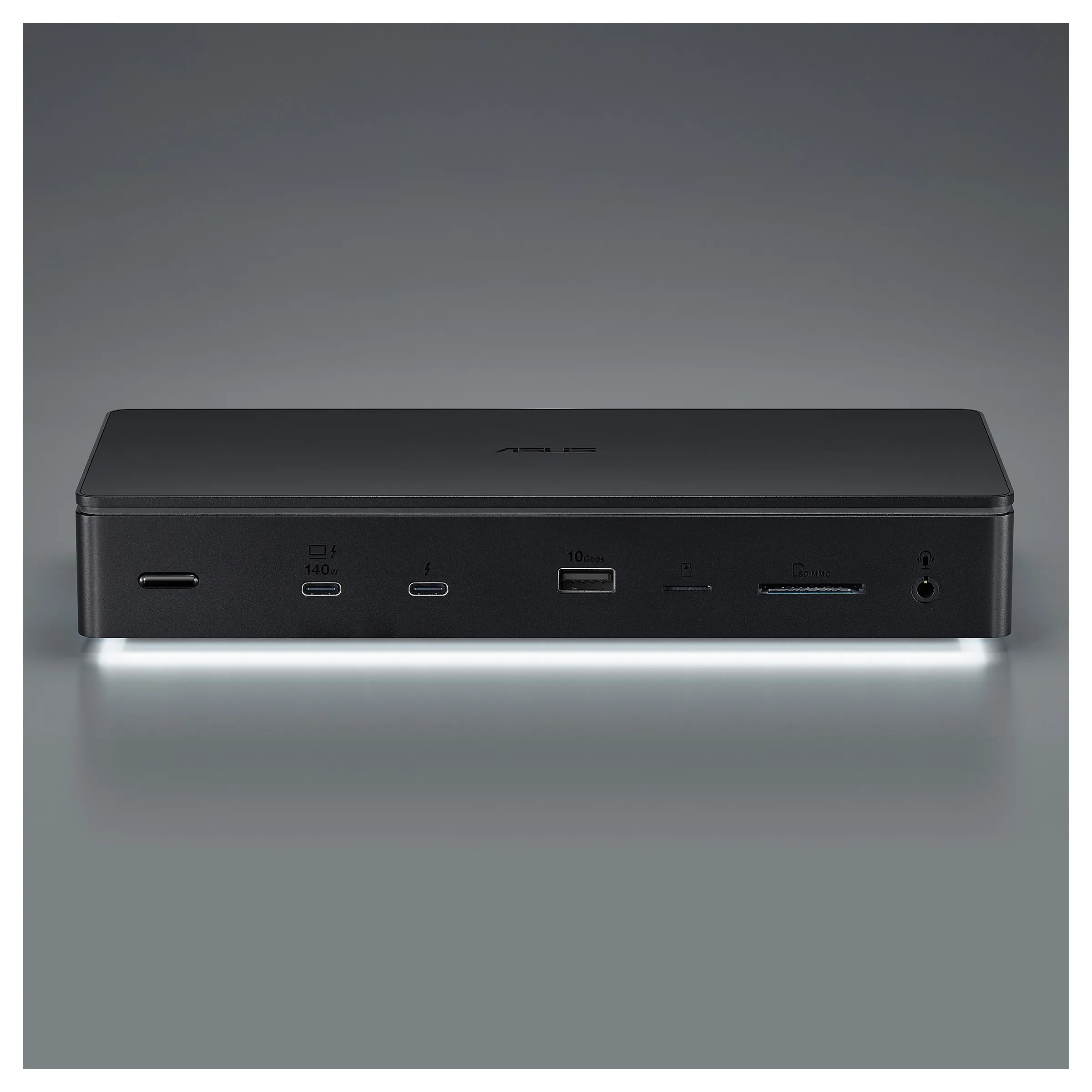

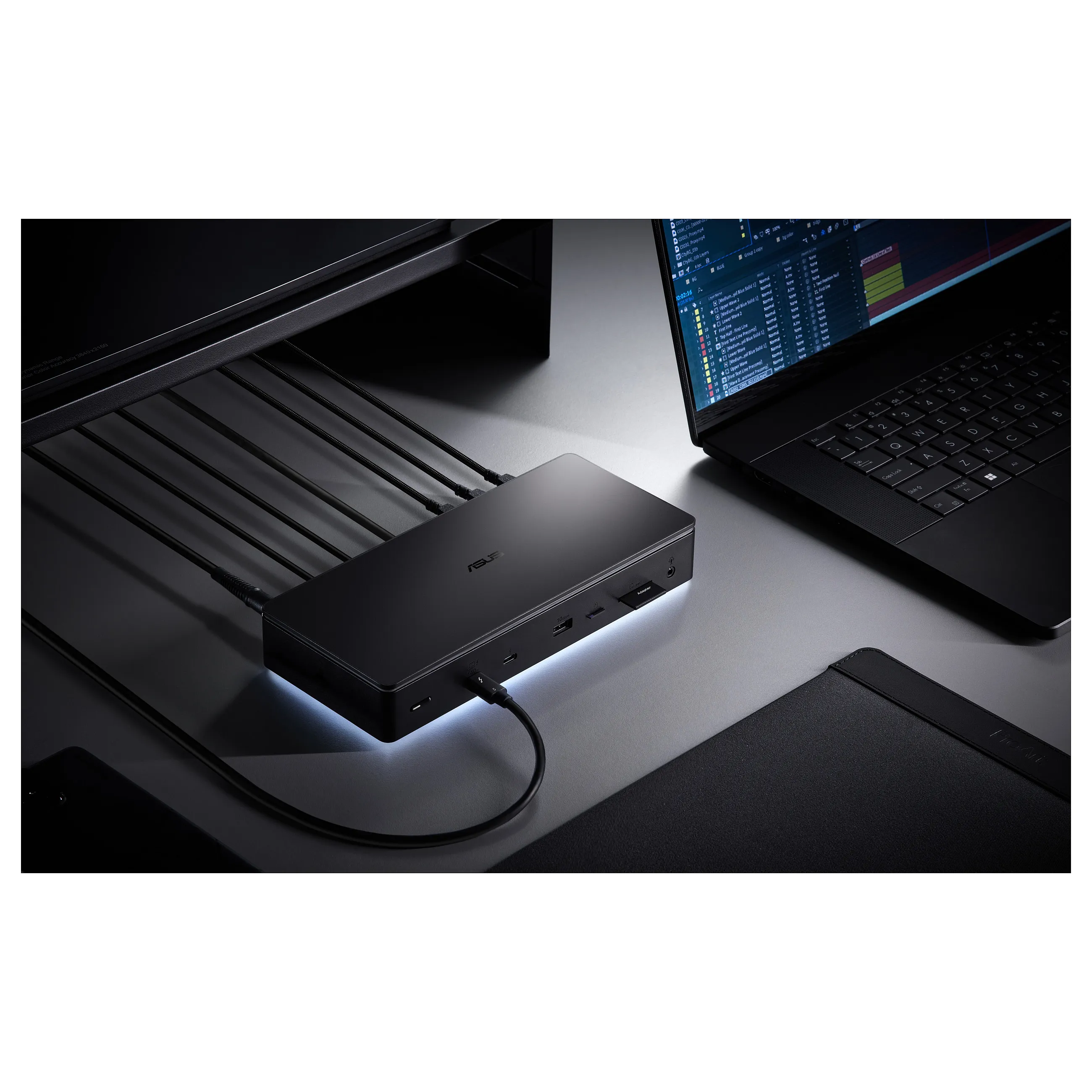

Modern aesthetics with built-in ambient lighting

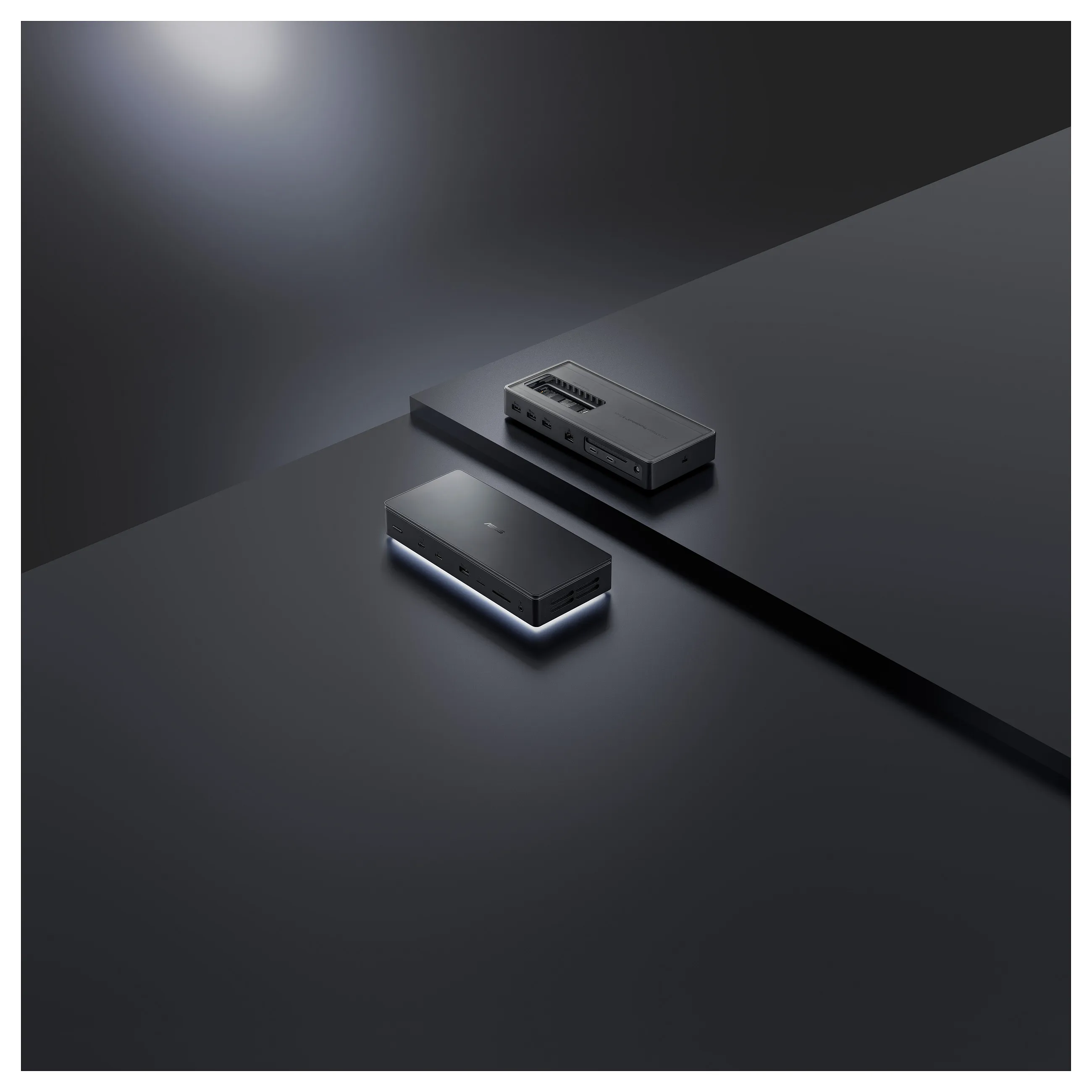

The streamlined, durable aluminum chassis of ASUS Master Thunderbolt™ 5 Dock includes ambient RGB lighting to give it a visual aesthetic that blends seamlessly in any space, be it a professional design studio or home office.
DESIGN
A well-organized workstation

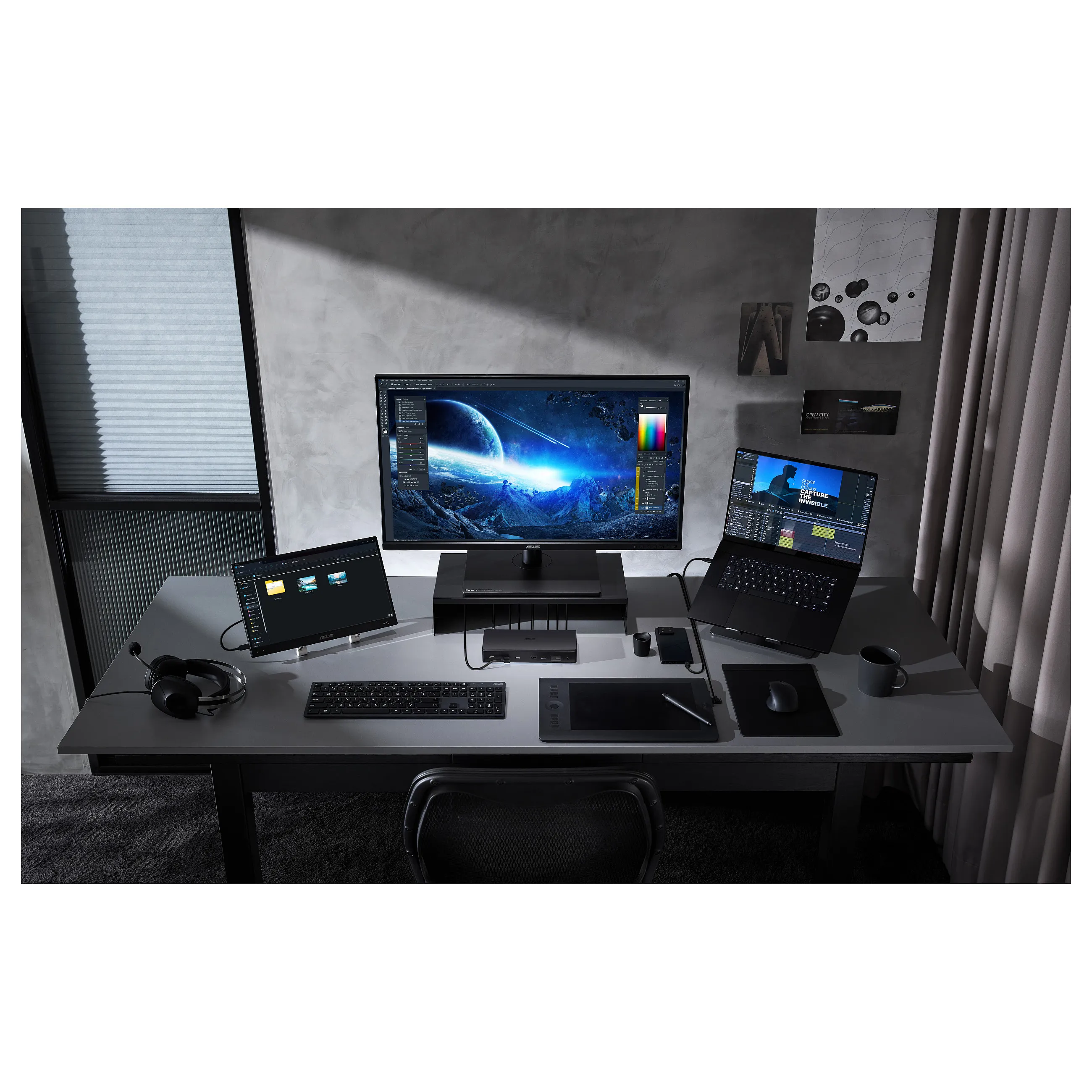

The compact rectangular design of ASUS Master Thunderbolt™ 5 Dock fits perfectly under a monitor stand to ensure connected devices are easily within reach while maintaining a neat workstation setup. Despite its size, innovative cooling features ensure internal temperatures are kept at optimal levels to ensure sustained high performance.

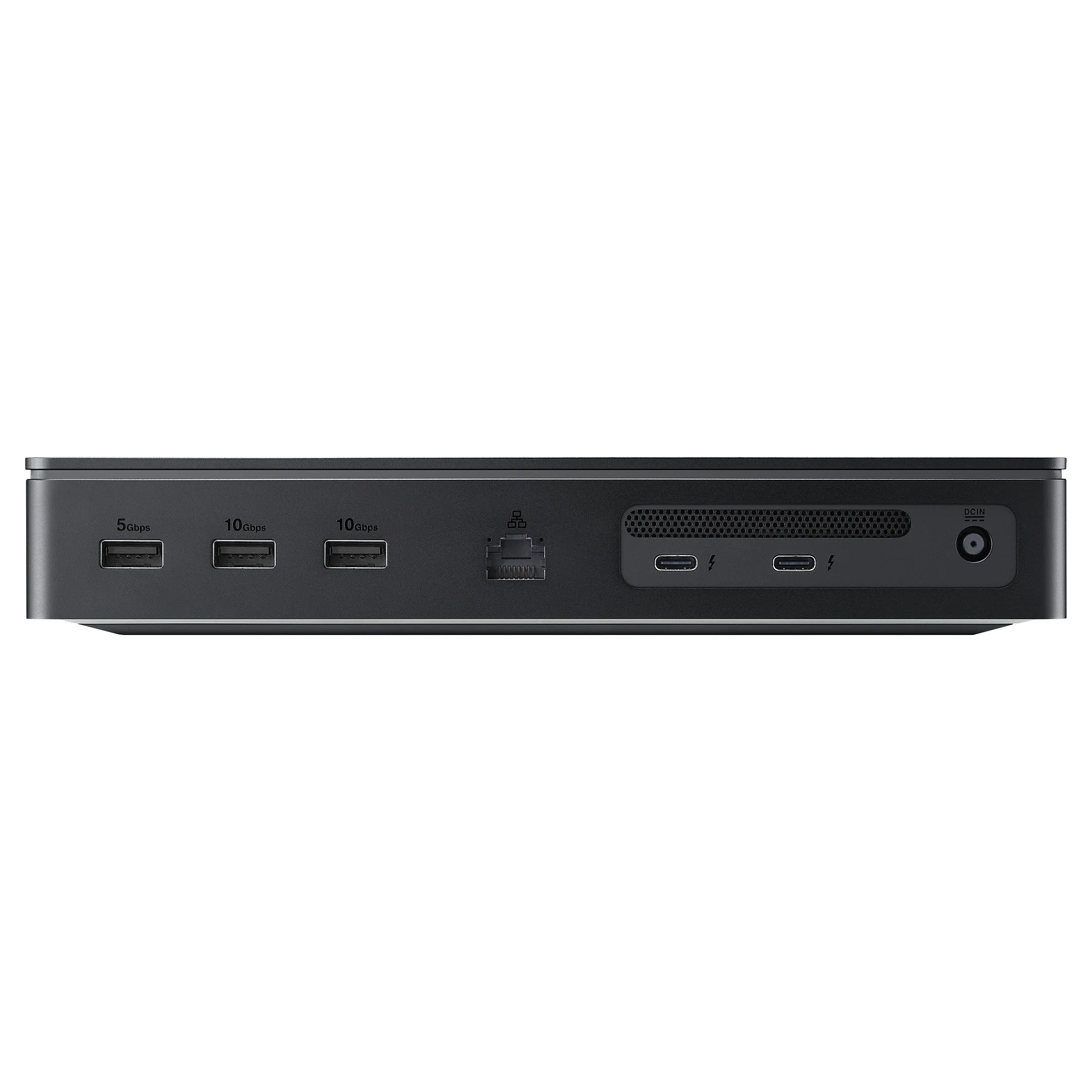

Connectivity technology: Wired
Host interface: Thunderbolt 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.1
USB Power Delivery up to: 140 W
Thunderbolt 5 ports quantity: 3
Feature: Combo headphone/mic port
Feature: DC-in jack
Network
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 2500 Mbit/s
Performance
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Number of storage drives supported: 1
Supported storage drive types: SSD
Storage drive sizes supported: M.2
SSD interface: PCI Express 4.0
Feature: NVMe
Supported SSD sizes: M.2
Data transfer rate: 80 Gbit/s
HD type: 8K Ultra HD
Maximum digital resolution: 7680 x 4320 pixels
Number of displays supported: 3
Maximum refresh rate: 144 Hz
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black
Feature: On/off switch
Feature: Charging function
Power
Power source type: DC
Input current: 9 A
Power cable length: 1 m
Weight & dimensions
Width: 220 mm
Depth: 96.7 mm
Height: 38.1 mm
Weight: 765 g
Packaging data
Quantity per pack: 1 pc(s)
Packaging content
Feature: Warranty card
Cables included: AC
Feature: AC adapter included
Feature: Manual
