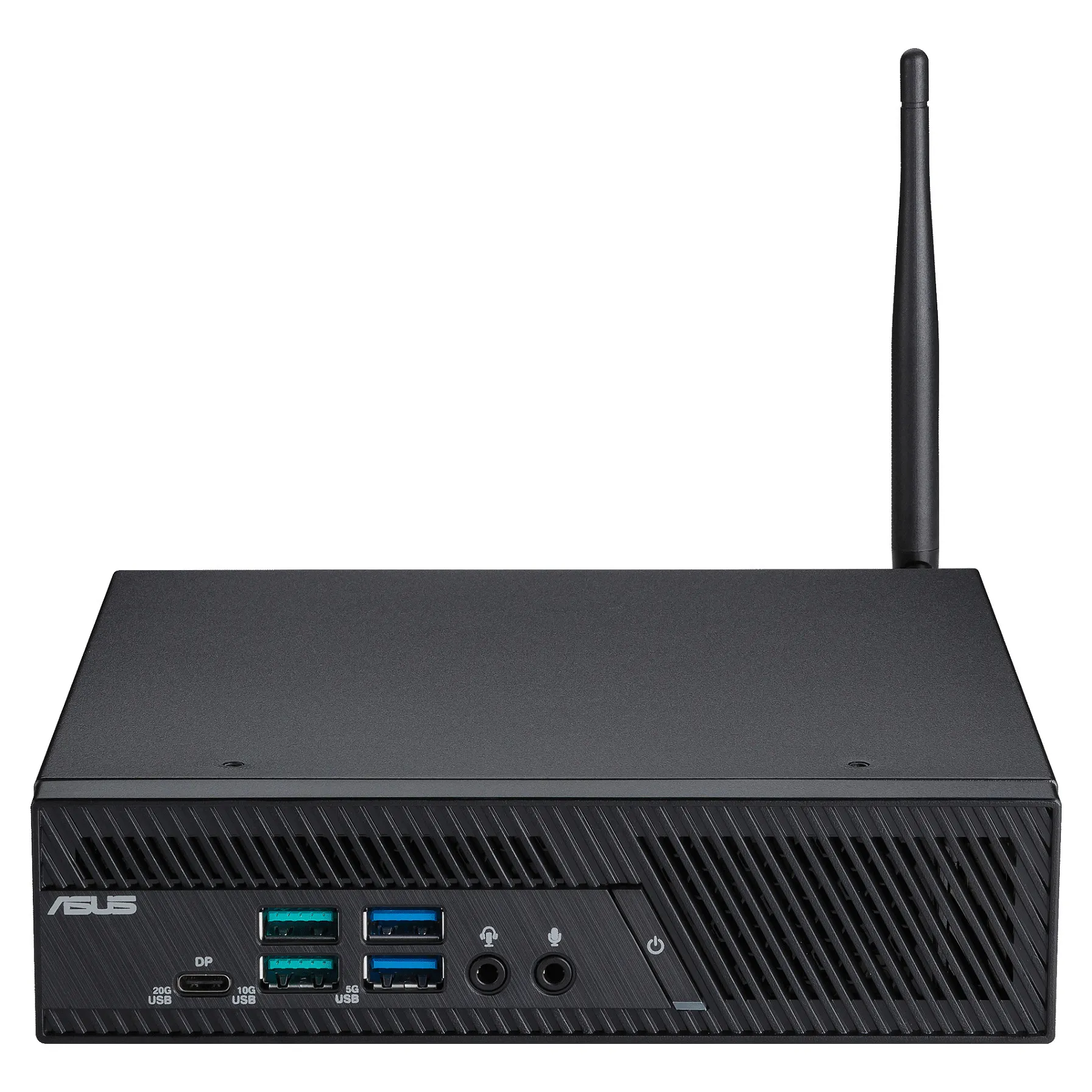

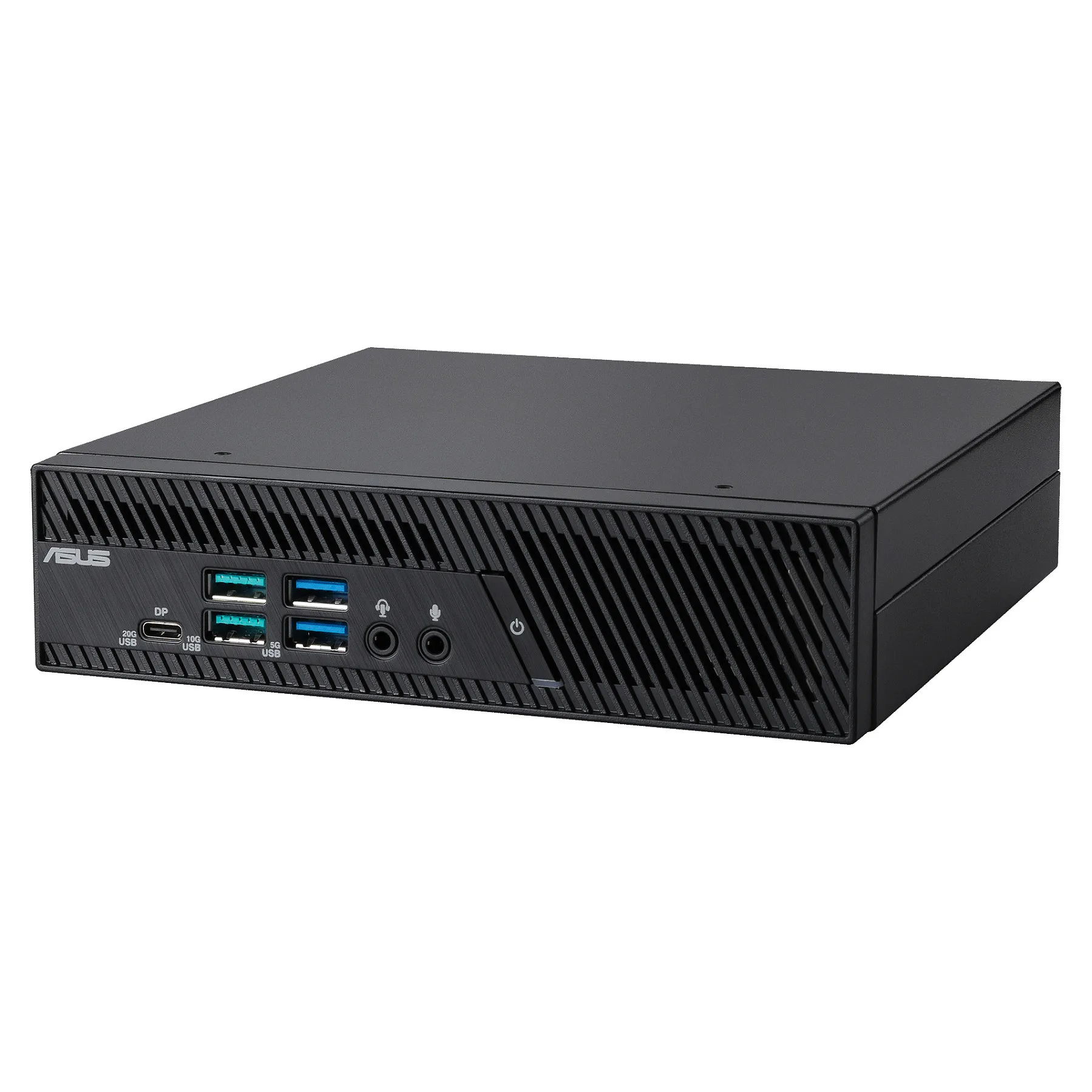

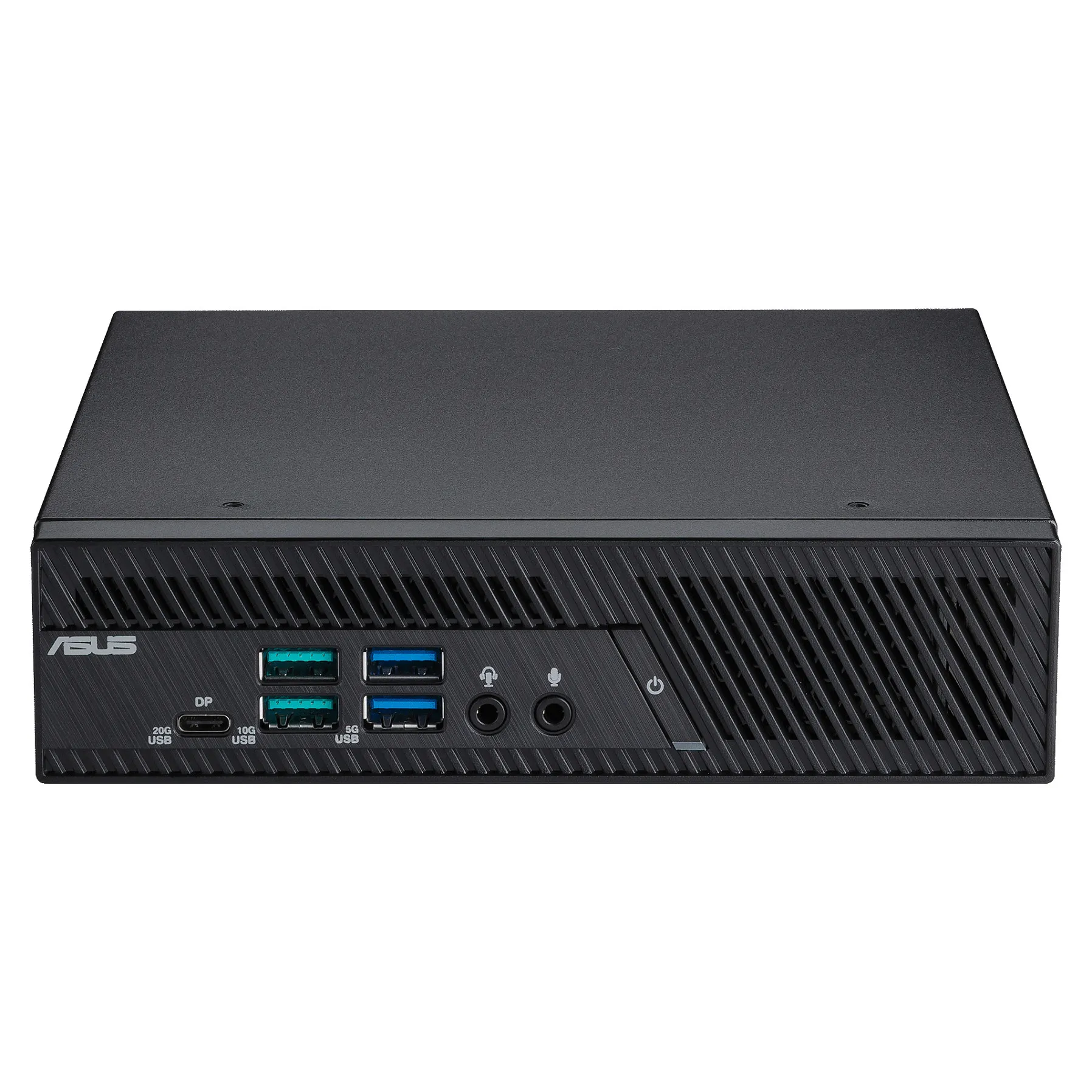

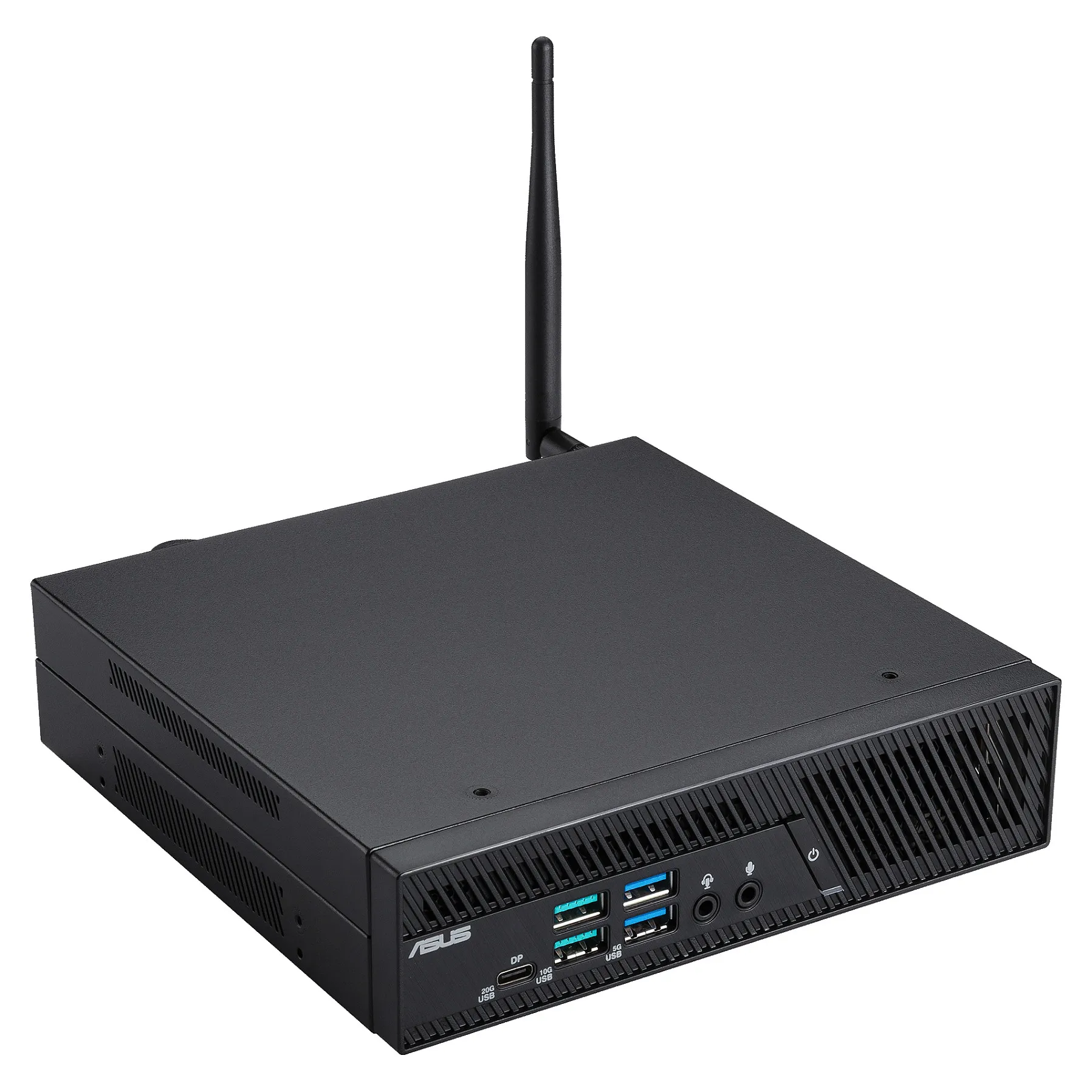

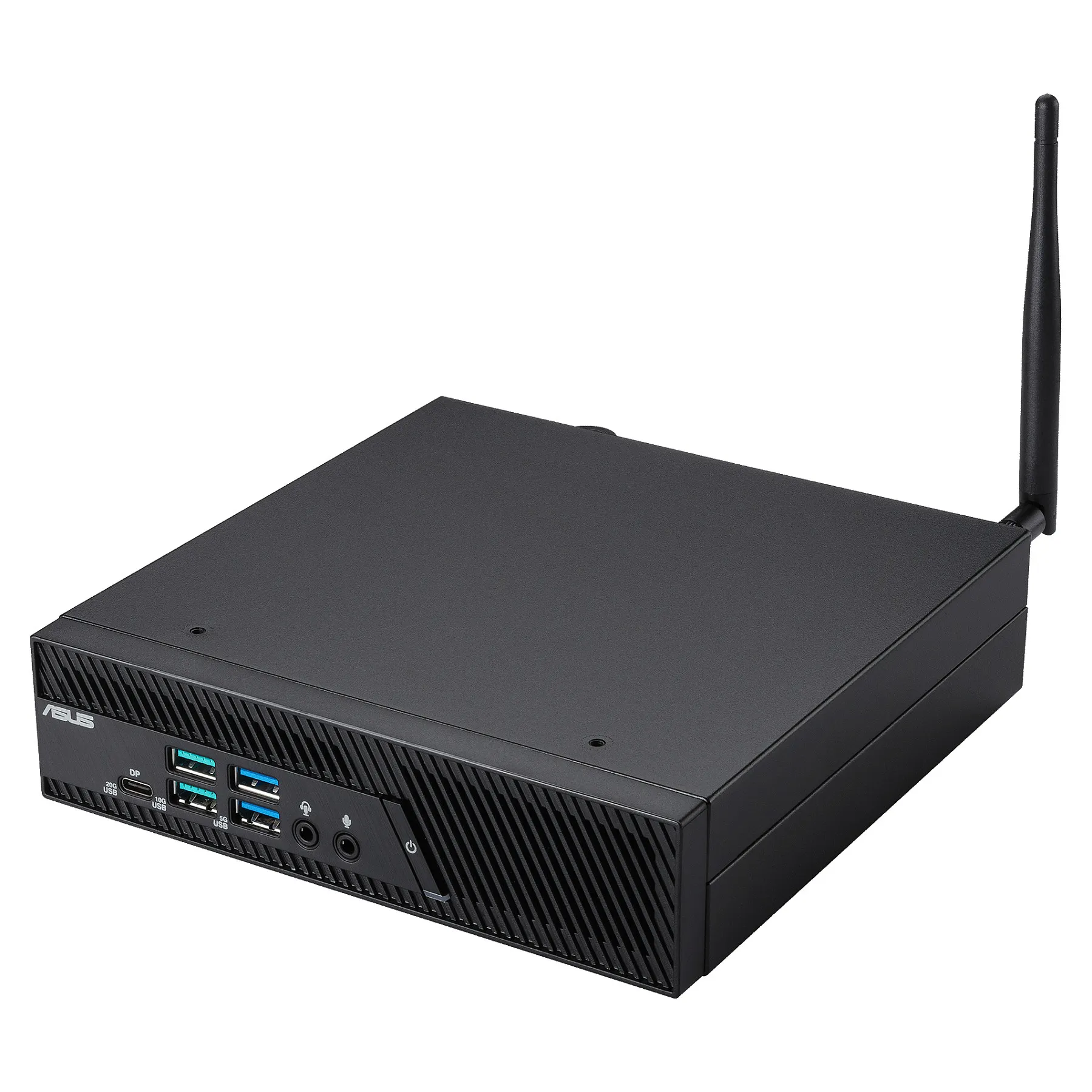

ASUS ExpertCenter PB64-B70083AH. Processor family: Intel Core Ultra 7, Processor model: 265. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.2 kg. Product colour: Black
Solid Reliability for Businesses

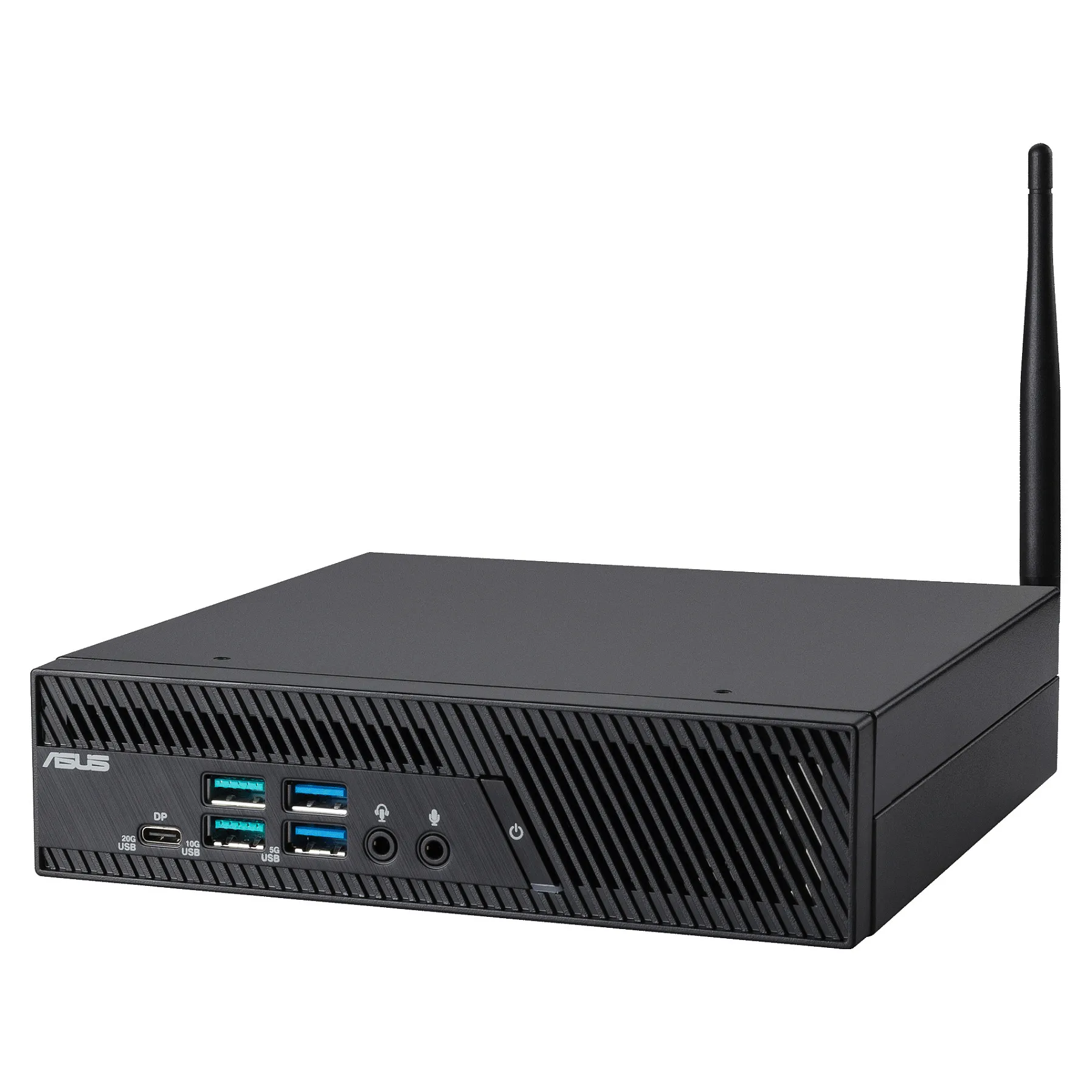

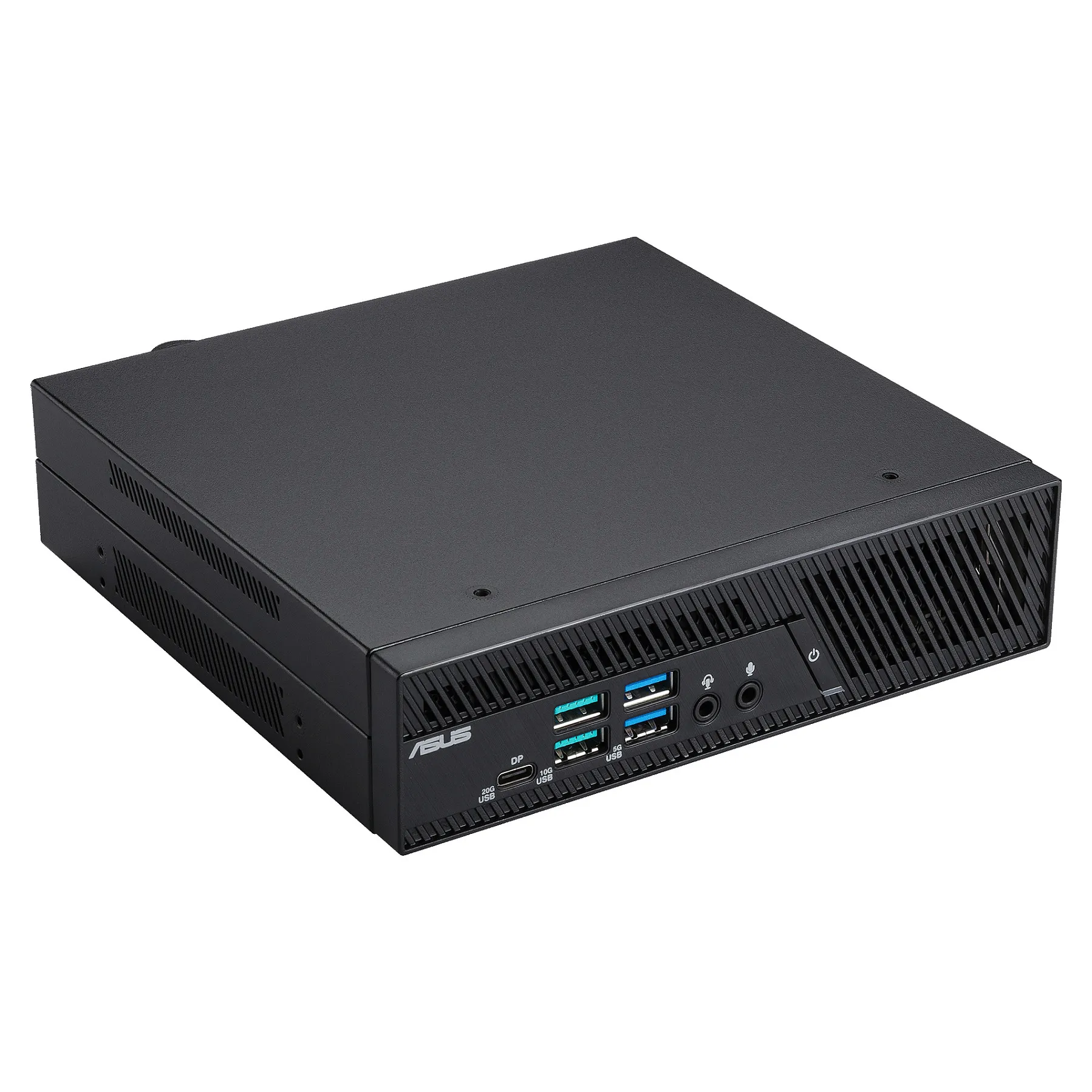

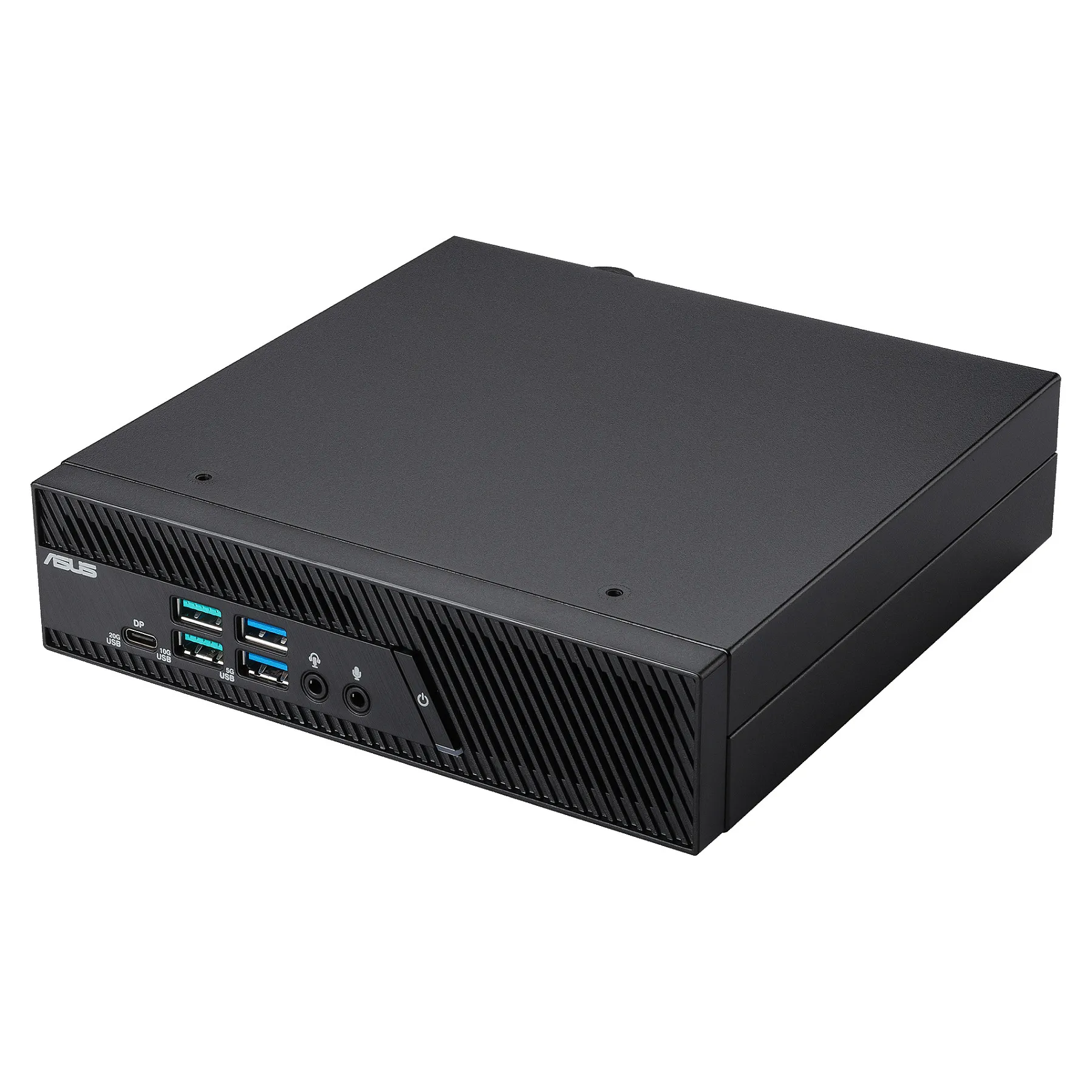

The ASUS ExpertCenter PB64 mini PC is a compact 1.35 Liter powerhouse designed for demanding computing tasks. Powered by the latest Intel® Core™Ultra processors (Series 2) with Intel® Graphics, it delivers desktop-grade performance in a small form factor. With dual PCIe Gen4 SSD slots and support for up to DDR5-6400 memory, the PB64 ensures lightning-fast data transfer. Its versatility is enhanced by configurable ports, eight USB ports, a toolless design, and triple storage options— making it an ideal solution for users who need both performance and flexibility in a mini PC.
The ASUS ExpertCenter PB64 mini PC is a compact 1.35 Liter powerhouse designed for demanding computing tasks. Powered by the latest Intel® Core™Ultra processors (Series 2) with Intel® Graphics, it delivers desktop-grade performance in a small form factor. With dual PCIe Gen4 SSD slots and support for up to DDR5-6400 memory, the PB64 ensures lightning-fast data transfer. Its versatility is enhanced by configurable ports, eight USB ports, a toolless design, and triple storage options— making it an ideal solution for users who need both performance and flexibility in a mini PC.
Processor
Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor model: 265
Processor cores: 20
Processor threads: 20
Processor boost frequency: 5.3 GHz
Performance cores: 8
Efficient cores: 12
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core base frequency: 2.4 GHz
Efficient-core base frequency: 1.8 GHz
Processor cache: 30 MB
Processor cache type: Smart Cache
Processor base power: 65 W
Maximum turbo power: 182 W
Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: Windows ML, OpenVINO, DirectML, WebNN, ONNX RT
Total processor performance up to: 33 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 8 TOPs
Memory
Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x SO-DIMM
Storage
Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
Performance
Motherboard chipset: Intel B860
Product type: Mini PC
Feature: Built-in speaker(s)
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
LAN controller: Intel I226-V
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller model: Intel Wi-Fi 7 BE202
Antenna type: 2×2
Feature: Bluetooth
Bluetooth version: 5.4

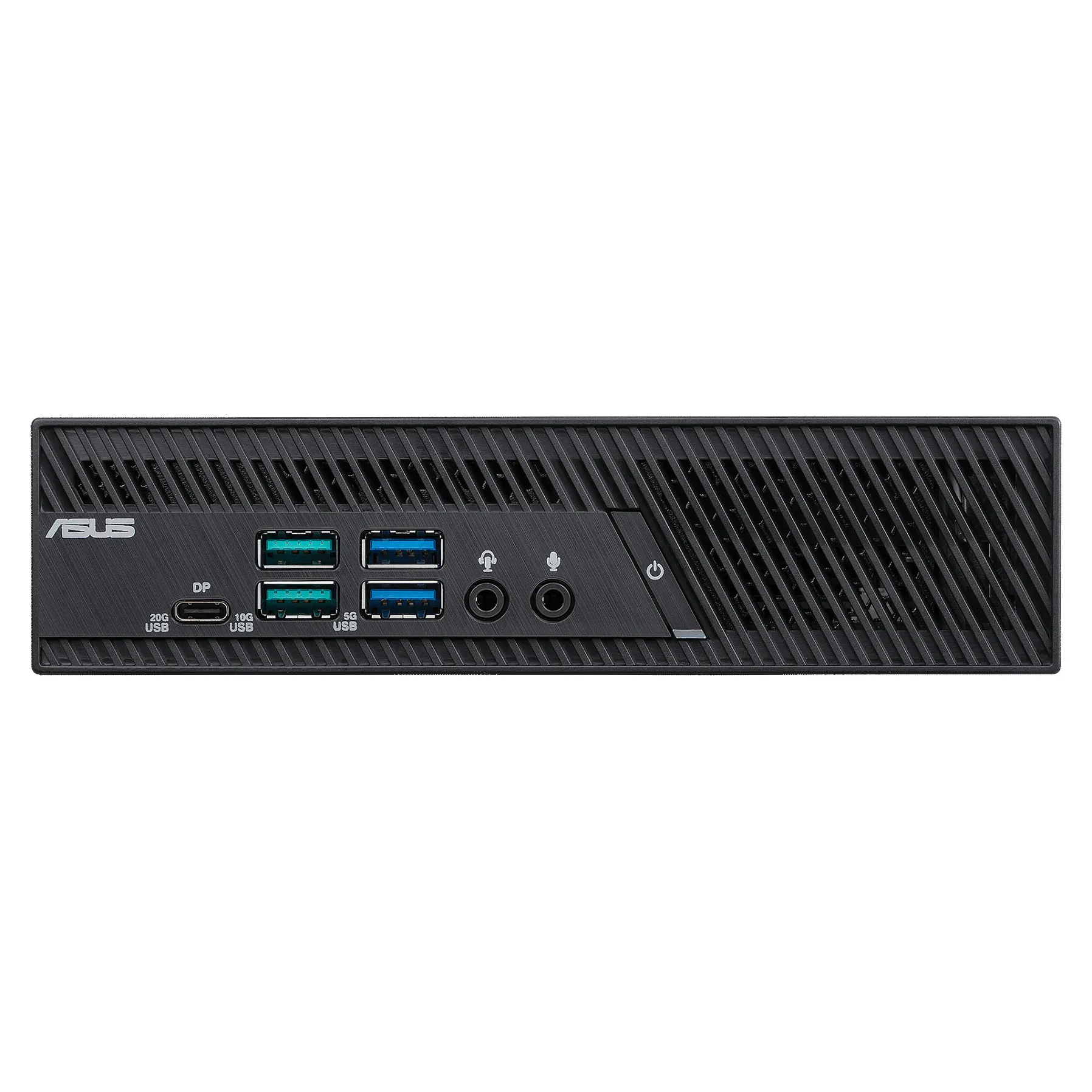

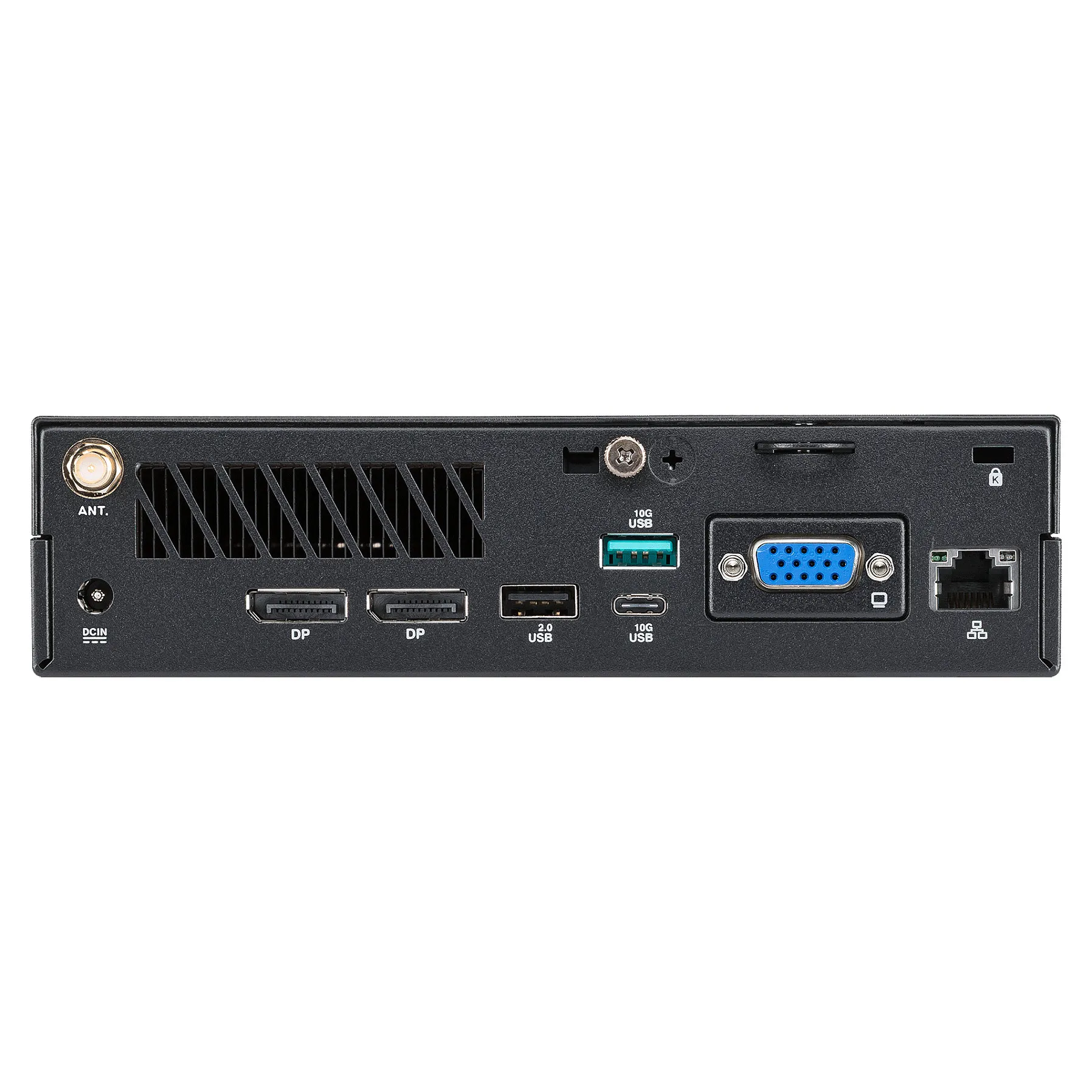

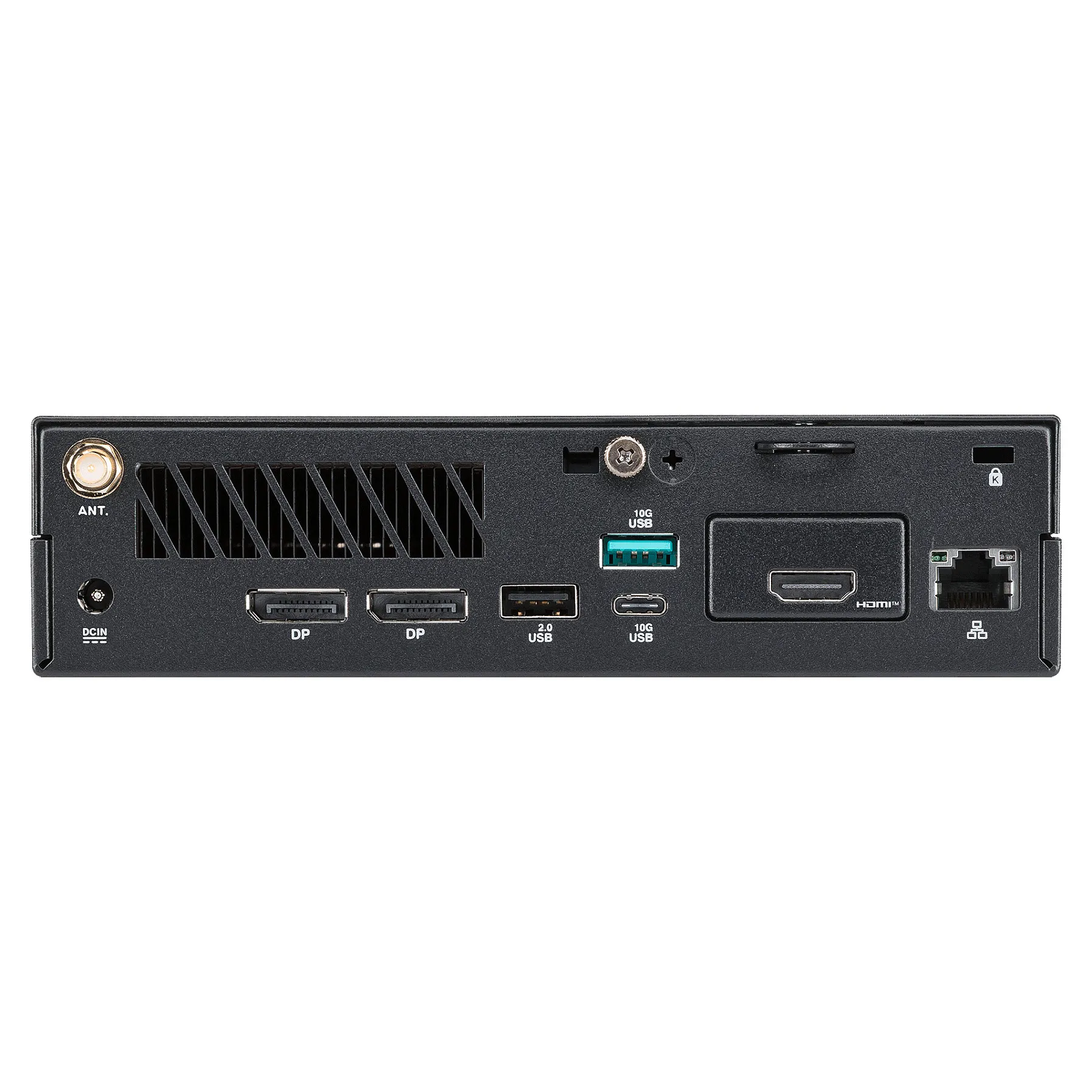

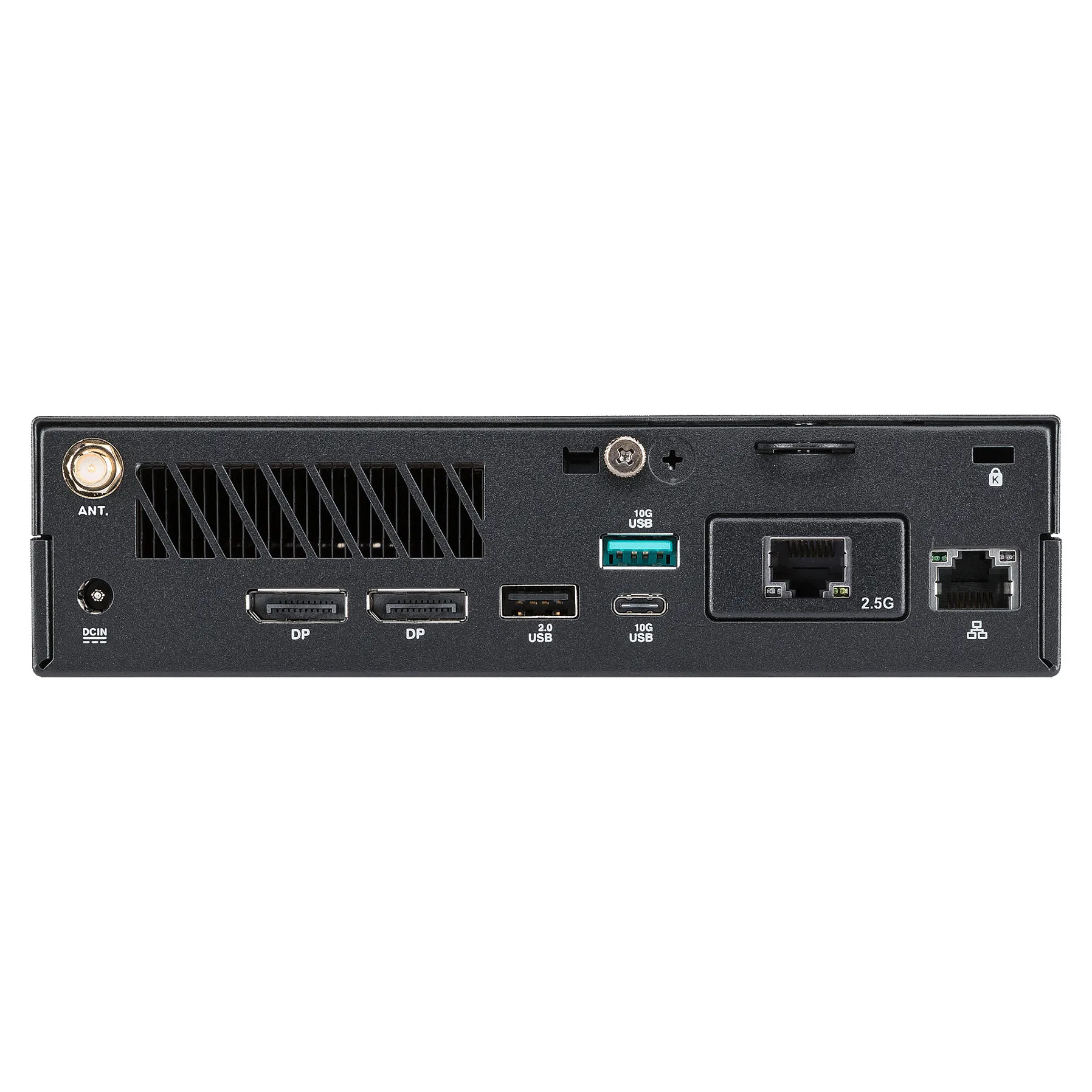

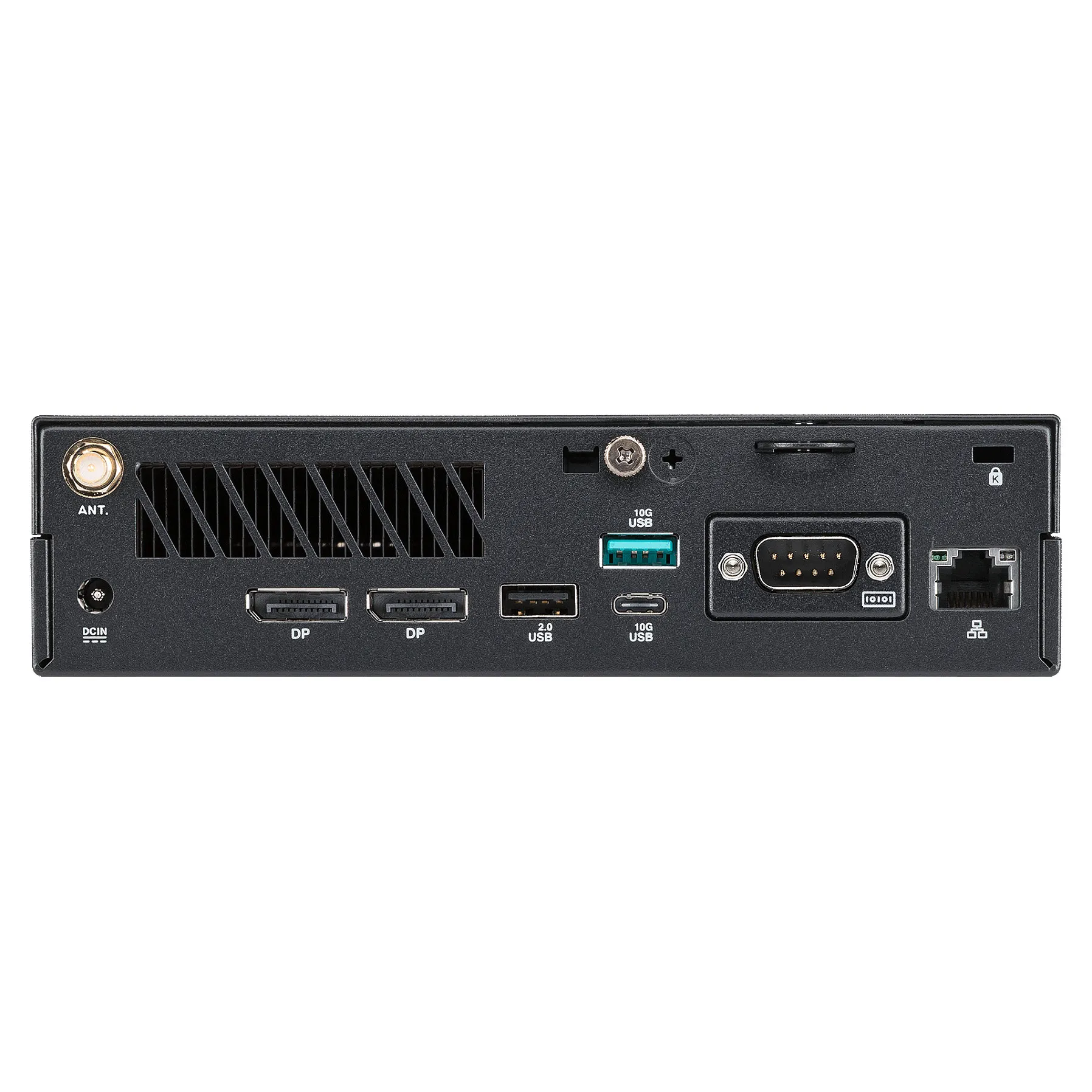

Ports & interfaces
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
USB4 Gen 2×2 ports quantity: 1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Feature: Microphone in
Feature: DC-in jack
Power
Power supply: 120 W
Design
Chassis type: Mini PC
Colour name: Black
Volume: 1.35 L

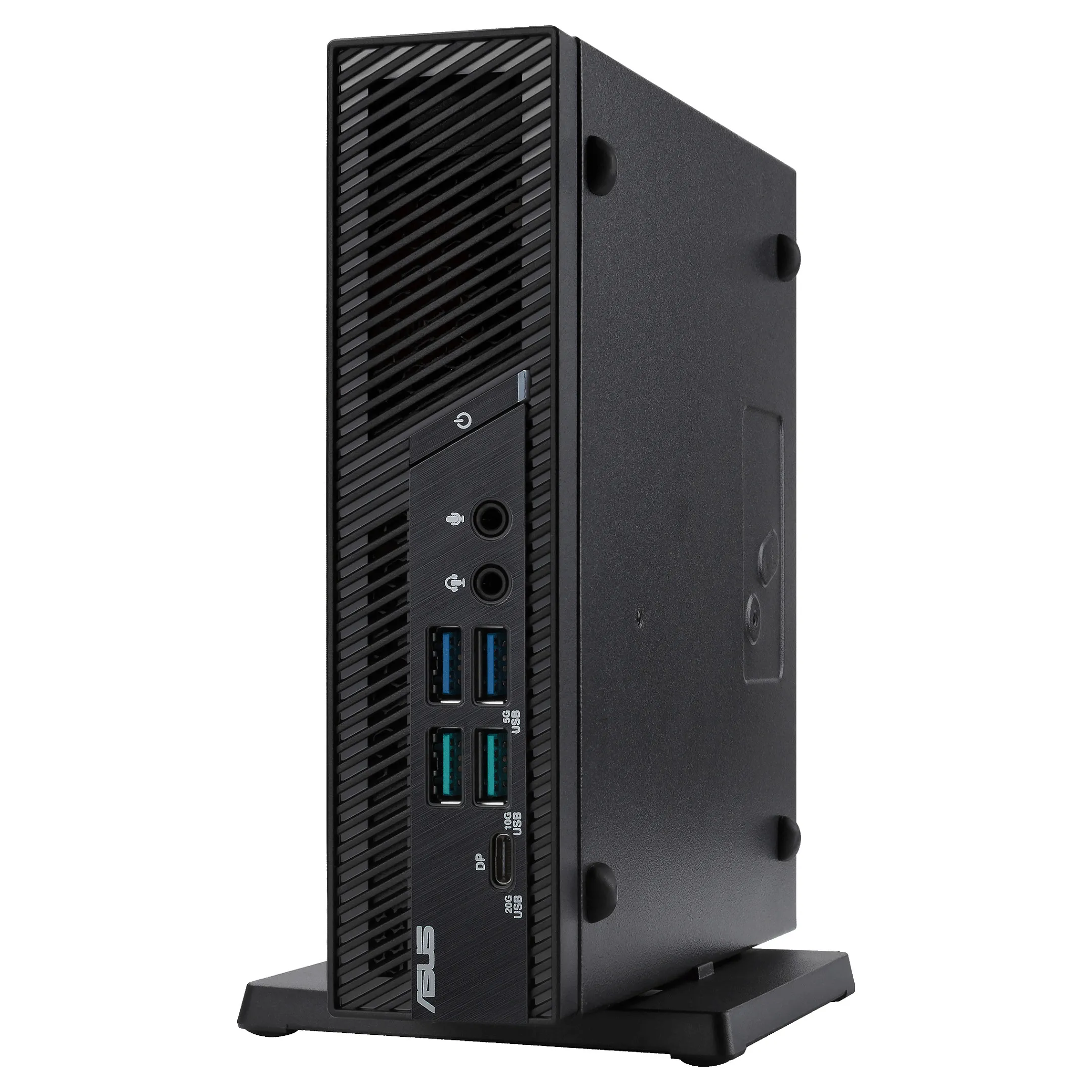

Placement supported: Horizontal/Vertical
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black
Software
Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro
Weight & dimensions
Width: 175 mm
Depth: 175 mm
Height: 44.2 mm
Weight: 1.2 kg
Certificates
Certification: BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor model: 265
Processor cores: 20
Processor threads: 20
Processor boost frequency: 5.3 GHz
Performance cores: 8
Efficient cores: 12
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core base frequency: 2.4 GHz
Efficient-core base frequency: 1.8 GHz
Processor cache: 30 MB
Processor cache type: Smart Cache
Processor base power: 65 W
Maximum turbo power: 182 W
Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: Windows ML, OpenVINO, DirectML, WebNN, ONNX RT
Total processor performance up to: 33 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 8 TOPs
Memory
Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x SO-DIMM
Storage
Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
Performance
Motherboard chipset: Intel B860
Product type: Mini PC
Feature: Built-in speaker(s)
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
LAN controller: Intel I226-V
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller model: Intel Wi-Fi 7 BE202
Antenna type: 2×2
Feature: Bluetooth
Bluetooth version: 5.4
Ports & interfaces
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
USB4 Gen 2×2 ports quantity: 1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Feature: Microphone in
Feature: DC-in jack
Power
Power supply: 120 W
Design
Chassis type: Mini PC
Colour name: Black
Volume: 1.35 L
Placement supported: Horizontal/Vertical
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black
Software
Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro
Weight & dimensions
Width: 175 mm
Depth: 175 mm
Height: 44.2 mm
Weight: 1.2 kg
Certificates
Certification: BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
