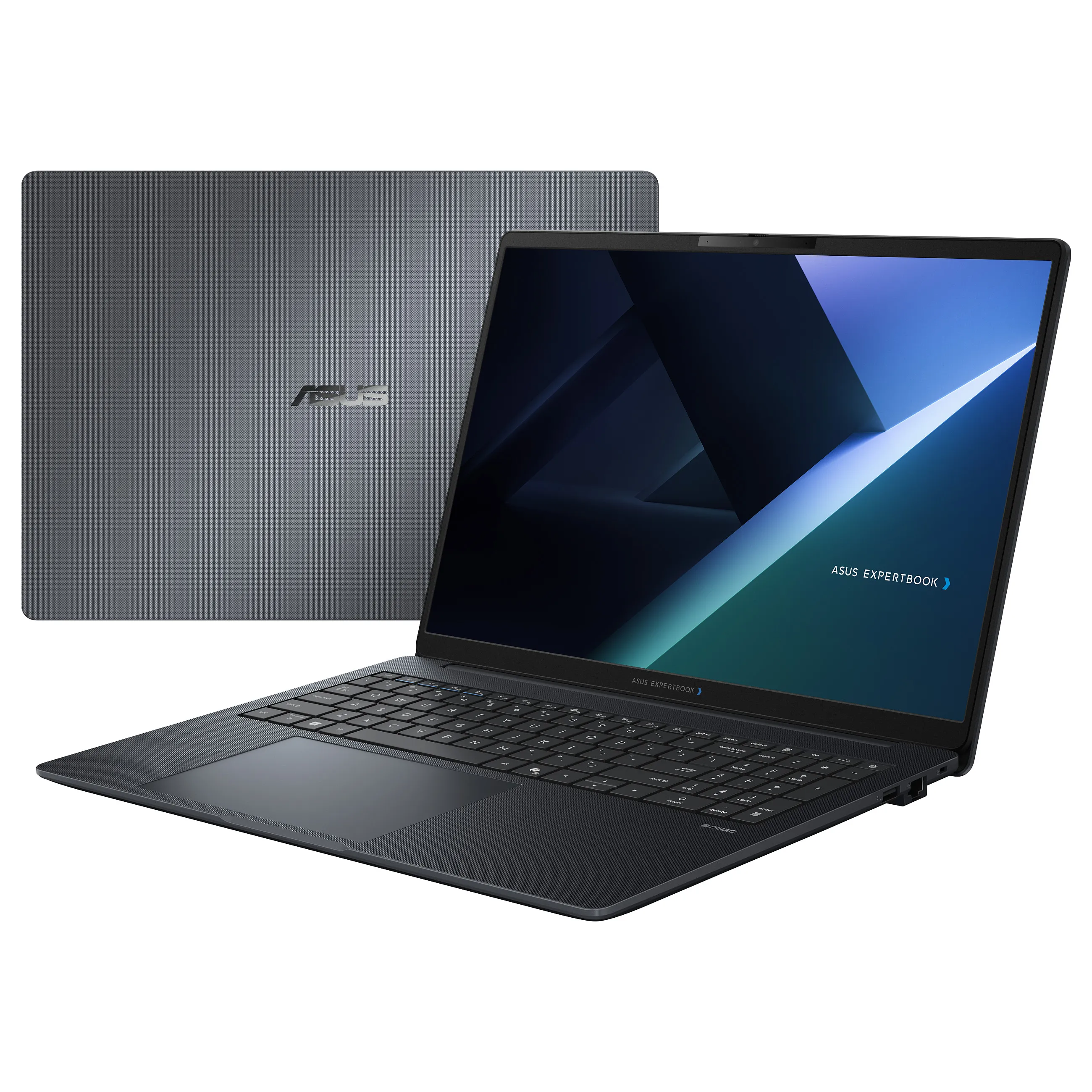

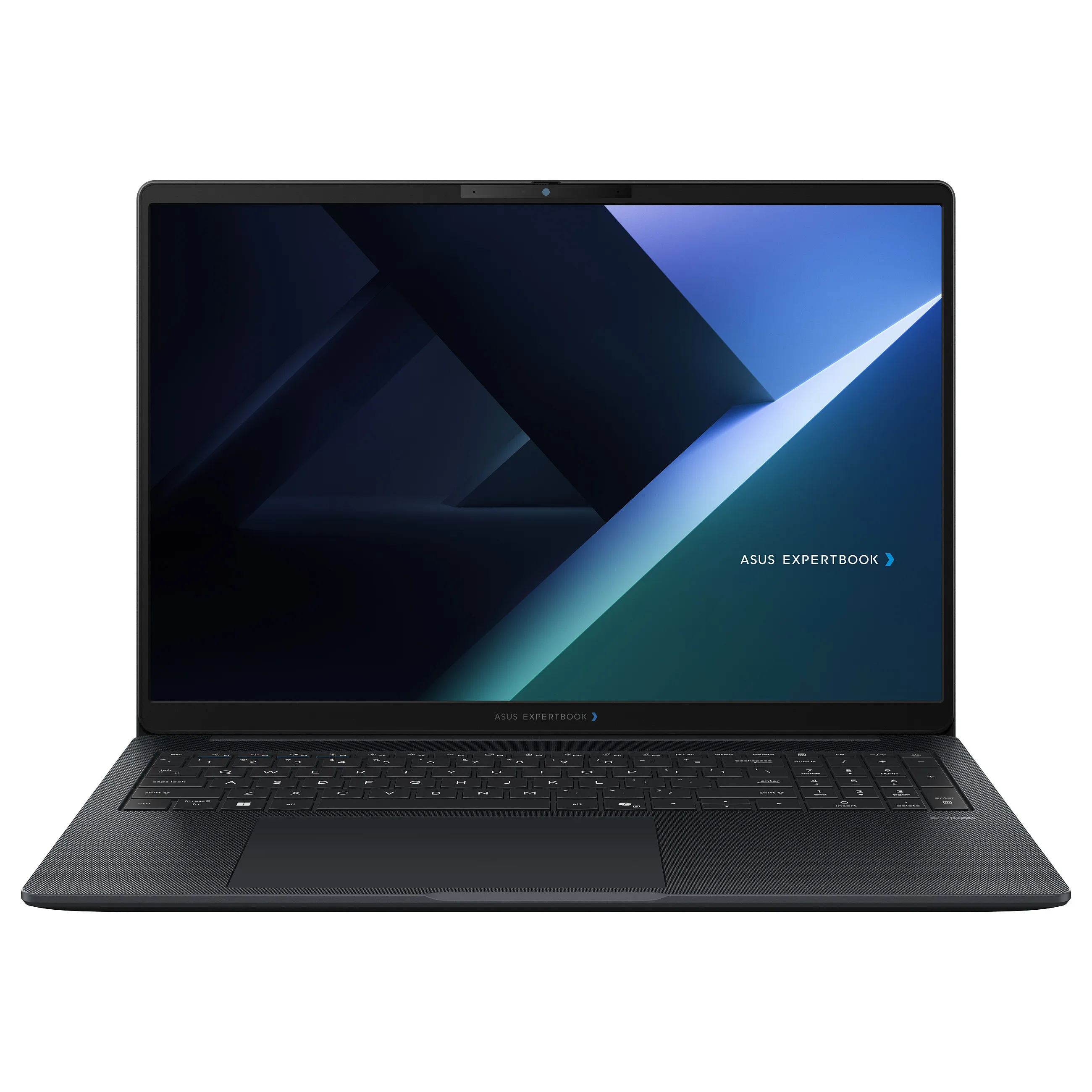

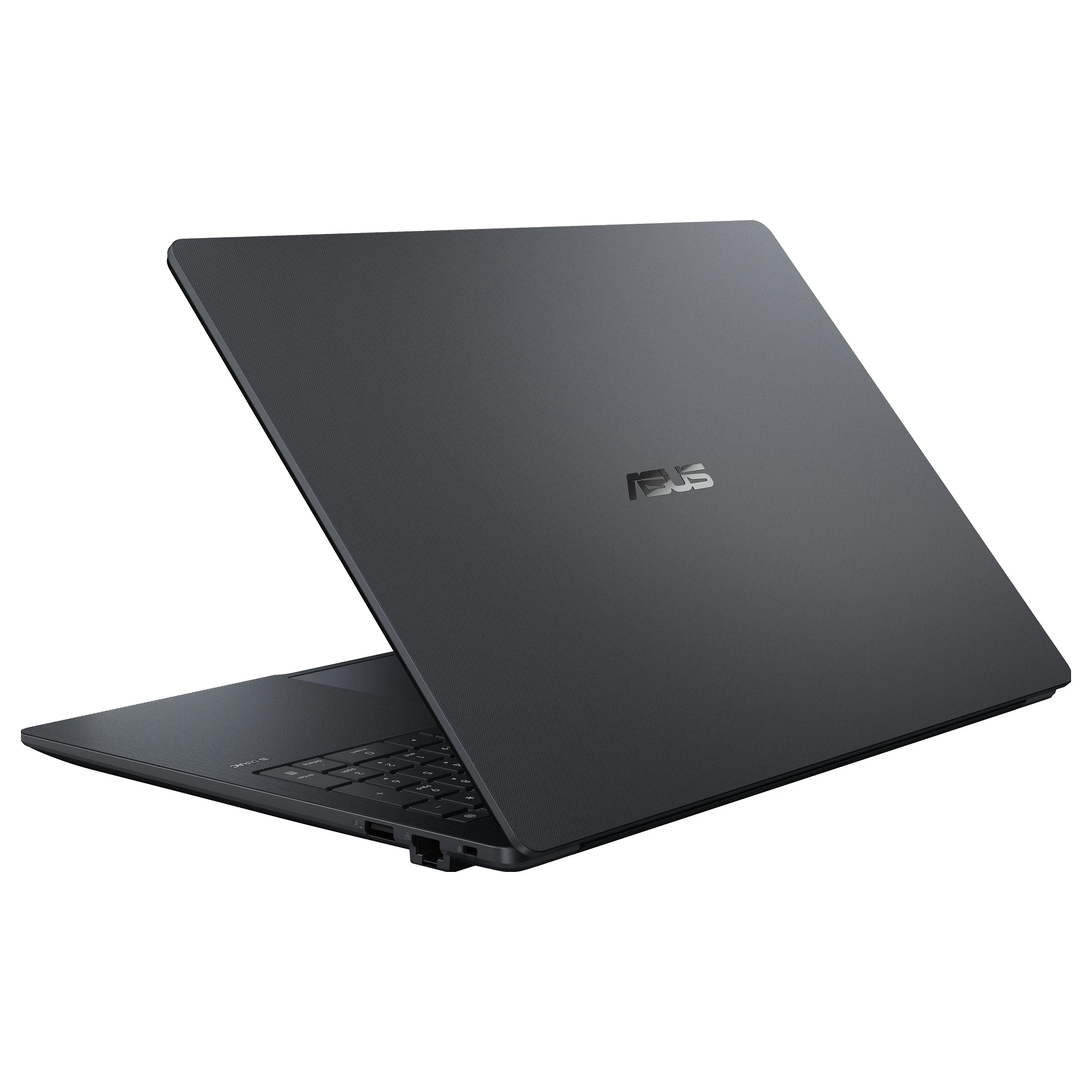

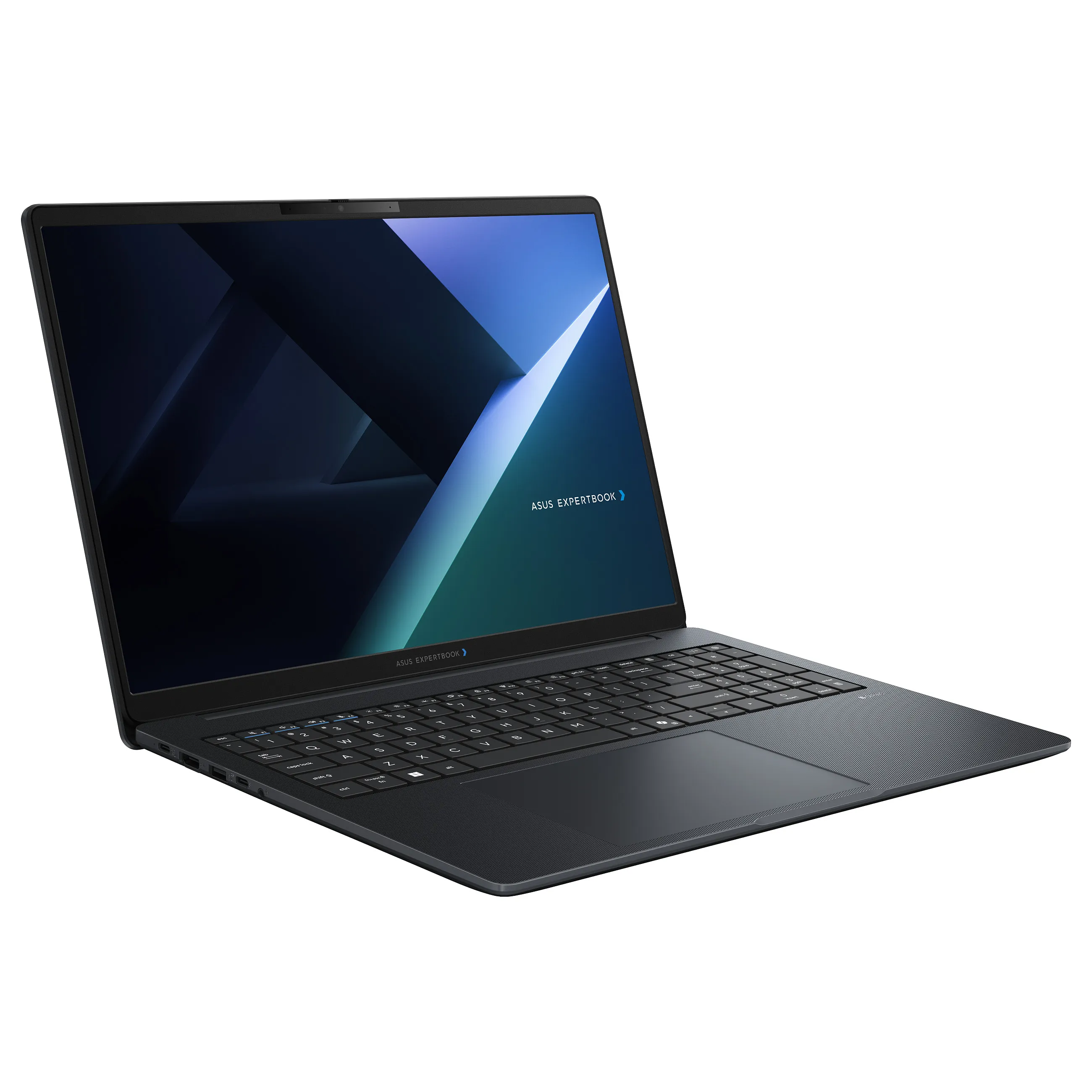

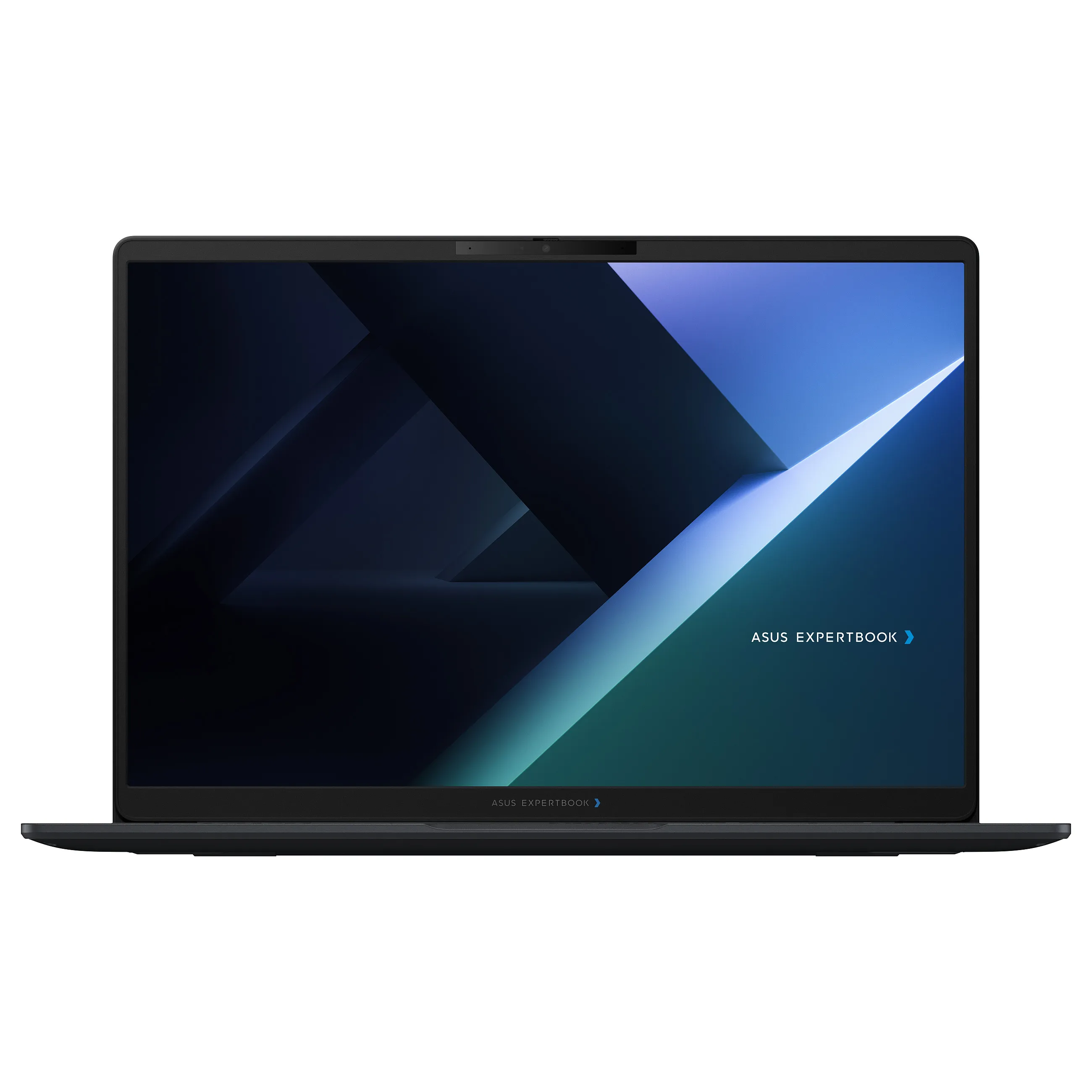

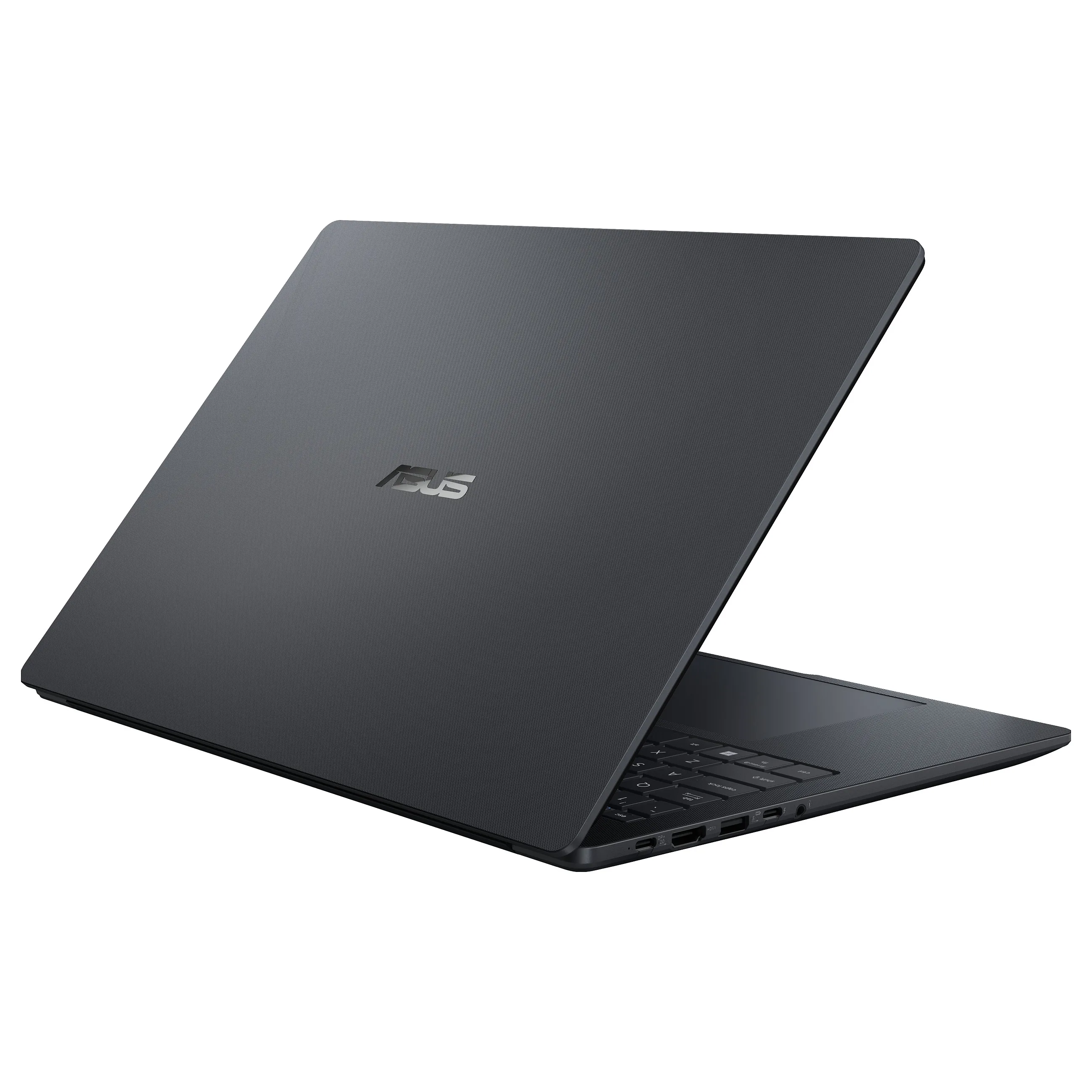

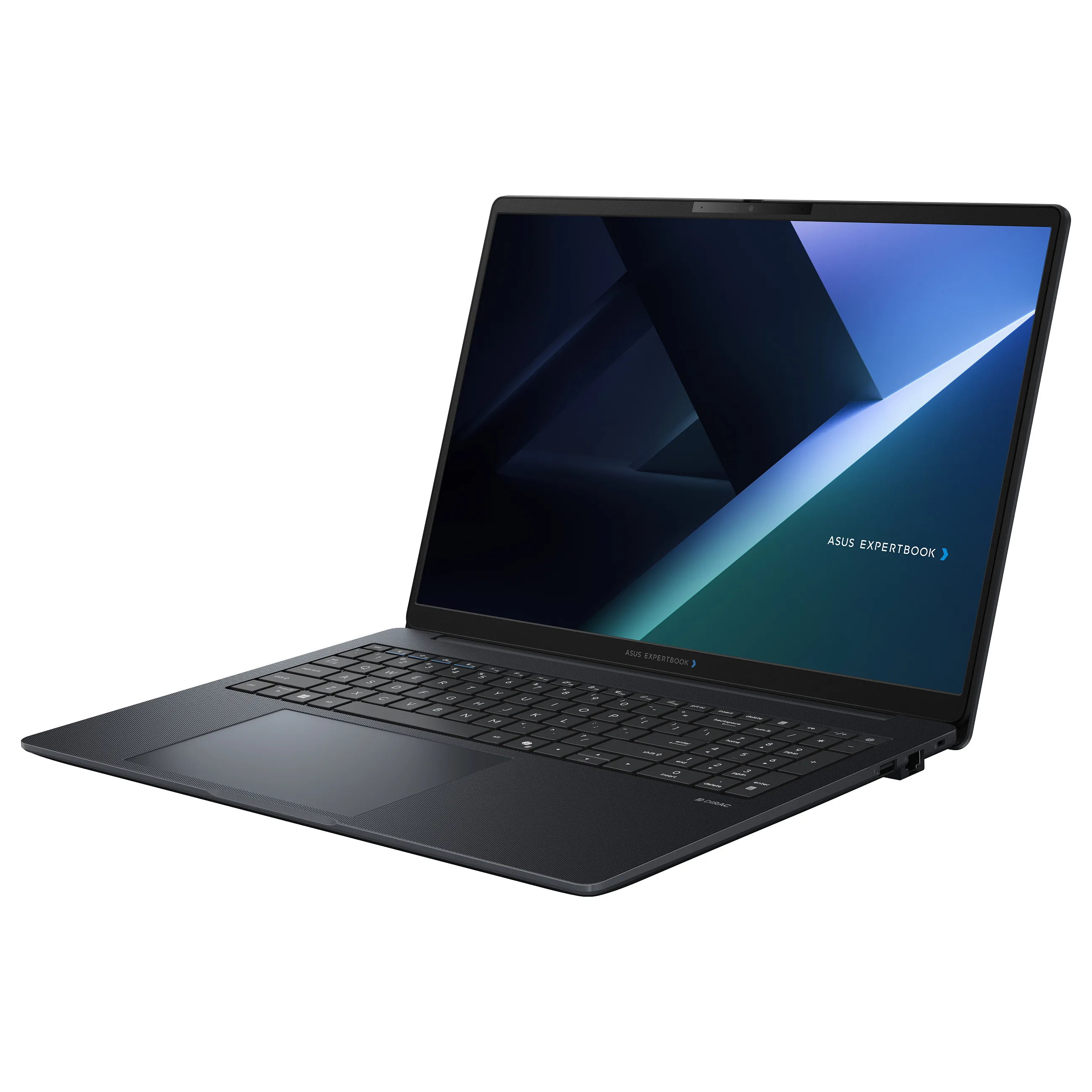

ASUS ExpertBook B3 G1 B3606CCA-MB0452X

Design
Colour name: Gentle Grey
Product type: Laptop
Product colour: Grey
Form factor: Clamshell
Housing material: Plastic
Display back cover material: Aluminium
Market positioning: Work
Display
Display diagonal: 40.6 cm (16″)
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Panel type: IPS-Level
Feature: LED backlight
Native aspect ratio: 16:10
Feature: Anti-glare screen
Display brightness: 300 cd/m²
Display diagonal (metric): 40.6 cm
RGB colour space: NTSC
Colour gamut: 45%
Processor
Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor model: 225H
Processor cores: 14
Processor threads: 14
Processor boost frequency: 4.9 GHz
Performance cores: 4
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 4.9 GHz
Efficient-core Max Turbo Frequency: 4.3 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 1.7 GHz
Efficient-core base frequency: 1.3 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Processor cache: 18 MB
Processor base power: 28 W
Maximum turbo power: 115 W
Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 83 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 63 TOPs
Memory
Internal memory: 8 GB
Internal memory type: DDR5-SDRAM
Memory form factor: SO-DIMM
Memory slots: 2x SO-DIMM
Maximum internal memory: 64 GB
Storage
Total storage capacity: 256 GB
Storage media: SSD
Total SSDs capacity: 256 GB
Number of SSDs installed: 1
SSD capacity: 256 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Optical drive type: No
Graphics
Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc 130T
Audio
Audio system: Dirac
Feature: Built-in microphone
Camera
Feature: Front camera
Front camera HD type: Full HD
Feature: Infrared (IR) camera
Feature: Privacy camera
Privacy type: Privacy shutter
Network
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2×2
Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.4
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 1
Feature: Intel® Thunderbolt 4
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode
Keyboard
Pointing device: Touchpad
Feature: Numeric keypad
Feature: Keyboard backlit
Keyboard layout: QWERTZ
Keyboard language: German
Software
Operating system architecture: 64-bit
Trial software: Microsoft 365 (30-day trial)
Operating system installed: Windows 11 Pro
Battery
Battery technology: Lithium-Ion (Li-Ion)
Number of battery cells: 4
Battery capacity: 70 Wh
Power
AC adapter power: 65 W
AC adapter frequency: 50 – 60 Hz
AC adapter input voltage: 100 – 240 V
AC adapter output current: 3.25 A
AC adapter output voltage: 20 V
Feature: USB Type-C charging port
USB Type-C required charging power (min): 55 W
USB Type-C required charging power (max): 65 W
Feature: USB Power Delivery (USB PD)
Security
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Fingerprint reader
Feature: Windows Hello
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Feature: Password protection
Password protection type: BIOS, User, HDD
Weight & dimensions
Width: 359.3 mm
Depth: 253.5 mm
Height (front): 1.05 cm
Height (rear): 1.9 cm
Weight: 1.85 kg
Packaging data
Package width: 481 mm
Package depth: 65 mm
Package height: 288 mm
Packaging content
Feature: AC adapter included
