ASUS -PRO-WS-3000P. Total power: 3000 W, AC input voltage: 220 – 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active. Width: 175 mm, Depth: 150 mm, Height: 86 mm

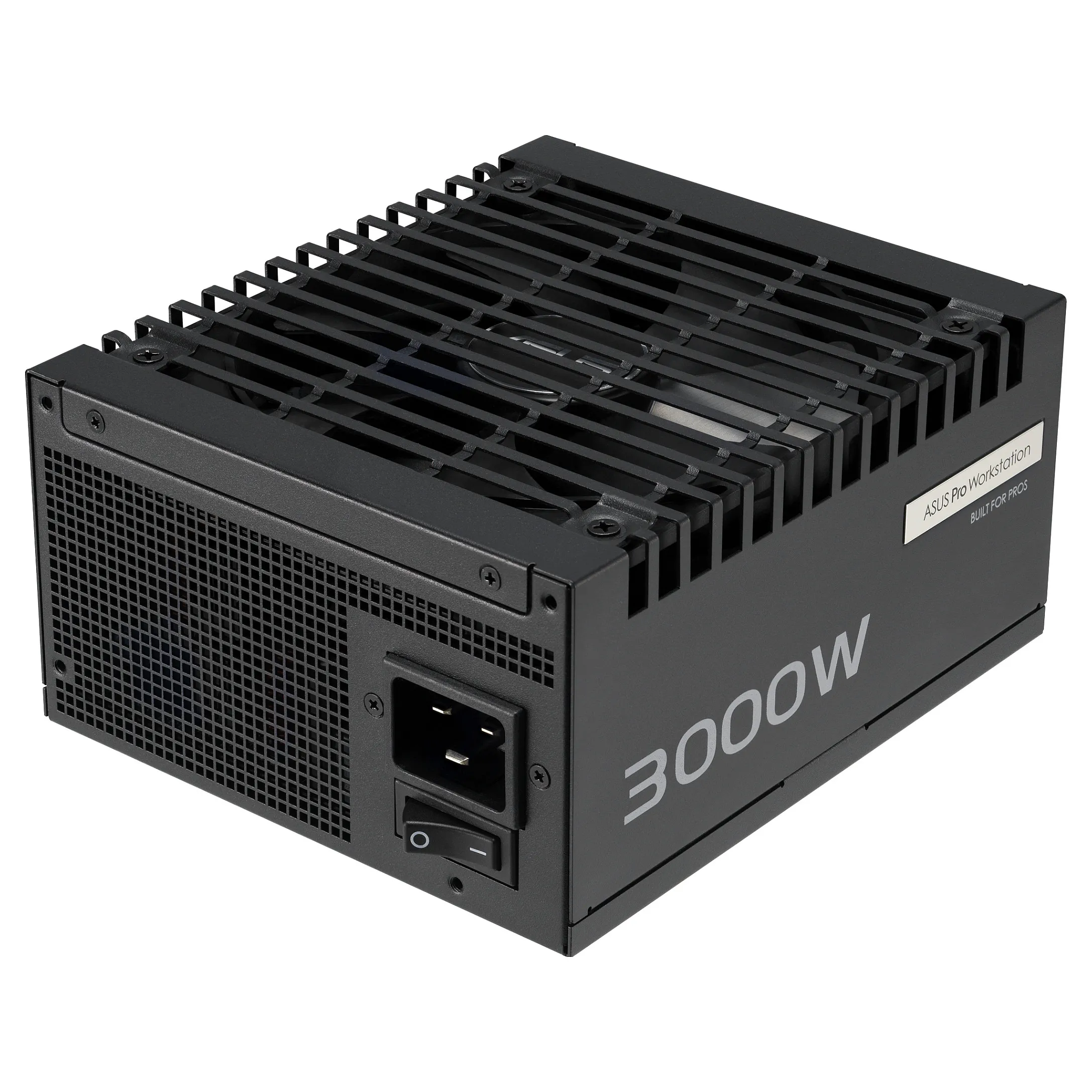

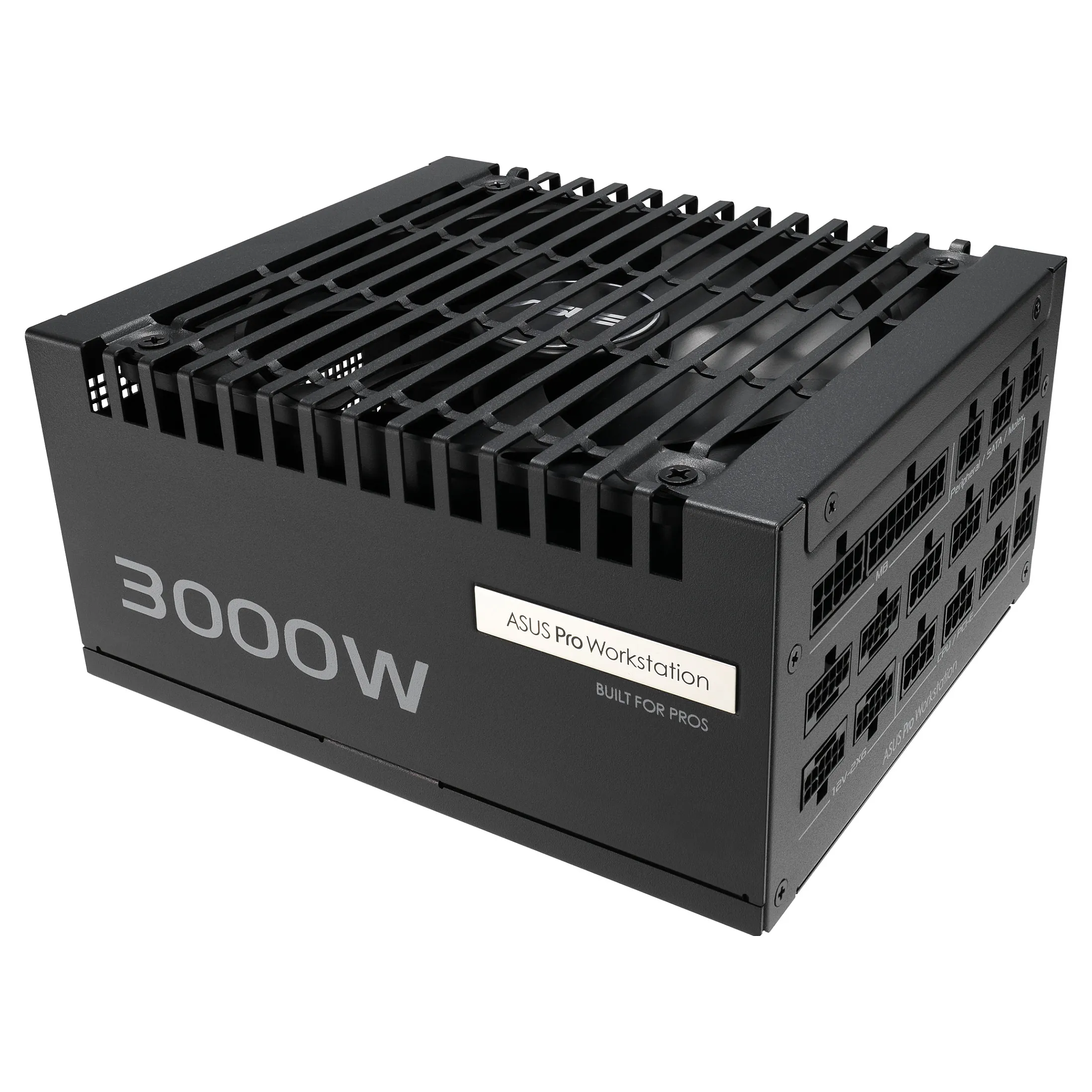

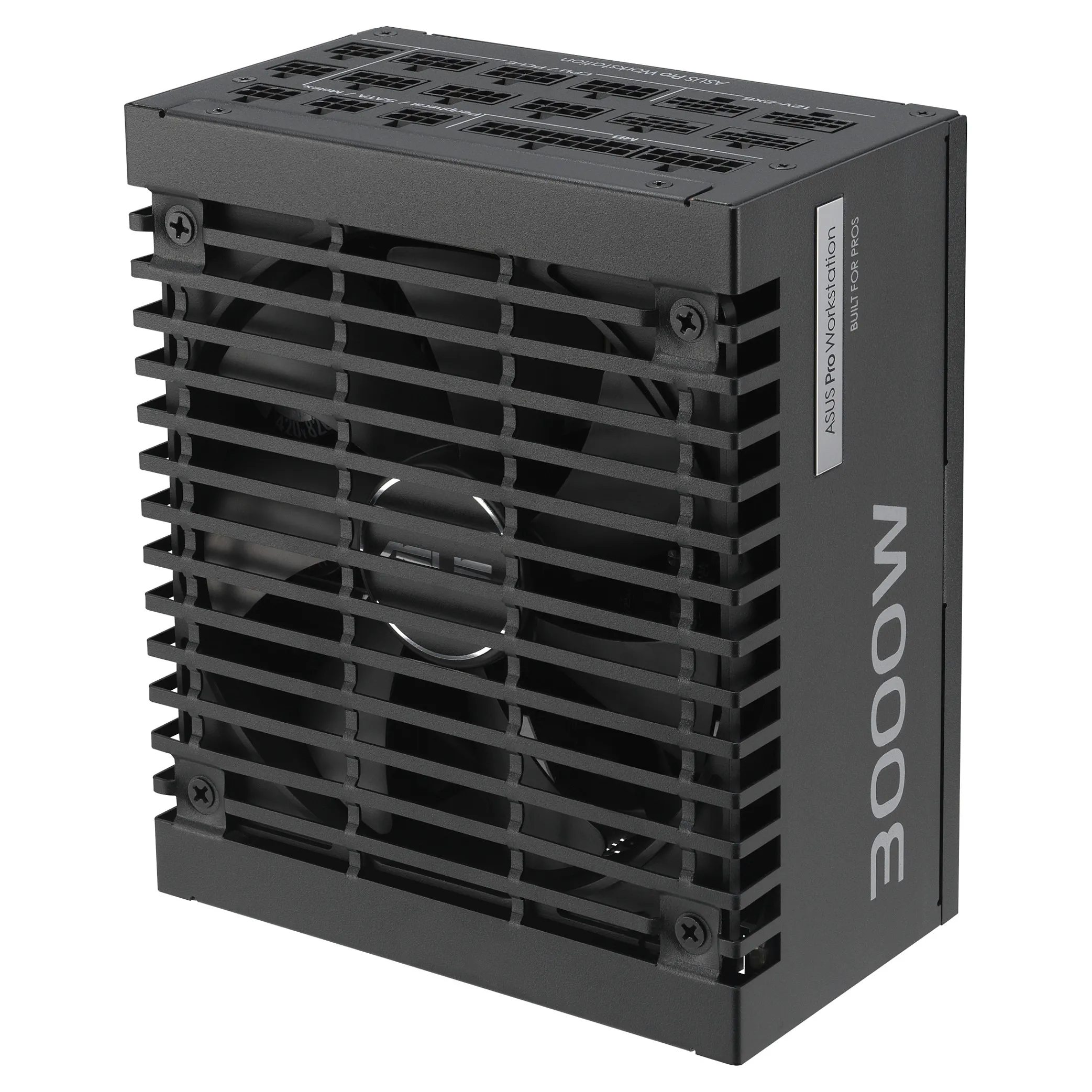

ASUS Pro WS 3000W Platinum
The ASUS Pro WS 3000W Platinum PSU is engineered to support up to four GeForce RTX™ 5090 graphics cards. It also features 80 PLUS Platinum certification, high-performance copper pins, dual-ball fan bearings, etched cables, rock-solid voltage stability and advanced power delivery, making it an ideal choice for AI solutions, deep learning and IT management.
The ASUS Pro WS 3000W Platinum PSU is engineered to support up to four GeForce RTX™ 5090 graphics cards. It also features 80 PLUS Platinum certification, high-performance copper pins, dual-ball fan bearings, etched cables, rock-solid voltage stability and advanced power delivery, making it an ideal choice for AI solutions, deep learning and IT management.
Power
Total power: 3000 W
AC input voltage: 220 – 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+12V): 3000 W
Combined power (+5V): 130 W
Combined power (-12V): 0.8 W
Combined power (+5Vsb): 3 W
Max output current (+3.3V): 25 A
Max output current (+12V): 250 A
Max output current (+5V): 25 A
Max output current (-12V): 9.6 A
Max output current (+5Vsb): 15 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

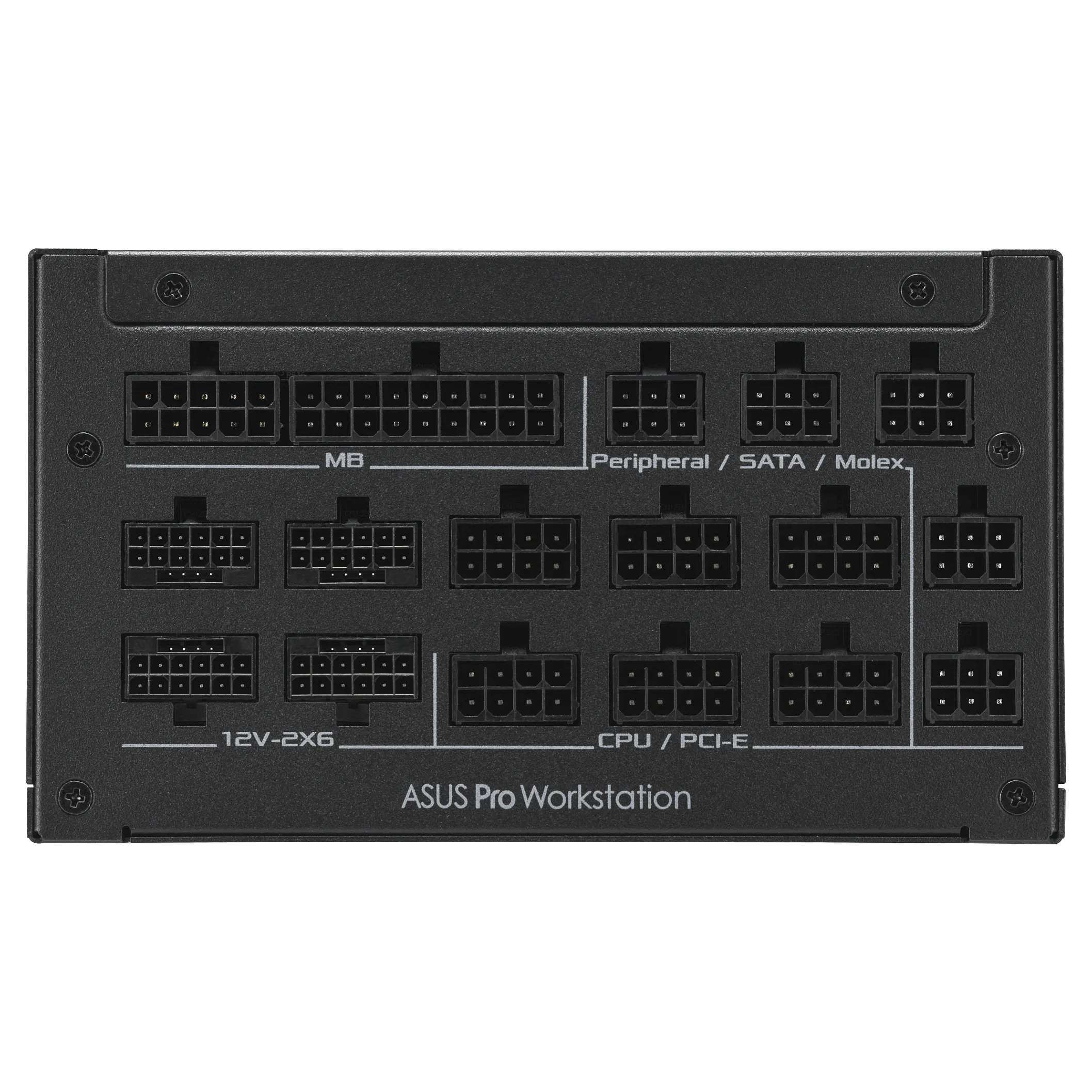

Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 12
SATA power cable length: 120,400 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 150,400 mm
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (16-pin): 4
PCI Express power cable length: 75 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 100 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1

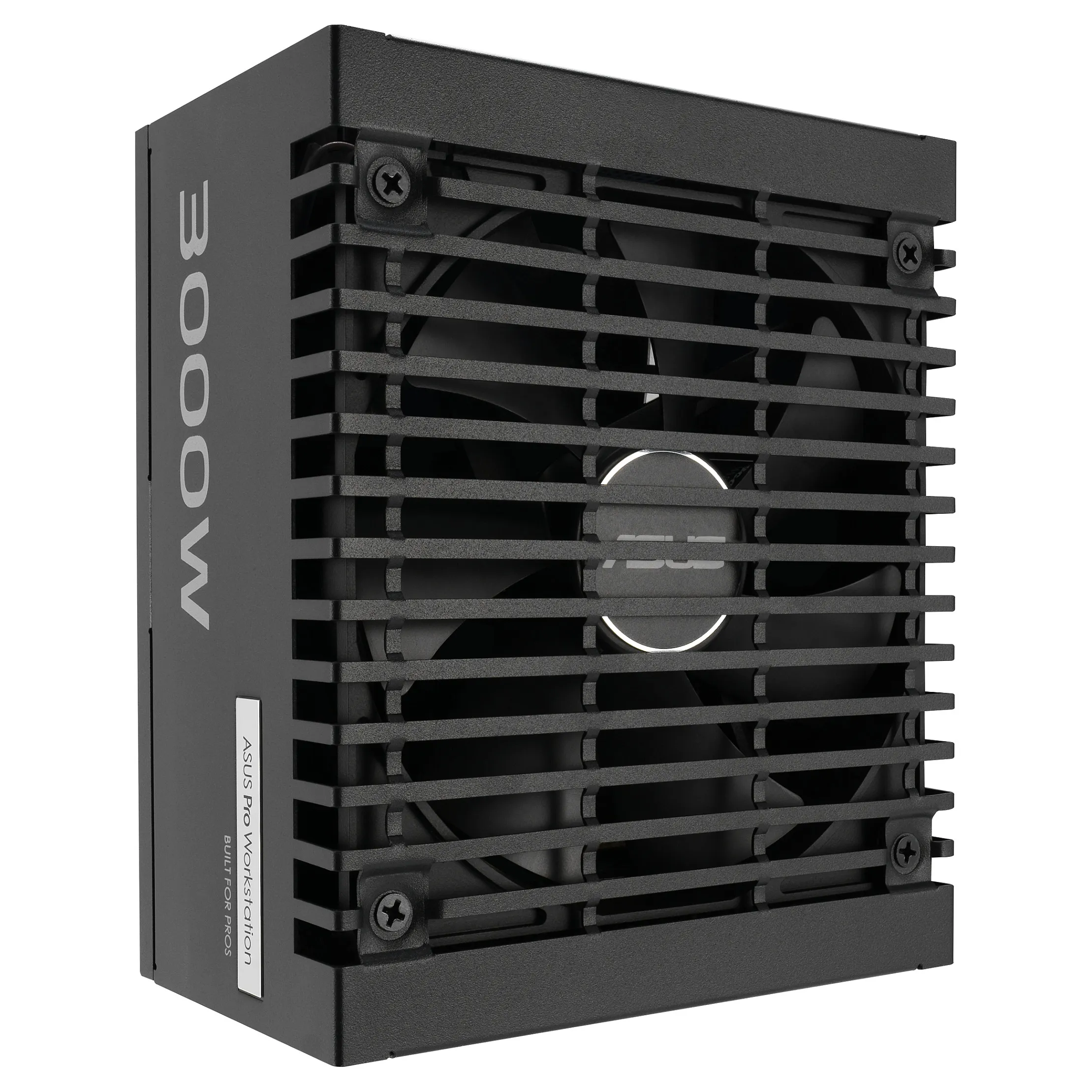

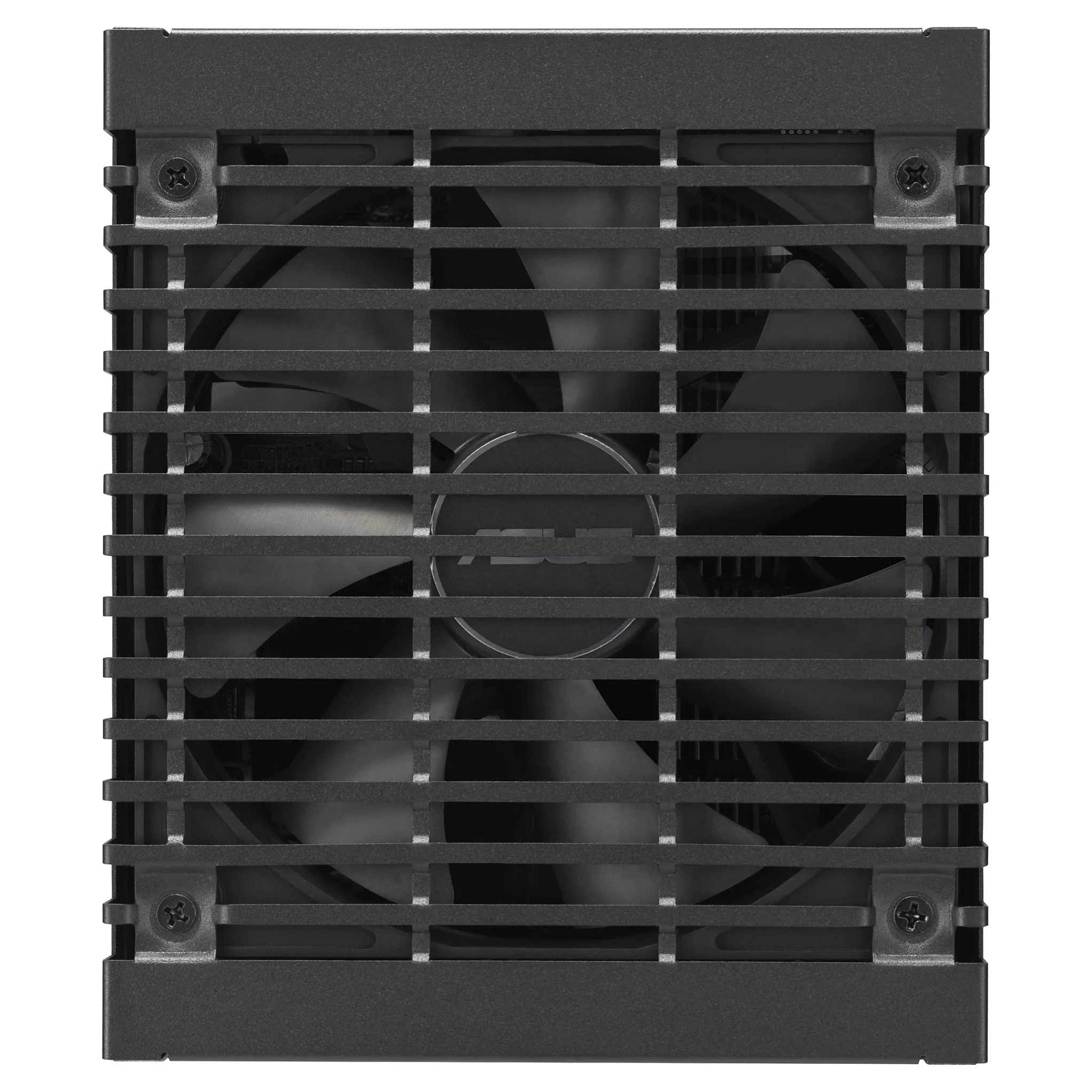

Bearing technology: DBB
Design
Product colour: Black
Cooling type: Active
Weight & dimensions
Width: 175 mm
Depth: 150 mm
Height: 86 mm
Weight: 2.16 kg
Packaging data
Package width: 346 mm
Package depth: 208 mm
Package height: 144 mm
Package weight: 5.09 kg
Package type: Box
Total power: 3000 W
AC input voltage: 220 – 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+12V): 3000 W
Combined power (+5V): 130 W
Combined power (-12V): 0.8 W
Combined power (+5Vsb): 3 W
Max output current (+3.3V): 25 A
Max output current (+12V): 250 A
Max output current (+5V): 25 A
Max output current (-12V): 9.6 A
Max output current (+5Vsb): 15 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 12
SATA power cable length: 120,400 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 150,400 mm
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (16-pin): 4
PCI Express power cable length: 75 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 100 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: DBB
Design
Product colour: Black
Cooling type: Active
Weight & dimensions
Width: 175 mm
Depth: 150 mm
Height: 86 mm
Weight: 2.16 kg
Packaging data
Package width: 346 mm
Package depth: 208 mm
Package height: 144 mm
Package weight: 5.09 kg
Package type: Box
