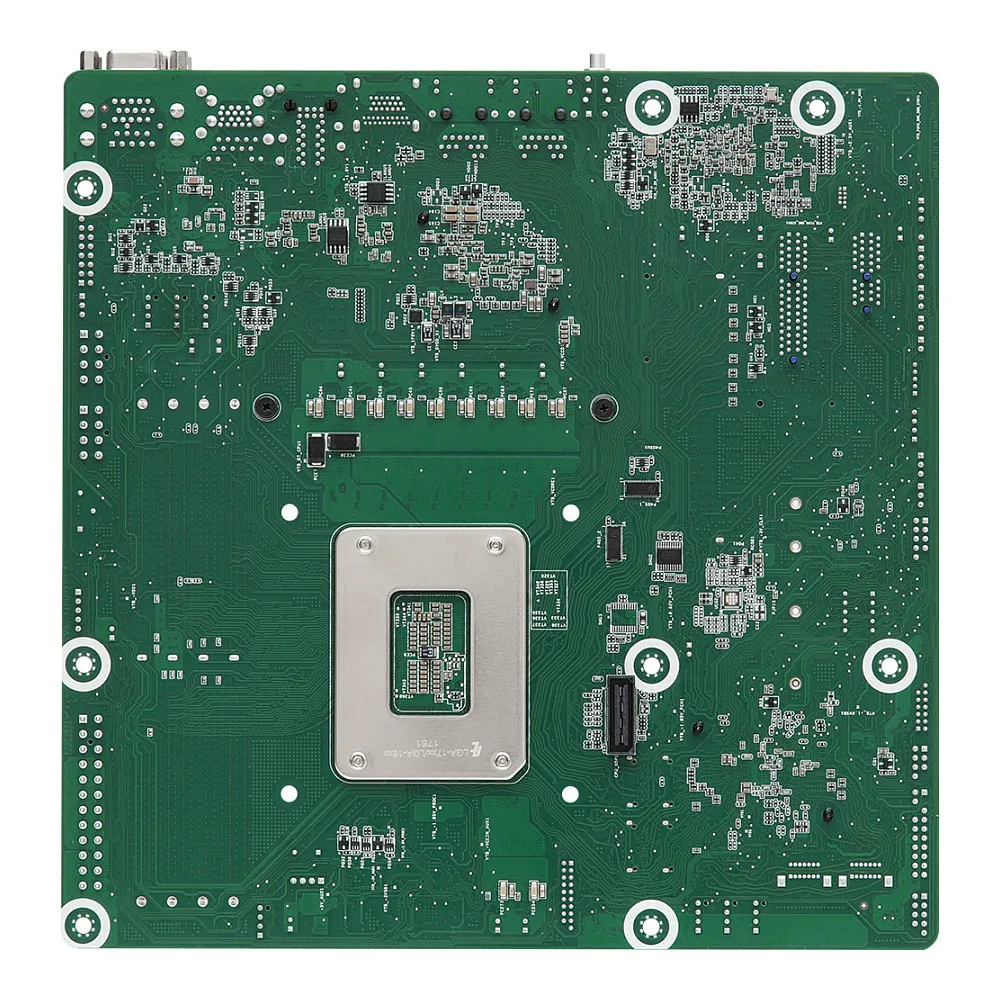

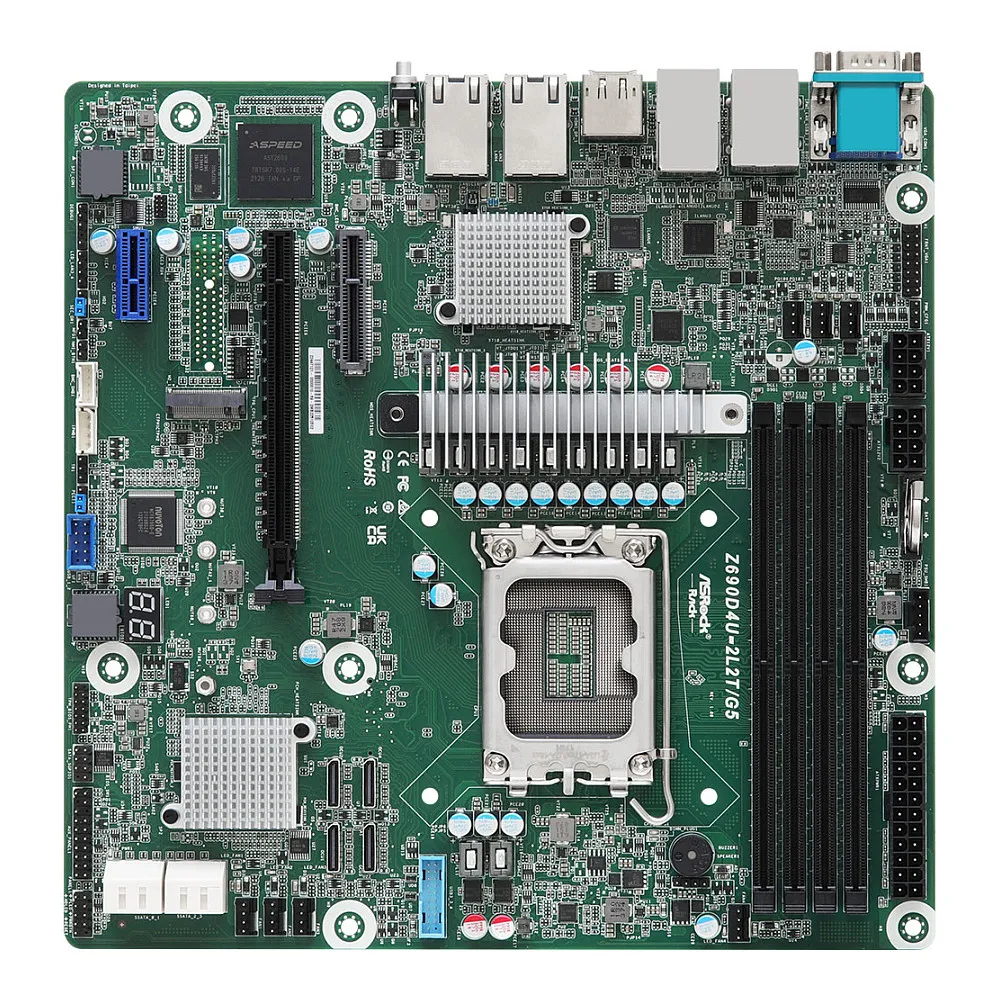

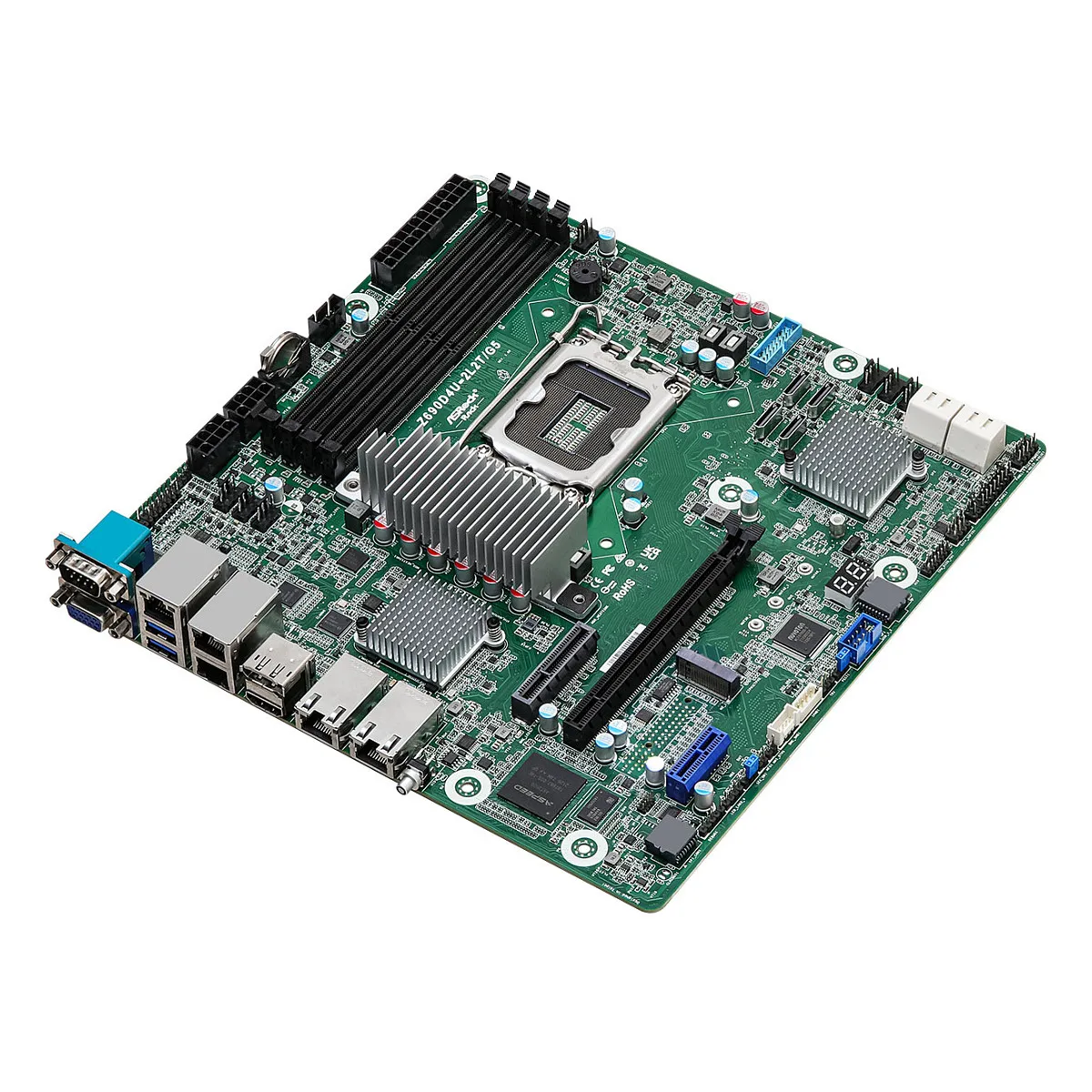

Asrock Z690D4U-2L2T/G5 motherboard

Processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Pentium®
Maximum number of SMP processors: 1
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
ECC сompatibility: Non-ECC
Maximum internal memory: 192 GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Graphics
Graphics card family: ASPEED
Graphics card: AST2600
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 8
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: TPM connector

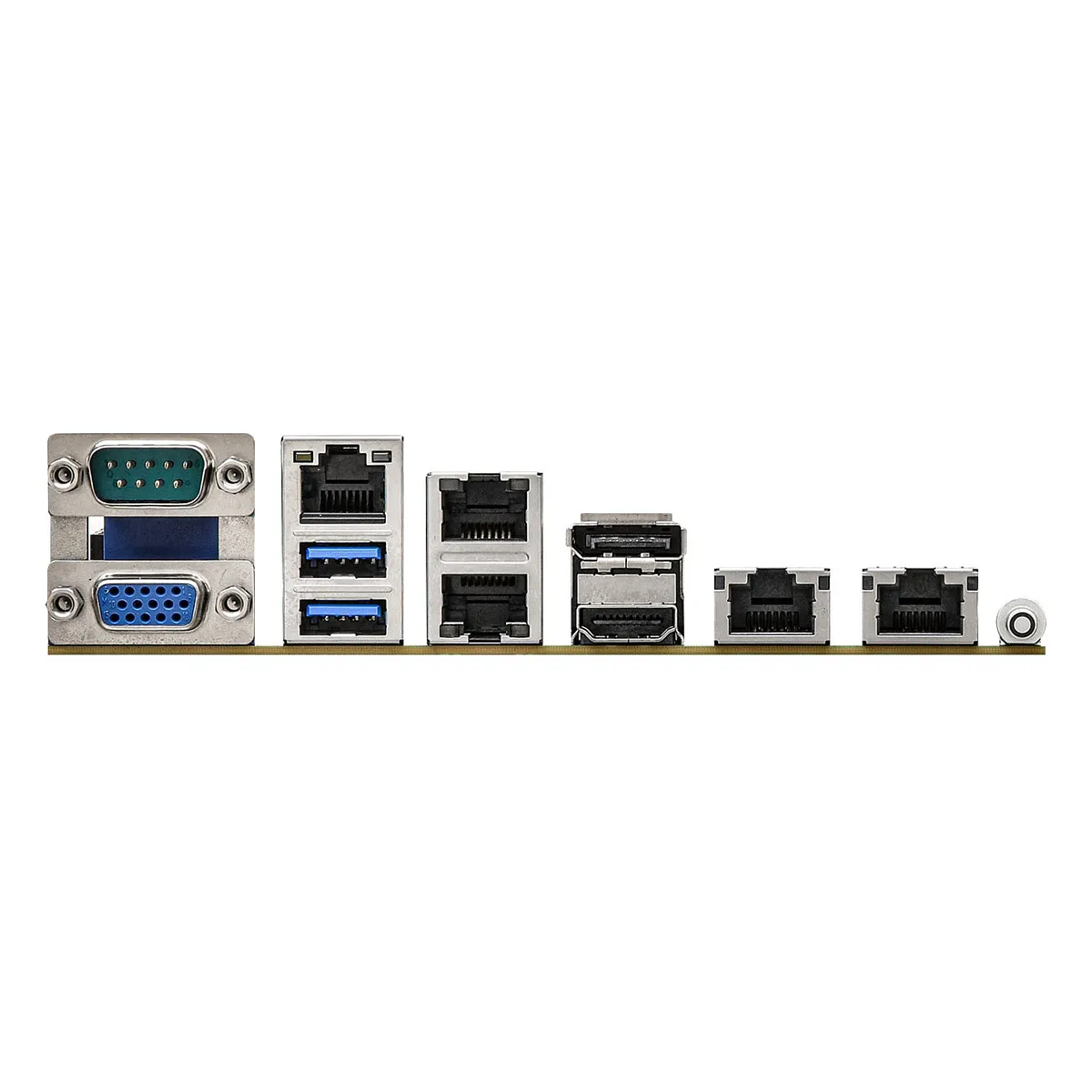

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 4
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Serial ports quantity: 1
Network
Feature: Ethernet LAN
LAN controller: Intel I210, Intel® X710
Features
Motherboard chipset: Intel Z690
PC health monitoring: Fan, Temperature
Component for: Server
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 1
BIOS
BIOS type: AMI
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 2.8
Operational conditions
Storage temperature (T-T): -40 – 70 °C
Operating temperature (T-T): 10 – 35 °C
Operating relative humidity (H-H): 20 – 90%
Weight & dimensions
Width: 244 mm
Depth: 244 mm
