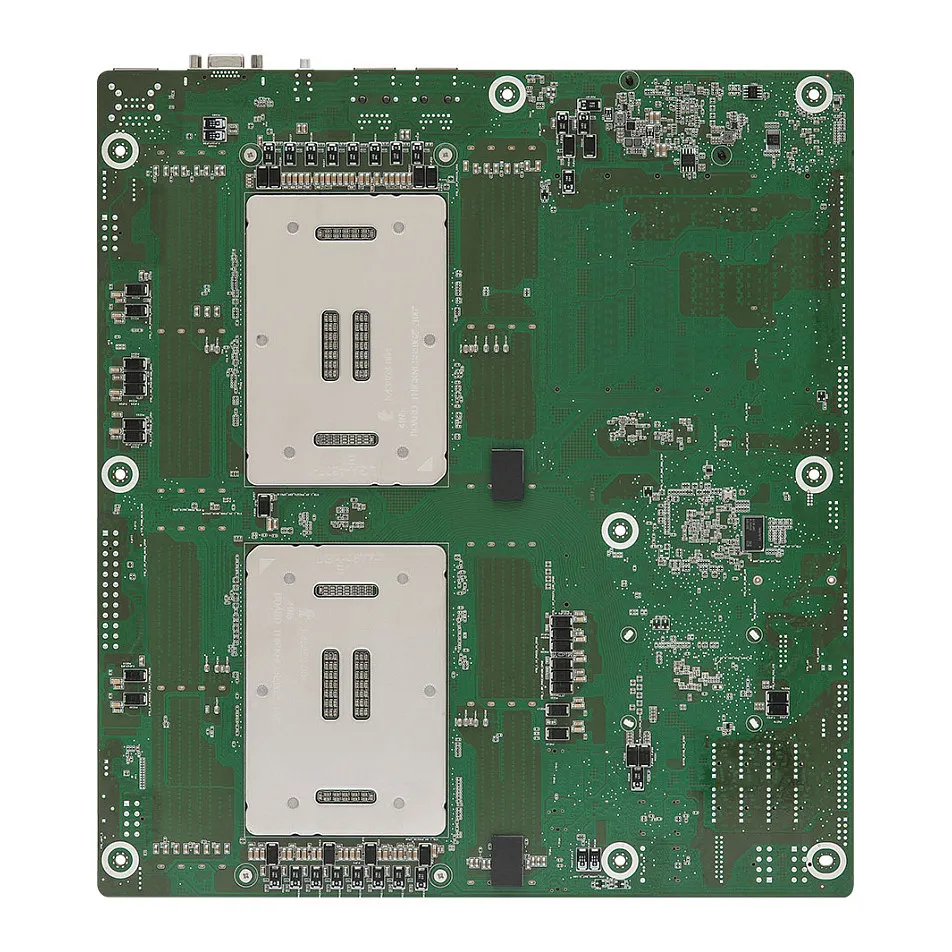

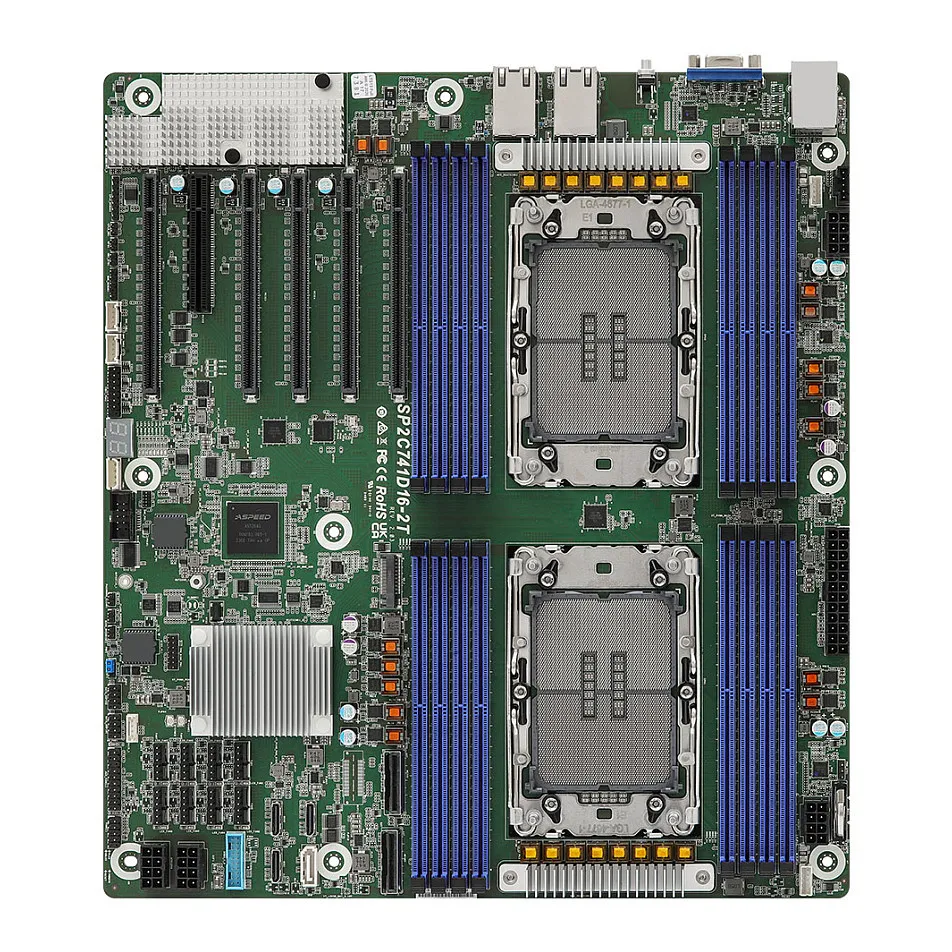

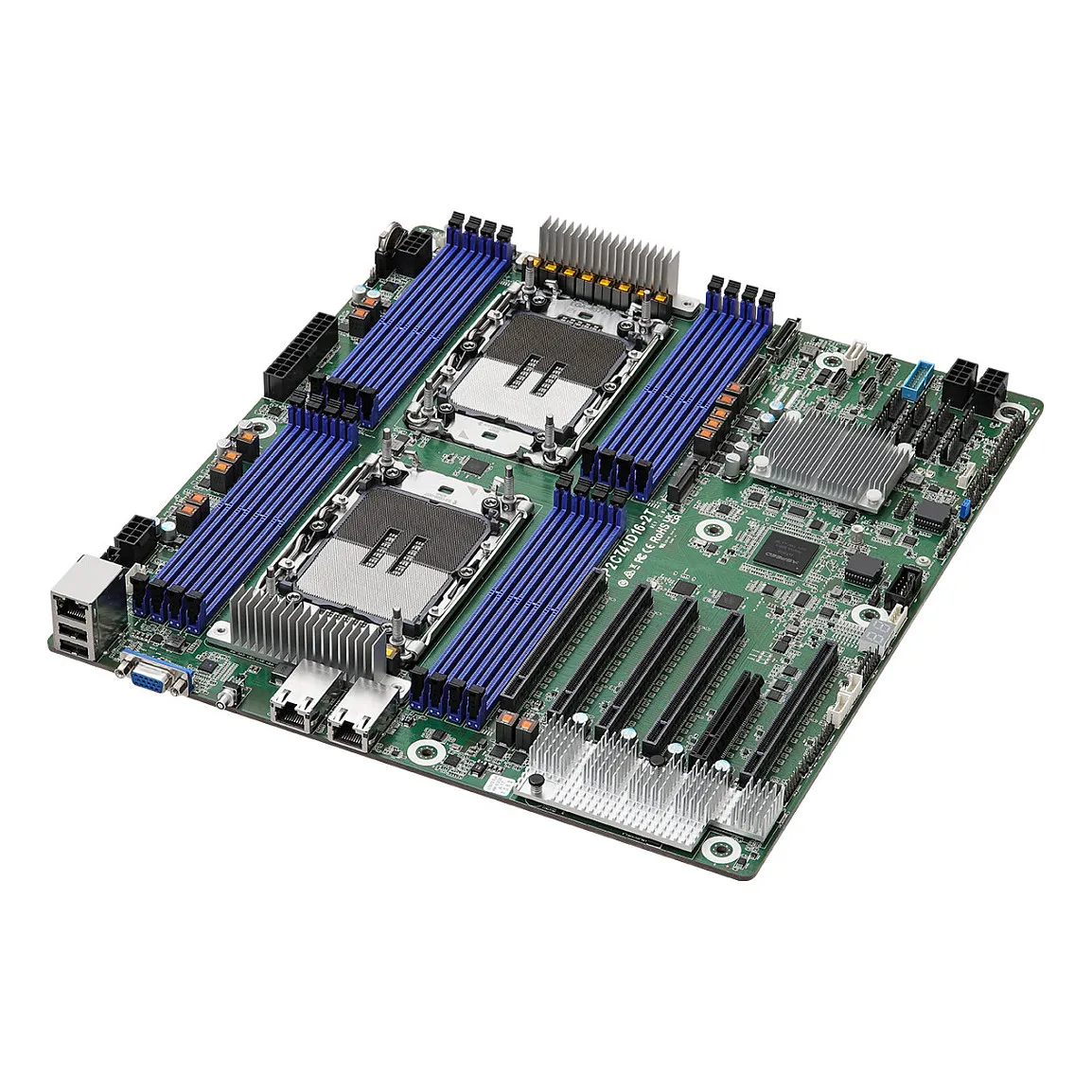

Asrock SP2C741D16-2T motherboard

Processor
Processor manufacturer: Intel
Processor socket: LGA 4677 (Socket E)
Compatible processor series: Intel® Xeon®
Supported processor sockets: LGA 4677 (Socket E)
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 16
Memory voltage: 1.1 V
Supported memory clock speed (max): 5600 MHz
Maximum internal memory: 1.53 TB
Storage controllers
Number of storage drives supported: 14
Feature: RAID support
Graphics
On-board graphics card model: Aspeed AST2600
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Feature: ATX Power connector (24-pin)
Feature: EPS power connector (8-pin)
Feature: TPM connector

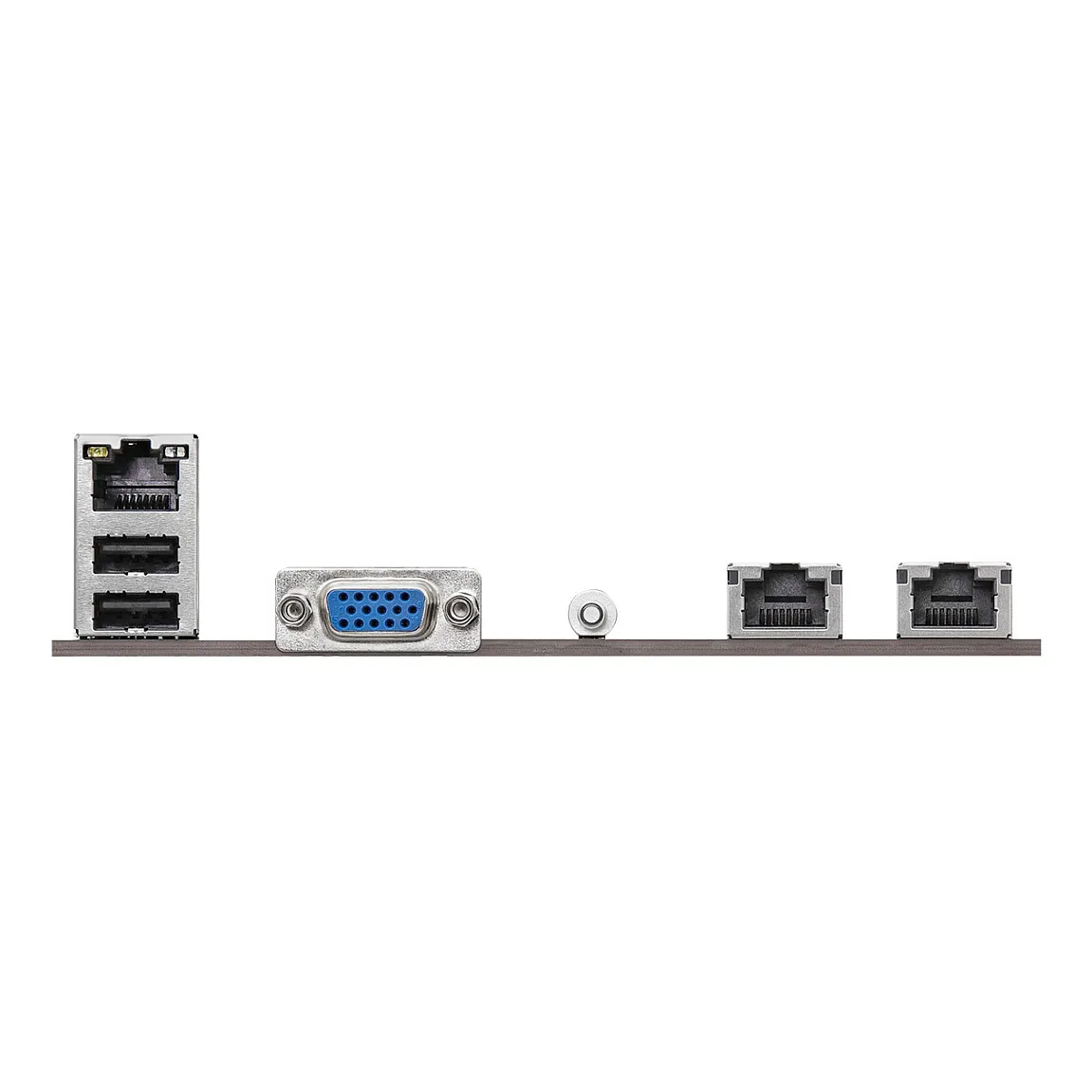

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1
Network
Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet
Top Wi-Fi standard: Not available
Features
Motherboard chipset: Intel C741
Component for: Server
Motherboard form factor: EEB
Motherboard chipset family: Intel
Expansion slots
PCI Express x8 (Gen 5.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 5
PCI Express OCuLink connectors (NVMe support): 3
Number of M.2 (M) slots: 1
BIOS
BIOS type: UEFI AMI
BIOS memory size: 512 Mbit
ACPI version: 4.0
System Management BIOS (SMBIOS) version: 3.4
Operational conditions
Storage temperature (T-T): -40 – 70 °C
Operating temperature (T-T): 10 – 35 °C
Storage relative humidity (H-H): 20 – 90%
Weight & dimensions
Width: 307 mm
Depth: 337.8 mm
