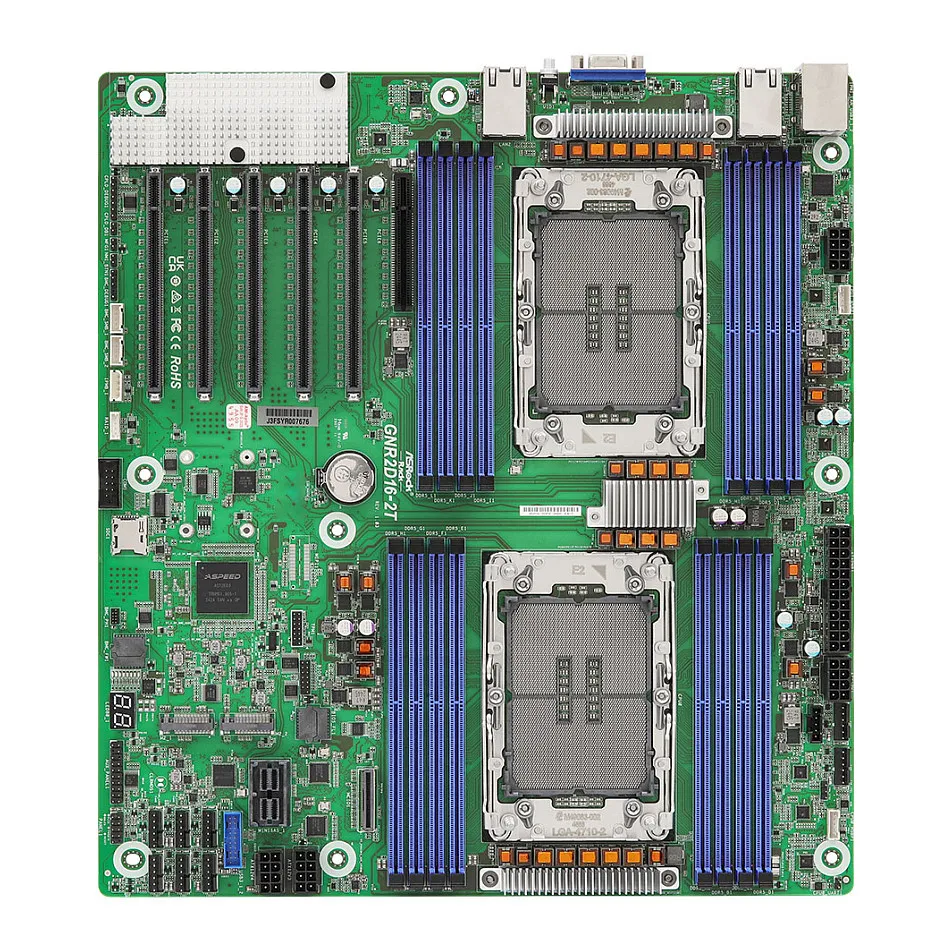

Asrock GNR2D16-2T motherboard

Processor
Processor manufacturer: Intel
Processor socket: LGA 4710 (Socket E2)
Compatible processor series: Intel Xeon 6300
Maximum number of SMP processors: 2
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 16
Memory voltage: 1.1 V
Supported memory clock speeds: 6400,8000 MHz
Maximum internal memory: 128 GB
Storage controllers
Supported storage drive interfaces: SATA III
Graphics
Feature: On-board graphics card
Graphics card family: ASPEED
Graphics card: AST2600
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 8
Number of COM connectors: 1
Feature: TPM connector

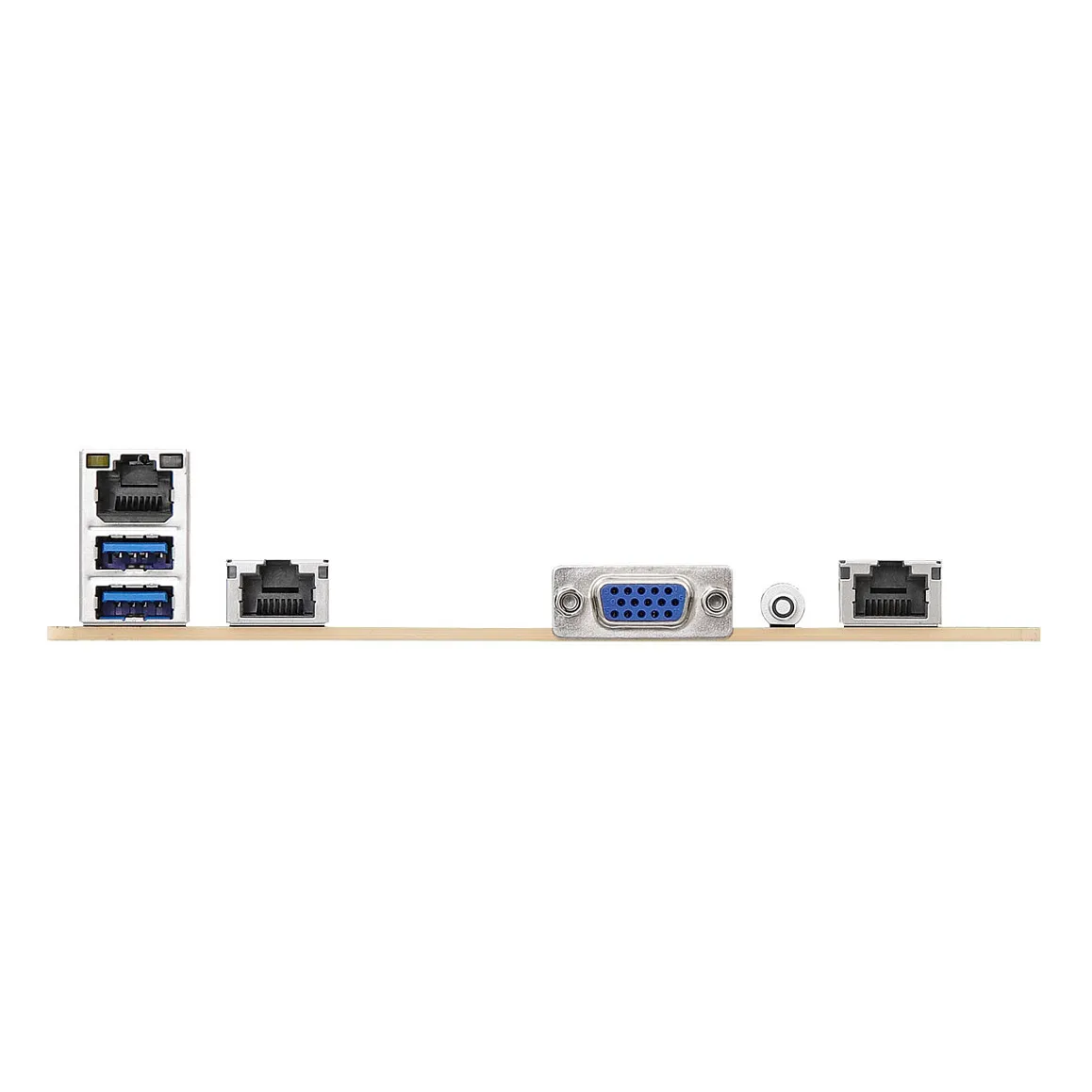

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
Network
Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet
LAN controller: Intel X710-AT2
Features
Motherboard chipset: Intel SoC
Component for: Server
Motherboard form factor: EEB
Motherboard chipset family: Intel
Expansion slots
PCI Express x8 (Gen 5.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 5
BIOS
BIOS type: UEFI AMI
BIOS memory size: 512 Mbit
ACPI version: 4.0
System Management BIOS (SMBIOS) version: 3.4
Operational conditions
Storage temperature (T-T): -40 – 70 °C
Operating temperature (T-T): 10 – 35 °C
Operating relative humidity (H-H): 20 – 90%
Weight & dimensions
Width: 310.9 mm
Depth: 337.8 mm
