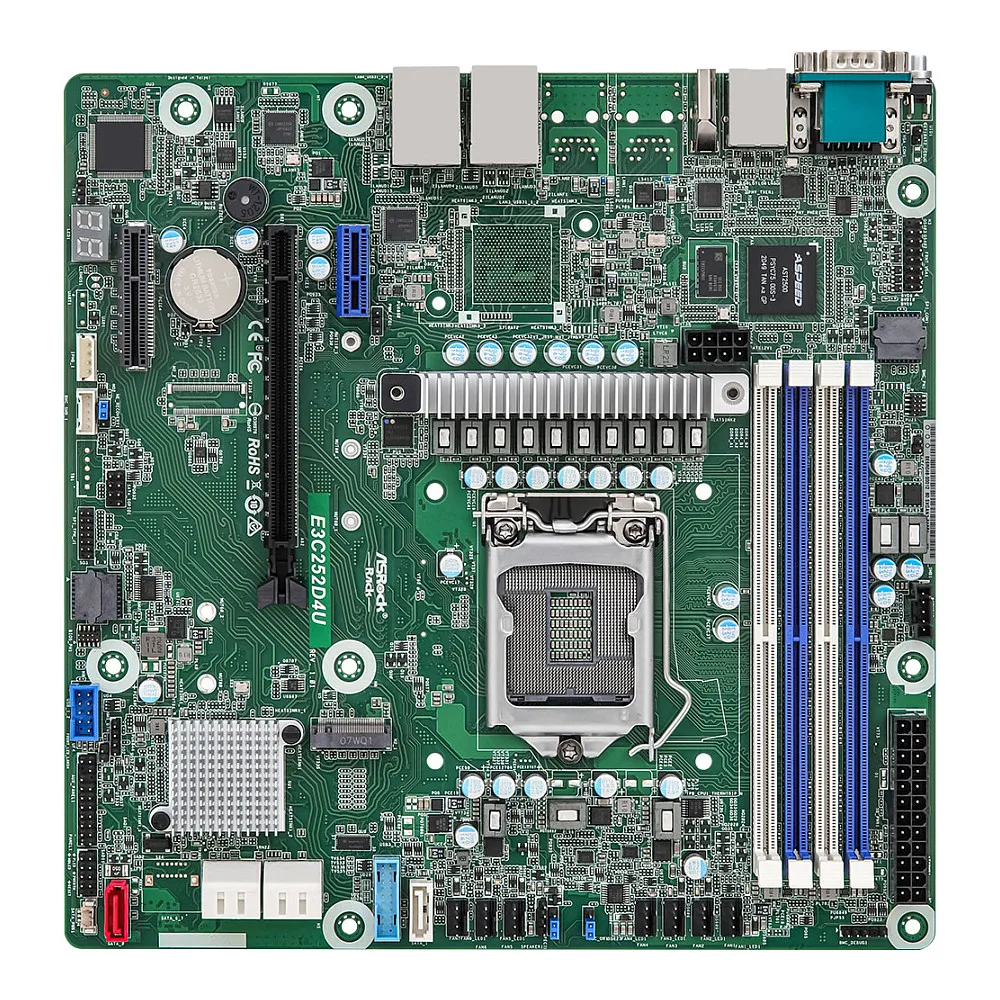

Asrock E3C252D4U. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Xeon®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 5, 10. Graphics card family: ASPEED, Graphics card: AST2500, On-board graphics card model: Aspeed AST2500. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel I210
Processor
Processor manufacturer: Intel
Processor socket: LGA 1200 (Socket H5)
Compatible processor series: Intel® Xeon®
Intel Xeon series: E-2300
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory voltage: 1.2 V
ECC сompatibility: ECC & Non-ECC
Supported memory clock speed (max): 2666 MHz
Maximum internal memory: 32 GB
Storage controllers
Supported storage drive interfaces: M.2, SATA
Feature: RAID support
RAID levels: 0, 1, 5, 10
Graphics
Graphics card family: ASPEED
Graphics card: AST2500
On-board graphics card model: Aspeed AST2500
On-board graphics card memory: 256 MB
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel I210
Features
Motherboard chipset: Intel C252
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
BIOS
BIOS type: UEFI AMI
ACPI version: 6.2
System Management BIOS (SMBIOS) version: 3.3
Processor manufacturer: Intel
Processor socket: LGA 1200 (Socket H5)
Compatible processor series: Intel® Xeon®
Intel Xeon series: E-2300
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory voltage: 1.2 V
ECC сompatibility: ECC & Non-ECC
Supported memory clock speed (max): 2666 MHz
Maximum internal memory: 32 GB
Storage controllers
Supported storage drive interfaces: M.2, SATA
Feature: RAID support
RAID levels: 0, 1, 5, 10
Graphics
Graphics card family: ASPEED
Graphics card: AST2500
On-board graphics card model: Aspeed AST2500
On-board graphics card memory: 256 MB
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel I210
Features
Motherboard chipset: Intel C252
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
BIOS
BIOS type: UEFI AMI
ACPI version: 6.2
System Management BIOS (SMBIOS) version: 3.3
