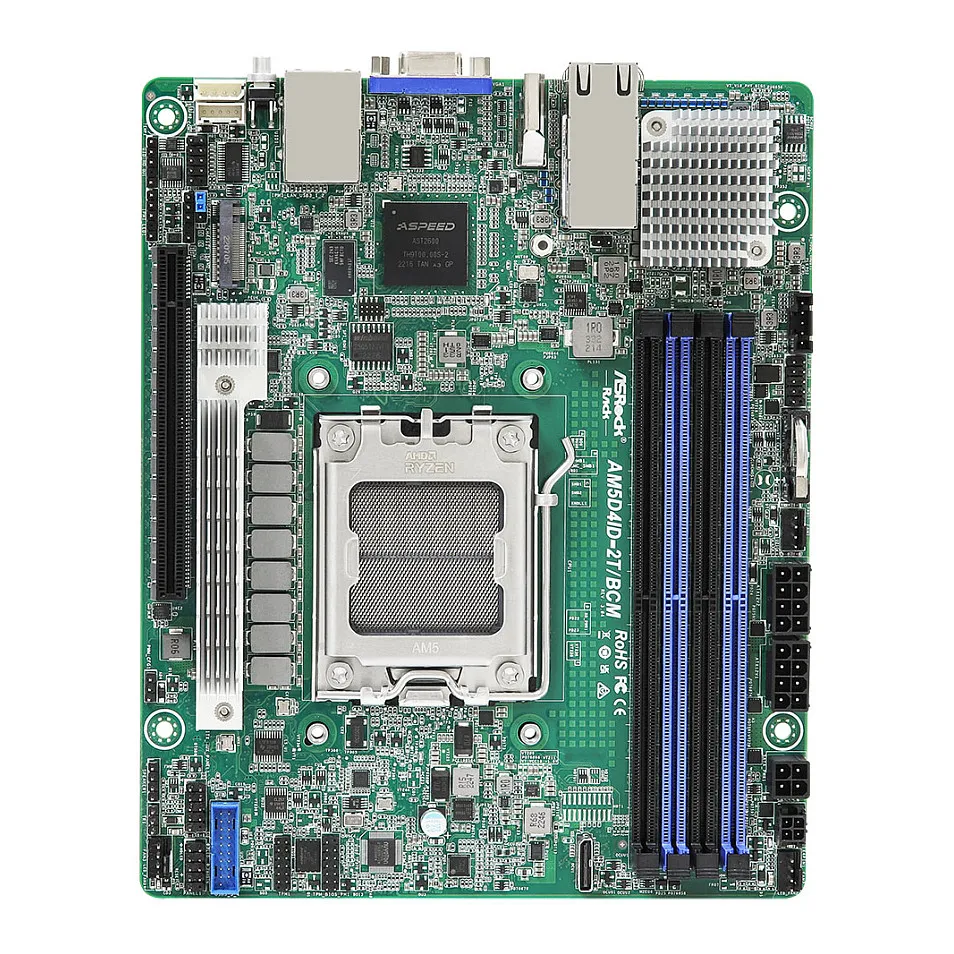

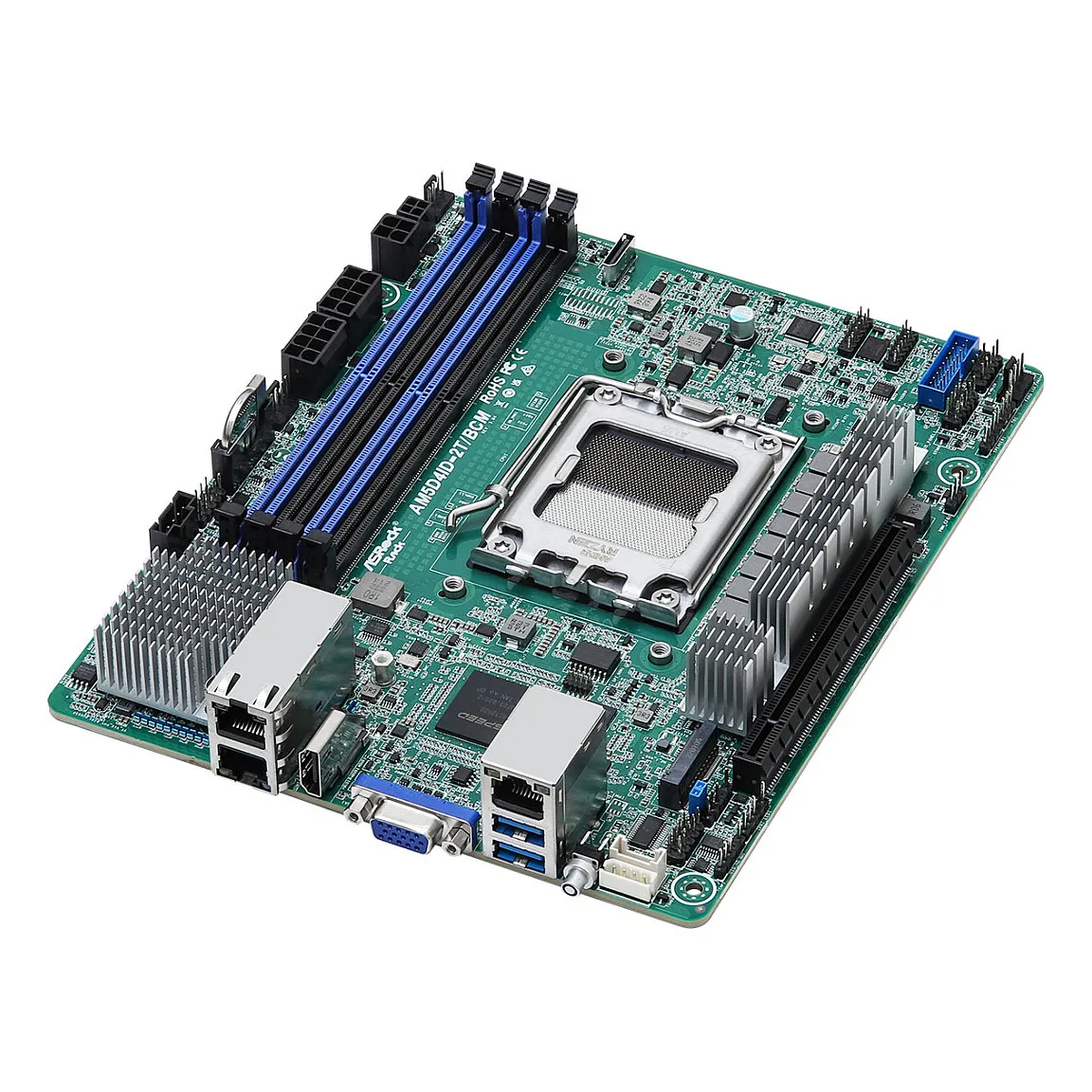

Asrock AM5D4ID-2T/BCM motherboard

Processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD EPYC 4004, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory voltage: 1.1 V
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 3600,5200 MHz
Supported memory clock speed (max): 5200 MHz
Maximum internal memory: 192 GB
Storage controllers
Supported storage drive types: SSD
Supported storage drive interfaces: M.2
Number of storage drives supported: 1
Graphics
Graphics card family: ASPEED
Graphics card: AST2600
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Feature: Audio connector
Feature: ATX Power connector (24-pin)
Feature: Chassis intrusion connector
Number of COM connectors: 1
Feature: TPM connector
Feature: 12V power connector

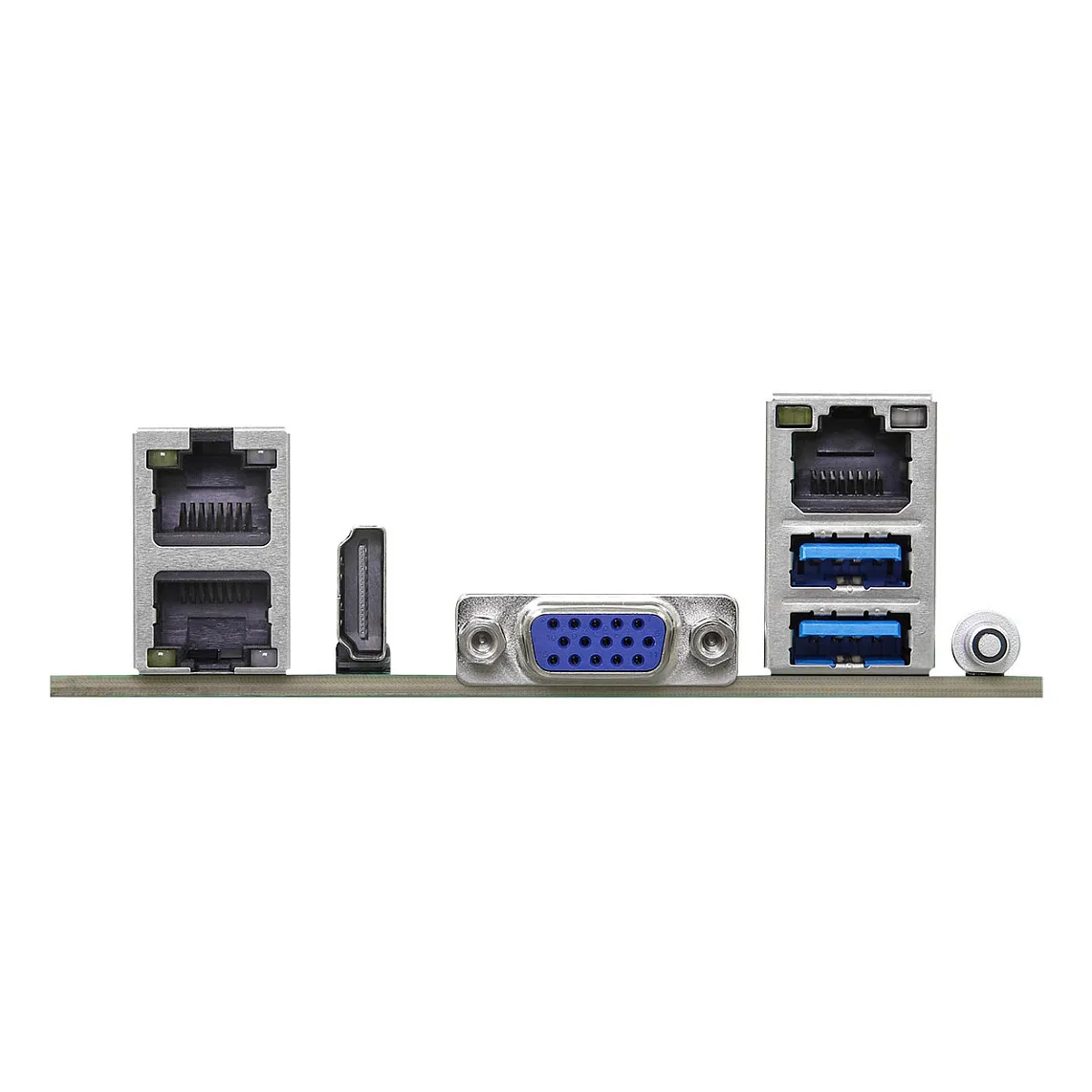

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
Network
Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet
LAN controller: Broadcom BCM57416
Top Wi-Fi standard: Not available
Features
Motherboard chipset: KNOLL3 X300
Component for: Server
Motherboard form factor: mini ITX
Motherboard chipset family: AMD
Linux operating systems supported: Ubuntu 22.04
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 1
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.1
System Management BIOS (SMBIOS) version: 2.3
Operational conditions
Storage temperature (T-T): -40 – 70 °C
Operating temperature (T-T): 10 – 35 °C
Storage relative humidity (H-H): 20 – 90%
Weight & dimensions
Width: 170.2 mm
Depth: 208.3 mm
