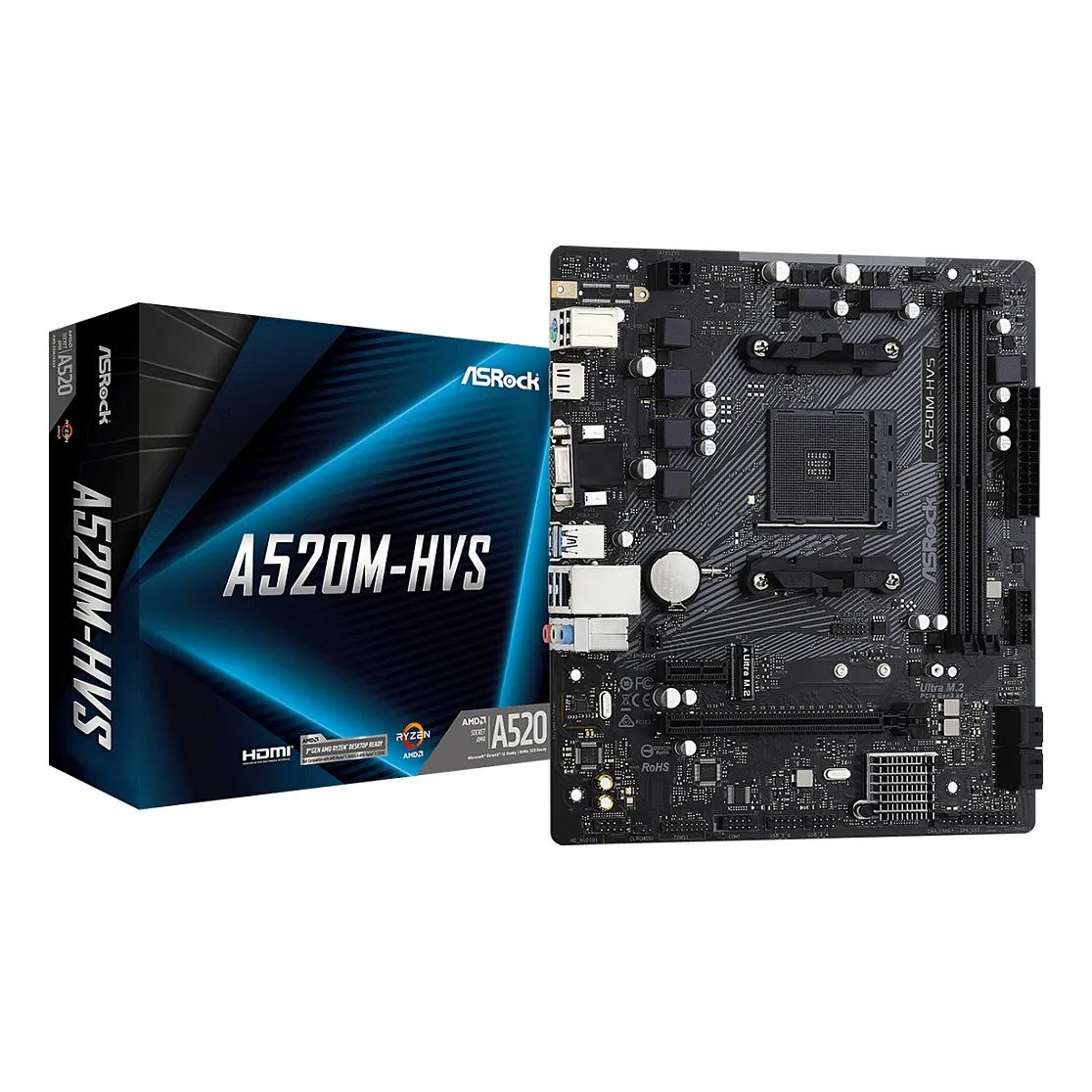

Asrock A520M-HVS. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Graphics card family: AMD, Graphics card: Radeon Vega. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
All Essentials You Need For Computing
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz
Maximum internal memory: 64 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 5
Number of storage drives supported: 5
Feature: RAID support
Graphics
Graphics card family: AMD
Graphics card: Radeon Vega
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 2
Number of COM connectors: 1

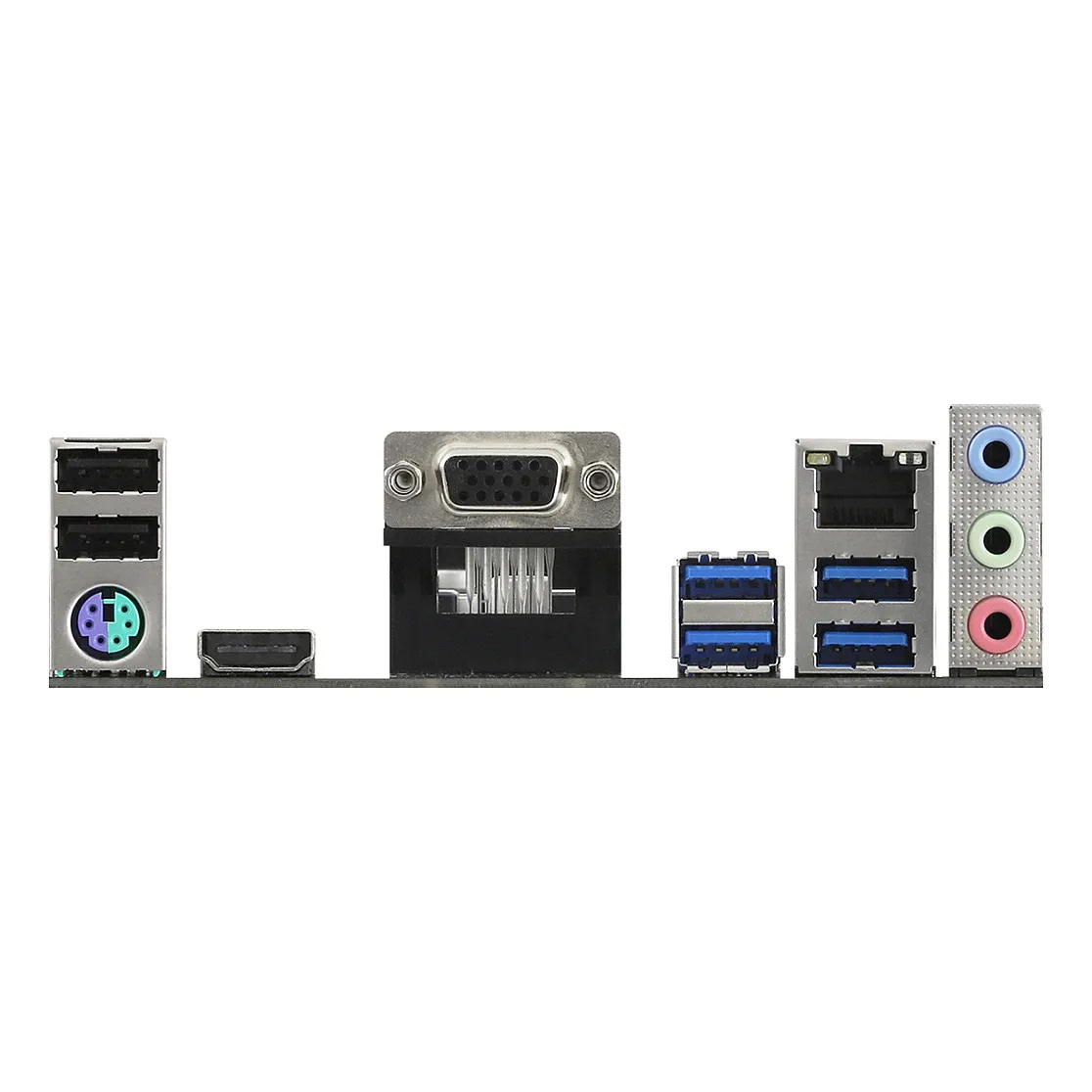

Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
Feature: Microphone in
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
Feature: Wake-on-LAN ready
Top Wi-Fi standard: Not available
Features
Motherboard chipset: AMD A520
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
BIOS
BIOS type: UEFI AMI
Logistics data
Harmonized System (HS) code: 84733020
Weight & dimensions
Width: 230 mm
Depth: 201 mm
Packaging content
Cables included: SATA
Feature: Drivers included
