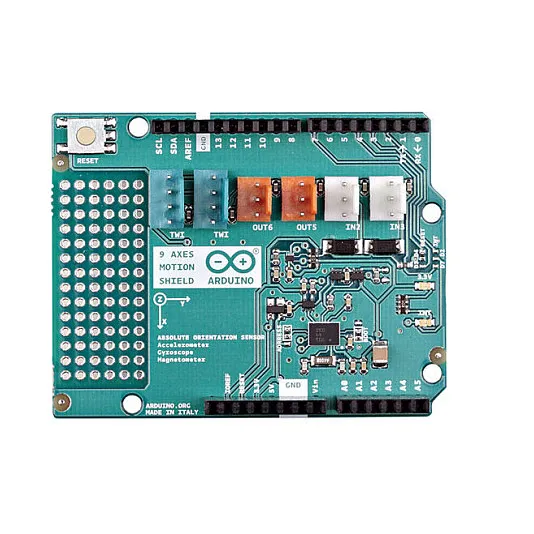

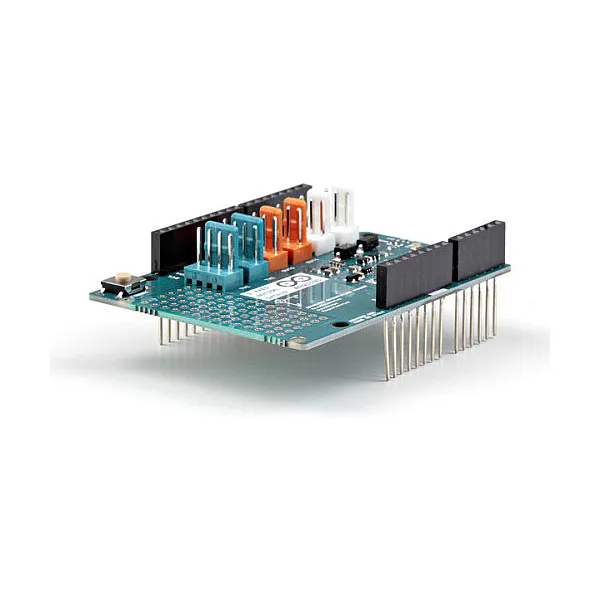

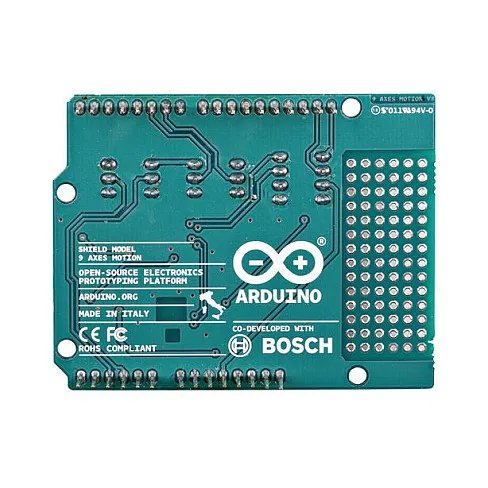

Arduino 9 AXES MOTION SHIELD

The Arduino 9 Axes Motion Shield is based on the BNO055 absolute orientation sensor (datasheet) from Bosch Sensortec GmbH.

The BNO055 is a System in Package (SiP), integrating a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope with a range of ±2000 degrees per second, a triaxial geomagnetic sensor and a 32-bit microcontroller running the BSX3.0 FusionLib software.

The sensor features three-dimensional acceleration, yaw rate and magnetic field strength data each in 3 perpendicular axes.

It also provides the sensor fusion signals such as
– Quaternion
– Euler angles
– Rotation vector
– Linear acceleration
– Gravity vector

In addition, it incorporates an intelligent interrupt engine, which allows for triggering interrupts based on
– slow or no motion recognition
– any motion (slope) detection
– high-g-detection.

The shield is TinkerKit compatible, which means you can quickly create projects by plugging TinkerKit modules to the board.
