Aqua Computer 53256 computer cooling system part/accessory

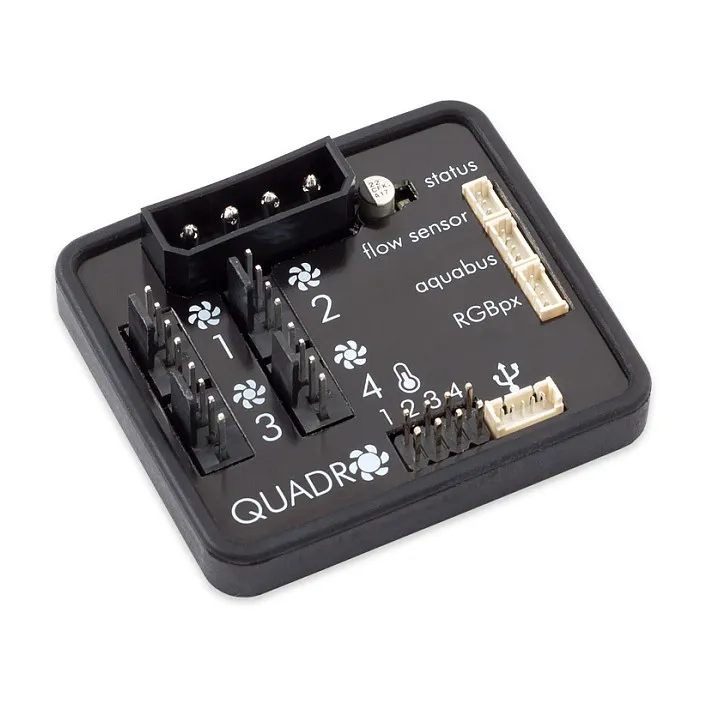

The QUADRO made by Aqua Computer is a four channel PWM fan controller with outstanding functionality, equally suited for water cooled or air cooled computers. Additionally, it features an RGBpx effect controller for 90 addressable LEDs.

Fan controller
The four fan channels of the QUADRO can be configured independently, the high maximum power output of 25 watts per channel allows for connecting multiple fans to each output of the QUADRO using suitable splitters. In addition to setting fan speed manually, fan speed can also be controlled by temperature. In temperature controlled mode, set point controllers as well as curve controllers are available. If the corresponding temperature falls below the set limit, connected fans can either be switched off or be kept running at an adjustable minimum speed. For secure fan start-up, an intelligent start boost with speed signal monitoring can be configured for each fan channel.
All fan outputs are compatible to PWM fans with four pin connectors only and feature overload protection.

RGBpx controller for addressable LEDs
The QUADRO controller is equipped with an RGBpx output for controlling up to 90 addressable LEDs independently. Color and brightness can be individually controlled for each LED. In total, up to four groups of LEDs of varying size can be configured, and visual effects can be assigned to each group. The 23 available effects can be extensively adjusted for further customization. Many effects can also be configured to modify effect parameters (for example speed) depending on current sensor data. The available effects also include sound-to-light effects, visualizing computer sound output. The AMBIENTpx effect deserves special notice, replicating the border area of the current monitor display on connected LEDs, allowing for an impressive background lighting surrounding the monitor.
Alternatively to the LED strips offered by Aqua Computer, LED fans made by Corsair and NZXT can be connected using the optional accessory RGBpx Splitty4 (item code 53267, not included in delivery).

QUADRO can be used as an aquabus expansion device
Besides being a fully autonomous USB fan controller, the QUADRO can also be used as an aquabus extension to an aquaero 5 or aquaero 6. In this configuration, the four fan channels of the QUADRO can be controlled by the aquaero, temperature sensor inputs and flow sensor input are transmitted to the aquaero. A maximum of two QUADRO controllers can be connected to an aquaero simultaneously.
