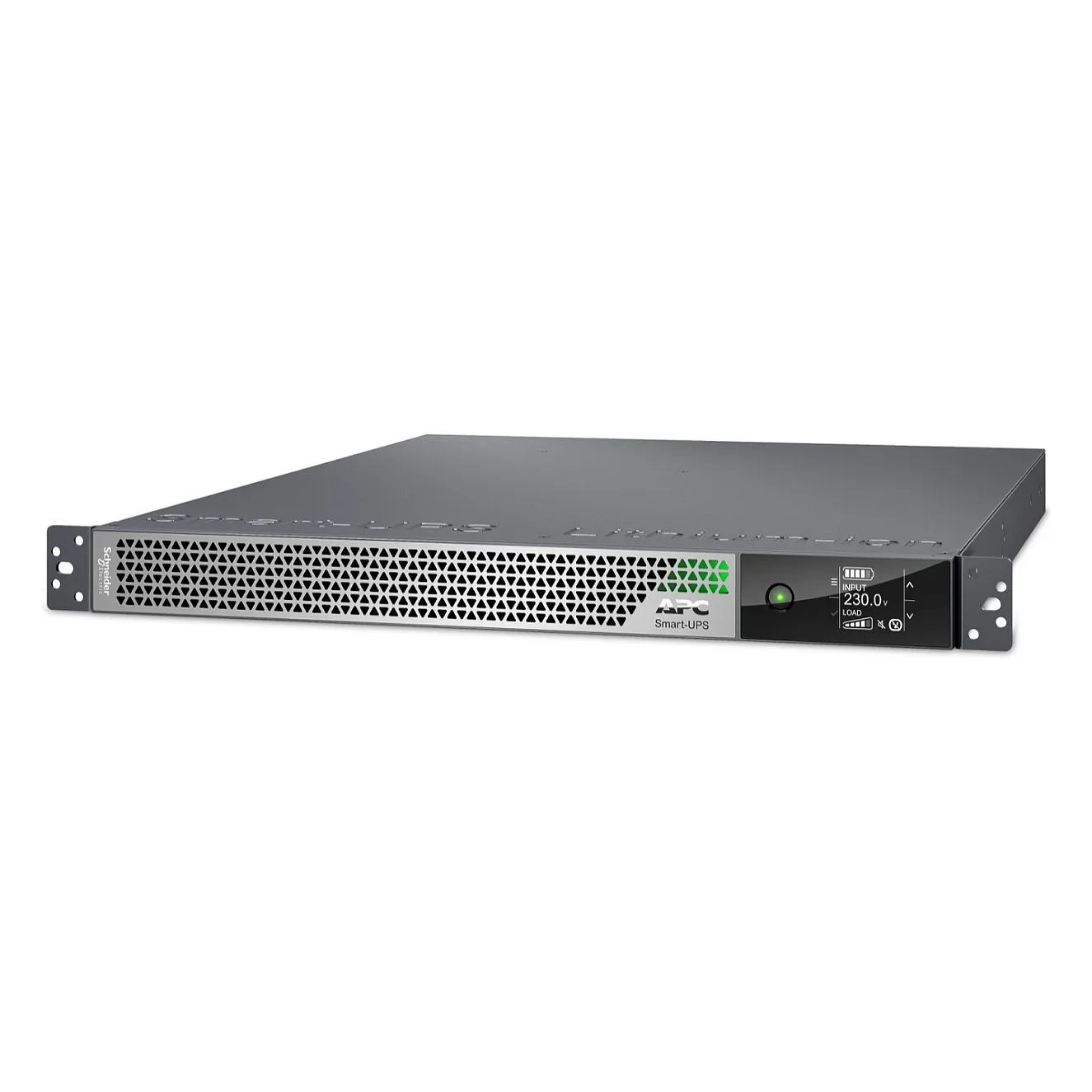

APC Smart-UPS Ultra On-Line SRTL2KRM1UIC, 2KW, 1U Rack/Tower/Wall, 3x C13 & 2x C19, SmartConnect. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Type F, AC outlets quantity: 5 AC outlet(s). Battery technology: Lithium-Ion (Li-Ion), Battery voltage: 50 V, Battery recharge time: 1.5 h. Form factor: Rackmount, Product colour: Black, Silver, Rack capacity: 1U. Compliance certificates: CE, RoHS, Certification: EN/IEC 62040-1
An APC Smart-UPS Ultra On-Line Li-Ion always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power outages have no influence on this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This way you prevent unwanted failure of, for example, a server, storage or switch. With the free APC PowerChute Serial shutdown software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.
Ultra

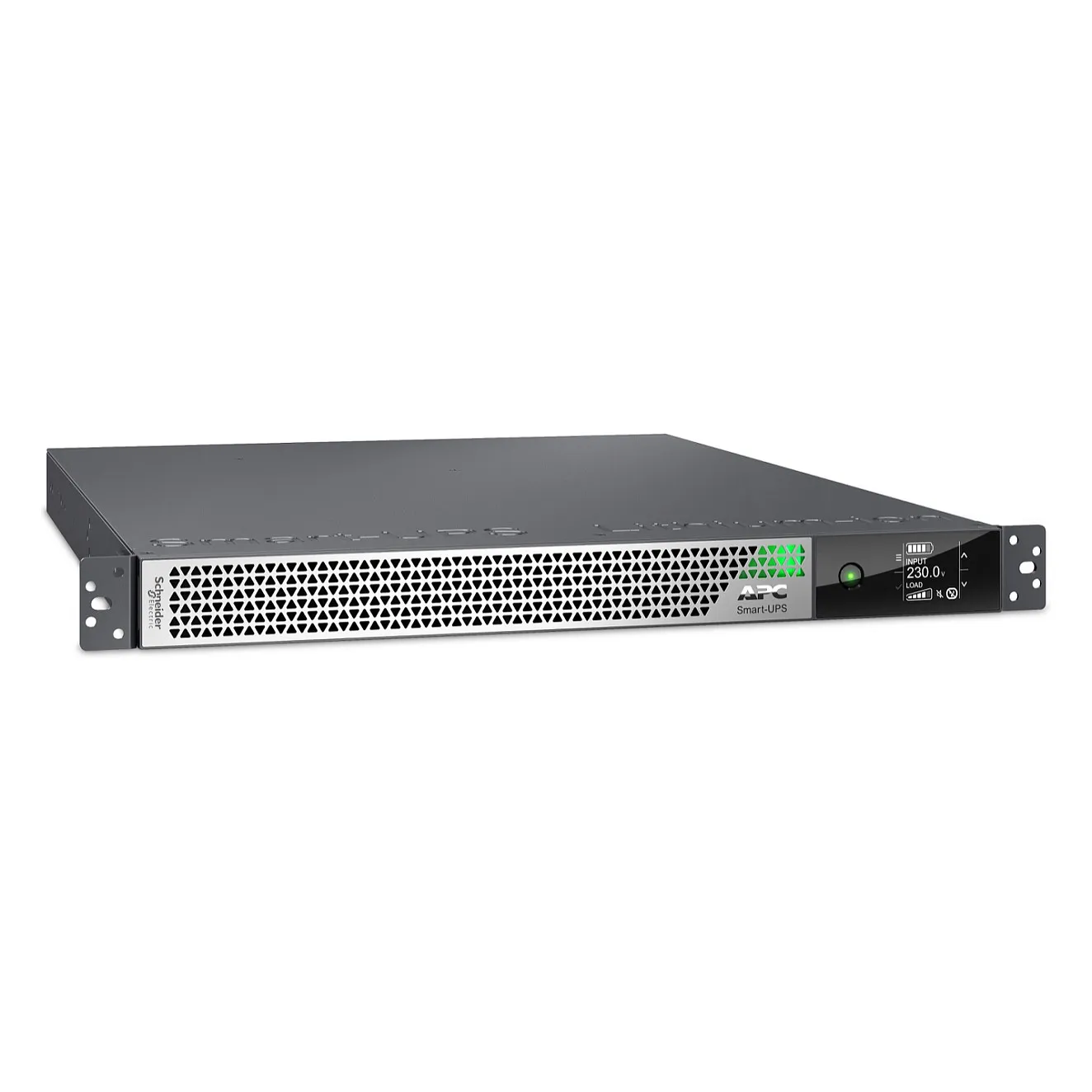

Thanks to next-gen semiconductor technology, this APC Ultra UPS delivers 2200W in just a 1U form factor.
Lithium-Ion
The APC SRTL2KRM1UIC uses Li-Ion batteries, which provides unique advantages:
-Longer life span. Li-Ion batteries can last up to 10 years, making the UPS truly maintenance-free.
-Smaller and lighter. Li-Ion batteries are smaller and weigh approximately 30% less than lead acid batteries, saving space, 2U form factor and simplifying installation.
-Better performance at high temperature. Li-Ion batteries perform well at high ambient temperatures (up to 40°C), in contrast to lead acid batteries where this is at the expense of battery life.
-5 year manufacturer’s warranty. Standard long warranty on the UPS including the battery.
-Lower costs: The above benefits reduce the total costs over the entire lifespan of the UPS by up to 53% (compared to a UPS with lead-acid batteries.)
Battery life

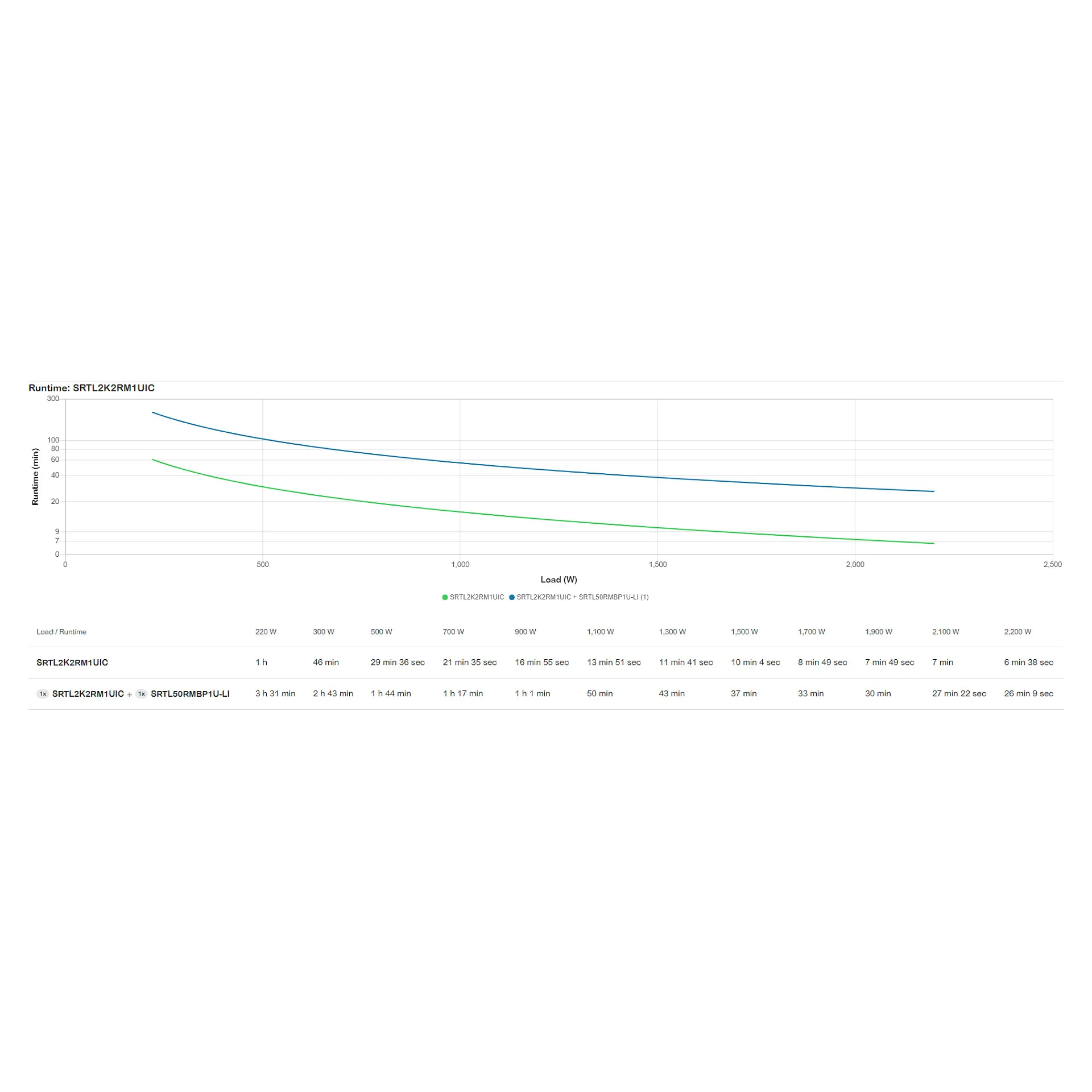

You can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.
Extend the runtime
You can easily increase the number of minutes that the APC SRTL2KRM1UIC can independently supply emergency power by connecting a maximum of 1 additional external battery pack (SRTL50RMBP1U-LI).
SmartConnect

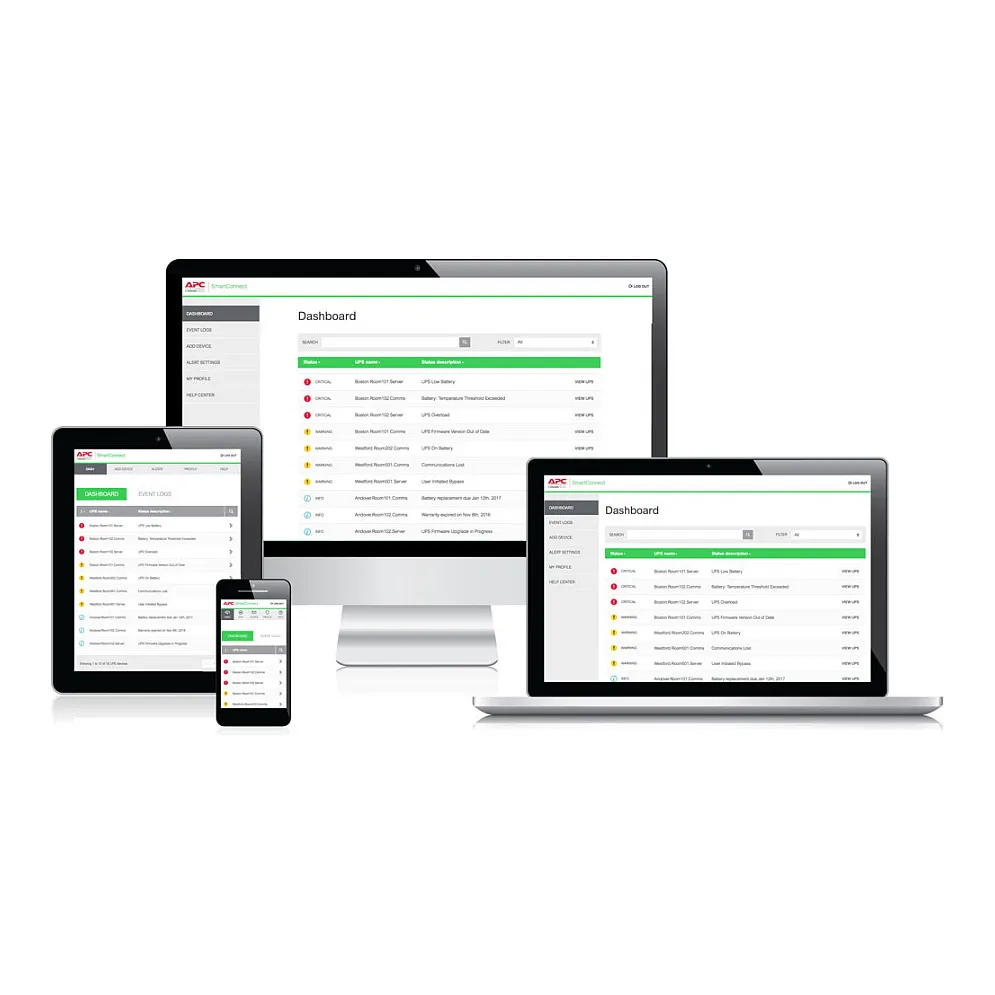

Out-of-box remote UPS monitoring, free for a 6-month trial period. Using the SmartConnect ethernet port, you can easily connect the Smart-UPS to your network and easily monitor it remotely via the secure APC SmartConnect cloud-based web portal. The UPS can also be monitored via this port via EcoStruxure IT Expert.
Network Management Card
If you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can easily be managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of APC PowerChute Network Shutdown Software associated with the network card can even be differentiated in the shutdown moment and the order in which this happens.
Availability
The Smart-UPS On-Line has an internal bypass and uses double conversion, which increases the availability and lifespan of connected hardware.
Safety
In addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is therefore ideally suited for business use.
Easy to use

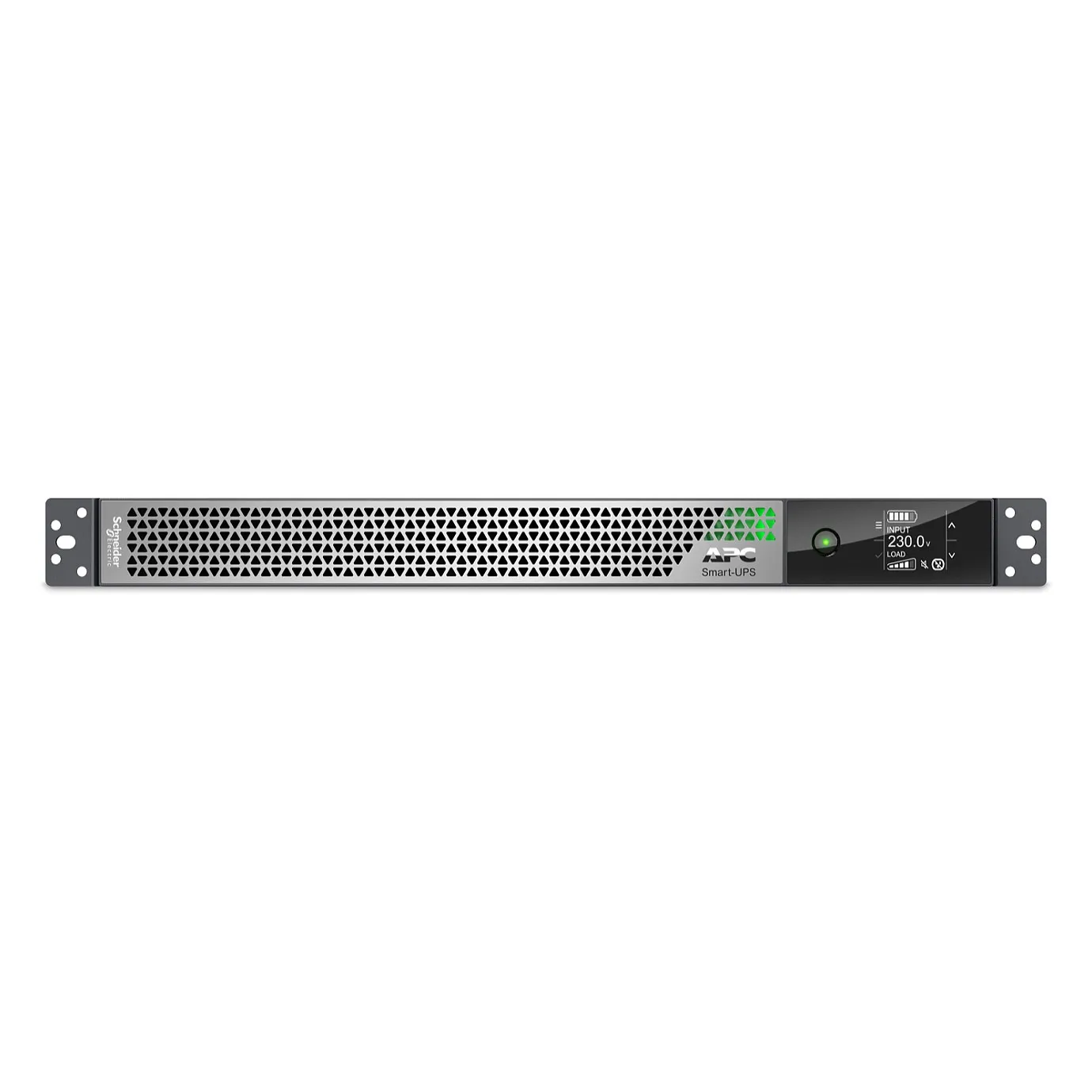

The APC Smart-UPS SRTL is easy to operate thanks to a graphic LCD screen with auto-rotation.
Rack/Tower/Wall/Ceiling/Desk convertible

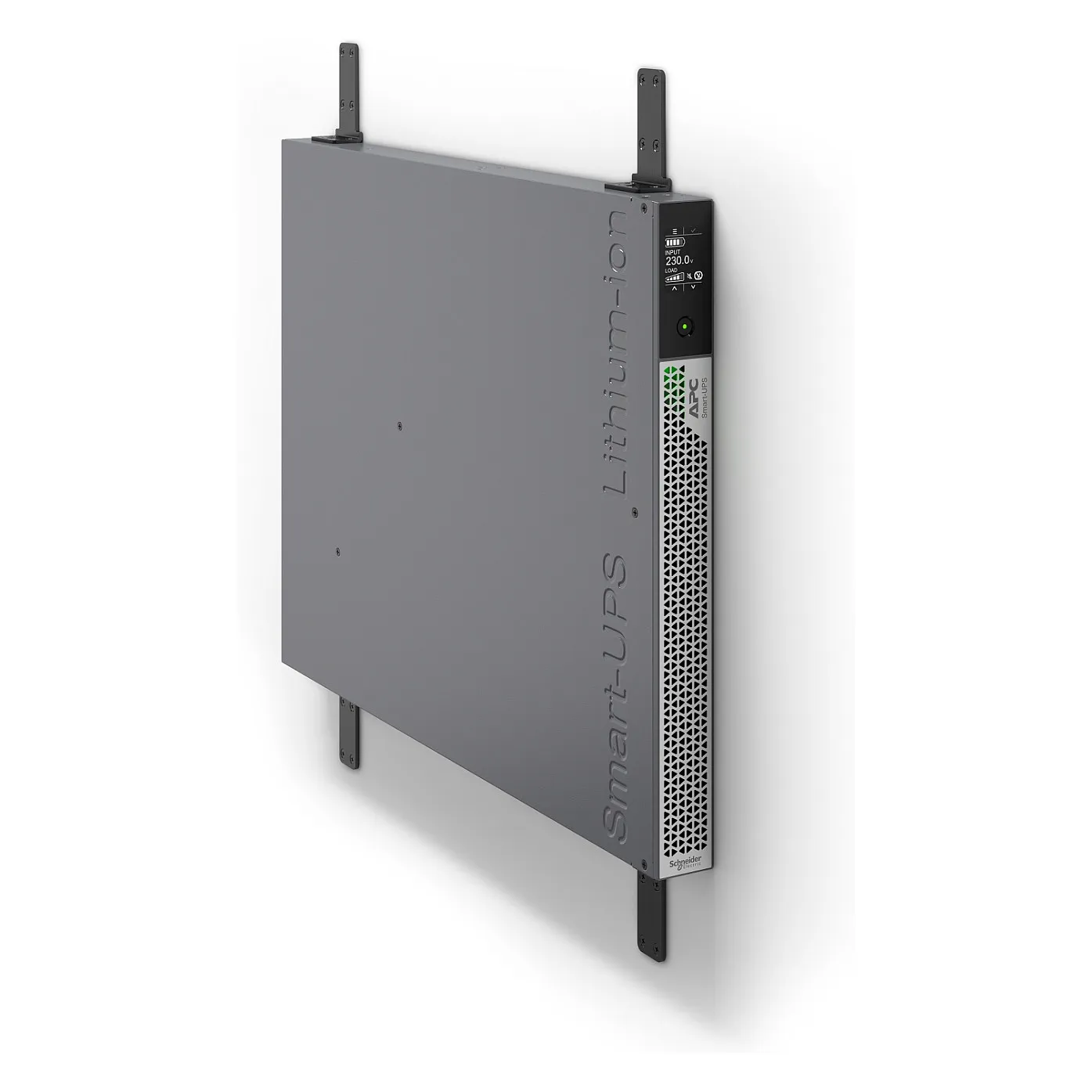

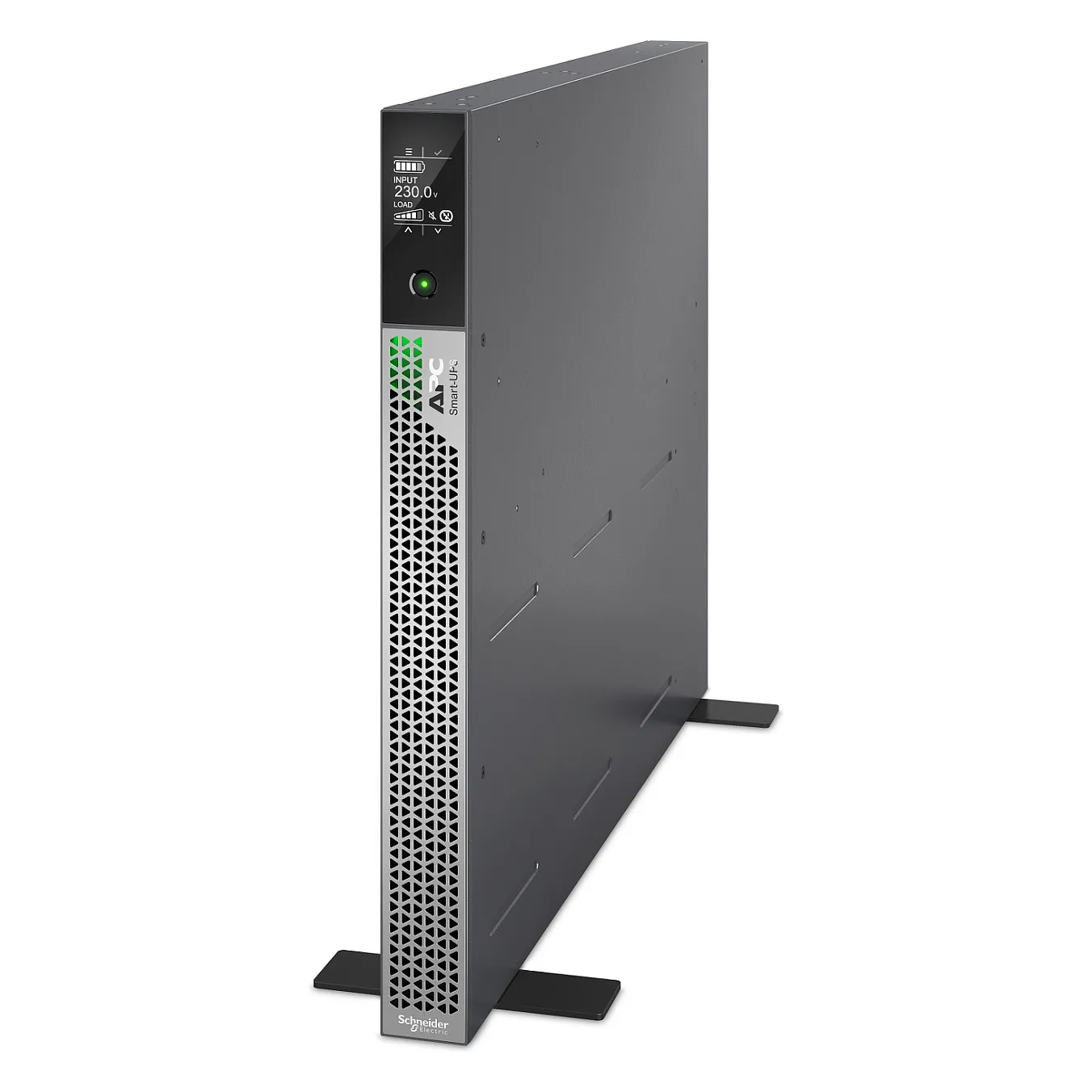

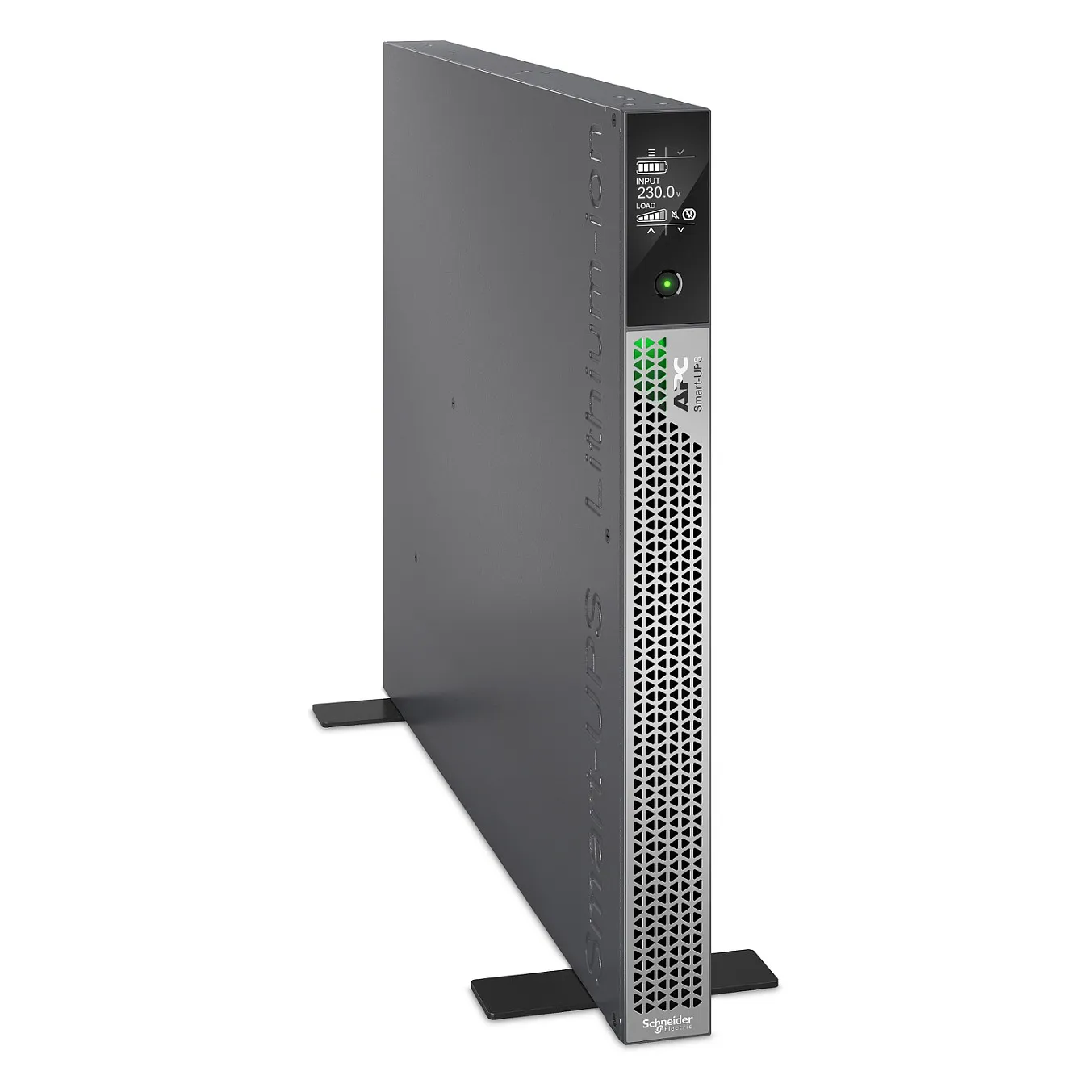

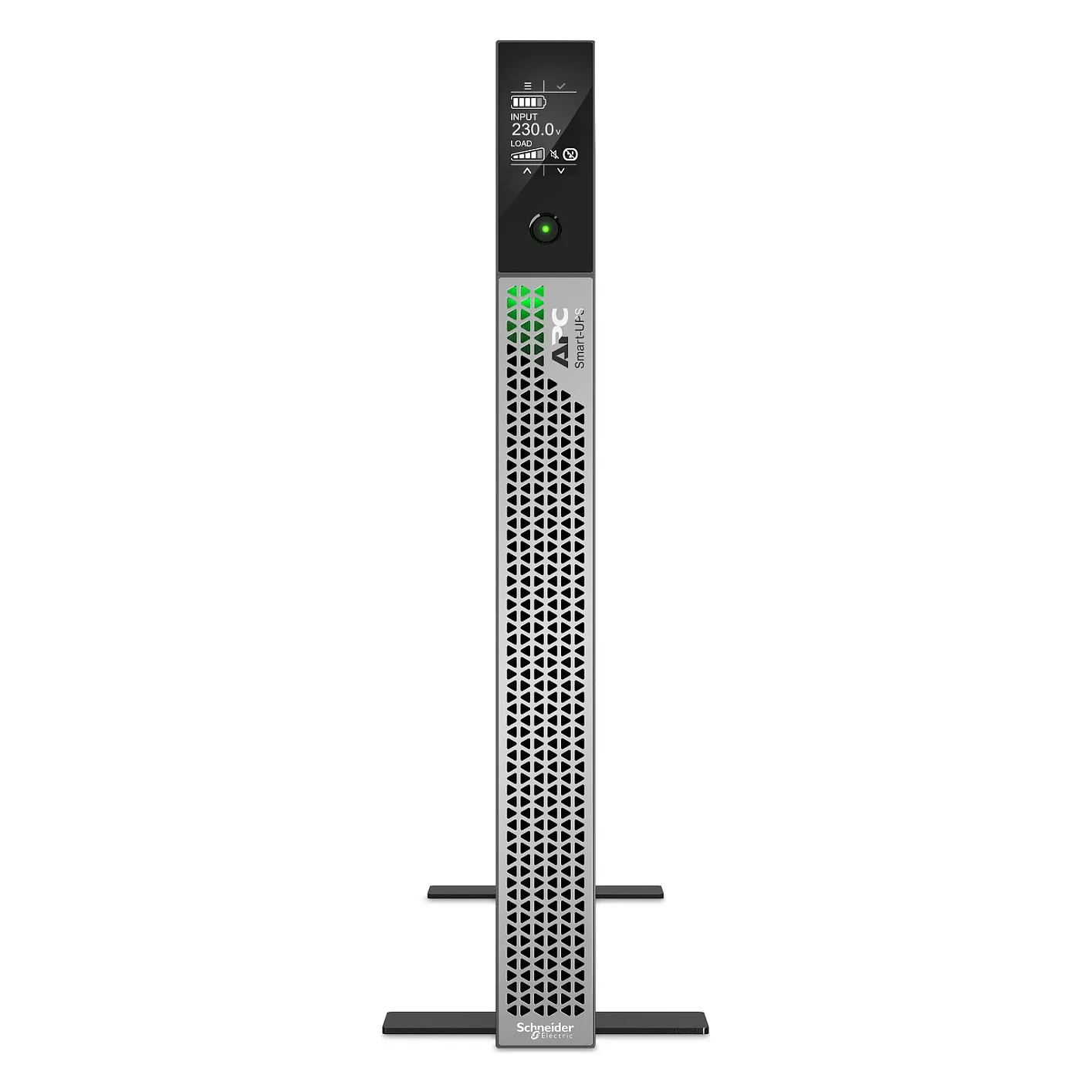

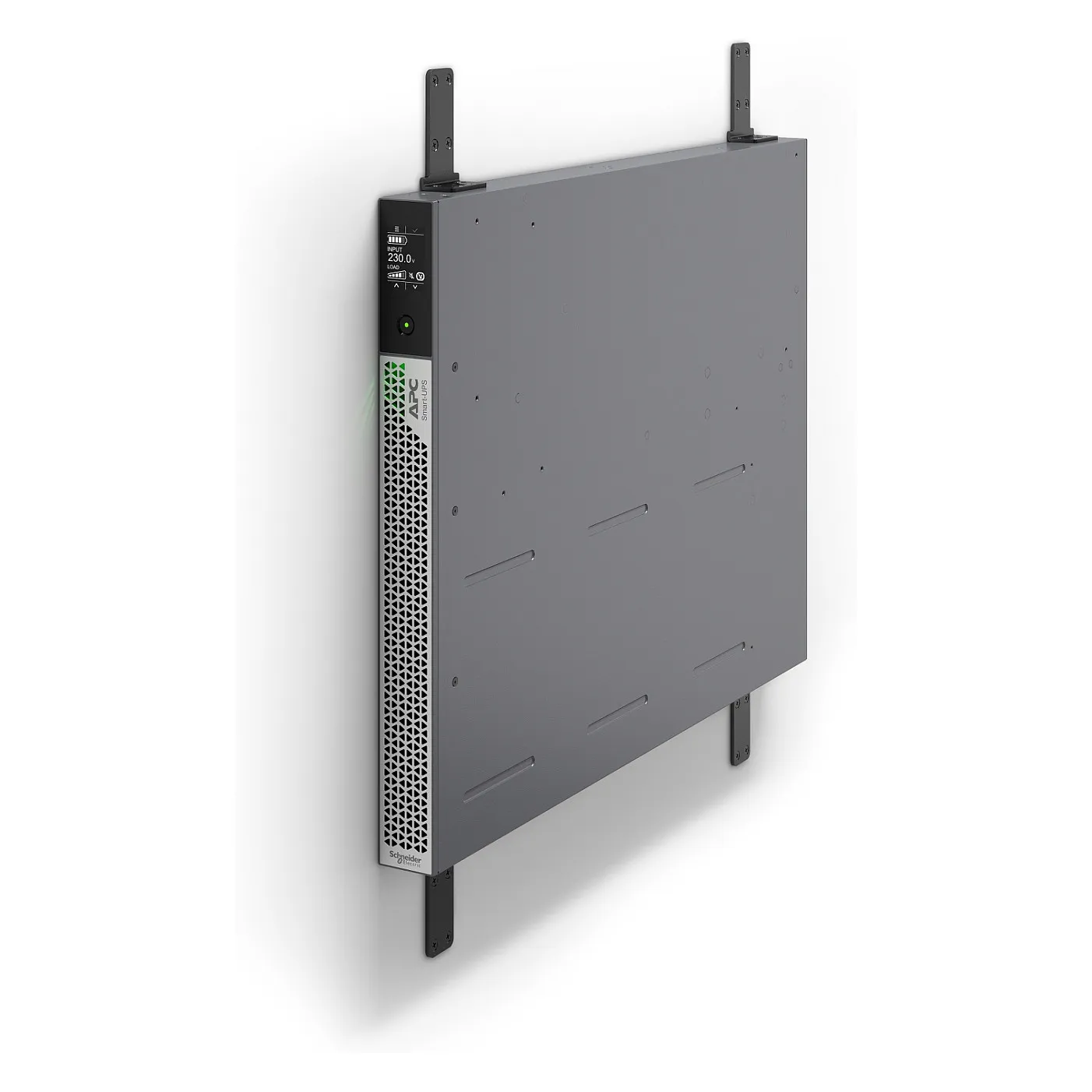

The SRTL2KRM1UIC can really be placed anywhere. Both feet (Tower), the 4 post rails (Rack), and wall brackets (Wall) are included. So you can mount it horizontally in a rack, but also place it vertically or hanging.
Switched Outlet Groups: Remote reboot and phased start-up
Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS.
It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If SmartConnect Advanced (ERWPLUS1-1Y-DIGI) is used, a UPS with SmartConnect port + Ecostruxure IT Expert (SFTWES1-DIGI) or a network card (ap9640) in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this is even possible at a distance.
Green Premium
This label represents Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.
Green Premium:
– Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. DThe energy efficiency of this product is at least 10% higher than the market average.
– Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/
– Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS-/REACh)
Certainty in a connected world
Over the past 40 years, 120 million APC UPSs have been installed in more than 160 countries.
Included in the box
– 1x SRTL2KRM1UIC
– 1x IEC C19 – Schuko input power cord
– 1x C13 to C14 power cord 1.2 meters
– 1x C19 to C20 power cord 2.5 meters
– 1x Installation manual
– 4x Stabilizers
– 2x Rackmount brackets
– 1x USB cable
UPS topology: Double-conversion (Online)
Output power capacity: 2.2 kVA
Output power: 2200 W
Waveform: Sine
Input operation voltage (min): 160 V
Input operation voltage (max): 275 V
Input frequency: 50/60 Hz
Feature: Emergency Power Off (EPO)
Noise level: 55 dB
Ports & interfaces

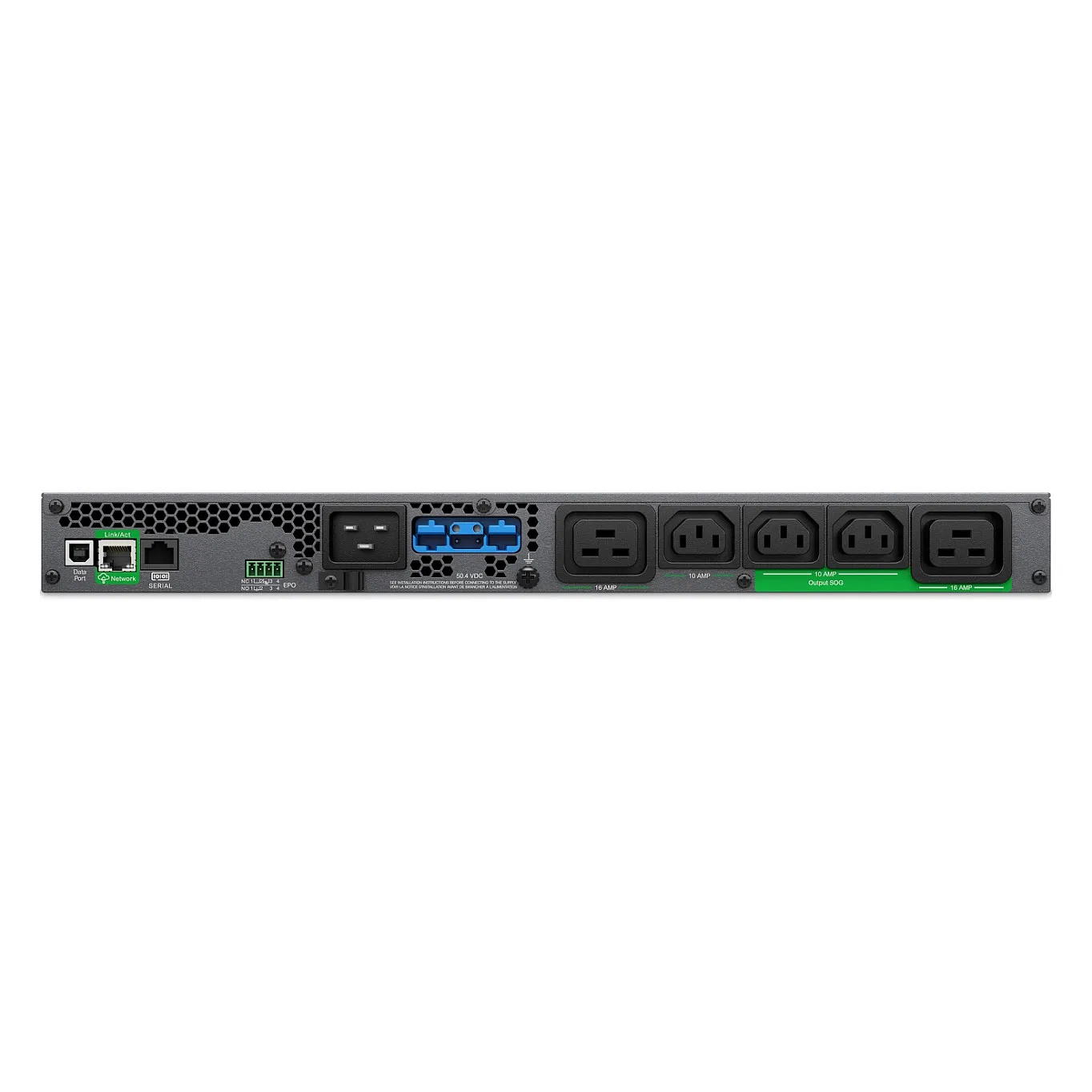

AC outlet types: C13 coupler, C19 coupler
Power plug: Type F
AC outlets quantity: 5 AC outlet(s)
Feature: Serial interface
Ethernet LAN (RJ-45) ports: 1
Feature: Emergency Power Off (EPO) connector
Feature: SmartConnect port
Battery
Battery technology: Lithium-Ion (Li-Ion)
Battery voltage: 50 V
Battery recharge time: 1.5 h
Feature: Hot-swap battery
Feature: Automatic battery test
Feature: Cold start
Design
Form factor: Rackmount
Rack capacity: 1U
Product colour: Black, Silver
Control type: Touch
Display type: LCD
LED indicators: Yes
International Protection (IP) code: IP20
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -15 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3048 m
Non-operating altitude: 0 – 15240 m
Certificates
Compliance certificates: CE, RoHS
Certification: EN/IEC 62040-1
Packaging content
Cables included: RJ-45
Sustainability
Feature: Sustainability compliance
Sustainability certificates: Green Premium
Weight & dimensions
Width: 432 mm
Depth: 560 mm
Height: 43 mm
Weight: 15.9 kg
Packaging data
Package width: 564 mm
Package depth: 764 mm
Package height: 278 mm
Package weight: 24.2 kg
