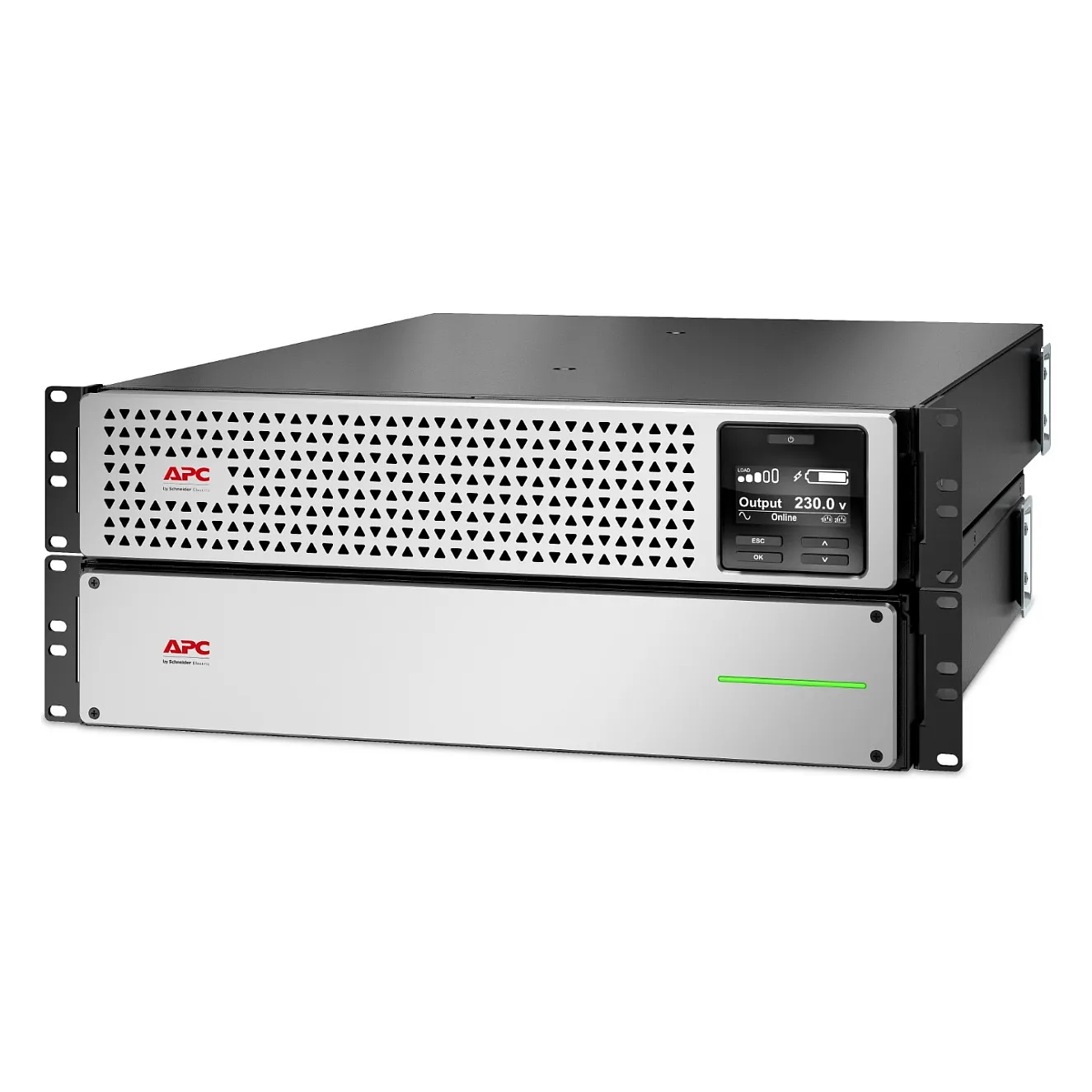

APC Smart-UPS On-Line, 1000VA, Lithium-ion, Rackmount 4U, 230V, 8x C13 IEC outlets, SmartSlot, Extended long runtime, Rail kit included. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 900 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 2400 Ah, Battery voltage: 48 V. Form factor: Rackmount/Tower, Product colour: Black, Silver, Rack capacity: 4U. Compliance certificates: CE, RoHS, Certification: RoHS, CE
At 900W/1000VA this Smart-UPS On-Line Lithium-Ion battery backup system provides high-density, double conversion on-line pure sine wave power. In addition to cleaner, quieter power protection, this UPS is only around half size and weight of comparable UPS systems with similar runtime and has flexible rack and tower installation options. A new extended runtime battery pack provides longer runtime in a small 2U footprint while tripling the life expectancy of the UPS. SRTL 1-3kVA UPSs with this rong runtime battery pack is perfect for applications critical for runtime.
Features
UPS topology: Double-conversion (Online)
Output power capacity: 1 kVA
Output power: 900 W
Waveform: Sine
Input operation voltage (min): 160 V
Input operation voltage (max): 275 V
Input frequency: 40/70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Surge energy rating: 340 J
Crest factor: 3:1
Feature: Emergency Power Off (EPO)
Noise level: 50 dB
Power source type: AC
Feature: Detachable power cord
Ports & interfaces

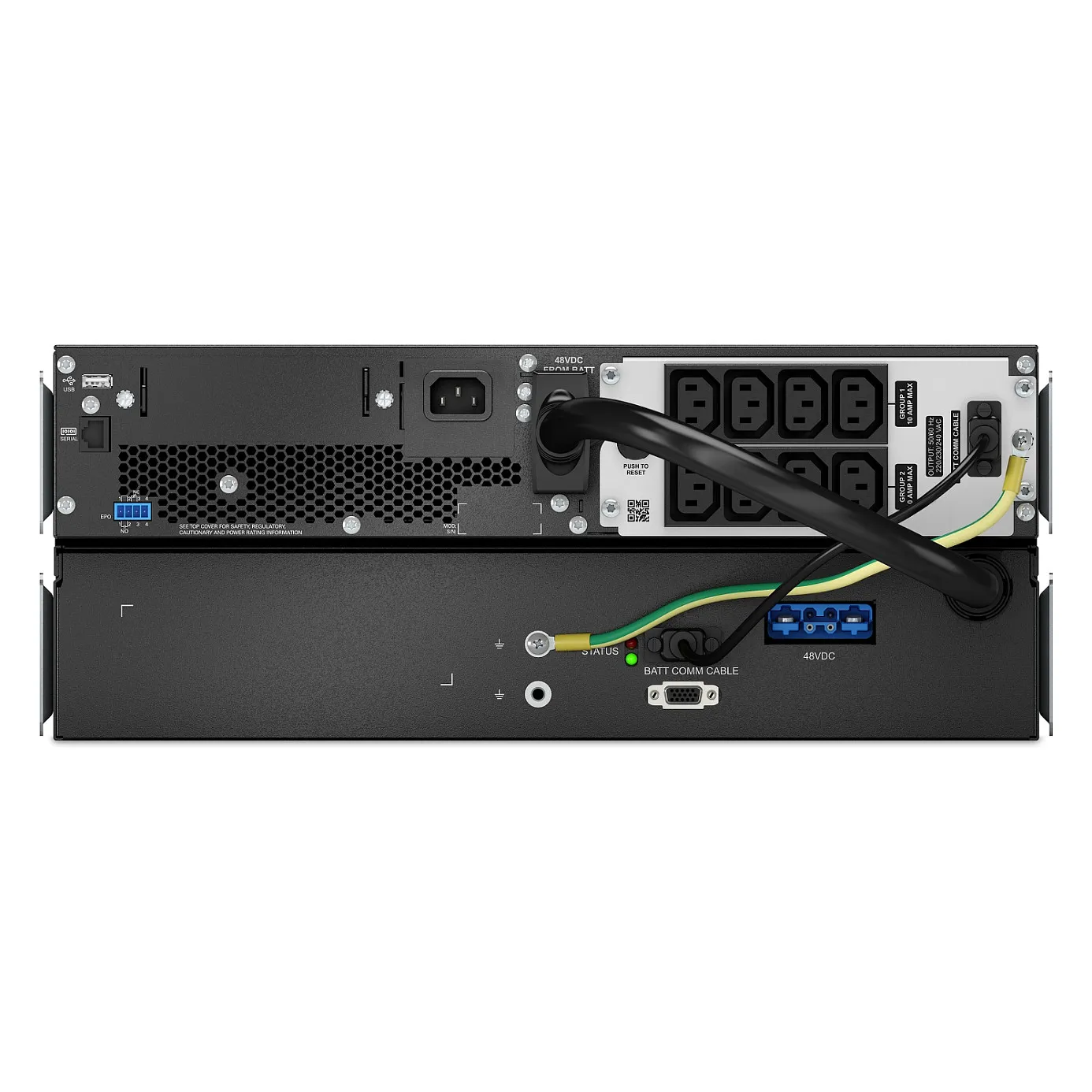

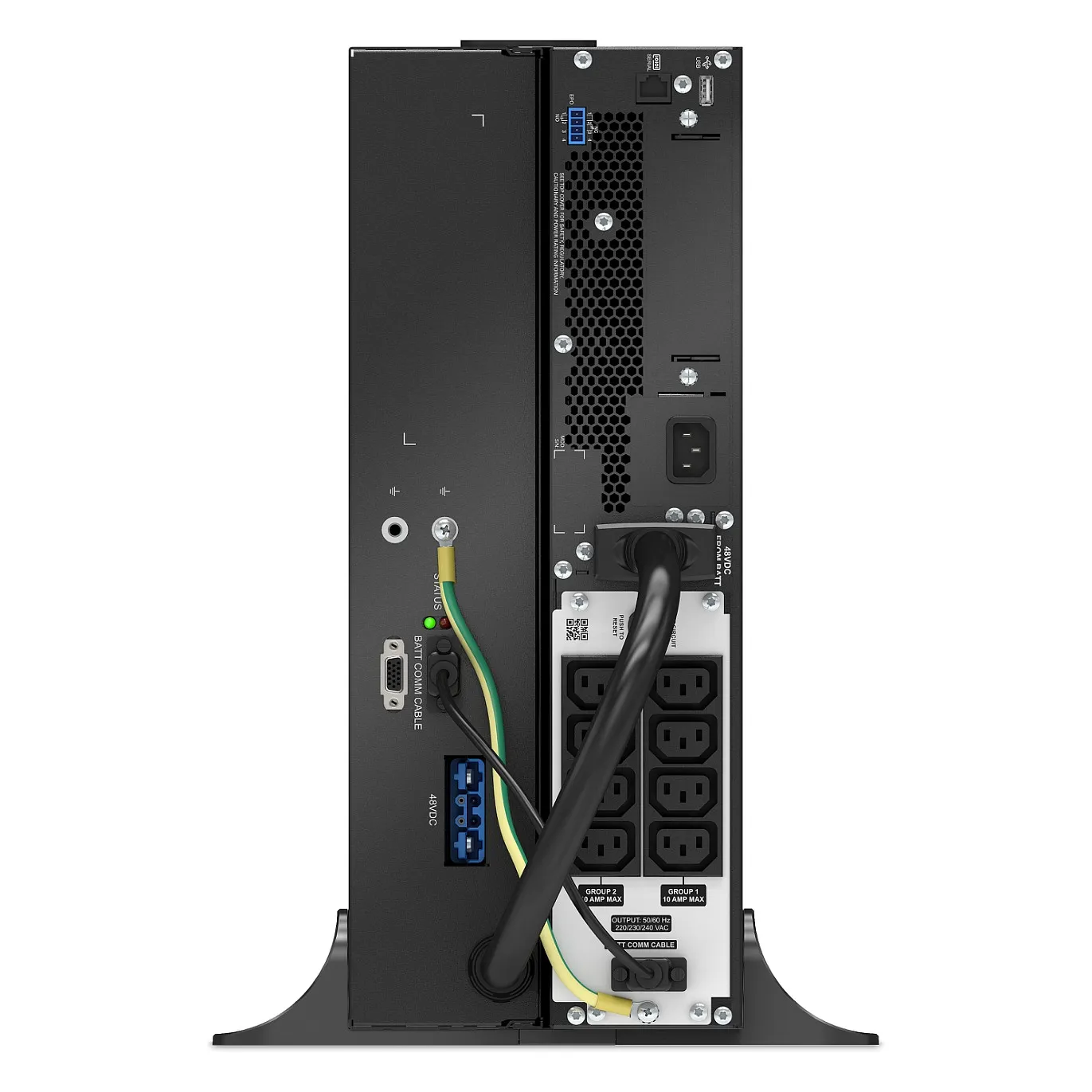

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 8 AC outlet(s)
Feature: SmartSlot
Battery
Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 2400 Ah
Battery voltage: 48 V

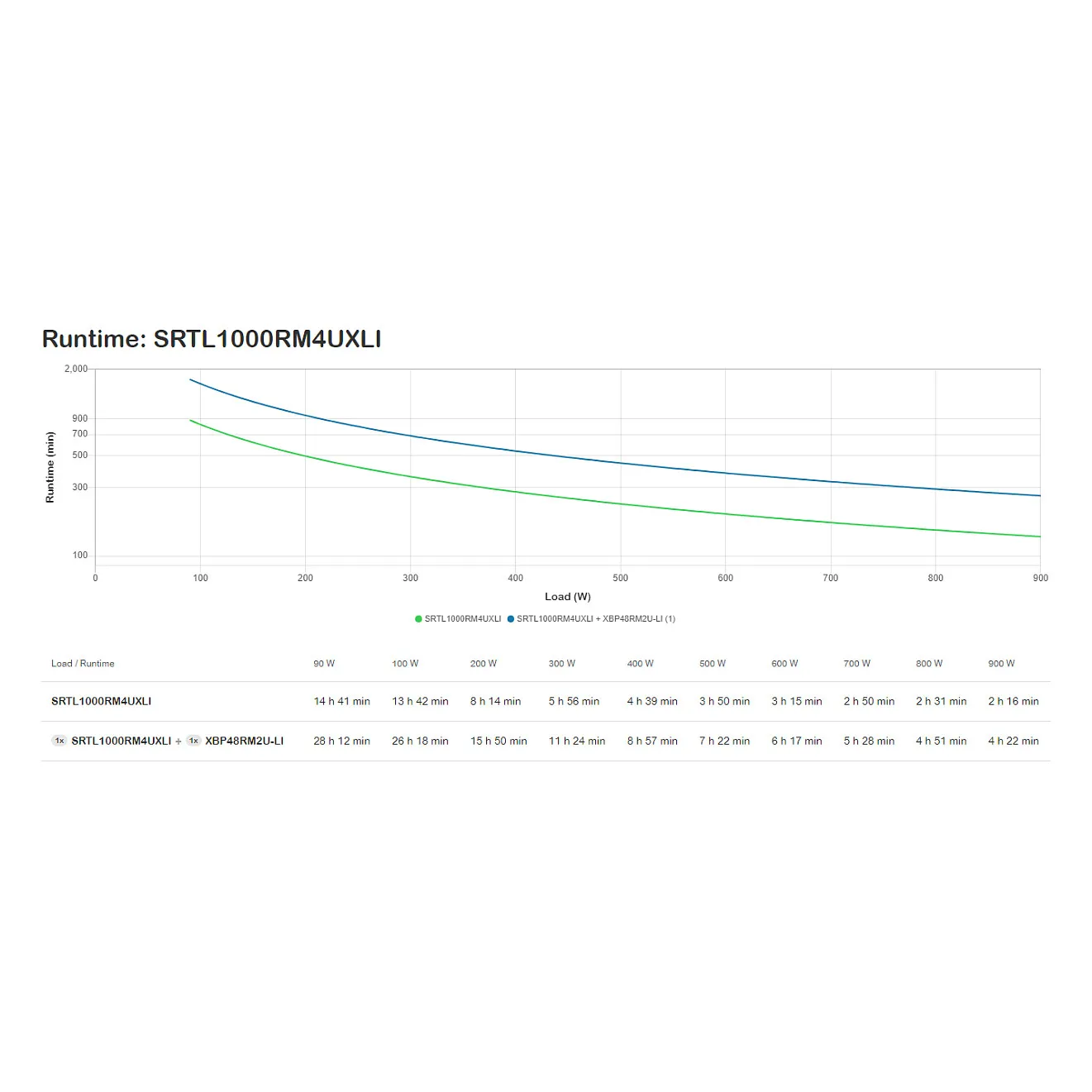

Typical backup time at full load: 136 min
Typical backup time at half load: 252 min
Battery life (max): 10 year(s)
Design

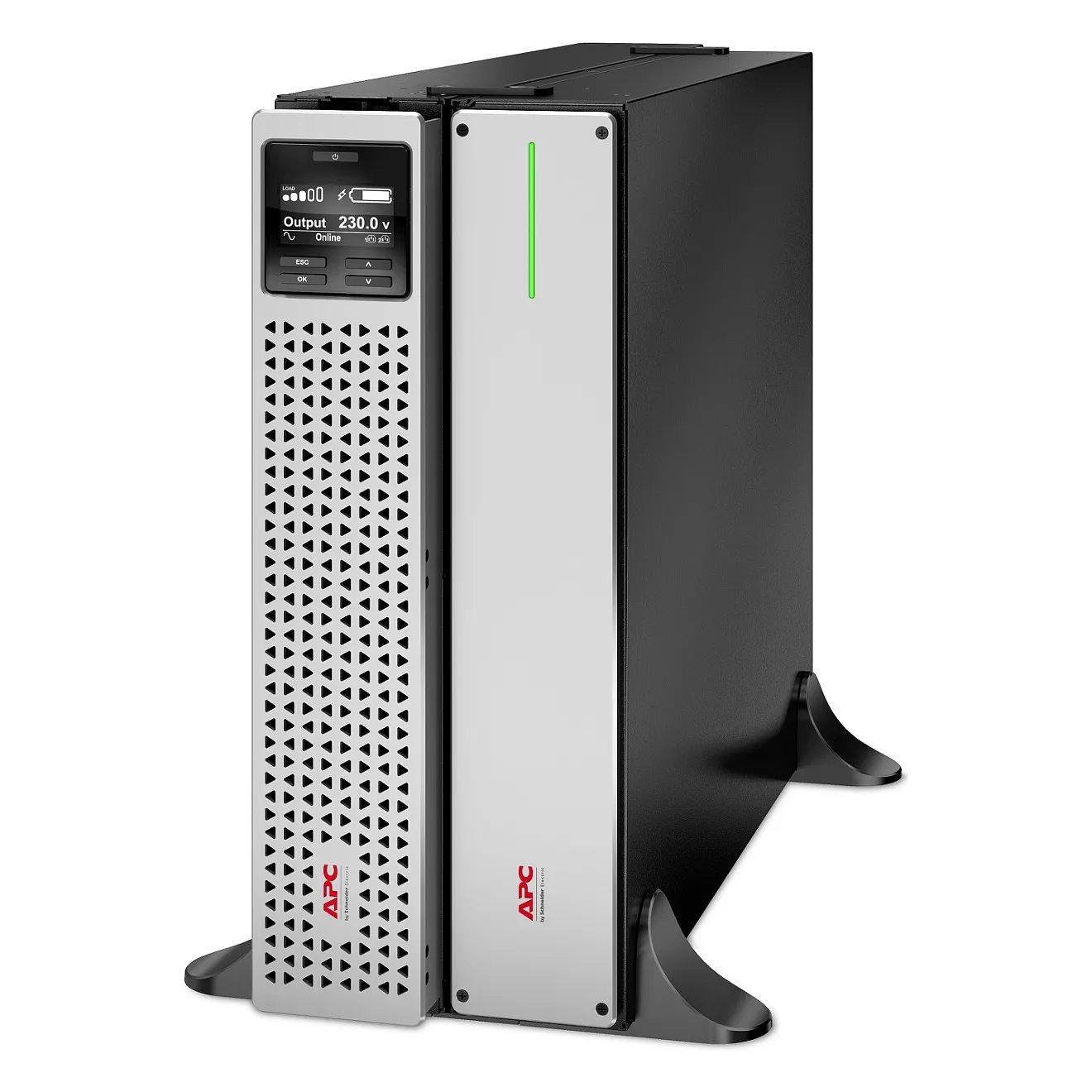

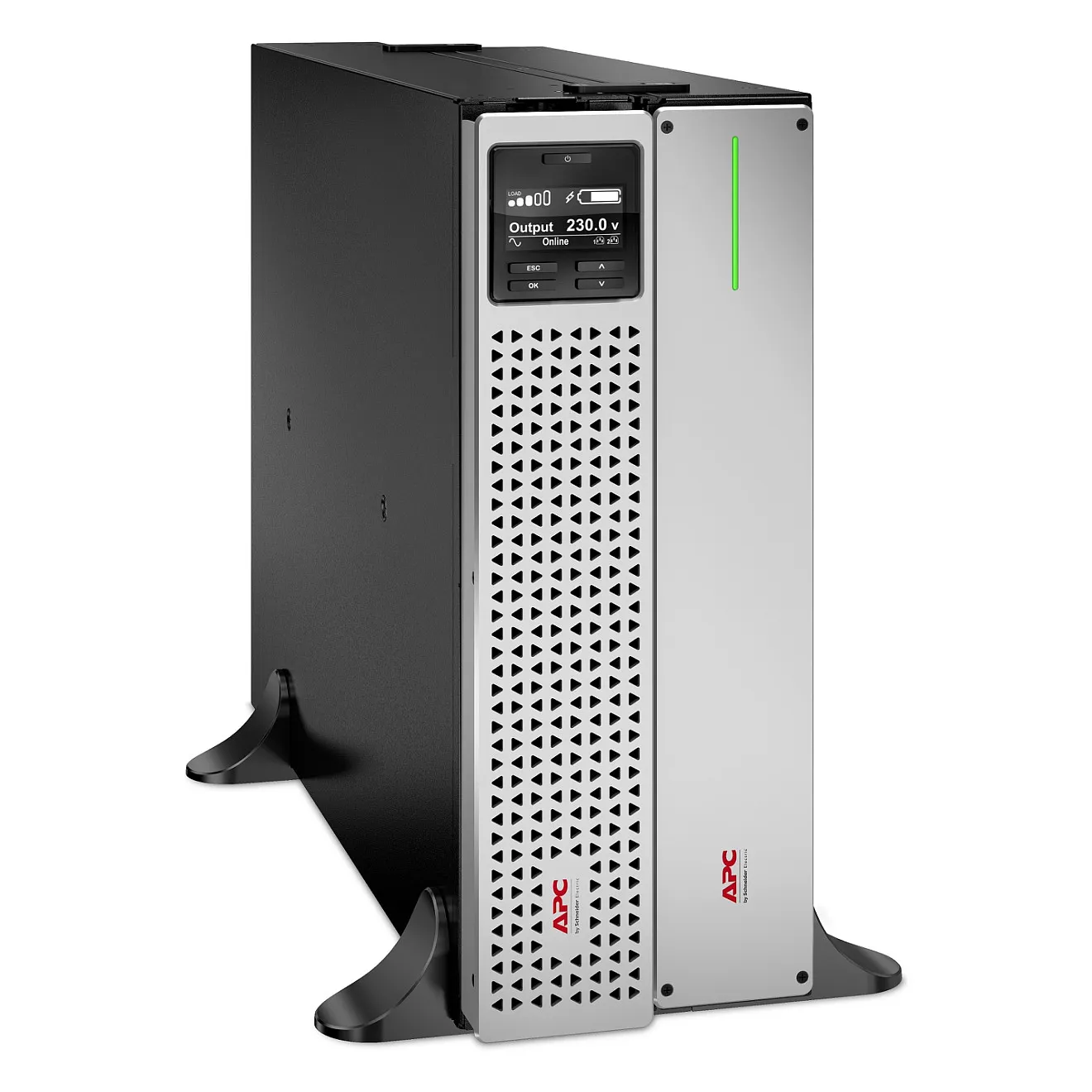

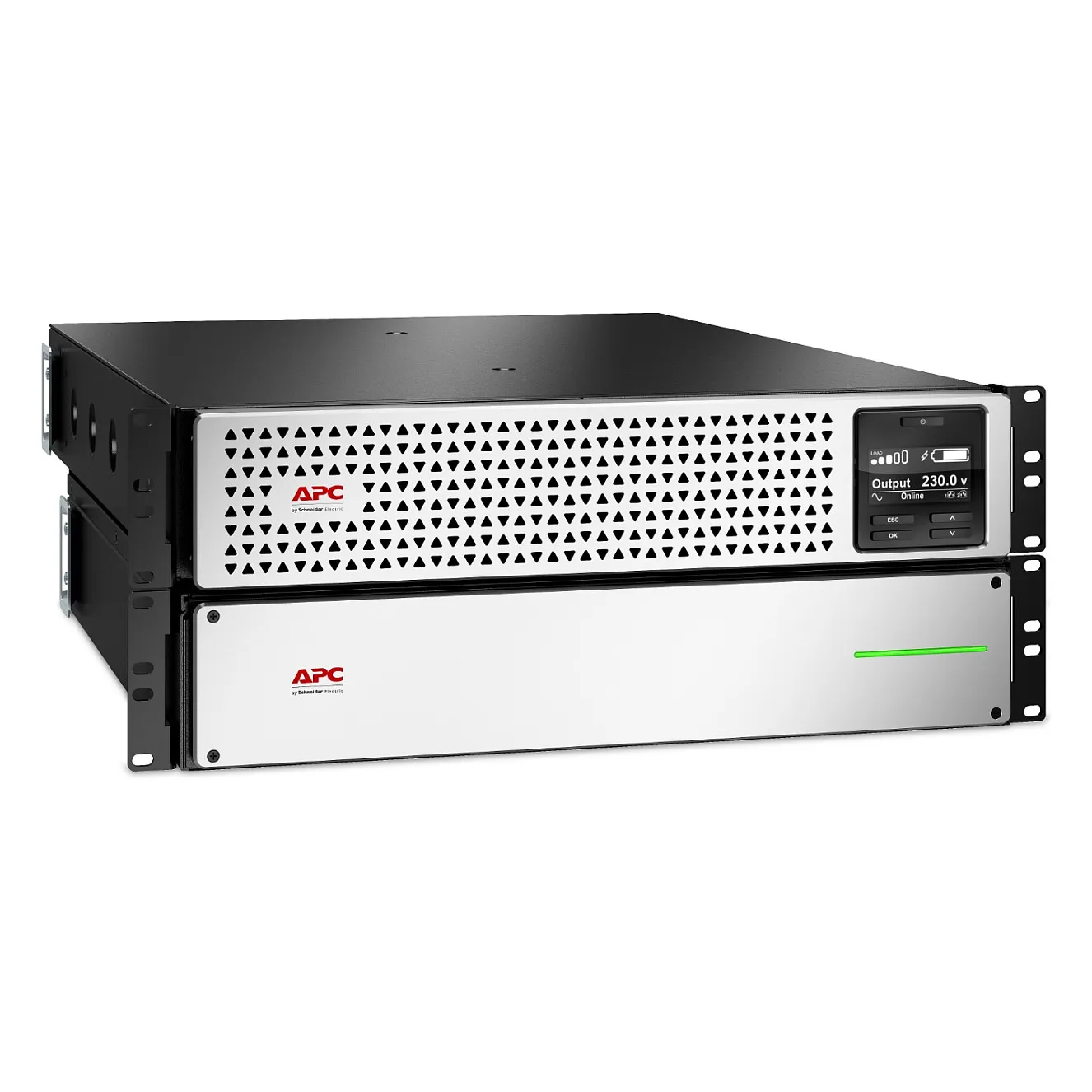

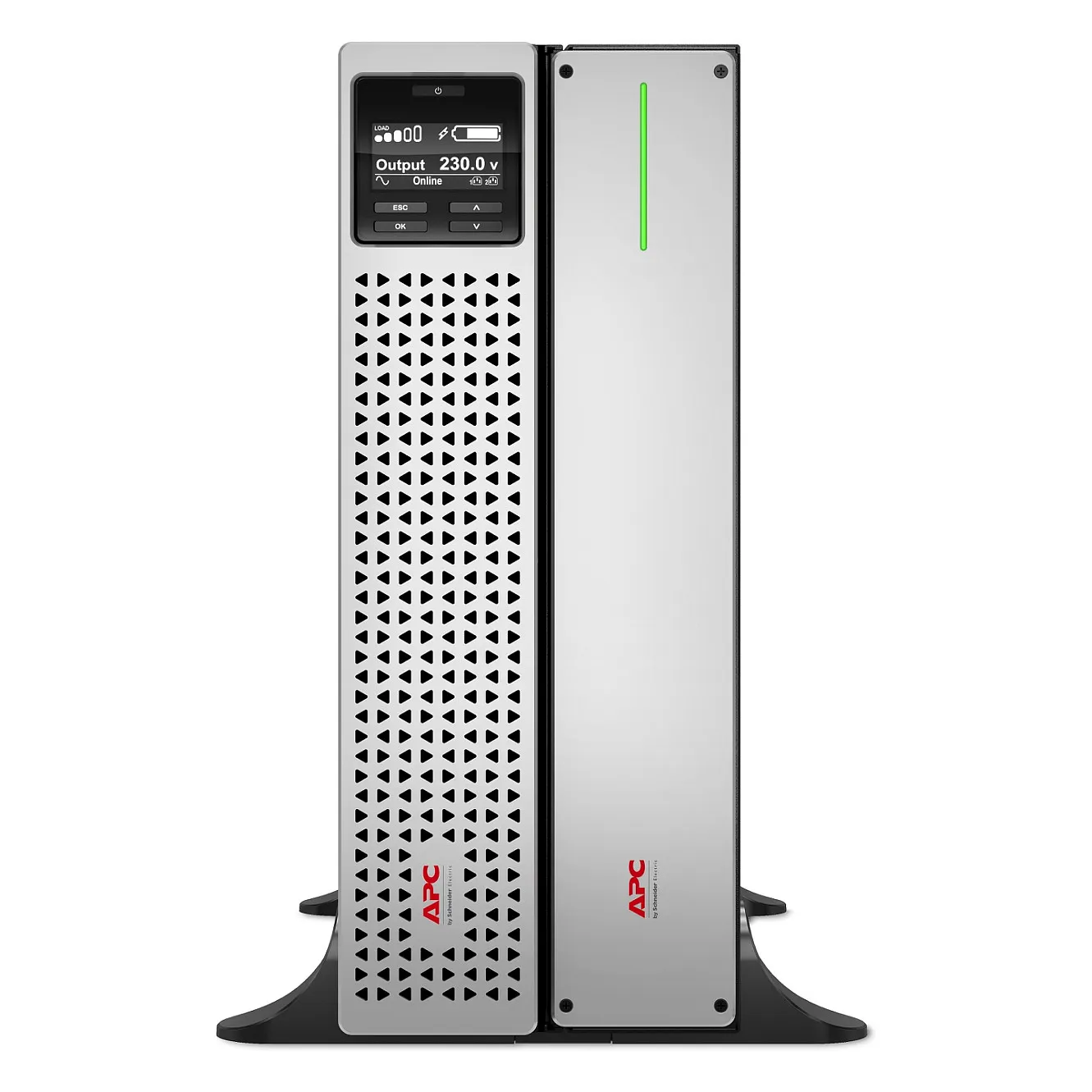

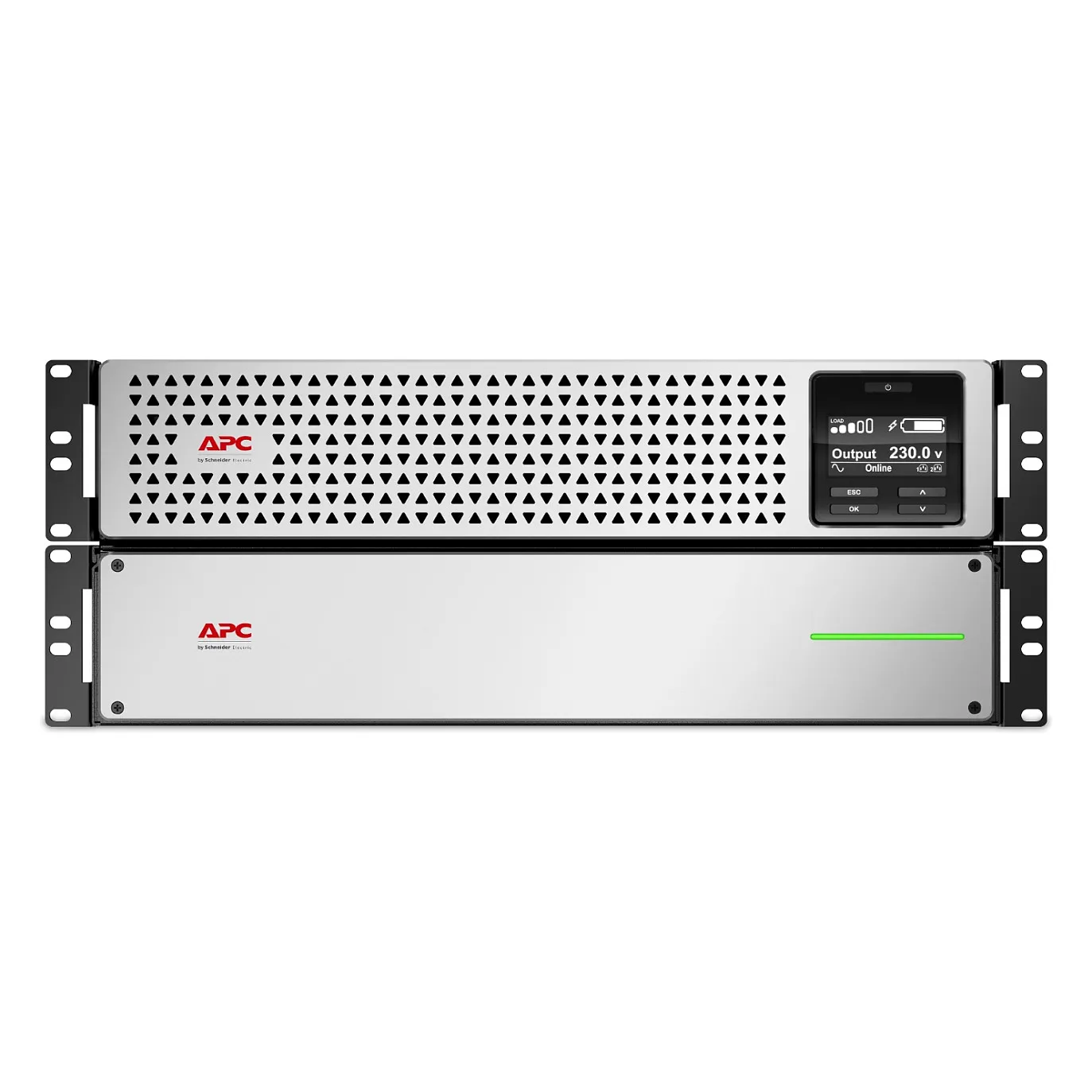

Form factor: Rackmount/Tower
Rack capacity: 4U
Cable length: 1.83 m
Feature: Modular
Product colour: Black, Silver
Control type: Buttons
Display type: LCD
International Protection (IP) code: IP20
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -15 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3048 m
Non-operating altitude: 0 – 15240 m
Certificates
Compliance certificates: CE, RoHS
Certification: RoHS, CE
Packaging content
Feature: Rack mount kit
Sustainability
Sustainability certificates: Green Premium
Weight & dimensions
Width: 432 mm
Depth: 59 mm
Height: 171 mm
Weight: 40.7 kg
