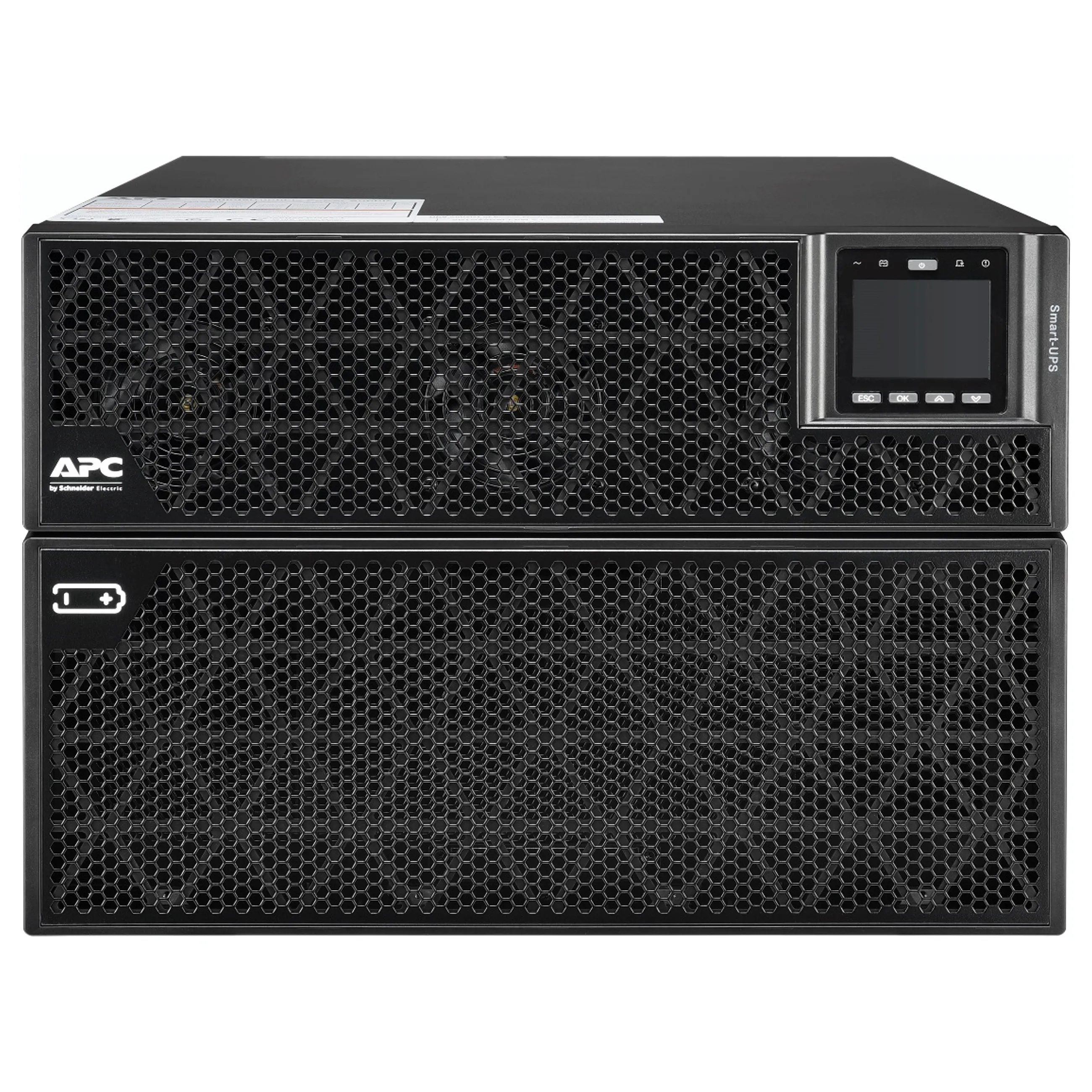

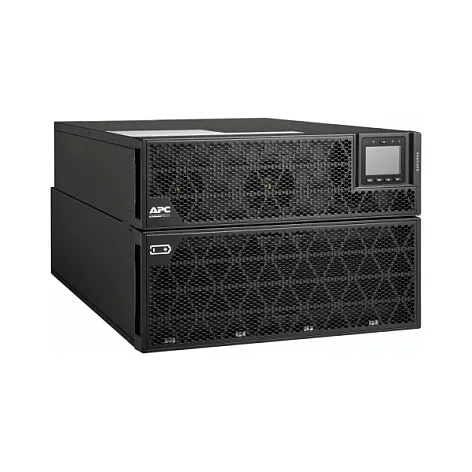

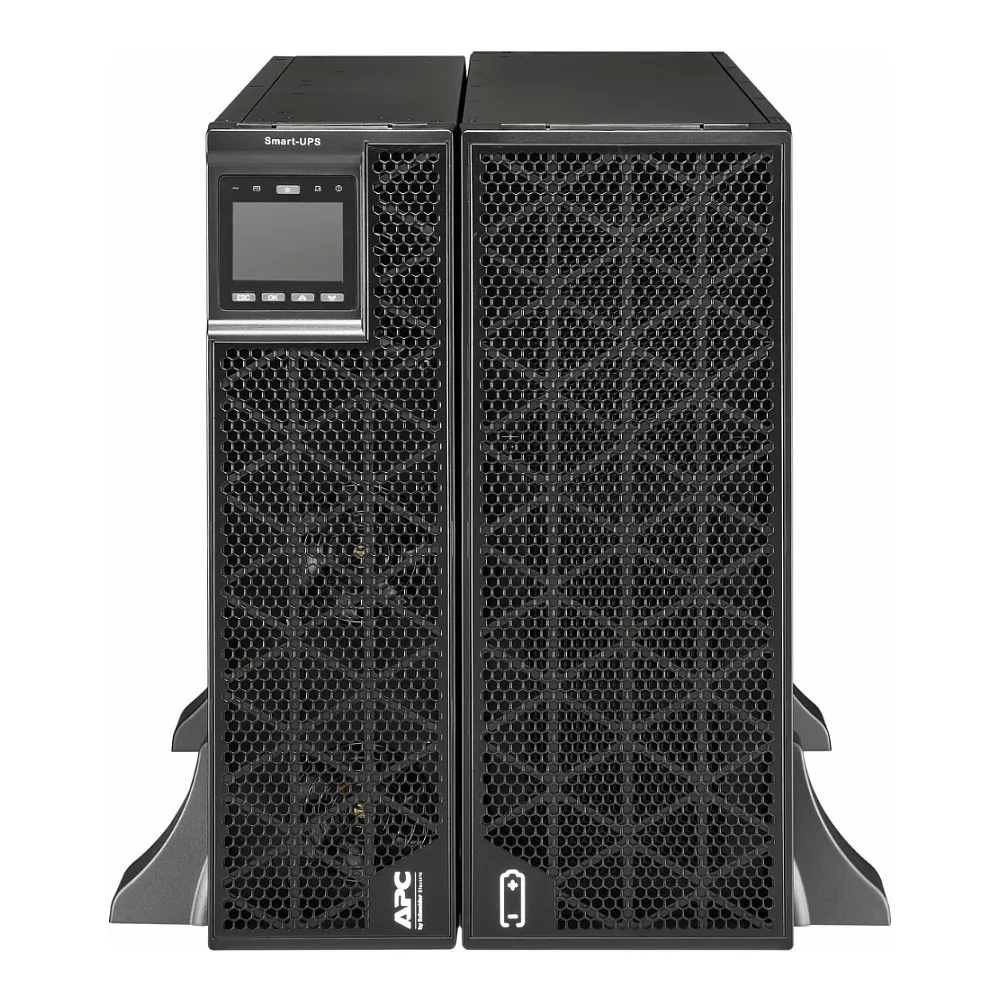

APC Smart-UPS On-Line, 15kVA/15kW, Rack/Tower, 230V/380V…415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit. UPS topology: Double-conversion (Online), Output power capacity: 15 kVA, Output power: 15000 W. AC outlet types: Hard Wire 5-wire (3PH + N + G), Power plug: Hardwire, Serial interface type: RS-232. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 192 V, Battery life (max): 5 year(s). Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 7U. Cables included: RS-232

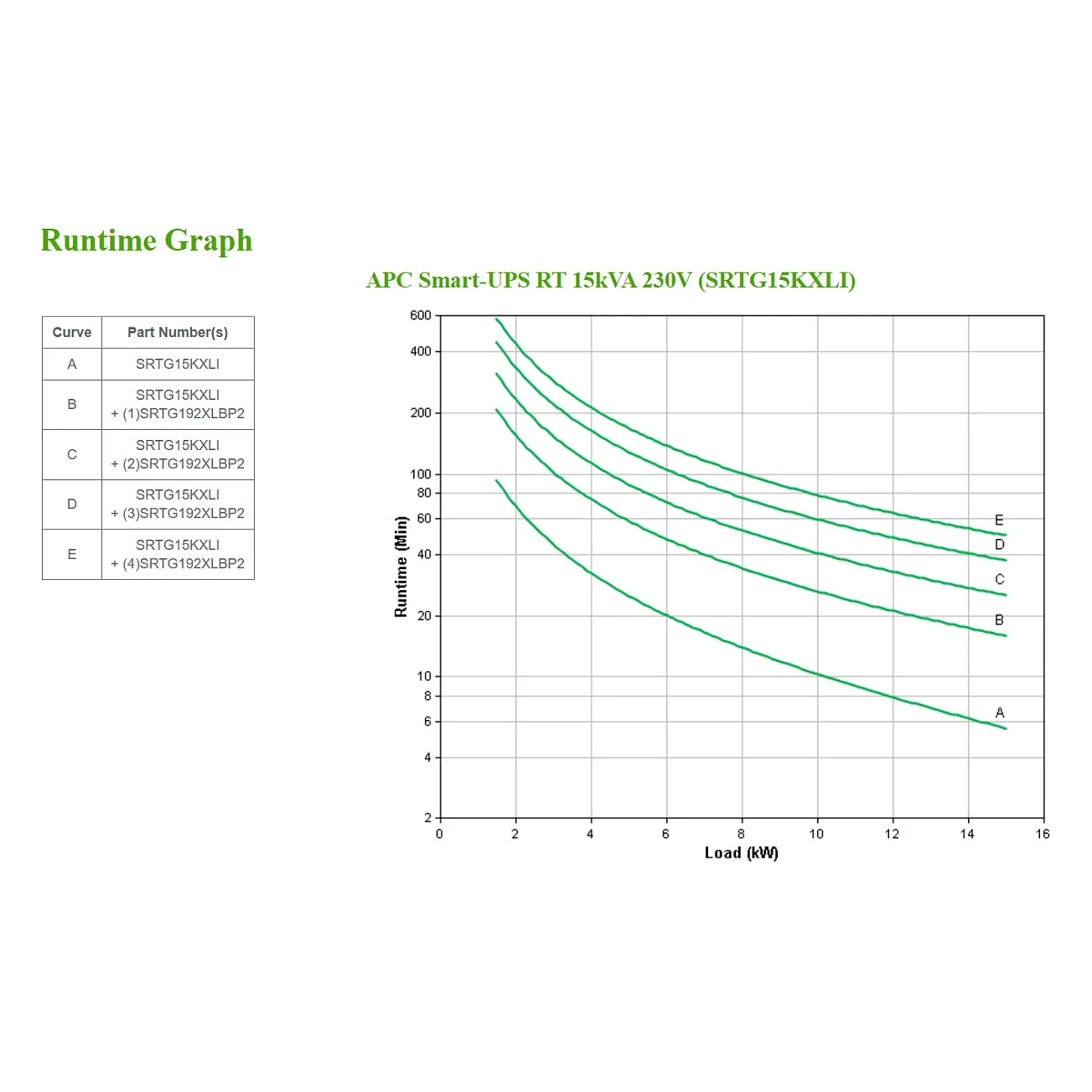

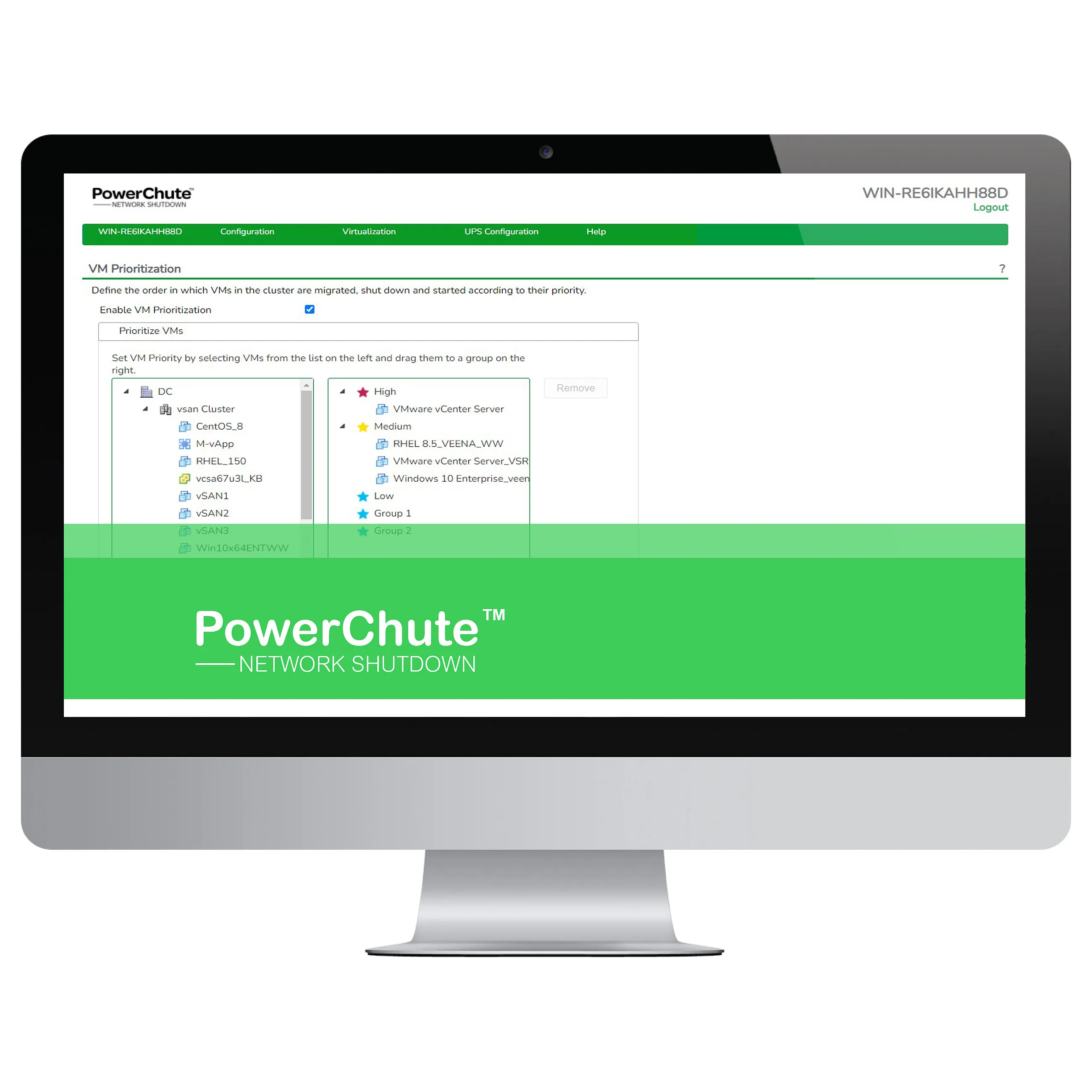

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 15kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E) and 5-wire(3P+N+E) inputs, 3-wire(1P+N+E) and 5-wire(3P+N+E) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTGRK1 rail kit sold separately.
Features
UPS topology: Double-conversion (Online)
Output power capacity: 15 kVA
Output power: 15000 W
Waveform: Sine
Input operation voltage (min): 160 V
Input operation voltage (max): 415 V
Input frequency: 40/70 Hz
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Output frequency regulation: 0.1 Hz
Maximum current: 66 A
Number of output phases: 3
Efficiency: 93%
Crest factor: 3:1
Feature: Emergency Power Off (EPO)
Input current Total Harmonic Distortion (THD): 5%
Noise level: 58 dB
Feature: Surge protection
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
Feature: Auto-restart
Ports & interfaces

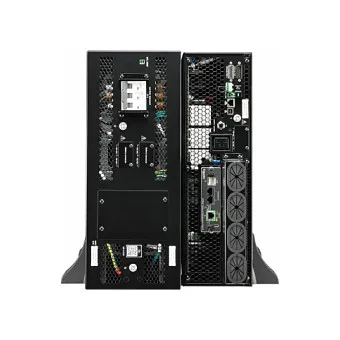

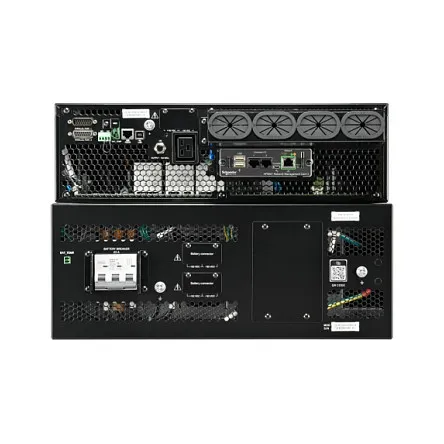

AC outlet types: Hard Wire 5-wire (3PH + N + G)
Power plug: Hardwire
Feature: USB port
Feature: Serial interface
Serial interface type: RS-232
Feature: SmartSlot
Battery
Battery technology: Sealed Lead Acid (VRLA)
Battery voltage: 192 V
Battery life (max): 5 year(s)
Battery recharge time: 4 h
Feature: Cold start
Design

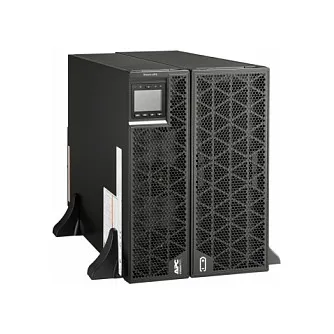

Form factor: Rackmount/Tower
Rack capacity: 7U
Product colour: Black

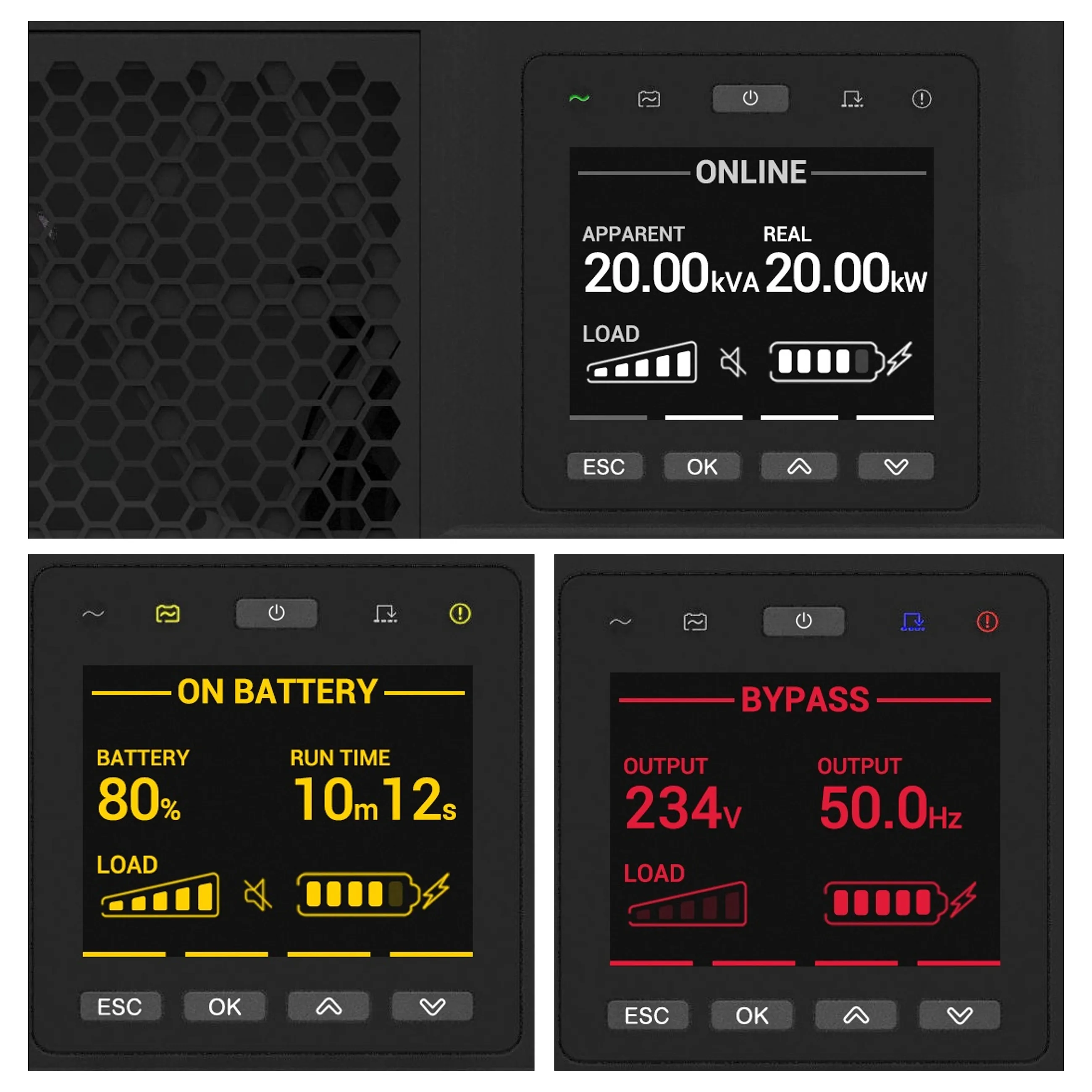

Display type: LCD
LED indicators: Yes
International Protection (IP) code: IP20
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -15 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 2011.68 m
Non-operating altitude: 0 – 15240 m
Packaging content
Cables included: RS-232
Feature: Management card included
Weight & dimensions
Width: 440 mm
Depth: 700 mm
Height: 306 mm
Weight: 142.5 kg
Packaging data
Package width: 590 mm
Package depth: 790 mm
Package height: 535 mm
Package weight: 156.7 kg
Logistics data
Harmonized System (HS) code: 85078000
