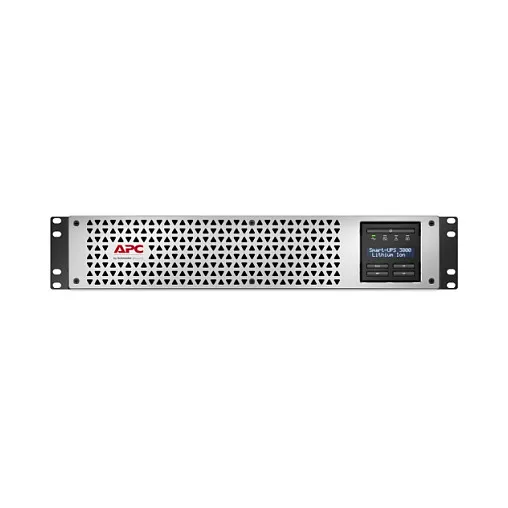

APC Smart-UPS Li-ion SMTL3000RMI2UC – 8xC13 & 1xC19, Rackmount 2U, SmartConnect, 3000VA. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Lithium-Ion (Li-Ion). Form factor: Rackmount, Product colour: Black, Grey, Rack capacity: 2U. Compliance certificates: RoHS

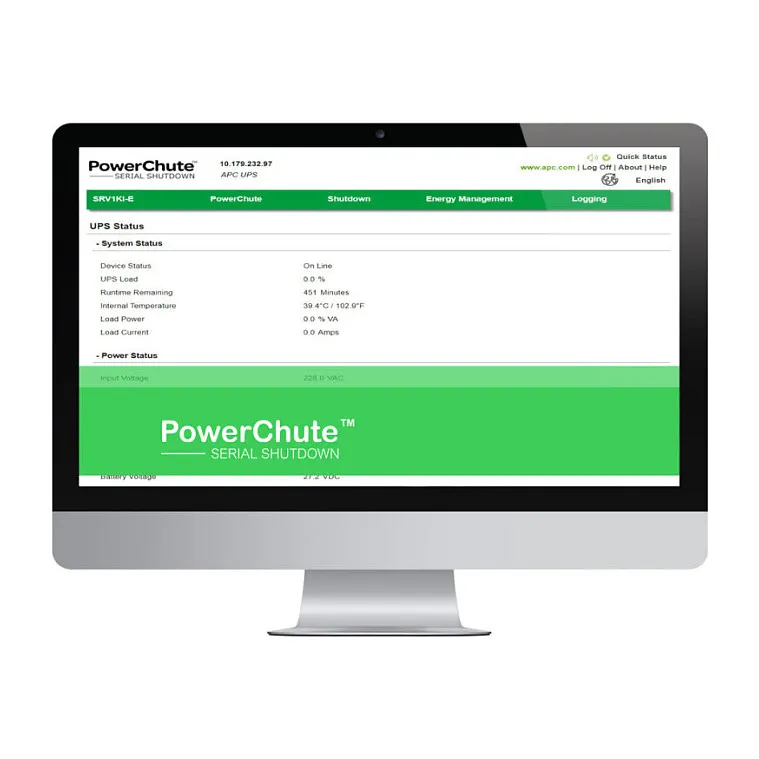

As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.
Safety
In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.
Lithium-Ion
The APC SMTL3000RMI2UC uses a Li-Ion battery, which provides unique advantages:
– Longer lifespan. A Li-Ion battery can last up to 10 years and therefore makes the UPS truly maintenance-free.
– Can handle more than 10x as many charge cycles as a lead acid battery (VRLA).
– Smaller and lighter. Li-Ion batteries are smaller and weigh approximately 65% less than VRLA batteries, which saves space and simplifies installation.
– Better battery performance than VRLA at ambient temperatures above 25° C. With VRLA, this is at the expense of battery life (>5% decrease per degree increase).
– 5-year factory warranty. Standard long warranty on the UPS including the battery.
– Eliminate the costs of interim battery replacement; labor, material, shipping and recycling.
– Lower TCO: The above advantages reduce the total costs over the entire life of the UPS by up to 47% (compared to a UPS with VRLA battery.)
– Faster charging means full protection sooner.
– Perfect for tight spaces, due to the limited depth of the UPS it fits easily in wall racks and small cabinets.
SmartConnect

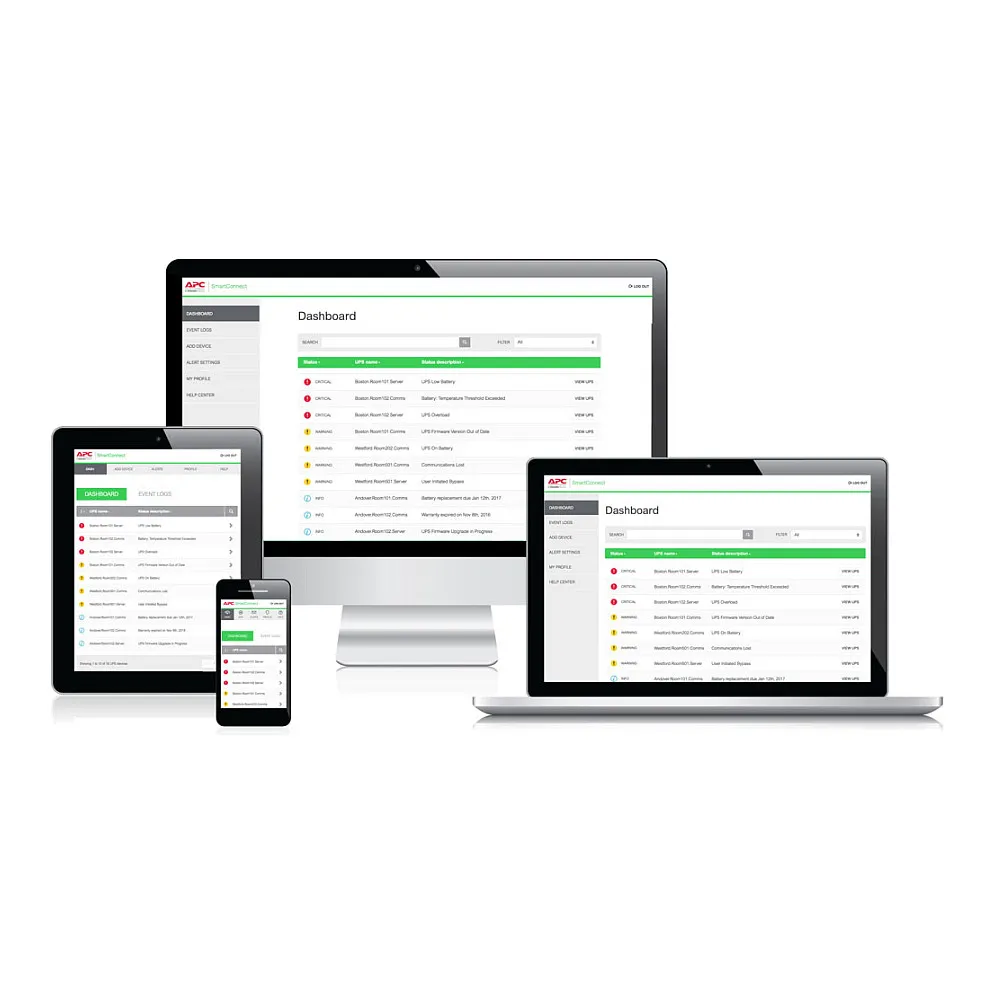

Out-of-box remote UPS monitoring, free for a 6-month trial period. Using the SmartConnect Ethernet port, you can easily connect the Smart-UPS to your network and monitor it remotely via the secure APC SmartConnect cloud-based web portal*. In addition, the UPS can always be monitored via this port via EcoStruxure IT Expert (SFTWES1-DIGI).
* Extend access to SmartConnect via the following licenses:
1 year Standard Plan: ERWPMON1-1Y-DIGI
3 year Standard Plan: ERWPMON1-3Y-DIGI
1 year Advanced Plan: ERWPLUS1-1Y-DIGI
3 year Advanced Plan: ERWPLUS1-3Y-DIGI
Network Management Card
If you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, the shutdown moment and the order in which this happens can even be differentiated.
Ease of use
By means of physical buttons and an LCD screen it is possible to set and read the basic functionalities.
Battery life

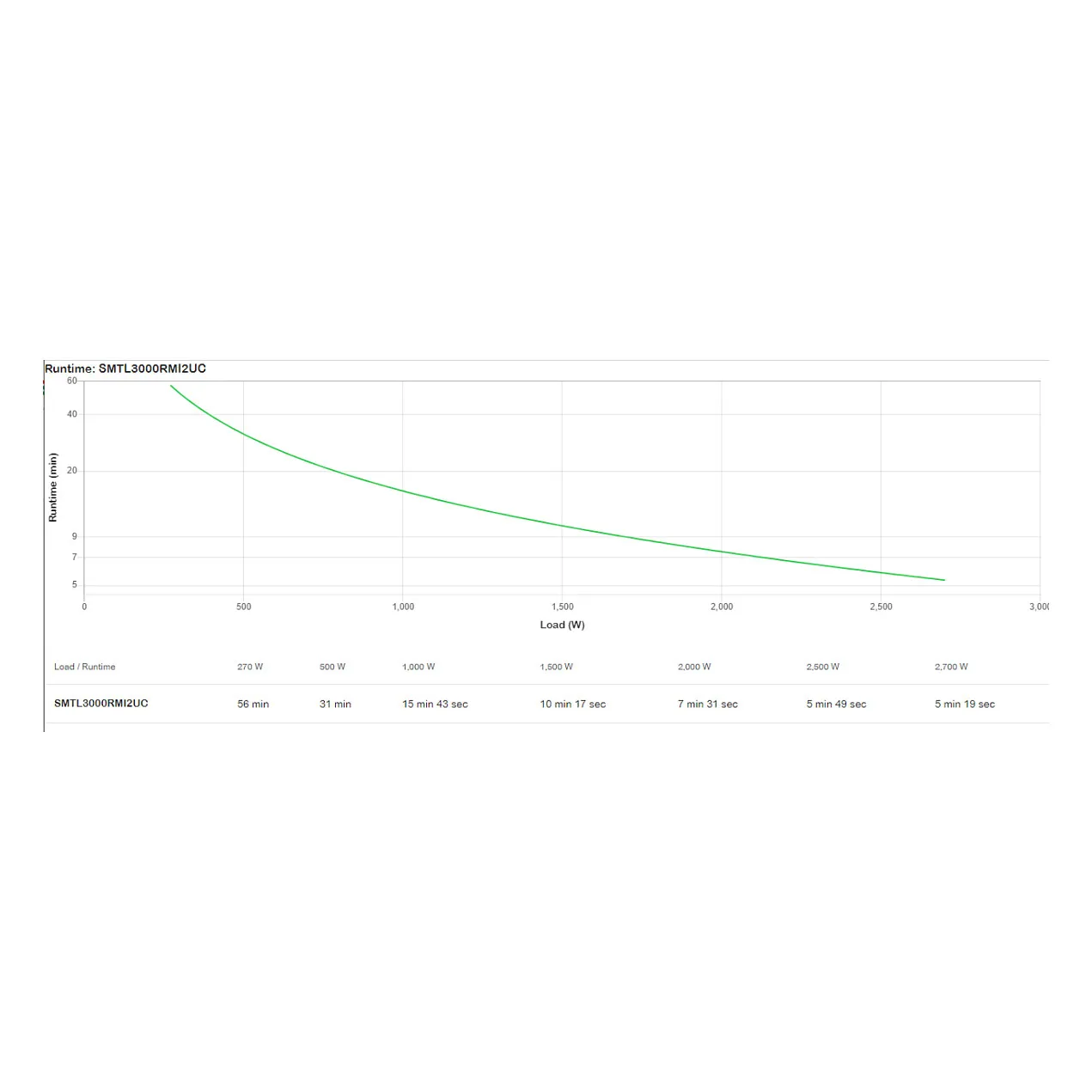

You can easily read the expected battery life in the runtime graph, which you can find between the product images. This way you can easily see how long the UPS will provide emergency power at a certain load.
Extend the lifespan
The internal battery cartridge (APCRBC174-LI) can be easily, safely and independently replaced by the user. This without having to switch off the APC UPS or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.
Mounting
The UPS is equipped with mounting brackets with which you can easily mount it to the 4 uprights in a 19 inch rack, wall or patch cabinet.
Warranty extension
The factory warranty of the SMTL3000RMI2UC is 5 years and can be extended with the APC service pack (WEXTWAR1YR-SPL-14) in steps of 1 year, up to a total maximum of 7 years.
Switched Outlet Groups: Remote reboot and phased start-up
Thanks to the Switched Outlet Groups it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.
It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If SmartConnect Advanced (ERWPLUS1-1Y-DIGI), a UPS with SmartConnect port + Ecostruxure IT Expert (SFTWES1-DIGI) or a network card (ap9640) in combination with Ecostruxure IT Expert (SFTWES1-DIGI) are used, this can even be done remotely.

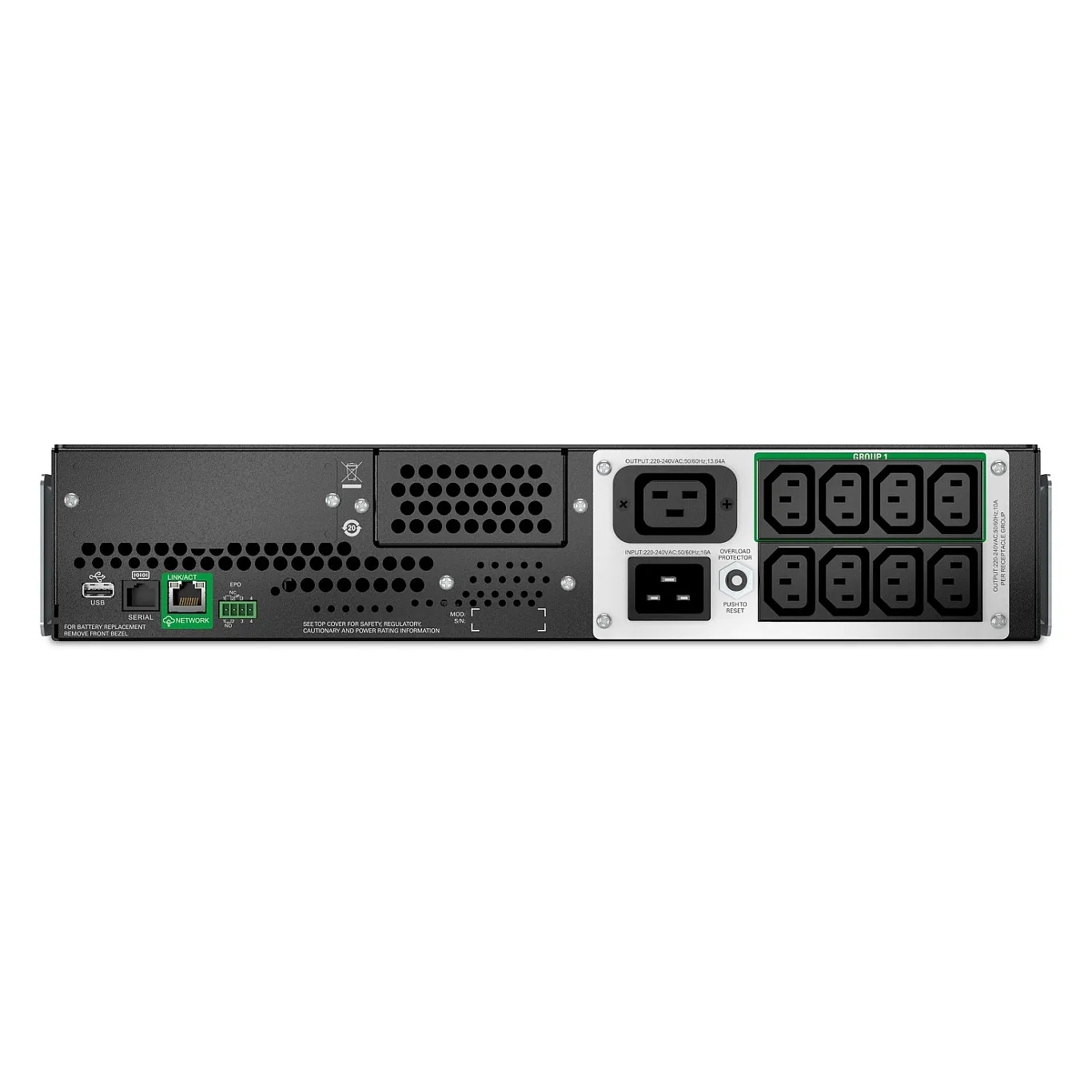

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 3000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 8x IEC 320 C13 and 1x IEC 320 C19 outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
UPS topology: Line-Interactive
Output power capacity: 3 kVA
Output power: 2700 W
Waveform: Sine
Input operation voltage (min): 160 V
Input operation voltage (max): 286 V
Input frequency: 50/60 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Surge energy rating: 739 J
Response time: 6 ms
Crest factor: 3:1
Feature: Emergency Power Off (EPO)
Noise level: 55 dB
Feature: Audible alarm(s)
Feature: Auto-restart
Ports & interfaces
AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 9 AC outlet(s)
Feature: USB port
Feature: Serial interface
Serial ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: SmartSlot
Feature: SmartConnect port
Battery
Battery technology: Lithium-Ion (Li-Ion)
Feature: Hot-swap battery
Feature: Automatic battery test
Design
Form factor: Rackmount
Rack capacity: 2U
Product colour: Black, Grey
Control type: Touch
Display type: LCD
LED indicators: Yes
International Protection (IP) code: IP20
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -15 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3048 m
Non-operating altitude: 0 – 7620 m
Certificates
Compliance certificates: RoHS
Packaging content
Feature: Rack mount kit
Cables included: RJ-45, USB cable
Sustainability
Feature: Sustainability compliance
Weight & dimensions
Width: 432 mm
Depth: 683 mm
Height: 86 mm
Weight: 33.3 kg
Packaging data
Package width: 600 mm
Package depth: 980 mm
Package height: 458 mm
Package weight: 41.5 kg
Other features
Nominal output voltage: 230 V
Nominal input voltage: 230 V
