APC Smart-UPS RT 2200VA 230V – Marine. Output power capacity: 2.2 kVA, Output power: 1540 W, Waveform: Sine. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 10 AC outlet(s). Battery replacement accessibility: End-user, Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 2.5 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 3U. Compliance certificates: RoHS, REACH, WEEE, Certification: CE; DNV; KCC

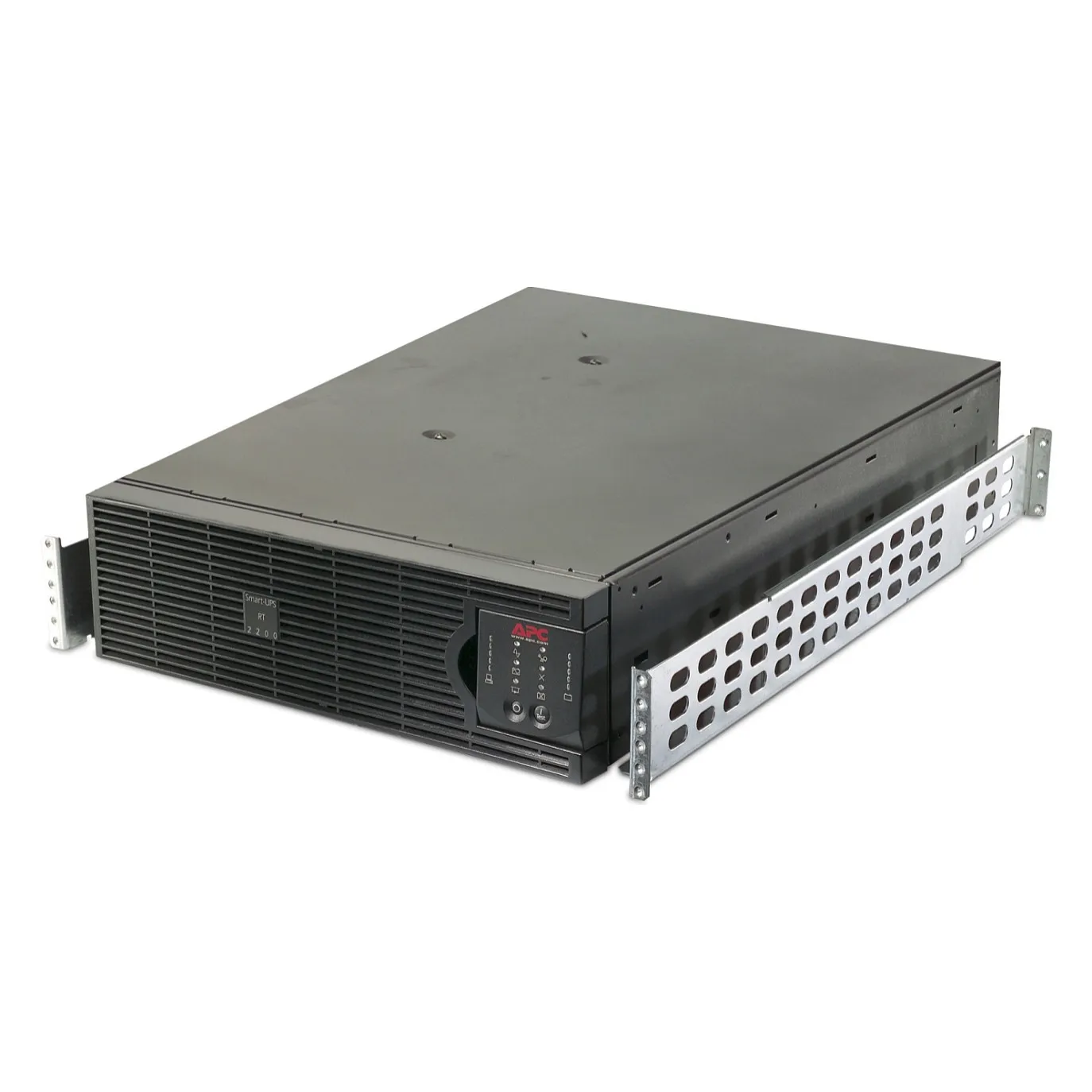

The APC Smart-UPS RT is an online UPS with a power rating of 2200VA and output power capacity of 1540 watts. It includes multiple output connections such as IEC 60230 C19, IEC 60230 C13, and IEC Jumpers. This model is includes a lead-acid battery and is suitable for marine applications. The UPS features double conversion online technology and sine wave output.
Features
Output power capacity: 2.2 kVA
Output power: 1540 W
Waveform: Sine
Input operation voltage (min): 100 V
Input operation voltage (max): 280 V
Input frequency: 50/60 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Surge energy rating: 555 J
Efficiency: 92%
Crest factor: 3:1
Feature: Emergency Power Off (EPO)
Output voltage Total Harmonic Distortion (THD): 3%
Noise level: 55 dB
Feature: Audible alarm(s)
Ports & interfaces
AC outlet types: C13 coupler, C19 coupler
AC outlets quantity: 10 AC outlet(s)
Number of output IEC jumpers: 2
Ethernet LAN (RJ-45) ports: 1
Battery
Battery replacement accessibility: End-user
Battery technology: Sealed Lead Acid (VRLA)
Battery recharge time: 2.5 h
Replacement battery cartridge: APCRBC140
Design
Form factor: Rackmount
Rack capacity: 3U
Cable length: 2.5 m
Product colour: Black
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Storage temperature (T-T): -15 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Technical details
Packaging recycled materials: Recycled cardboard
SCIP number: 4282bd22-a353-4f82-bb5c-97bbd7f1d1e9
Feature: Proposition 65
Preferred mounting position: lower
Certificates
Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: RoHS, REACH, WEEE
Certification: CE; DNV; KCC
Weight & dimensions
Width: 130 mm
Depth: 660 mm
Height: 432 mm
Weight: 54.5 kg
Packaging data
Package weight: 63.6 kg
Logistics data
Customs product code (TARIC): 8504409590
Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 4342.273094382711
Country of origin: Philippines
Other features
Input connection type: BS1363A British; IEC 60320 C20; Schuko CEE 7 / EU1-16P
Dimensions (WxDxH): 130 x 660 x 432 mm
Nominal output voltage: 230 V
Nominal input voltage: 230 V
Output connection type: 8 IEC 60320C13; 2 IEC Jumpers; 2 IEC 60320C19
Output voltage: 230 V
Mounting: front
Voltage: 230 V
Package dimensions (WxDxH): 603 x 980 x 347 mm
Output power capacity: 2.2 kVA
Output power: 1540 W
Waveform: Sine
Input operation voltage (min): 100 V
Input operation voltage (max): 280 V
Input frequency: 50/60 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Surge energy rating: 555 J
Efficiency: 92%
Crest factor: 3:1
Feature: Emergency Power Off (EPO)
Output voltage Total Harmonic Distortion (THD): 3%
Noise level: 55 dB
Feature: Audible alarm(s)
Ports & interfaces
AC outlet types: C13 coupler, C19 coupler
AC outlets quantity: 10 AC outlet(s)
Number of output IEC jumpers: 2
Ethernet LAN (RJ-45) ports: 1
Battery
Battery replacement accessibility: End-user
Battery technology: Sealed Lead Acid (VRLA)
Battery recharge time: 2.5 h
Replacement battery cartridge: APCRBC140
Design
Form factor: Rackmount
Rack capacity: 3U
Cable length: 2.5 m
Product colour: Black
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Storage temperature (T-T): -15 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Technical details
Packaging recycled materials: Recycled cardboard
SCIP number: 4282bd22-a353-4f82-bb5c-97bbd7f1d1e9
Feature: Proposition 65
Preferred mounting position: lower
Certificates
Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: RoHS, REACH, WEEE
Certification: CE; DNV; KCC
Weight & dimensions
Width: 130 mm
Depth: 660 mm
Height: 432 mm
Weight: 54.5 kg
Packaging data
Package weight: 63.6 kg
Logistics data
Customs product code (TARIC): 8504409590
Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 4342.273094382711
Country of origin: Philippines
Other features
Input connection type: BS1363A British; IEC 60320 C20; Schuko CEE 7 / EU1-16P
Dimensions (WxDxH): 130 x 660 x 432 mm
Nominal output voltage: 230 V
Nominal input voltage: 230 V
Output connection type: 8 IEC 60320C13; 2 IEC Jumpers; 2 IEC 60320C19
Output voltage: 230 V
Mounting: front
Voltage: 230 V
Package dimensions (WxDxH): 603 x 980 x 347 mm
