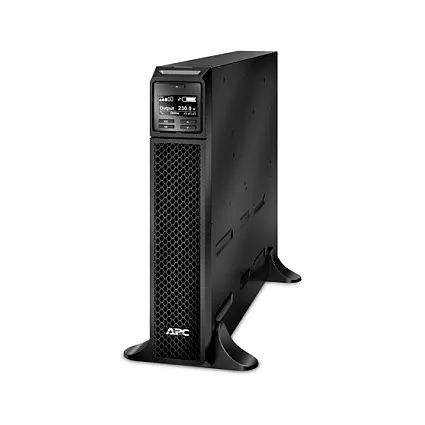

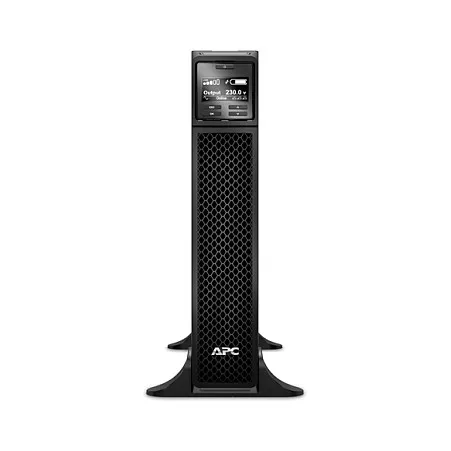

APC Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 367 VAh, Typical backup time at full load: 3.9 min. Form factor: Rackmount/Tower, Product colour: Black, Cable length: 2.44 m. Compliance certificates: RoHS, Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH

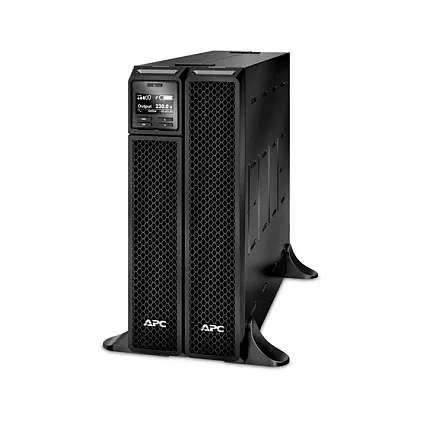

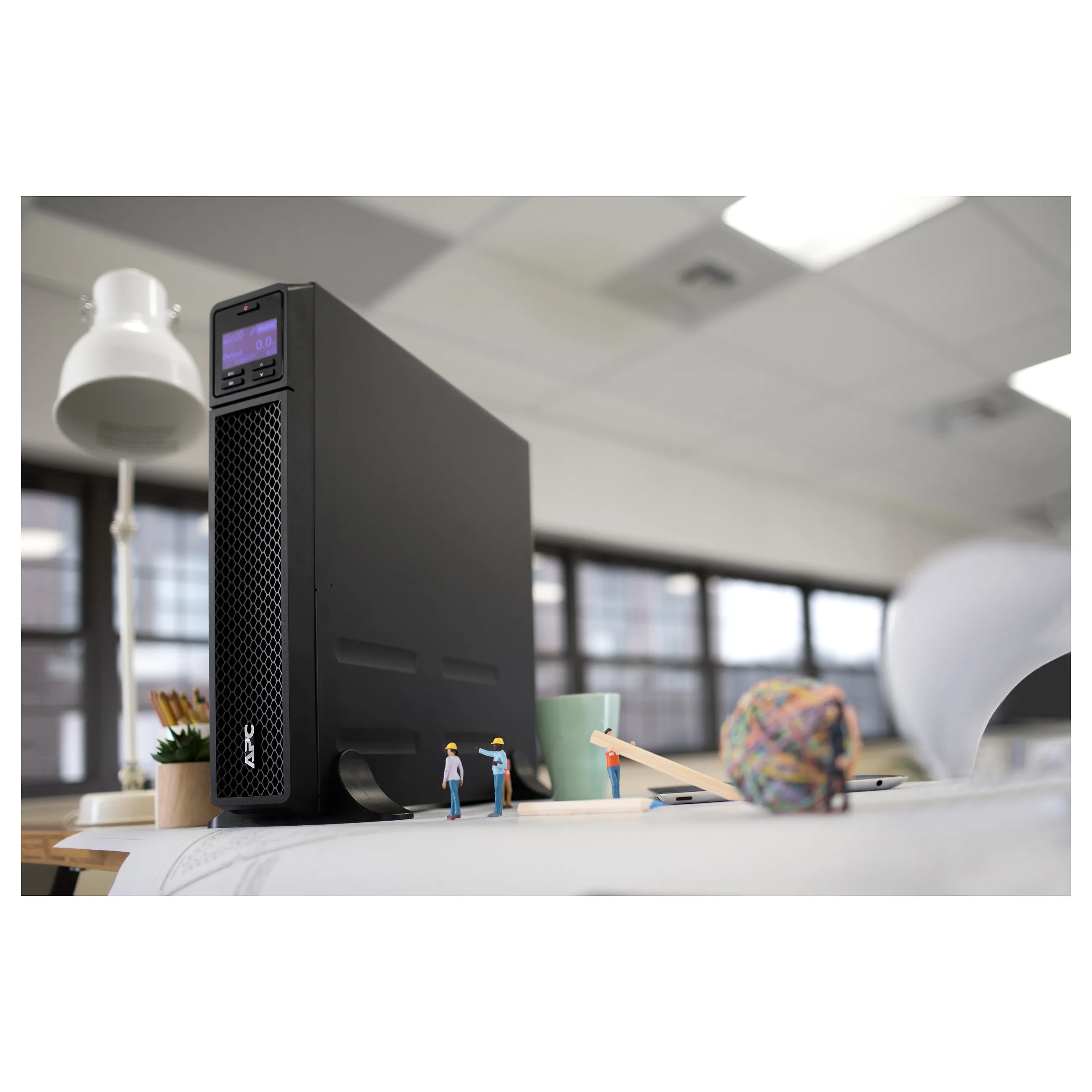

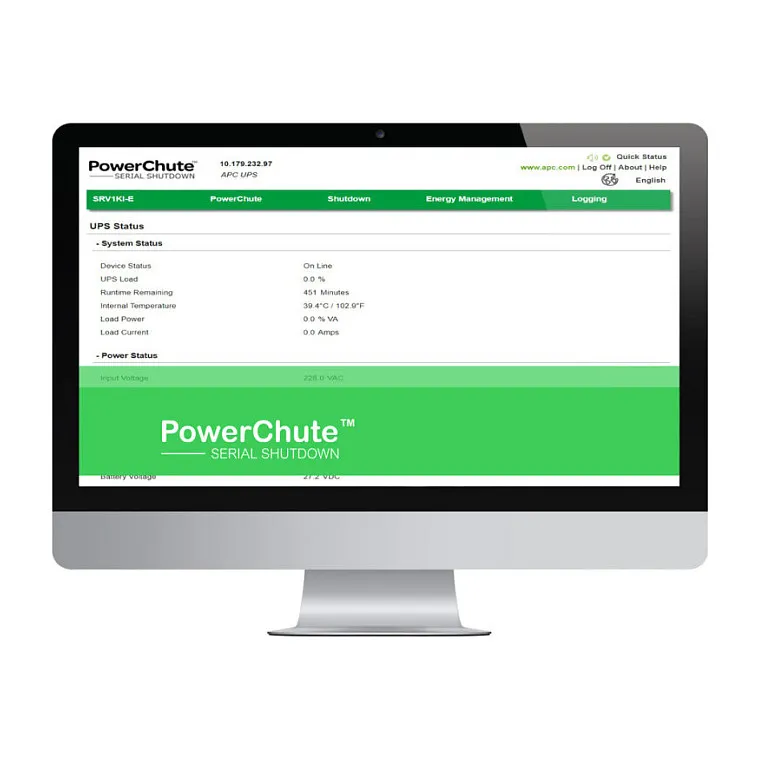

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Features
UPS topology: Double-conversion (Online)
Output power capacity: 2.2 kVA
Output power: 1980 W
Waveform: Sine
Input operation voltage (min): 100 V
Input operation voltage (max): 275 V
Input frequency: 40/70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Surge energy rating: 340 J
Efficiency: 92.2%
Crest factor: 3:1
Feature: Emergency Power Off (EPO)
Noise level: 55 dB
Feature: Surge protection
Feature: Audible alarm(s)
Feature: Web-based management
Feature: Auto-restart
Ports & interfaces

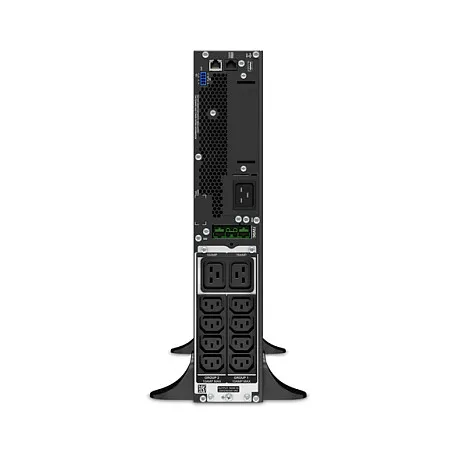

AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 10 AC outlet(s)
Number of output IEC jumpers: 2
Feature: USB port
Feature: Serial interface
Serial interface type: RJ-45
Feature: SmartSlot
Battery
Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 367 VAh
Number of batteries supported: 1

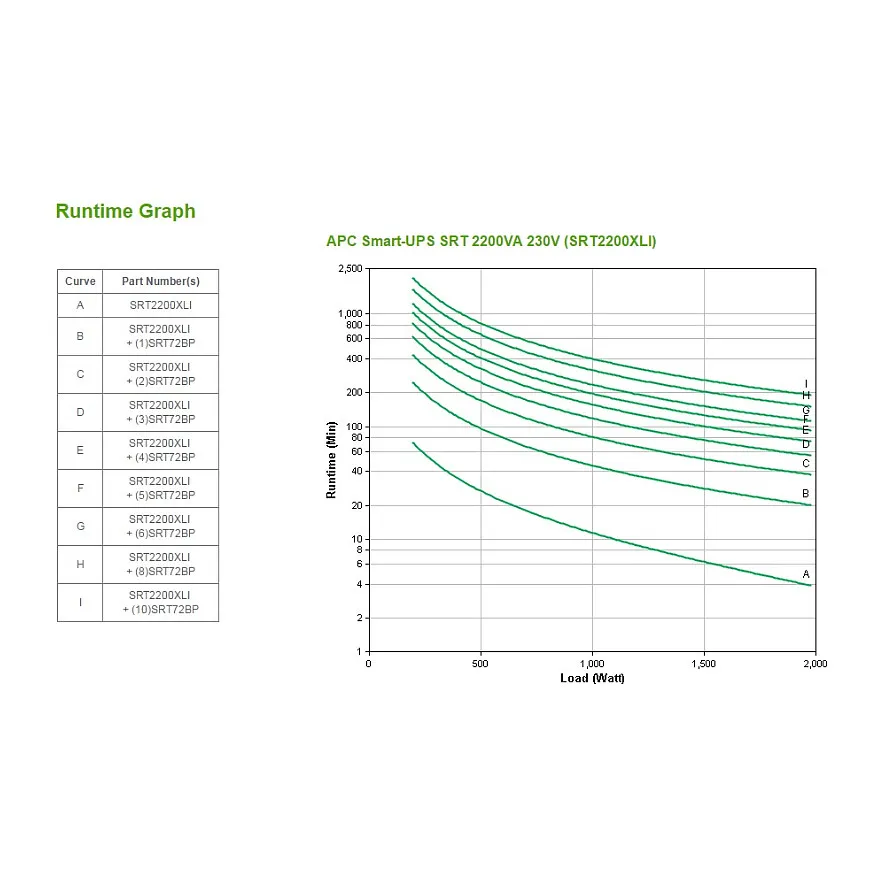

Typical backup time at full load: 3.9 min
Typical backup time at half load: 11.6 min
Battery life (max): 5 year(s)
Battery recharge time: 3 h
Feature: Hot-swap battery
Feature: Automatic battery test
Feature: Cold start
Design
Form factor: Rackmount/Tower
Cable length: 2.44 m
Product colour: Black

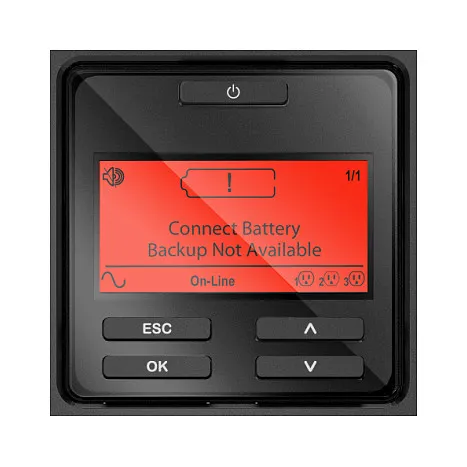

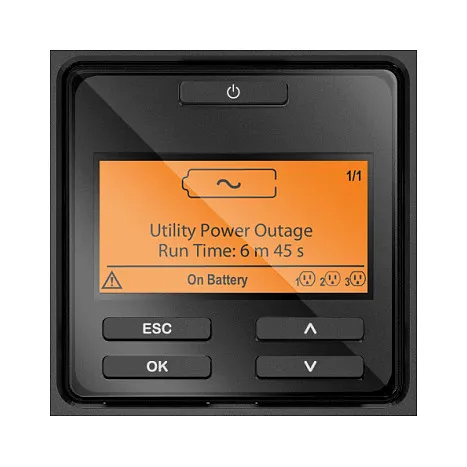

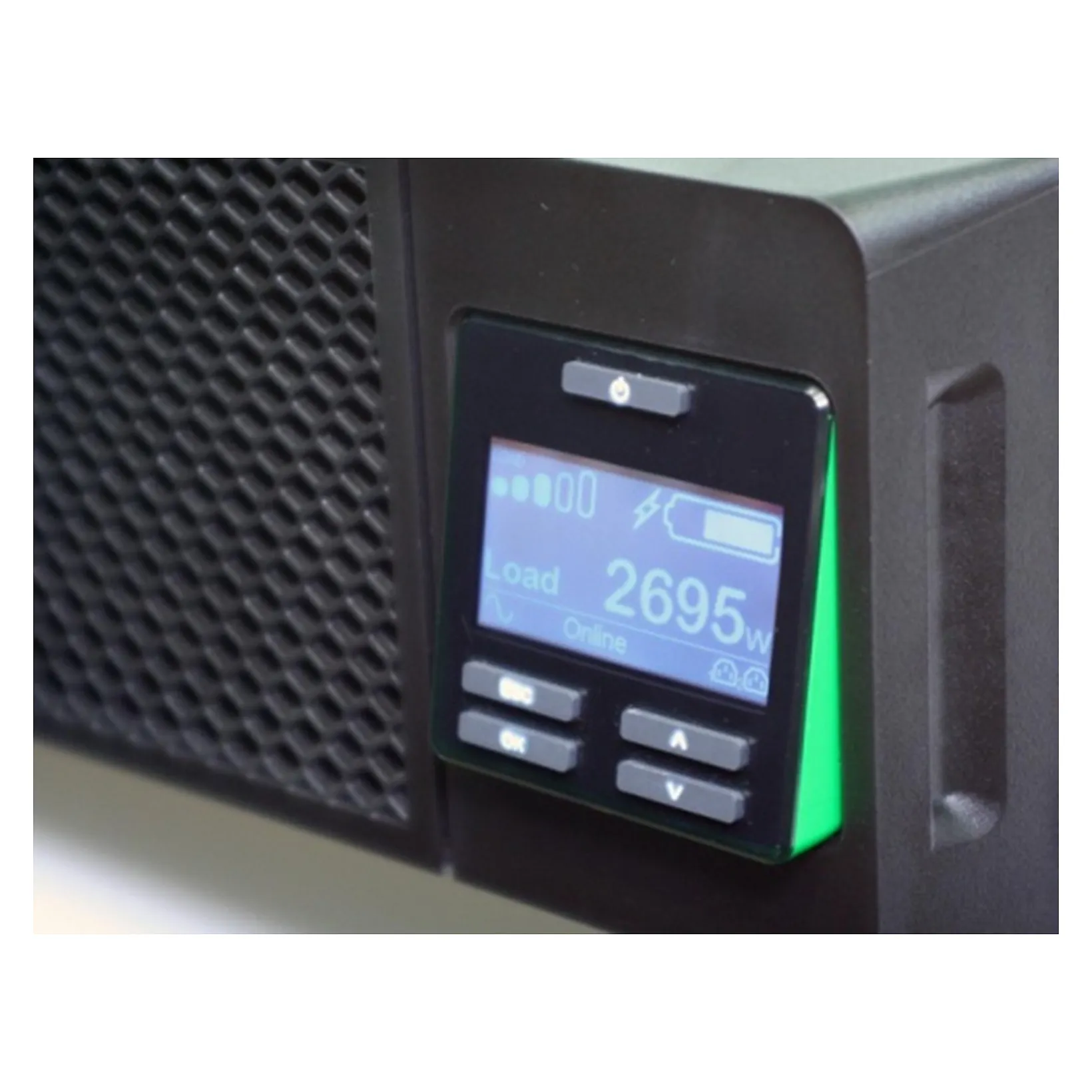

Display type: LCD
LED indicators: Yes
International Protection (IP) code: IP20
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -15 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Certificates
Compliance certificates: RoHS
Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Packaging content
Cables included: USB cable
Feature: Quick installation guide
Sustainability
Sustainability certificates: ENERGY STAR, Green Premium
Weight & dimensions
Width: 85 mm
Depth: 584 mm
Height: 432 mm
Weight: 25 kg
Packaging data
Feature: Bracket
Feature: Warranty card
Feature: Software CD
Package width: 599 mm
Package depth: 810 mm
Package height: 246 mm
Package weight: 30.8 kg
Logistics data
Products per pallet: 12 pc(s)
Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 3634.43
Other features
Interface: SmartSlot
Nominal output voltage: 230 V
Nominal input voltage: 230 V
Packaging content: Power cordRemovable support feet
UPS topology: Double-conversion (Online)
Output power capacity: 2.2 kVA
Output power: 1980 W
Waveform: Sine
Input operation voltage (min): 100 V
Input operation voltage (max): 275 V
Input frequency: 40/70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Surge energy rating: 340 J
Efficiency: 92.2%
Crest factor: 3:1
Feature: Emergency Power Off (EPO)
Noise level: 55 dB
Feature: Surge protection
Feature: Audible alarm(s)
Feature: Web-based management
Feature: Auto-restart
Ports & interfaces
AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 10 AC outlet(s)
Number of output IEC jumpers: 2
Feature: USB port
Feature: Serial interface
Serial interface type: RJ-45
Feature: SmartSlot
Battery
Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 367 VAh
Number of batteries supported: 1
Typical backup time at full load: 3.9 min
Typical backup time at half load: 11.6 min
Battery life (max): 5 year(s)
Battery recharge time: 3 h
Feature: Hot-swap battery
Feature: Automatic battery test
Feature: Cold start
Design
Form factor: Rackmount/Tower
Cable length: 2.44 m
Product colour: Black
Display type: LCD
LED indicators: Yes
International Protection (IP) code: IP20
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -15 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Certificates
Compliance certificates: RoHS
Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Packaging content
Cables included: USB cable
Feature: Quick installation guide
Sustainability
Sustainability certificates: ENERGY STAR, Green Premium
Weight & dimensions
Width: 85 mm
Depth: 584 mm
Height: 432 mm
Weight: 25 kg
Packaging data
Feature: Bracket
Feature: Warranty card
Feature: Software CD
Package width: 599 mm
Package depth: 810 mm
Package height: 246 mm
Package weight: 30.8 kg
Logistics data
Products per pallet: 12 pc(s)
Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 3634.43
Other features
Interface: SmartSlot
Nominal output voltage: 230 V
Nominal input voltage: 230 V
Packaging content: Power cordRemovable support feet
