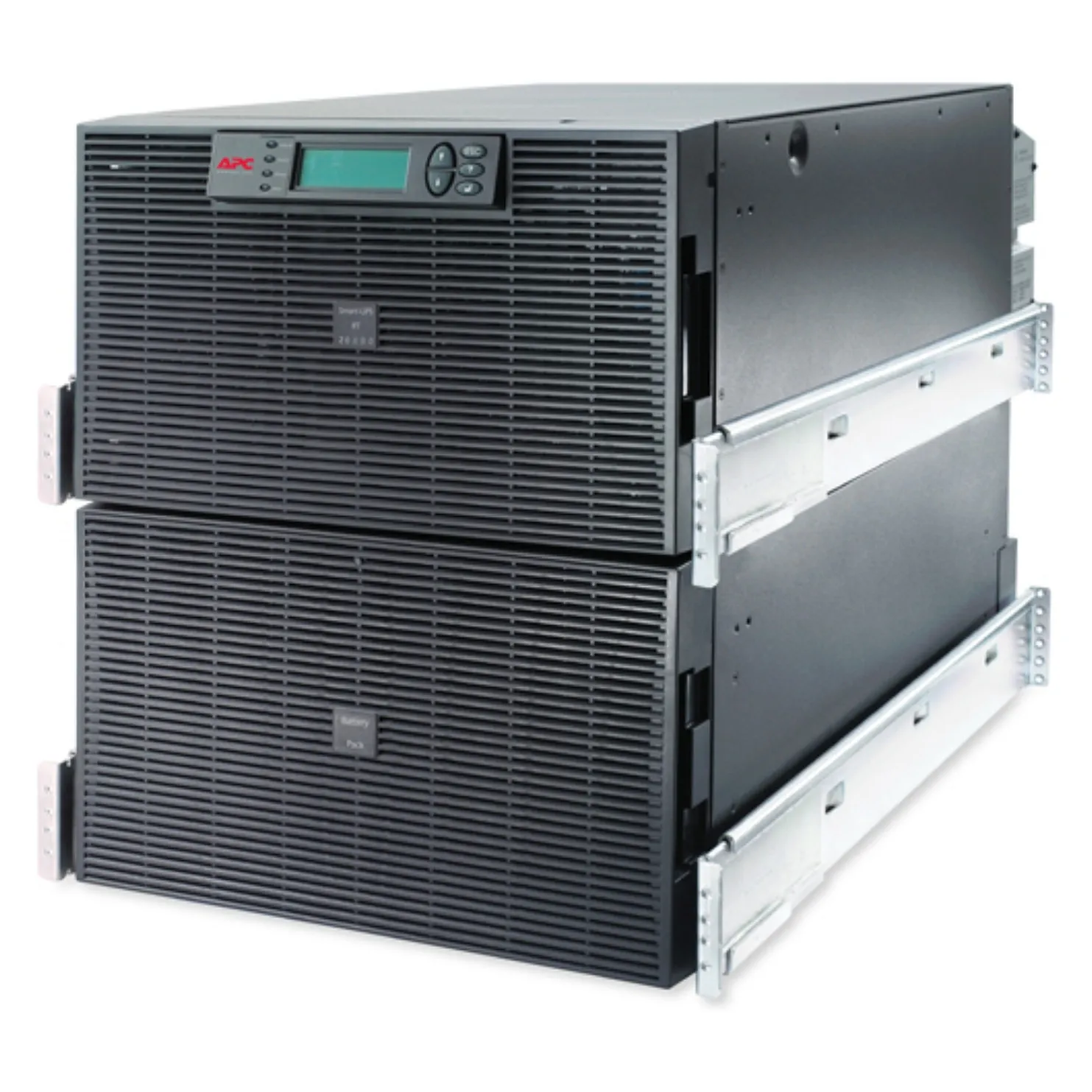

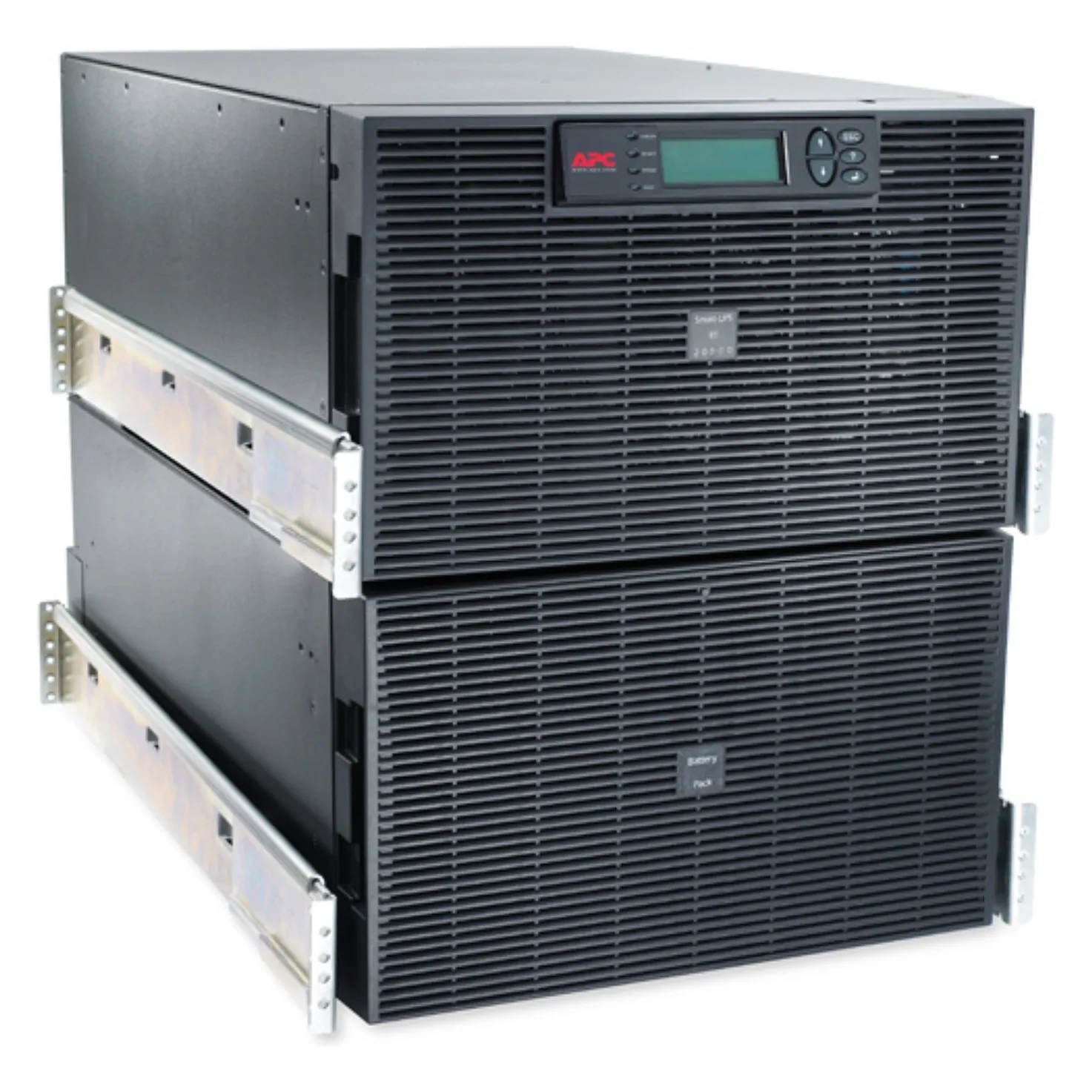

APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 16000 W. AC outlet types: C19 coupler, Power plug: Terminal, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 3840 VAh, Typical backup time at full load: 4.9 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 12U. Compliance certificates: RoHS, Certification: BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
High density, double-conversion on-line power protection with scalable runtime.
Features
UPS topology: Double-conversion (Online)
Output power capacity: 20 kVA
Output power: 16000 W
Waveform: Sine
Input frequency: 40 – 70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency regulation: 50/60 Hz
Maximum current: 115 A
Number of output phases: 1
Efficiency: 93.7%
Crest factor: 3:1
Feature: Emergency Power Off (EPO)
Noise level: 59 dB
Feature: Surge protection
Feature: Audible alarm(s)
Feature: Auto-restart

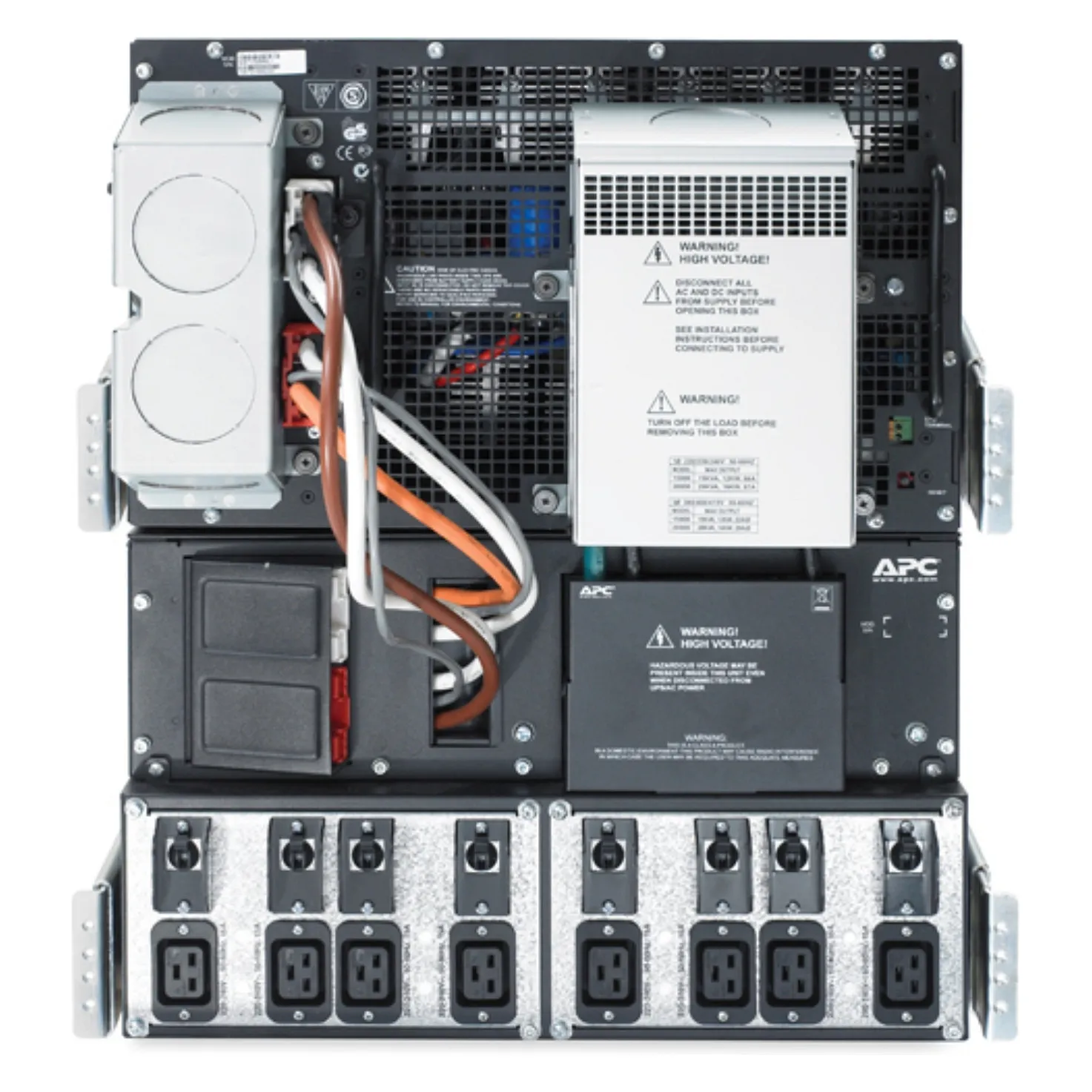

Ports & interfaces
AC outlet types: C19 coupler
Power plug: Terminal
AC outlets quantity: 8 AC outlet(s)
Number of output IEC jumpers: 2
Feature: Serial interface
Serial interface type: RS-232
Ethernet LAN (RJ-45) ports: 1
Cabling technology: 10/100Base-T
Feature: SmartSlot

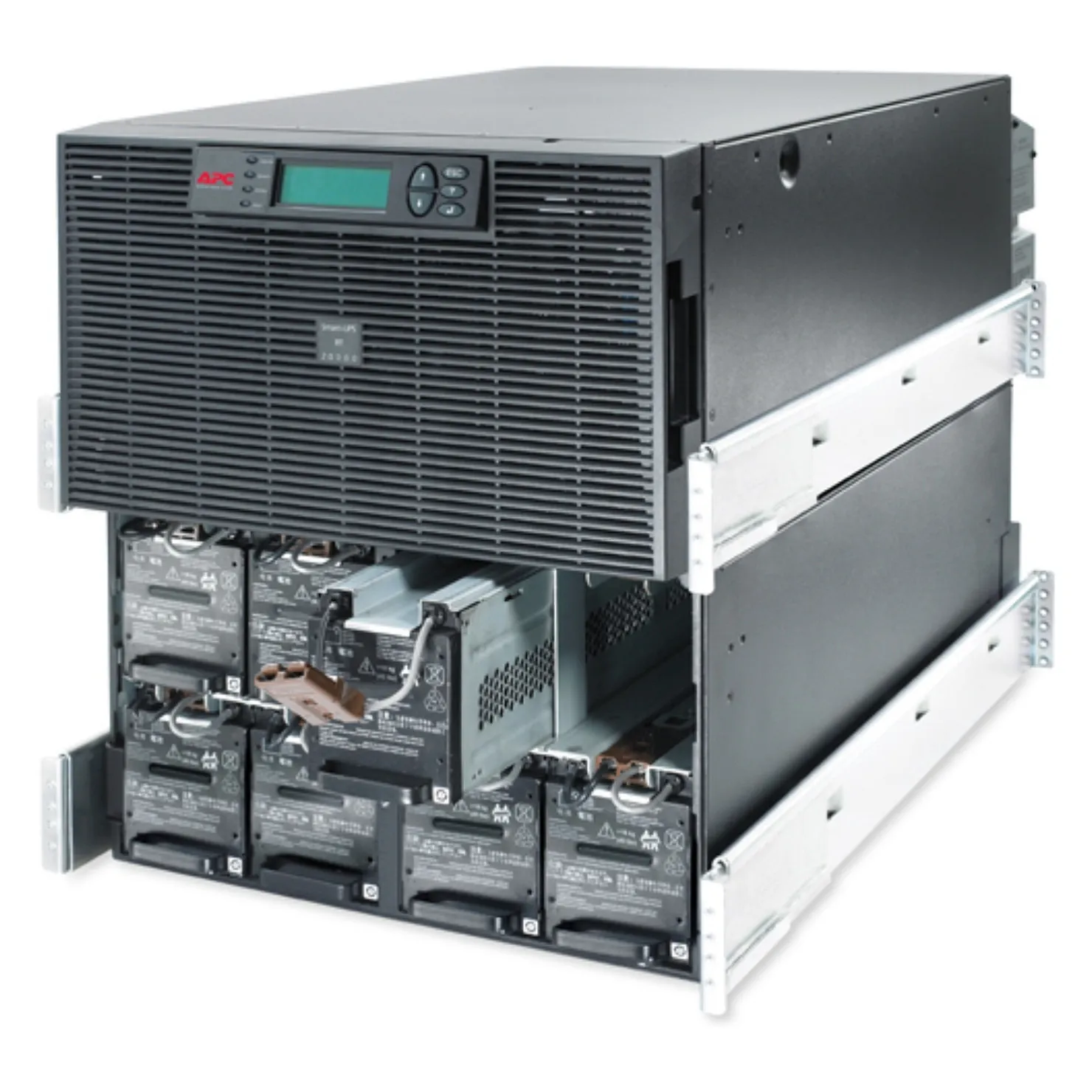

Battery
Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 3840 VAh
Typical backup time at full load: 4.9 min
Typical backup time at half load: 15.2 min
Battery life (max): 5 year(s)
Battery recharge time: 2.5 h
Feature: Hot-swap battery
Feature: Automatic battery test
Feature: Cold start
Design
Form factor: Rackmount/Tower
Rack capacity: 12U
Product colour: Black
Display type: LCD
LED indicators: Yes
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -15 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Certificates
Compliance certificates: RoHS
Certification: BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
Packaging content
Feature: Rack mount kit
Cables included: RS-232
Feature: Management card included
Feature: Manual
Weight & dimensions
Width: 432 mm
Depth: 773 mm
Height: 533 mm
Weight: 247.7 kg
Packaging data
Feature: Software CD
Package width: 610 mm
Package depth: 1003 mm
Package height: 990 mm
Package weight: 314.1 kg
Logistics data
Products per pallet: 1 pc(s)
Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 37662.44
Other features
Nominal output voltage: 230 V
Nominal input voltage: 230 V
Packaging content: Web/SNMP Management Card
UPS topology: Double-conversion (Online)
Output power capacity: 20 kVA
Output power: 16000 W
Waveform: Sine
Input frequency: 40 – 70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency regulation: 50/60 Hz
Maximum current: 115 A
Number of output phases: 1
Efficiency: 93.7%
Crest factor: 3:1
Feature: Emergency Power Off (EPO)
Noise level: 59 dB
Feature: Surge protection
Feature: Audible alarm(s)
Feature: Auto-restart
Ports & interfaces
AC outlet types: C19 coupler
Power plug: Terminal
AC outlets quantity: 8 AC outlet(s)
Number of output IEC jumpers: 2
Feature: Serial interface
Serial interface type: RS-232
Ethernet LAN (RJ-45) ports: 1
Cabling technology: 10/100Base-T
Feature: SmartSlot
Battery
Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 3840 VAh
Typical backup time at full load: 4.9 min
Typical backup time at half load: 15.2 min
Battery life (max): 5 year(s)
Battery recharge time: 2.5 h
Feature: Hot-swap battery
Feature: Automatic battery test
Feature: Cold start
Design
Form factor: Rackmount/Tower
Rack capacity: 12U
Product colour: Black
Display type: LCD
LED indicators: Yes
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -15 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Certificates
Compliance certificates: RoHS
Certification: BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
Packaging content
Feature: Rack mount kit
Cables included: RS-232
Feature: Management card included
Feature: Manual
Weight & dimensions
Width: 432 mm
Depth: 773 mm
Height: 533 mm
Weight: 247.7 kg
Packaging data
Feature: Software CD
Package width: 610 mm
Package depth: 1003 mm
Package height: 990 mm
Package weight: 314.1 kg
Logistics data
Products per pallet: 1 pc(s)
Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 37662.44
Other features
Nominal output voltage: 230 V
Nominal input voltage: 230 V
Packaging content: Web/SNMP Management Card
