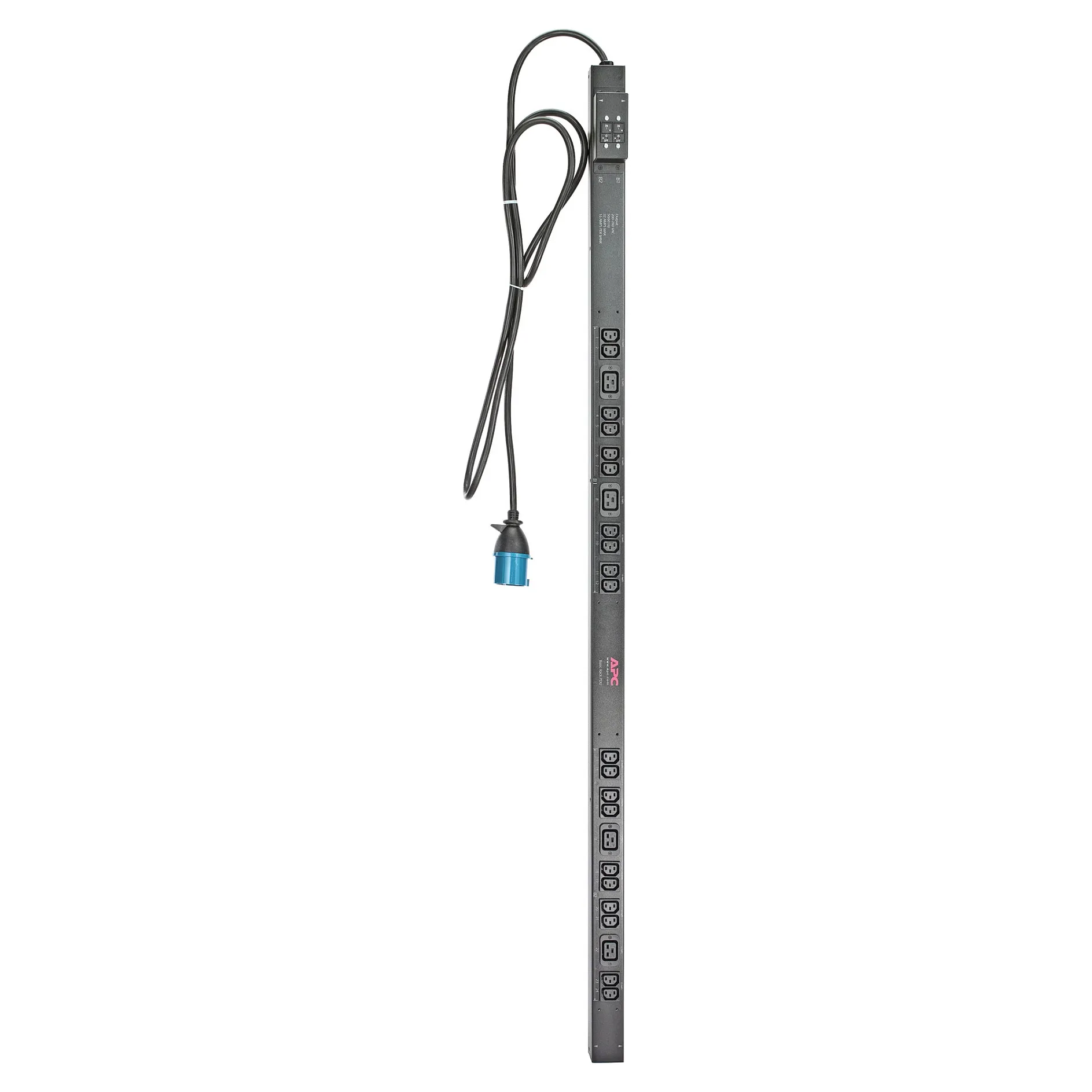

APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3050 m. Nominal input voltage: 230 V, Nominal output voltage: 230 V, Output voltage: 230 V. Width: 56 mm, Depth: 44 mm, Height: 1619 mm
Features:
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities
Design
PDU types: Basic
Type: Single-phase
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 24 AC outlet(s)
Power plug: IEC 60309
AC outlet types: C13 coupler, C19 coupler
I/O ports: (20) IEC 320 C13 (4) IEC 320 C19 IEC 309 32A
Input connection type: IEC 309 32A
Output connections: (20) IEC 320 C13 (4) IEC 320 C19
Features
Cable length: 3050 m
Power
Nominal input voltage: 230 V
Nominal output voltage: 230 V
Output voltage: 230 V
Load capacity: 7680 VA
Maximum input current per phase: 32 A
Maximum total current draw per phase: 32 A
Maximum power: 7680 W
Operational conditions
Operating temperature (T-T): -25 – 65 °C
Storage temperature (T-T): 0 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 56 mm
Depth: 44 mm
Height: 1619 mm
Weight: 5.57 kg
Packaging data
Package weight: 6.48 kg
Package width: 152 mm
Package depth: 127 mm
Package height: 2134 mm
PDU types: Basic
Type: Single-phase
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 24 AC outlet(s)
Power plug: IEC 60309
AC outlet types: C13 coupler, C19 coupler
I/O ports: (20) IEC 320 C13 (4) IEC 320 C19 IEC 309 32A
Input connection type: IEC 309 32A
Output connections: (20) IEC 320 C13 (4) IEC 320 C19
Features
Cable length: 3050 m
Power
Nominal input voltage: 230 V
Nominal output voltage: 230 V
Output voltage: 230 V
Load capacity: 7680 VA
Maximum input current per phase: 32 A
Maximum total current draw per phase: 32 A
Maximum power: 7680 W
Operational conditions
Operating temperature (T-T): -25 – 65 °C
Storage temperature (T-T): 0 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 56 mm
Depth: 44 mm
Height: 1619 mm
Weight: 5.57 kg
Packaging data
Package weight: 6.48 kg
Package width: 152 mm
Package depth: 127 mm
Package height: 2134 mm
