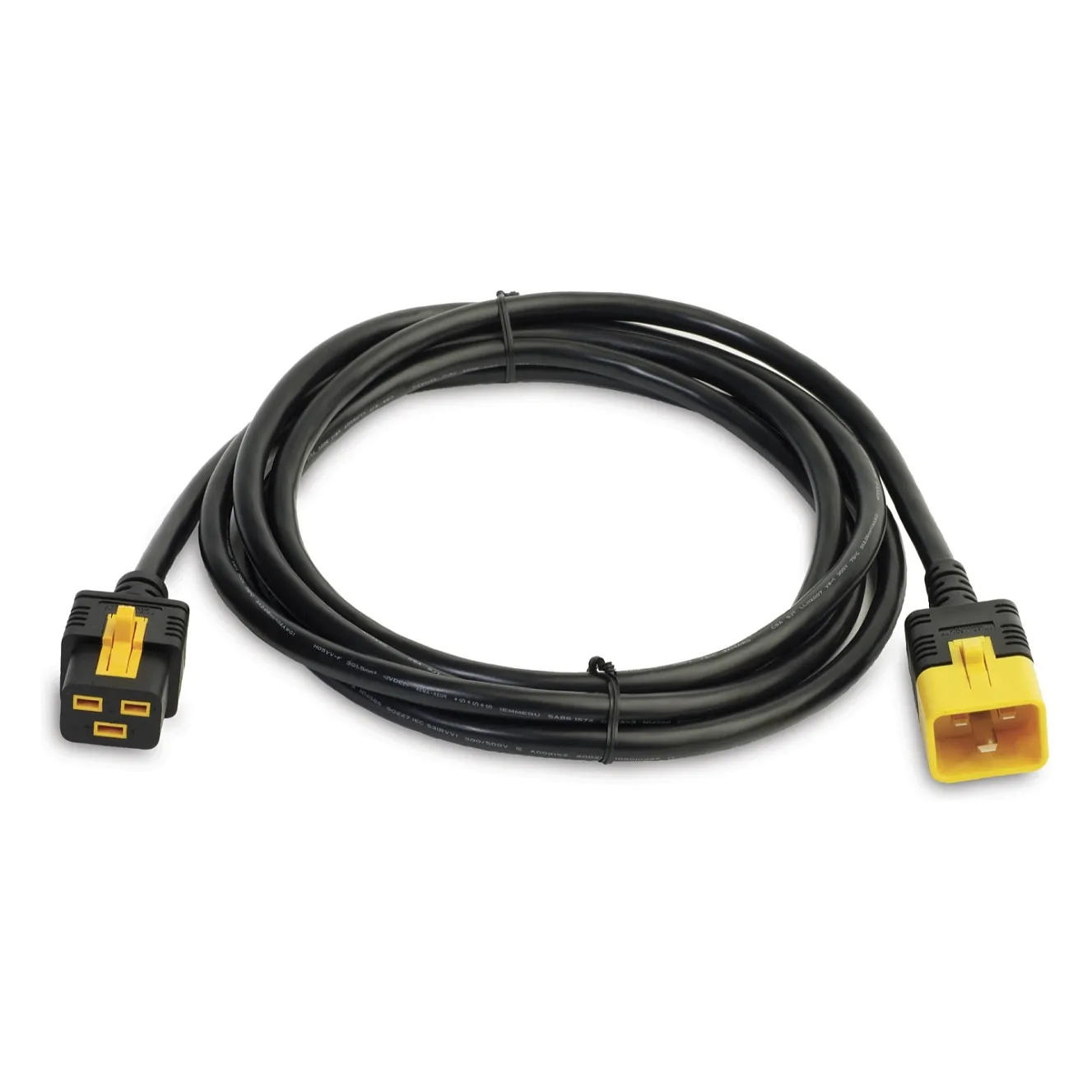

APC Power Cord, Locking C19 to C20, 3.0m. Cable length: 3 m, Connector 1: IEC C20, Connector 2: C20 coupler. Input voltage: 230 V, Input current: 16 A
AP8760 is NetShelter range of Power Cord ensuring reliable power delivery and secure connections for your Rack PDUs and servers. This locking IEC power cord comes in cable length 9.84ft (3.0m), IEC 60320 C20 as input and IEC 60320 C19 as output receptacle. Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the „locking” feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.
Features
Product colour: Black
Connector 1 gender: Male
Connector 2 gender: Female
Cable length: 3 m
Connector 1: IEC C20
Connector 2: C20 coupler
Power
Input voltage: 230 V
Input current: 16 A
Operational conditions
Operating temperature (T-T): 0 – 75 °C
Storage temperature (T-T): -25 – 75 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 20 – 80%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Certificates
Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: RoHS, REACH, WEEE
Certification: CCC; CSA; PSE; UL listed; VDE
Weight & dimensions
Width: 230 mm
Depth: 45 mm
Height: 230 mm
Weight: 510 g
Packaging data
Package width: 230 mm
Package depth: 45 mm
Package height: 230 mm
Package weight: 510 g
Technical details
SCIP number: 1cdb2fed-a06f-4574-913d-8df8e70936b2
Feature: Proposition 65
Preferred mounting position: no preference
Logistics data
Customs product code (TARIC): 8544429090
Harmonized System (HS) code: 84733080
Total carbon footprint (kg of CO2e): 59.27608845625331
Other features
Input connection type: IEC 60320 C20
Dimensions (WxDxH): 230 x 45 x 230 mm
Weight (imperial): 0.51 kg (1.12 lbs)
Country of origin: India
Product colour: Black
Connector 1 gender: Male
Connector 2 gender: Female
Cable length: 3 m
Connector 1: IEC C20
Connector 2: C20 coupler
Power
Input voltage: 230 V
Input current: 16 A
Operational conditions
Operating temperature (T-T): 0 – 75 °C
Storage temperature (T-T): -25 – 75 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 20 – 80%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Certificates
Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: RoHS, REACH, WEEE
Certification: CCC; CSA; PSE; UL listed; VDE
Weight & dimensions
Width: 230 mm
Depth: 45 mm
Height: 230 mm
Weight: 510 g
Packaging data
Package width: 230 mm
Package depth: 45 mm
Package height: 230 mm
Package weight: 510 g
Technical details
SCIP number: 1cdb2fed-a06f-4574-913d-8df8e70936b2
Feature: Proposition 65
Preferred mounting position: no preference
Logistics data
Customs product code (TARIC): 8544429090
Harmonized System (HS) code: 84733080
Total carbon footprint (kg of CO2e): 59.27608845625331
Other features
Input connection type: IEC 60320 C20
Dimensions (WxDxH): 230 x 45 x 230 mm
Weight (imperial): 0.51 kg (1.12 lbs)
Country of origin: India
