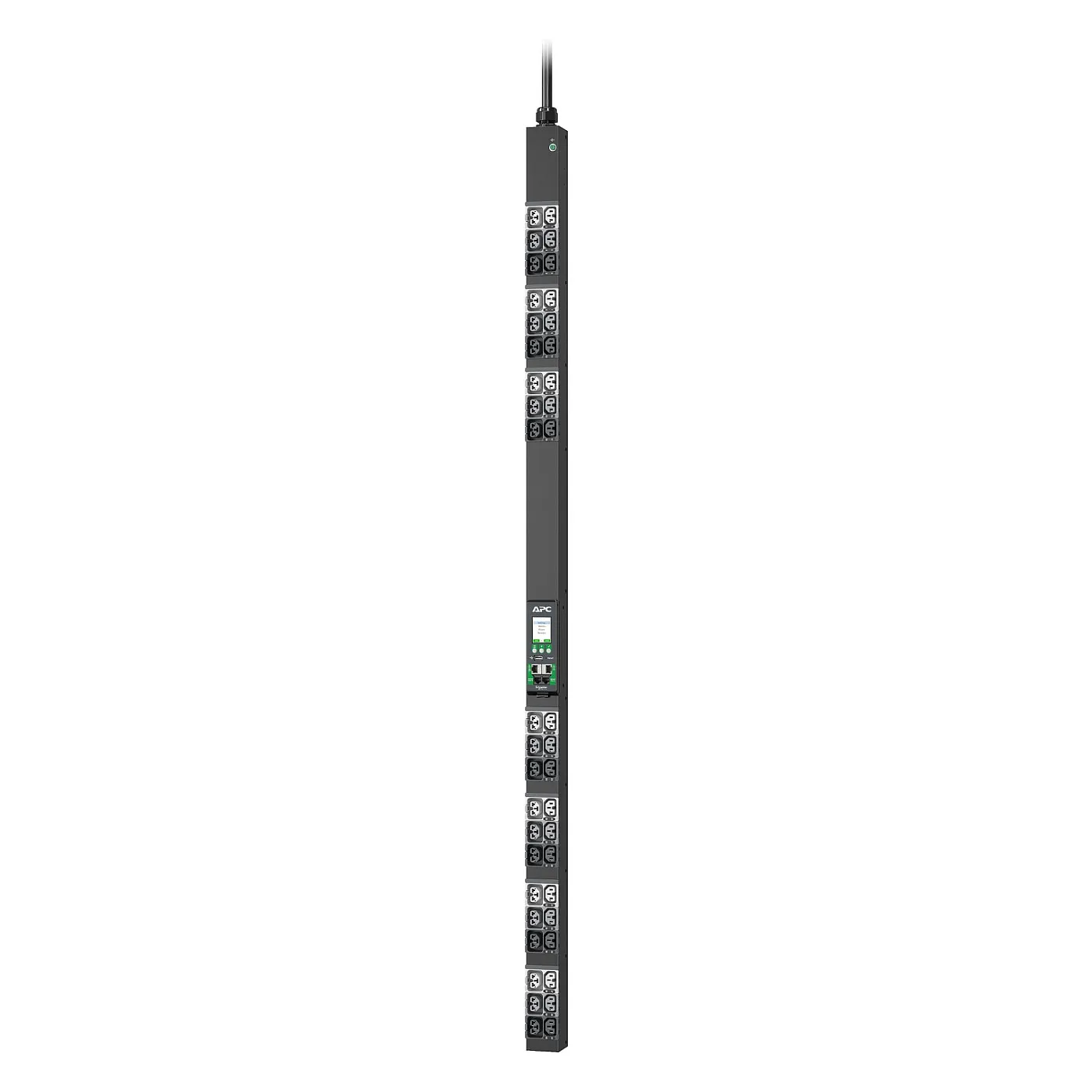

APC NetShelter Rack PDU Advanced, Metered, 3Phase, 11kW 400V 16A or 11.5kW 415V 20A, 42 Outlets, IEC309. PDU types: Metered, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler, Power plug: IEC 60309. LED indicators: Activity, Network, Power, Cable length: 1.8 m, Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3. Monitoring: Current, Humidity, Power, Temperature, Voltage, Outlet control: Lock-out, Recycle, Turn on, Firmware upgradeable via: Network, USB. Nominal input voltage: 400 V, Maximum current: 16 A, AC input frequency: 50 – 60 Hz

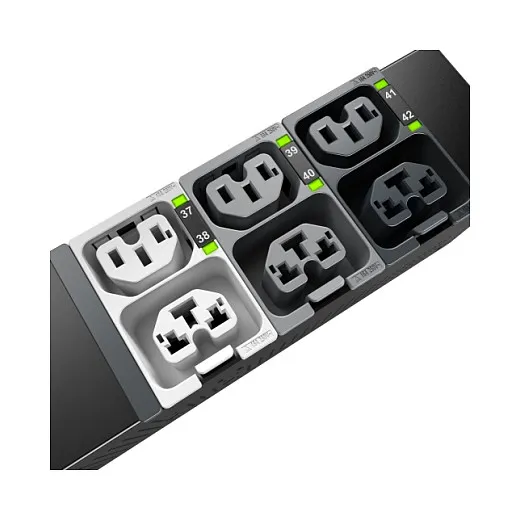

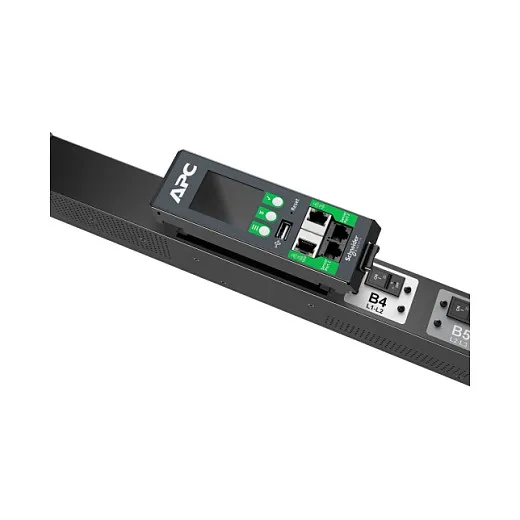

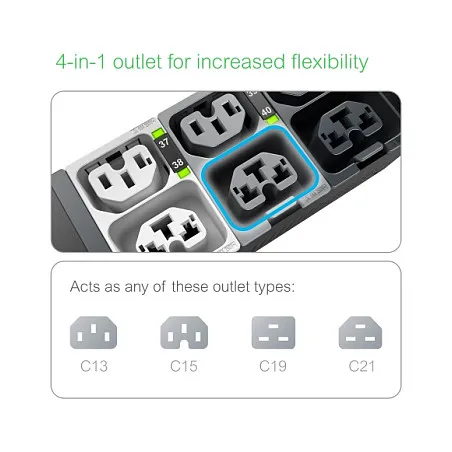

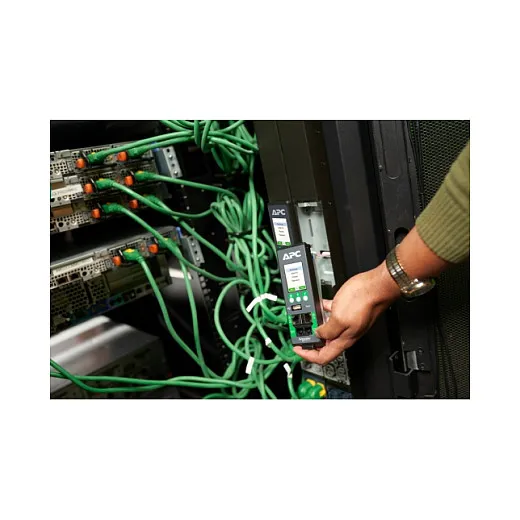

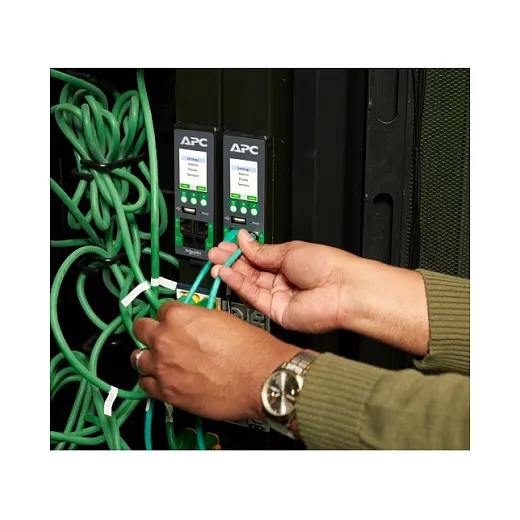

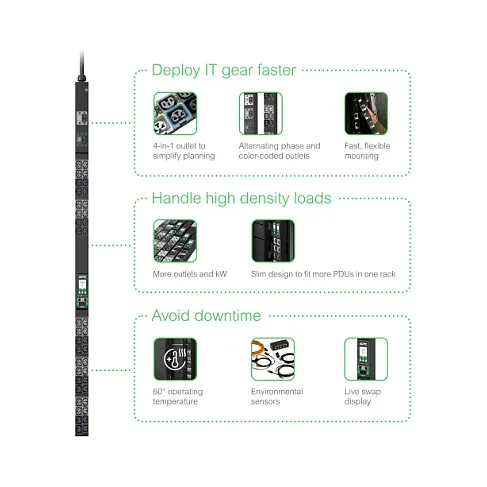

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparreled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2 wide form factor. Outlets on the PDUs are color coded and/or labeled by breaker and input phase on 3 phase models to simplify deployment. Provides an alternating phase design whereby each of the 3 phases are organized into small outlet groups which alternate from top to bottom of the PDU to facilitate better power cord management and promote better load balancing. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today’s high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs are both UL and CE rated providing one PDU that can be used globally to simplify and standardize deployment.
Design
PDU types: Metered
Type: Three-phase
Form factor: Rackmount
Rack capacity: 0U

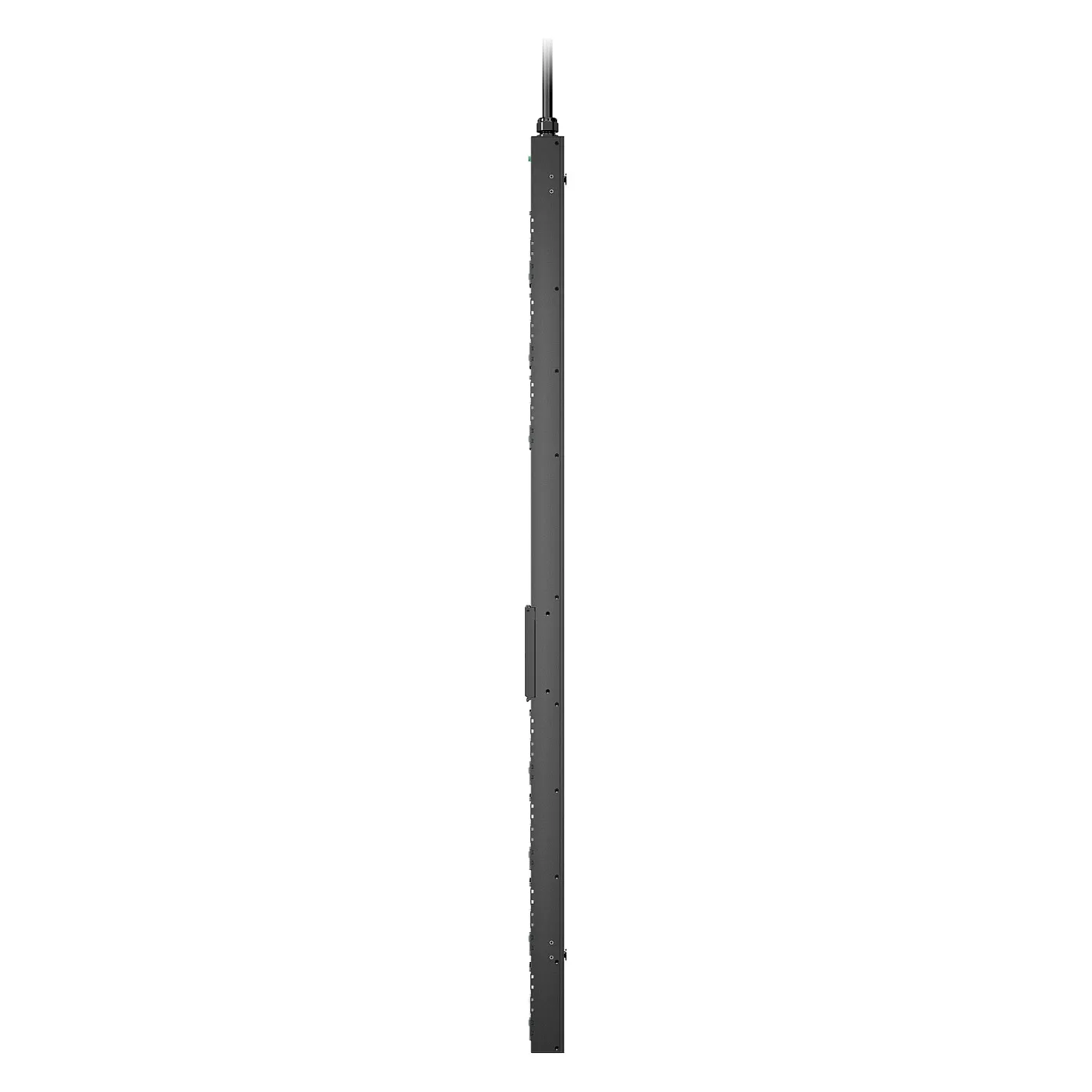

Mounting: Vertical
Product colour: Black

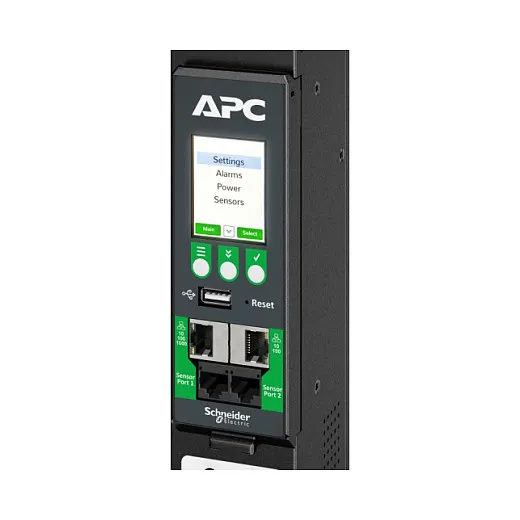

Display: LCD
Feature: On/off switch
Regulatory Approvals: CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1
Ports & interfaces
AC outlets quantity: 42 AC outlet(s)

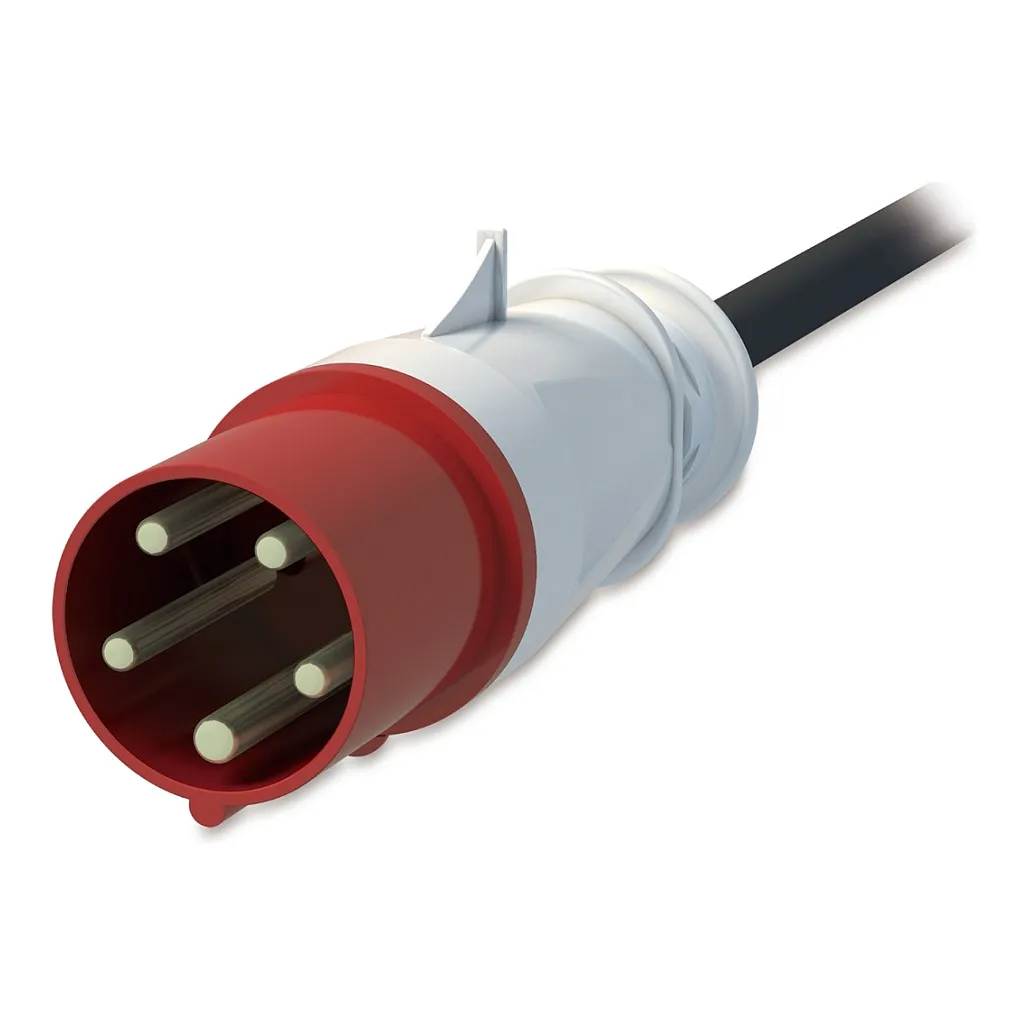

Power plug: IEC 60309
AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler
Ethernet LAN (RJ-45) ports: 2
USB ports quantity: 1
Features
Feature: Daisy chain
Feature: Reset button
LED indicators: Activity, Network, Power

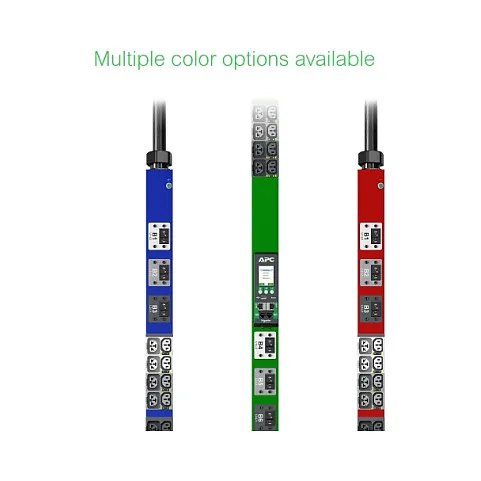

Feature: Colour-coded outlets
Cable length: 1.8 m
Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3
Feature: Password protection
Compatible products: Compatible with most NetShelter SXenclosures and third-party racks
Management features
Monitoring: Current, Humidity, Power, Temperature, Voltage
Outlet control: Lock-out, Recycle, Turn on
Feature: Firmware upgradeable
Firmware upgradeable via: Network, USB
Power
Nominal input voltage: 400 V
AC input frequency: 50 – 60 Hz
Maximum current: 16 A
Nominal output voltage: 230 V
Output voltage: 230 V
Load capacity: 11500 VA
Number of phases: 3
Maximum total current draw per phase: 16 A
Power protection features: Overload
Maximum power: 11040 W
Feature: Surge protection
Certificates
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): -5 – 60 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3048 m
Non-operating altitude: 0 – 15240 m
Operating temperature (T-T): 23 – 140 °F
Weight & dimensions
Width: 56 mm
Depth: 55 mm
Height: 1490 mm
Weight: 5.7 kg
Packaging data
Package weight: 7.7 kg
Package width: 208 mm
Package depth: 116 mm
Package height: 1720 mm
Logistics data
Total carbon footprint (kg of CO2e): 8717.32
