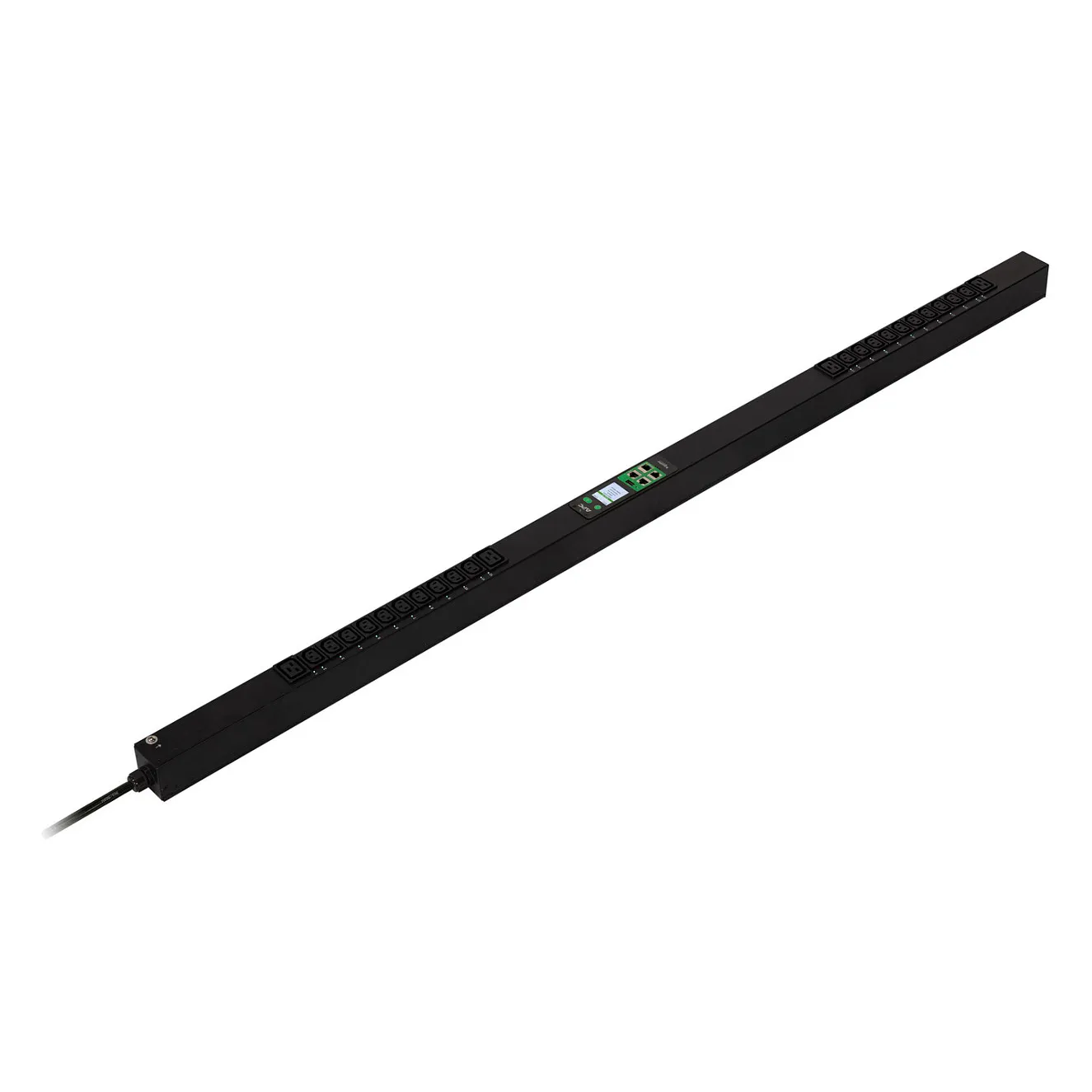

APC EasyPDU, Switched, Zero U, 11 kW, 230V, (21) C13 & (6) C19；IEC309. PDU types: Switched, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 27 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C13 coupler. Nominal input voltage: 400 V, Maximum current: 16 A, AC input frequency: 50/60 Hz. Compliance certificates: CE, UKCA. Width: 56 mm, Depth: 62 mm, Height: 1650 mm
It is a high-capacity, switched power distribution unit (PDU) designed for efficient power management in data centers and network environments. It features a vertical mounting design, which saves valuable rack space. The PDU supports a load capacity of 11 kW and operates at 230V with a 16A input current. It includes 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. The unit is equipped with an IEC 60309 32A 3P+N+PE input plug and supports 3-phase power distribution. Additionally,it offers remote management capabilities, allowing users to monitor and control individual outlets for optimized power usage. The PDU is built with robust materials, ensuring durability and reliable performance in demanding environments.
Design
PDU types: Switched
Type: Three-phase
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 27 AC outlet(s)
Power plug: C13 coupler
AC outlet types: C13 coupler, C19 coupler
Power
Nominal input voltage: 400 V
AC input frequency: 50/60 Hz
Maximum current: 16 A
Nominal output voltage: 230 V
Output voltage: 230 V
Load capacity: 11040 VA
Number of phases: 3
Certificates
Compliance certificates: CE, UKCA
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3000 m
Weight & dimensions
Width: 56 mm
Depth: 62 mm
Height: 1650 mm
Weight: 6.2 kg
Packaging data
Package weight: 7.7 kg
Package width: 170 mm
Package depth: 1810 mm
Package height: 1260 mm
Logistics data
Total carbon footprint (kg of CO2e): 1462
PDU types: Switched
Type: Three-phase
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 27 AC outlet(s)
Power plug: C13 coupler
AC outlet types: C13 coupler, C19 coupler
Power
Nominal input voltage: 400 V
AC input frequency: 50/60 Hz
Maximum current: 16 A
Nominal output voltage: 230 V
Output voltage: 230 V
Load capacity: 11040 VA
Number of phases: 3
Certificates
Compliance certificates: CE, UKCA
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3000 m
Weight & dimensions
Width: 56 mm
Depth: 62 mm
Height: 1650 mm
Weight: 6.2 kg
Packaging data
Package weight: 7.7 kg
Package width: 170 mm
Package depth: 1810 mm
Package height: 1260 mm
Logistics data
Total carbon footprint (kg of CO2e): 1462
