APC Easy PDU Metered ZeroU 16A 230V (18)C13 (3)C19 IEC309. PDU types: Metered, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 21 AC outlet(s), AC outlet types: C13 coupler, Power plug: IEC 60309. Nominal input voltage: 230 V, Maximum current: 16 A, AC input frequency: 50/60 Hz. Compliance certificates: CE, UKCA. Width: 56 mm, Depth: 56 mm, Height: 1400 mm

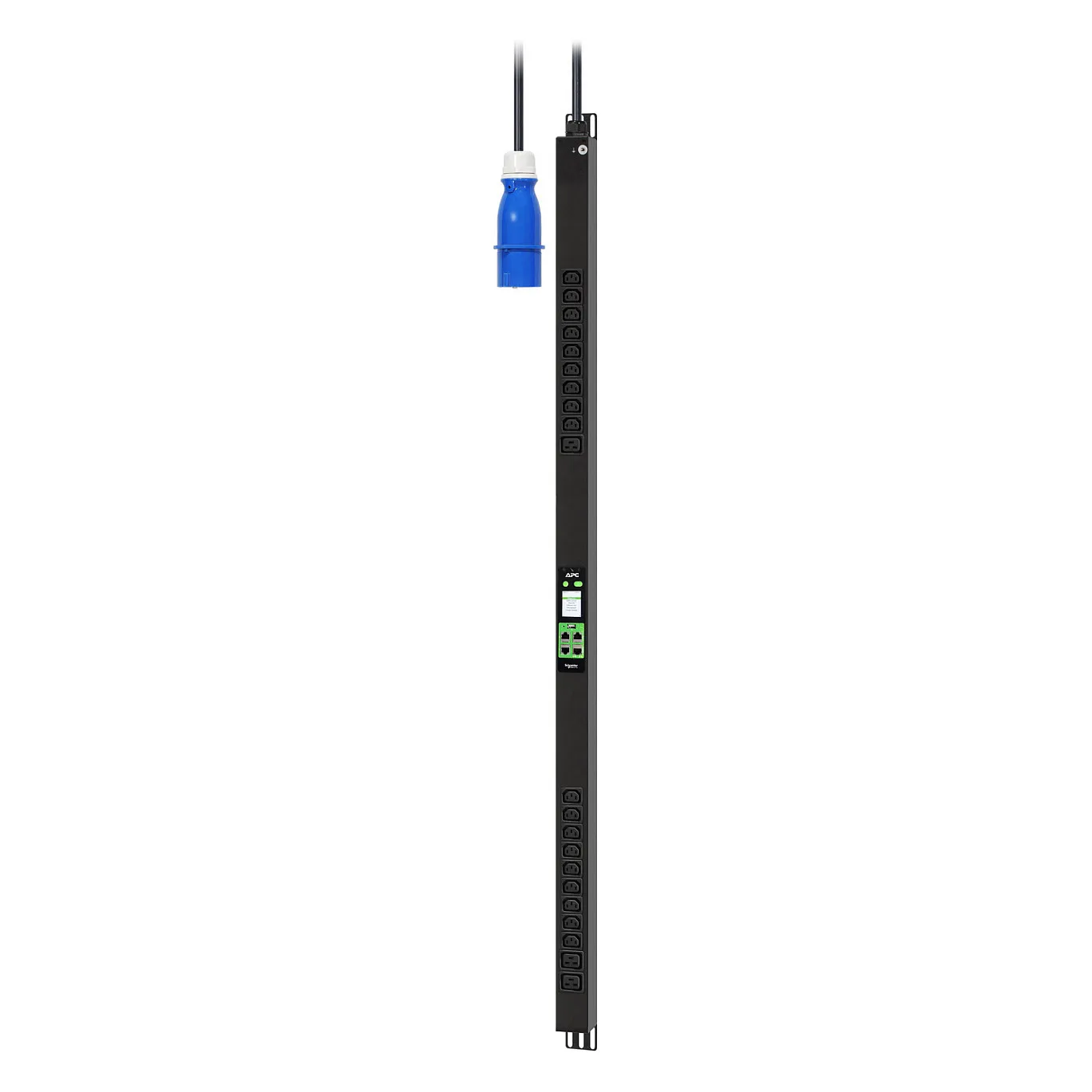

Schneider Easy Metered Rack PDU EPDU2116M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU2116M has IEC 60309 16A 2P+E type inlet, eighteen IEC C13 and three IEC C19 type outlet sockets. This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The green packaging includes installation guide, user manual and vertical mounting brackets for quick and easy mounting in the rear of the enclosure.
Design
PDU types: Metered
Type: Single-phase
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 21 AC outlet(s)
Power plug: IEC 60309
AC outlet types: C13 coupler
Power
Nominal input voltage: 230 V
AC input frequency: 50/60 Hz
Maximum current: 16 A
Nominal output voltage: 230 V
Output voltage: 230 V
Load capacity: 3680 VA
Number of phases: 1
Certificates
Compliance certificates: CE, UKCA
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3000 m
Weight & dimensions
Width: 56 mm
Depth: 56 mm
Height: 1400 mm
Weight: 3.05 kg
Packaging data
Package weight: 4.05 kg
Package width: 260 mm
Package depth: 1560 mm
Package height: 680 mm
Logistics data
Total carbon footprint (kg of CO2e): 580
PDU types: Metered
Type: Single-phase
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 21 AC outlet(s)
Power plug: IEC 60309
AC outlet types: C13 coupler
Power
Nominal input voltage: 230 V
AC input frequency: 50/60 Hz
Maximum current: 16 A
Nominal output voltage: 230 V
Output voltage: 230 V
Load capacity: 3680 VA
Number of phases: 1
Certificates
Compliance certificates: CE, UKCA
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3000 m
Weight & dimensions
Width: 56 mm
Depth: 56 mm
Height: 1400 mm
Weight: 3.05 kg
Packaging data
Package weight: 4.05 kg
Package width: 260 mm
Package depth: 1560 mm
Package height: 680 mm
Logistics data
Total carbon footprint (kg of CO2e): 580
