APC Easy PDU Metered 1U 16A 230V (8)C13. PDU types: Metered, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C13 coupler. Nominal input voltage: 230 V, Maximum current: 16 A, AC input frequency: 50/60 Hz. Compliance certificates: CE, UKCA. Width: 482 mm, Depth: 100 mm, Height: 44 mm

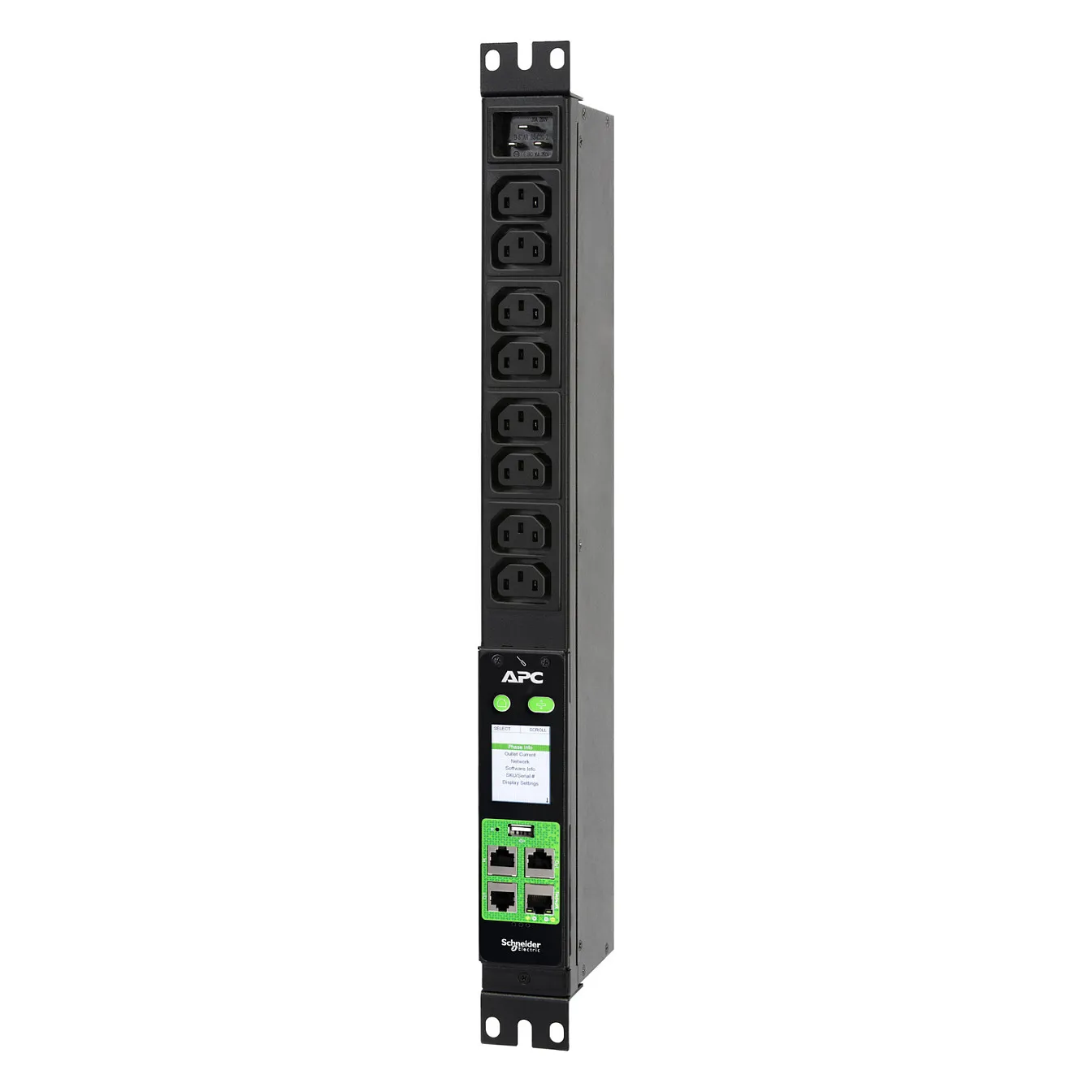

Schneider Easy Metered Rack PDU EPDU2016M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU2016M has IEC 60320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This is horizontal rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The green packaging includes cable, installation guide, user manual and horizontal mounting brackets for quick and easy mounting in the rear of the enclosure. This can operate from -5° to +50°C temperation range and comes with 2 year of standard warranty. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Design
PDU types: Metered
Type: Single-phase
Rack capacity: 1U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 8 AC outlet(s)
Power plug: C13 coupler
AC outlet types: C13 coupler
Power
Nominal input voltage: 230 V
AC input frequency: 50/60 Hz
Maximum current: 16 A
Nominal output voltage: 208 V
Output voltage: 208 V
Load capacity: 3680 VA
Number of phases: 1
Certificates
Compliance certificates: CE, UKCA
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3000 m
Weight & dimensions
Width: 482 mm
Depth: 100 mm
Height: 44 mm
Weight: 1.7 kg
Packaging data
Package weight: 3 kg
Package width: 210 mm
Package depth: 570 mm
Package height: 680 mm
Logistics data
Total carbon footprint (kg of CO2e): 649
PDU types: Metered
Type: Single-phase
Rack capacity: 1U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 8 AC outlet(s)
Power plug: C13 coupler
AC outlet types: C13 coupler
Power
Nominal input voltage: 230 V
AC input frequency: 50/60 Hz
Maximum current: 16 A
Nominal output voltage: 208 V
Output voltage: 208 V
Load capacity: 3680 VA
Number of phases: 1
Certificates
Compliance certificates: CE, UKCA
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3000 m
Weight & dimensions
Width: 482 mm
Depth: 100 mm
Height: 44 mm
Weight: 1.7 kg
Packaging data
Package weight: 3 kg
Package width: 210 mm
Package depth: 570 mm
Package height: 680 mm
Logistics data
Total carbon footprint (kg of CO2e): 649
