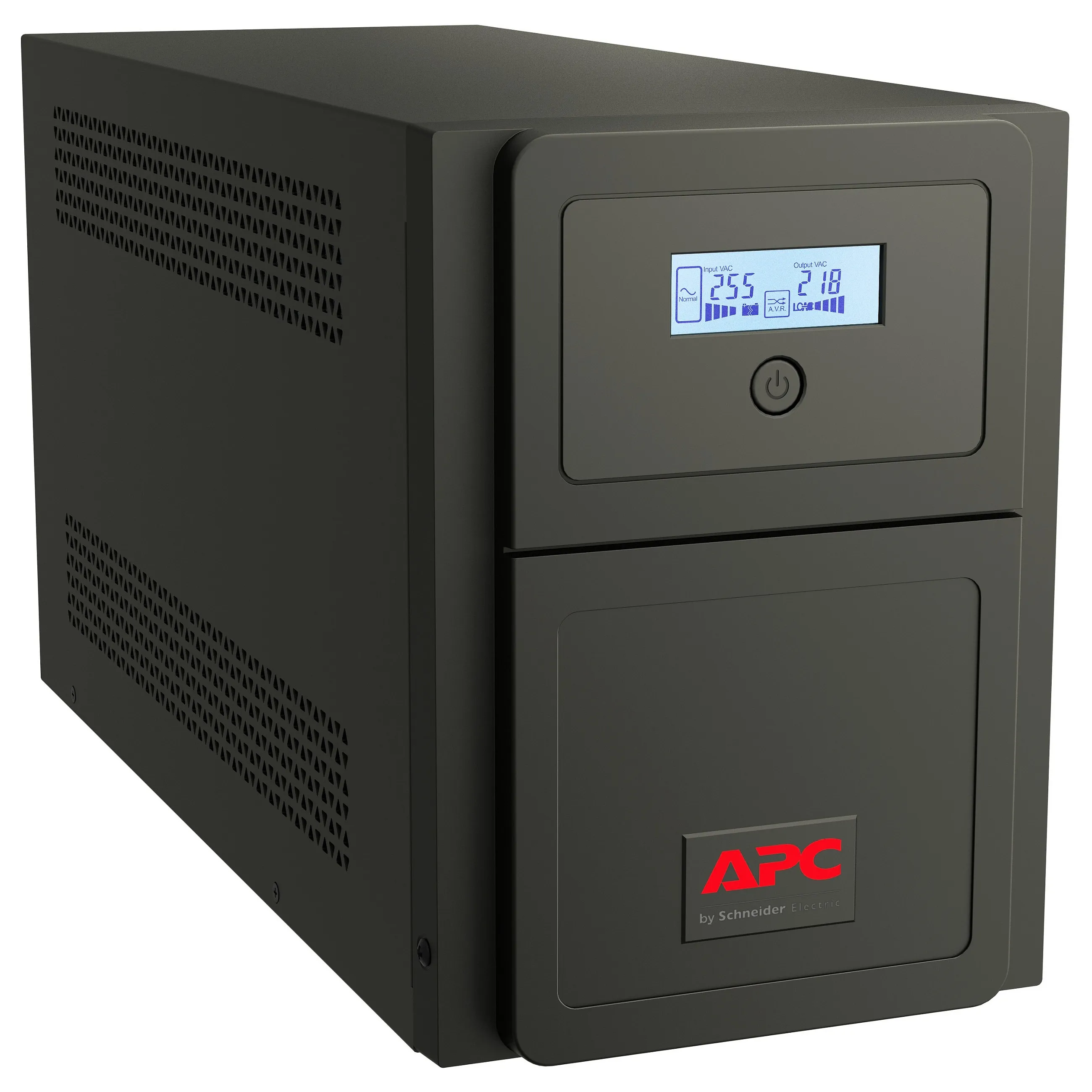

APC Easy UPS 1 Ph Line Interactive, 750VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support. UPS topology: Line-Interactive, Output power capacity: 0.75 kVA, Output power: 525 W. AC outlet types: C13 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Display type: LCD. Cables included: USB cable

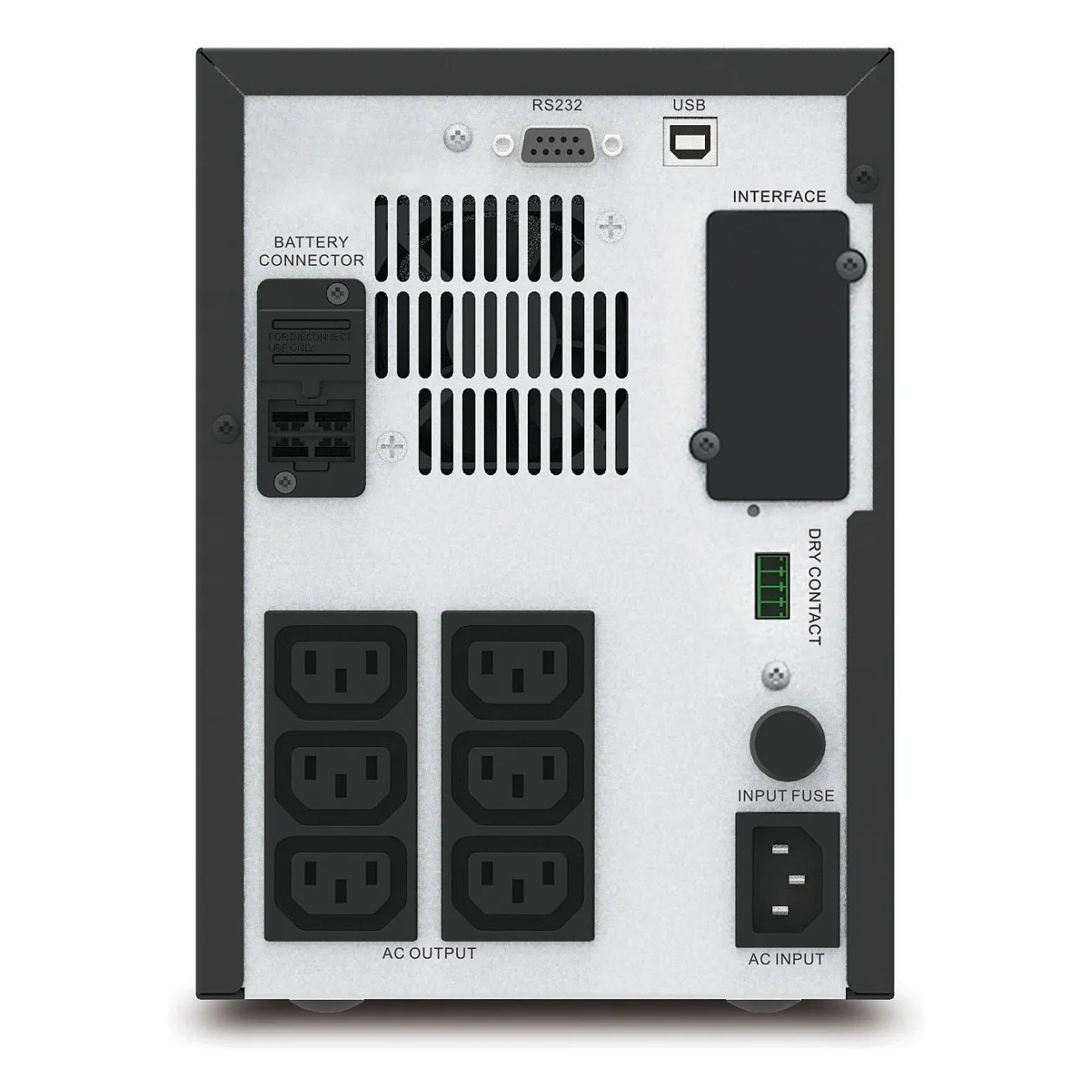

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 750VA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C14 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV206.
Features
UPS topology: Line-Interactive
Output power capacity: 0.75 kVA
Output power: 525 W
Waveform: Sine
Input operation voltage (min): 160 V
Input operation voltage (max): 295 V
Input frequency: 45/65 Hz
Output operation voltage (min): 230 V
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Output voltage regulation: -1 – 1%
Feature: Automatic Voltage Regulation (AVR)
Maximum current: 8 A
Crest factor: 3:1
Noise level: 45 dB
Power protection features: Overload, Short circuit
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
Ports & interfaces
AC outlet types: C13 coupler
AC outlets quantity: 6 AC outlet(s)
Feature: USB port
Battery
Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 7 Ah
Battery voltage: 12 V
Number of batteries supported: 2
Battery life (max): 5 year(s)
Battery recharge time: 4 h
Feature: Cold start
Battery weight: 16.6 kg
Design
Form factor: Tower
Product colour: Black
Display type: LCD
LED indicators: Yes
International Protection (IP) code: IP20
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -10 – 40 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Packaging content
Cables included: USB cable
Feature: Manual
Weight & dimensions
Width: 160 mm
Depth: 410 mm
Height: 220 mm
Weight: 13.6 kg
Battery width: 27.2 cm
Battery depth: 50.8 cm
Battery height: 33.9 cm
Logistics data
Harmonized System (HS) code: 85078000
UPS topology: Line-Interactive
Output power capacity: 0.75 kVA
Output power: 525 W
Waveform: Sine
Input operation voltage (min): 160 V
Input operation voltage (max): 295 V
Input frequency: 45/65 Hz
Output operation voltage (min): 230 V
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Output voltage regulation: -1 – 1%
Feature: Automatic Voltage Regulation (AVR)
Maximum current: 8 A
Crest factor: 3:1
Noise level: 45 dB
Power protection features: Overload, Short circuit
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
Ports & interfaces
AC outlet types: C13 coupler
AC outlets quantity: 6 AC outlet(s)
Feature: USB port
Battery
Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 7 Ah
Battery voltage: 12 V
Number of batteries supported: 2
Battery life (max): 5 year(s)
Battery recharge time: 4 h
Feature: Cold start
Battery weight: 16.6 kg
Design
Form factor: Tower
Product colour: Black
Display type: LCD
LED indicators: Yes
International Protection (IP) code: IP20
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -10 – 40 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Packaging content
Cables included: USB cable
Feature: Manual
Weight & dimensions
Width: 160 mm
Depth: 410 mm
Height: 220 mm
Weight: 13.6 kg
Battery width: 27.2 cm
Battery depth: 50.8 cm
Battery height: 33.9 cm
Logistics data
Harmonized System (HS) code: 85078000
