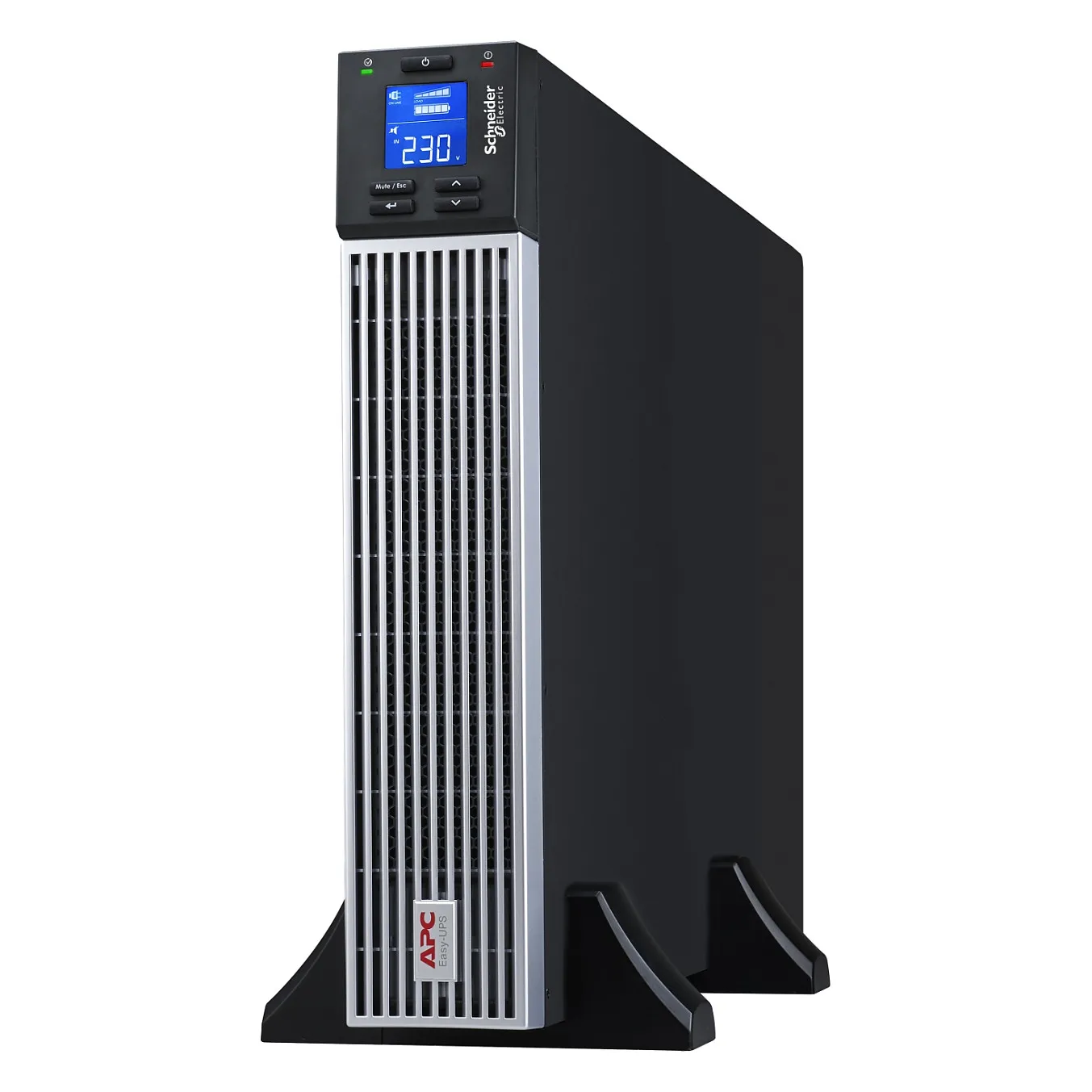

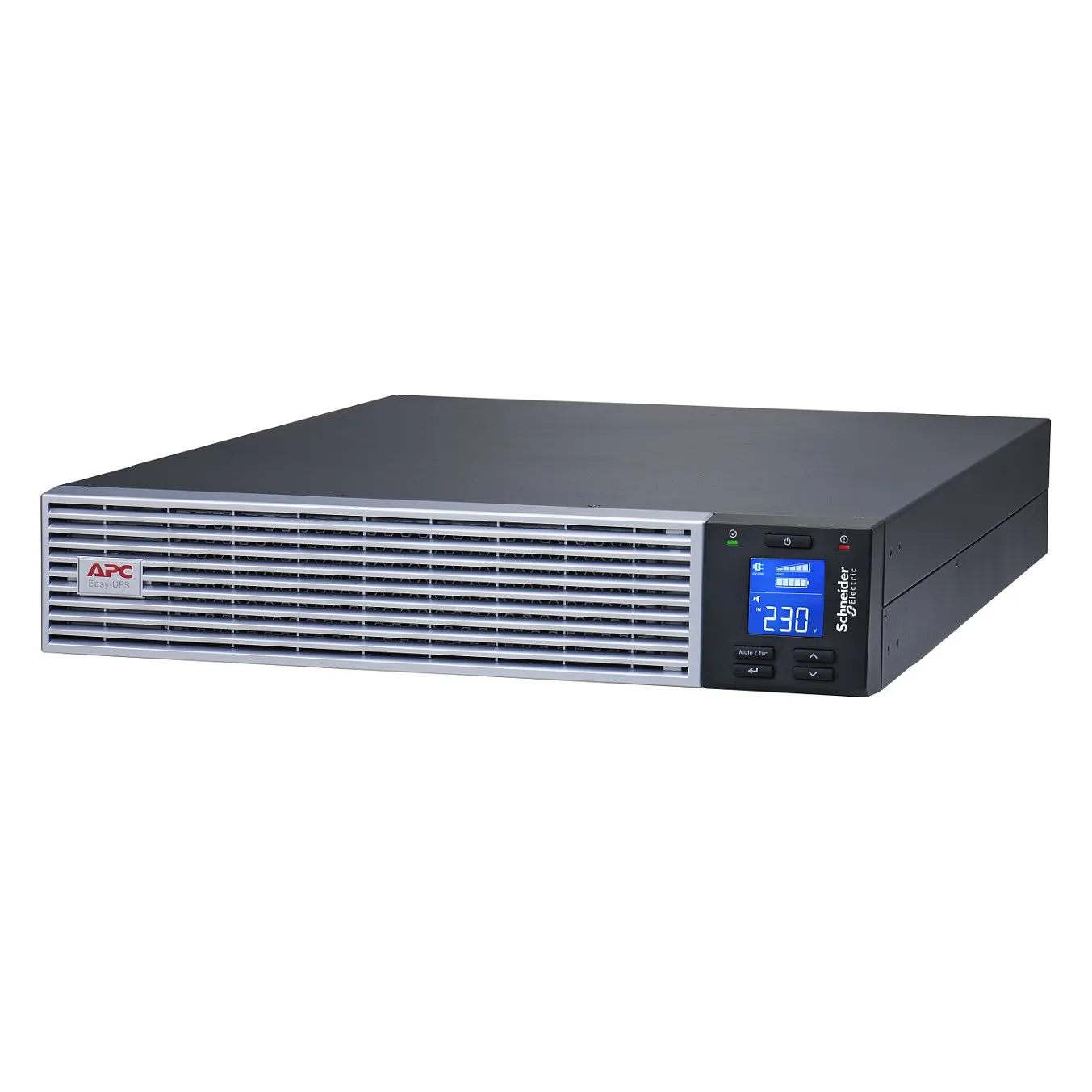

APC Easy UPS On-Line, 3kVA, Lithium-ion, Rack/Tower 2U, 230V, 6 IEC C13 + 1 IEC C19 outlets, Intelligent Card Slot, W/ rail kit. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Lithium-Ion (Li-Ion), Battery voltage: 48 V, Typical backup time at full load: 9 min. Form factor: Rackmount/Tower, Product colour: Black, Silver, Rack capacity: 2U. Compliance certificates: RoHS, REACH, WEEE, Certification: CB; CE; UKCA; UN 38.3; IEC 62619
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line lithium-ion 2U UPS provides pure sine wave power to support critical electronics during power disruptions. The SRVL comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It comes with a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Surveillance, Co-working space, Healthcare IT, ATMs, Micro Data centers, and Server rooms.
Features
UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 2700 W
Waveform: Sine
Input operation voltage (min): 110 V
Input operation voltage (max): 300 V
Input frequency: 40 – 70 Hz
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Surge energy rating: 945 J
Heat dissipation: 1024 BTU/h
Number of input phases: 1
Number of output phases: 1
Single-phase input voltage supported: 230 V
Efficiency: 90%
Crest factor: 3:1
Feature: ECO mode
Feature: Emergency Power Off (EPO)
Noise level: 50 dB
Feature: Audible alarm(s)
Audible alarm modes: Low battery alarm, Overload alarm
Power source type: AC
Feature: Detachable power cord

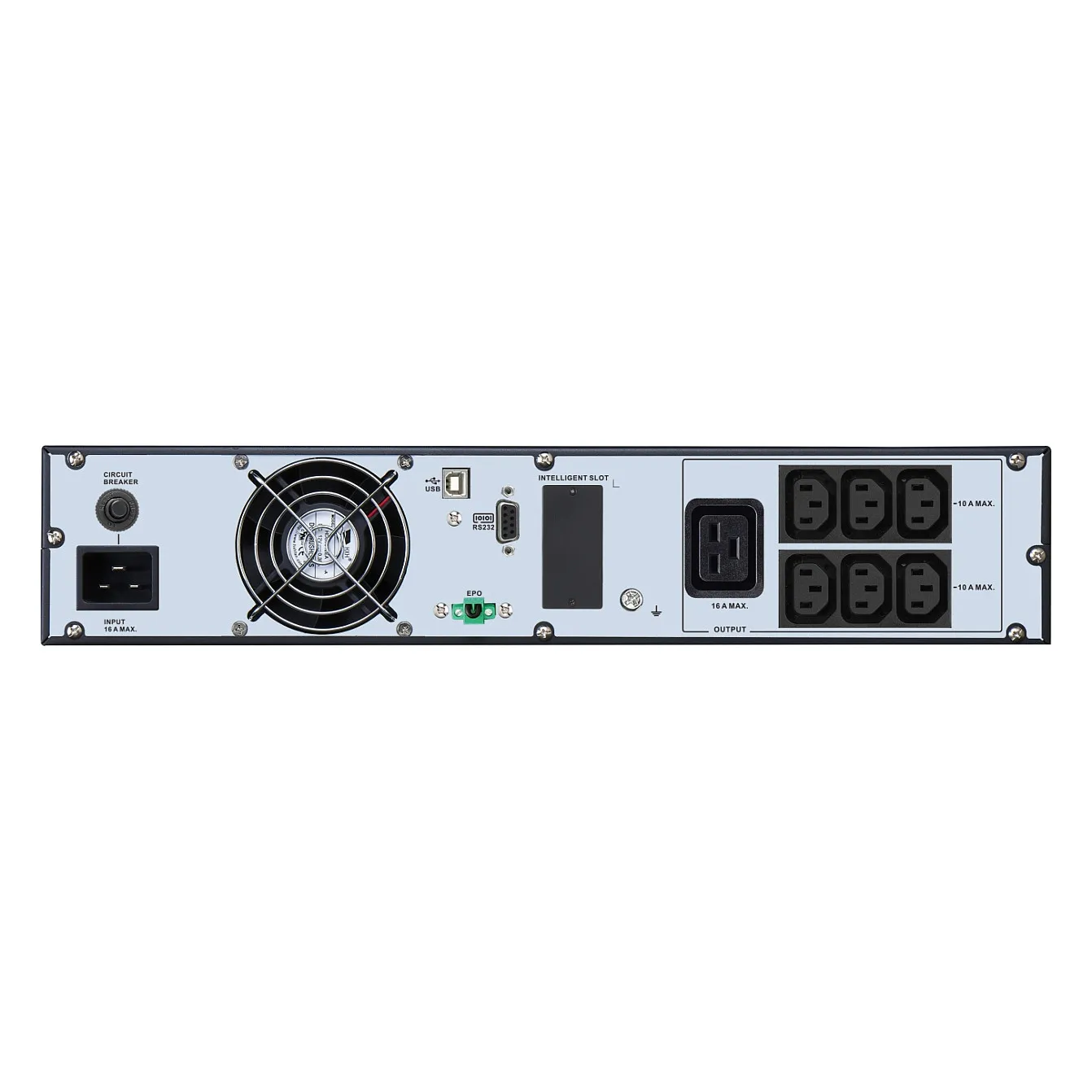

Ports & interfaces
AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 6 AC outlet(s)
Feature: USB port
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
RS-232 ports: 1
Modem (RJ-11) ports: 1
Ethernet LAN (RJ-45) ports: 1
Feature: Emergency Power Off (EPO) connector
Battery
Battery technology: Lithium-Ion (Li-Ion)
Battery voltage: 48 V
Typical backup time at full load: 9 min
Battery life (max): 10 year(s)
Battery recharge time: 1.5 h
Replacement battery cartridge: RBCV183-LI
Design
Form factor: Rackmount/Tower
Rack capacity: 2U
Cooling type: Active
Feature: Built-in fan
Product colour: Black, Silver
Control type: Buttons

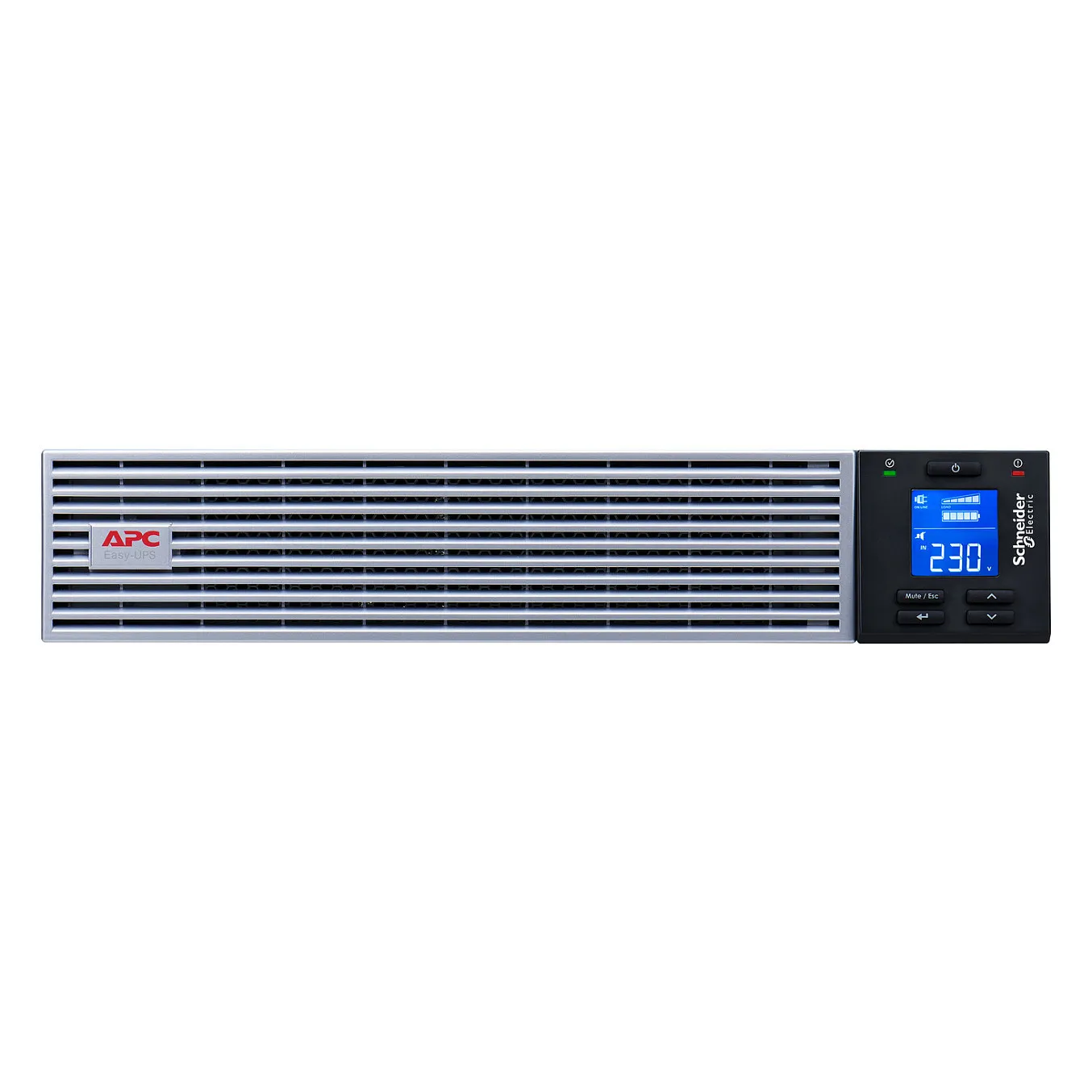

Display type: LCD
LED indicators: Yes
International Protection (IP) code: IP20
Operational conditions
Storage temperature (T-T): -20 – 50 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Certificates
Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: RoHS, REACH, WEEE
Certification: CB; CE; UKCA; UN 38.3; IEC 62619
Packaging content
Feature: Rack mount kit
Cables included: Output power cable, Phone (RJ-11), RJ-45, RS-232, USB cable

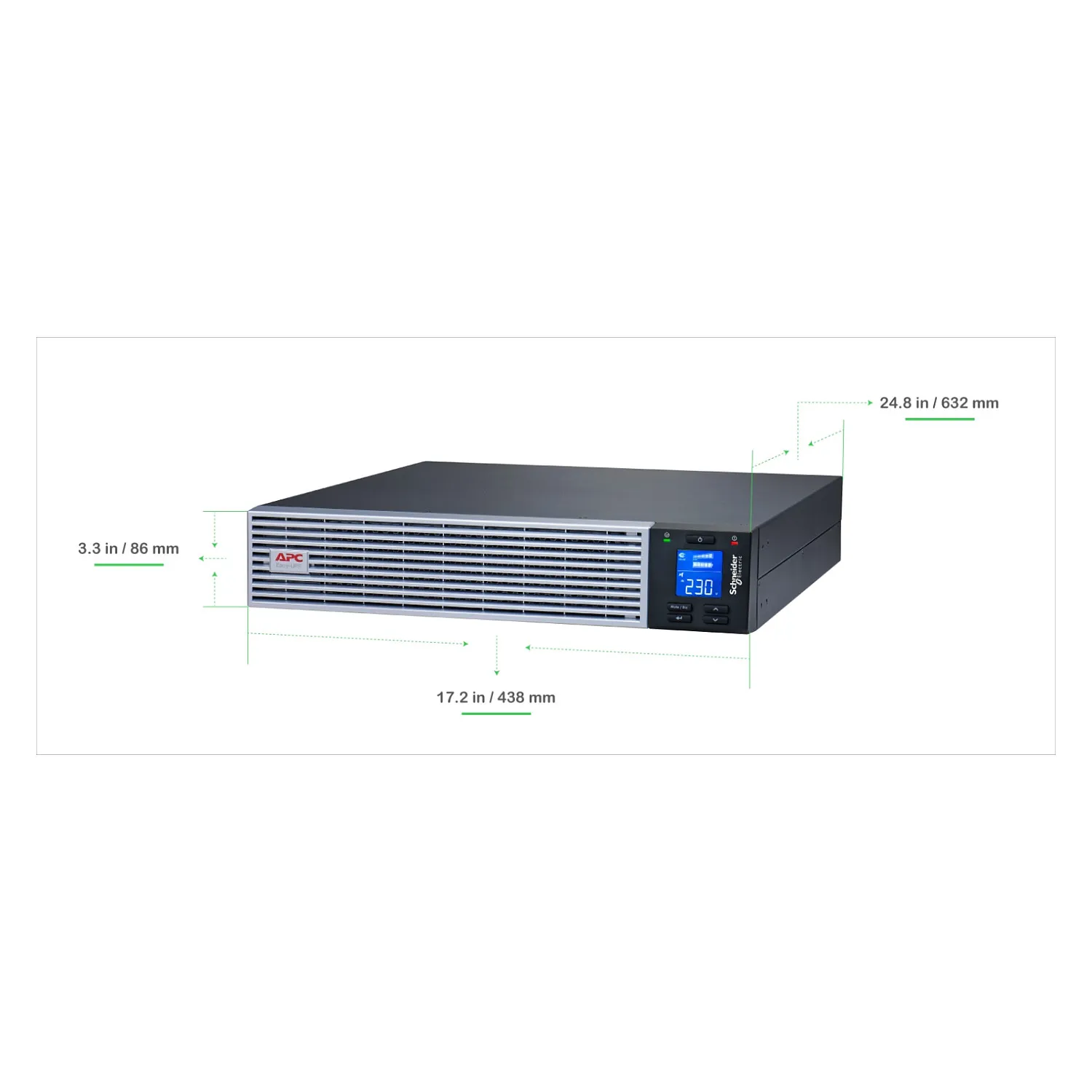

Weight & dimensions
Width: 438 mm
Depth: 632 mm
Height: 86 mm
Weight: 21.2 kg
Packaging data
Package width: 600 mm
Package depth: 800 mm
Package height: 240 mm
Package weight: 29.1 kg
Logistics data
Customs product code (TARIC): 8504409590
Total carbon footprint (kg of CO2e): 5751.29672688249
Country of origin: Taiwan
Other features
Input connection type: IEC 60320 C20
Output connection type: 6 IEC 60320C13; 1 IEC 60320C19
Output voltage: 230 V
Mounting: horizontal and vertical
