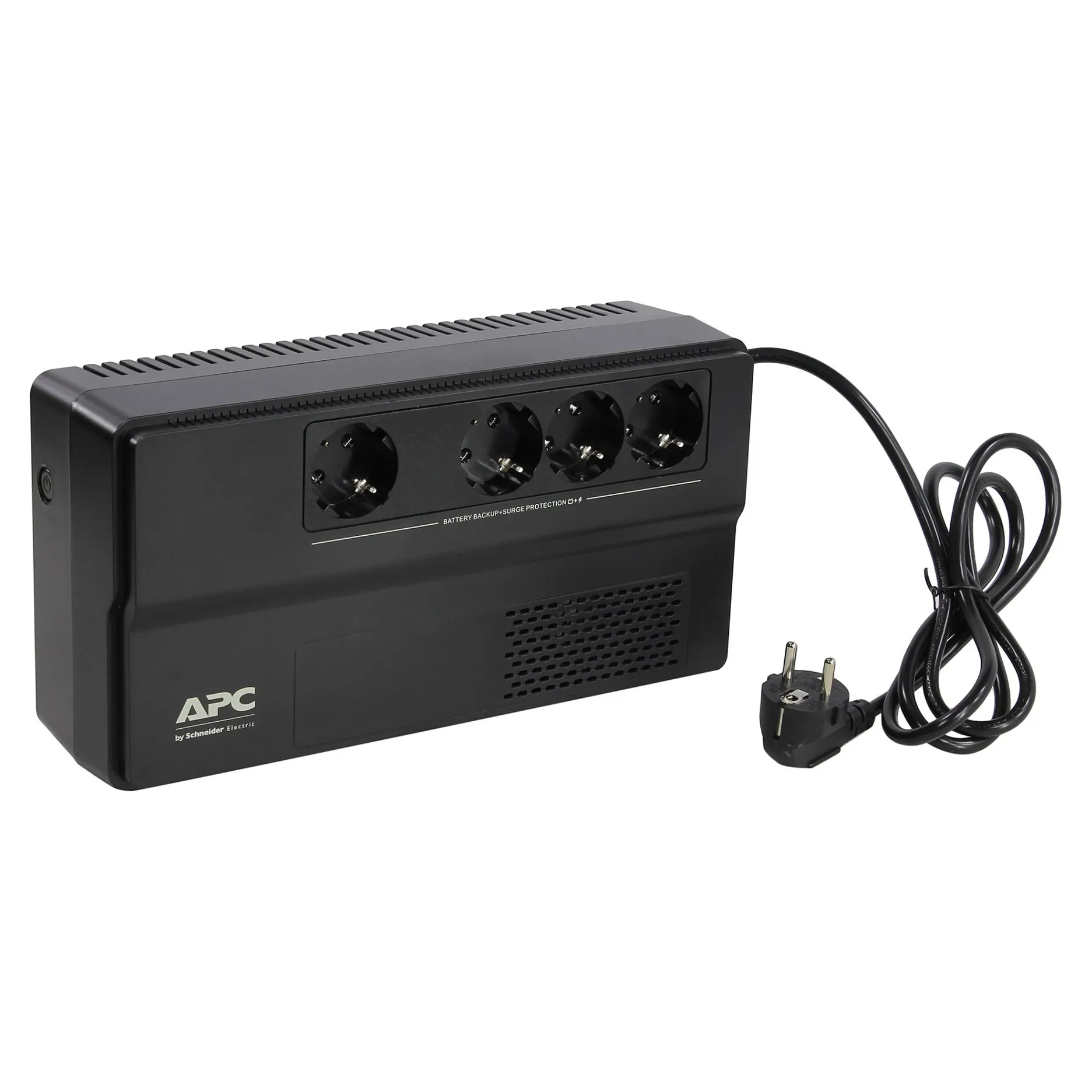

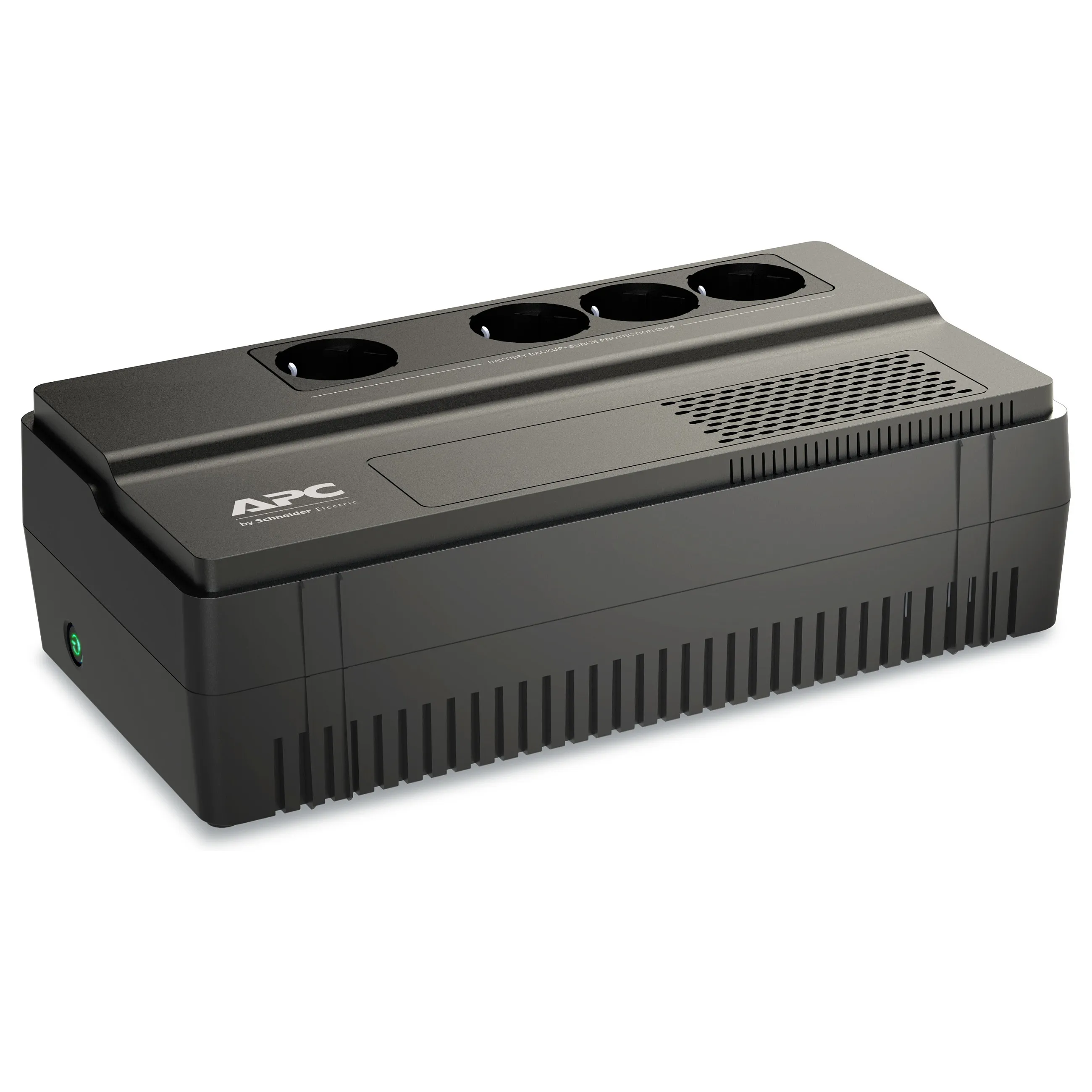

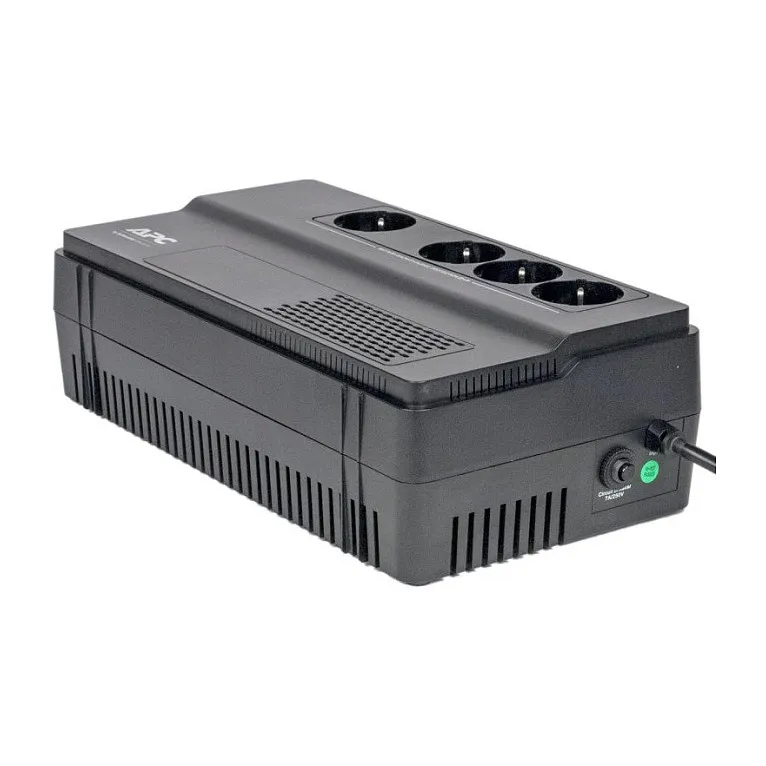

APC Easy-UPS BV500I-GR – 4x Schuko socket, 500VA. UPS topology: Line-Interactive, Output power capacity: 0.5 kVA, Output power: 300 W. AC outlet types: Type F, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 4.5 Ah, Battery voltage: 12 V. Form factor: Compact, Product colour: Black, Cable length: 1.52 m. Compliance certificates: RoHS, Certification: CE REACH
An APC Easy-UPS has a built-in battery that ensures that all connected devices, such as a NAS, router, modem and media box, continue to work if the power goes out. This prevents downtime, damage to equipment, and loss of data.
Safety and convenience

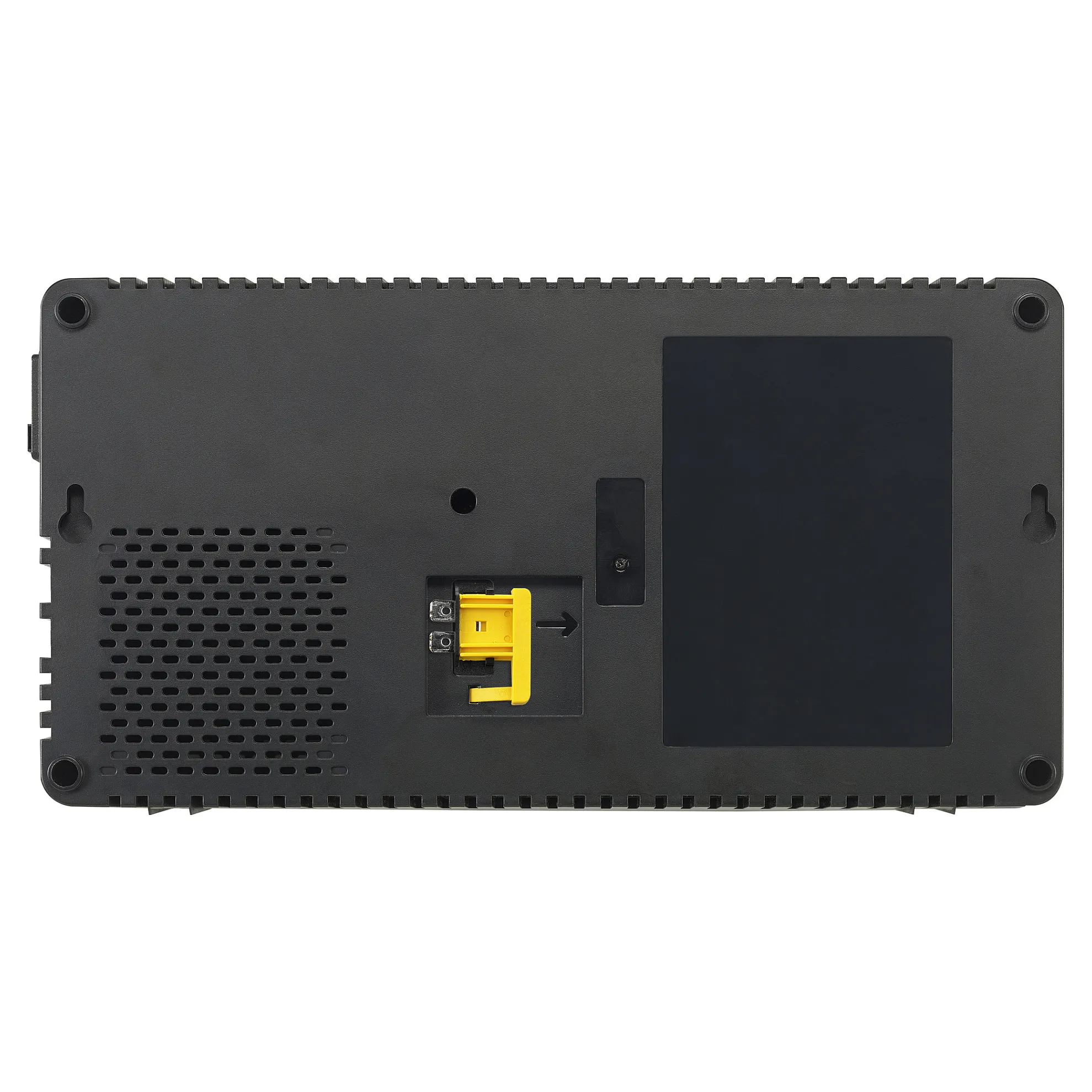

In addition, this safe APC UPS protects valuable equipment against peak voltage caused, for example, by lightning strikes. Because the APC Easy-UPS BV500I-GR can also be mounted on the wall and is equipped with 4 rotated sockets (45°), this APC emergency power supply is also a suitable UPS for the meter cupboard.
Expected battery life
Load in Watts, battery life in Minutes:
10W = 100 Min.
40W = 40 Min.
80W = 18 Min.
120W = 5 Min.
180W = 3 Min.
240W = 0.5 Min.
Extends battery life
The AVR function extends both the expected battery life and the expected runtime by correcting both low and high voltages without discharging the battery.
Warranty extension
The factory warranty of the BV500I-GR is 2 years and you can upgrade to 5 years with the APC service pack (WBEXTWAR3YR-SP-01A).
UPS topology: Line-Interactive
Output power capacity: 0.5 kVA
Output power: 300 W
Waveform: Sine
Input operation voltage (min): 170 V
Input operation voltage (max): 280 V
Input frequency: 50/60 Hz
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Surge energy rating: 156 J
Transfer time (Line Mode to Battery Mode): 6 ms
Number of input phases: 1
Number of output phases: 1
Noise level: 40 dB
Feature: Surge protection
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
Ports & interfaces
AC outlet types: Type F
AC outlets quantity: 4 AC outlet(s)
Battery
Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 4.5 Ah
Battery voltage: 12 V
Battery recharge time: 8 h
Feature: Cold start
Design
Form factor: Compact
Cable length: 1.52 m
Product colour: Black
LED indicators: Yes
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 0 – 90%
Operating altitude: 0 – 1968.3 m
Certificates
Compliance certificates: RoHS
Certification: CEREACH
Weight & dimensions
Width: 160 mm
Depth: 305 mm
Height: 92 mm
Weight: 3.9 kg
Packaging data
Package width: 373 mm
Package depth: 143 mm
Package height: 237 mm
Package weight: 4.2 kg
Logistics data
Harmonized System (HS) code: 85078000
Other features
Nominal output voltage: 230 V
