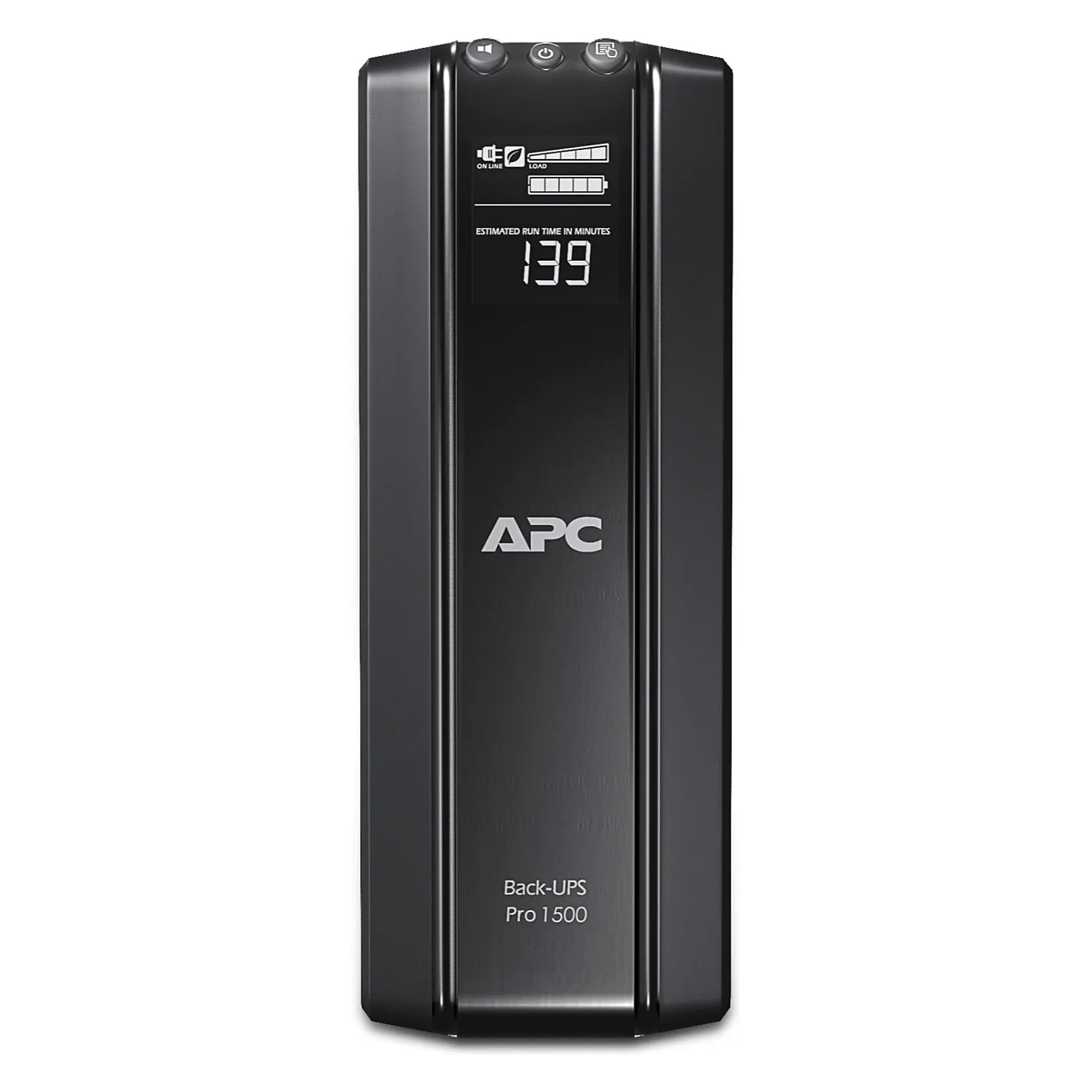

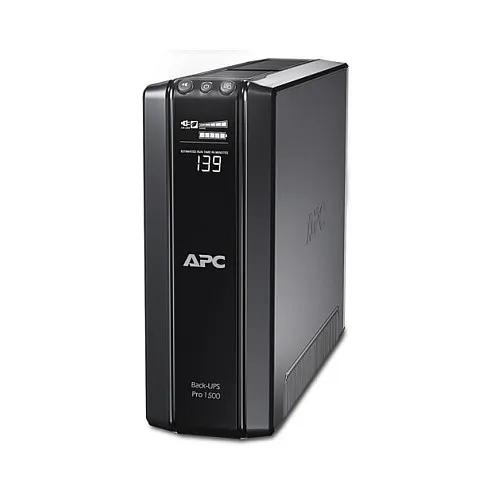

APC Power Saving Back-UPS RS 1500 230V CEE 7/5. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 865 W. AC outlet types: Type E / F. Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 8 h. Product colour: Black, Cable length: 1.83 m. Width: 112 mm, Depth: 380 mm, Height: 301 mm
Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Audible alarms: Provide notification of changing flywheel conditions
Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Power-saving outlets: Automatically cuts power to idle equipment to conserve electricity.
LCD display: Alpha-Numeric Display which displays system parameters and alarms.
Battery-protected and surge-only outlets: Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
Cold-start capable: Provides temporary battery power when the utility power is out.
Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Adjustable voltage sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible alarms: Provides notification of changing utility power and UPS conditions.
User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
USB connectivity: Provides management of the UPS via a USB port (not available on all models).
Transformer-block spaced outlets: Protect equipment with input transformer blocks without blocking access to other receptacles.

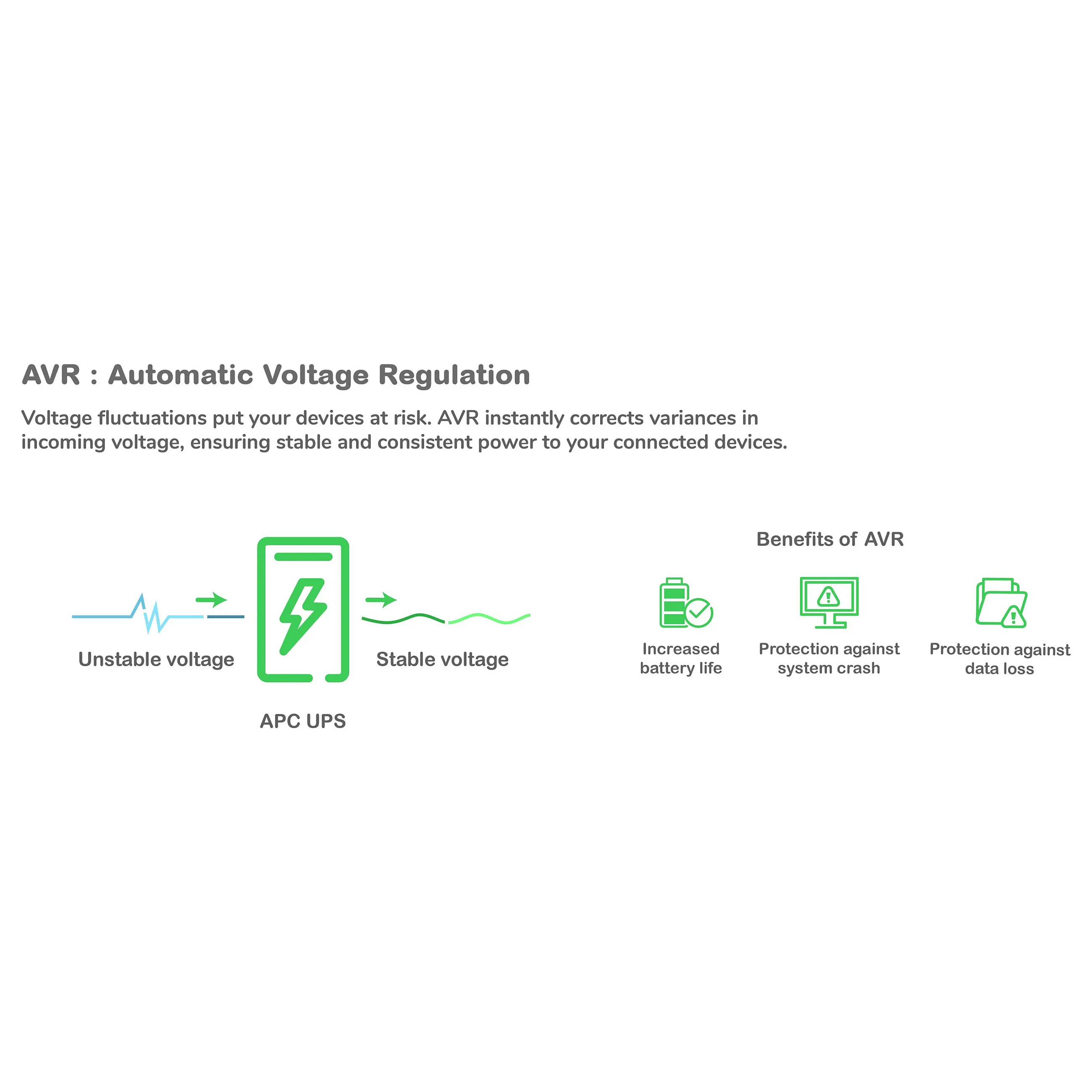

Boost and Trim Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions without using the battery
Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
Building Wiring Fault Indicator: This LED informs users of potentially dangerous wiring problems in the wall circuit.
Adjustable voltage sensitivity: Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.
Automatic Voltage Regulation (AVR): Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Battery fault detection: Monitors room and individual battery temperature changes for early detection of thermal runaway, shorted cells, open circuit, and bad battery.
Battery-protected and surge-only outlets: Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment.
Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.
Audible alarms: Provides notification of changing utility power and UPS conditions.
Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery replacement without tools: Allows quick, easy battery replacement.
LED status indicators: Quickly understand unit and power status with visual indicators.
Cold-start capable: Provides temporary battery power when the utility power is out.
Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Resettable circuit breakers: Enables a quick recovery from overload events.
Transformer-block spaced outlets: Protect equipment with input transformer blocks without blocking access to other receptacles.
User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Adjustable voltage sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points: Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Intelligent battery management: Micro-processor controlled battery charging and diagnostic testing ensures maximum battery life.
UPS topology: Line-Interactive
Output power capacity: 1.5 kVA
Output power: 865 W
Surge energy rating: 445 J
Ports & interfaces

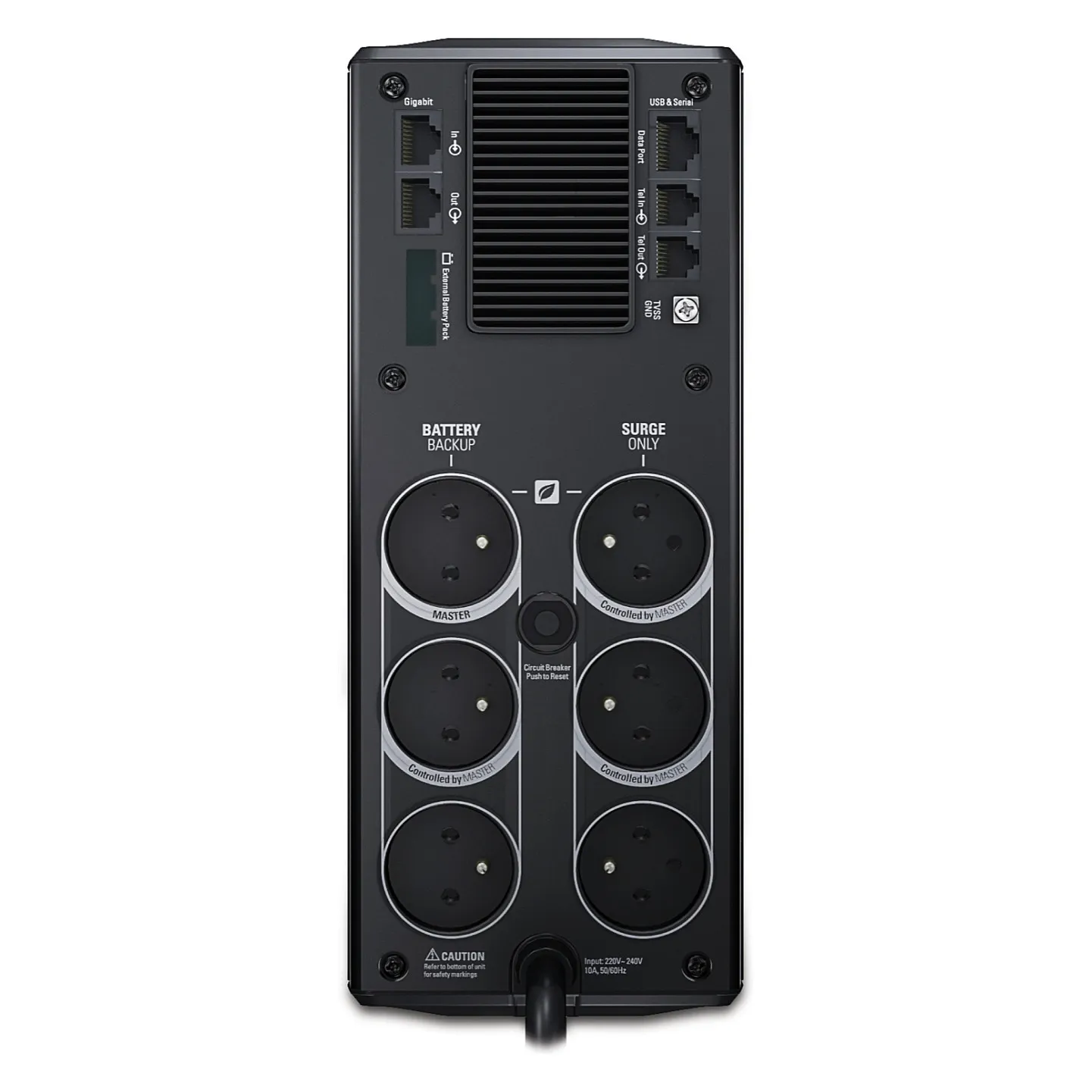

AC outlet types: Type E / F
Modem (RJ-11) ports: 1
Ethernet LAN (RJ-45) ports: 1
Battery
Battery technology: Sealed Lead Acid (VRLA)
Battery recharge time: 8 h
Replacement battery cartridge: 1
Design
Cable length: 1.83 m
Product colour: Black
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -15 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 9000 m
Non-operating altitude: 0 – 15000 m
Weight & dimensions
Width: 112 mm
Depth: 380 mm
Height: 301 mm
Weight: 11.6 kg
Packaging data
Package weight: 13.2 kg
Logistics data
Harmonized System (HS) code: 85078000
Other features
Battery type: APCRBC124
Interface: USB
Input connection type: IEC-320 C14
Nominal output voltage: 230 V
Filtering description: UL 1449
Nominal input voltage: 230 V
Operating temperature (T-T): 32 – 104 °F
Package dimensions (WxDxH): 238 x 488 x 387 mm
