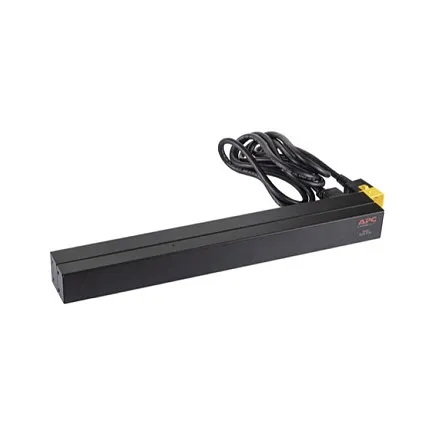

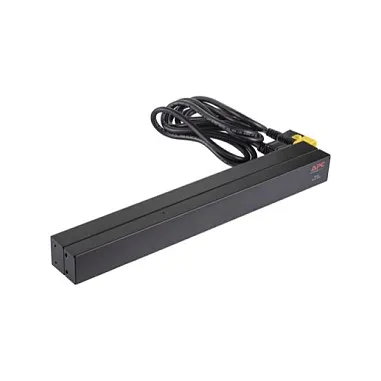

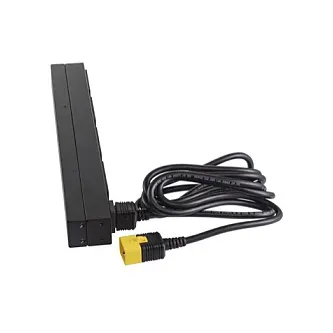

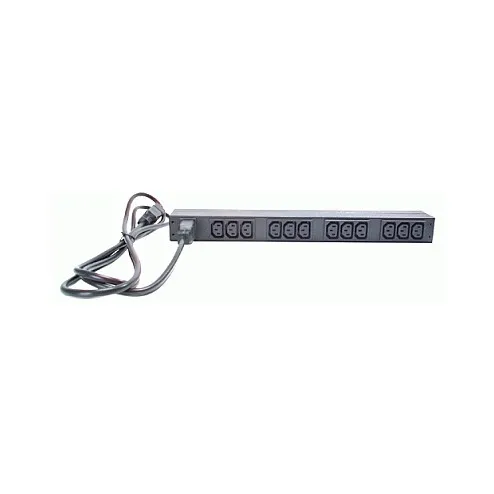

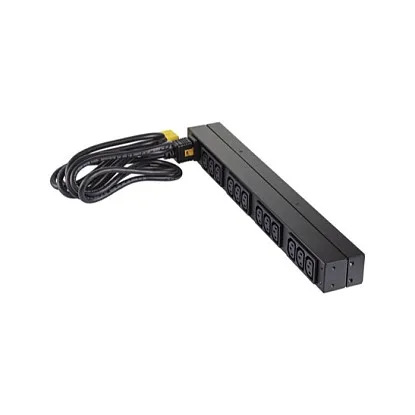

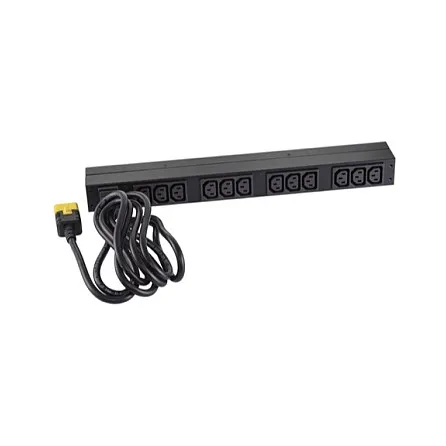

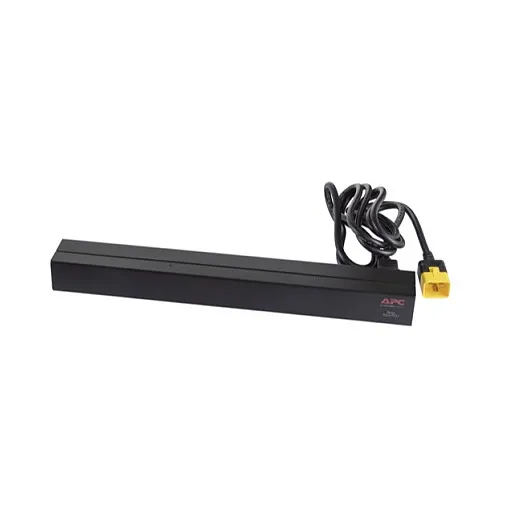

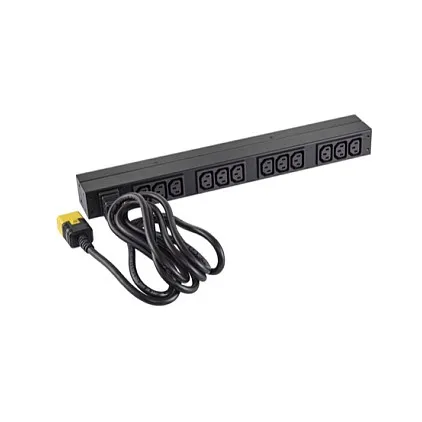

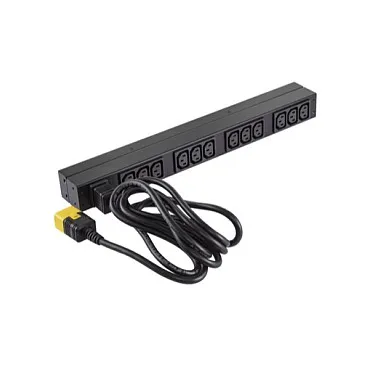

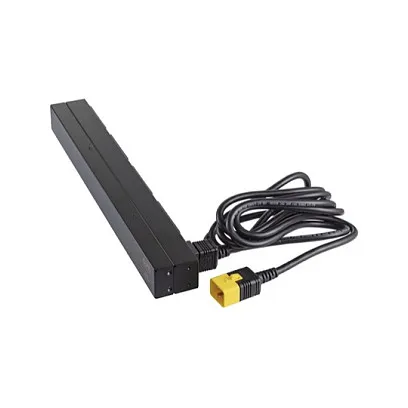

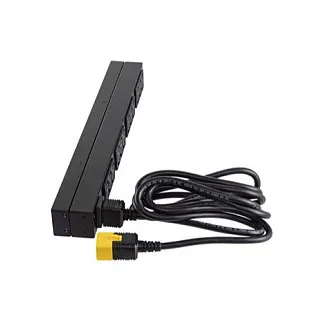

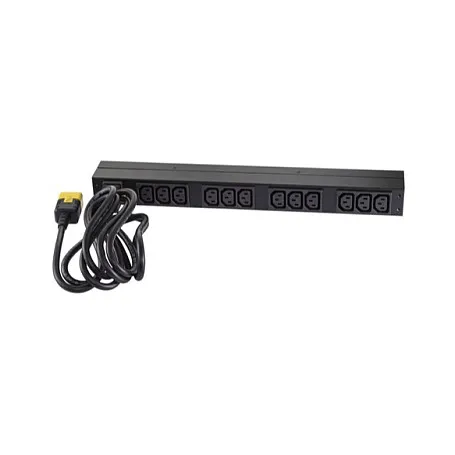

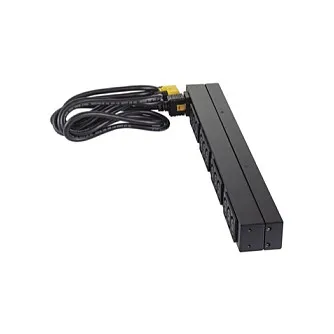

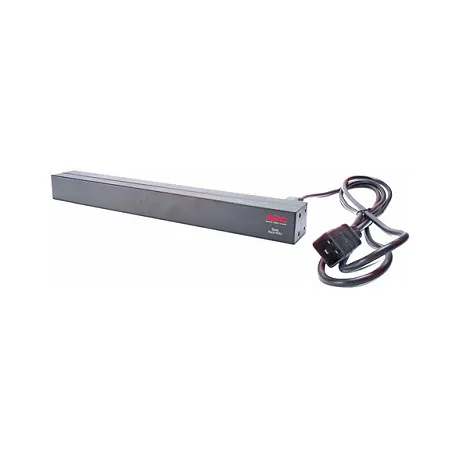

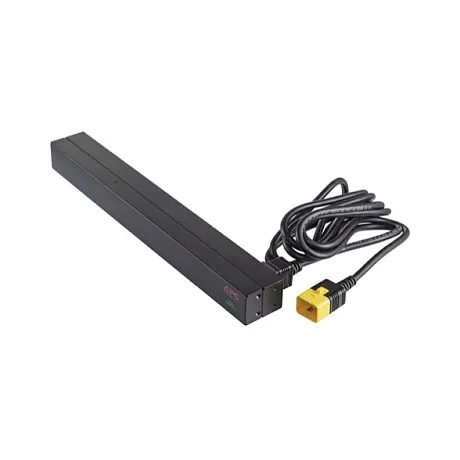

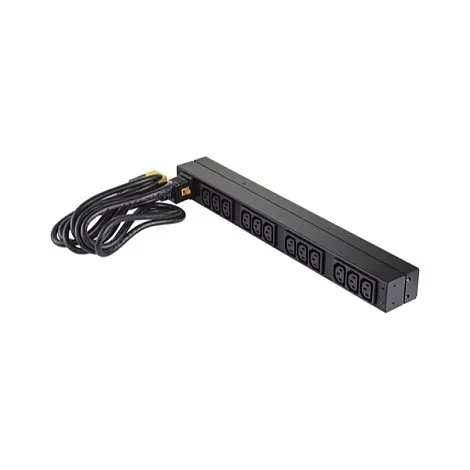

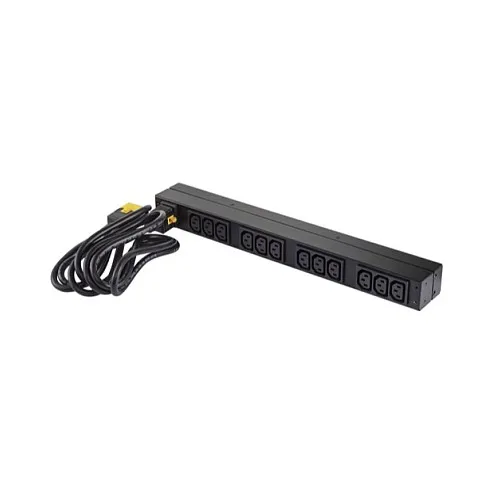

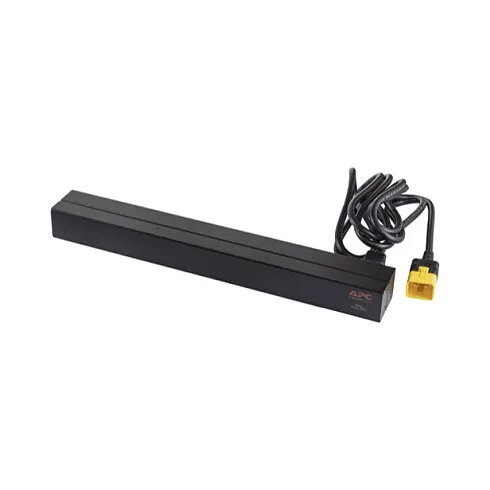

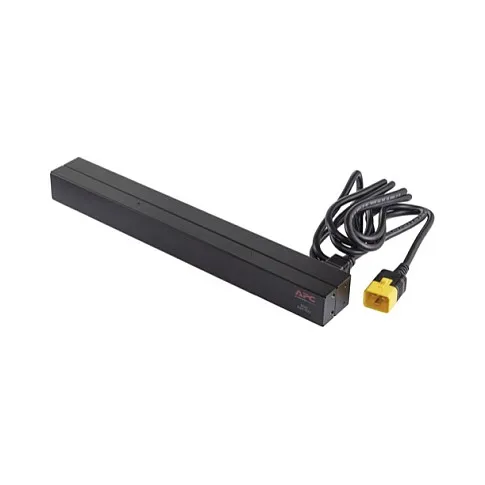

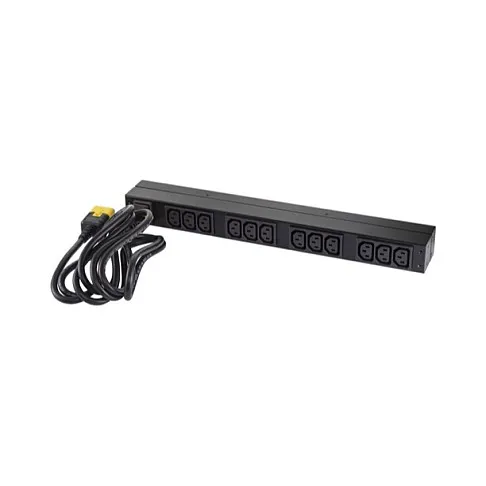

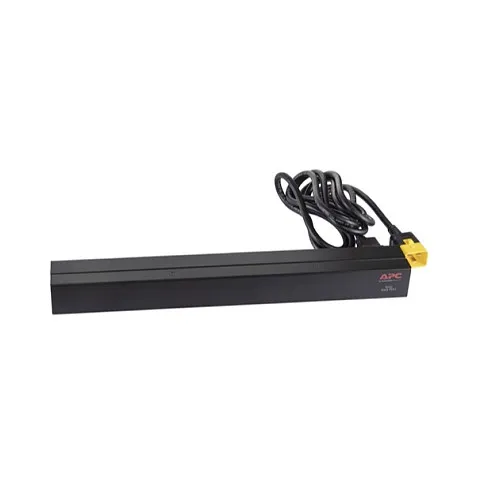

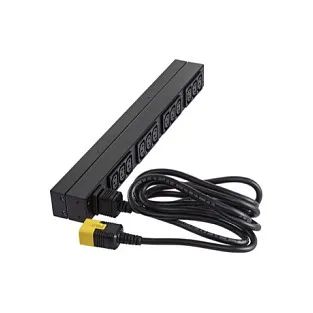

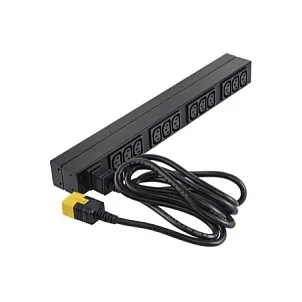

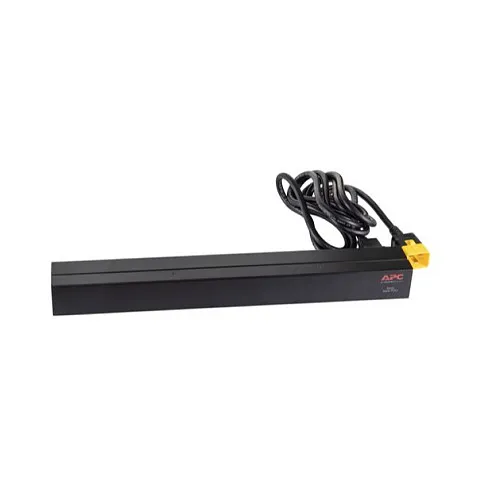

APC NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord. PDU types: Basic, Rack capacity: 0U/1U, Type: Single-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Cable length: 2.5 m. Load capacity: 3680 VA, Maximum input current per phase: 16 A, Maximum power: 3680 W. Certification: cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Design
PDU types: Basic
Type: Single-phase
Rack capacity: 0U/1U
Mounting: Horizontal/Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 12 AC outlet(s)
Power plug: C20 coupler
AC outlet types: C13 coupler
Input connection type: IEC-320 C20
Output connections: (12) IEC 320 C13
Features
Cable length: 2.5 m
Power
Load capacity: 3680 VA
Maximum input current per phase: 16 A
Maximum power: 3680 W
Certificates
Certification: cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 447 mm
Depth: 57.2 mm
Height: 44.5 mm
Weight: 2.05 kg
Packaging data
Package weight: 3.64 kg
Package width: 464 mm
Package depth: 229 mm
Package height: 70 mm
Logistics data
Total carbon footprint (kg of CO2e): 55.19
PDU types: Basic
Type: Single-phase
Rack capacity: 0U/1U
Mounting: Horizontal/Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 12 AC outlet(s)
Power plug: C20 coupler
AC outlet types: C13 coupler
Input connection type: IEC-320 C20
Output connections: (12) IEC 320 C13
Features
Cable length: 2.5 m
Power
Load capacity: 3680 VA
Maximum input current per phase: 16 A
Maximum power: 3680 W
Certificates
Certification: cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 447 mm
Depth: 57.2 mm
Height: 44.5 mm
Weight: 2.05 kg
Packaging data
Package weight: 3.64 kg
Package width: 464 mm
Package depth: 229 mm
Package height: 70 mm
Logistics data
Total carbon footprint (kg of CO2e): 55.19
