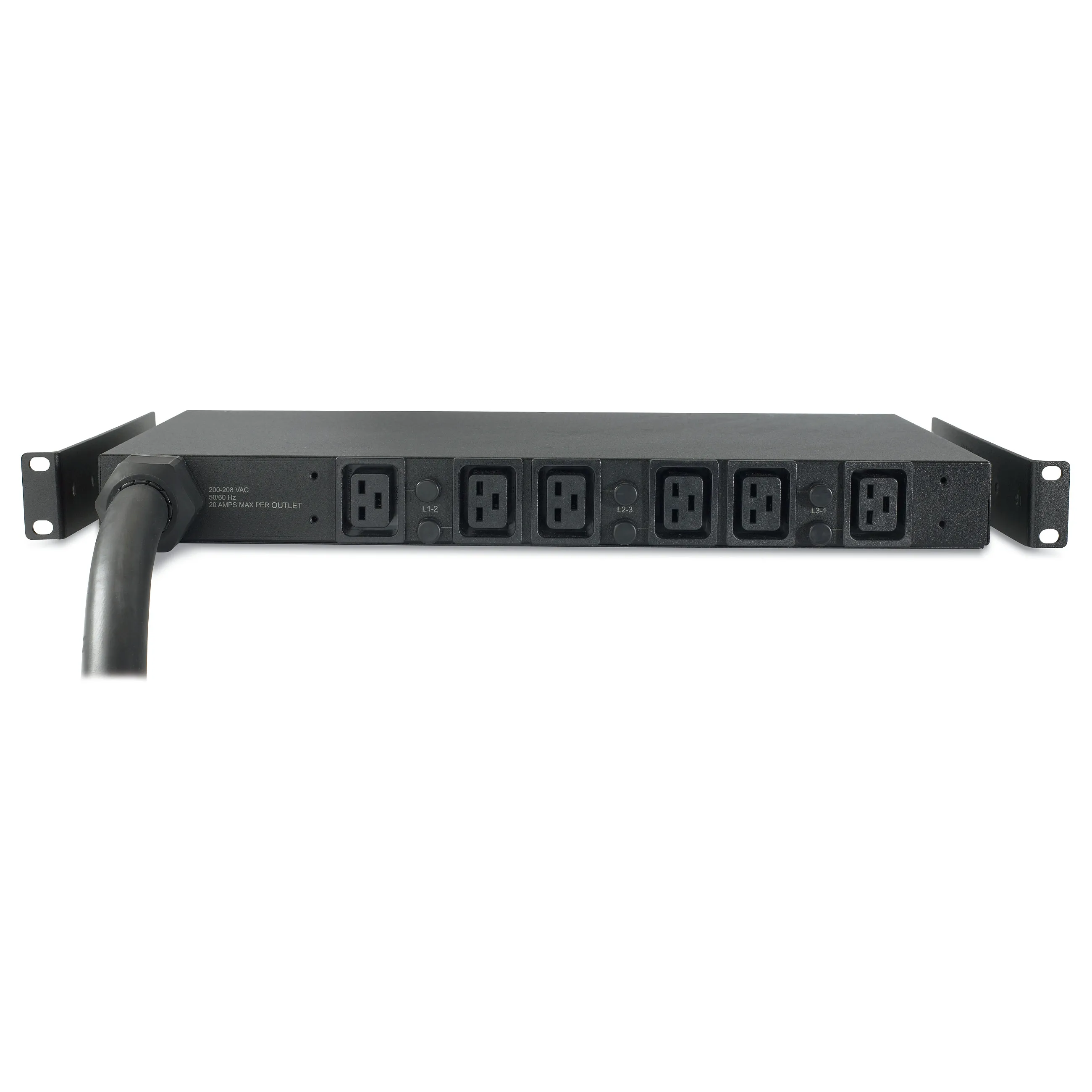

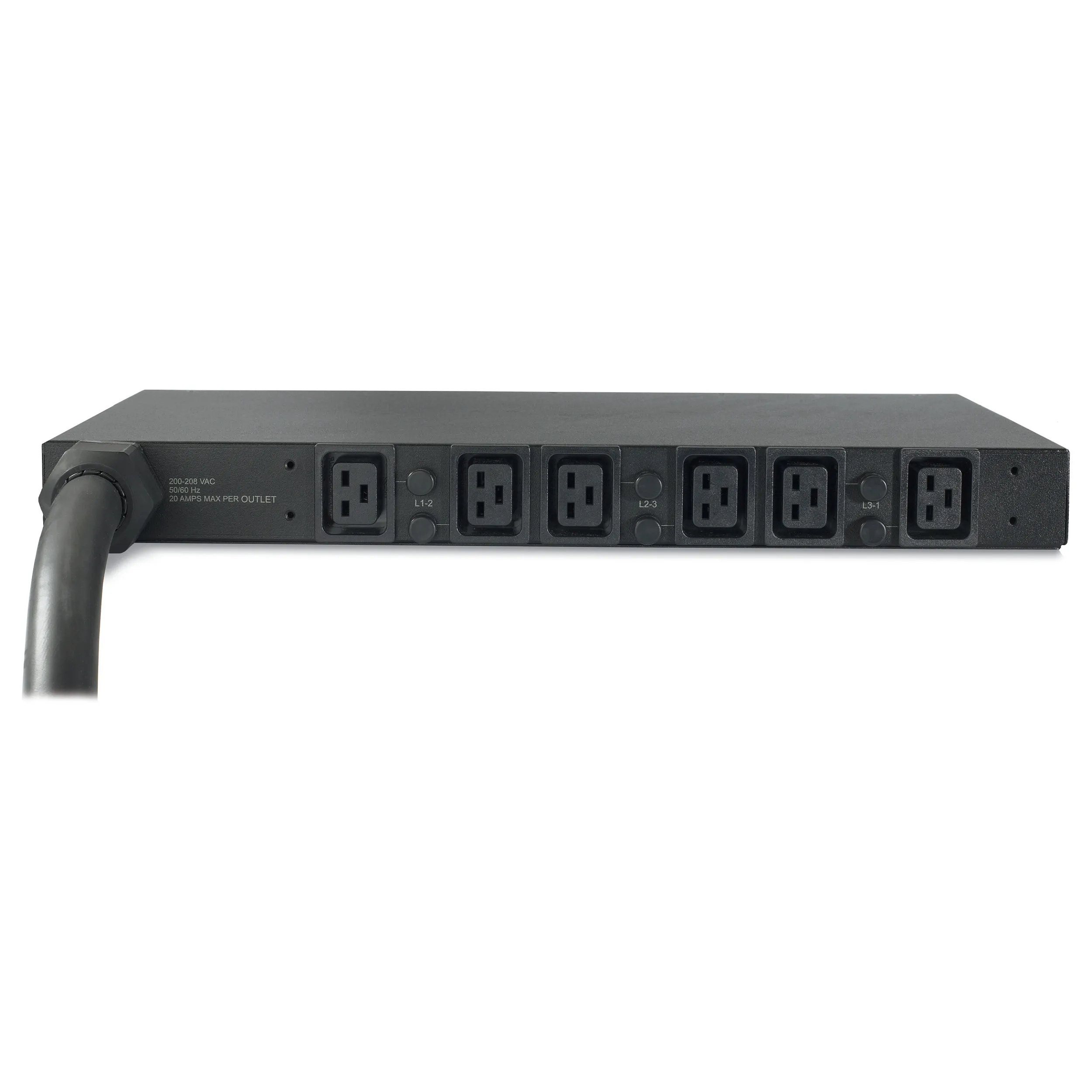

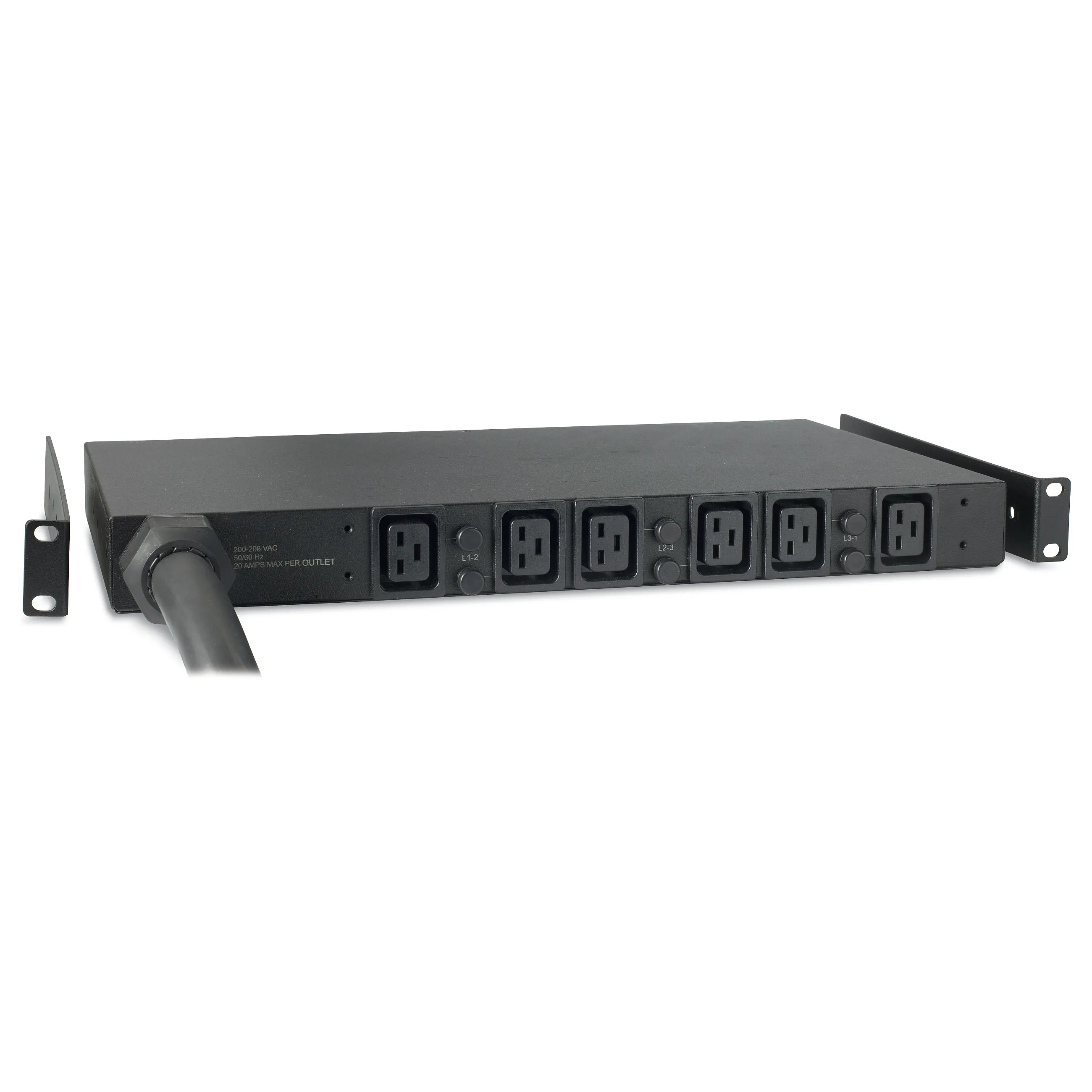

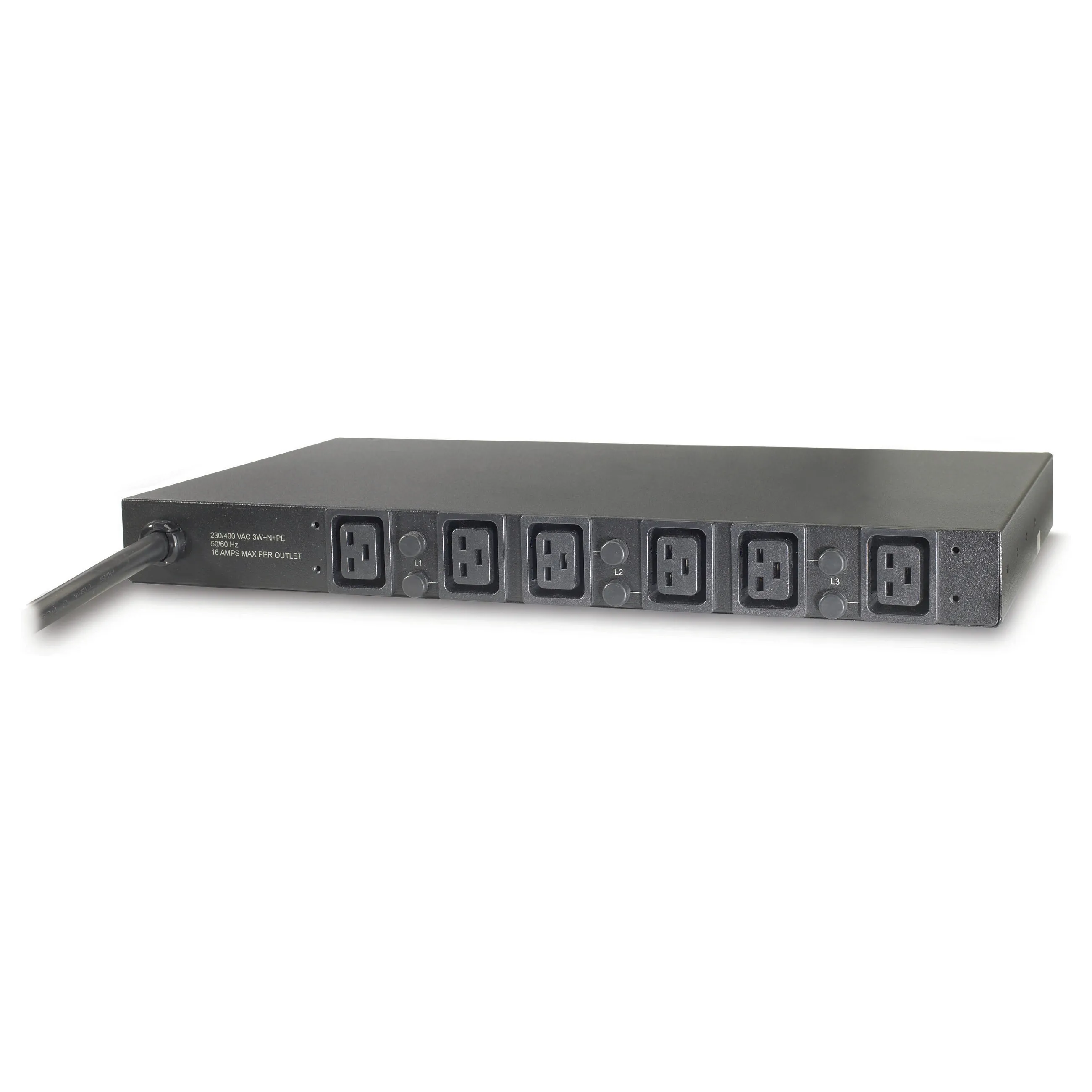

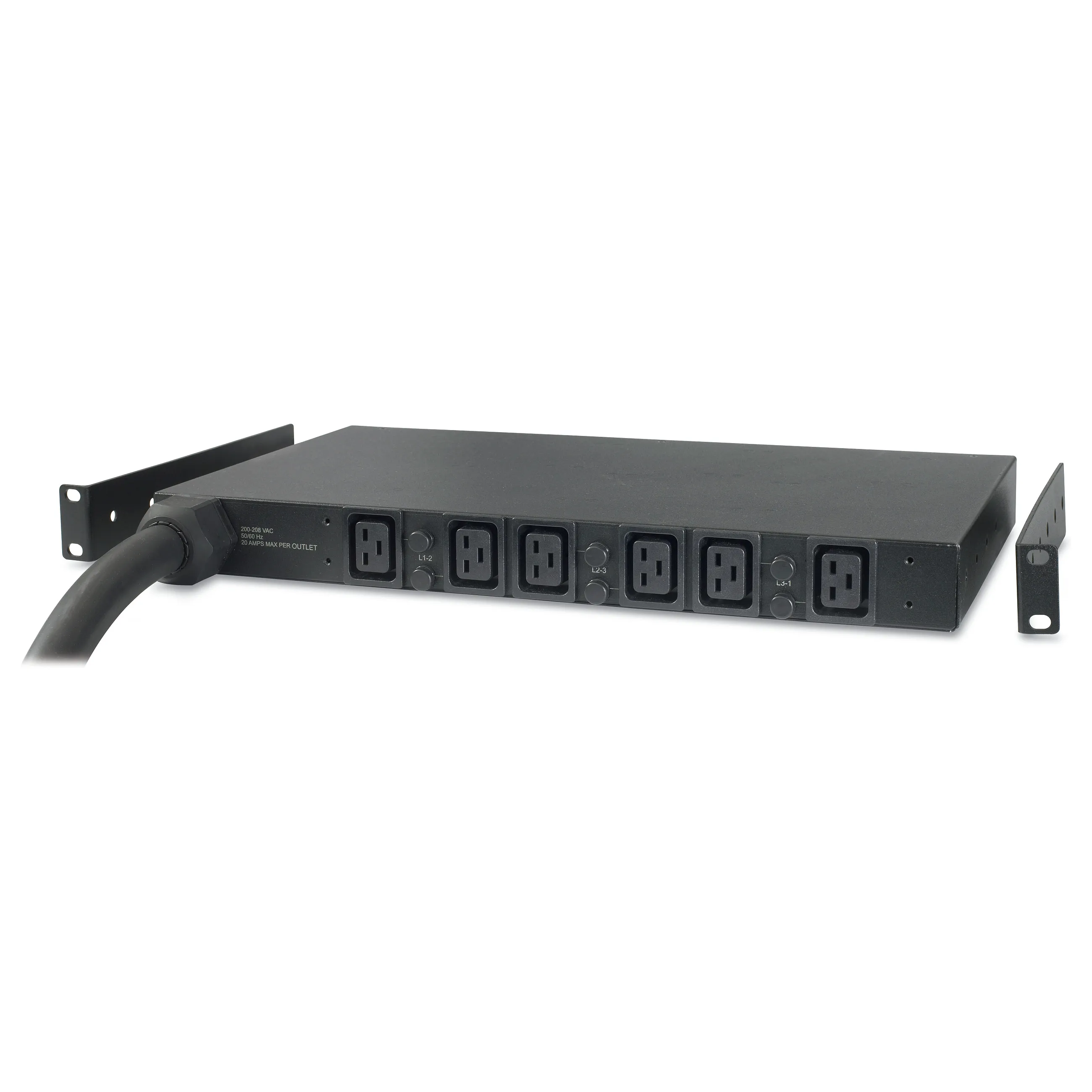

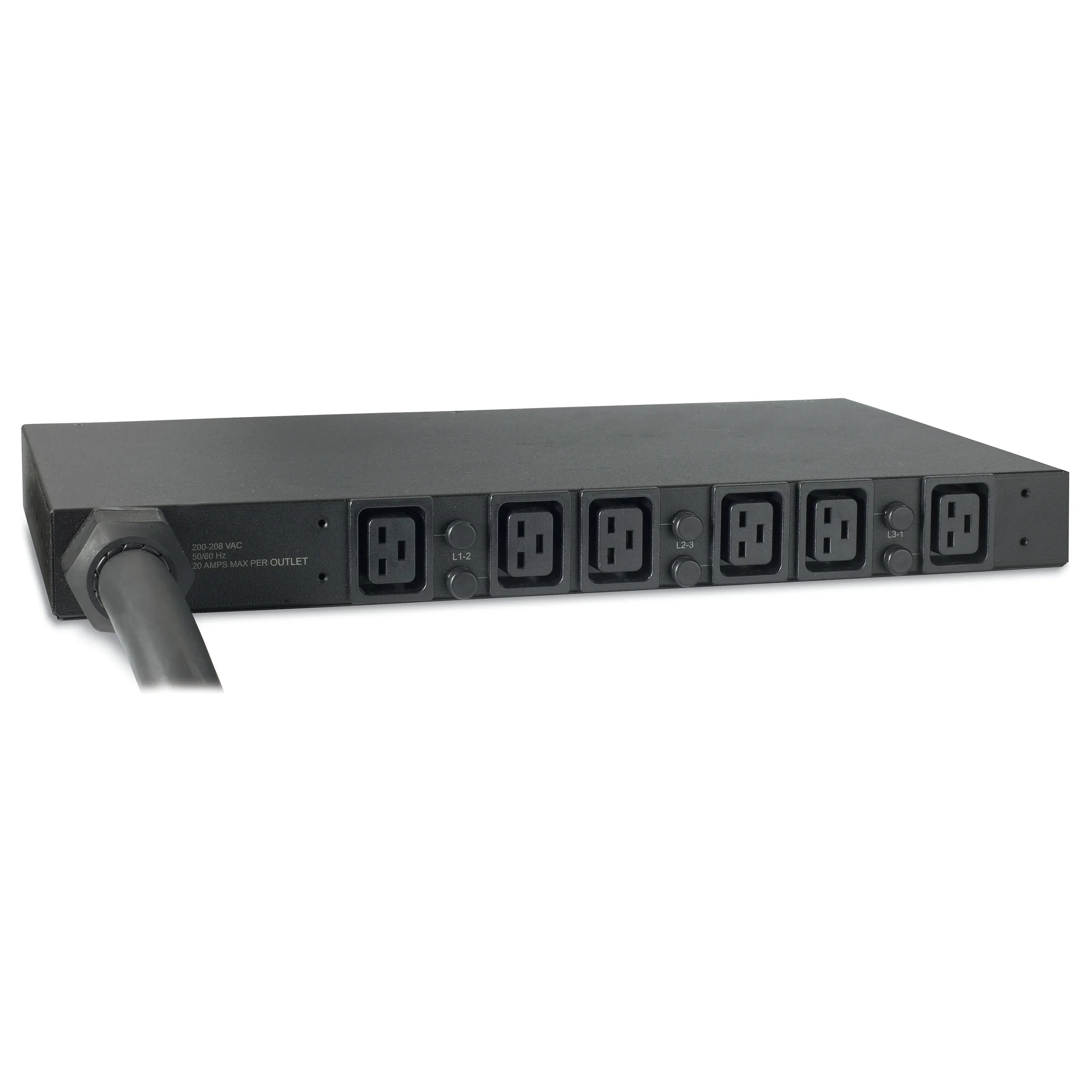

APC Basic Rack PDU AP7526. PDU types: Basic, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 6 AC outlet(s), AC outlet types: C19 coupler, Input connection type: IEC 309 32A 3P+N+PE. Cable length: 2.44 m. Nominal input voltage: 400 V, Nominal output voltage: 230 V, Load capacity: 22080 VA. Certification: CE,GOST,VDE
Features:
-High Power Density.
-Horizontal mounting capability.
-Low Cost Power Distribution.
-High Power Density.
-Horizontal mounting capability.
-Low Cost Power Distribution.
Design
PDU types: Basic
Rack capacity: 1U
Mounting: Horizontal
Product colour: Black
Ports & interfaces
AC outlets quantity: 6 AC outlet(s)
AC outlet types: C19 coupler
Input connection type: IEC 309 32A 3P+N+PE
Output connections: IEC 320 C19
Features
Cable length: 2.44 m
Power
Nominal input voltage: 400 V
Nominal output voltage: 230 V
Load capacity: 22080 VA
Maximum input current per phase: 32 A
Maximum total current draw per phase: 32 A
Maximum power: 22000 W
Certificates
Certification: CE,GOST,VDE
Operational conditions
Operating temperature (T-T): -5 – 45 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 437 mm
Depth: 254 mm
Height: 44 mm
Weight: 4.84 kg
Packaging data
Package weight: 6.98 kg
Package width: 559 mm
Package depth: 502 mm
Package height: 241 mm
PDU types: Basic
Rack capacity: 1U
Mounting: Horizontal
Product colour: Black
Ports & interfaces
AC outlets quantity: 6 AC outlet(s)
AC outlet types: C19 coupler
Input connection type: IEC 309 32A 3P+N+PE
Output connections: IEC 320 C19
Features
Cable length: 2.44 m
Power
Nominal input voltage: 400 V
Nominal output voltage: 230 V
Load capacity: 22080 VA
Maximum input current per phase: 32 A
Maximum total current draw per phase: 32 A
Maximum power: 22000 W
Certificates
Certification: CE,GOST,VDE
Operational conditions
Operating temperature (T-T): -5 – 45 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 437 mm
Depth: 254 mm
Height: 44 mm
Weight: 4.84 kg
Packaging data
Package weight: 6.98 kg
Package width: 559 mm
Package depth: 502 mm
Package height: 241 mm
