APC Protocol translation to UPS-Link, Management Options, Legacy Communications SmartSlot Card, UPS support for UPSLink protocol serial communications. Certification: RoHS. Width: 121 mm, Depth: 114 mm, Height: 38 mm. Package weight: 340 g. Connectivity technology: Wired, Package dimensions (WxDxH): 235 x 159 x 51 mm

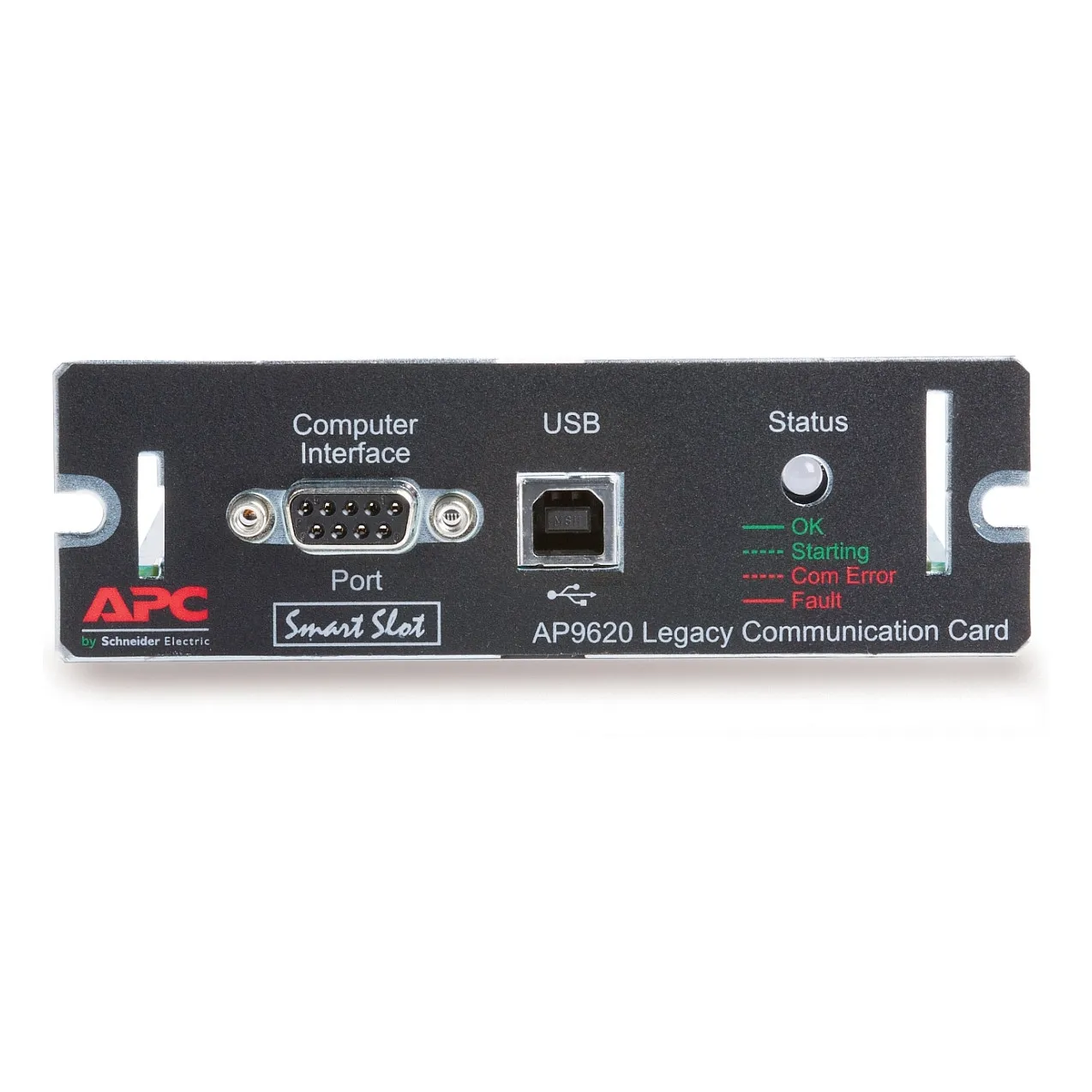

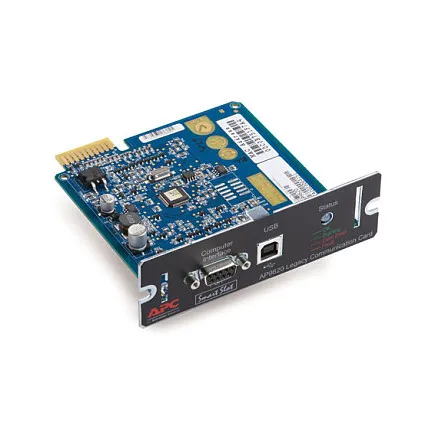

The Legacy Communications SmartSlot Card provides serial communications support for the UPS-Link protocol for SC, SMC, SMX, SMT, SURTD, SRT UPS models. These UPS devices no longer communicate using the UPS-Link protocol. The Legacy Communications Card can be used for custom applications using the UPS-Link protocol.
Ports & interfaces
USB 2.0 ports quantity: 1
Serial ports quantity: 1
Design
Certification: RoHS
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -5 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Technical details
Total carbon footprint (kg of CO2e): 109.58
Weight & dimensions
Width: 121 mm
Depth: 114 mm
Height: 38 mm
Weight: 80 g
Packaging data
Package weight: 340 g
Logistics data
Harmonized System (HS) code: 84733020
Other features
Connectivity technology: Wired
Package dimensions (WxDxH): 235 x 159 x 51 mm
USB 2.0 ports quantity: 1
Serial ports quantity: 1
Design
Certification: RoHS
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -5 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Technical details
Total carbon footprint (kg of CO2e): 109.58
Weight & dimensions
Width: 121 mm
Depth: 114 mm
Height: 38 mm
Weight: 80 g
Packaging data
Package weight: 340 g
Logistics data
Harmonized System (HS) code: 84733020
Other features
Connectivity technology: Wired
Package dimensions (WxDxH): 235 x 159 x 51 mm
