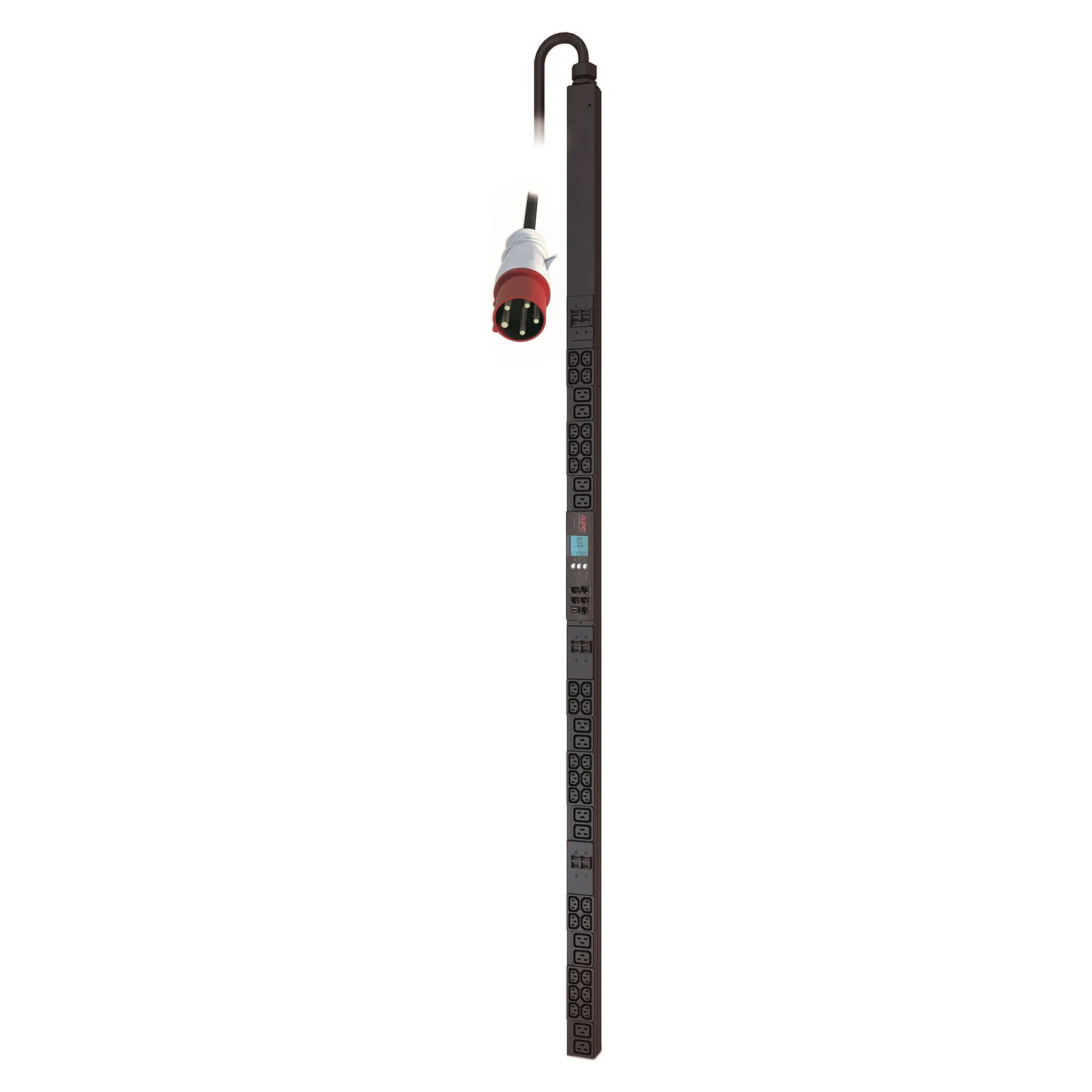

APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord. PDU types: Metered, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 1.83 m. Monitoring: Current, Power, Voltage. Nominal input voltage: 400 V, Maximum current: 32 A, AC input frequency: 50 – 60 Hz
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Design
PDU types: Metered
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 42 AC outlet(s)

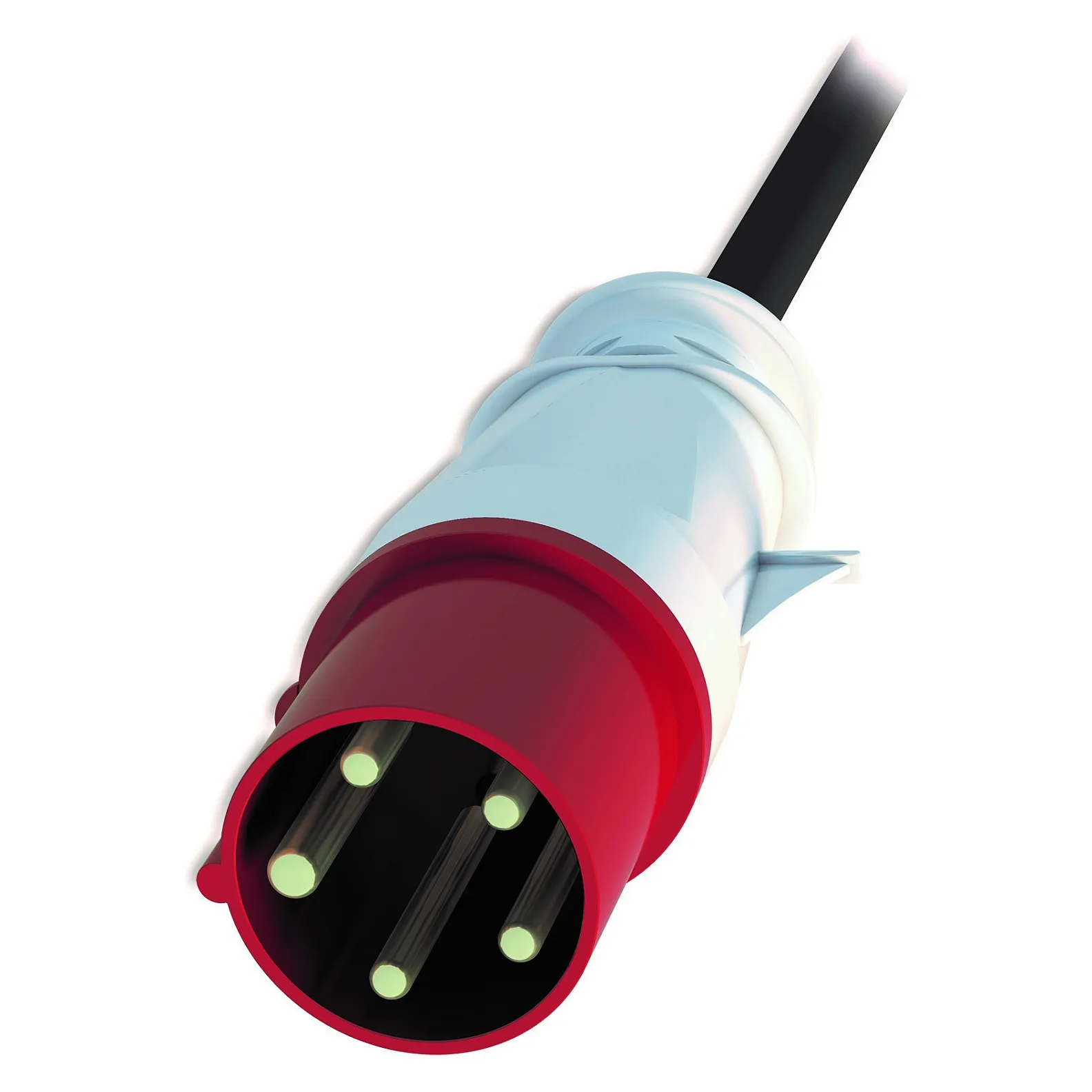

Power plug: IEC309
AC outlet types: C13 coupler, C19 coupler
Output connections: 30 x IEC 320 C1312 x IEC 320 C19
Features
LED indicators: Yes
Cable length: 1.83 m
Management features

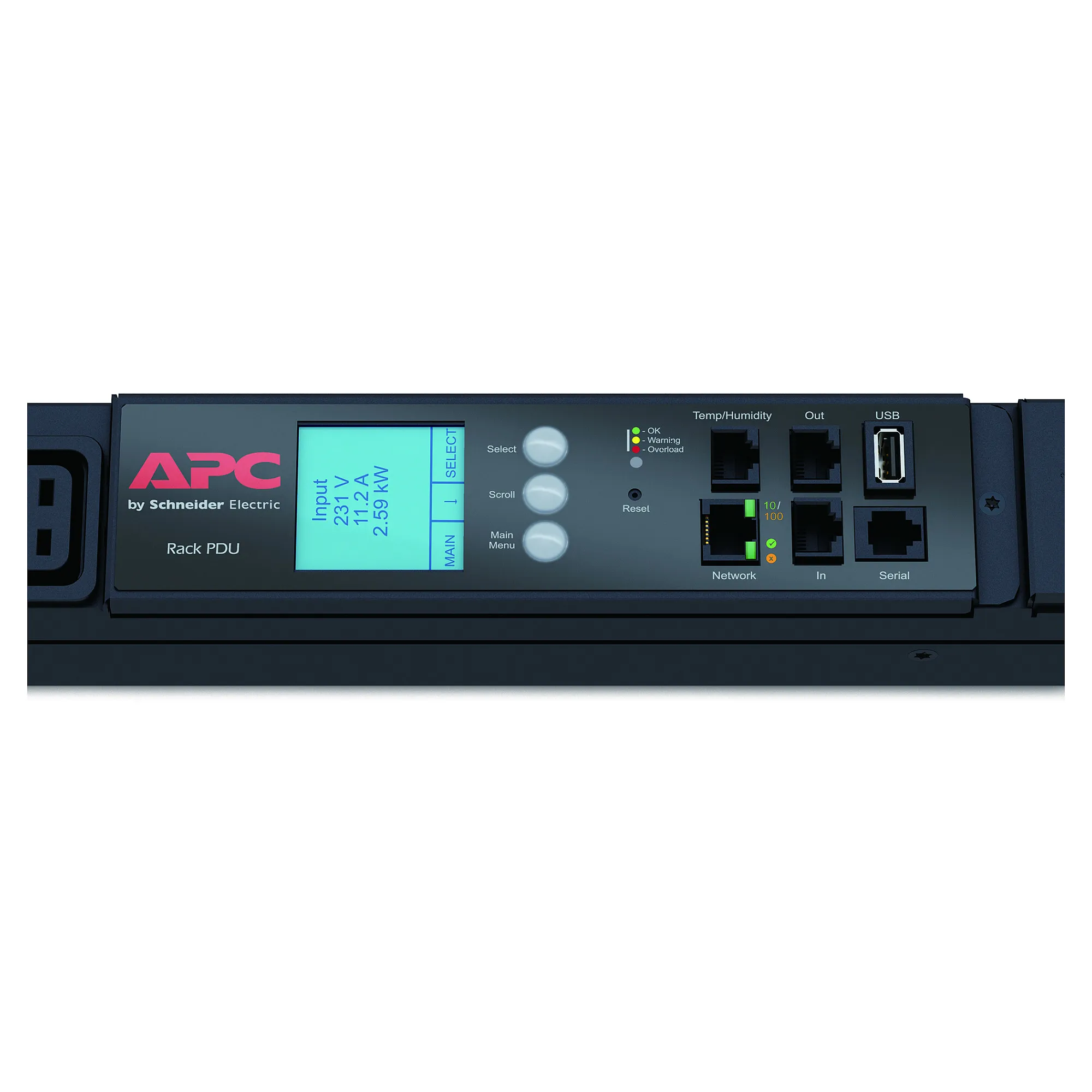

Monitoring: Current, Power, Voltage
Power
Nominal input voltage: 400 V
AC input frequency: 50 – 60 Hz
Maximum current: 32 A
Nominal output voltage: 230 V
Load capacity: 22080 VA
Maximum input current per phase: 32 A
Power protection features: Overload
Maximum power: 22000 W
Certificates
Compliance certificates: RoHS
Certification: EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDEREACH: No SVHCs
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Weight & dimensions
Width: 56 mm
Depth: 51 mm
Height: 1829 mm
Weight: 8.72 kg
Packaging data
Package weight: 11.6 kg
Package width: 170 mm
Package depth: 112 mm
Package height: 2050 mm
Logistics data
Total carbon footprint (kg of CO2e): 57837.86
PDU types: Metered
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 42 AC outlet(s)
Power plug: IEC309
AC outlet types: C13 coupler, C19 coupler
Output connections: 30 x IEC 320 C1312 x IEC 320 C19
Features
LED indicators: Yes
Cable length: 1.83 m
Management features
Monitoring: Current, Power, Voltage
Power
Nominal input voltage: 400 V
AC input frequency: 50 – 60 Hz
Maximum current: 32 A
Nominal output voltage: 230 V
Load capacity: 22080 VA
Maximum input current per phase: 32 A
Power protection features: Overload
Maximum power: 22000 W
Certificates
Compliance certificates: RoHS
Certification: EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDEREACH: No SVHCs
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Weight & dimensions
Width: 56 mm
Depth: 51 mm
Height: 1829 mm
Weight: 8.72 kg
Packaging data
Package weight: 11.6 kg
Package width: 170 mm
Package depth: 112 mm
Package height: 2050 mm
Logistics data
Total carbon footprint (kg of CO2e): 57837.86
