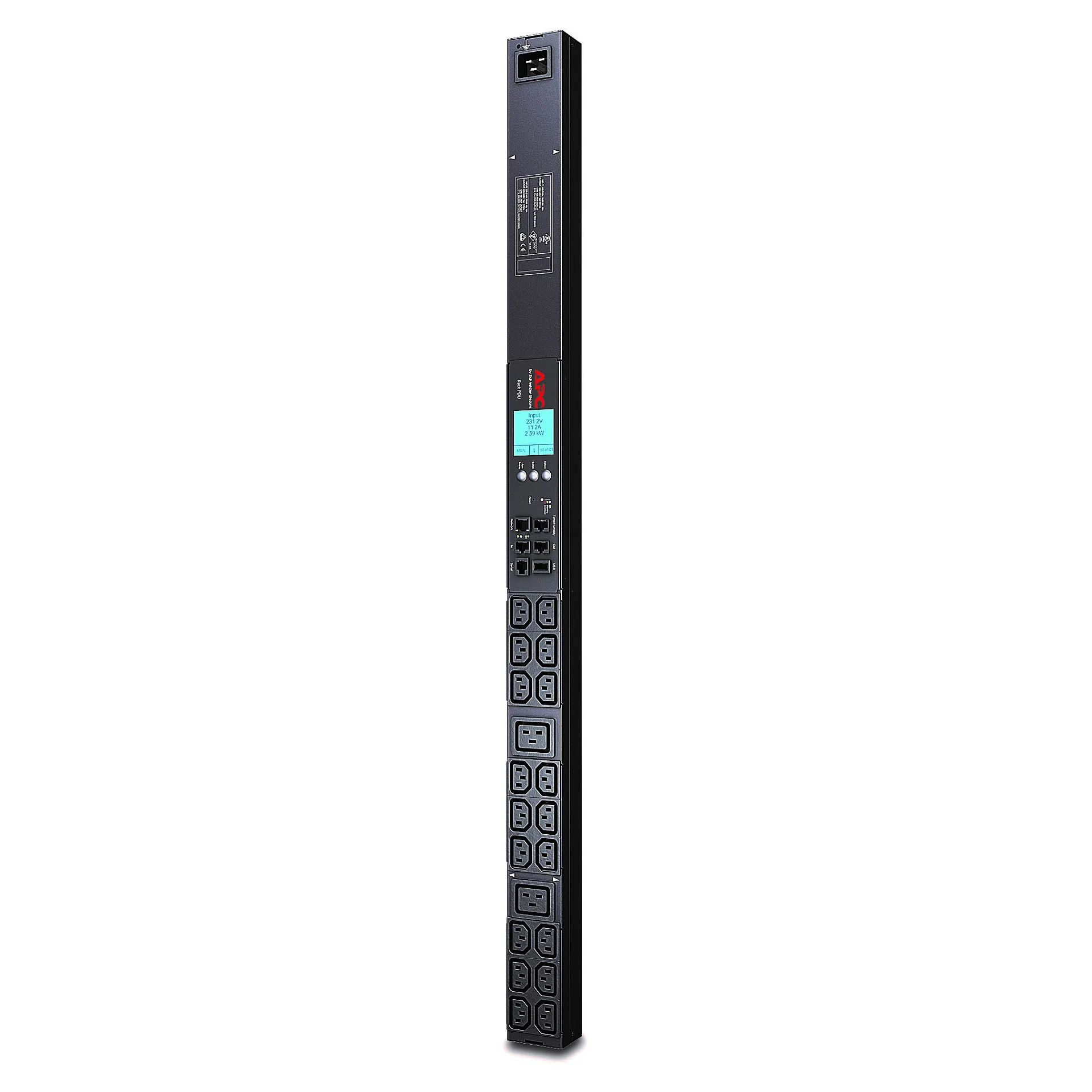

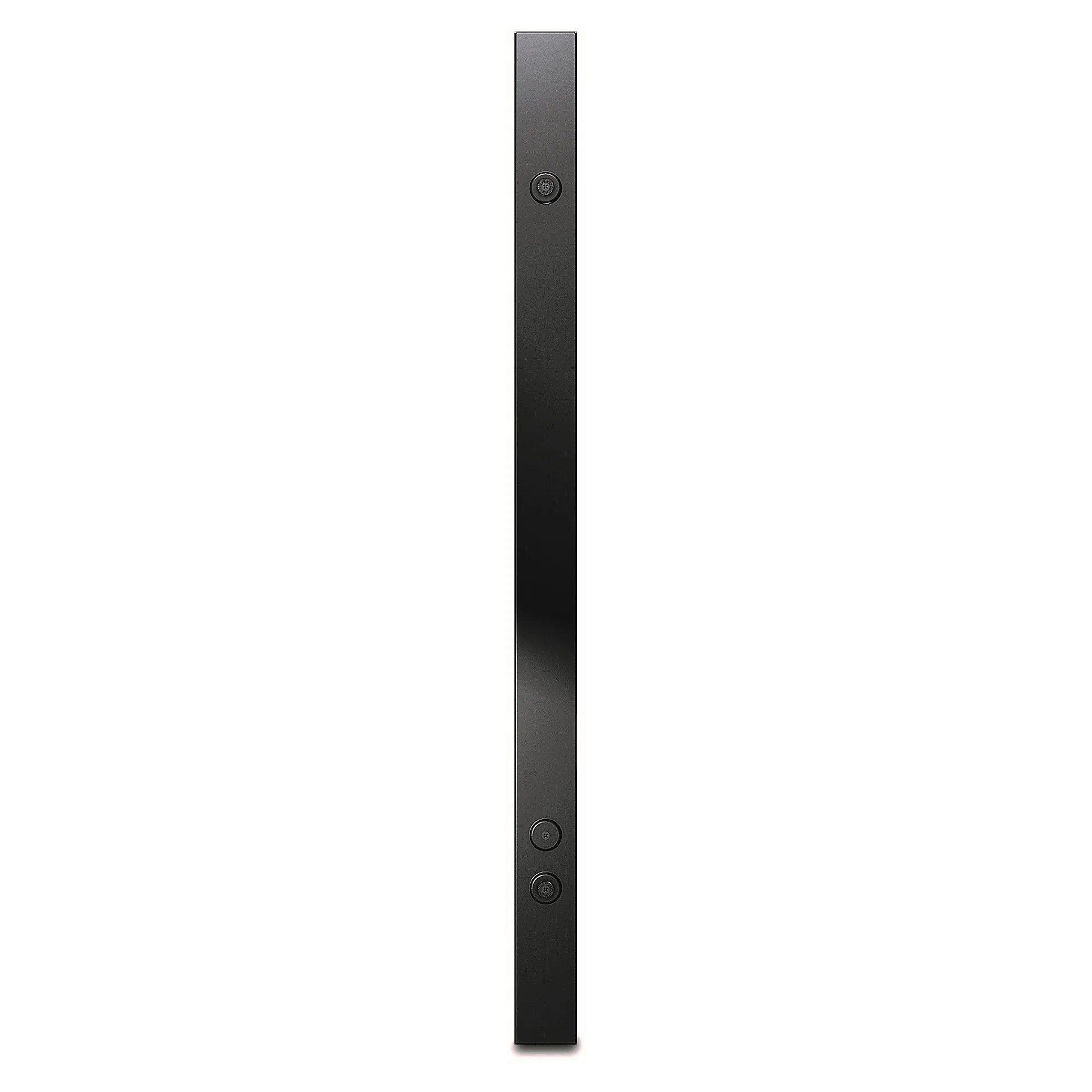

APC AP8858. PDU types: Metered, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 20 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Input connection type: IEC-320 C20. Monitoring: Current, Power, Voltage. Nominal input voltage: 230 V, AC input frequency: 50 – 60 Hz, Load capacity: 3680 VA. Certification: CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH
APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC C20 inlet (no cord provided) while power comes out at 100-230 volts through (18) C13 and (2) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Design
PDU types: Metered
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 20 AC outlet(s)
AC outlet types: C13 coupler, C19 coupler
Input connection type: IEC-320 C20
Output connections: 18x IEC 320 C13 2x IEC 320 C19
Management features
Monitoring: Current, Power, Voltage
Power
Nominal input voltage: 230 V
AC input frequency: 50 – 60 Hz
Load capacity: 3680 VA
Maximum input current per phase: 16 A
Maximum total current draw per phase: 16 A
Maximum power: 3680 W
Certificates
Certification: CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDERoHS, REACH
Operational conditions
Operating temperature (T-T): 5 – 45 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 56 mm
Depth: 44 mm
Height: 902 mm
Weight: 2.93 kg
Packaging data
Package weight: 4.2 kg
Package width: 162 mm
Package depth: 107 mm
Package height: 1124 mm
Logistics data
Total carbon footprint (kg of CO2e): 12787.89
PDU types: Metered
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 20 AC outlet(s)
AC outlet types: C13 coupler, C19 coupler
Input connection type: IEC-320 C20
Output connections: 18x IEC 320 C13 2x IEC 320 C19
Management features
Monitoring: Current, Power, Voltage
Power
Nominal input voltage: 230 V
AC input frequency: 50 – 60 Hz
Load capacity: 3680 VA
Maximum input current per phase: 16 A
Maximum total current draw per phase: 16 A
Maximum power: 3680 W
Certificates
Certification: CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDERoHS, REACH
Operational conditions
Operating temperature (T-T): 5 – 45 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 56 mm
Depth: 44 mm
Height: 902 mm
Weight: 2.93 kg
Packaging data
Package weight: 4.2 kg
Package width: 162 mm
Package depth: 107 mm
Package height: 1124 mm
Logistics data
Total carbon footprint (kg of CO2e): 12787.89
