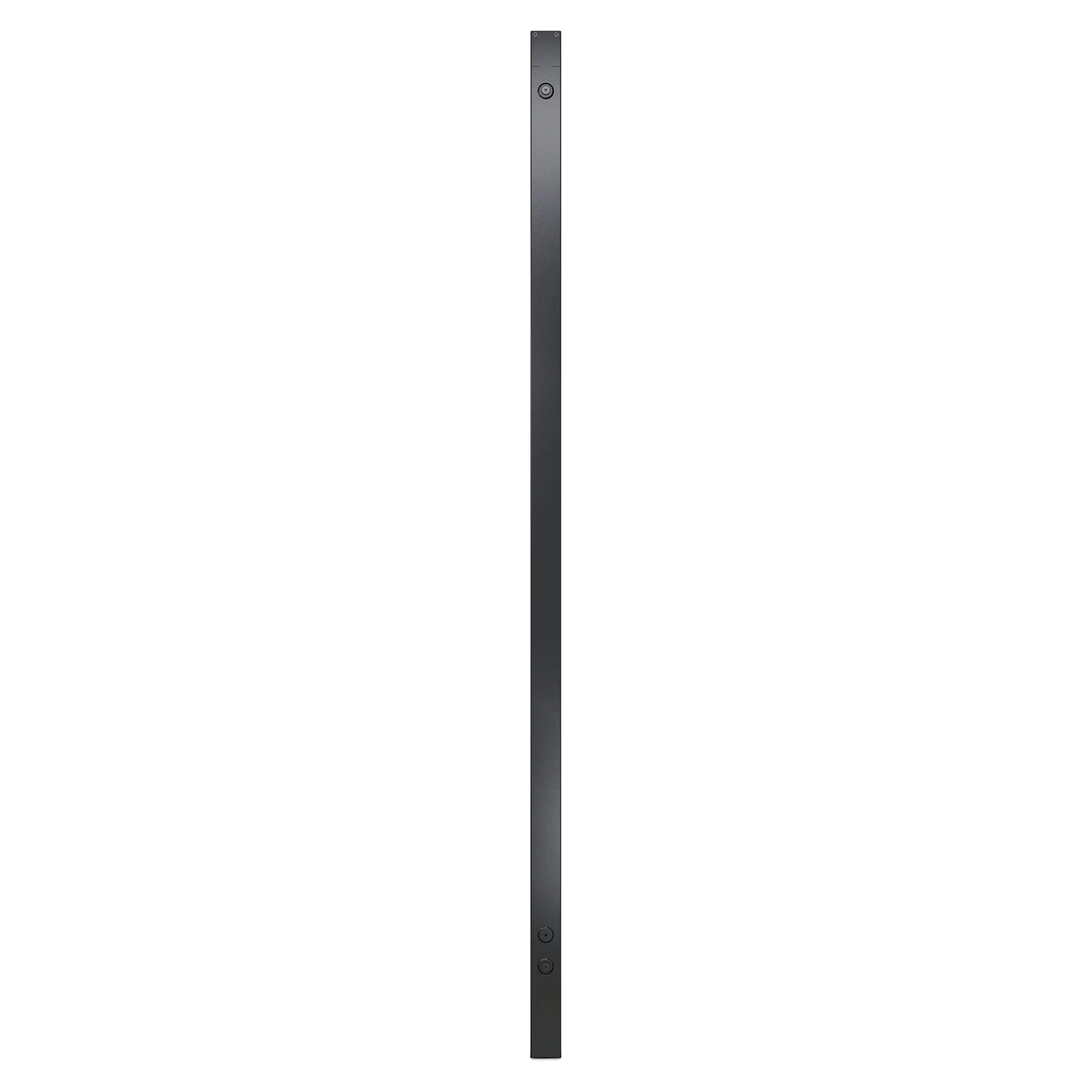

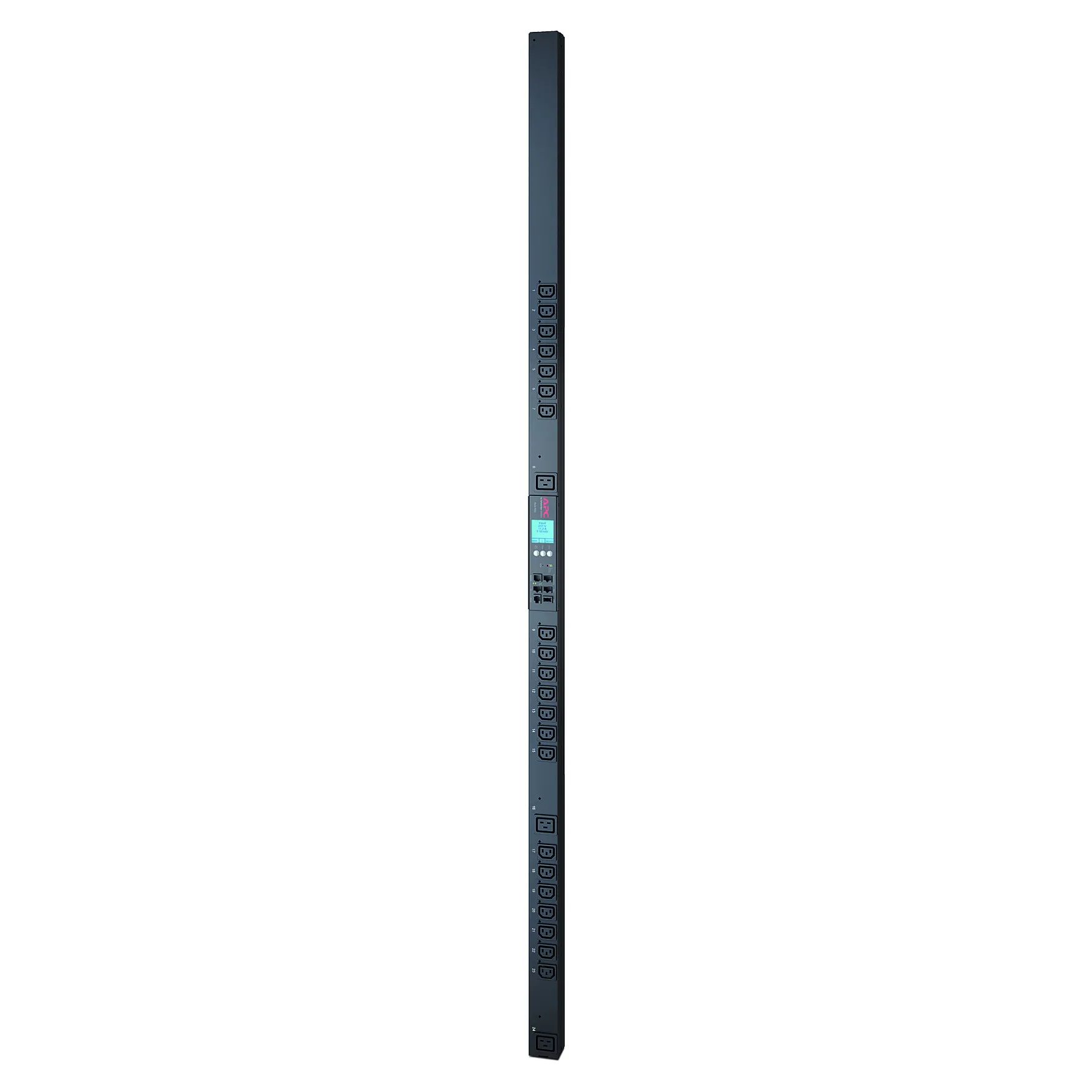

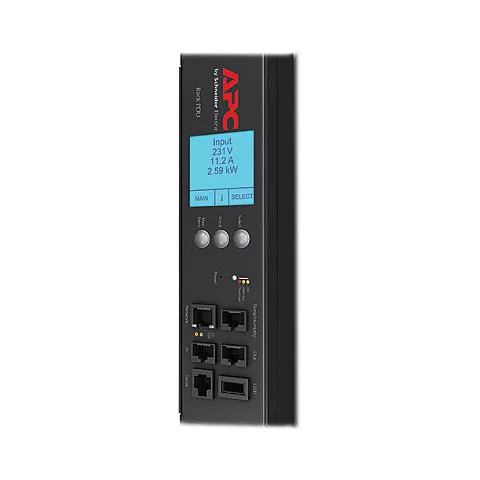

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 20A/208V, 16A/230V, (21) C13 & (3) C19. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler. Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 200-230 V, Maximum current: 16 A, AC input frequency: 50 – 60 Hz. Compliance certificates: RoHS, Certification: EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, VDE
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
Design
PDU types: Metered, Metered-by-outlet, Switched
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 24 AC outlet(s)
AC outlet types: C13 coupler, C19 coupler
Management features
Monitoring: Current, Power, Voltage
Outlet control: Lock-out, Recycle, Turn off, Turn on
Power
Nominal input voltage: 200-230 V
AC input frequency: 50 – 60 Hz
Maximum current: 16 A
Nominal output voltage: 200-230 V
Load capacity: 3680 VA
Maximum input current per phase: 16 A
Maximum total current draw per phase: 16 A
Maximum power: 3680 W
Certificates
Compliance certificates: RoHS
Certification: EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, VDE
Operational conditions
Operating temperature (T-T): -5 – 45 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Weight & dimensions
Width: 56 mm
Depth: 51 mm
Height: 1829 mm
Weight: 6.09 kg
Packaging data
Package weight: 8.36 kg
Package width: 162 mm
Package depth: 117 mm
Package height: 2038 mm
Logistics data
Total carbon footprint (kg of CO2e): 537.26
PDU types: Metered, Metered-by-outlet, Switched
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 24 AC outlet(s)
AC outlet types: C13 coupler, C19 coupler
Management features
Monitoring: Current, Power, Voltage
Outlet control: Lock-out, Recycle, Turn off, Turn on
Power
Nominal input voltage: 200-230 V
AC input frequency: 50 – 60 Hz
Maximum current: 16 A
Nominal output voltage: 200-230 V
Load capacity: 3680 VA
Maximum input current per phase: 16 A
Maximum total current draw per phase: 16 A
Maximum power: 3680 W
Certificates
Compliance certificates: RoHS
Certification: EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, VDE
Operational conditions
Operating temperature (T-T): -5 – 45 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Weight & dimensions
Width: 56 mm
Depth: 51 mm
Height: 1829 mm
Weight: 6.09 kg
Packaging data
Package weight: 8.36 kg
Package width: 162 mm
Package depth: 117 mm
Package height: 2038 mm
Logistics data
Total carbon footprint (kg of CO2e): 537.26
