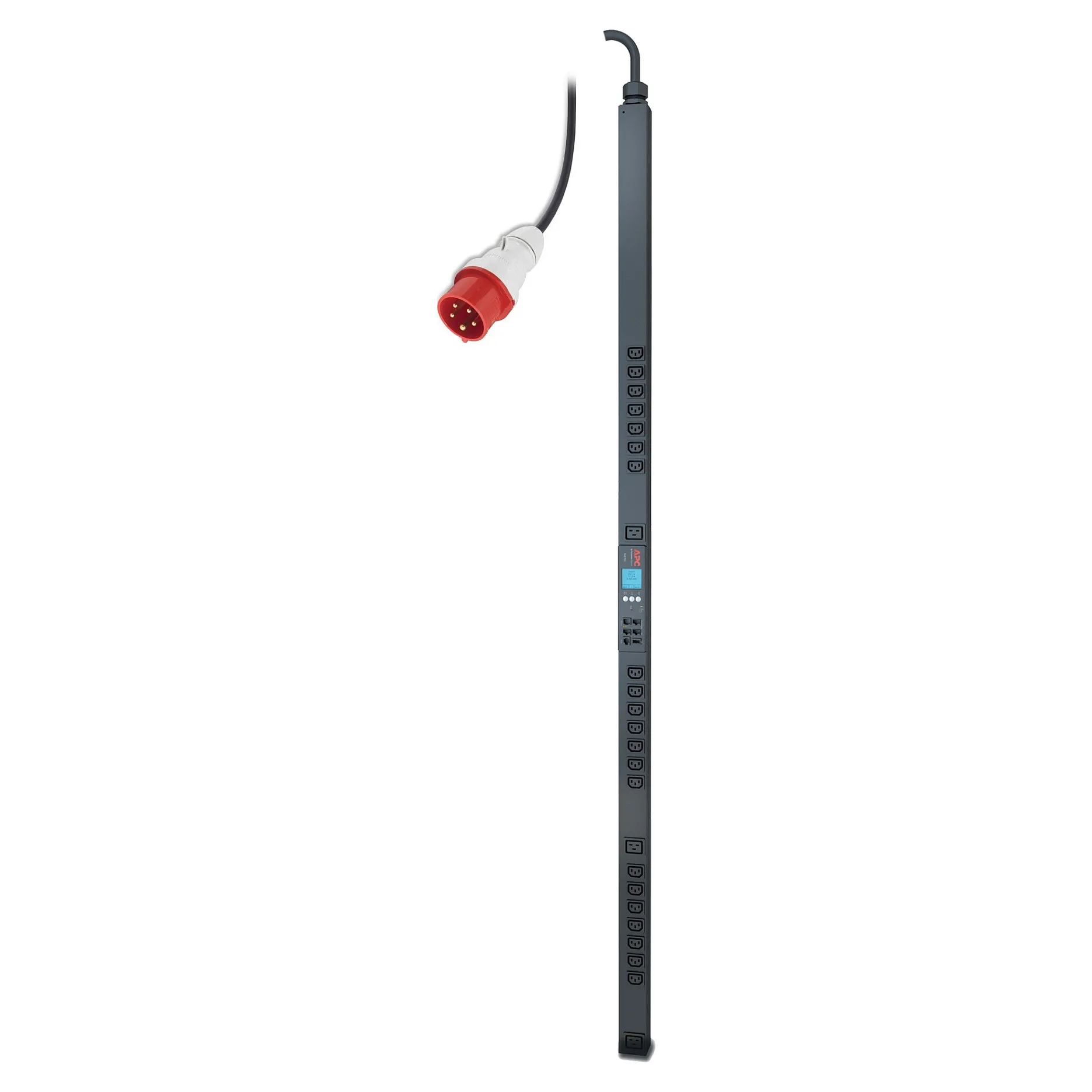

APC Rack PDU 2G, Metered-by-Outlet, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19. PDU types: Metered, Metered-by-outlet, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 1.83 m. Monitoring: Current, Power, Voltage, Management platform: Web, SNMP, Telnet. Nominal input voltage: 400 V, AC input frequency: 50 – 60 Hz, Nominal output voltage: 230 V
APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection Current metering provides real-time remote monitoring of connected loads Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
Design
PDU types: Metered, Metered-by-outlet
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 24 AC outlet(s)

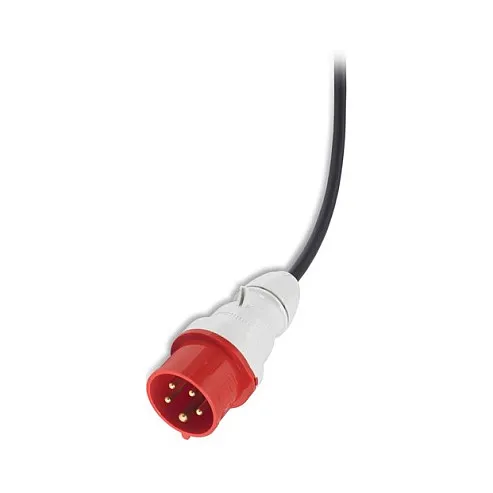

Power plug: IEC309
AC outlet types: C13 coupler, C19 coupler
Input connection type: IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
Output connections: 21 x C13 & 3 x C19
Features
LED indicators: Yes
Cable length: 1.83 m
Management features
Monitoring: Current, Power, Voltage
Management platform: Web, SNMP, Telnet
Power
Nominal input voltage: 400 V
AC input frequency: 50 – 60 Hz
Nominal output voltage: 230 V
Load capacity: 11040 VA
Maximum input current per phase: 16 A
Maximum total current draw per phase: 16 A
Maximum power: 11040 W
Certificates
Compliance certificates: RoHS
Certification: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL, VDE,REACH
Operational conditions
Operating temperature (T-T): -5 – 45 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 15000 m
Weight & dimensions
Width: 56 mm
Depth: 51 mm
Height: 1829 mm
Weight: 8.21 kg
Packaging data
Package weight: 10.5 kg
Package width: 163 mm
Package depth: 117 mm
Package height: 2037 mm
Logistics data
Total carbon footprint (kg of CO2e): 7251.82
PDU types: Metered, Metered-by-outlet
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
Ports & interfaces
AC outlets quantity: 24 AC outlet(s)
Power plug: IEC309
AC outlet types: C13 coupler, C19 coupler
Input connection type: IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
Output connections: 21 x C13 & 3 x C19
Features
LED indicators: Yes
Cable length: 1.83 m
Management features
Monitoring: Current, Power, Voltage
Management platform: Web, SNMP, Telnet
Power
Nominal input voltage: 400 V
AC input frequency: 50 – 60 Hz
Nominal output voltage: 230 V
Load capacity: 11040 VA
Maximum input current per phase: 16 A
Maximum total current draw per phase: 16 A
Maximum power: 11040 W
Certificates
Compliance certificates: RoHS
Certification: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL, VDE,REACH
Operational conditions
Operating temperature (T-T): -5 – 45 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 15000 m
Weight & dimensions
Width: 56 mm
Depth: 51 mm
Height: 1829 mm
Weight: 8.21 kg
Packaging data
Package weight: 10.5 kg
Package width: 163 mm
Package depth: 117 mm
Package height: 2037 mm
Logistics data
Total carbon footprint (kg of CO2e): 7251.82
