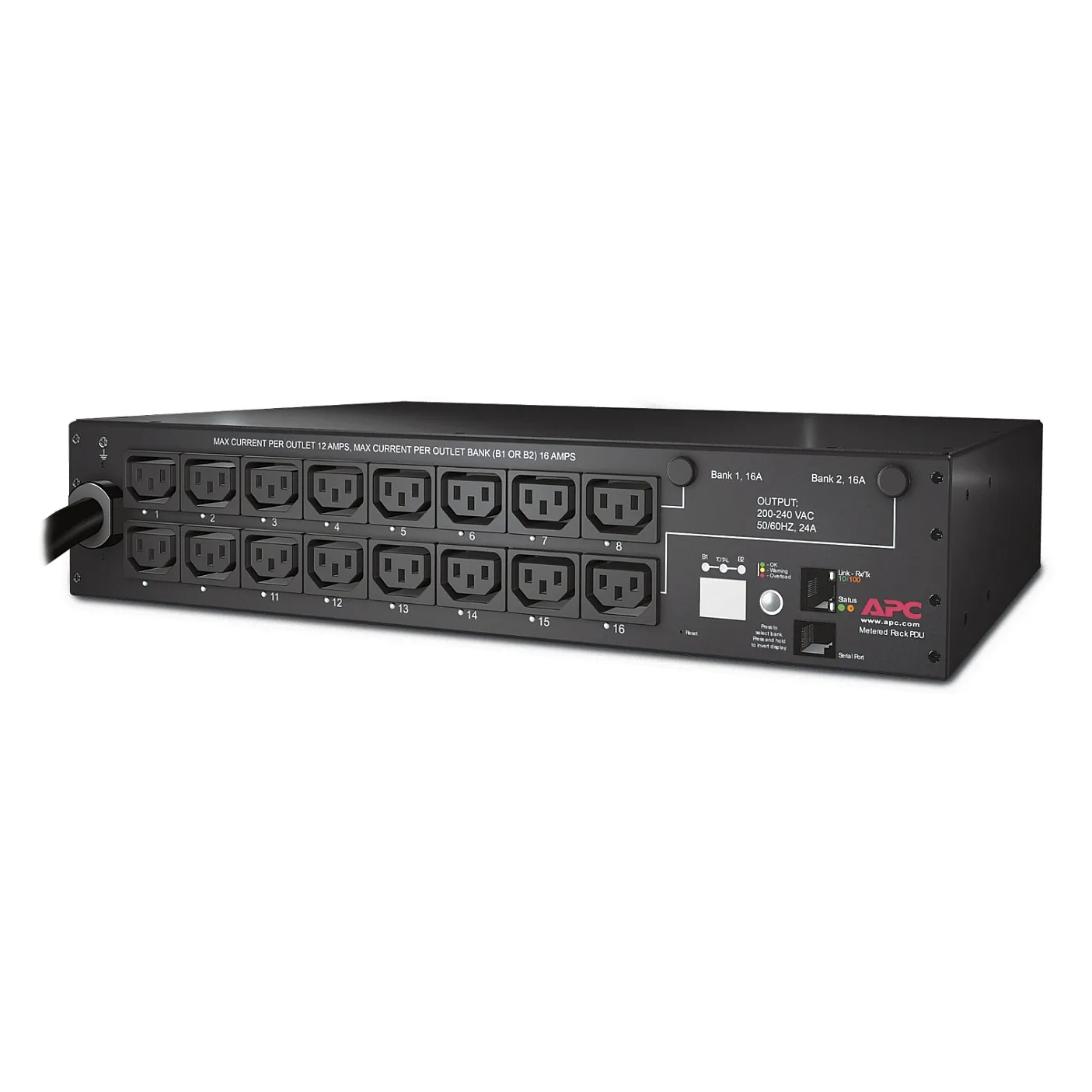

APC Rack PDU, Switched, 2U, 30A, 208V, (16)C13. PDU types: Switched, Rack capacity: 2U, Product colour: Black. AC outlets quantity: 16 AC outlet(s), AC outlet types: C13 coupler, Input connection type: NEMA L6-30P. Cable length: 3.65 m. Monitoring: Current, Outlet control: Recycle, Turn off. Nominal input voltage: 200; 208; 230 V, Maximum current: 30 A, AC input frequency: 50 – 60 Hz
It is a switched rack PDU with a maximum current capacity of 30A and an input voltage of 208V. It includes 16 IEC C13 outlets and a NEMA L6-30P input connection. The PDU has a 2U form factor and a cord length of 12 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.
Design
PDU types: Switched
Rack capacity: 2U
Product colour: Black
Ports & interfaces
AC outlets quantity: 16 AC outlet(s)
AC outlet types: C13 coupler
Input connection type: NEMA L6-30P
Features
LED indicators: Yes
Cable length: 3.65 m
Management features
Monitoring: Current
Outlet control: Recycle, Turn off
Power
Nominal input voltage: 200; 208; 230 V
AC input frequency: 50 – 60 Hz
Maximum current: 30 A
Output voltage: 208 V
Maximum input current per phase: 30 A
Maximum total current draw per phase: 30 A
Certificates
Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: RoHS, REACH, WEEE
Certification: cUL listed; CSA; Industry Canada; PSE; UL listed
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Weight & dimensions
Width: 445 mm
Depth: 254 mm
Height: 89 mm
Weight: 6.32 kg
Packaging data
Package weight: 8.36 kg
Package width: 514 mm
Package depth: 514 mm
Package height: 146 mm
Technical details
Packaging recycled materials: Recycled cardboard
SCIP number: 1cdb2fed-a06f-4574-913d-8df8e70936b2
Feature: Removable battery
Preferred mounting position: no preference
Logistics data
Country of origin: India
Customs product code (TARIC): 8537109899
Total carbon footprint (kg of CO2e): 2004.7916791594
PDU types: Switched
Rack capacity: 2U
Product colour: Black
Ports & interfaces
AC outlets quantity: 16 AC outlet(s)
AC outlet types: C13 coupler
Input connection type: NEMA L6-30P
Features
LED indicators: Yes
Cable length: 3.65 m
Management features
Monitoring: Current
Outlet control: Recycle, Turn off
Power
Nominal input voltage: 200; 208; 230 V
AC input frequency: 50 – 60 Hz
Maximum current: 30 A
Output voltage: 208 V
Maximum input current per phase: 30 A
Maximum total current draw per phase: 30 A
Certificates
Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: RoHS, REACH, WEEE
Certification: cUL listed; CSA; Industry Canada; PSE; UL listed
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -25 – 65 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Weight & dimensions
Width: 445 mm
Depth: 254 mm
Height: 89 mm
Weight: 6.32 kg
Packaging data
Package weight: 8.36 kg
Package width: 514 mm
Package depth: 514 mm
Package height: 146 mm
Technical details
Packaging recycled materials: Recycled cardboard
SCIP number: 1cdb2fed-a06f-4574-913d-8df8e70936b2
Feature: Removable battery
Preferred mounting position: no preference
Logistics data
Country of origin: India
Customs product code (TARIC): 8537109899
Total carbon footprint (kg of CO2e): 2004.7916791594
